M Ceiling Mount Pro MBC4X1U2 VESA 600
Options
Variants that match your options:
In stock: 42
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733514
Product overview

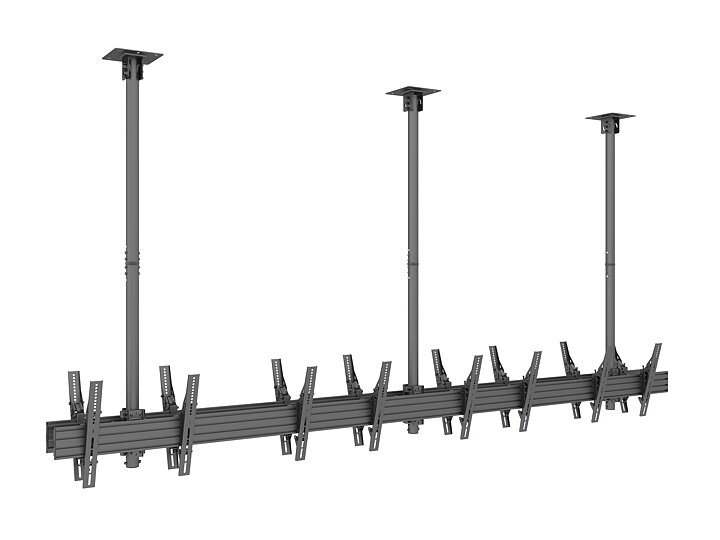

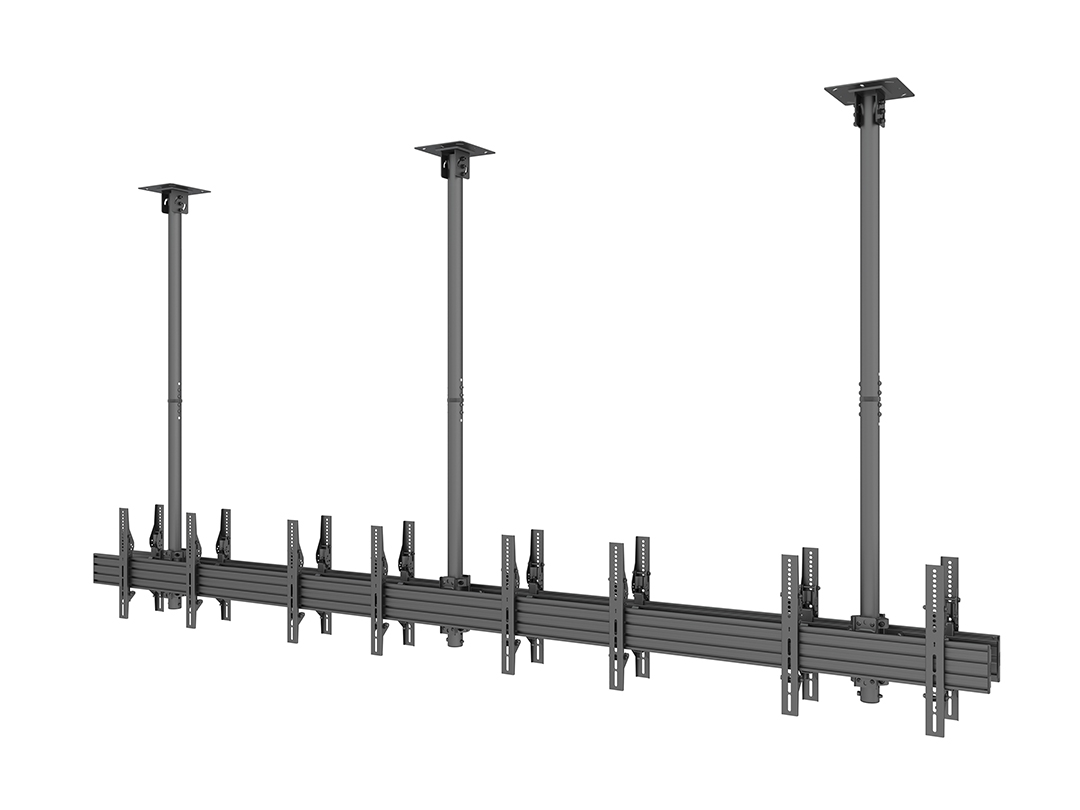

The Multibrackets M Ceiling Mount Pro MBC4X1U2 VESA 600 is a heavy-duty, dual-side ceiling mount designed for professional digital signage installations. Supporting up to eight displays, this mount combines modular flexibility with quick installation and a sleek Scandinavian design—ideal for high-traffic environments like airports, shopping malls, and control rooms.
As part of the Pro Series, it is based on an ultra-strong aluminum rail system with integrated cable management and tilt functionality. The system is fully modular, allowing installers to easily adapt, upgrade, or reconfigure the mount over time.
Highlights
- Supports 8 screens (4 per side)
- VESA compatible up to 600x400
- Max screen size: 65", max load: 30kg per screen
- Dual-side configuration with tilt function
- Modular design for future upgrades

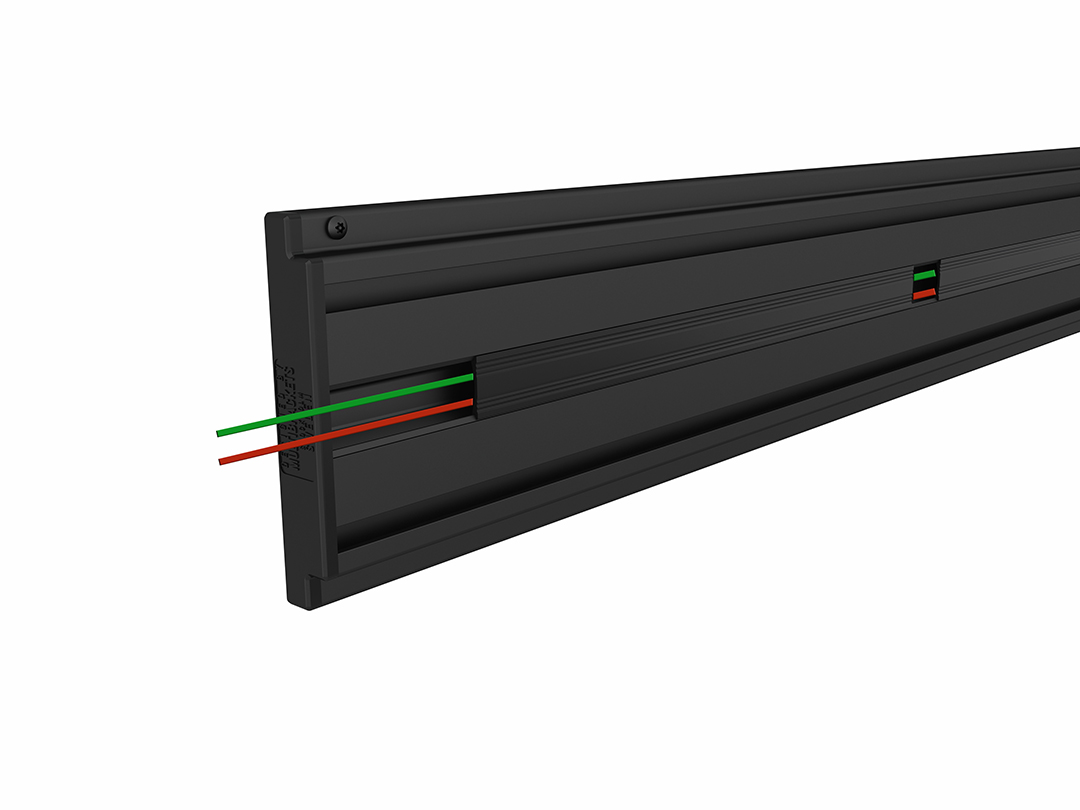

- Integrated cable management for clean installations
- Quick and secure Power Click installation
- Portrait or landscape orientation support

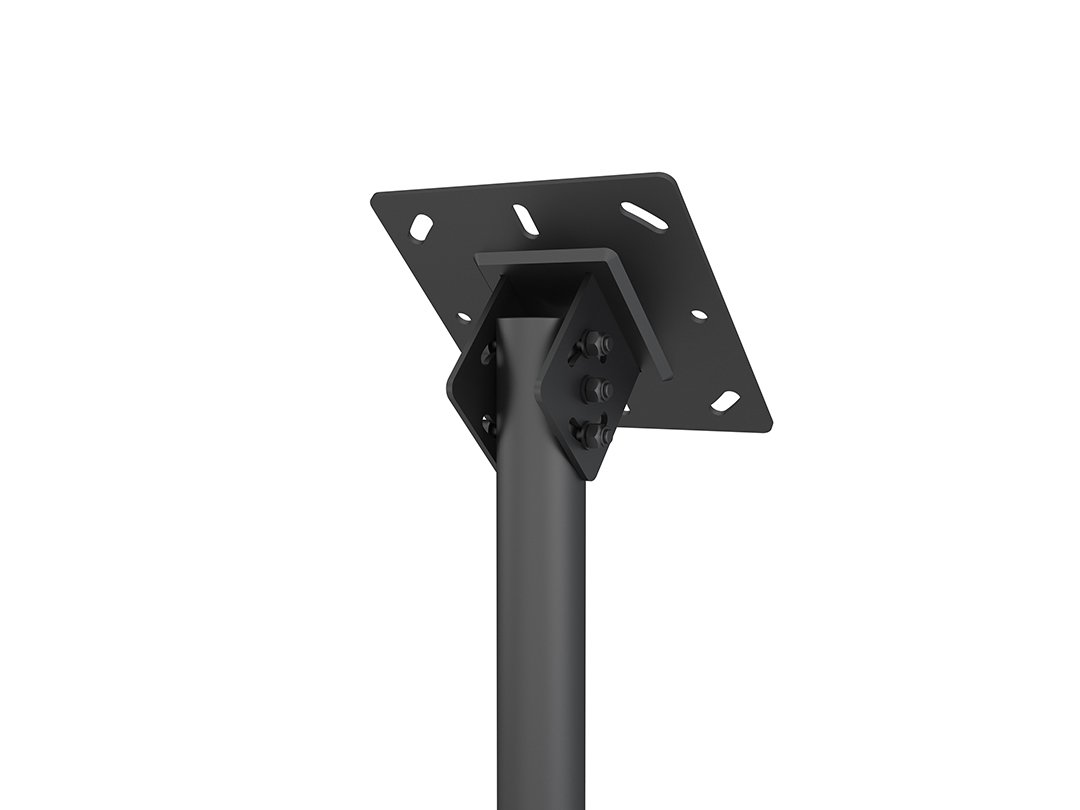

- Ceiling plate and complete hardware kit included
- Ideal for digital signage in public and commercial spaces
- 5-year warranty
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC4X1U2 VESA 600 | |
| Article No: | 7 350 073 733 514 |
| For screen size: | 40”-65" |
| Type: | Dual Side MBC4X1U2 |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 52 kg |
| Measurements | 530x338x20 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: Up to 3m |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TUV |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 128 x 28 x 33 cm |
| Package Weight: | 54.50 kg |
