M Ceiling Mount Pro MBC4X4U VESA 600 Adjustable
Options
Variants that match your options:
In stock: 29
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073737864
Product overview

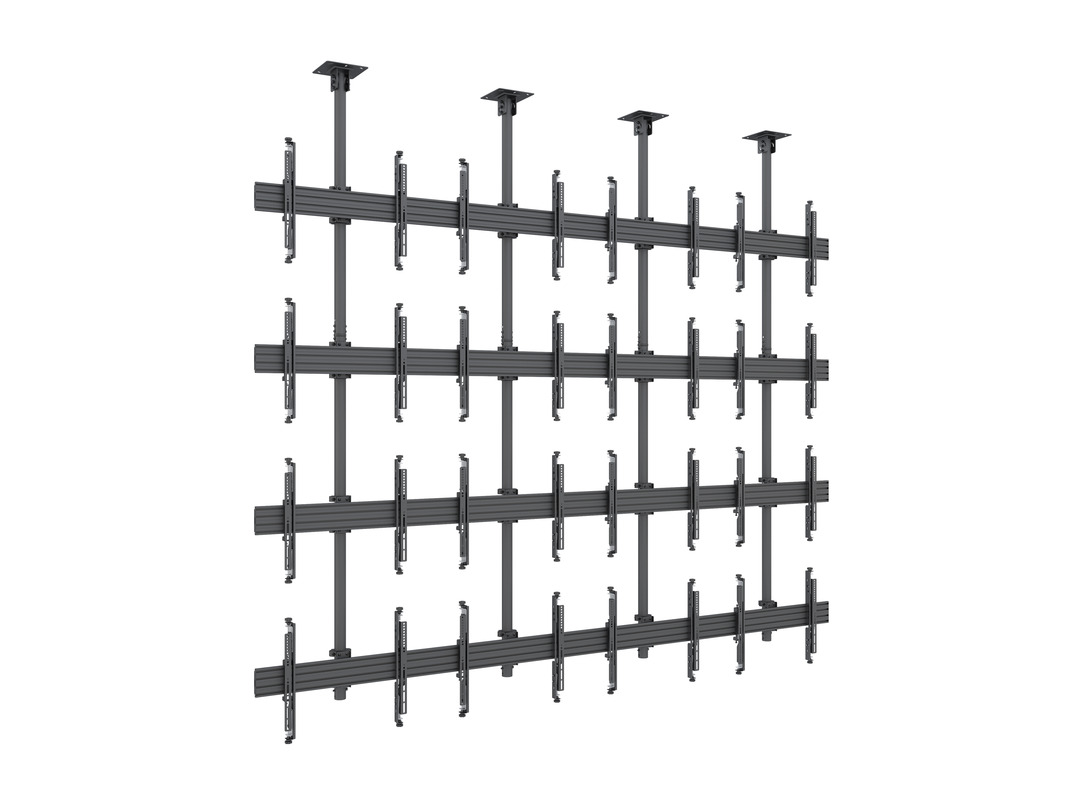

The Multibrackets M Ceiling Mount Pro MBC4X4U VESA 600 Adjustable is a professional-grade ceiling mount designed for large-scale digital signage setups. With support for up to 16 screens in a single-side 4x4 configuration, this solution is ideal for control rooms, retail video walls, command centers, and public information areas where precision alignment and scalability are key.
As part of the Multibrackets Pro Series, this mount is built on a high-strength aluminum rail system featuring full cable management and modular flexibility. The MBC4X4U Adjustable includes micro-adjustable arms that allow for millimeter-precise alignment between displays—perfect for creating seamless video wall installations.
With Scandinavian design principles at its core, this ceiling mount combines minimalist aesthetics with high-end functionality. The modular system allows easy reconfiguration over time, while the included ceiling plate and hardware kit ensure quick, secure installation in any commercial environment.
Highlights

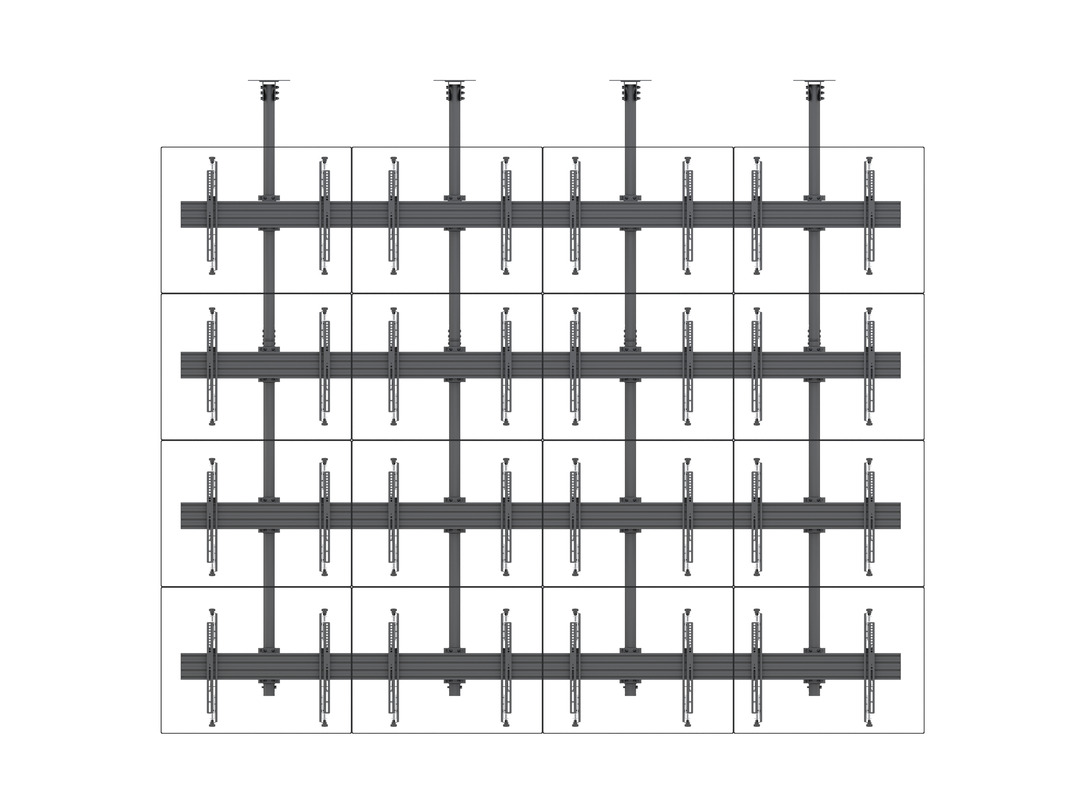

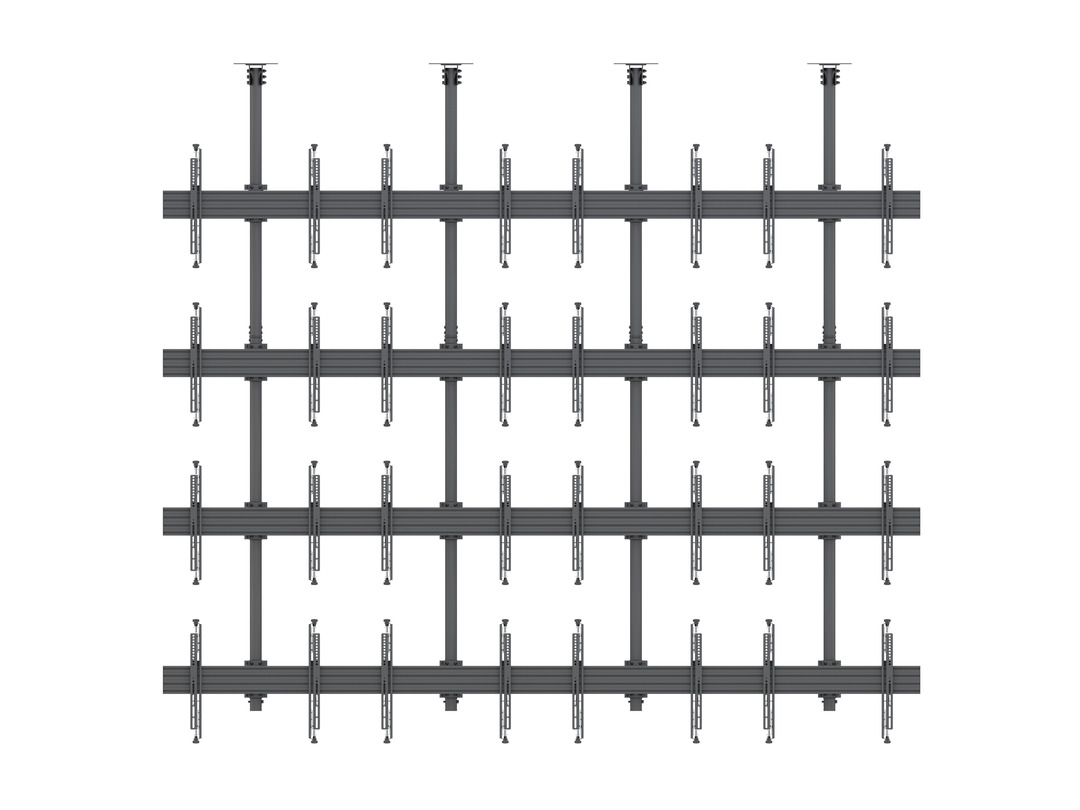

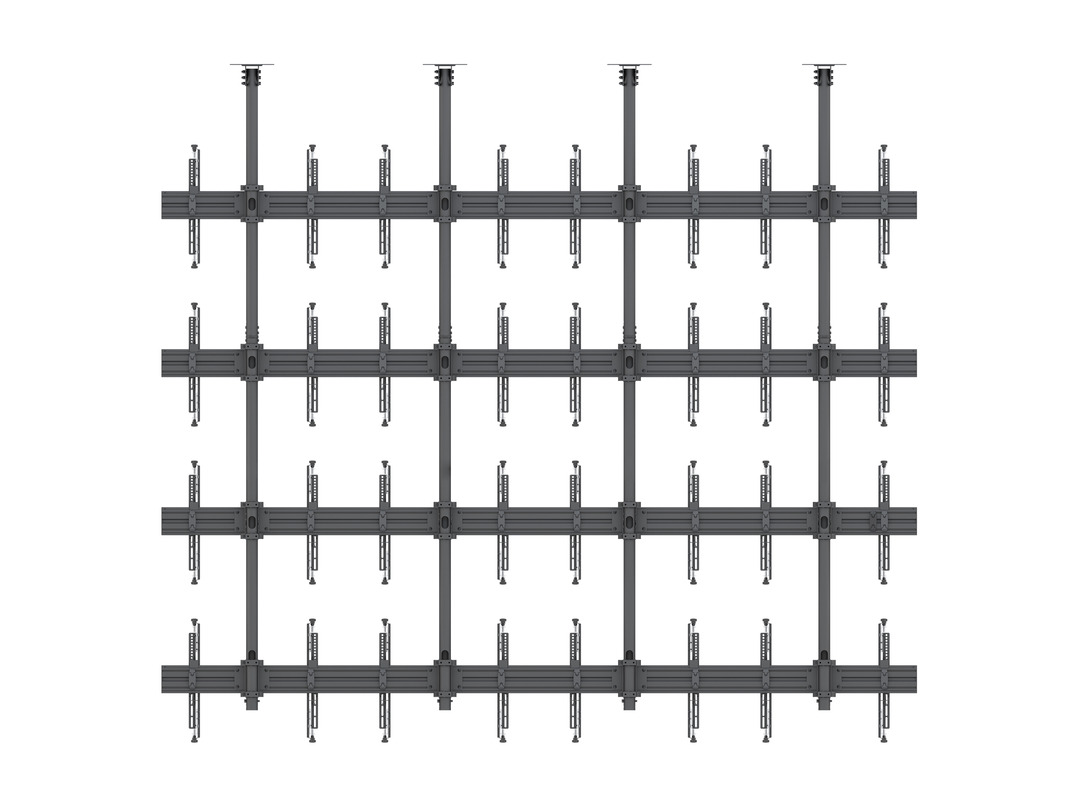

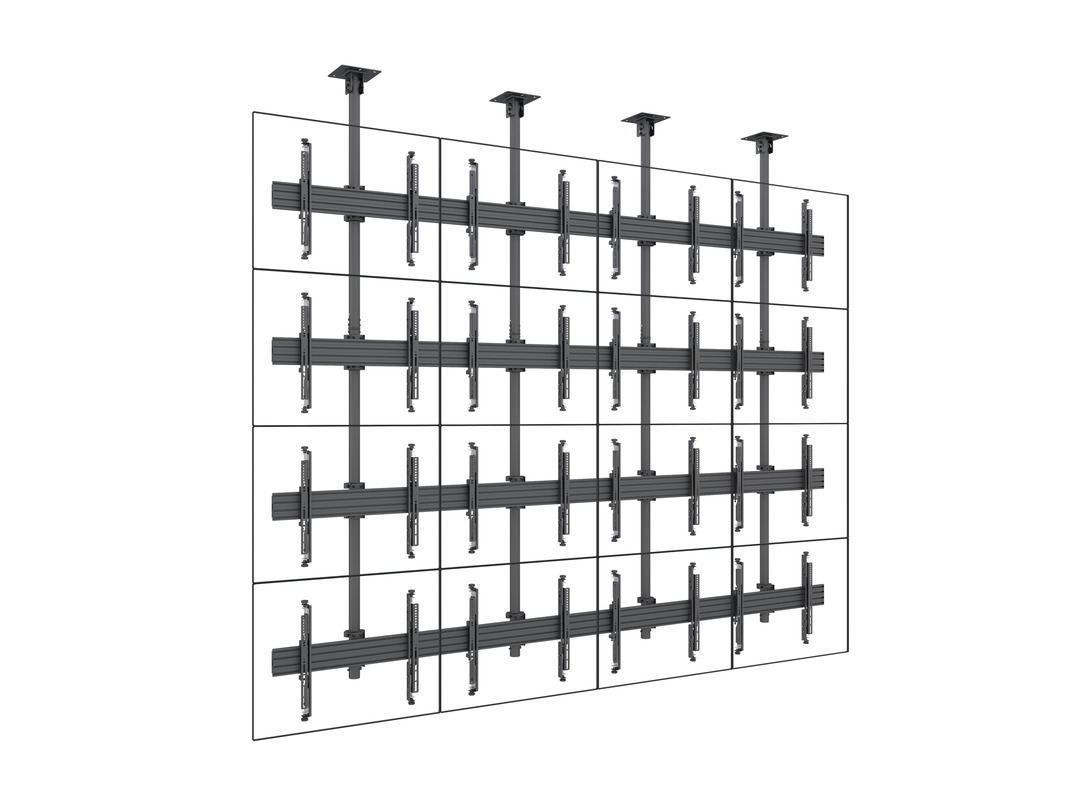

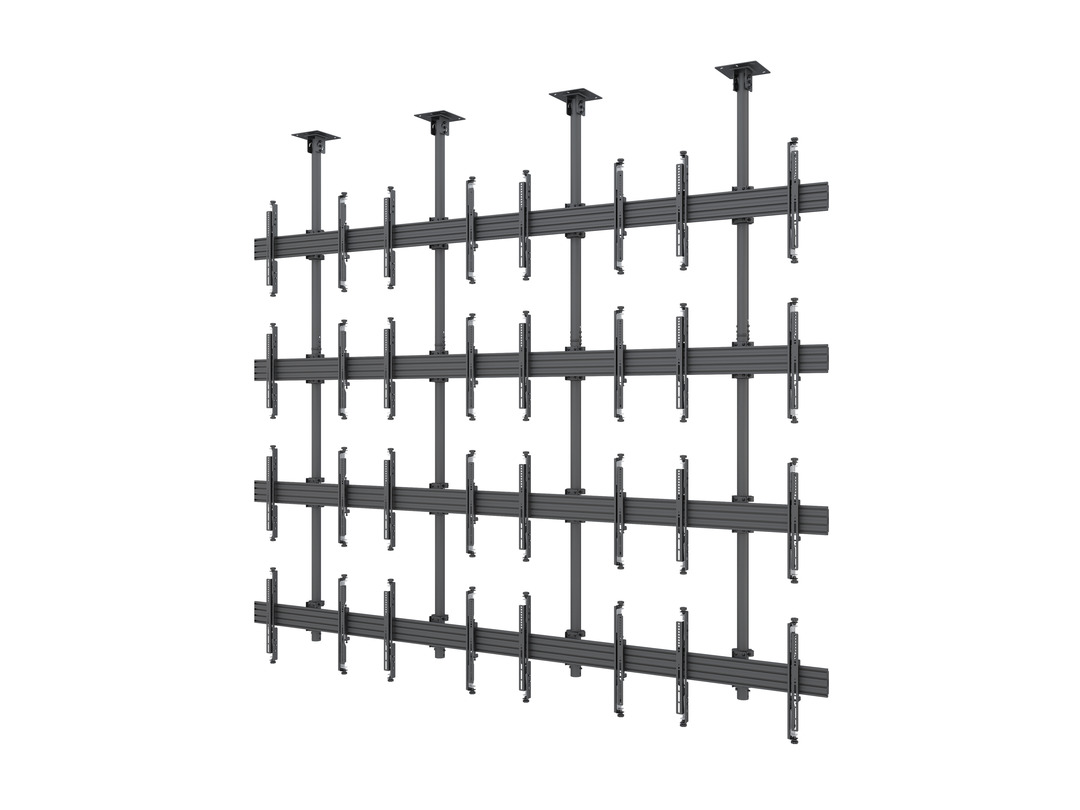

- Supports 16 displays in a single-side 4x4 video wall setup
- Micro-adjustable arms for perfect screen alignment
- VESA compatibility up to 600x400
- Max screen size: 65”, max load: 30kg per screen
- Modular aluminum rail system for scalable installations
- Full cable management integration
- Portrait or landscape screen orientation
- Fast, secure Power Click installation system

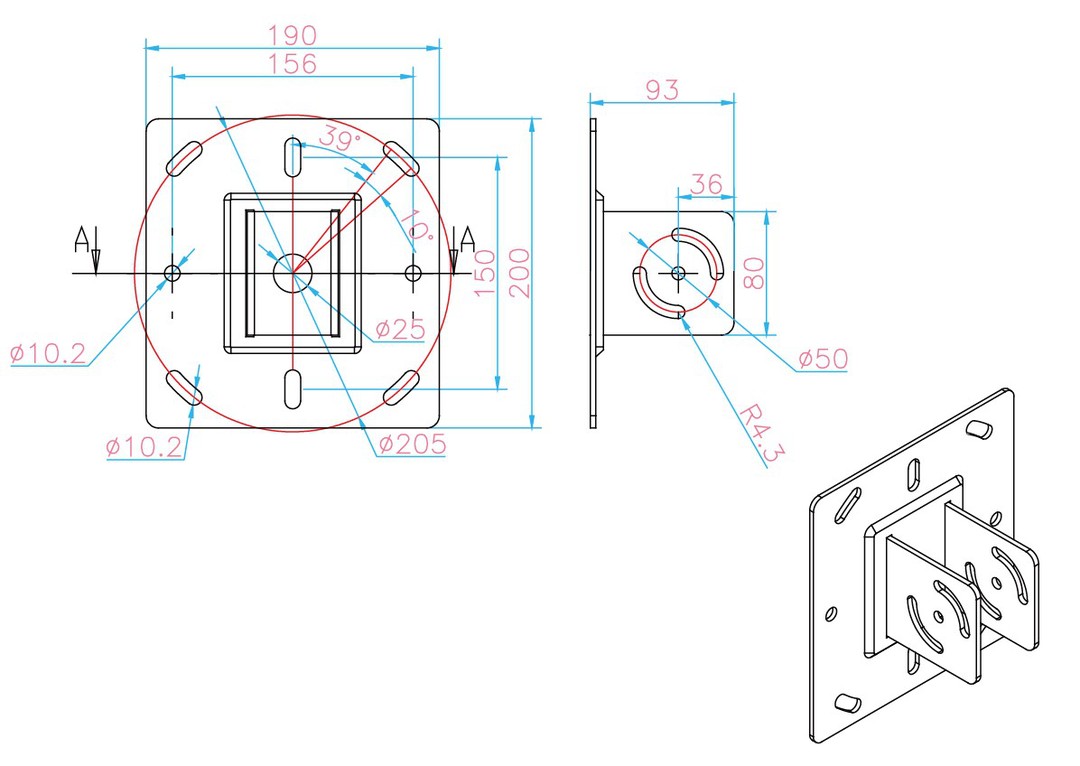

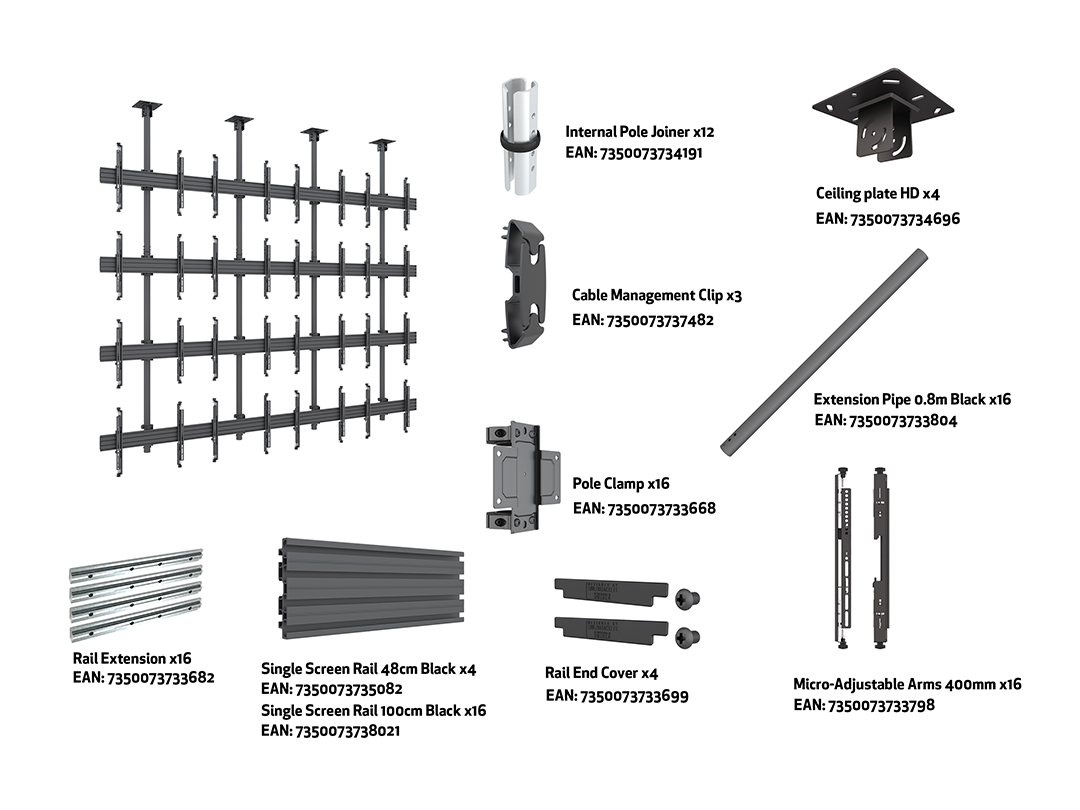

- Ceiling plate and hardware kit included
- Ideal for retail walls, control rooms, and digital signage
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC4X4U VESA 600 Adjustable | |
| Article No: | 7 350 073 737 864 |
| For screen size: | 32"-65" |
| Type: | Single Side MBC4X4U |
| Universal & VESA standard: | 100x100,200x100, 200x200,200x400,400x200,400x400,600x400 |
| Material: | Steel, Plastic, Aluminum |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 135 kg |

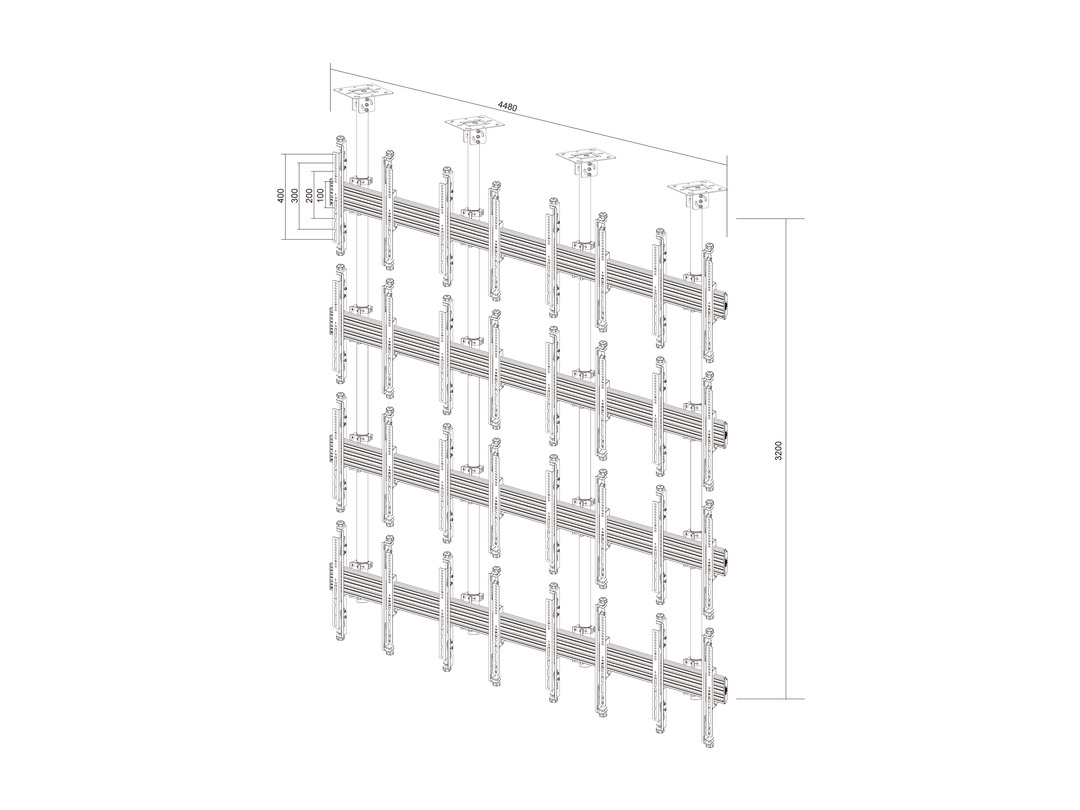

| Measurements | 448x320x20 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Extension pipes: 3m (800mm*16pcs) included |

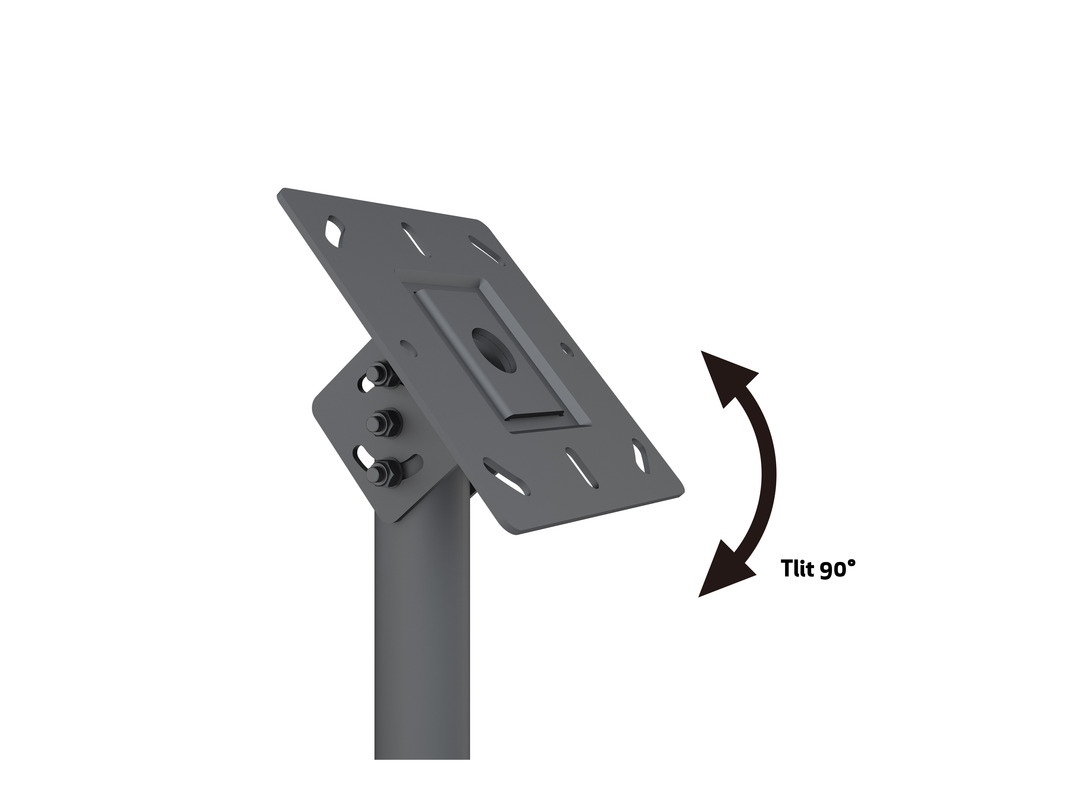

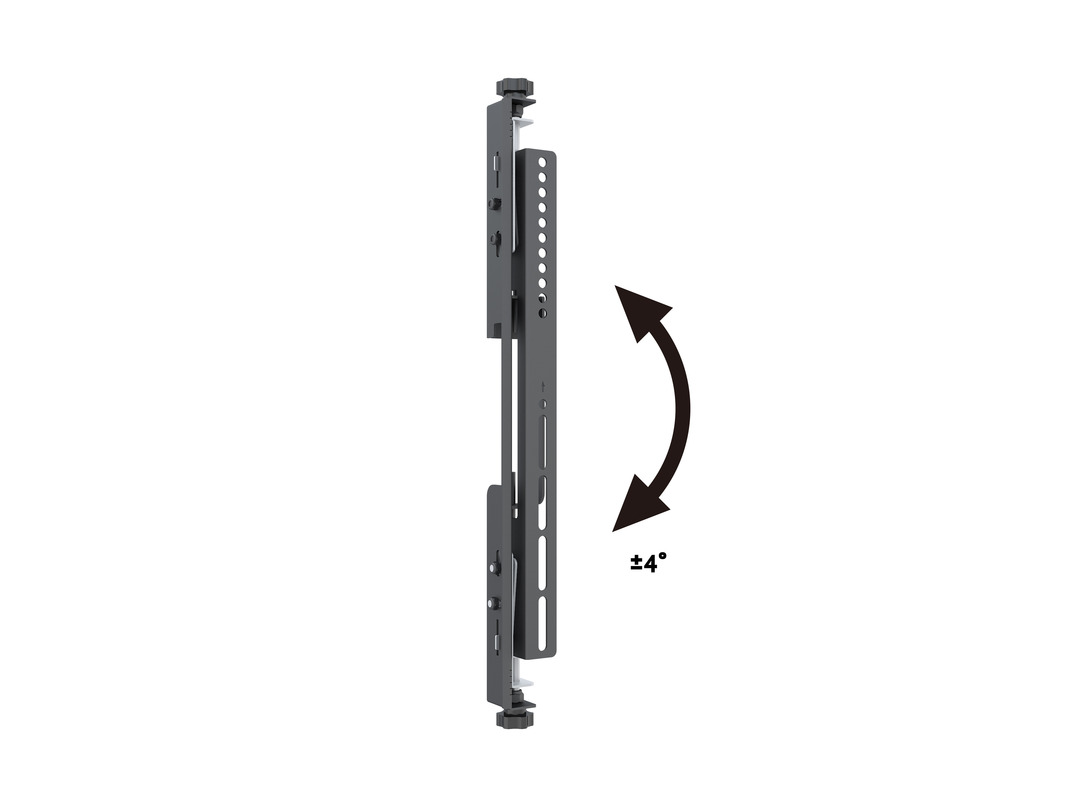

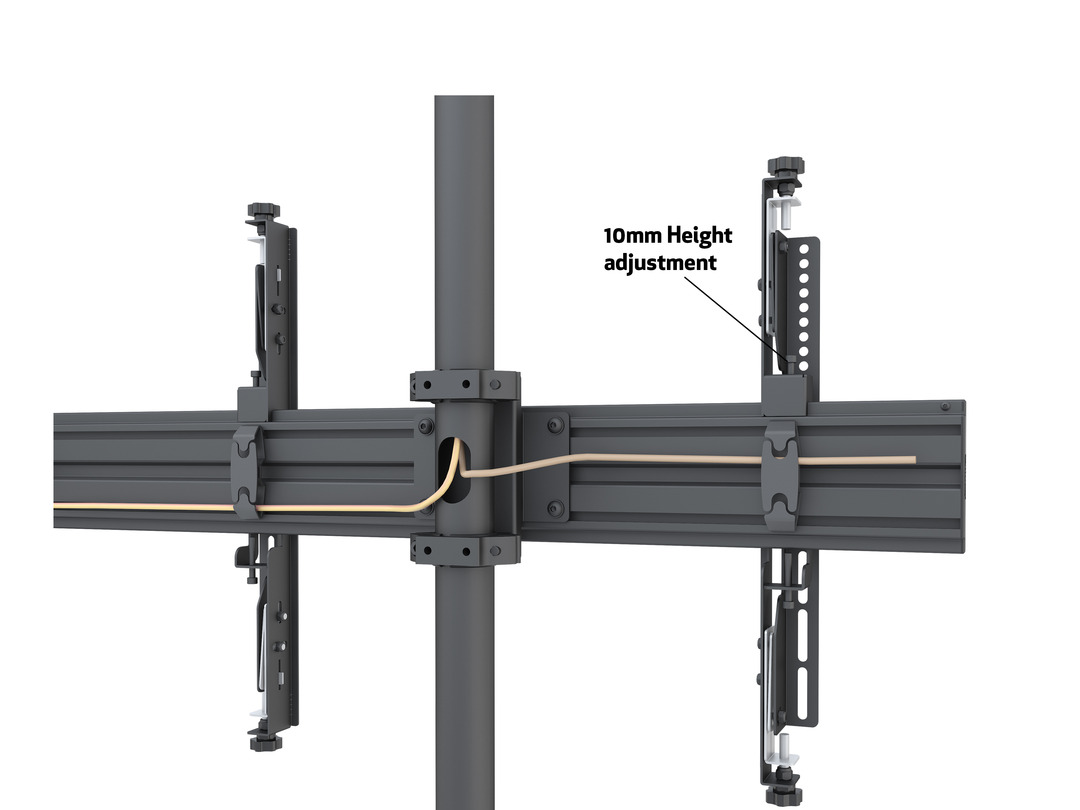

| Tilt/Adjustment: | Yes, ±4° ( 10mm height adjustable) |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m |
| Certifications: | CE, TÜV |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 5 pcs Parcel 1: 58.7x24.2x25.8cm 22kg Parcel 2: 81.5x22.0x22.6cm 24kg Parcel 3: 107.5x20.6x25.8cm 21.5kg Parcel 4: 41.6x41.0x32.8cm 17.2kg Parcel 5: 40.0x40.0x15.0cm 30.5kg |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 115.20 kg |
