M Ceiling Mount Pro MBC5X1UP+ VESA 200
Options
Variants that match your options:
In stock: 163
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022739185
M Ceiling mount Pro MBC5X1UP+ VESA 200 - Ceiling mount for LCD display, steel, single side, 5 displays in portait with tilt arms, VESA Max 200x200 - screen size: 27"-43" - black
Product overview

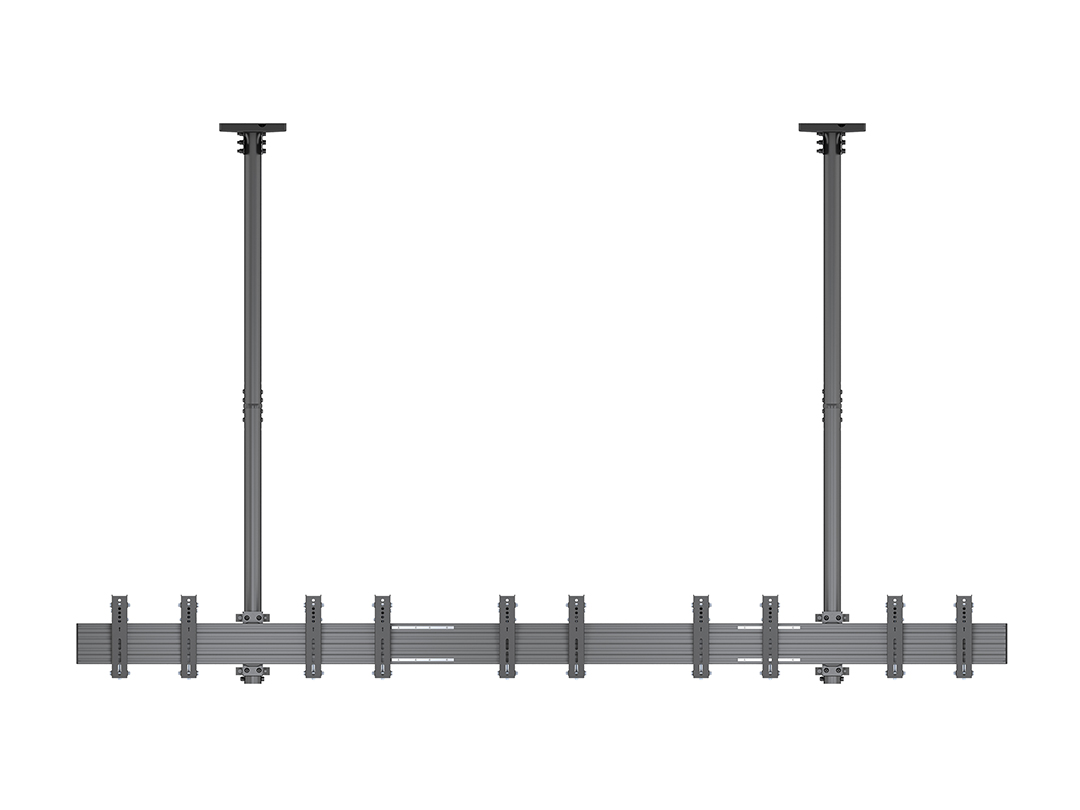

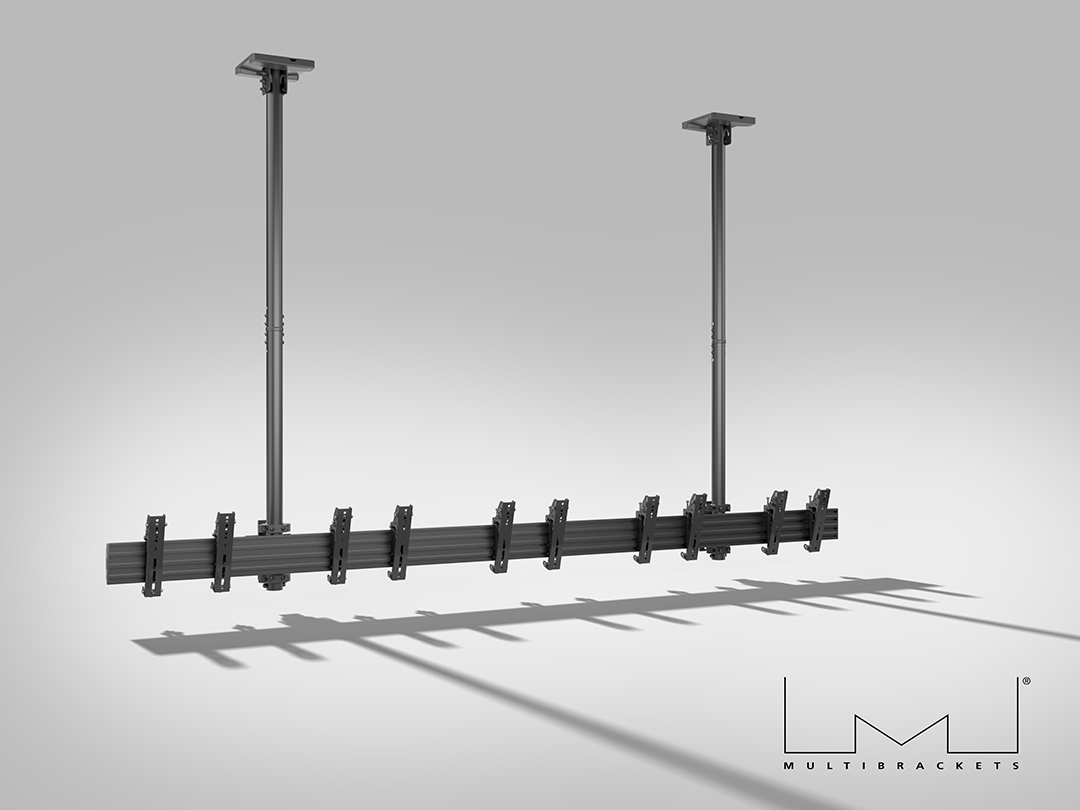

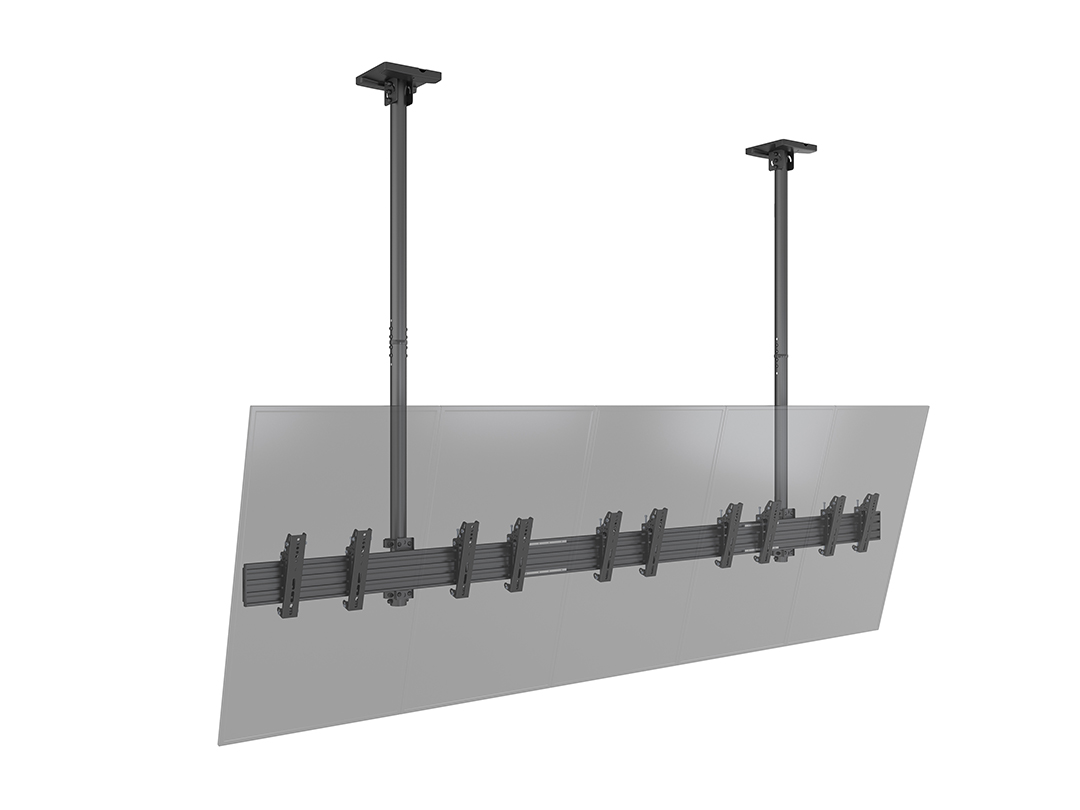

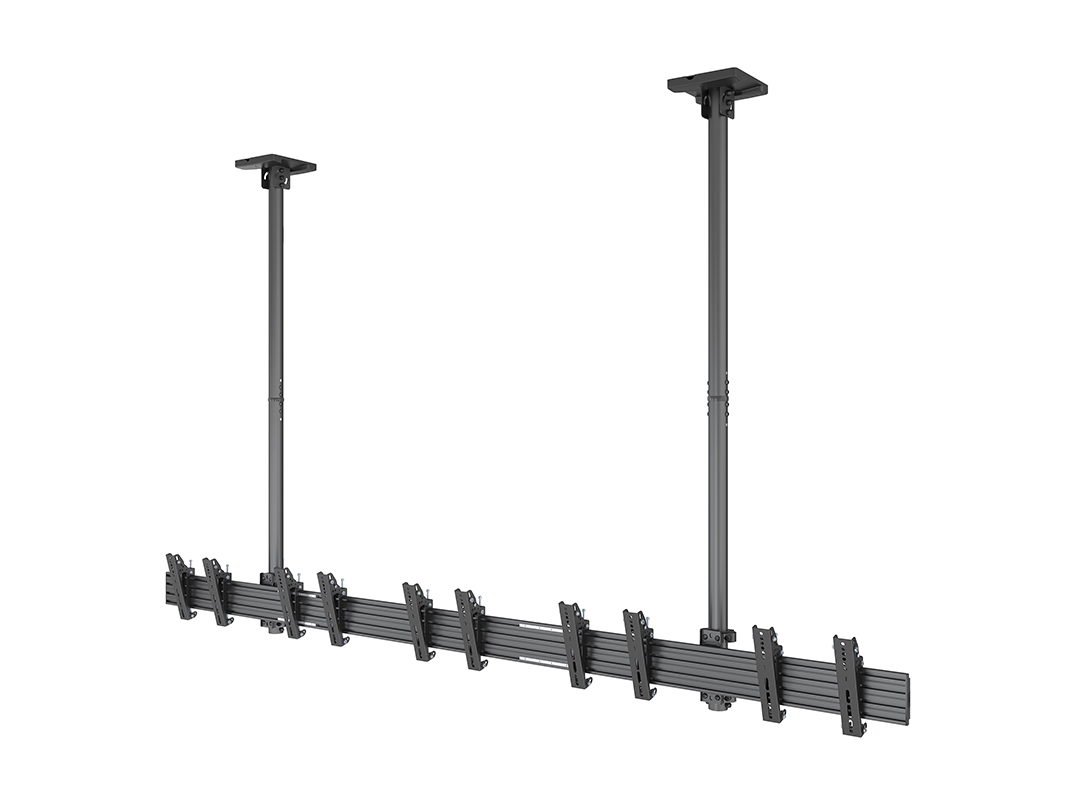

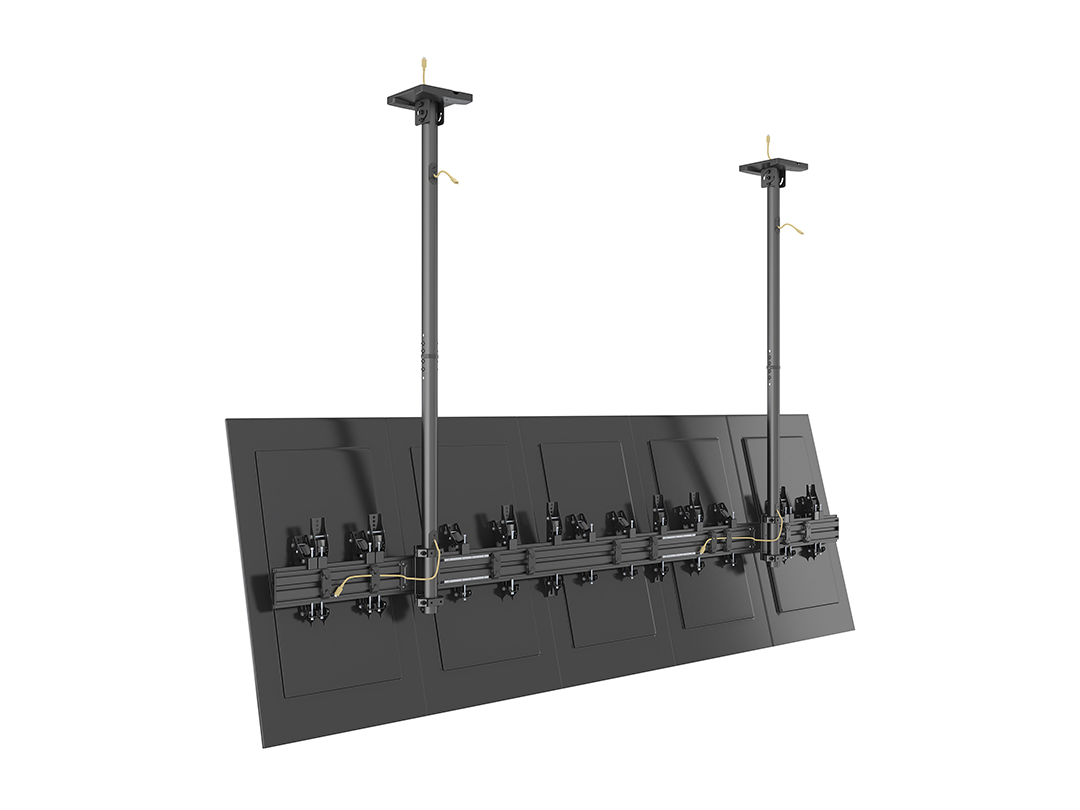

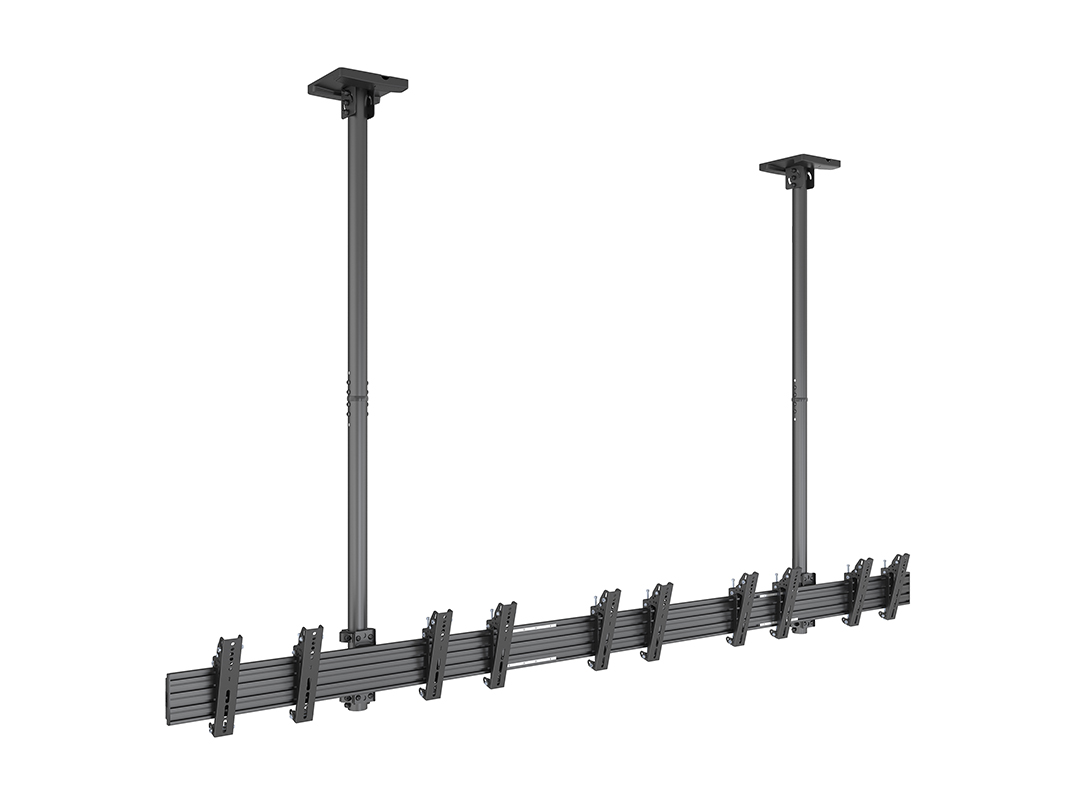

The Multibrackets M Ceiling Mount Pro MBC5X1UP+ VESA 200 is a professional-grade ceiling mount for five portrait-oriented displays, designed for high-visibility environments such as menu boards, digital signage, and information displays.

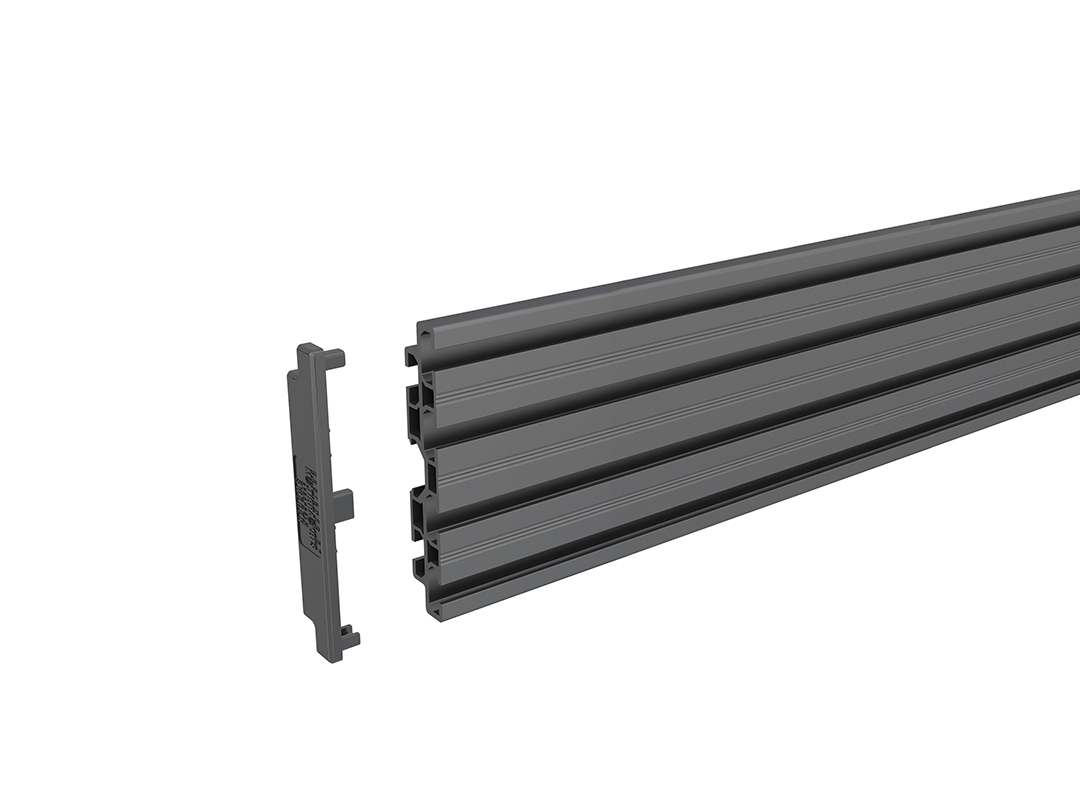

Supporting five screens sized 27"–43" in a single-side portrait layout, this solution ensures perfect alignment using tilt arms across a robust aluminum rail system. Integrated cable management keeps the setup neat and installation fast. Fully modular, it allows for reconfiguration and expansion as needs change.
The clean Scandinavian design and high-performance build make it a reliable choice for retail, transportation, and corporate signage.
Highlights
-

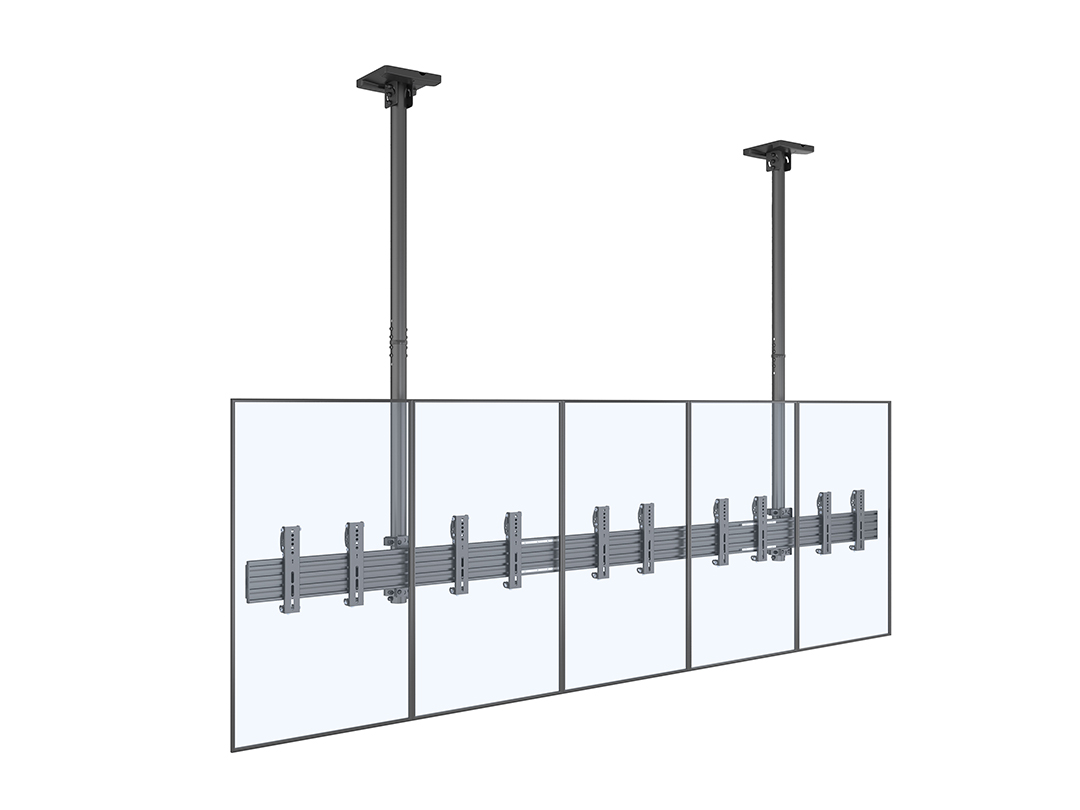

5 portrait-oriented displays side by side (27"–43")
-
VESA support up to 200x200
-
Synchronized tilt arms for accurate alignment
-
Integrated cable management throughout the system
-
Power Click system for safe, tool-free installation
-
Fully modular and customizable with accessories
-

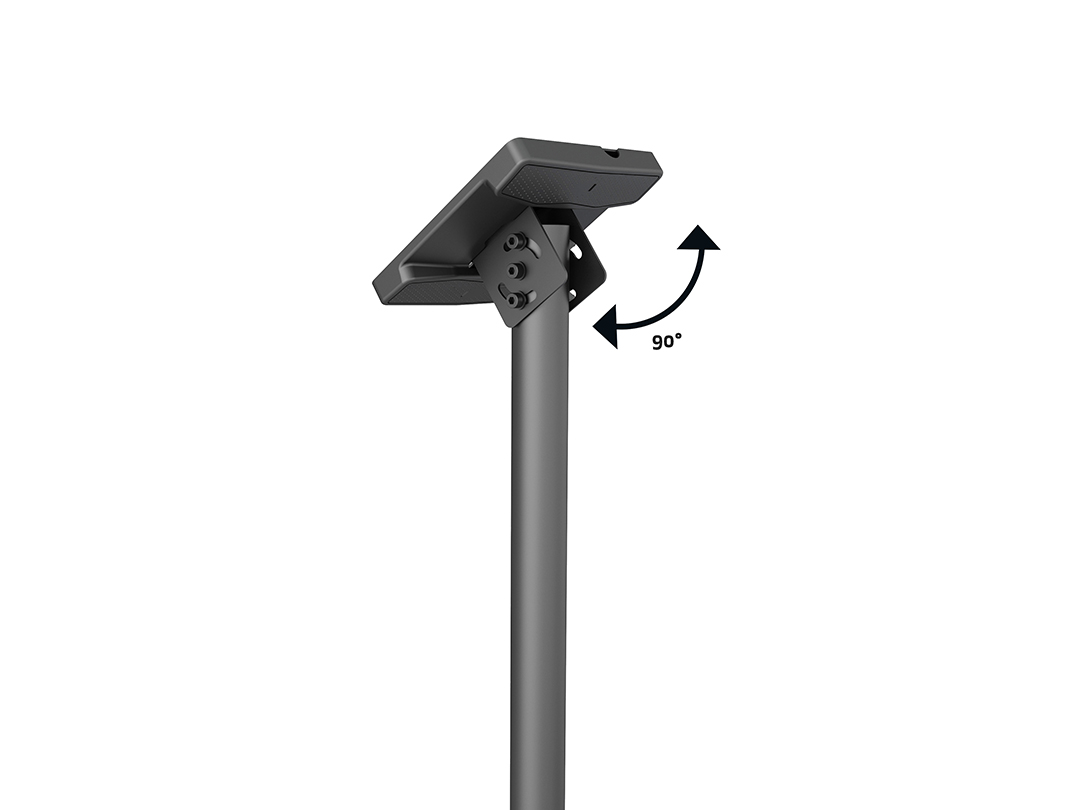

Ceiling plate included
-

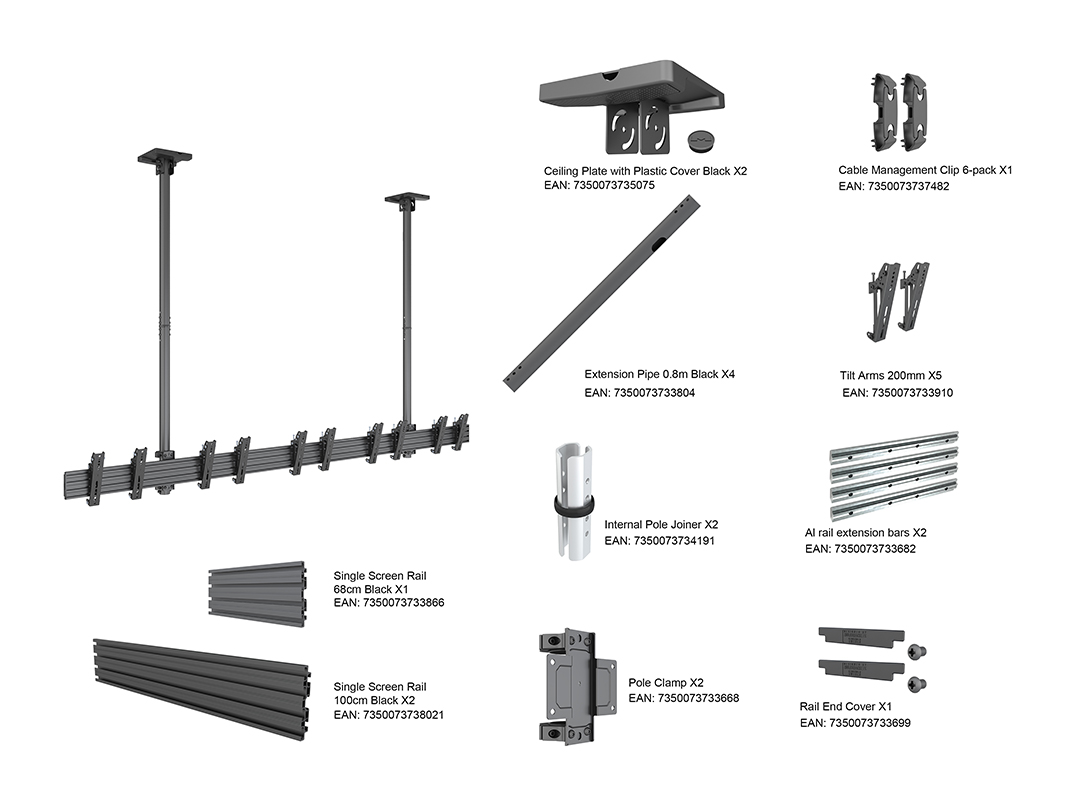

Complete hardware kit for easy setup
-
Durable black finish suitable for public spaces
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC5X1UP+ VESA 200 | |
| Article No: | 7 350 022 739 185 |
| For screen size: | 27"-43" |
| Type: | Single Side MBC5X1UP |
| Universal & VESA standard: | Adjustable from 75x75, 100x100, 100x200, 200x100 to 200x200 max |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 22.7 kg + 19 kg |

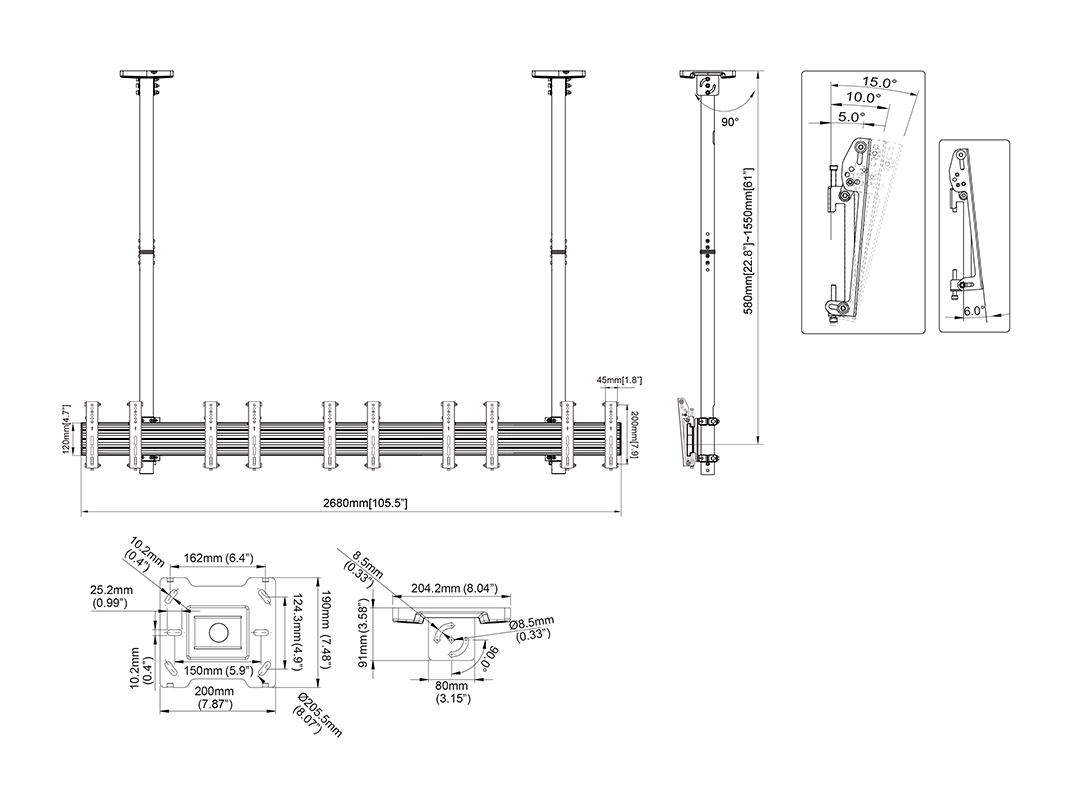

| Measurements | 84.5 x 24 x 17 cm + 104.5 x 16.0 x 17.2 cm |
| Max Load: | 30 kg per screen |

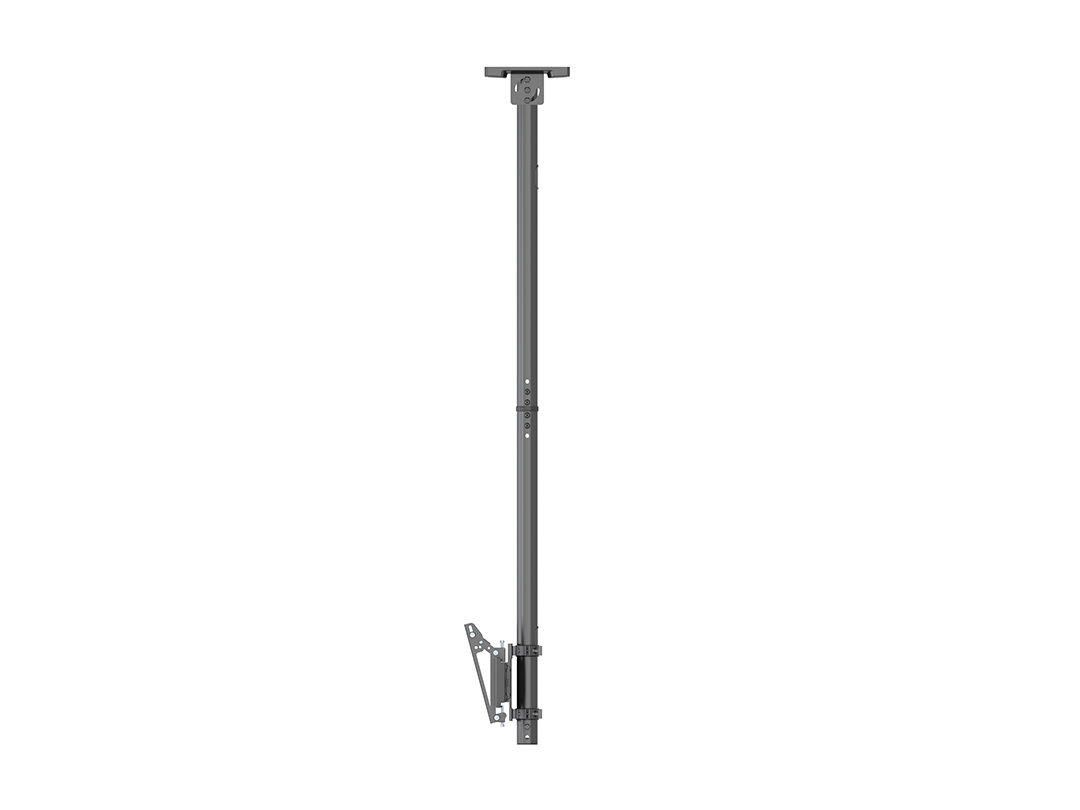

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center |

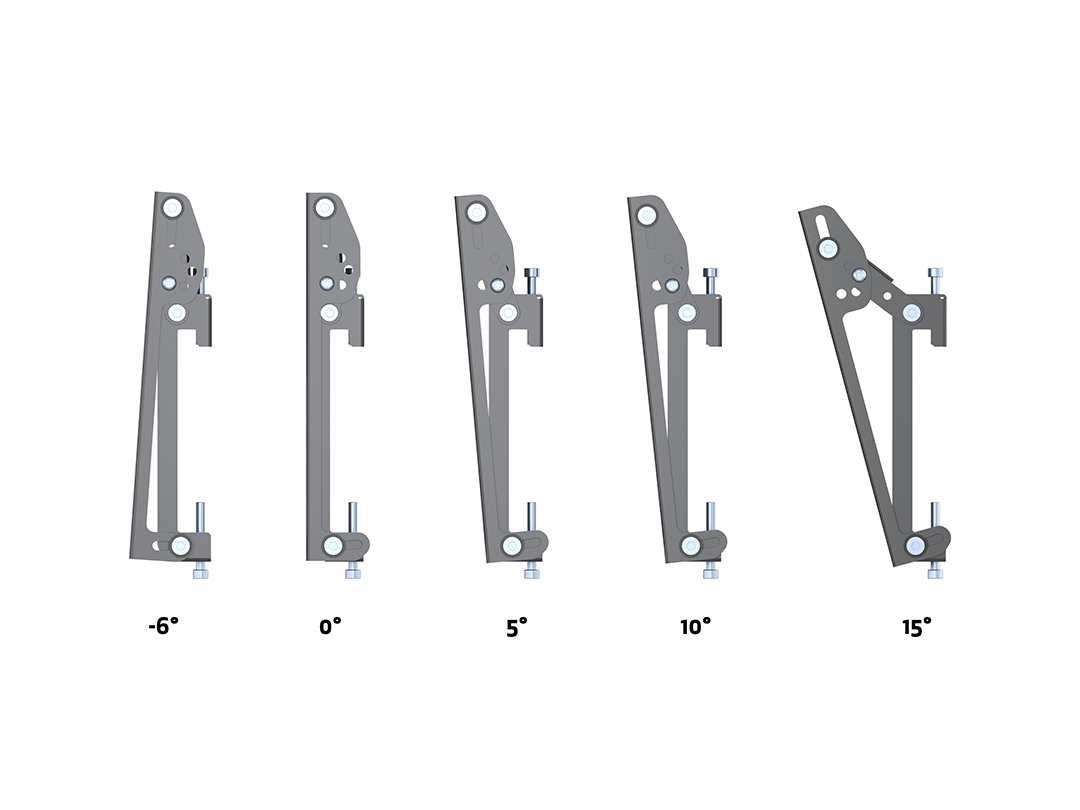

| Tilt: | Yes, -6~15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0 kg |
