M Ceiling Mount Pro MBC1UPHD2 VESA 400x600
Options
Variants that match your options:
In stock: 309
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105216404
Product overview

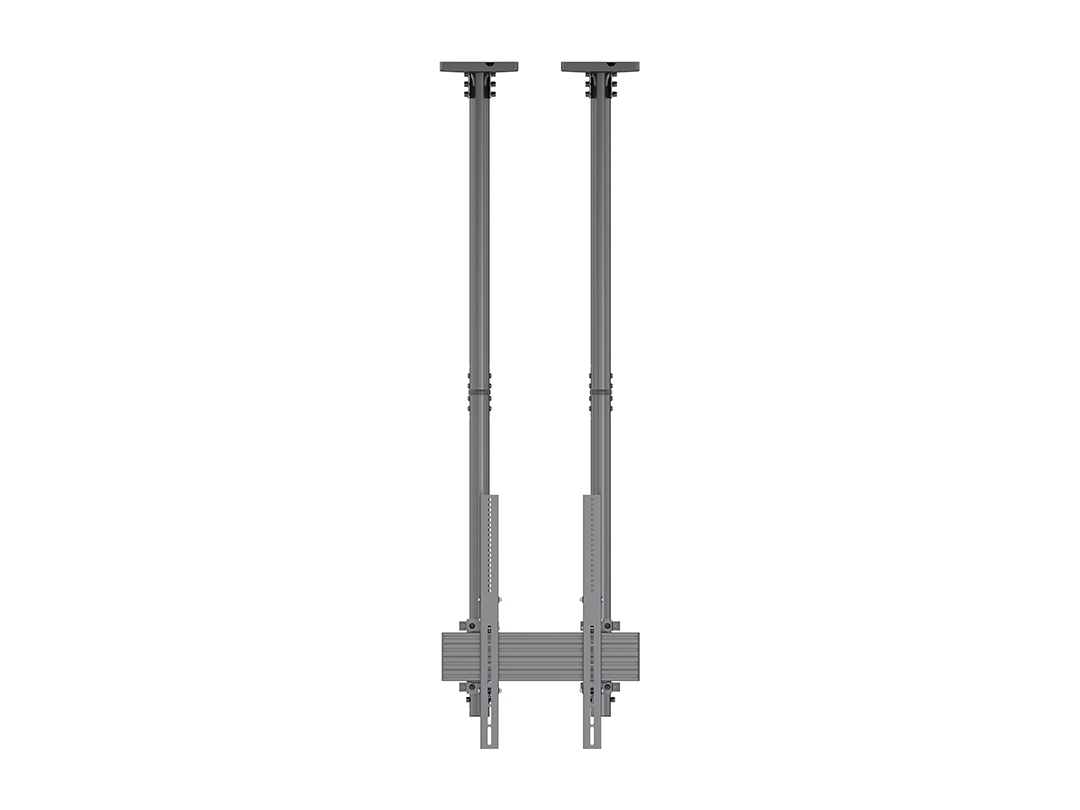

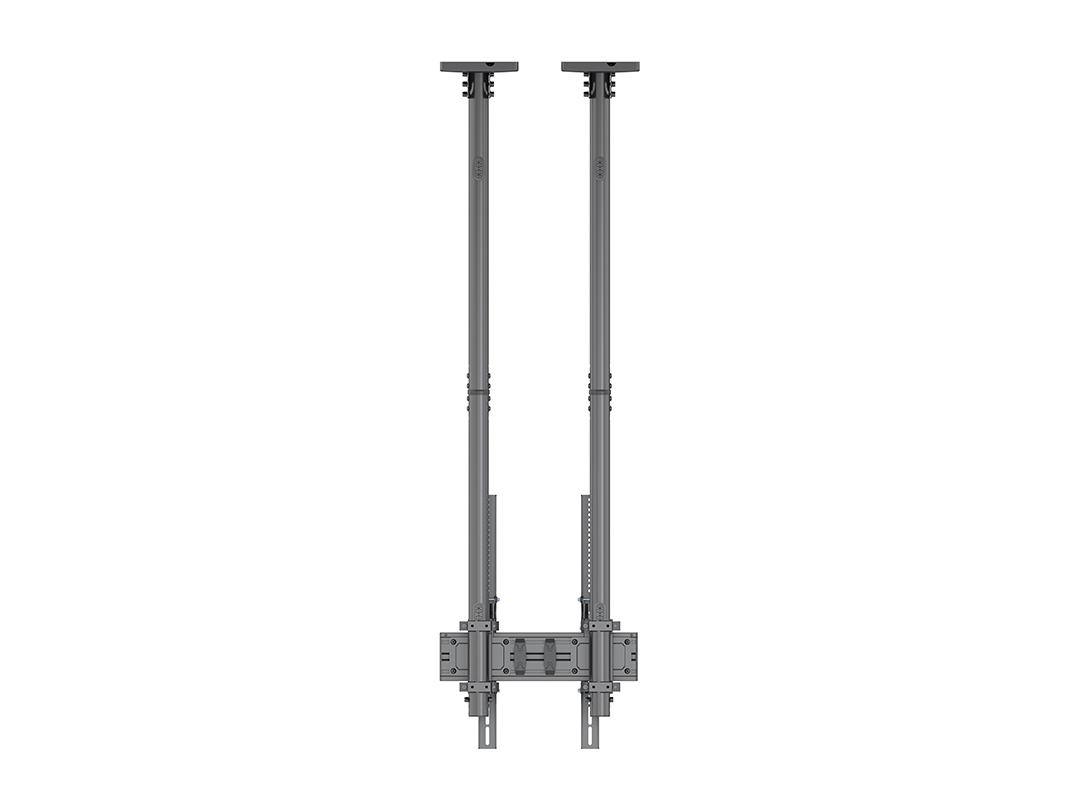

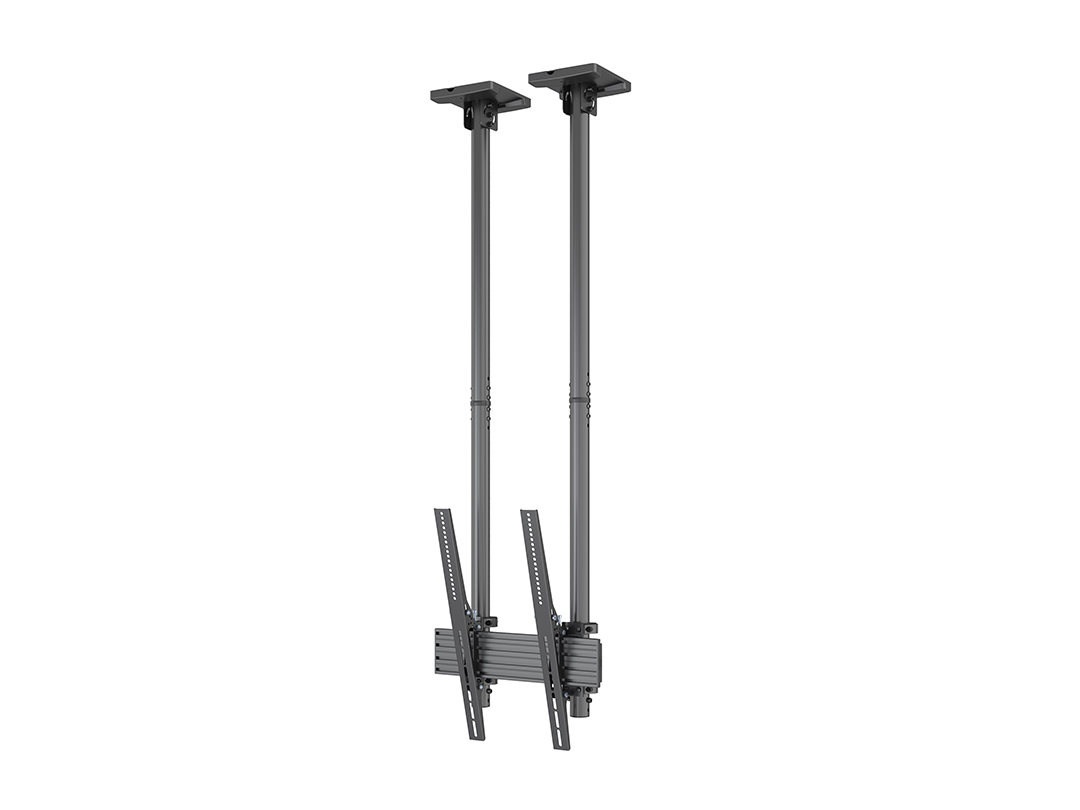

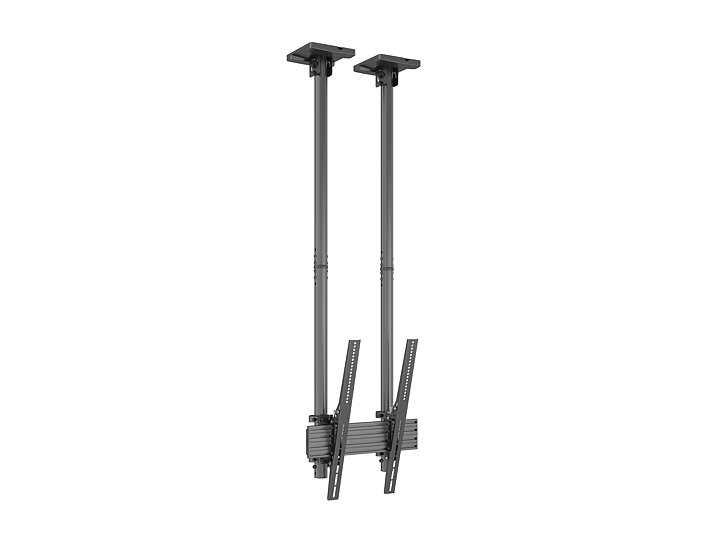

The Multibrackets M Ceiling Mount Pro MBC1UPHD2 VESA 400x600 is a professional-grade ceiling mount for single large-format LCD displays. Designed for demanding environments, it supports VESA patterns up to 400x600 and carries up to 120 kg.
This model is part of the modular Pro Series A/V line, created with installer input for fast setup, high flexibility, and long-term adaptability. Its robust aluminium rail includes integrated cable management for clean, secure installations in public or commercial spaces.
With support for both portrait and landscape mounting, the MBC1UPHD2 is ideal for digital signage, retail displays, and enterprise applications where stability and precision matter.

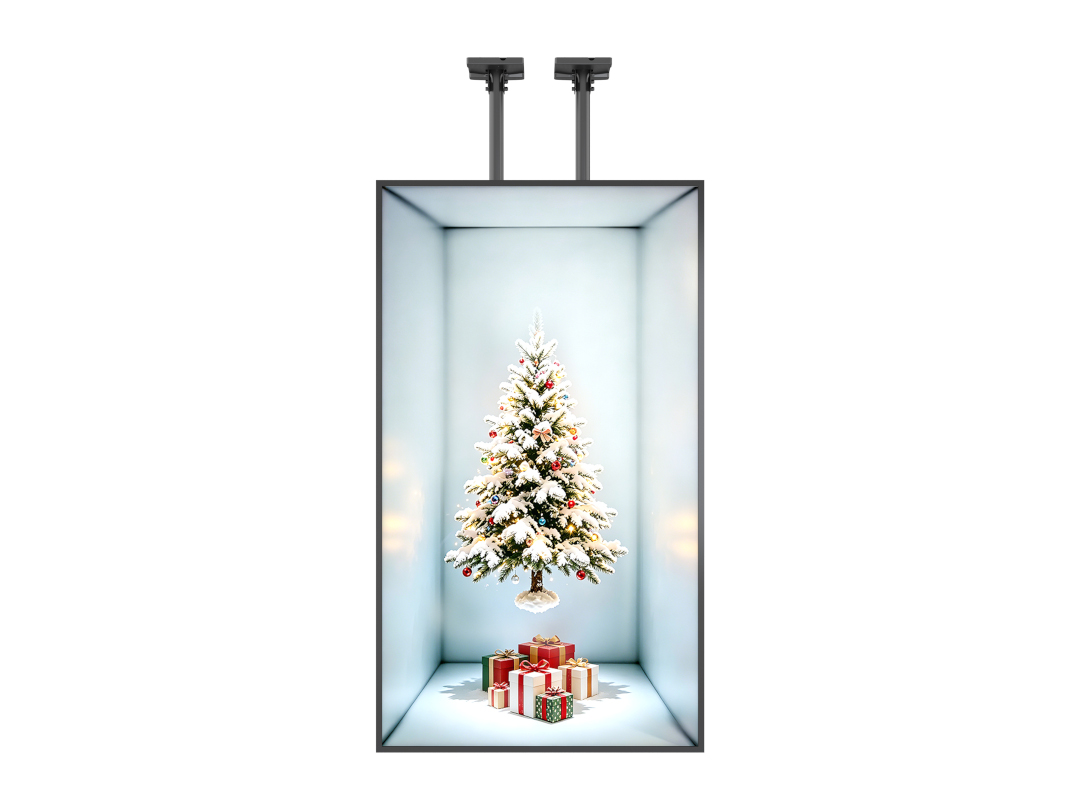

M Ceiling Mount Pro MBC1UPHD2 VESA 400x600 works with the new Samsung Spatial 85”
Highlights
- Supports single displays up to 120 kg
- VESA compatibility: up to 400x600
- Fully modular Pro Series design

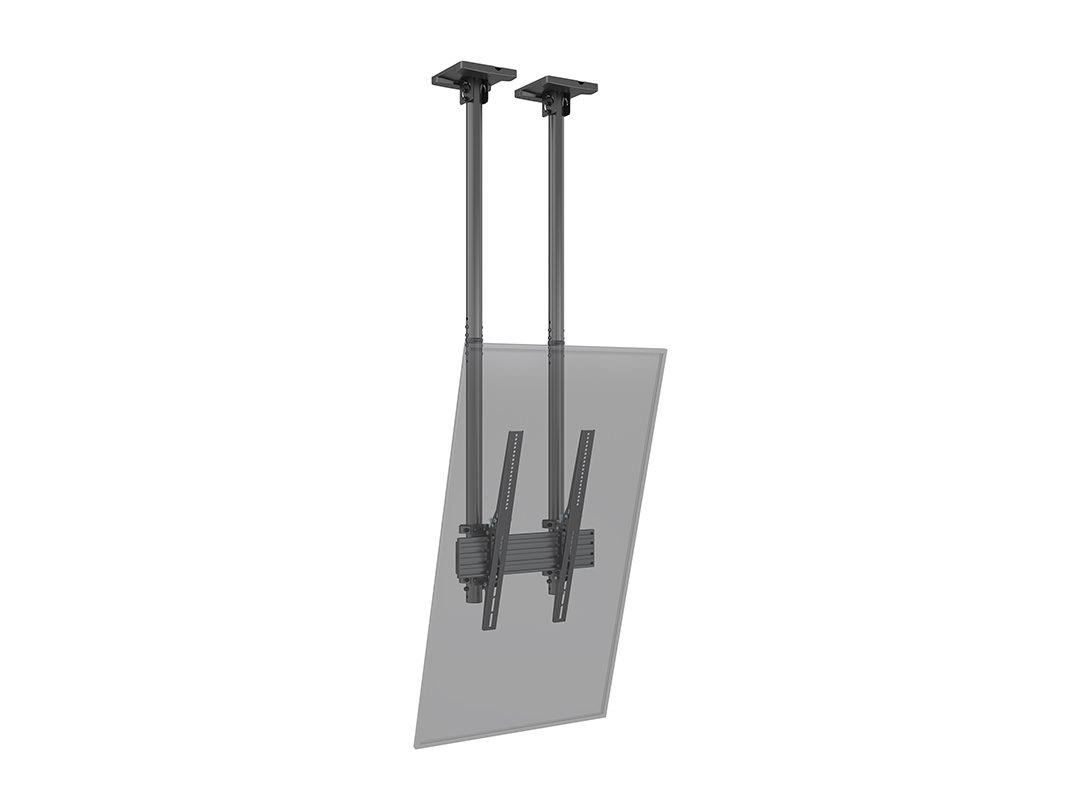

- Portrait or landscape screen orientation
- Power Click system for fast, secure installation

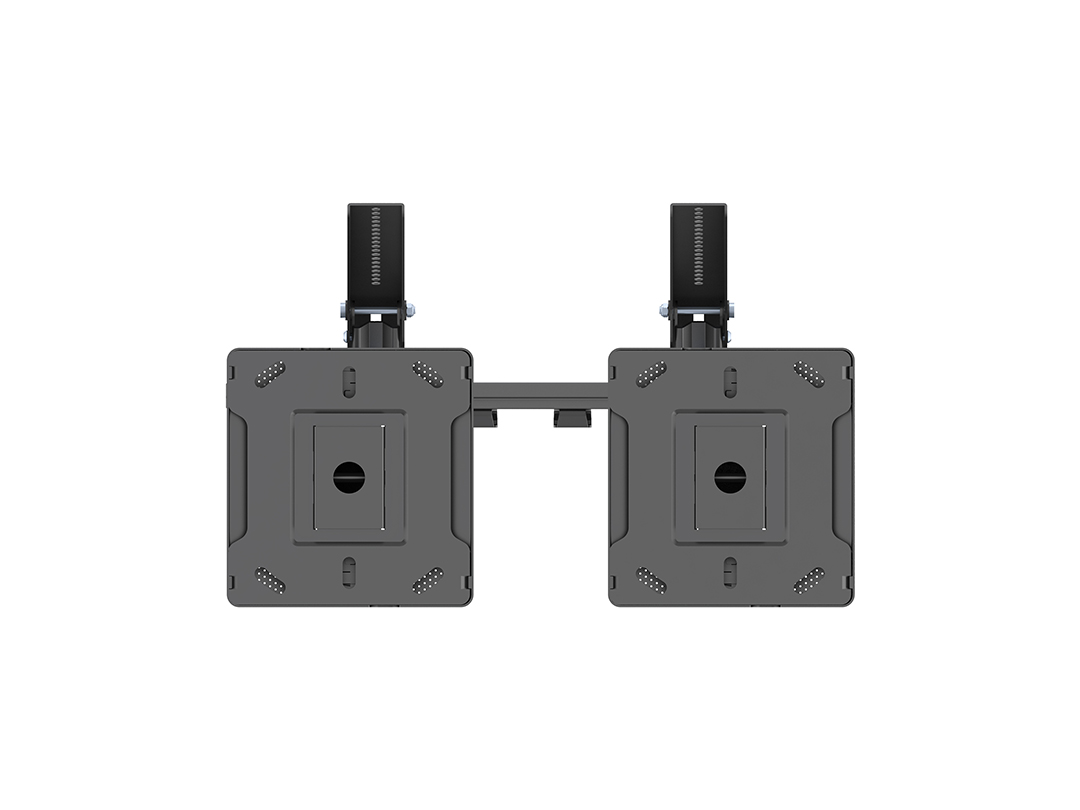

- Includes ceiling plate and hardware kit
- Clean Nordic look with integrated cable management
- Tailored for commercial and signage environments
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC1UPSD VESA 400x600 | |
| Article No: | 7 350 105 216 404 |
| For screen size: | 40”-100" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 400x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 13,5 kg |
| Measurements | 95.5 x 20.0 x 19.5 cm |
| Max Load: | 120 kg |

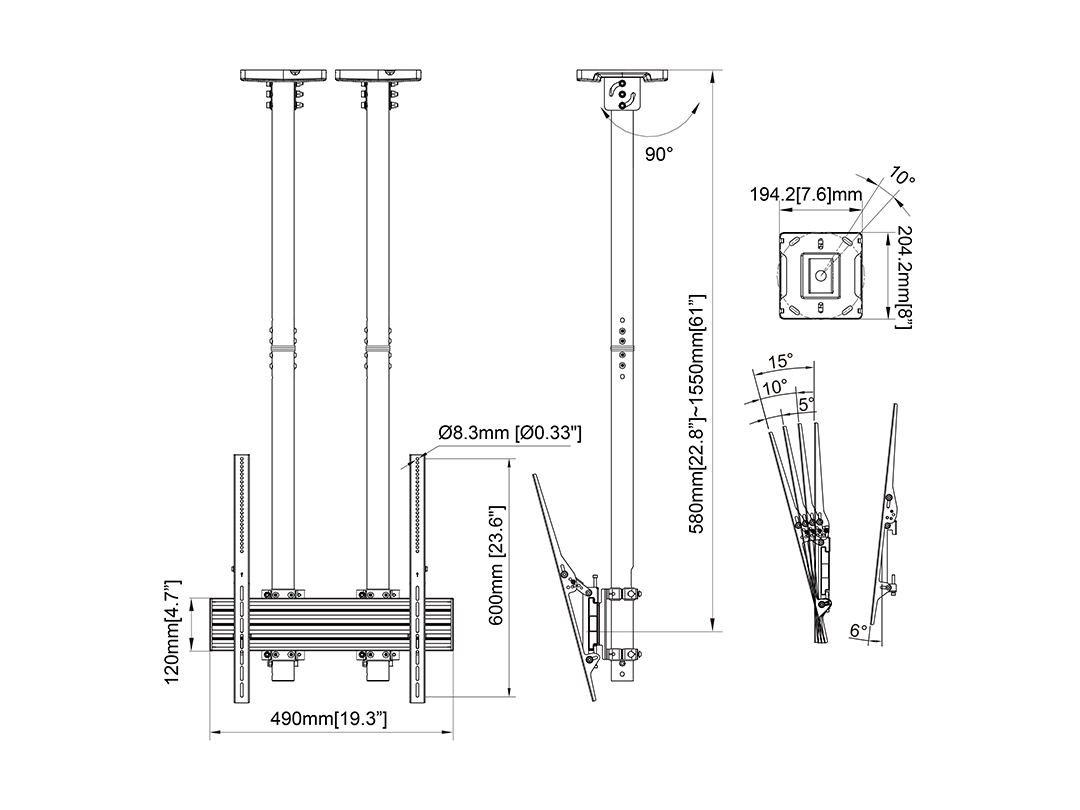

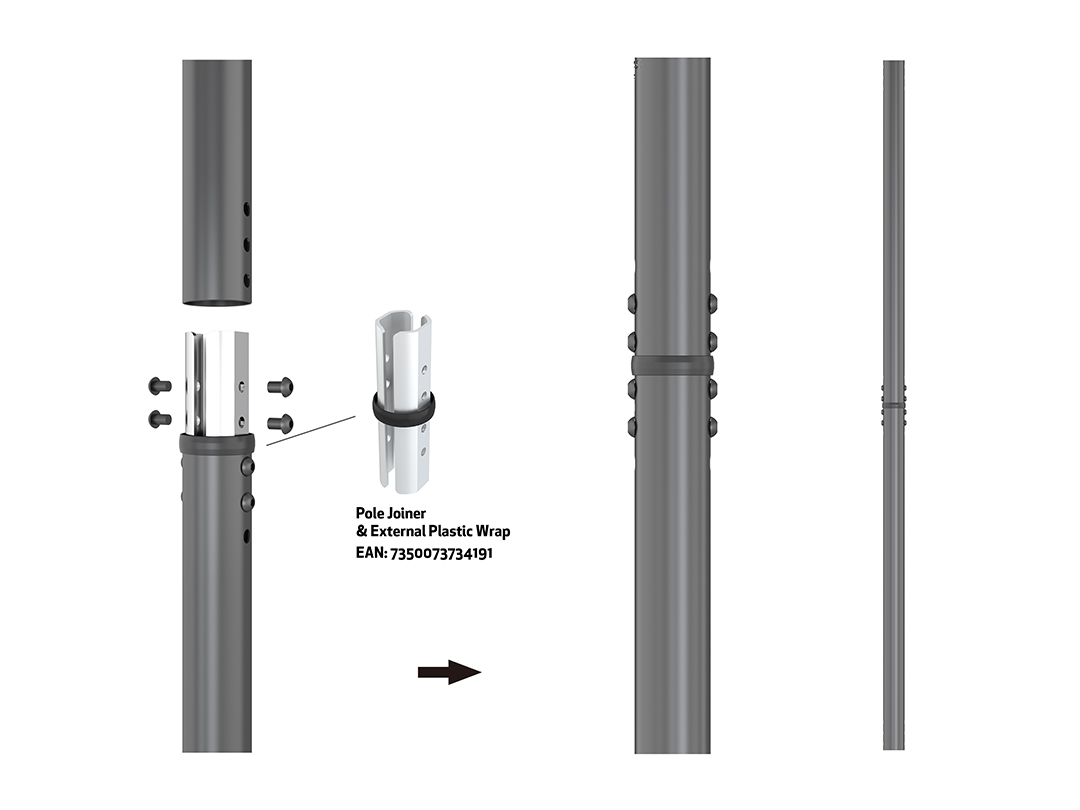

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*4pcs) included |

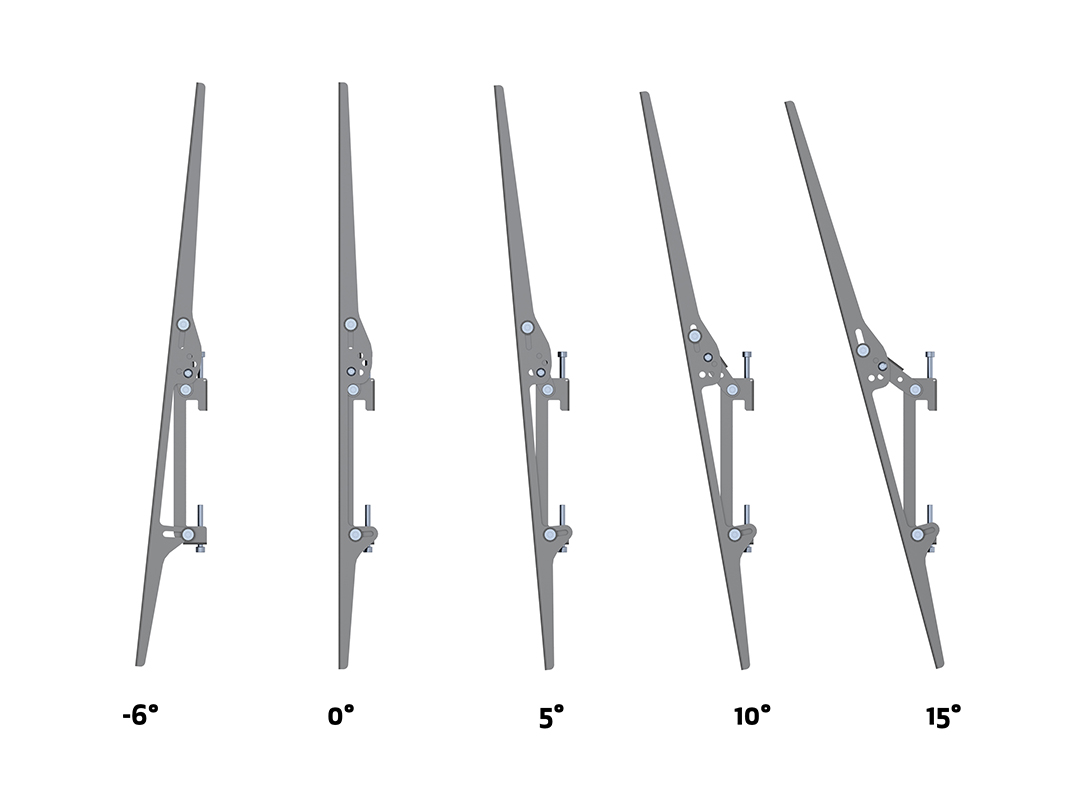

| Tilt: | Yes, -6°~+15° |

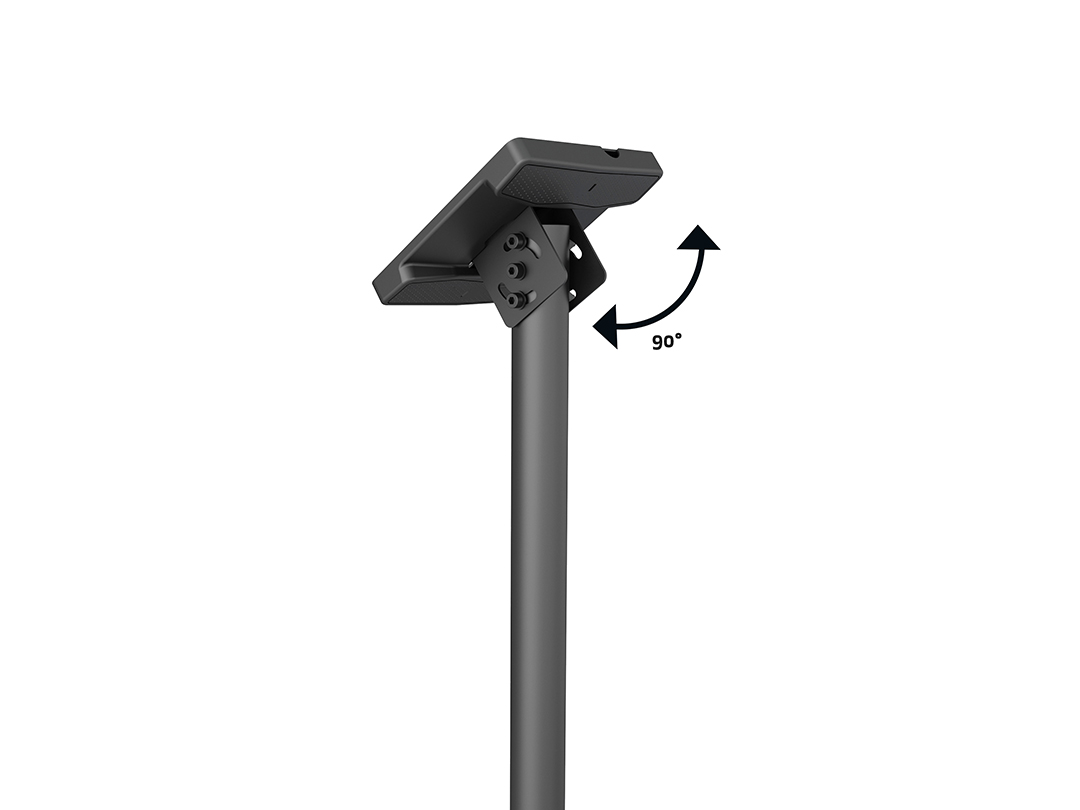

| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 95.5 x 20.0 x 19.5 cm |
| Package Weight: | 14 kg |
