Article no.: 7350105219009

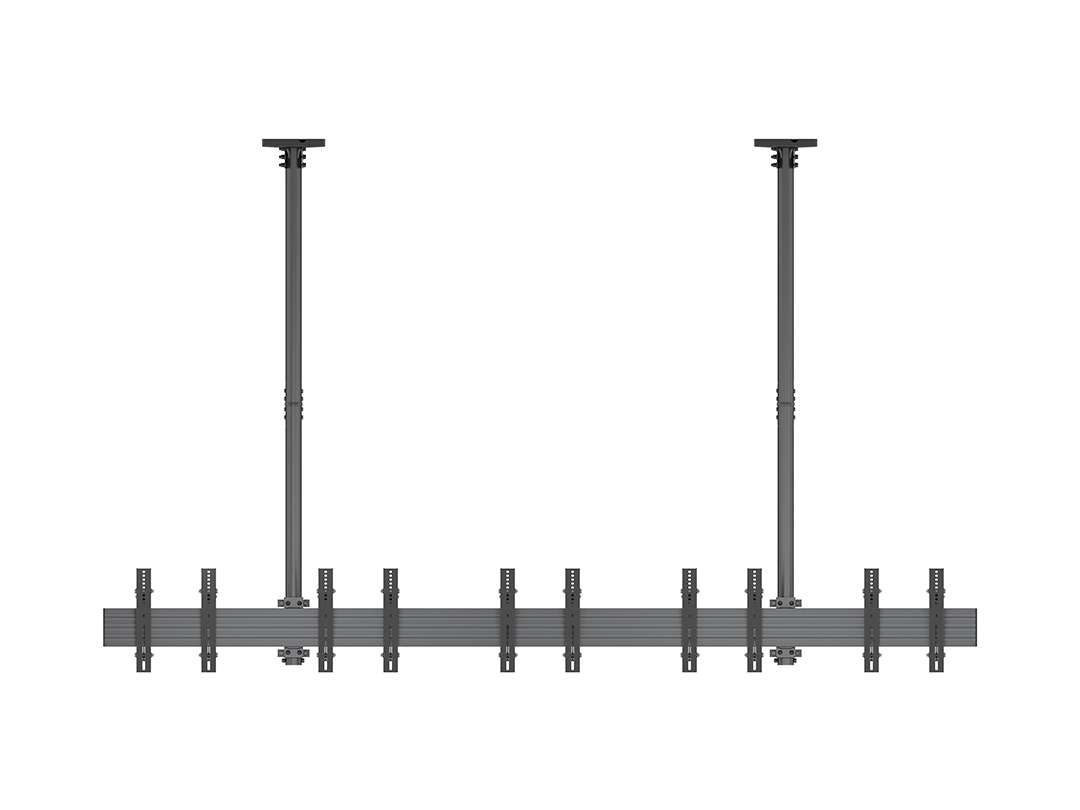

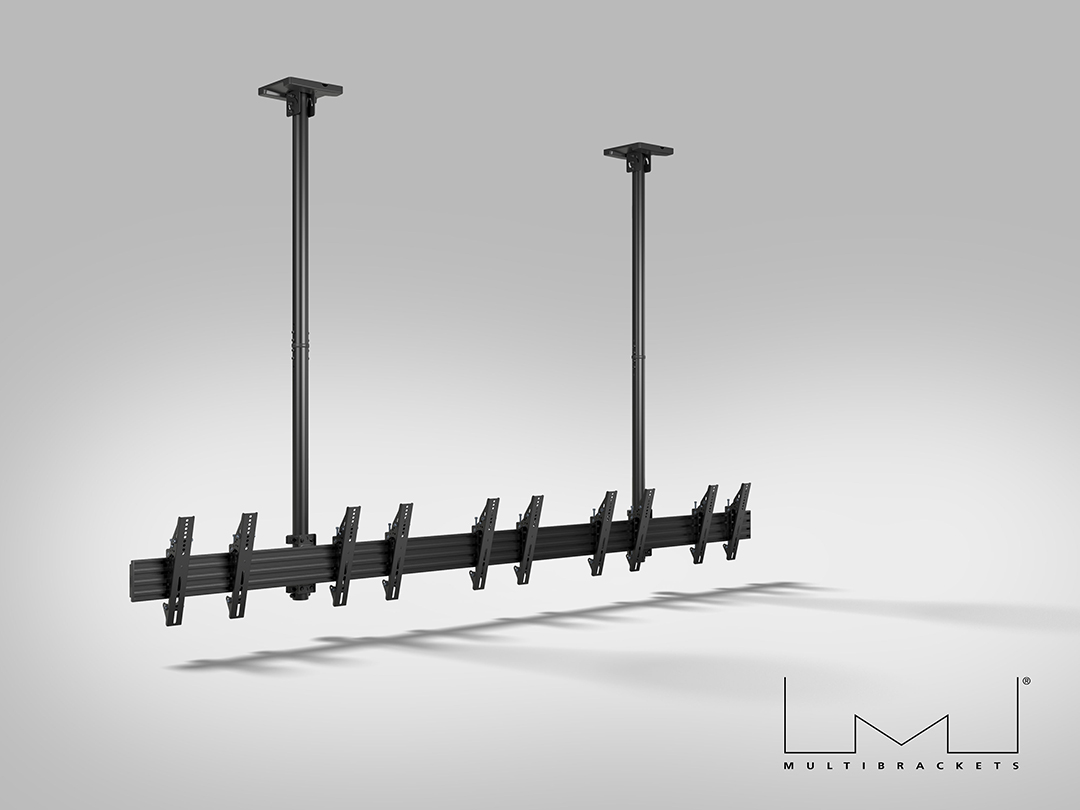

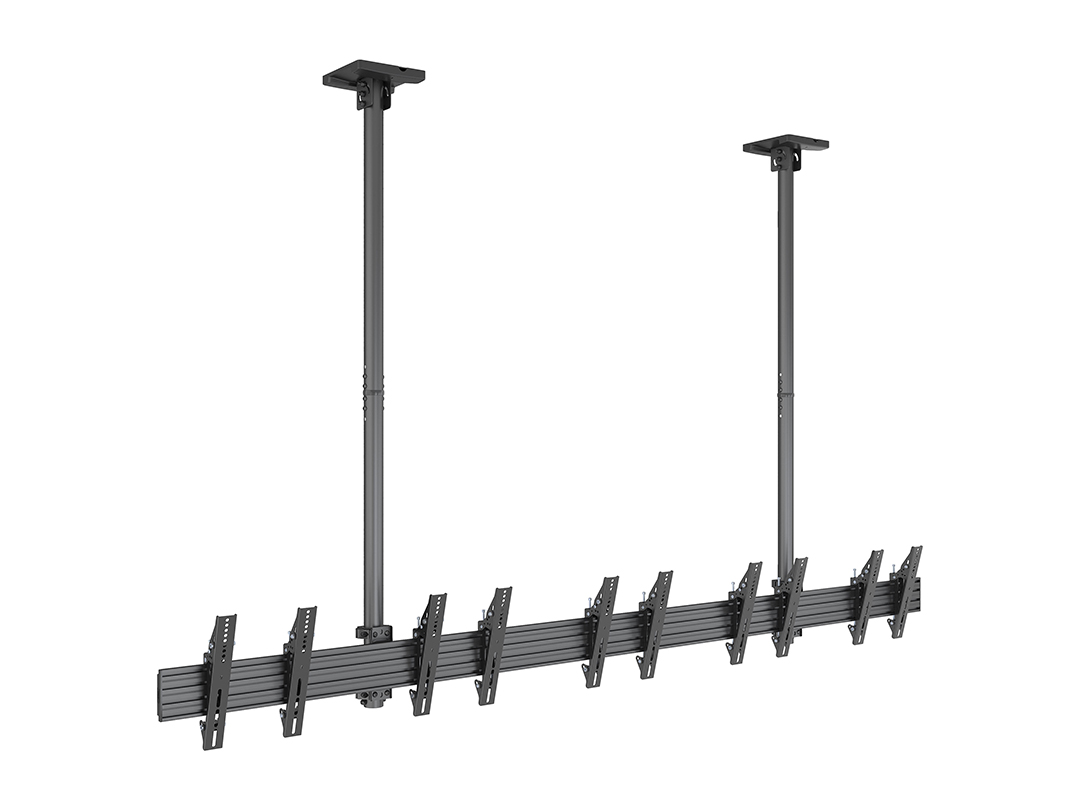

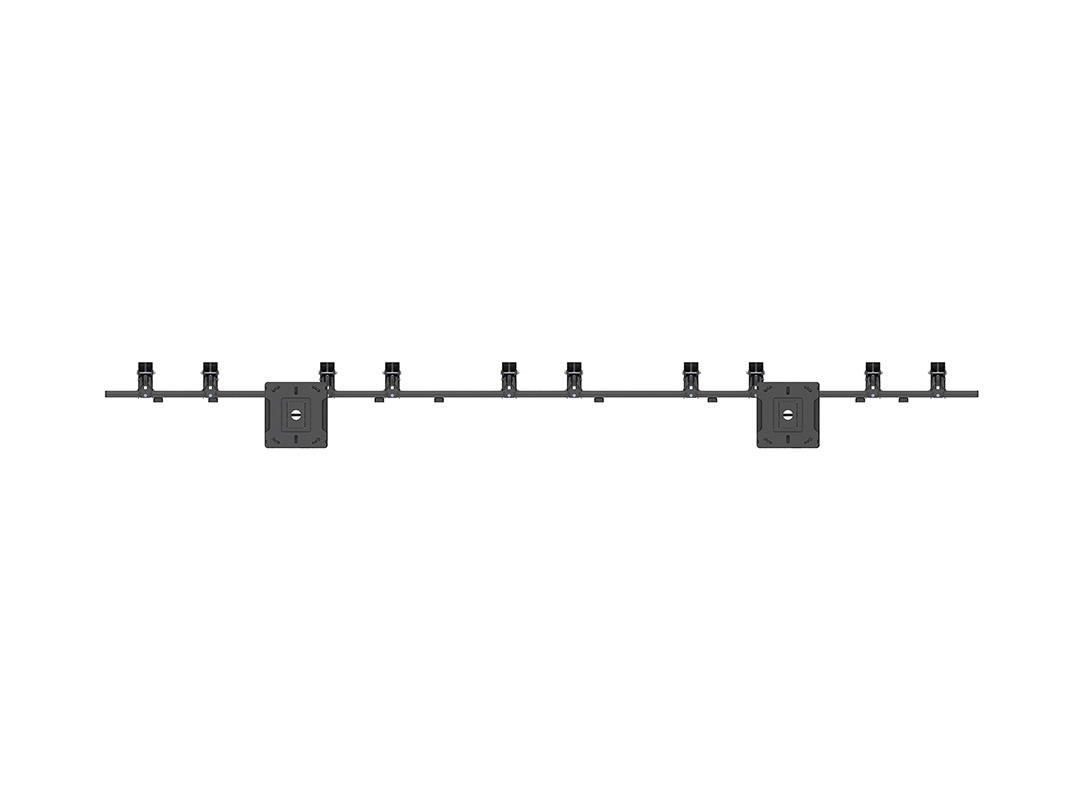

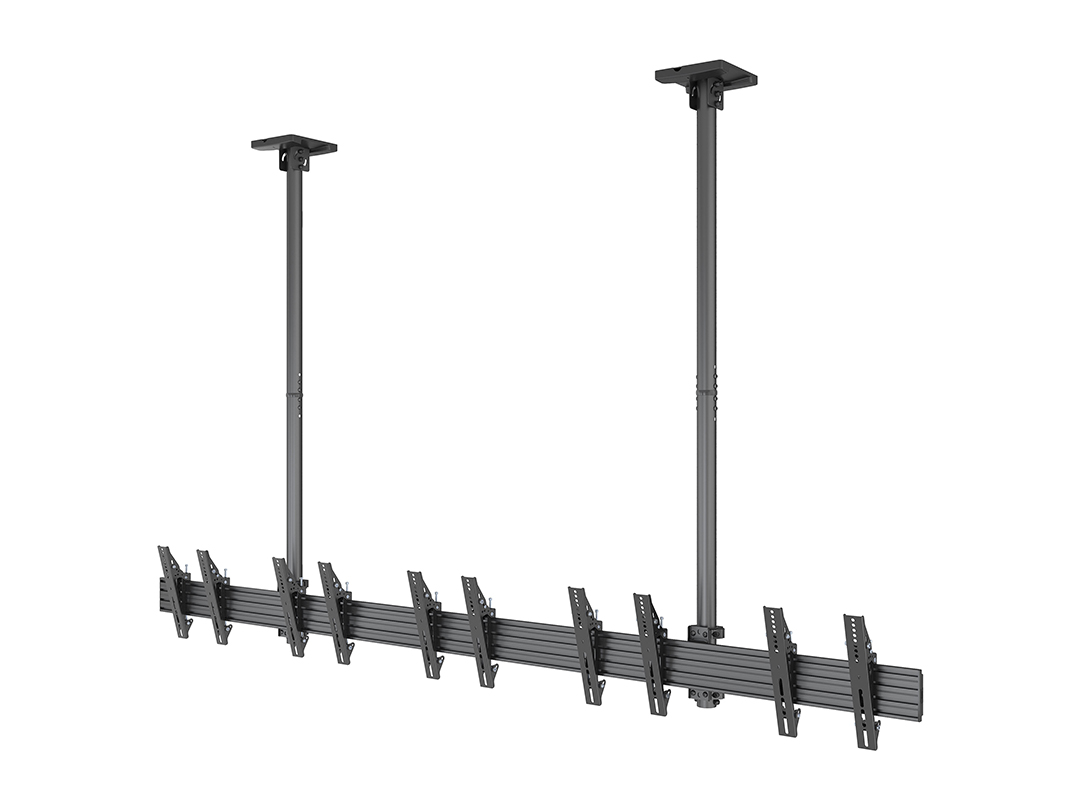

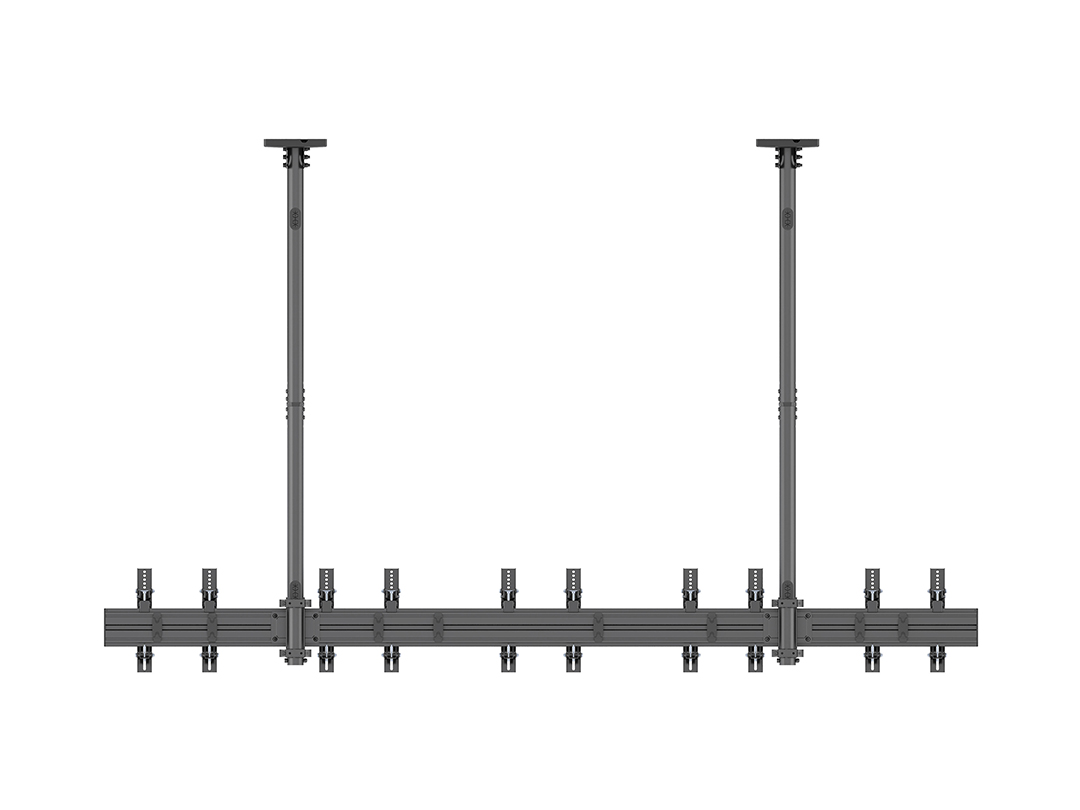

M Ceiling Mount Pro MBC5X1UP-43 VESA 300 - Ceiling mount for LCD display, steel, 1.5m length, 5 screens, single sided portrait position, tilt arms, VESA Max 300x300 - screen size: 43" - black
Product overview

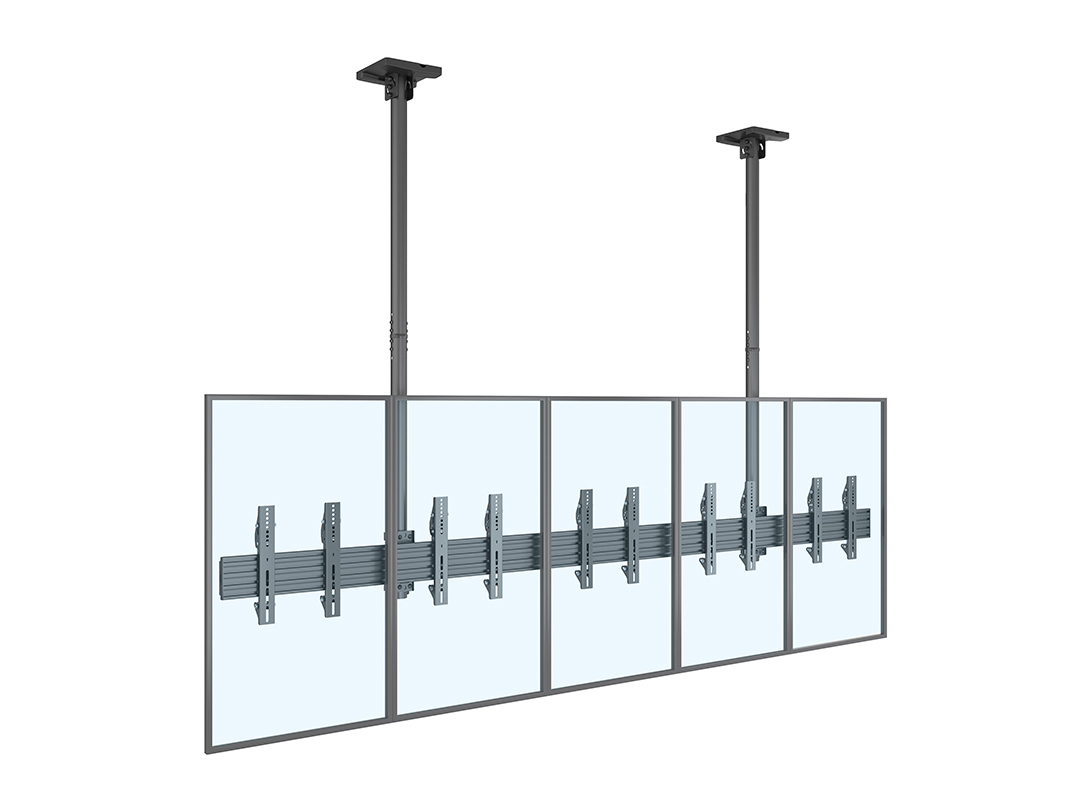

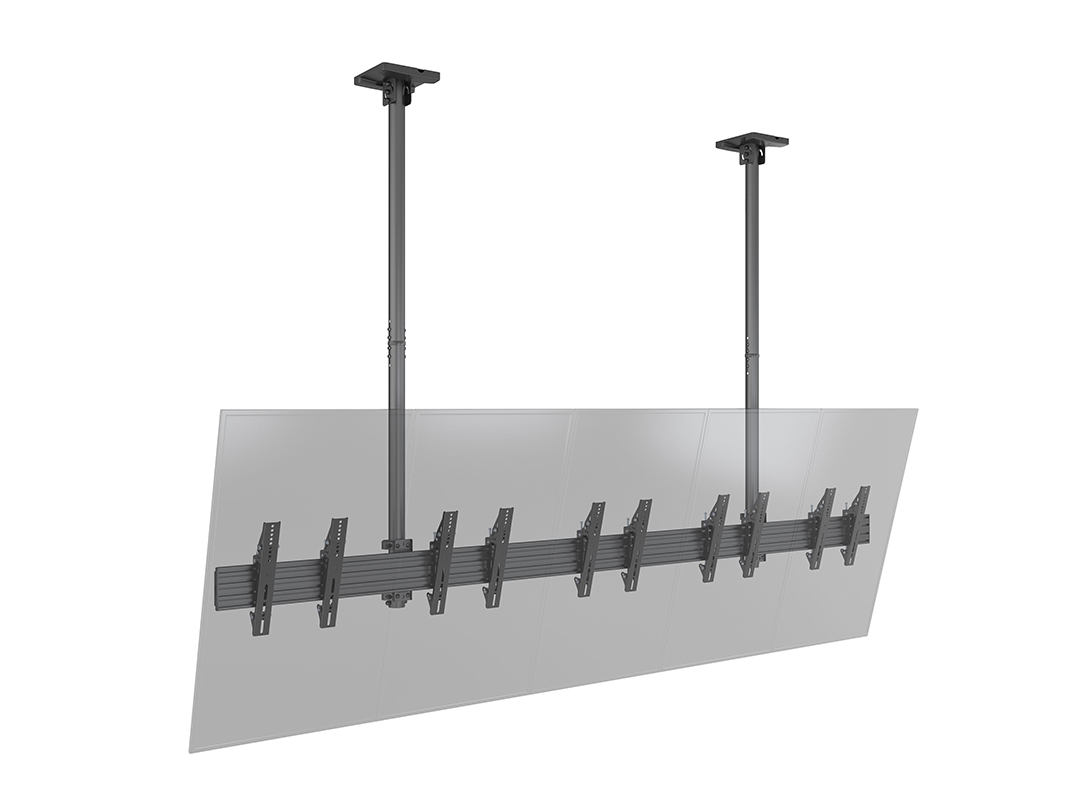

The M Ceiling Mount Pro MBC5X1UP-43 VESA 300 is a professional-grade ceiling mount designed to support five 43” displays in portrait orientation—perfect for menu boards, digital signage, and synchronized multi-screen presentations.

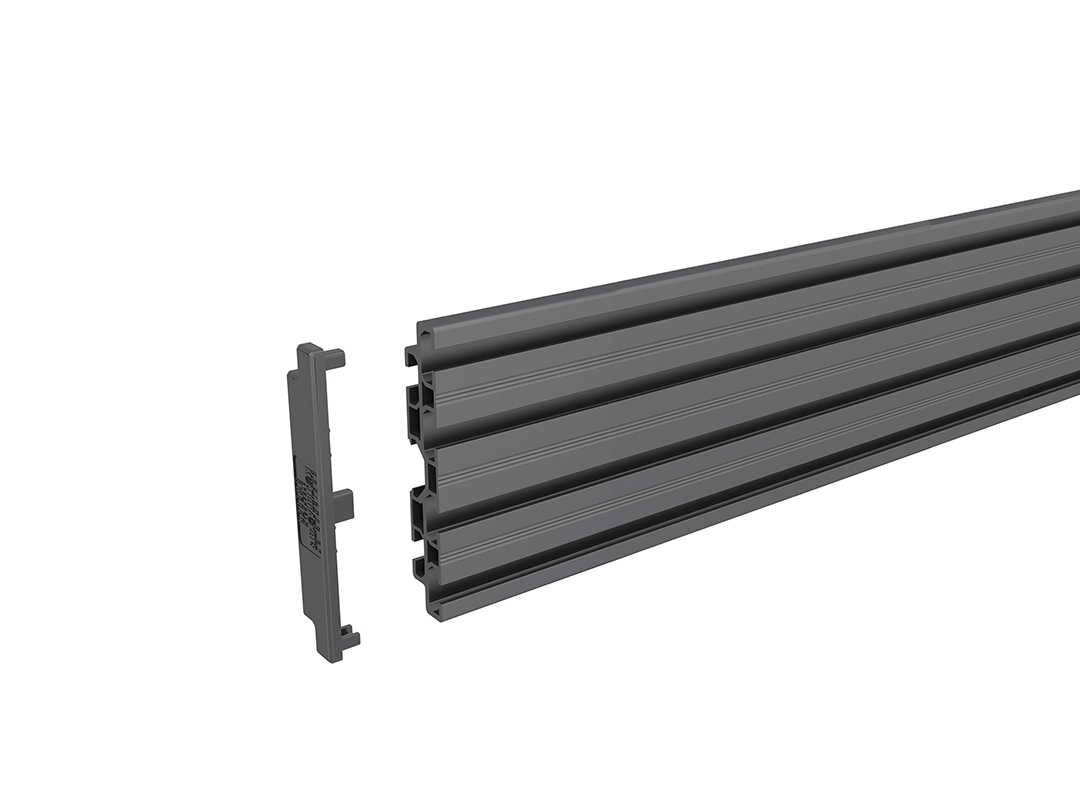

With support for five vertically aligned screens mounted side by side, this modular mount delivers symmetrical tilt and precision alignment for impactful visual communication. Built on the Multibrackets Pro Series aluminum rail, it features full cable management and a 1.5 m ceiling drop. Installers benefit from rapid setup and future-proof adaptability through extendable components.
Its clean Nordic design and durable black steel finish make it ideal for commercial, retail, or public environments demanding aesthetics and performance in equal measure.
Highlights
-
Supports five 43” screens in portrait orientation
-
VESA compatible up to 300x300
-
Modular, installer-friendly architecture
-

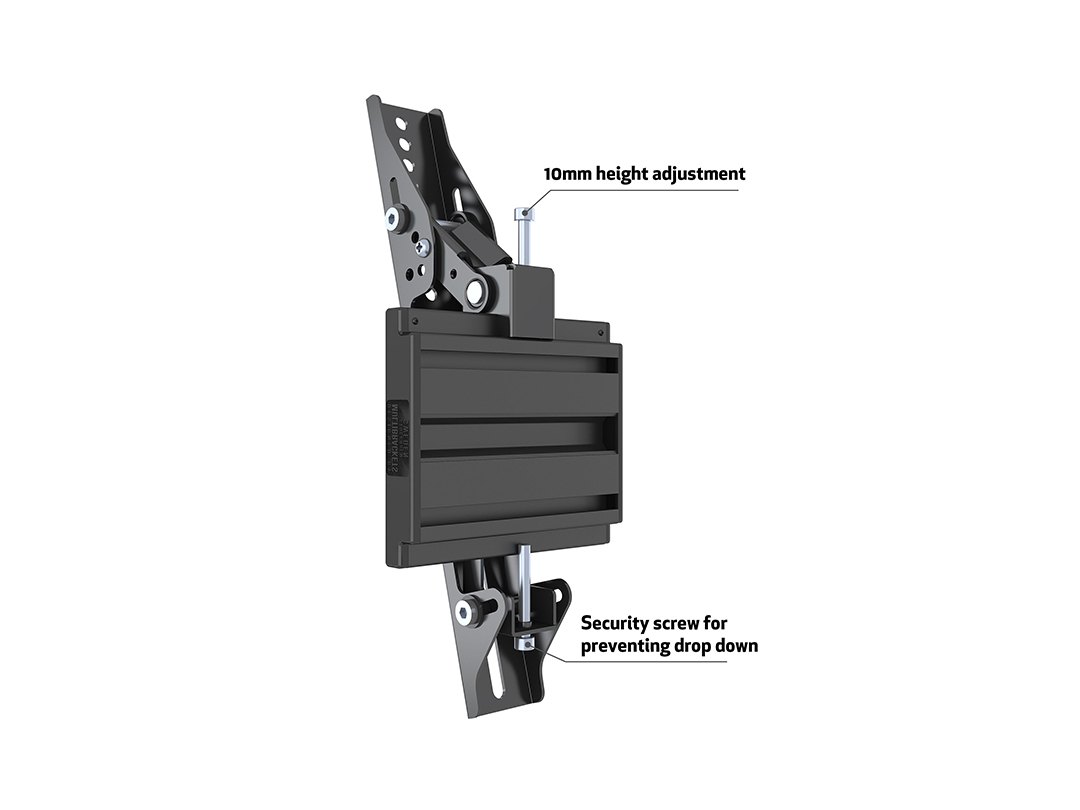

Synchronized tilt arms for perfect alignment
-

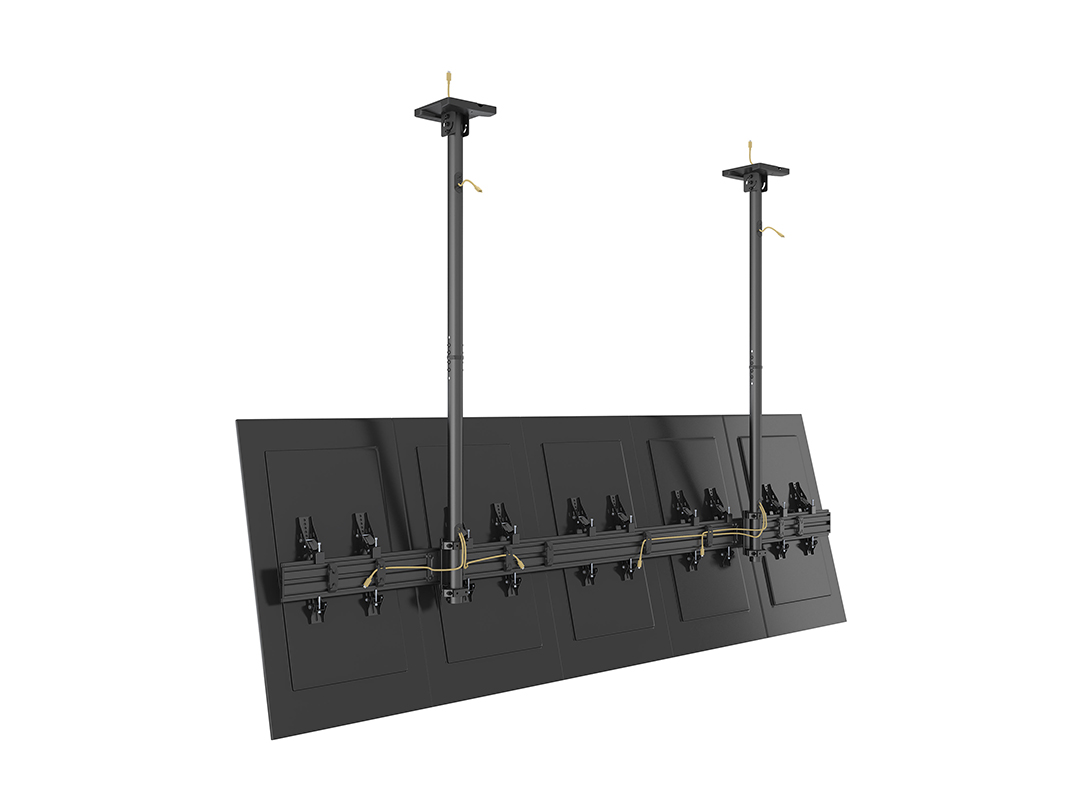

Integrated cable management throughout
-

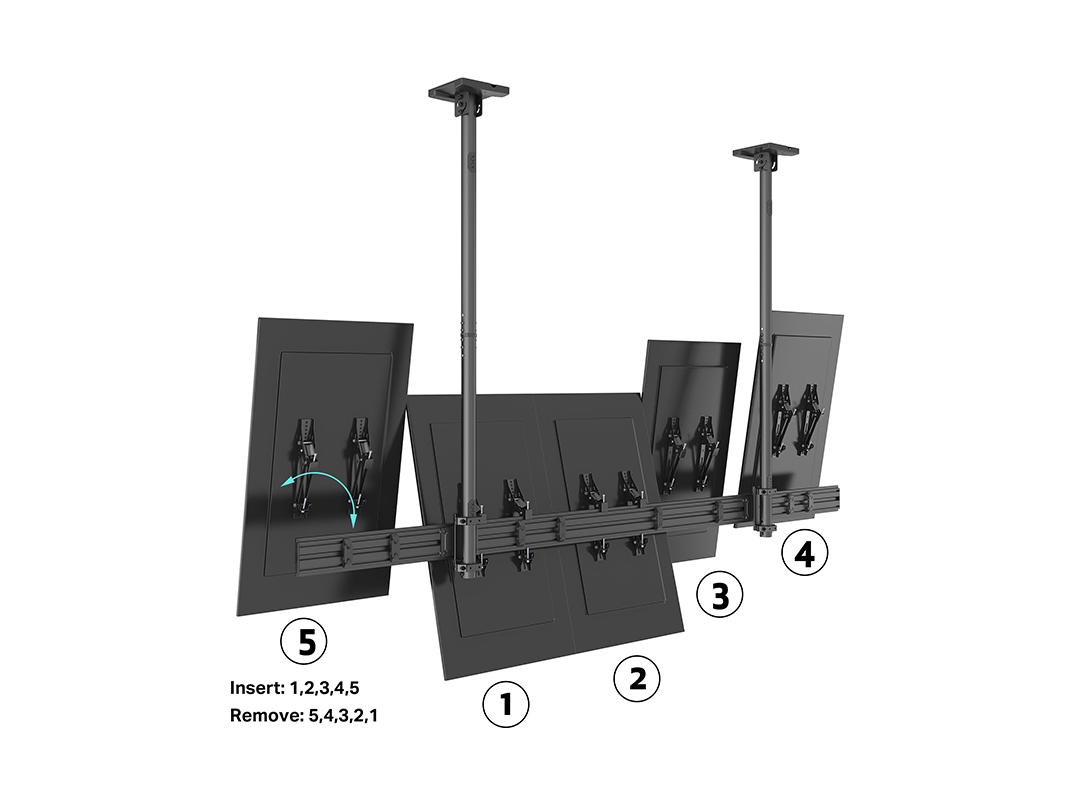

Power Click system for quick, secure setup
-

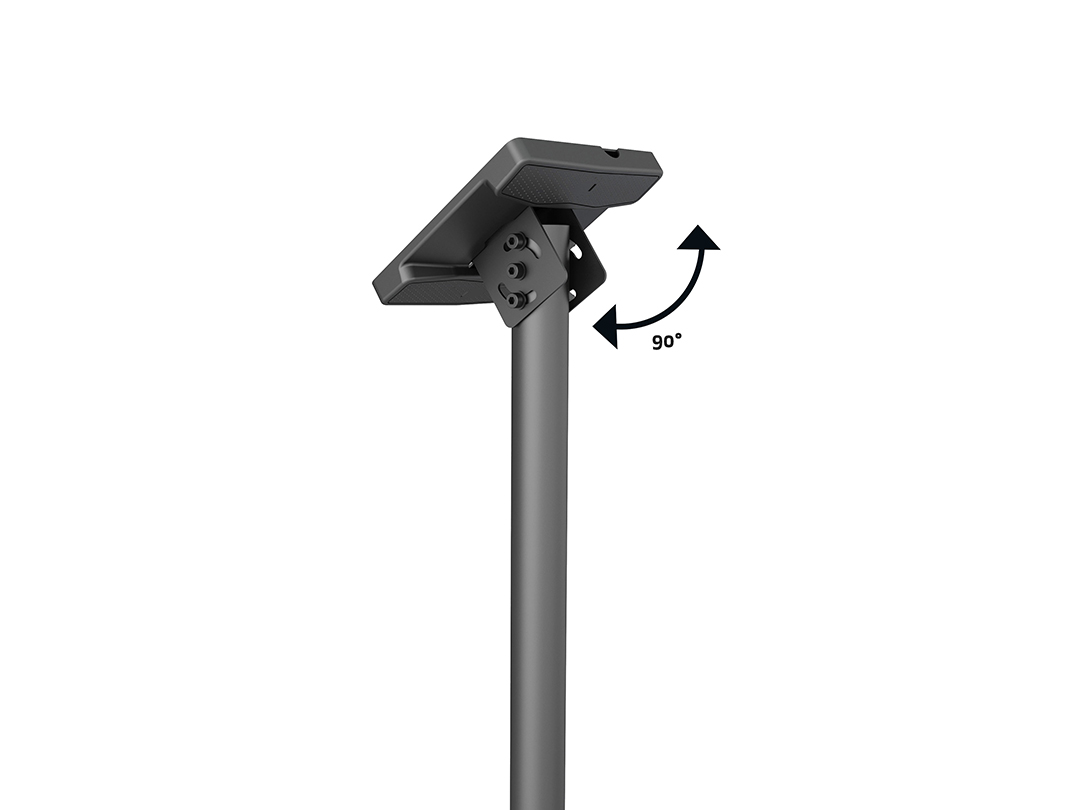

Ceiling plate included for overhead mounting
-

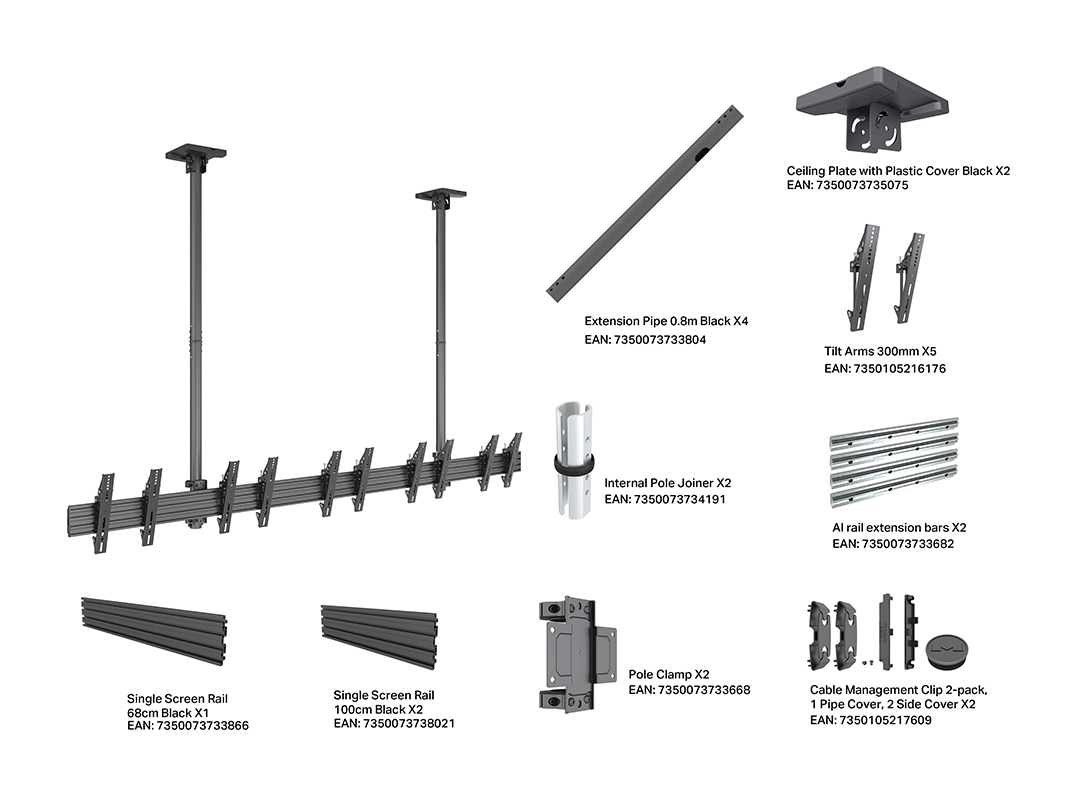

Full hardware kit supplied for hassle-free installation
-
Sleek black finish with Scandinavian design influence
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide

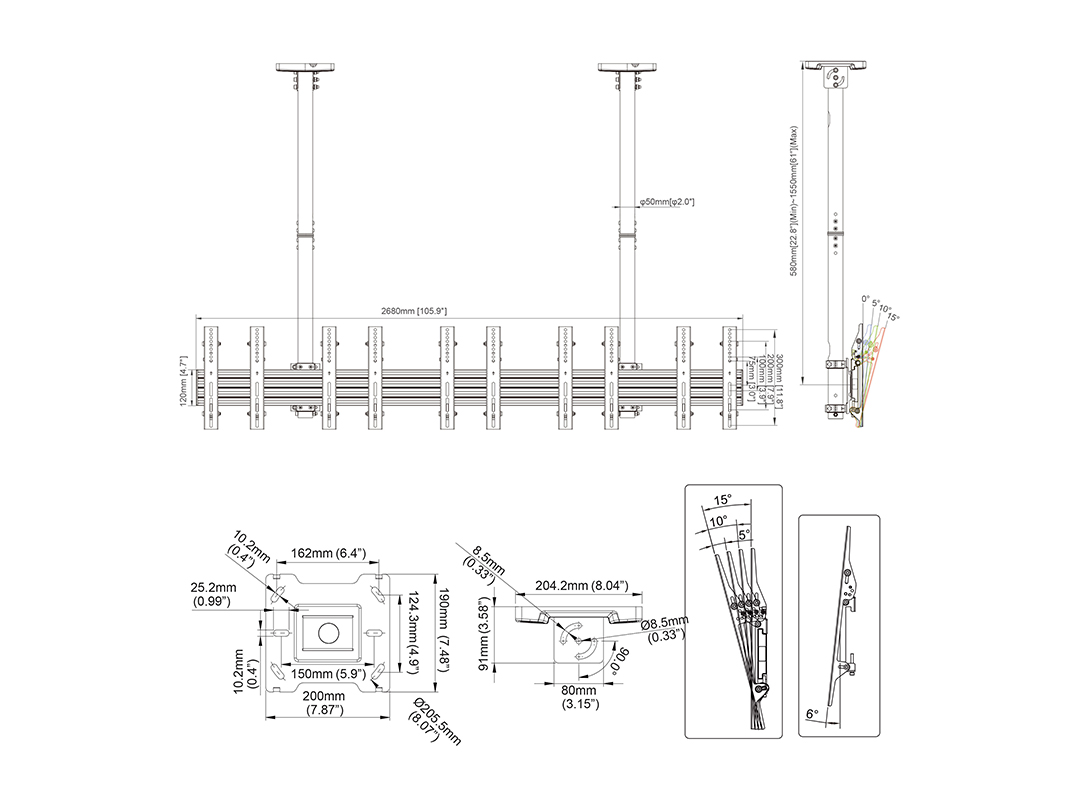

| Specification | |
| M Ceiling Mount Pro MBC5X1UP-43 VESA 300 | |
| Article No: | 7 350 105 219 009 |
| For screen size: | 43" |
| Type: | Single Side MBC5X1UP-43 VESA 300 |
| Universal & VESA standard: | 100x100, 200x200, 200x100, 300x100, 300x200, 300x300mm |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 20kg + 12.2kg |
| Measurements | 105.4x19.8x15cm + 58.5x46x13.8cm |
| Max Load: | 30 kg per screen |

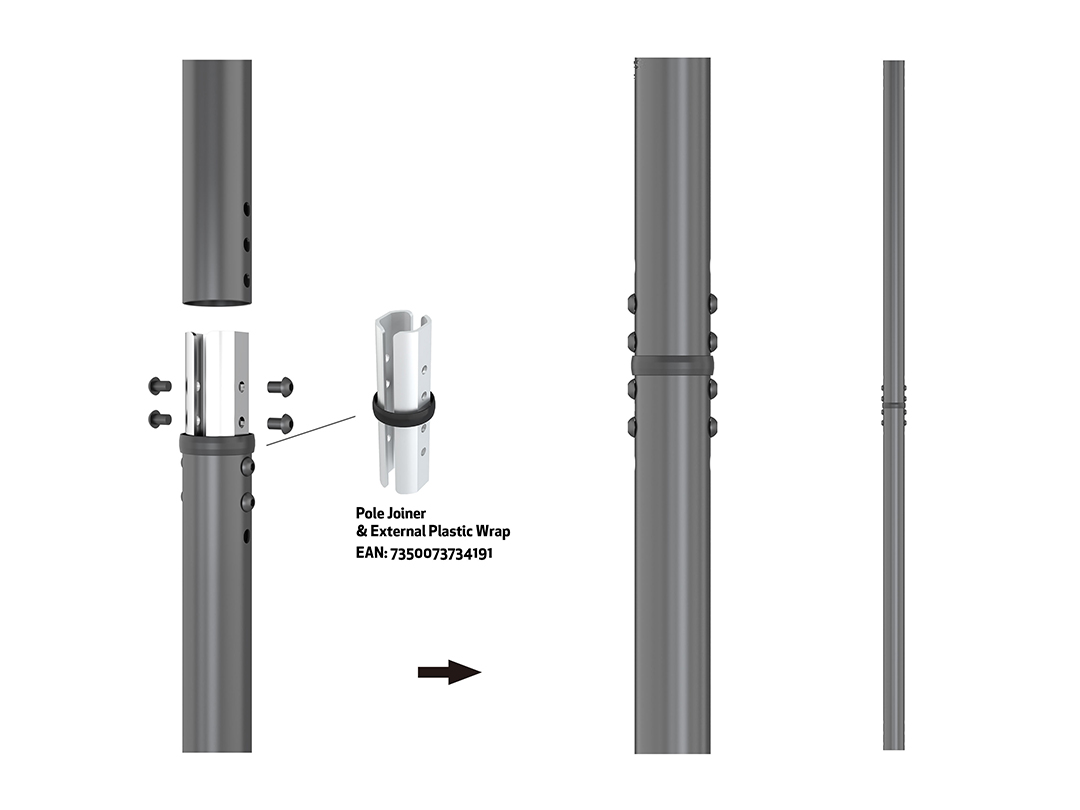

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center |

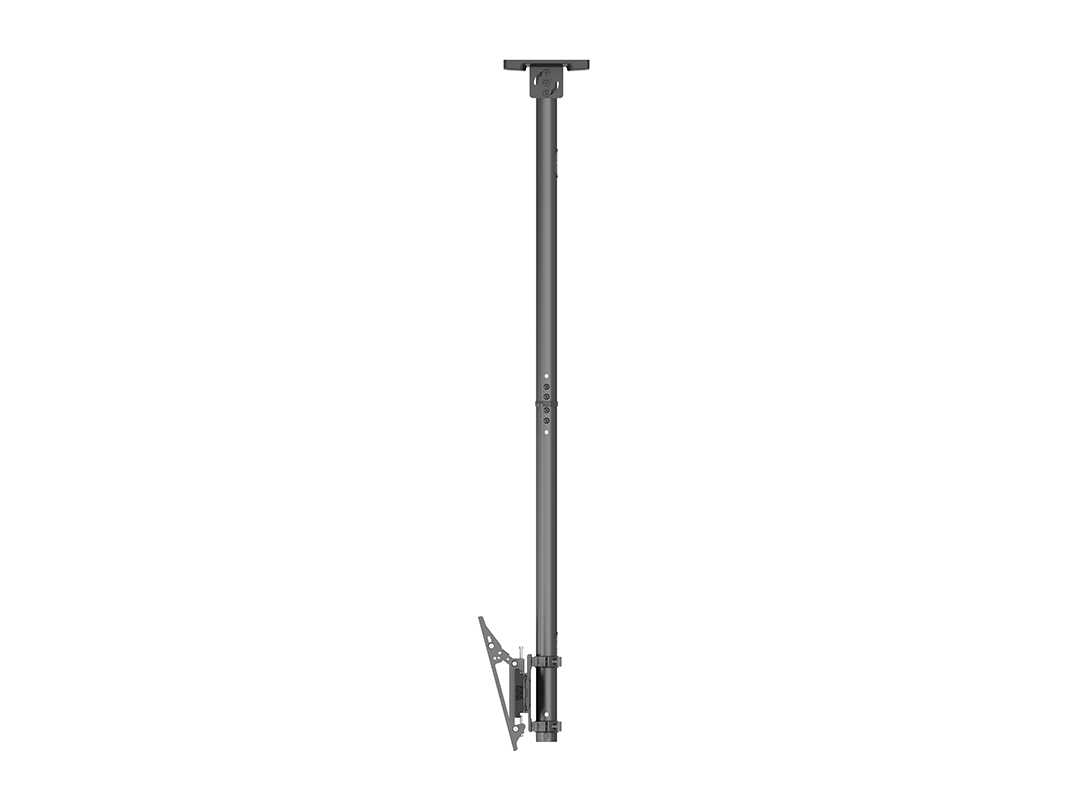

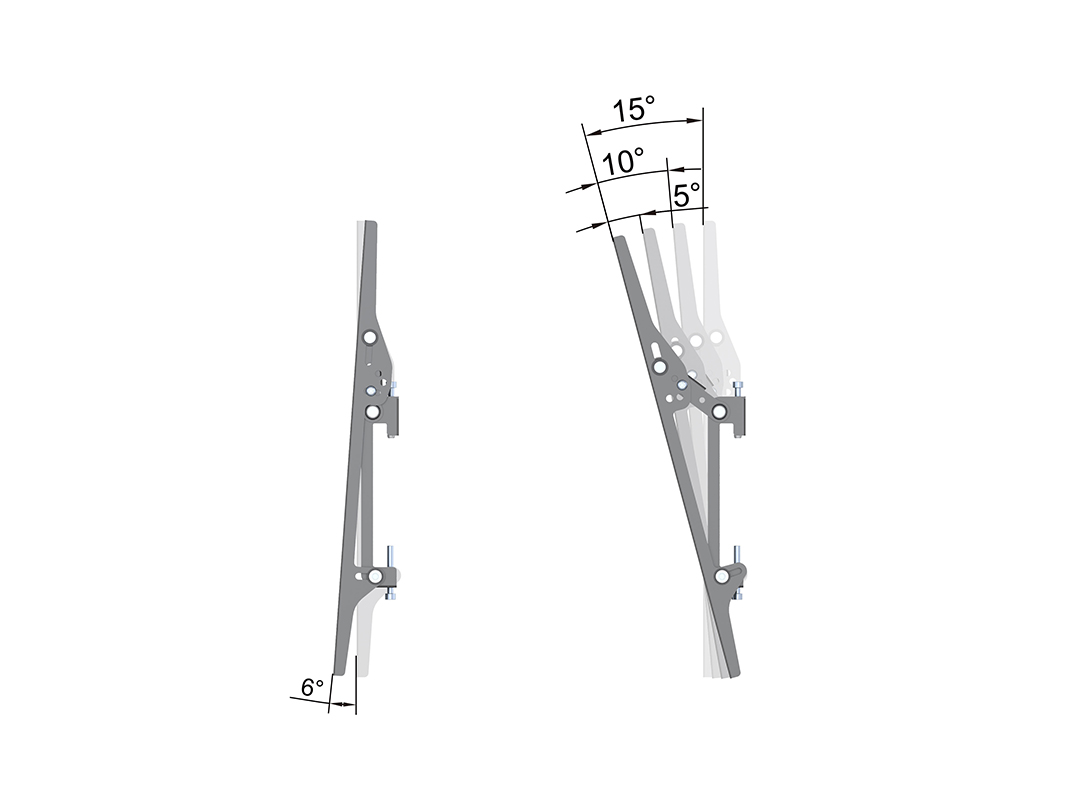

| Tilt: | Yes, -6~15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 105.4x19.8x15cm + 58.5x46x13.8cm |
| Package Weight: | 20kg + 12.2kg |
