M Menu Board Mount Pro MBC4X1U/0,5 VESA 300
Options
Variants that match your options:
In stock: 71
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234813414
Product Overview

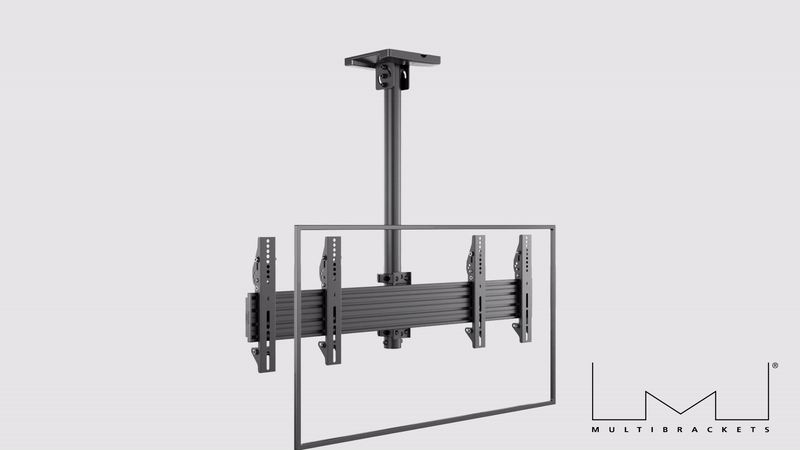

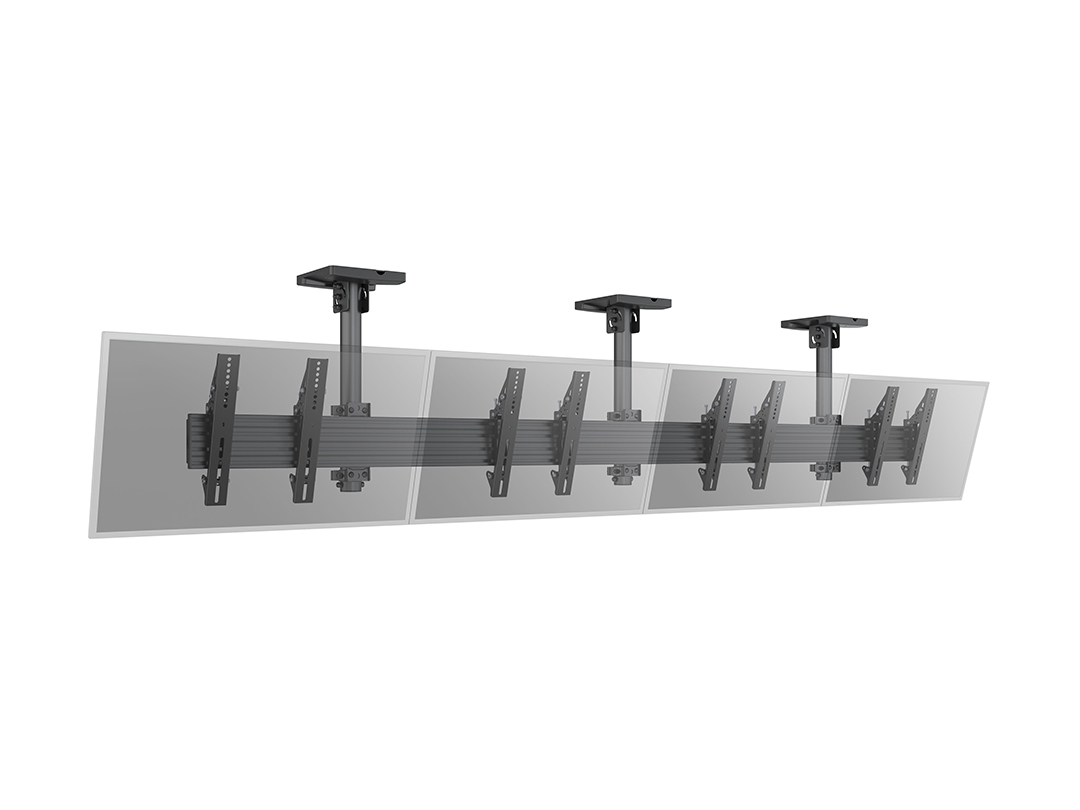

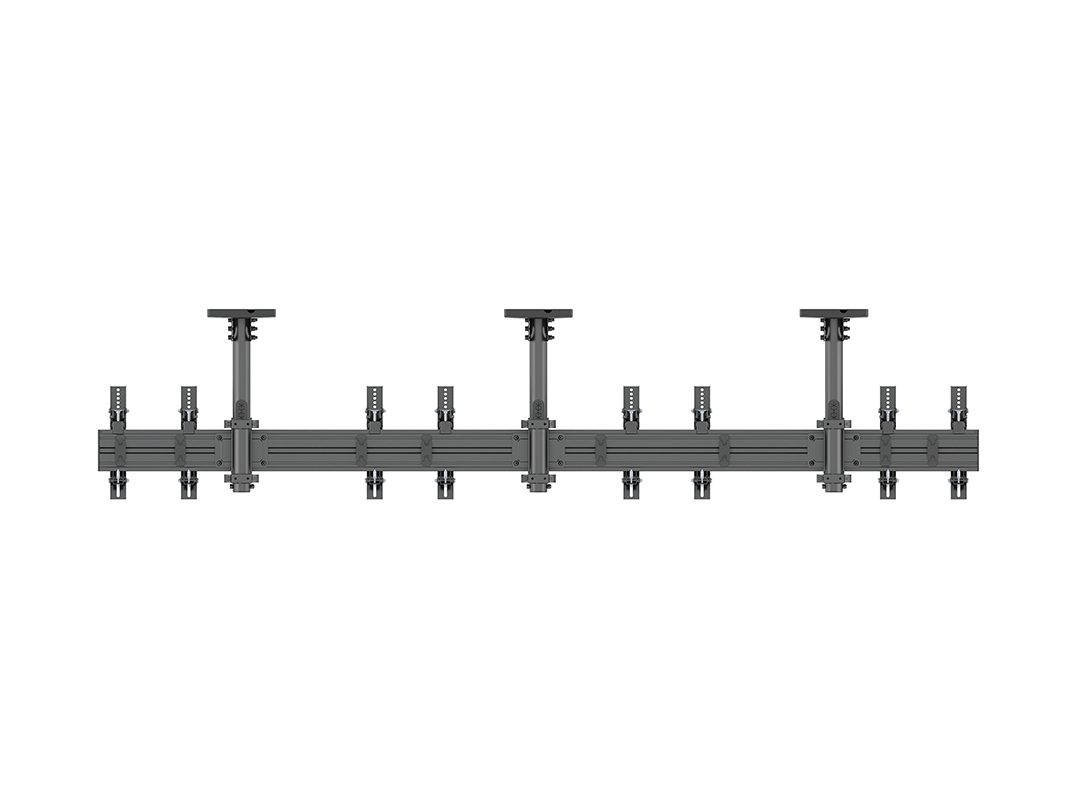

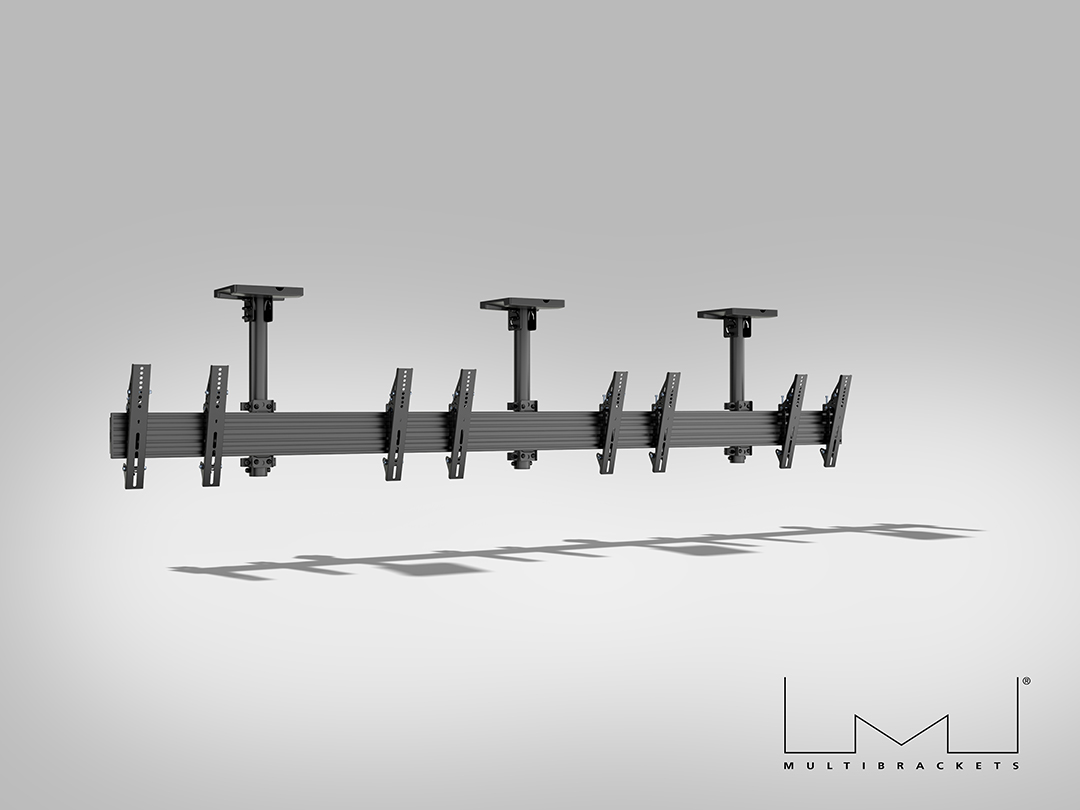

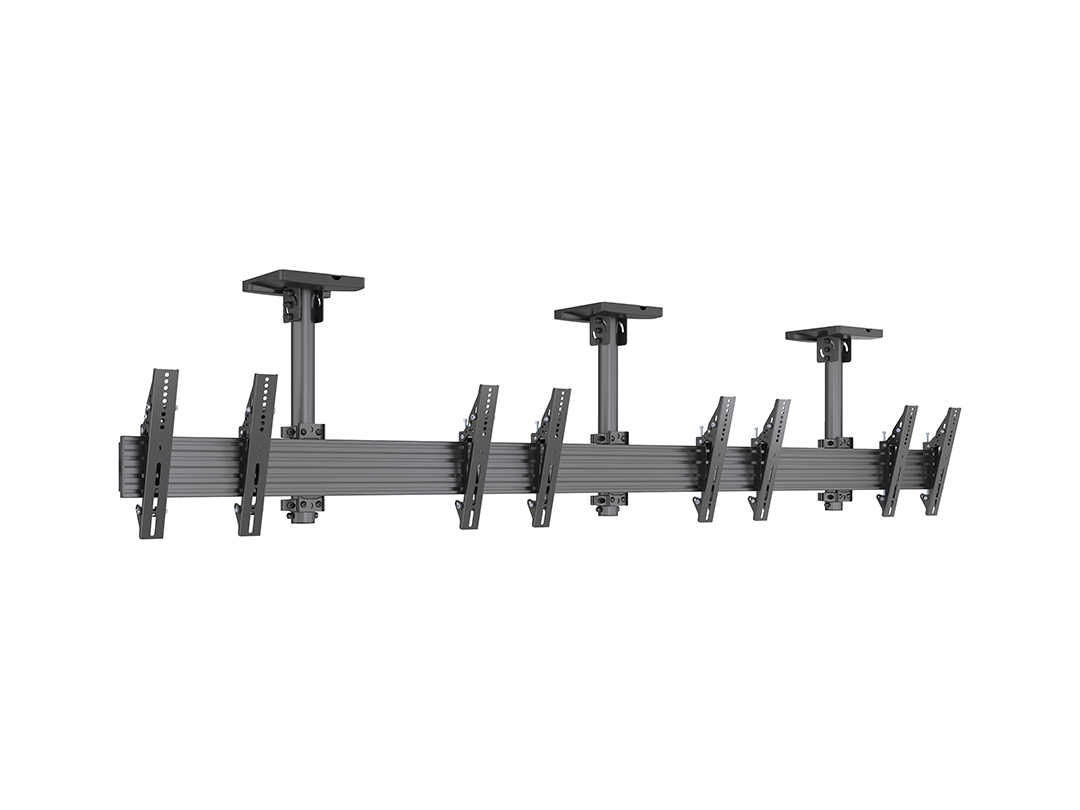

The M Menu Board Mount Pro MBC4X1U/0,5 VESA 300 is a ceiling-mounted, four-screen digital signage solution tailored for high-traffic commercial environments. Designed for 32"-50" displays in a single-row configuration, this modular system offers precise tilt, seamless alignment, and a professional Scandinavian aesthetic—ideal for menu boards, retail, or corporate communications.
Built on the flexible Pro Series aluminum rail, this system features integrated cable management and can be configured to meet specific site requirements. The MBC4X1U supports both portrait and landscape orientations and is fully expandable with other Pro Series components. Engineered with installers in mind, it includes Power Click™ installation and all required hardware.
Highlights
- Four-screen ceiling mount for 32"-50" displays
- VESA support up to 300x300 (adapters included)

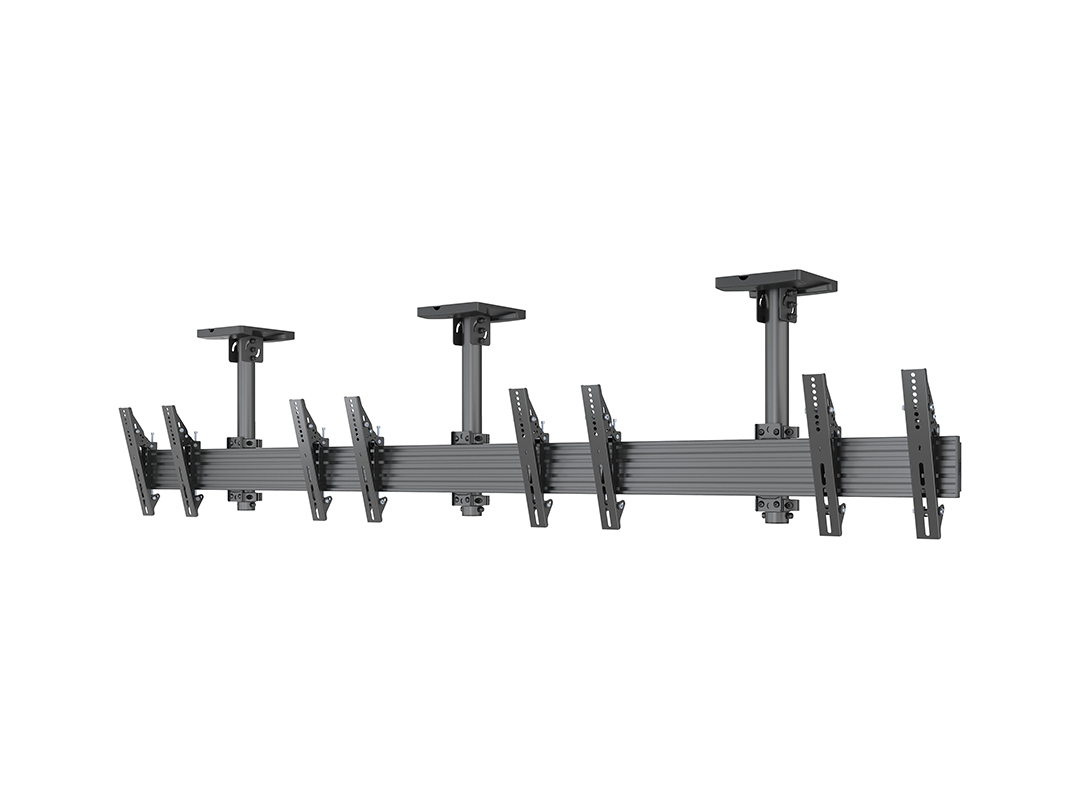

- Modular 3.96 m aluminum rail system for perfect alignment
- Portrait or landscape screen orientation
- Integrated cable management for a clean, professional finish

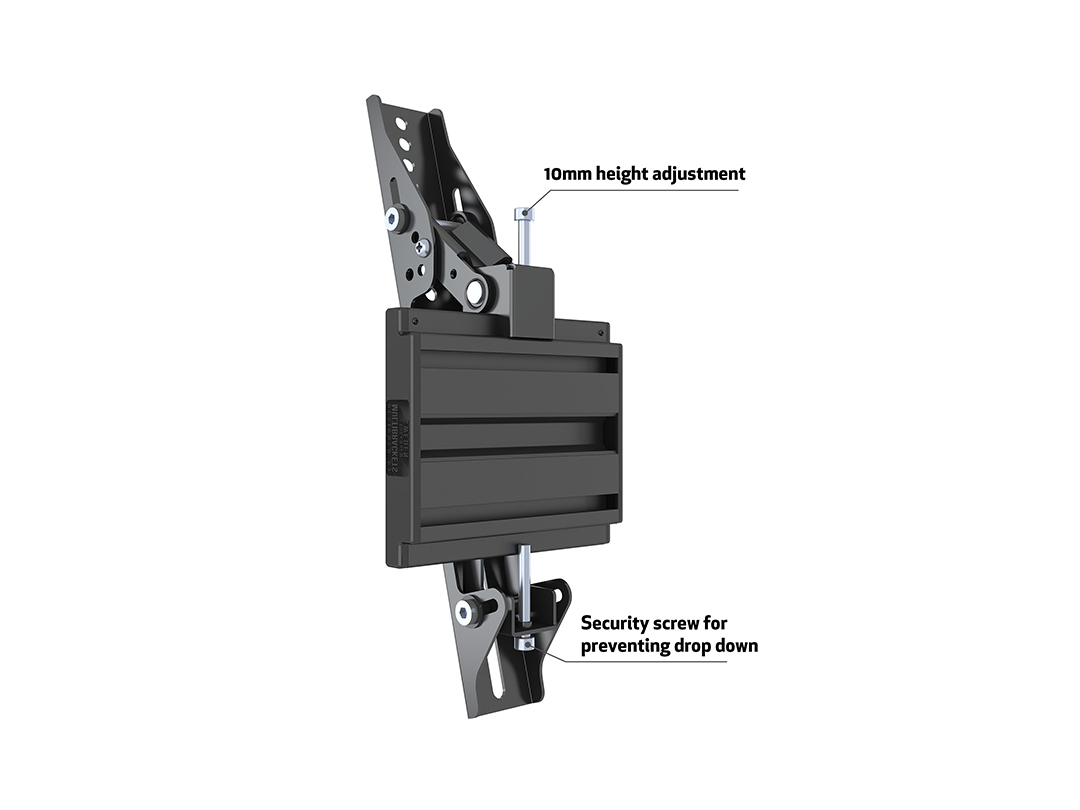

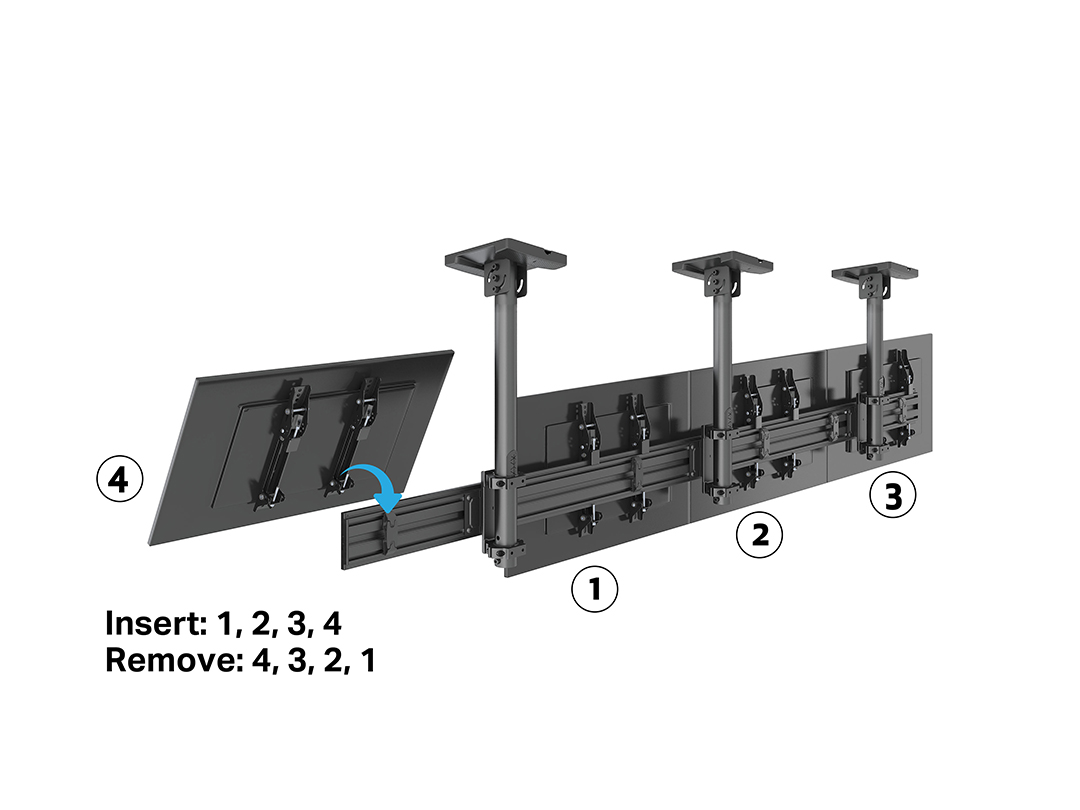

- Power Click™ install for fast and secure mounting

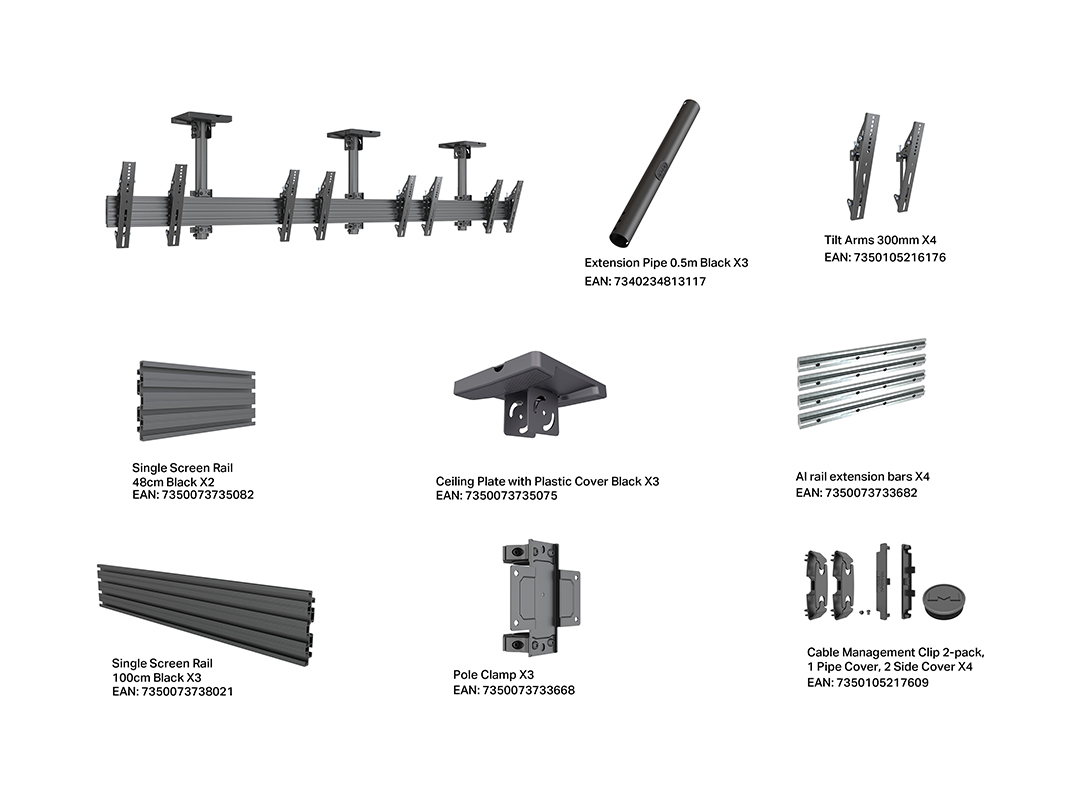

- Ceiling plate and full hardware kit included
- Expandable with Pro Series accessories
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Menu Board Mount Pro MBC4X1U/0,5 VESA 300 | |
| Article No: | 7 340 234 813 414 |
| For screen size: | 32"-50" |
| Type: | Single Side MBC4X1U |
| Universal & VESA standard: | Adjustable from 75x75, 100x100, 100x200, 200x100 to 200x200, 300x300 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 22 kg |

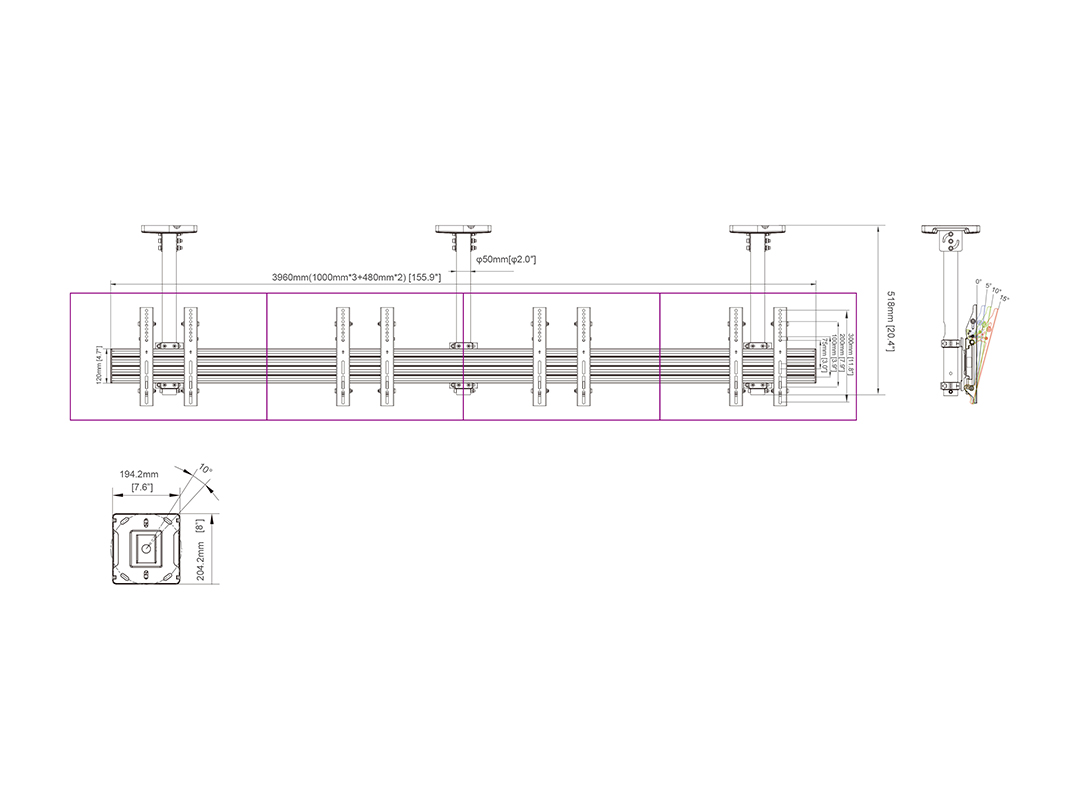

| Measurements | 104.5 x 25 x 15 cm |
| Max Load: | 50 kg per screen |

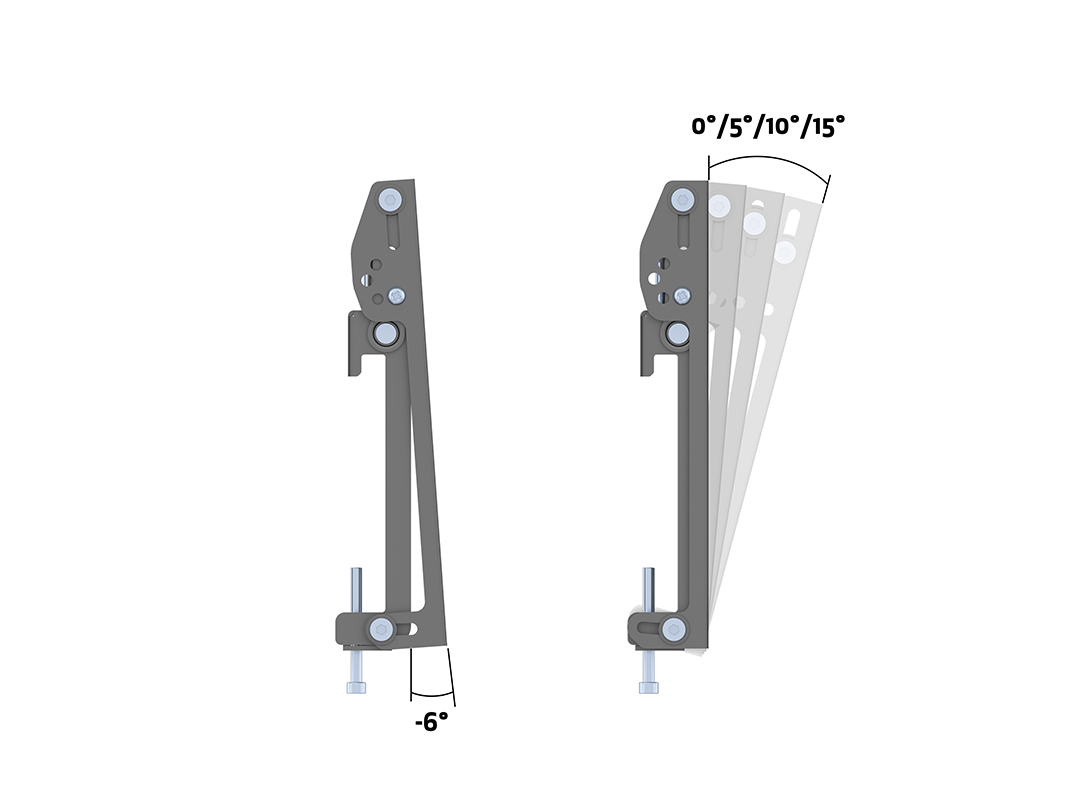

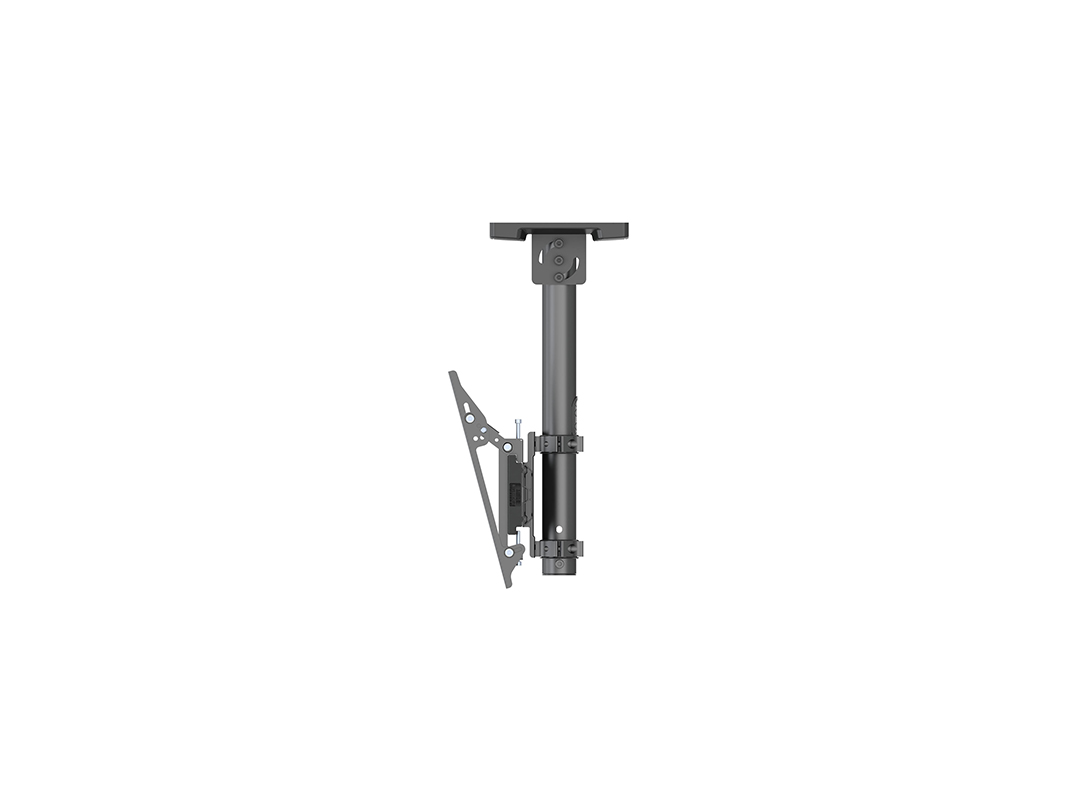

| Tilt: | Yes, -6°~+15° |
| Suitable for: | Samsung: LH32QMRBBGCXEN, LH43QMBEPGCXENX, LH50QMBEBGCXEN LG: 32SM5J-B, 43UH5J-H, 49UH5J-H |
| Cable Management: | Yes |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
