Article no.: 7350105214561
Product overview

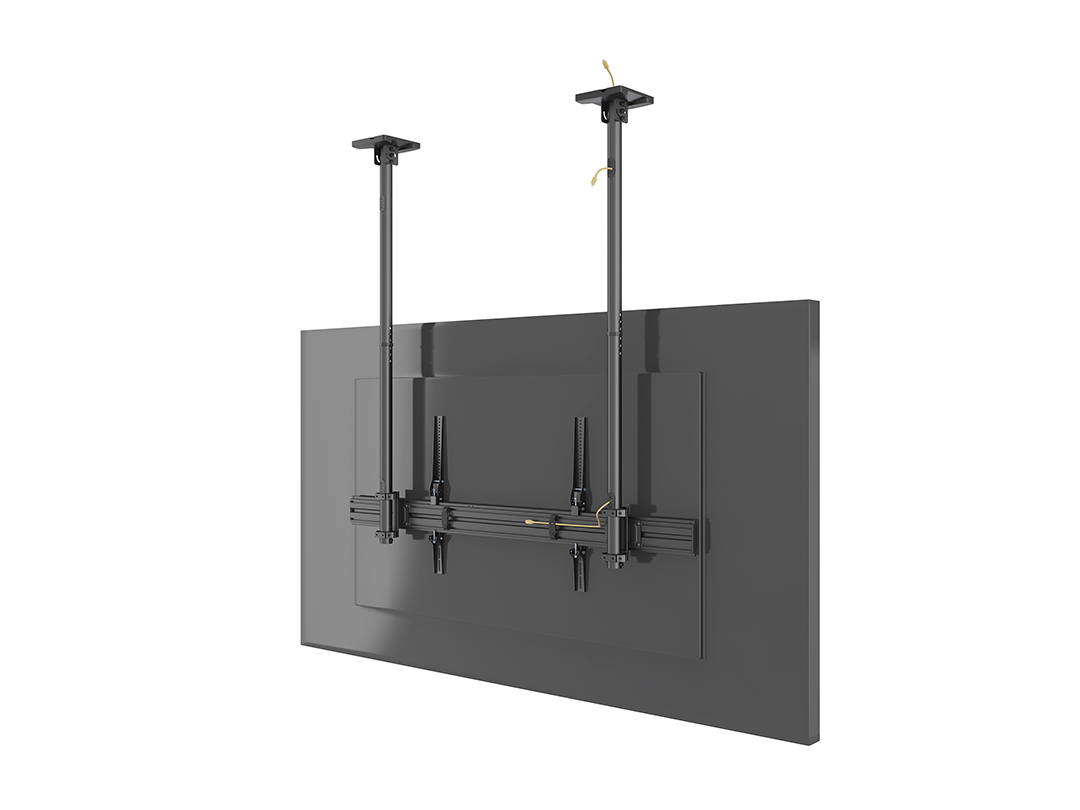

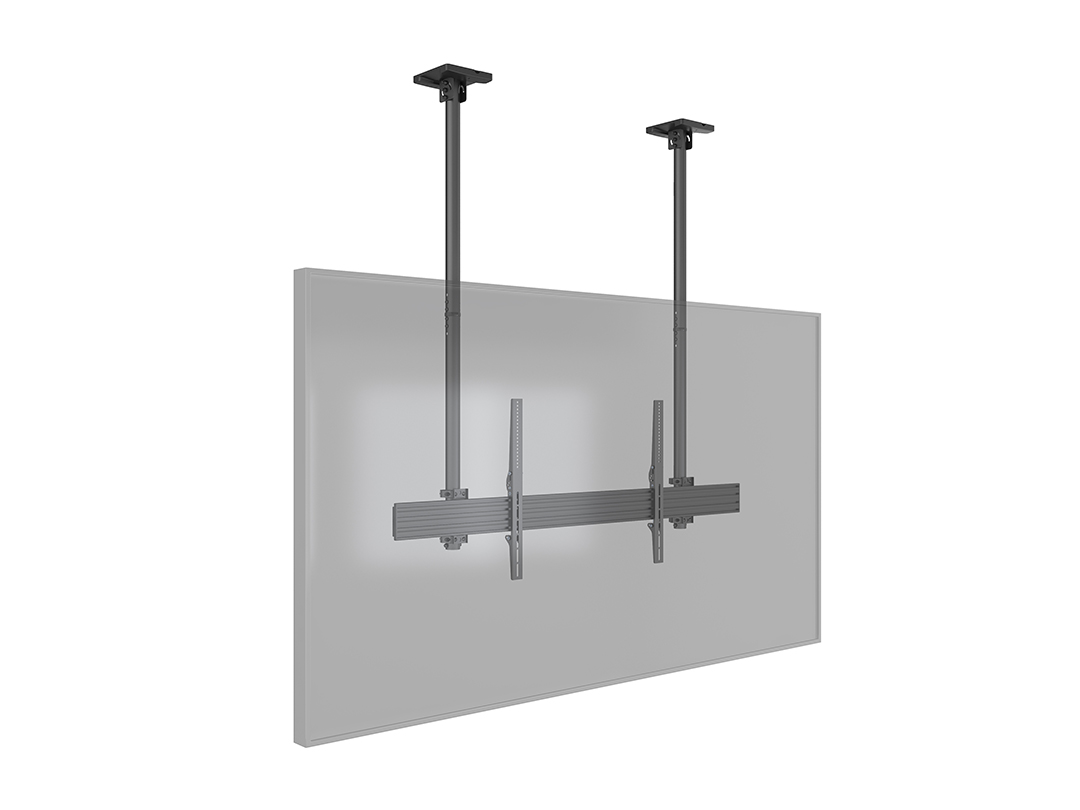

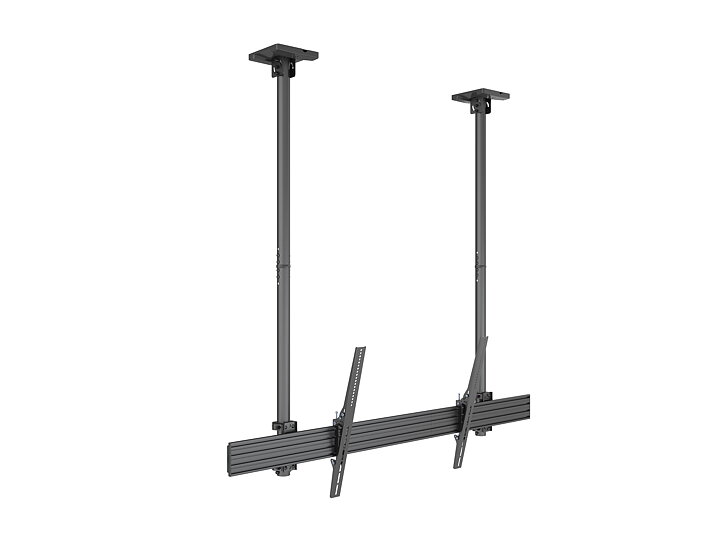

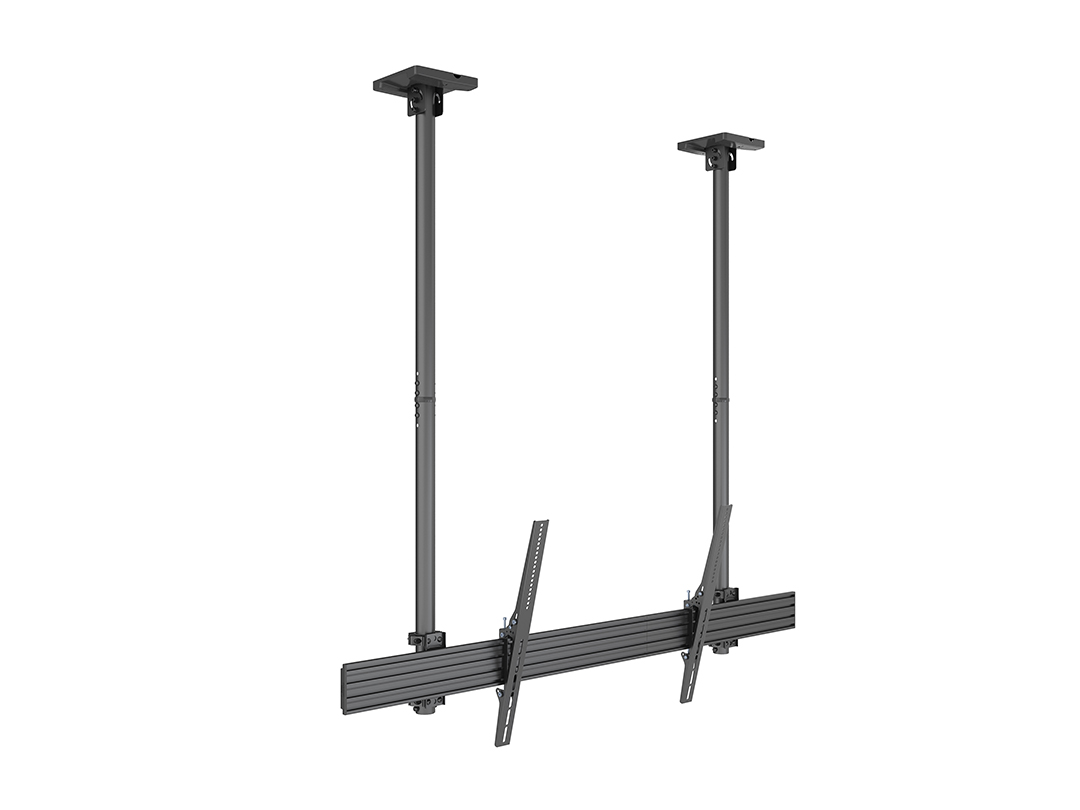

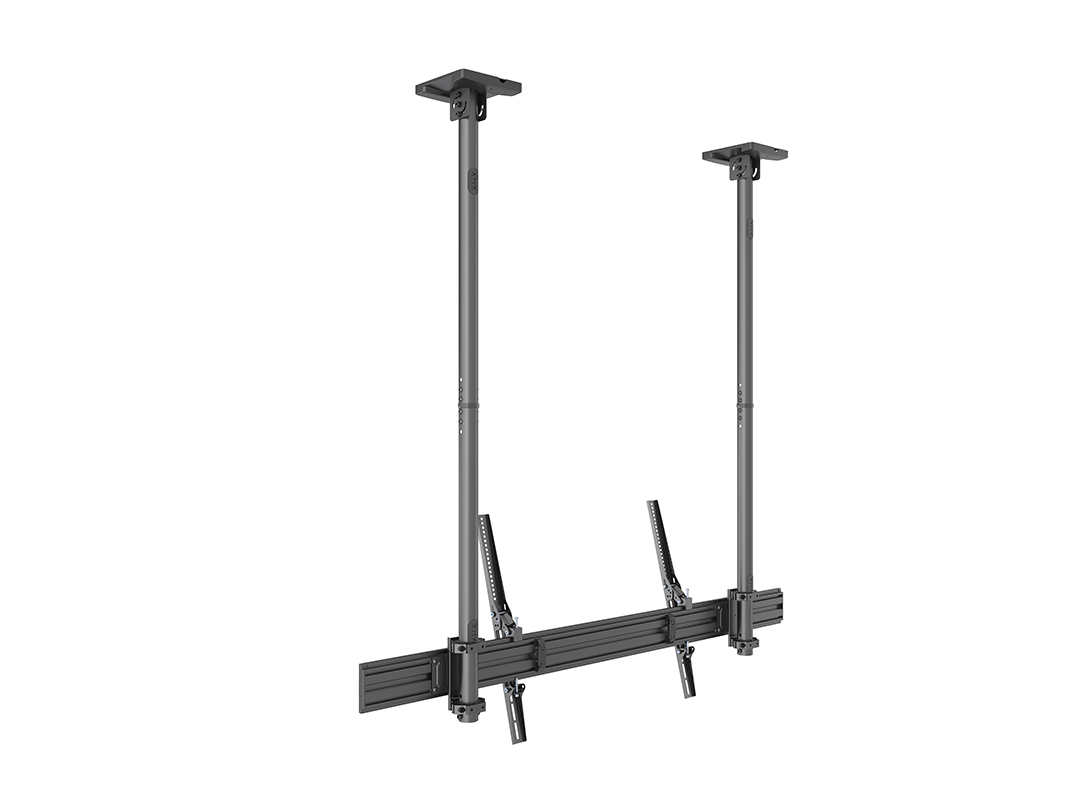

The Multibrackets M Ceiling Mount Pro MBC1USD VESA 1600 is a high-performance ceiling mount designed for ultra-wide commercial displays. Supporting VESA patterns up to 1600x600 and screens up to 95 kg, it delivers professional-grade installation for signage and presentation environments.
Built on the modular Pro Series system, it features robust steel and aluminium construction, integrated cable management, and compatibility with custom extensions. Its fixed, single-side setup ensures stability and clean aesthetics in demanding settings such as corporate lobbies, control rooms, and retail displays.
With tool-free tilt and a low-profile design, the MBC1USD 1600 combines flexibility, efficiency, and a streamlined appearance tailored for premium AV installations.
Highlights
- Supports large ultra-wide displays
- VESA compatibility: up to 1600x600
- Displays up to 120" and max load: 100 kg
- Modular, single-side ceiling mount
- Fixed position with tilt adjustment
- Integrated cable management
- High-strength aluminium and steel frame
- Ideal for public, retail, and commercial spaces
- Compatible with 77"–120" ultra-wide signage displays
- Includes ceiling plate and hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1USD VESA 1600 | |
| Article No: | 7 350 105 214 561 |
| For screen size: | 75"-120" |
| VESA standard: | Adjustable from 400x400 to 1500x600 and Max 1600x600 |
| Material: | Steel, plastic, aliminum |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 16,5 kg |
| Max Load: | 100 kg |

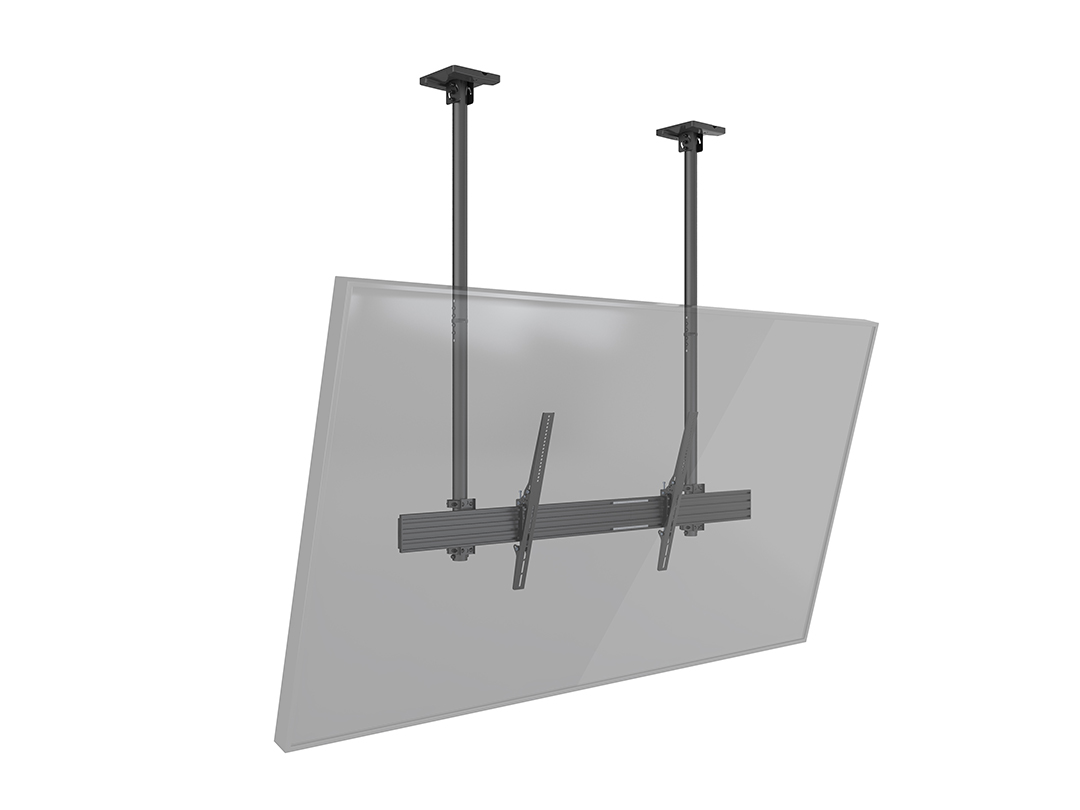

| Tilt: | Yes, -6~+15° |
| Swivel: | No |
| Rotate: | No |

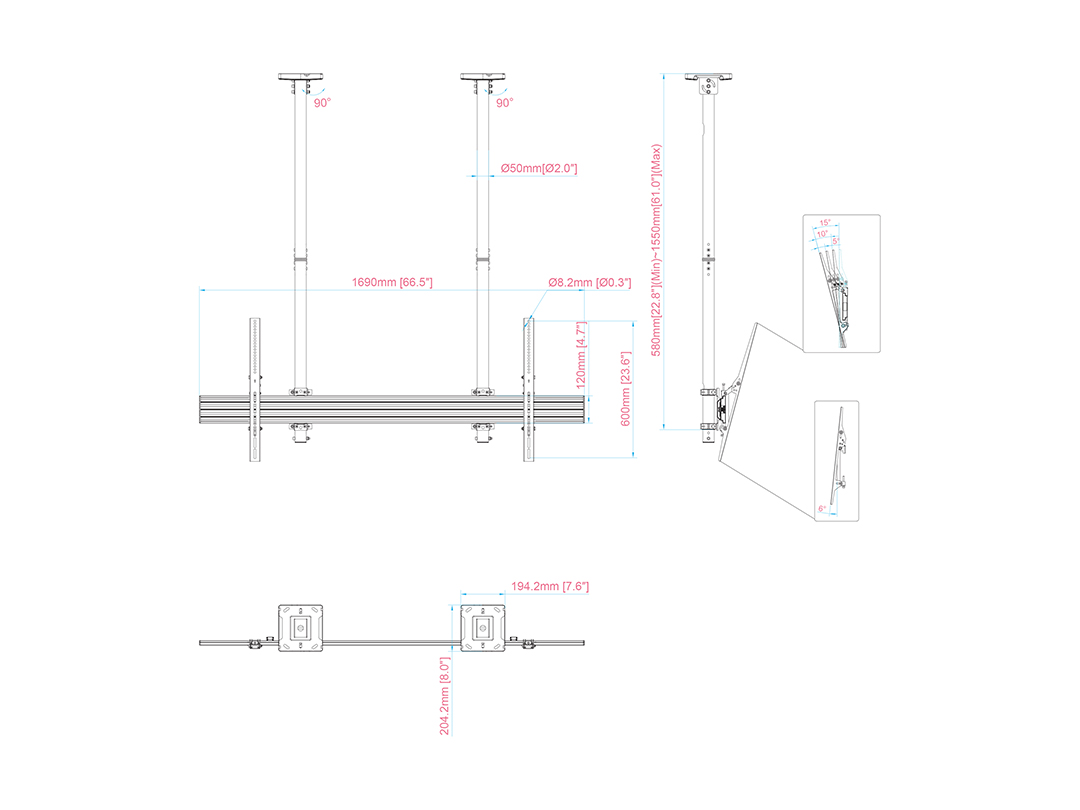

| Measurement: | 104.5 x 20 x 15 cm |
| Installation: | Samsung 115" LH115QHFEBGXXS Ilyama 105" Prolite LH10551UWS-B1AG, LG 110UM5J, 110UM5K & 105BM5N 105BM5P And other large size displays with a maximum VESA of 1600x600. |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0 kg |
