M Wallmount Pro MBW1U VESA 1600 Tilt Black
Options
Variants that match your options:
In stock: 479
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105213298
Product Overview
The M Wallmount Pro MBW1U VESA 1600 Tilt Black from Multibrackets is a heavy-duty tilt wall mount tailored for ultra-large format digital signage displays. Supporting VESA configurations up to 1600x600 and screens like the LG 110UM5J and other large size displays, this solution is perfect for corporate lobbies, control rooms, and public digital signage environments requiring a secure, angled mounting position.
Part of the modular Multibrackets Pro Series, this mount is designed with installers in mind—featuring easy adjustability, quick installation, and seamless cable management. Built on a durable aluminum rail system, it supports scalable and reconfigurable installations over time, making it ideal for evolving AV needs.
Click to view larger image
Highlights
- Heavy-duty tilt wall mount for ultra-large LCD displays
- Up to 120" and 100kg maxload
- Compatible with VESA patterns up to 1600x600
- Supports displays like LG 110UM5J, 110UM5K, 105BM5N, and Iiyama LH10551UWS-B1AG
- Ideal for digital signage, control rooms, and public environments
- Integrated cable management for a clean and efficient setup
- Power Click™ mounting system for tool-less installation
- Portrait or landscape mounting supported

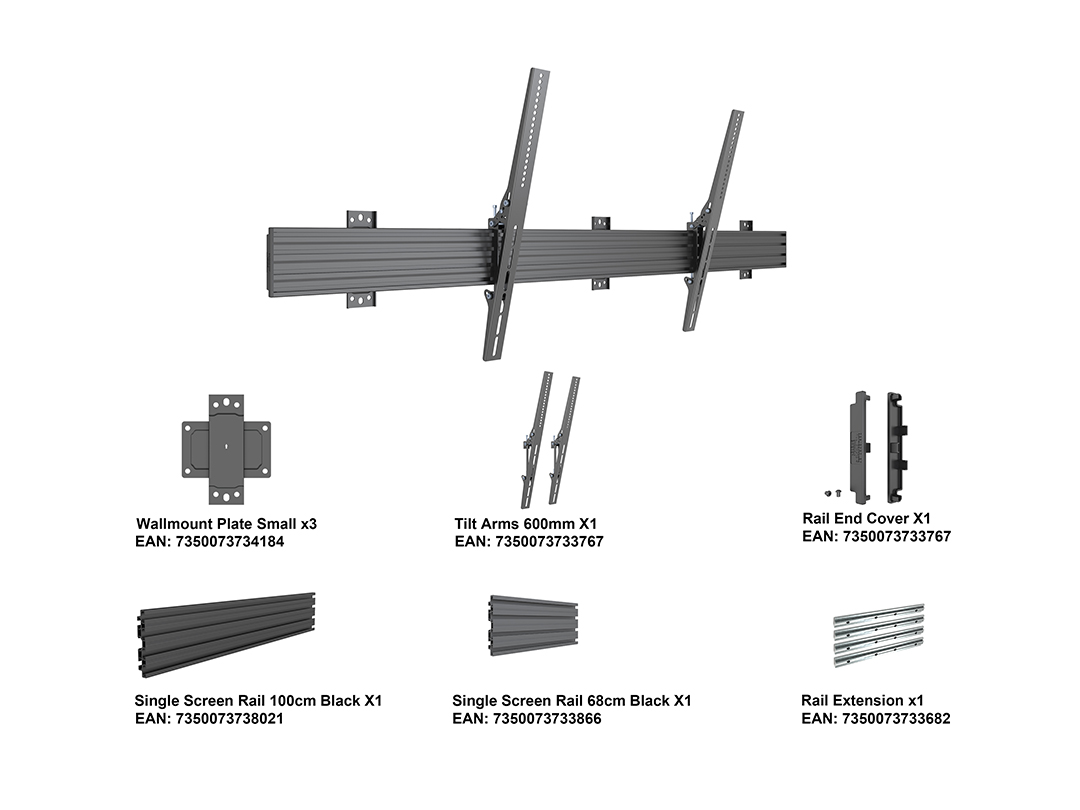

- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide| Specification | |
| M Wallmount Pro MBW1U VESA 1600 Tilt Black | |
| Article No: | 7 350 105 213 298 |
| For screen size: | 77”-120" |
| Universal & VESA standard: | Adjustable from 800x600 1000x600 1500x600 to max 1600x600 |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 9 kg |
| Max Load: | 100 kg |

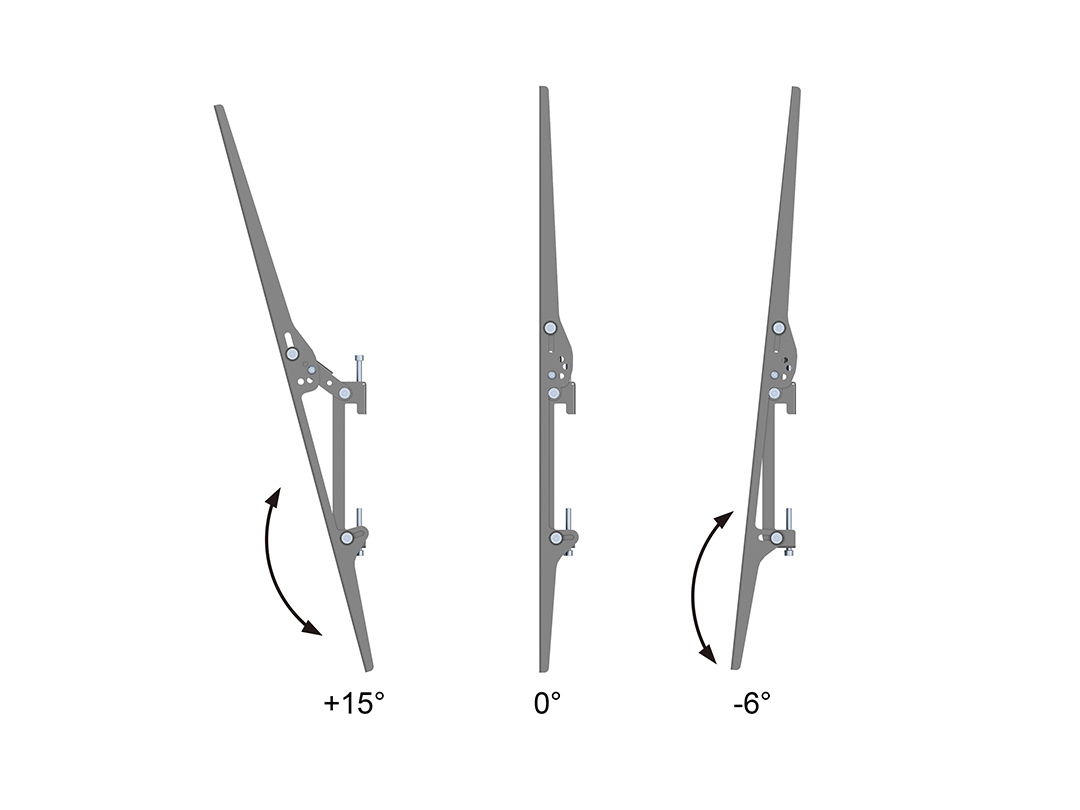

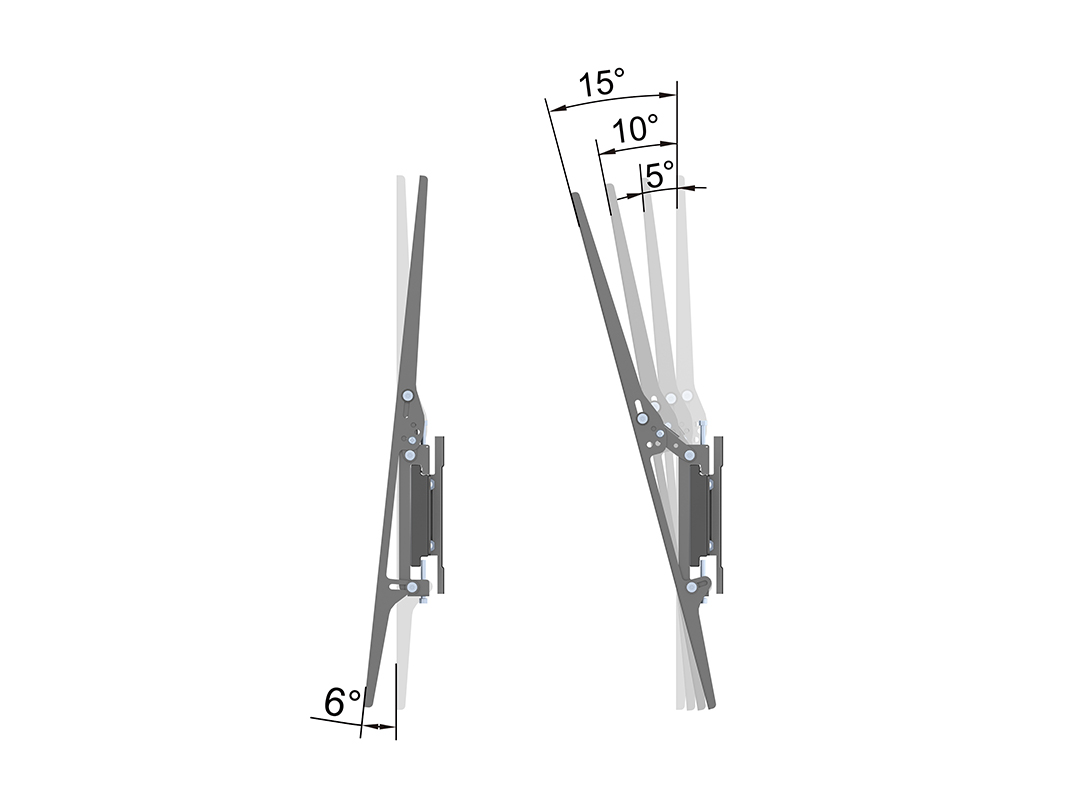

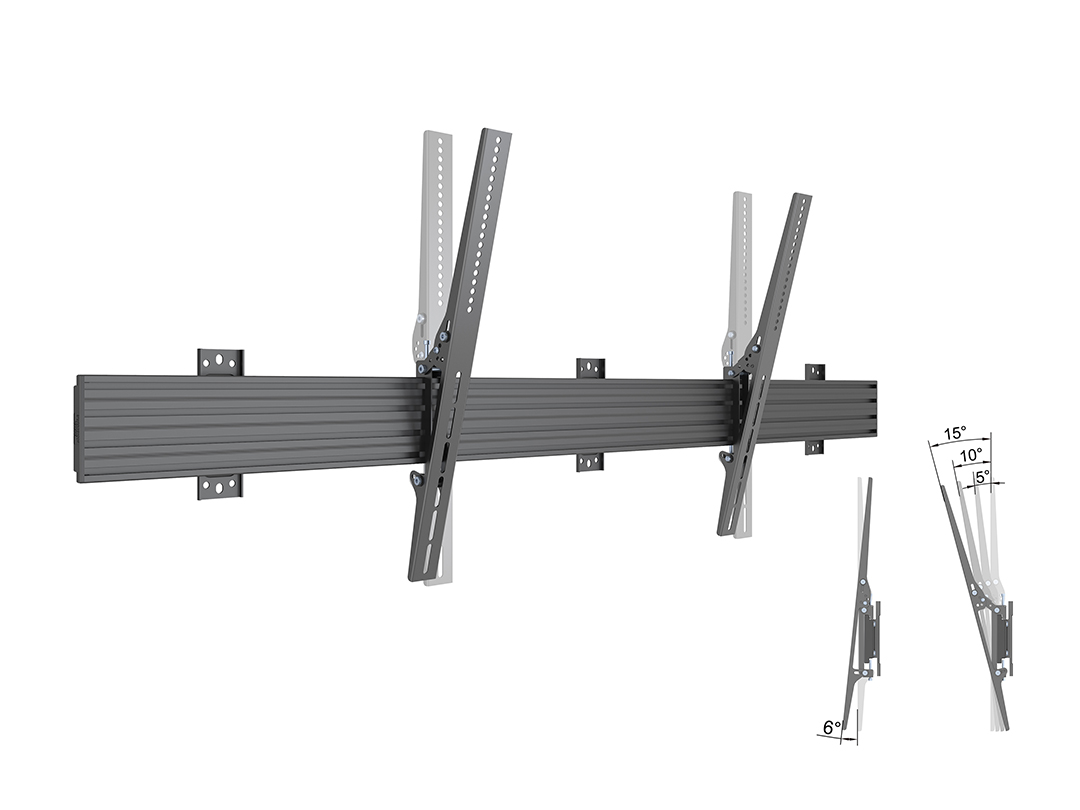

| Tilt: | Yes, -6~+15° |
| Swivel: | No |
| Rotate: | No |
| Measurement: | 1045 x 160 x 105 mm |
| Compatible with: | Samsung 115" LH115QHFEBGXXS Ilyama 105" Prolite LH10551UWS-B1AG, LG 110UM5J, 110UM5K & 105BM5N 105BM5P and other displays with a maximum VESA of 1600x600 not mentioned (check technical drawing) |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0 kg |
