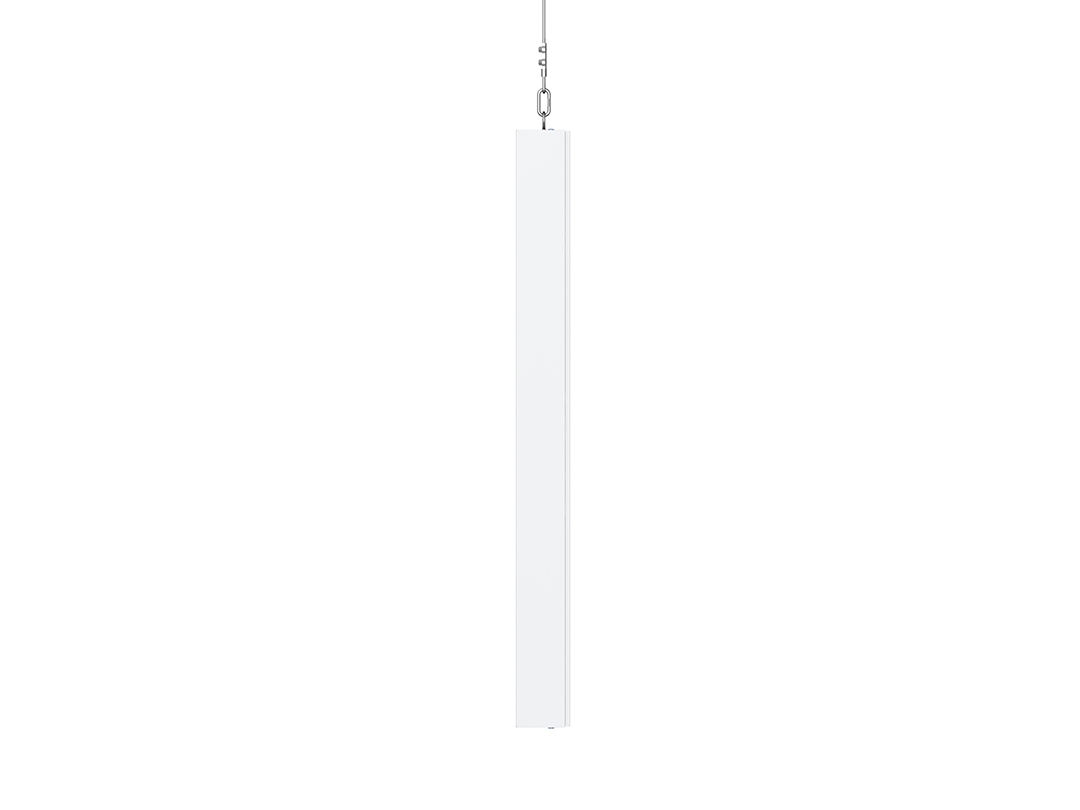

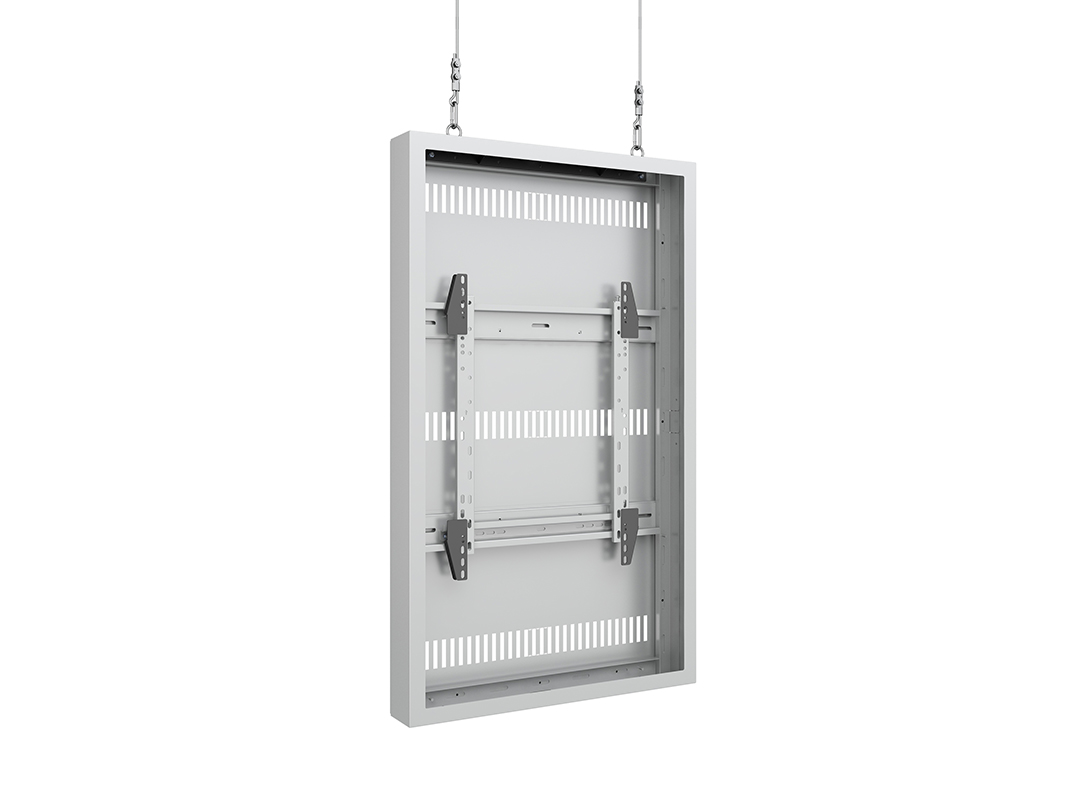

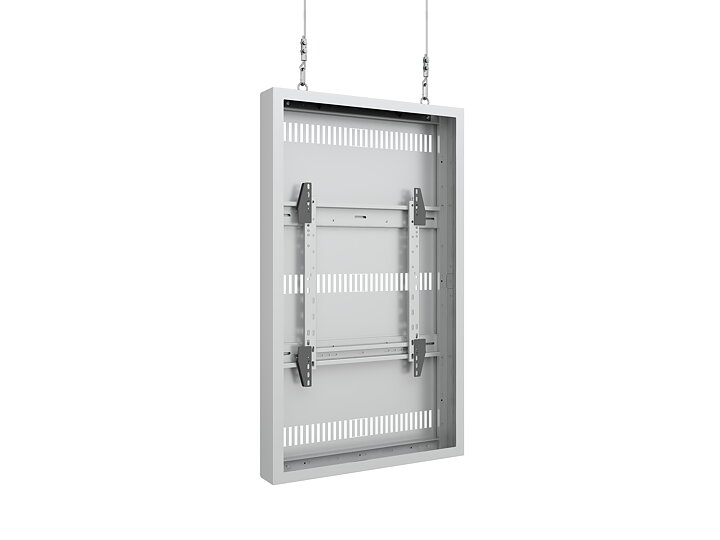

M Pro Series Enclosure 49" High Brightness Wire Medium White
Options
Variants that match your options:
In stock: 7
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234814794
Product Overview

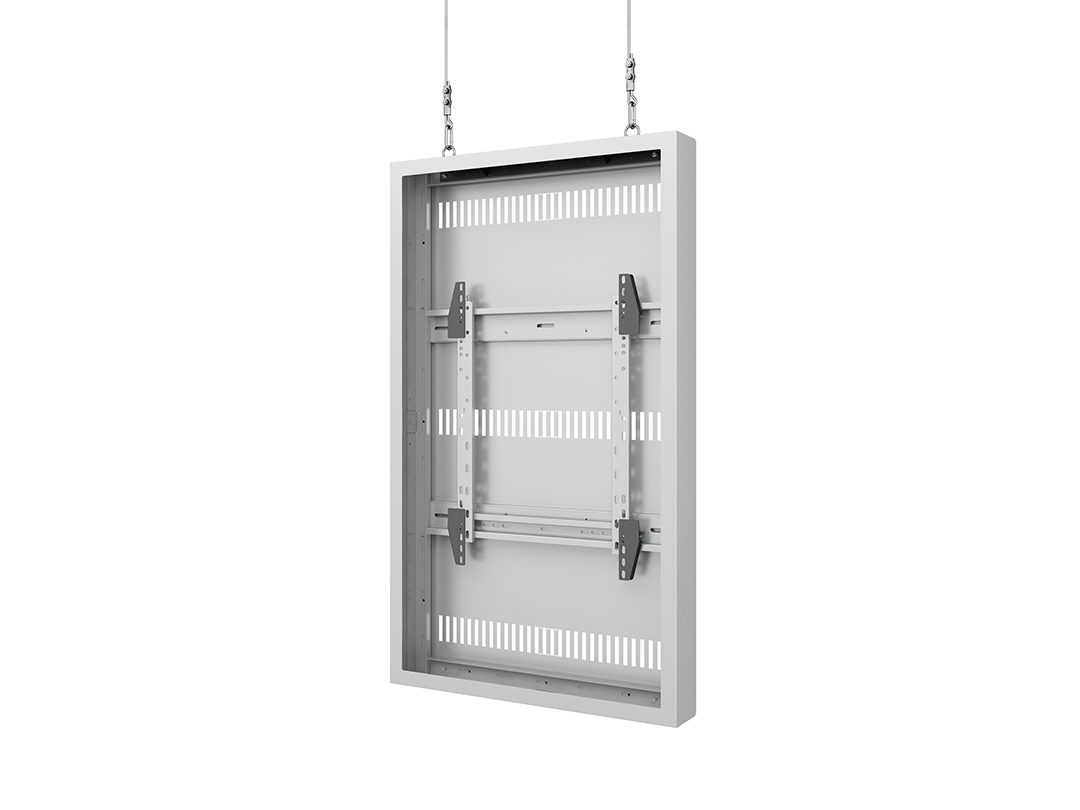

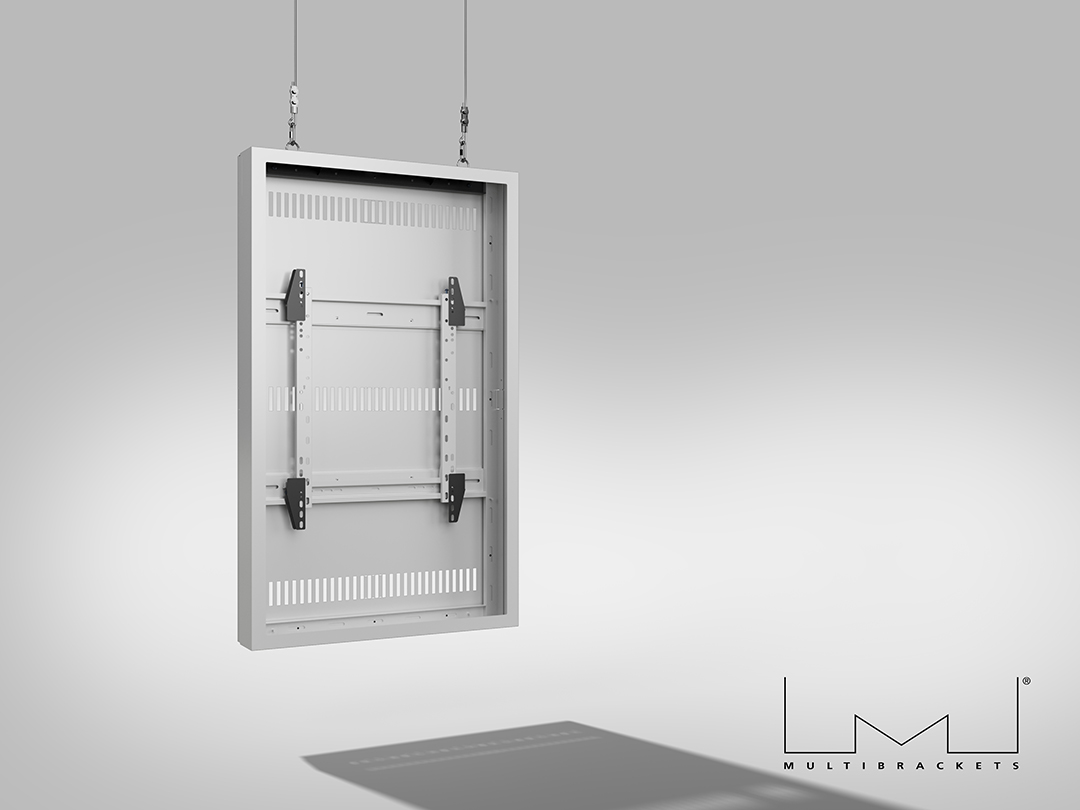

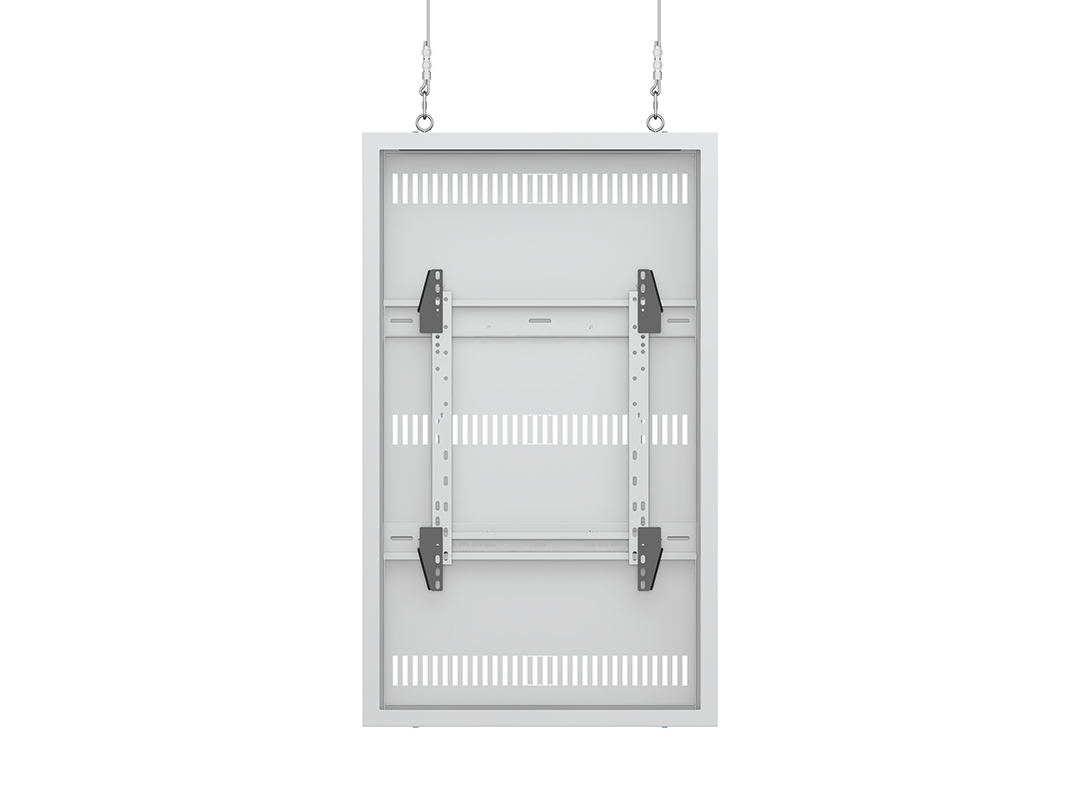

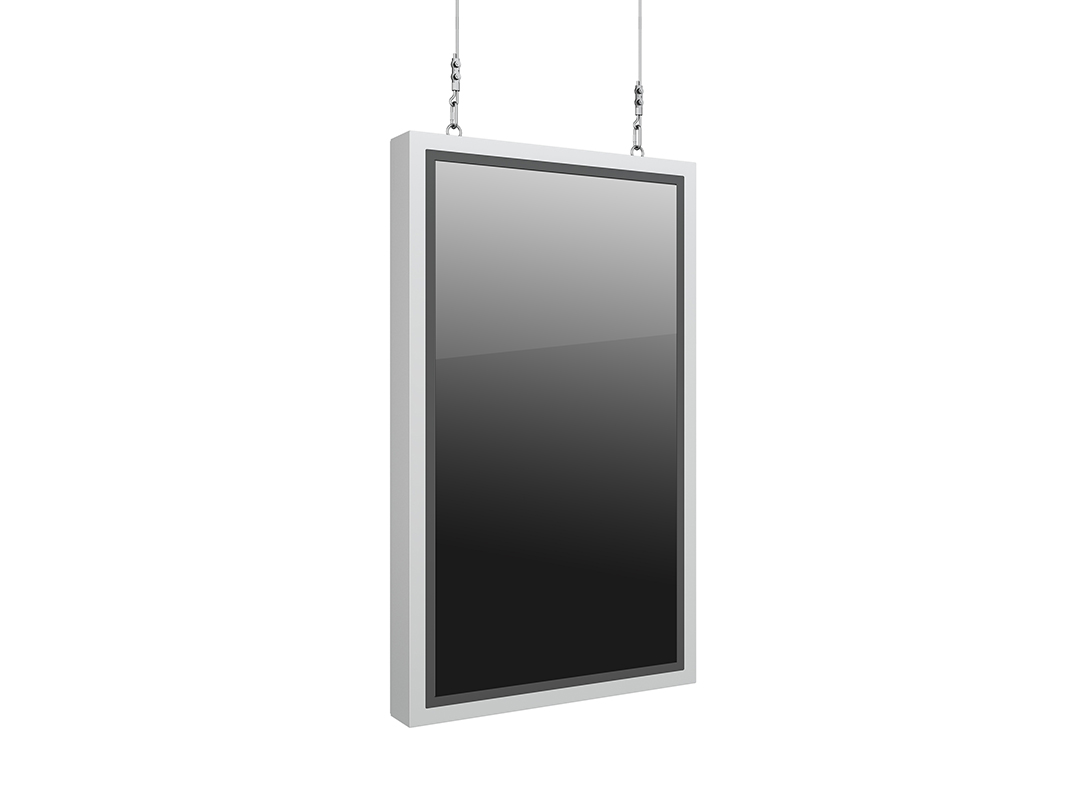

The M Pro Series Enclosure 49" High Brightness Wire Medium White is a universal display enclosure designed for high brightness displays from brands like Samsung, LG, Philips, Dynascan and Hisense. With a clean Scandinavian design and a robust steel cage, it offers optimal protection against theft and damage while enhancing any indoor or storefront environment.
This versatile casing supports both portrait and landscape installation and includes millimeter-precise after-adjustment. The depth-adjustable frame and reversible hinges simplify access for maintenance, while integrated passive ventilation and optional active thermal management ensure ideal internal conditions. The 5mm wire system allows floor-to-ceiling or ceiling-only installation for maximum flexibility.
Approved and airflow-tested by Samsung, this enclosure is built to meet stringent thermal performance requirements.
Click to view larger image
Highlights
- Smart Scandinavian design
- Compatible with selected 49” high brightness displays from Samsung, Dynascan, Philips, LG and Hisense
- Universal portrait or landscape mounting
- Supports VESA 200x200 up to 600x400mm
- Millimeter-precise after adjustment
- Hinged top frame for easy access to internal components
- Low profile design
- Ventilated sides and tested thermal management
- Pre-assembled to simplify installation
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design |
Selected models are TÜV approved.

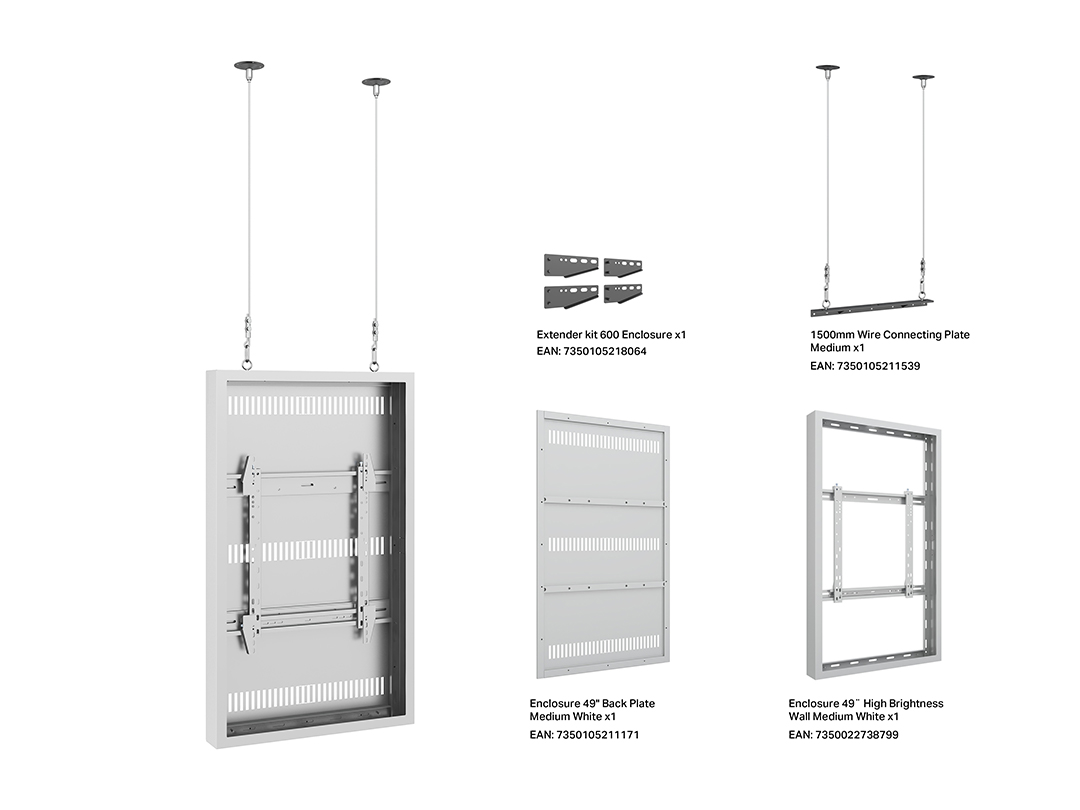

Pro Series Configuration Guide
| Specification | |
| M Pro Series Enclosure 49" High Brightness Wire Medium White | |
| Article No: | 7 340 234 814 794 |
| Material/ Colour: | Steel/ White (RAL 9003) |
| Surface Finish: | Powder Coating RAL9005 |
| Installation | Samsung: OM49N. LG: 49UH5F, 49UH5Q-E, 49UH5N-E (+ add extender 7350022739161), 49XS4P (+ add extender 7350105218064). Hisense: 49WF25E. Iiyama: 49UM5N-H. + other 49" displays not model specified above (check measurements). |
| VESA standard: | 200x200 up to 600x400mm |

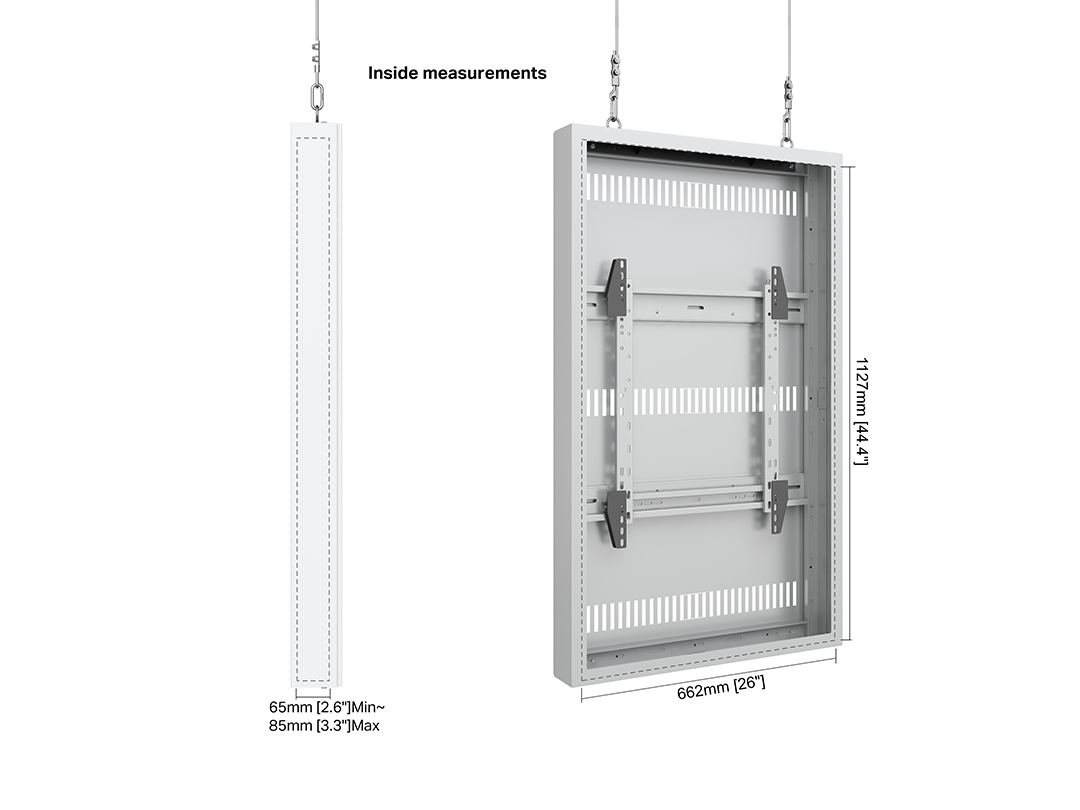

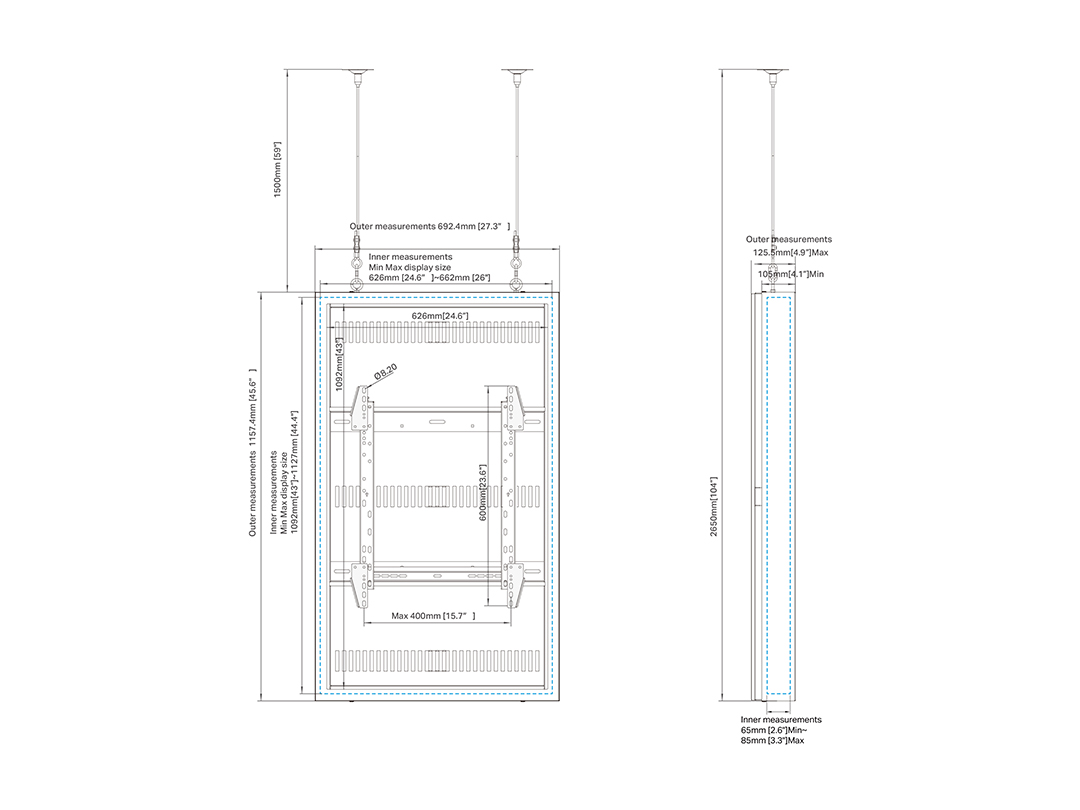

| Measurements: | 115.8x69.3x13 cm |
| Weight: | 30 kg |
| Max load: | 50 kg |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 115.8x69.3x13 cm |
| Package Weight: | 30 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 1 pcs |
| Package Measurements: | 115.8x69.3x13 cm |
| Package Weight: | 30 kg |
