M Pro Series Enclosure 98" Wall Large White
Options
Variants that match your options:
In stock: 7
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105211355
Product Overview

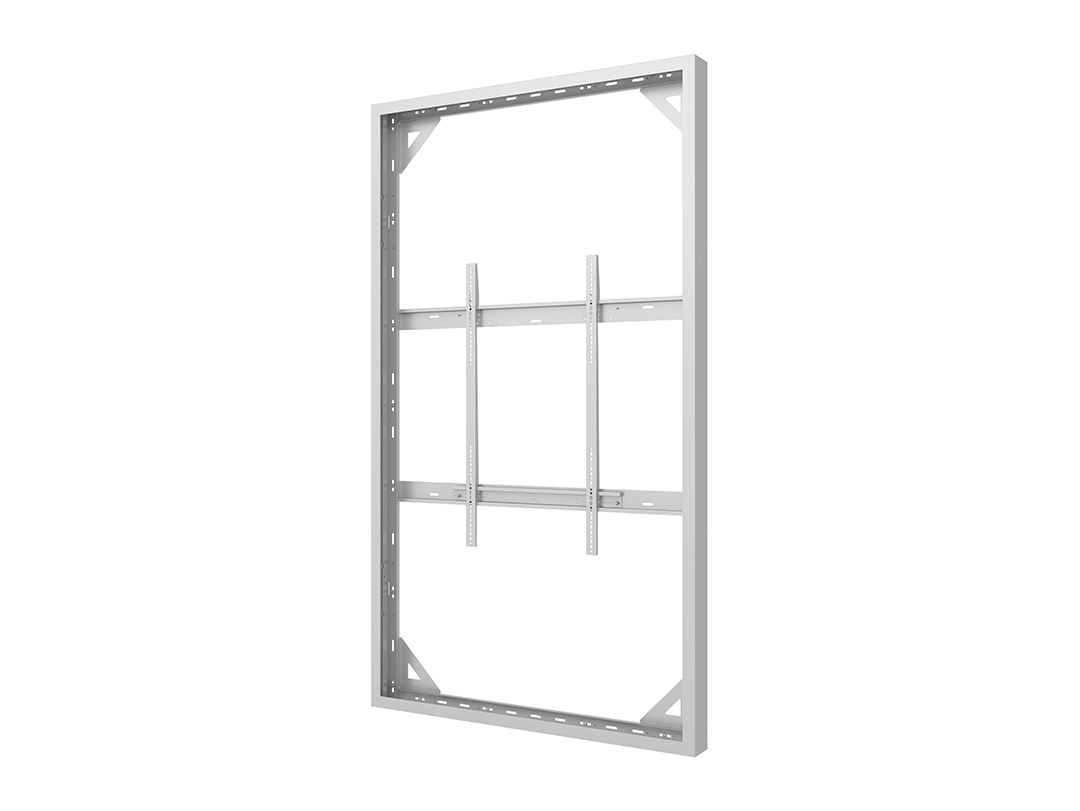

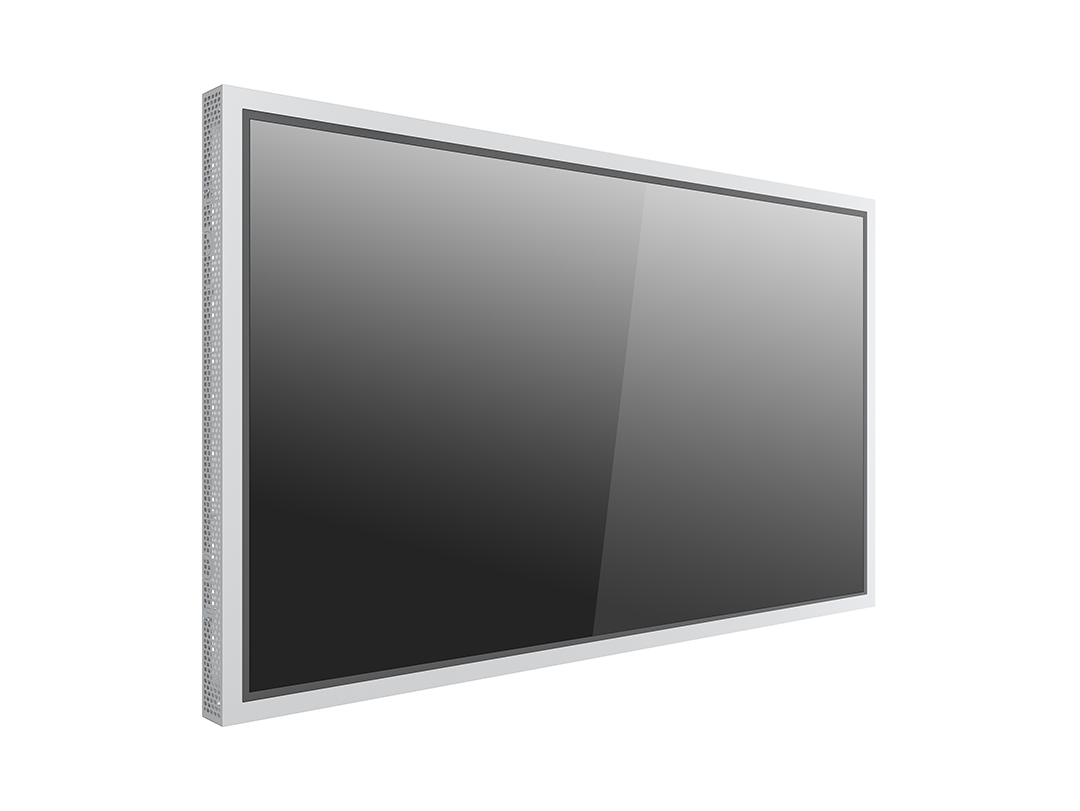

The M Pro Series Enclosure 98" Wall Large White is a professional-grade signage enclosure designed to protect high-value displays in public or commercial spaces. Built from reinforced steel, it ensures theft protection, clean aesthetics, and long-term durability.
This minimalistic casing supports both portrait and landscape installation and is compatible with most major 98" high brightness displays. Its advanced thermal management and passive ventilation help maintain ideal operating conditions.
Features like reversible hinges, depth-adjustable frame, and tool-free access simplify installation and maintenance. The enclosure ships pre-assembled on protective pallets for safe and efficient logistics handling.
Click to view larger image
Highlights
- Minimalistic Scandinavian design
- Supports most 98" signage displays

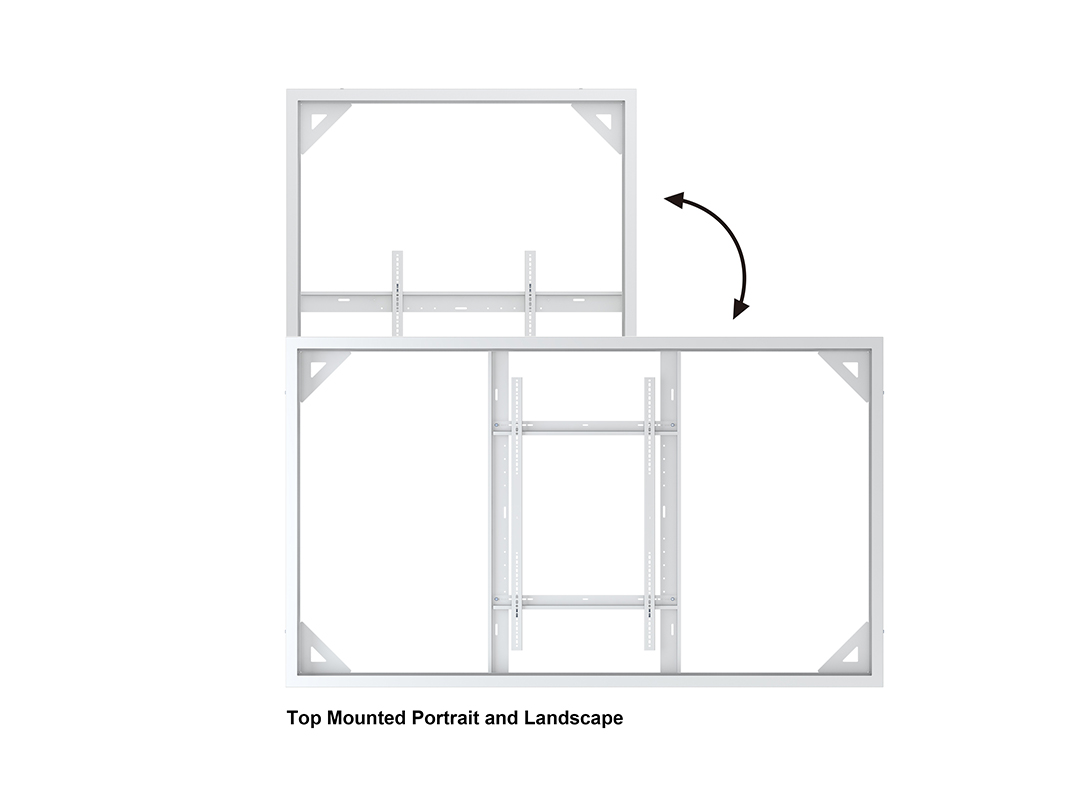

- Portrait or landscape installation
- Supports VESA 200x200 up to 800×1000mm (portrait) 800×800mm (landscape) with optional VESA extension using extender brackets 8064.

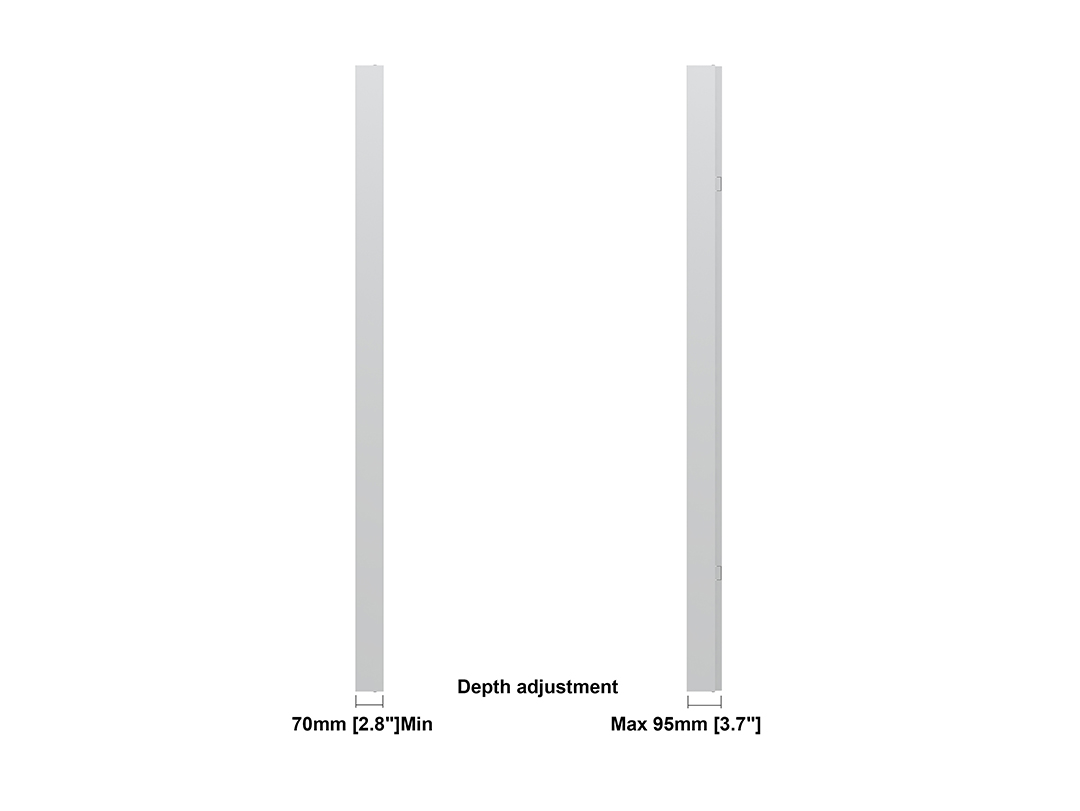

- Precision depth adjustment after mounting
- Easy service access via hinged top frame

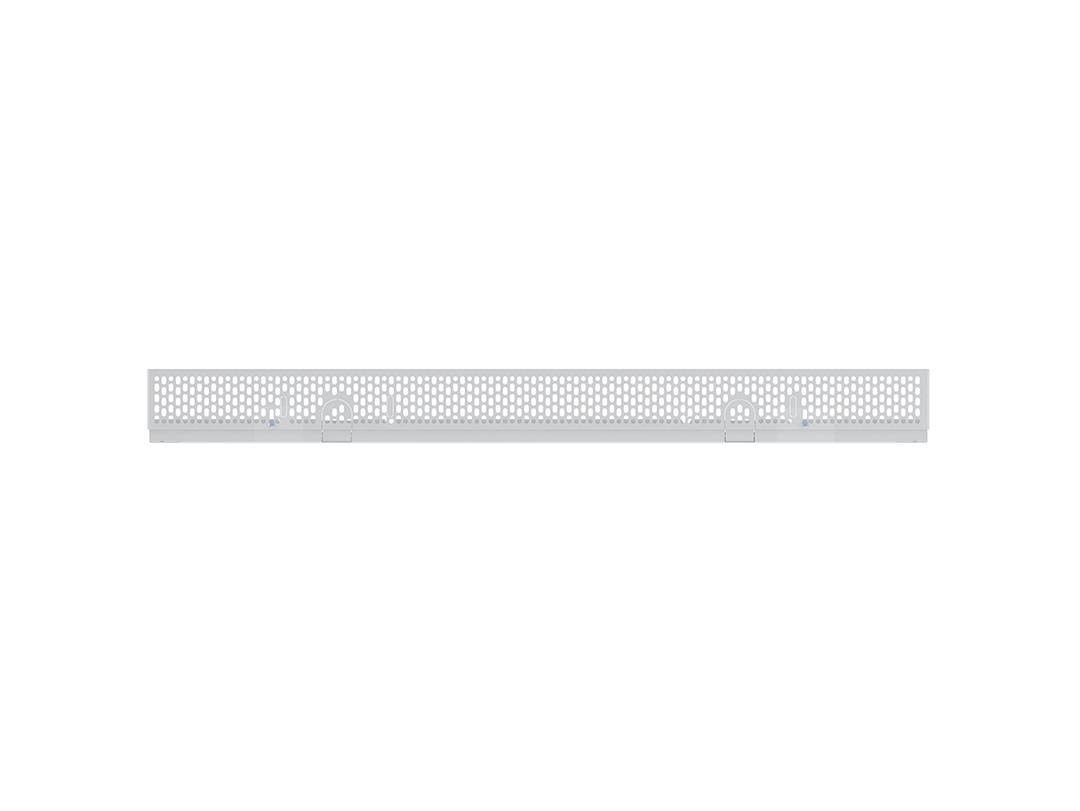

- Passive cooling with optional active thermal management
- Robust steel cage with tamperproof hardware

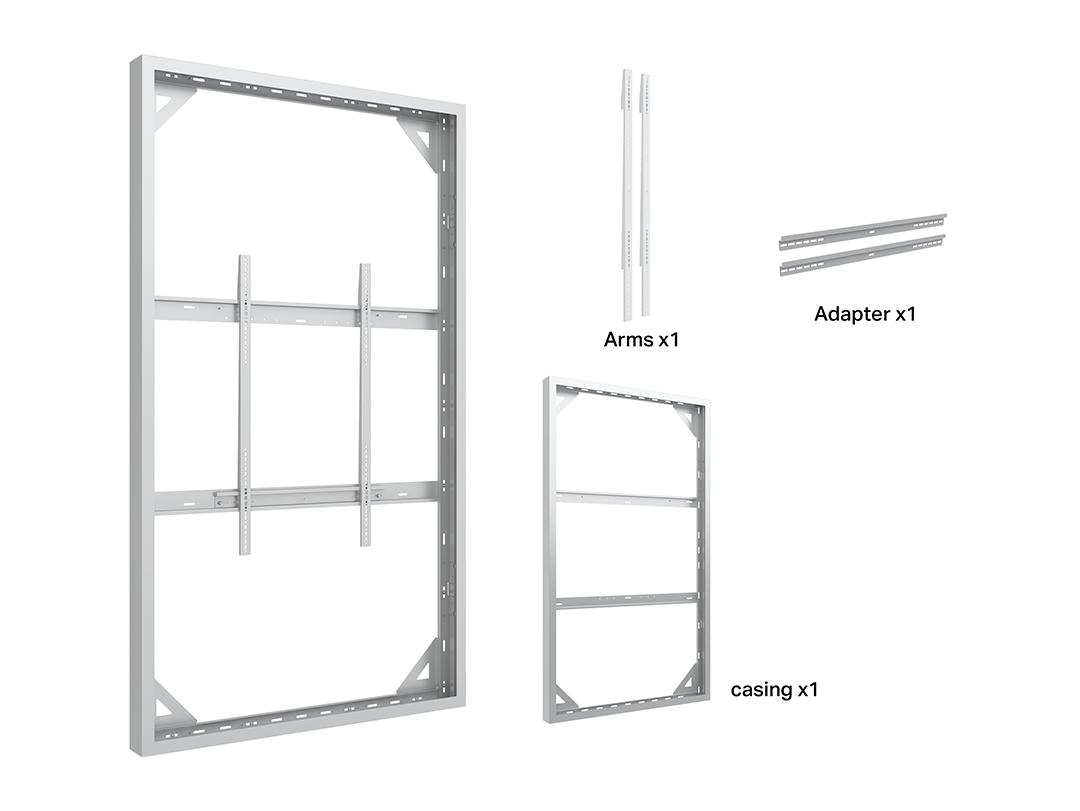

- Delivered pre-assembled for easy deployment
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design |

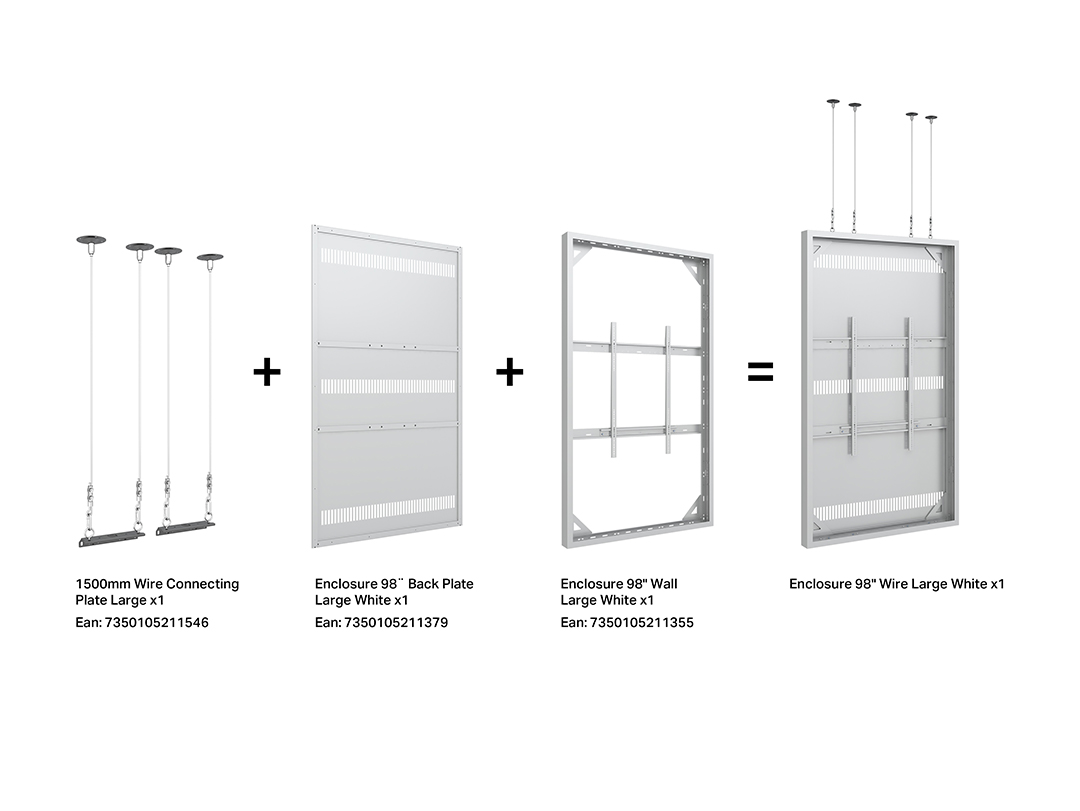

Pro Series Configuration Guide
Selected models are TÜV approved.
| Specification | |
| M Pro Series Enclosure 98" Wall Large White | |
| Article No: | 7 350 105 211 355 |
| Colour/ Material | White (RAL 9003)/Steel |
| Installation: | LG: 98UH5J-H, 98UM5K-B Legamaster: DIS-9820 Philips: 98BDL3650Q/00 + other 98” displays not model specified here (check measurements) |
| Surface Finish: | Powder coating RAL9005 |
| VESA standard: | Supports VESA 200x200 up to 800×1000mm (portrait) 800×800mm (landscape) with optional VESA extension using extender brackets 8064. |

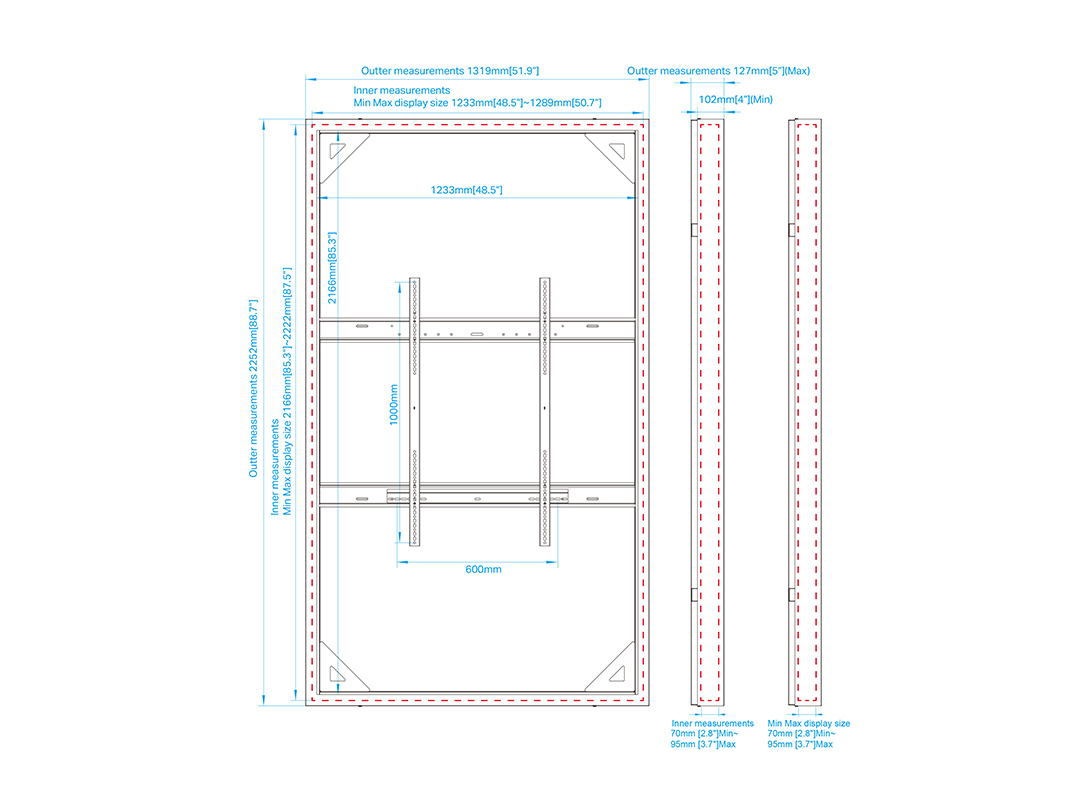

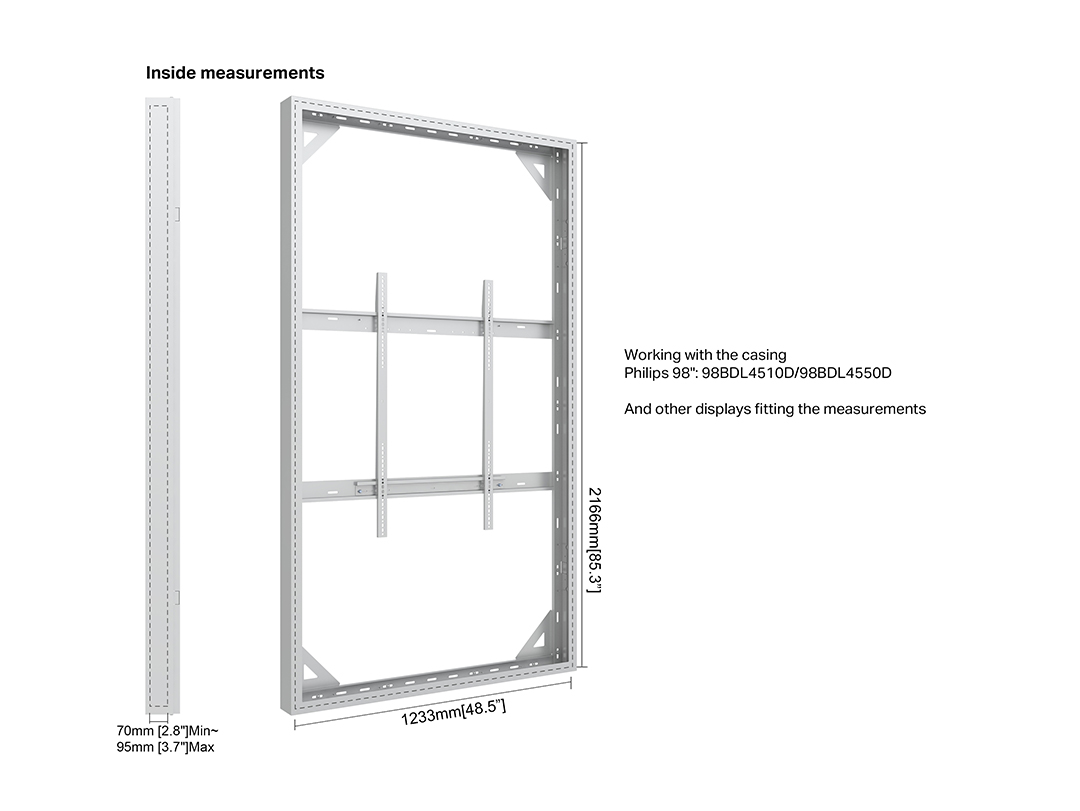

| Measurements: | 231.5x140.6x12.8cm |
| Max load: | 80 kg |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 231x26x12.8cm |
| Package Weight: | 32 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 1 pcs |
| Package Measurements: | 231x26x12.8cm |
| Package Weight: | 32 kg |
