M Pro Series Enclosure 55" B2B High Brightness Wall Medium White
Options
Variants that match your options:
In stock: 5
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022736856
Product Overview

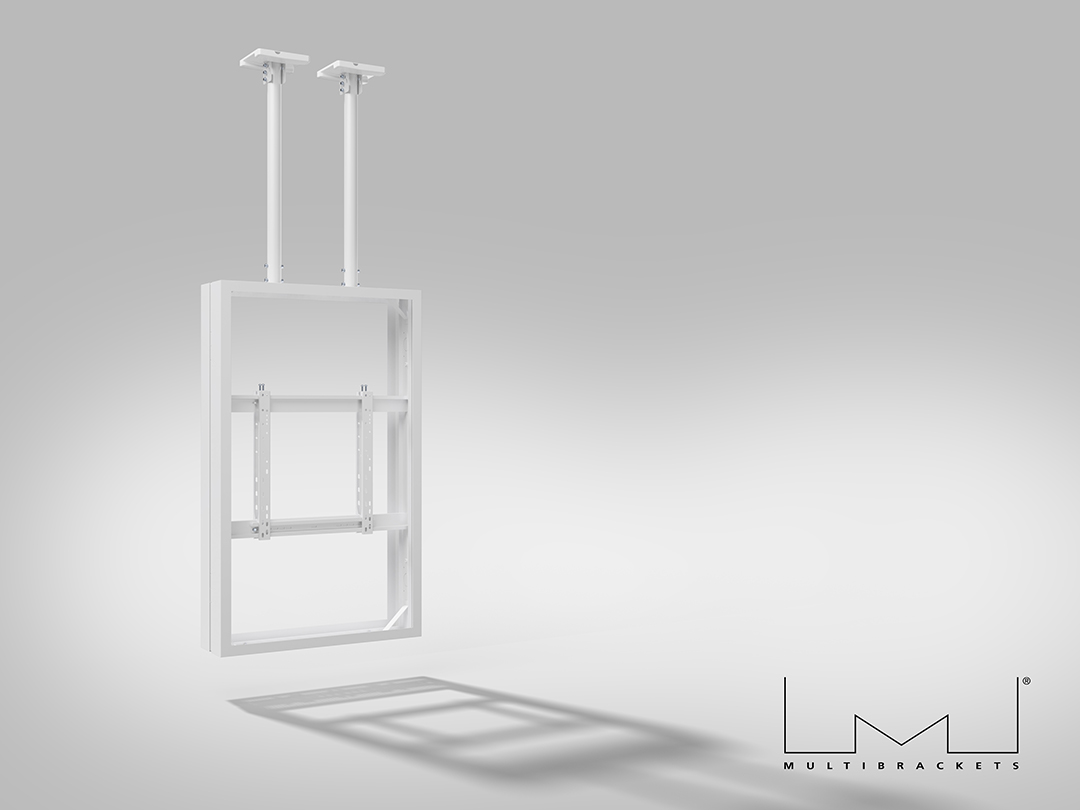

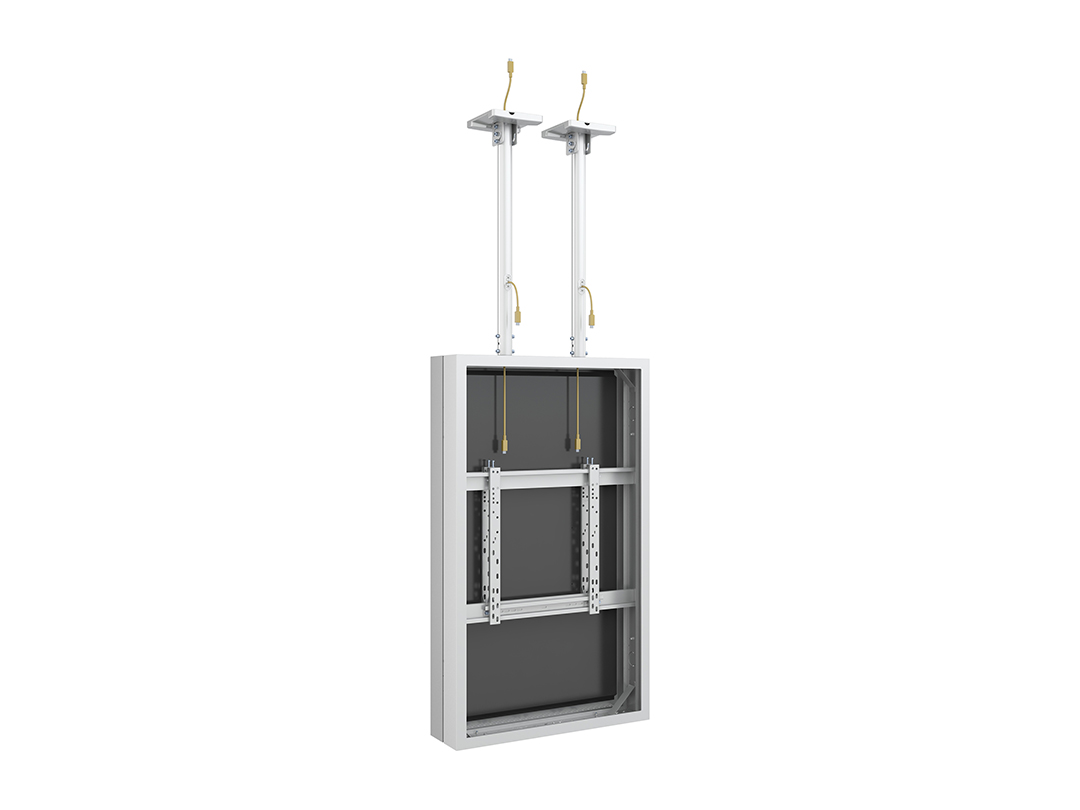

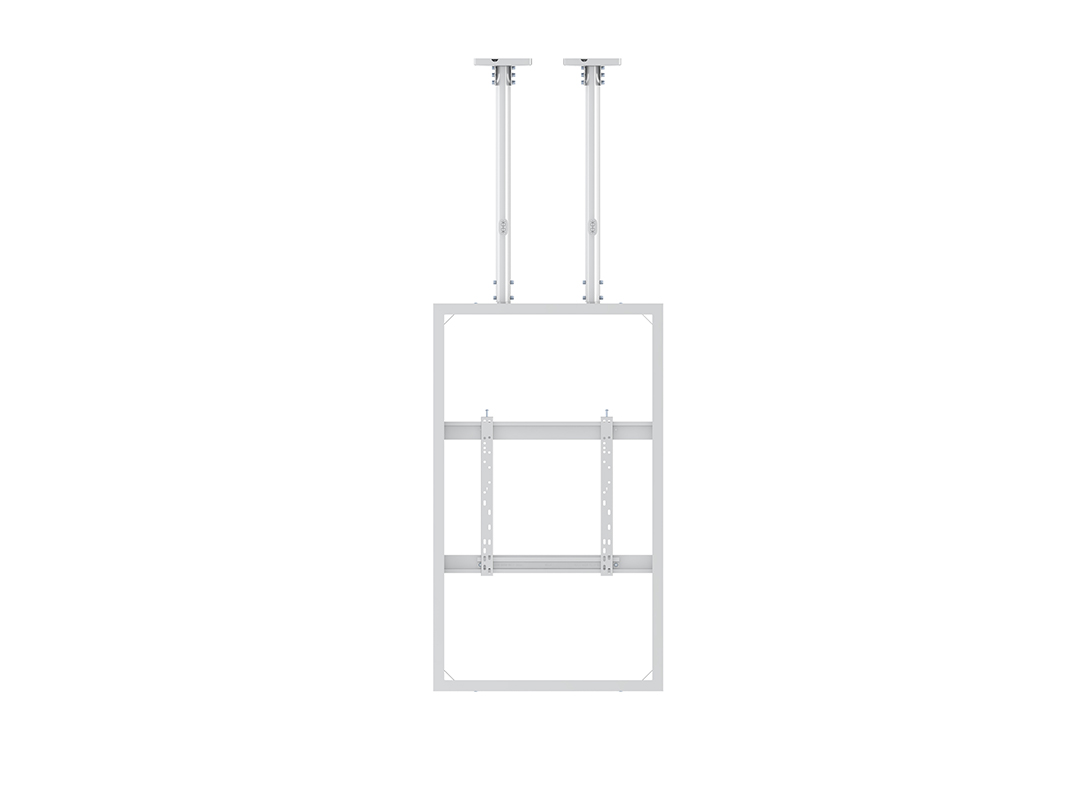

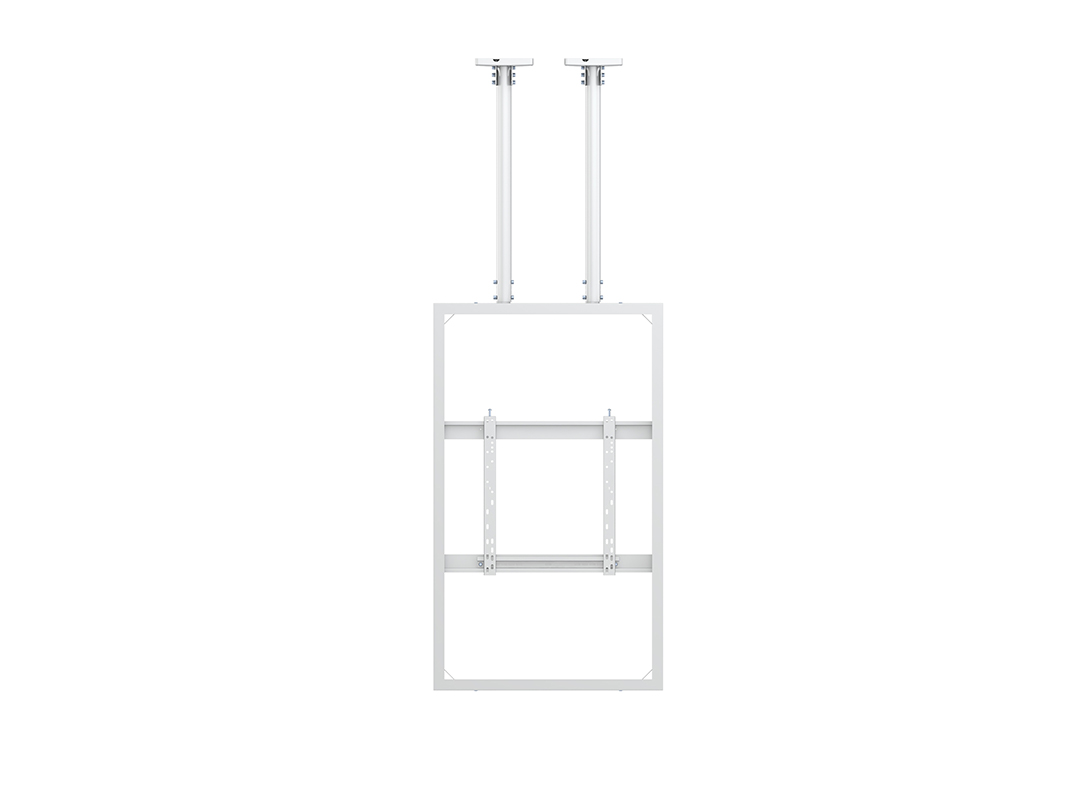

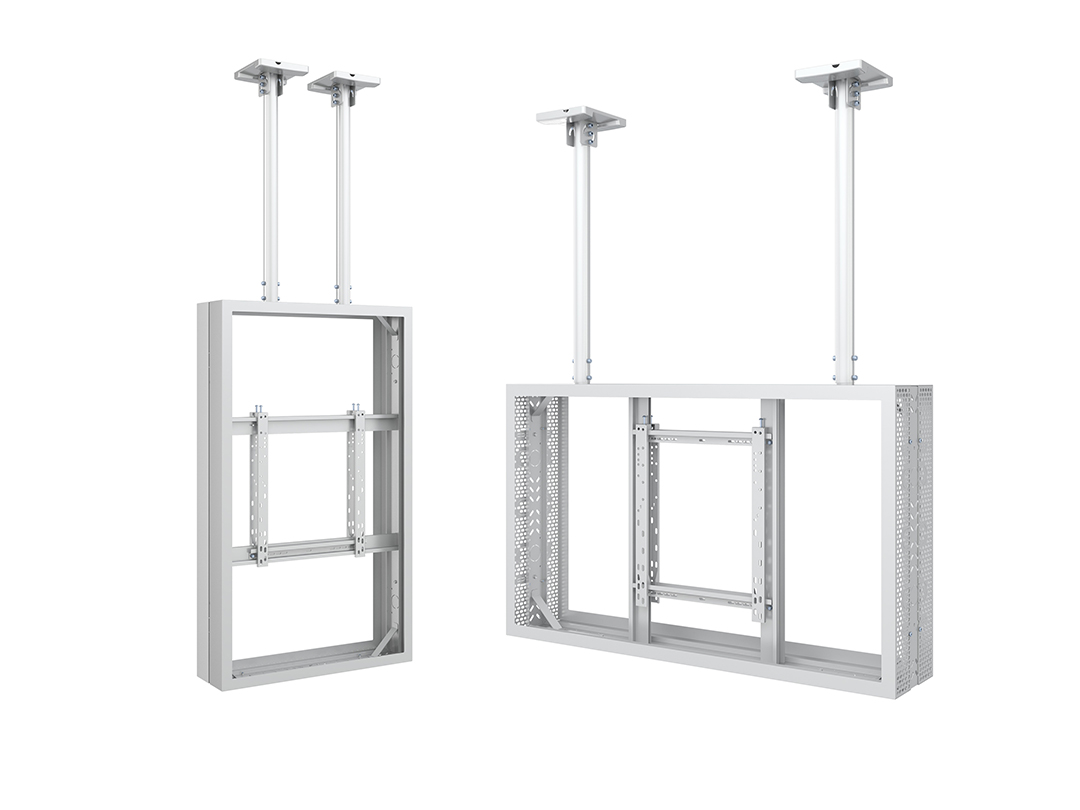

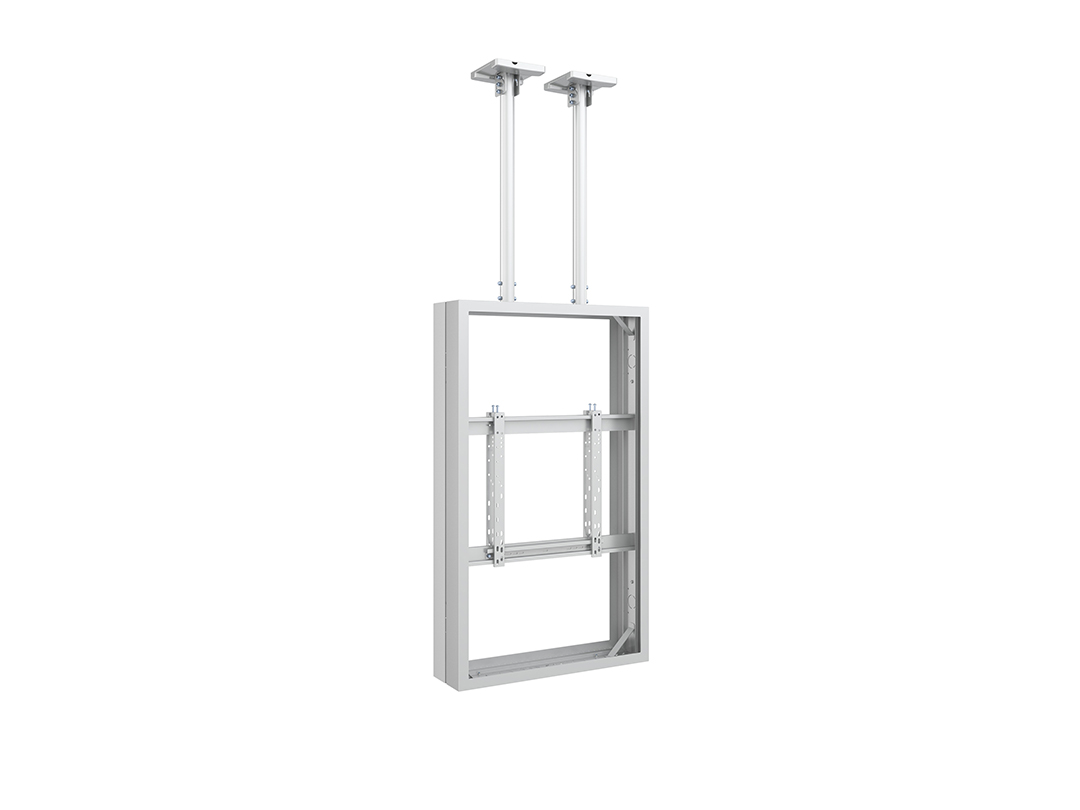

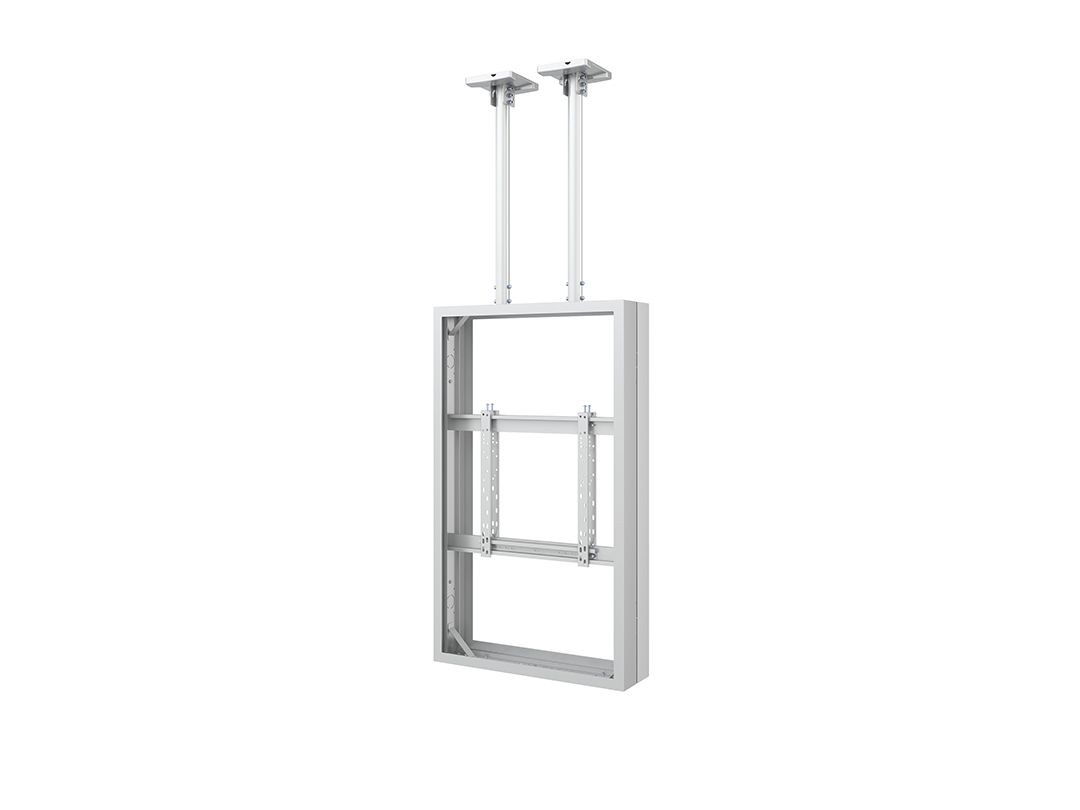

The M Pro Series Enclosure B2B 55" High Brightness Wall Medium Black from Multibrackets® features a sleek, minimalistic steel cage design that protects your display with versatility. It supports both portrait and landscape mounting and fits a wide range of signage brands and sizes. Designed with a depth-adjustable frame and reversible hinges, installation and maintenance are simple and effective.
Integrated passive cooling vents and optional active thermal management optimize cooling performance, while the enclosure compensates for uneven walls to keep the front perfectly flat. Tamper-proof security hardware safeguards your investment, making it ideal for high brightness displays in diverse environments.
Click to view larger images
Highlights
- Smart Scandinavian design
- Back-to-back installation
- Compatible with 55” high brightness displays from Dynascan, Philips, LG, Hisense, and other brands
- Universal portrait or landscape mounting
- Supports VESA 200 x 200 up to 600 x 400 mm

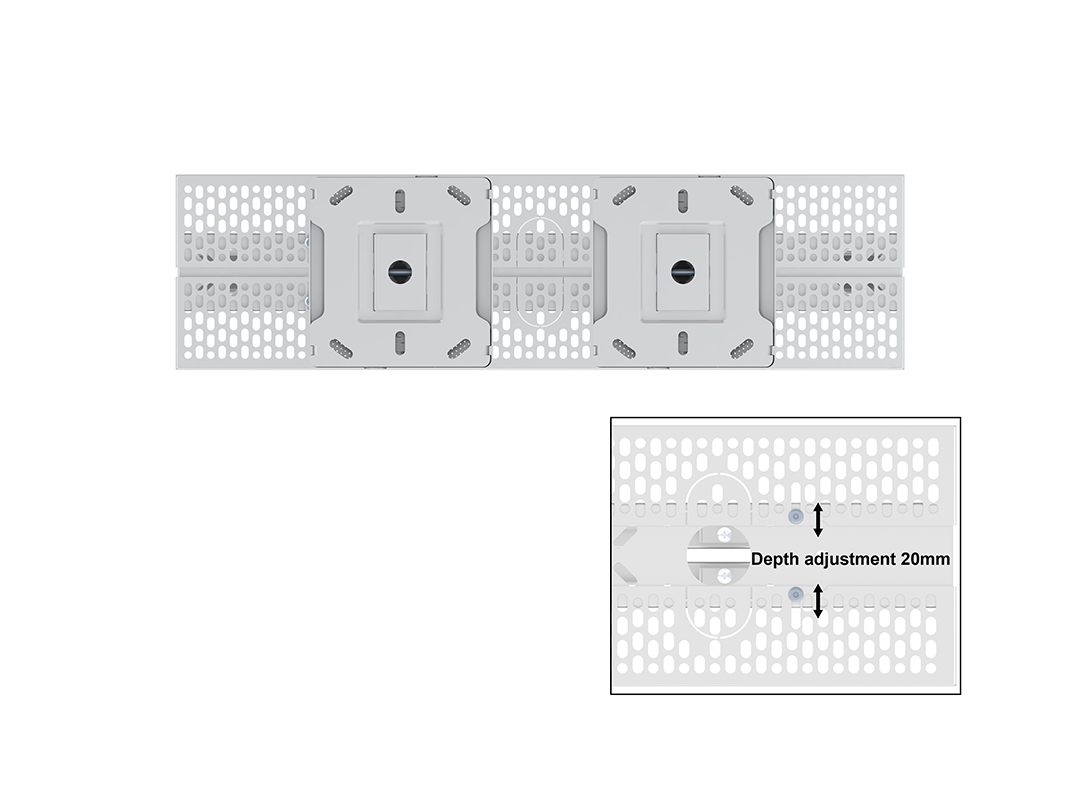

- Millimeter precise adjustment
- Hinged top frame offers easy access to display and internal components
- Low profile design extends away from the wall
- Ventilated sides improve thermal management
- Supports a wide range of aesthetic options
- Pre-assembled to simplify installation
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design |
Selected models are TÜV approved.

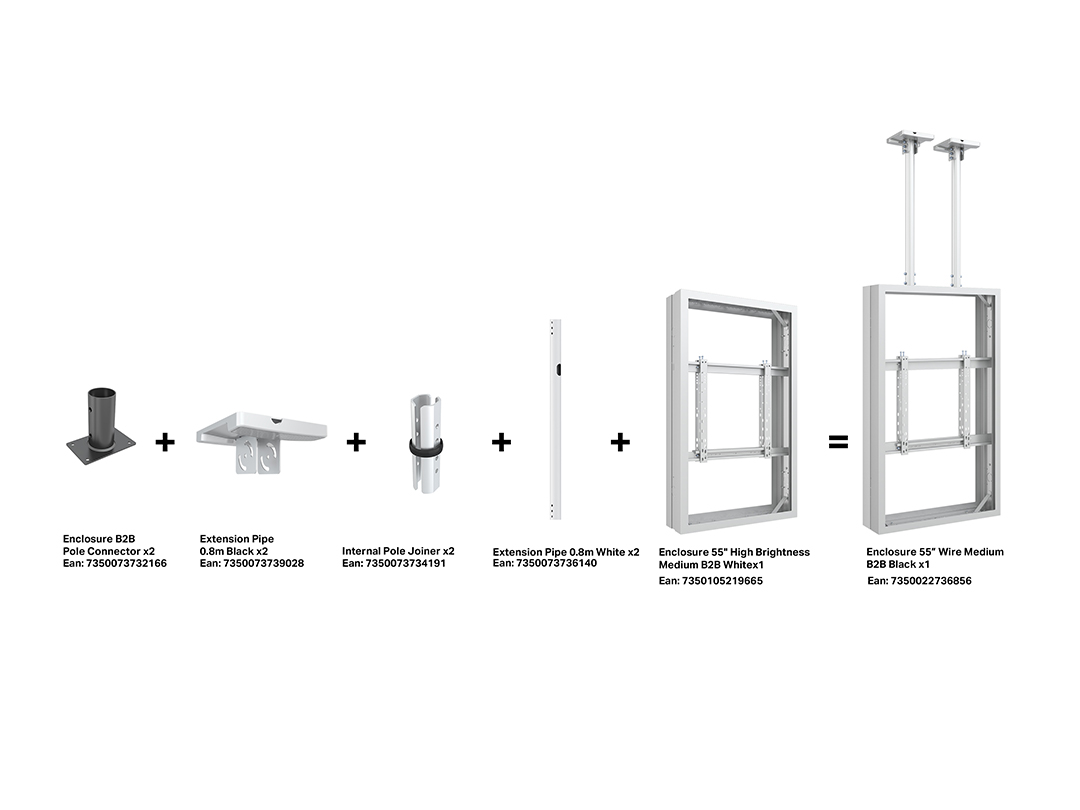

Pro Series Configuration Guide

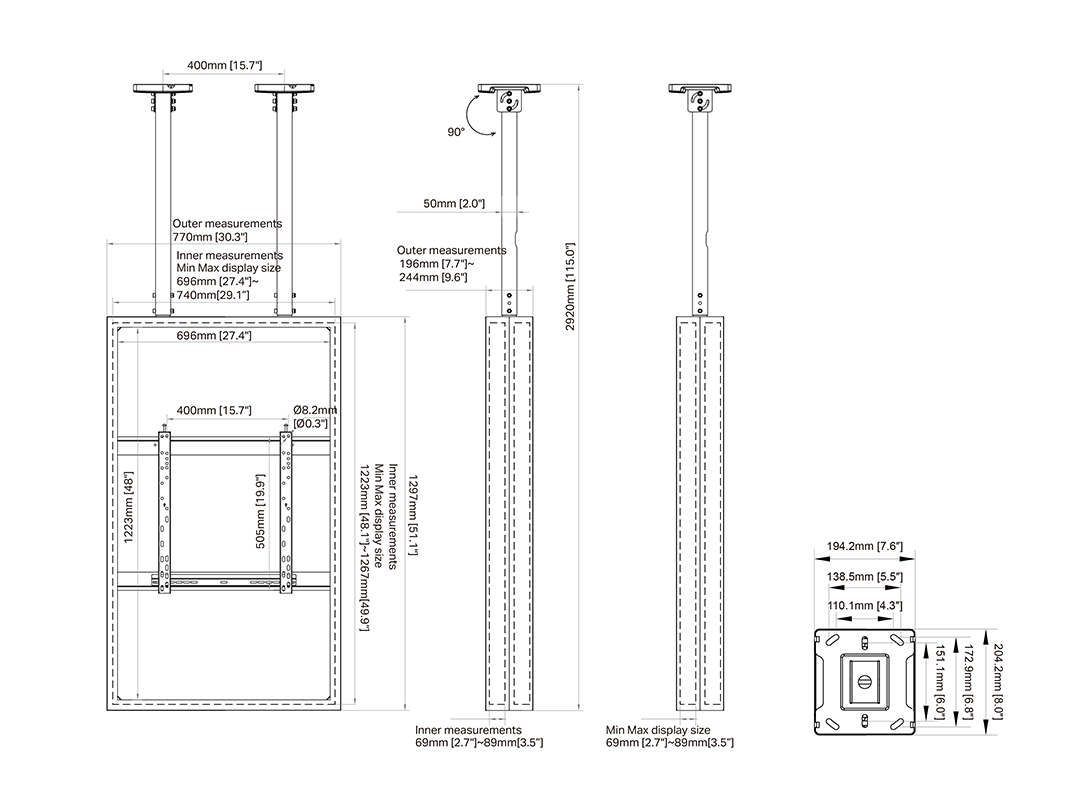

| Specification | |
| M Pro Series Enclosure B2B 55" High Brightness Wall Medium White | |
| Article No: | 7 350 022 736 856 |
| Colour: | White (RAL 9003) |
| Material: | Steel |
| Surface Finish: | Powder coating RAL9005 |
| VESA standard: | 200x200 up to 600x400mm |
| Installation: | Samsung 55” High Brightness OM55N-S, OM55B LG 55XS4J, 55XS2C, 55XS4J-B, 55XS4P Iiyama LH5554UHS-B1AG, LH5564UHS-B1AG, TF5539AS-B1AG Sony 55BZ40L, BZ35L-55, BZ30L-55 Philips 55BDL4002H, 55BDL3452T/00, 55HFL5214U/12, 55BDL400H, 55BDL3751T/00, 55DL3751T, 55BDL4650D Hisense 55B4E31T Dynascan DS552LT5-2 Allsee UHB55HD9 Dahua DHI-LM55-V400 + other 55” displays not model specified above (check measurements) |
| Weight: | 41 kg |
| Max load: | 35 kg |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 136x86x22.6cm + 84.5x20x12.4cm |
| Package Weight: | 41 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 1 pcs |
| Package Measurements: | 136x86x22.6cm + 84.5x20x12.4cm |
| Package Weight: | 41kg |
