M Floor to Ceiling Mount Pro MBFC3X3U-F100
M Floor to Ceiling Mount Pro MBFC3X3U-F100 - Ceiling mount for LCD display, steel, 3m length, 9 screens, single side, fixed arms, VESA Max 100x100 - screen size: 15"-32" - black
Options
Variants that match your options:
Price
Not available
Price
Delivery: Status: Not in Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105212024
M Floor to Ceiling Mount Pro MBFC3X3U-F100 - Ceiling mount for LCD display, steel, 3m length, 9 screens, single side, fixed arms, VESA Max 100x100 - screen size: 15"-32" - black
Product Overview

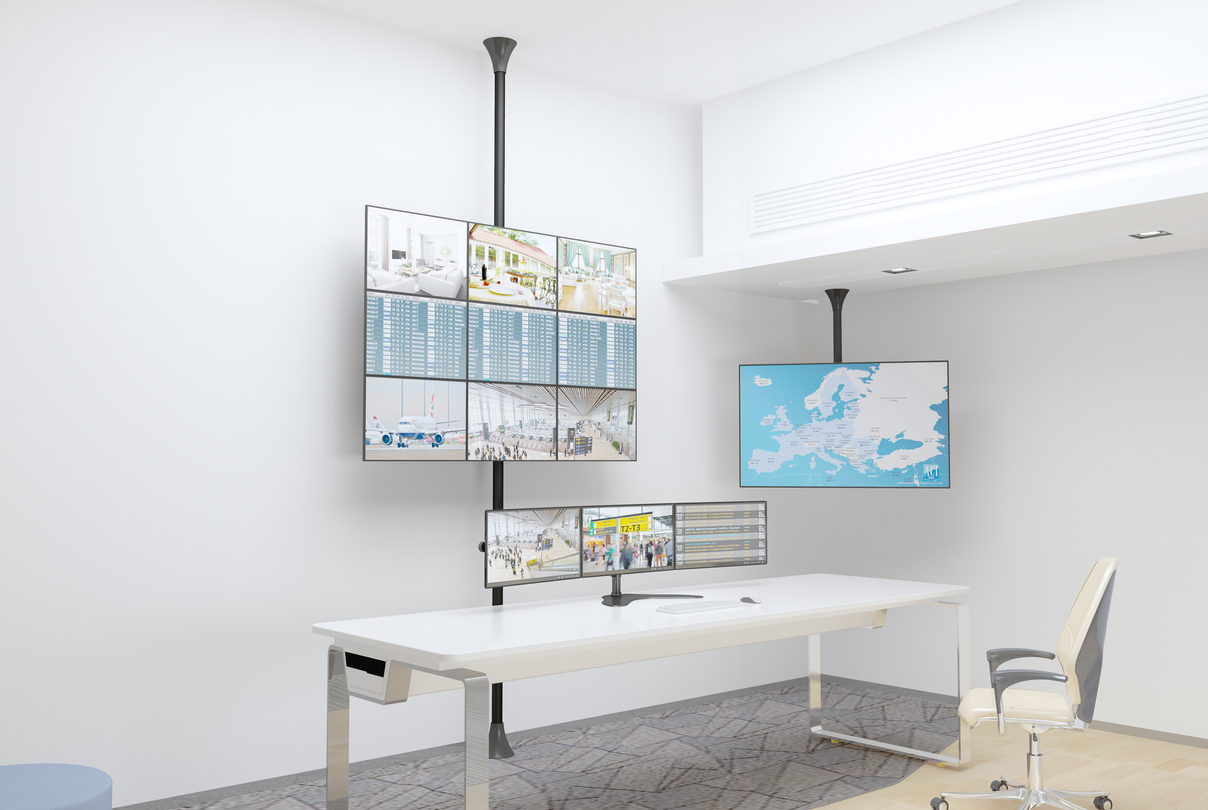

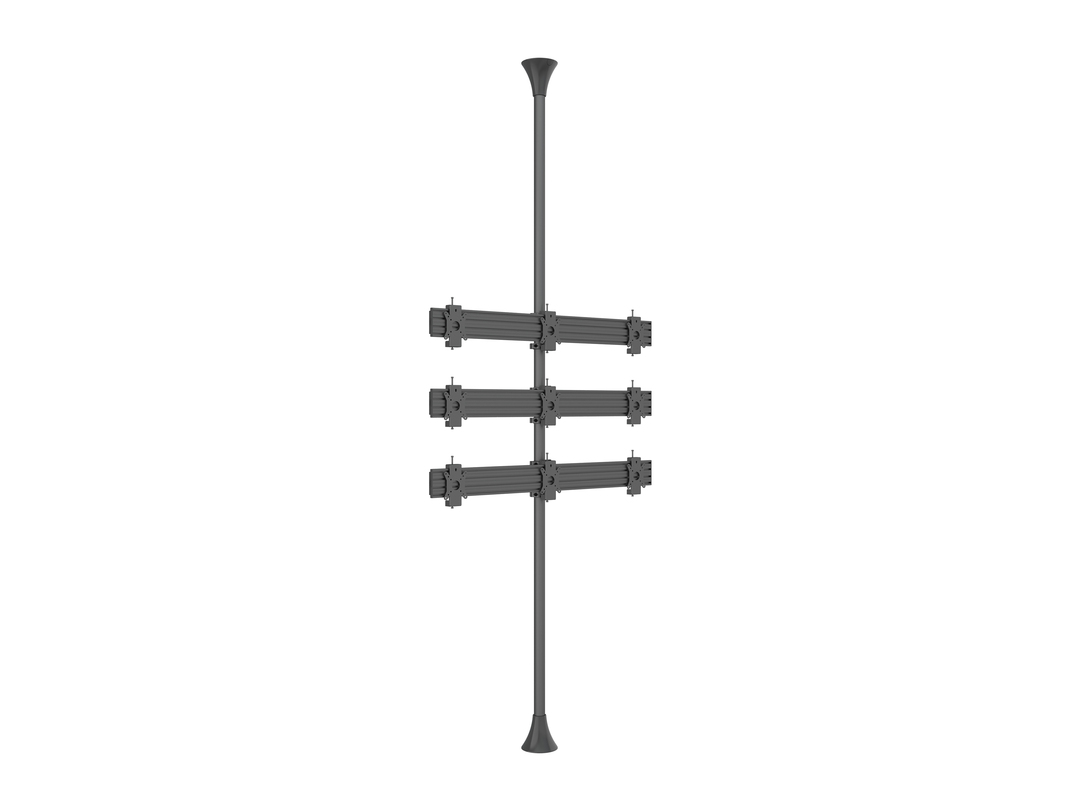

The Multibrackets M Floor to Ceiling Mount Pro MBFC3X3U-F100 is a high-capacity, modular signage solution built using Pro Series components – ready for installation.
This versatile mount is designed around a 50mm diameter column and is ideal for both new installations and upgrades. Supporting 9 screens, it is an excellent choice for professional environments requiring compact yet expansive digital signage. The system is built for easy integration and expandability using Pro Series modular accessories.
Click to view larger images
Highlights

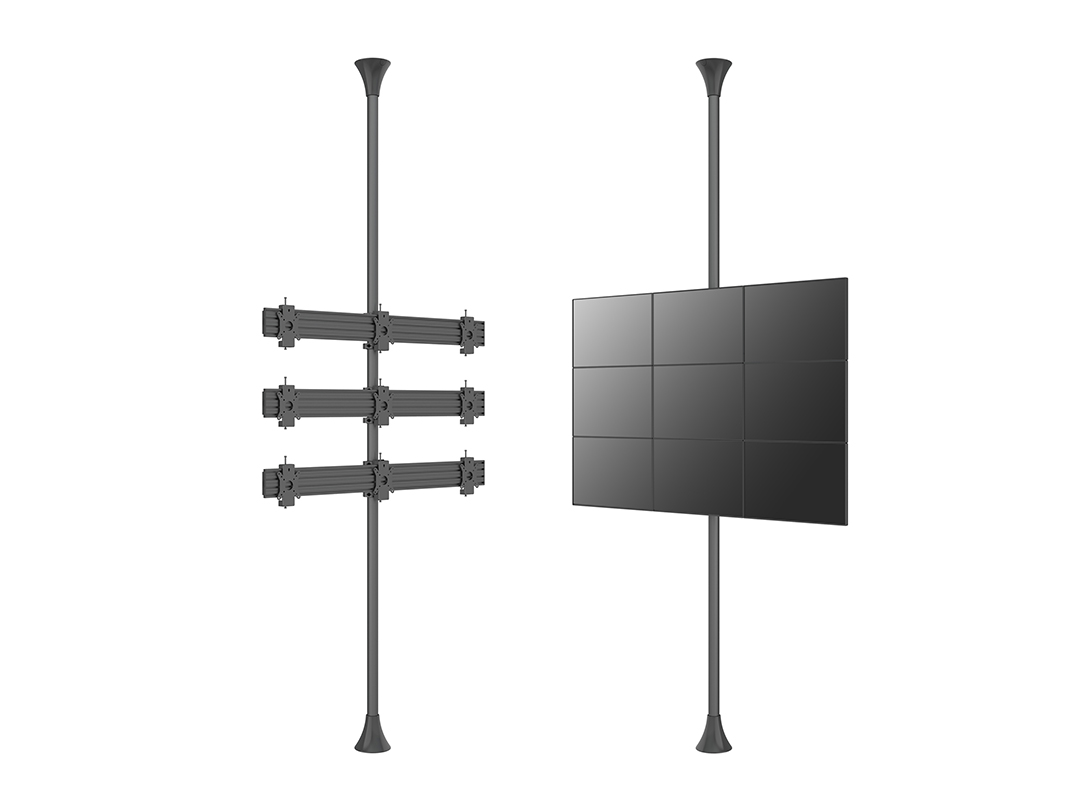

- Modular floor-to-ceiling mount holding 9 displays
- Supports screen sizes from 15" to 32"
- VESA 75x75 and 100x100 compatible
- Simple monitor hook-on feature for fast installation
- Adjustable positioning along 50mm column height
- Heavy-duty ceiling/floor plates for secure mounting on concrete or wood

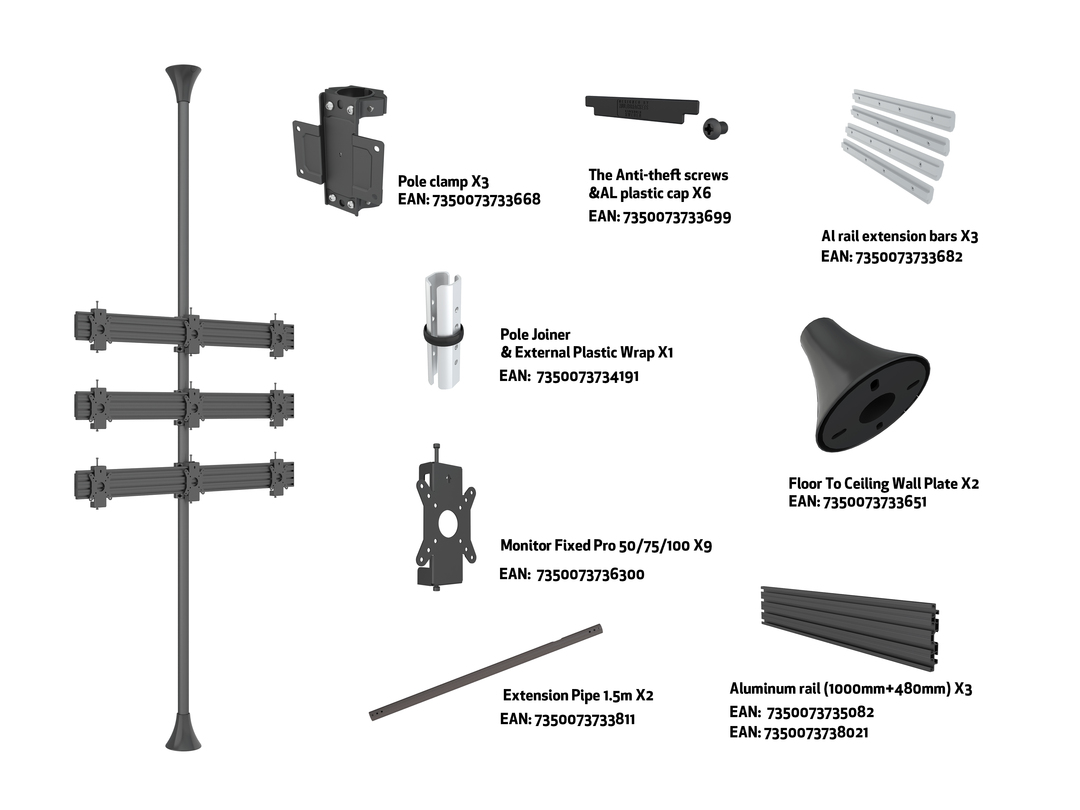

- Complete hardware kit included: plates, poles, dual rails and mounts
- Integrated cable management for a clean and organized look
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 015031421-0017 |
| Specification | |
| M Floor to Ceiling Mount Pro MBFC3X3U-F100 | |
| Article No: | 7 350 105 212 024 |
| For screen size: | 15"-32" |
| Type: | Single side MBFC3X3U-F100 |
| Universal & VESA standard: | 50/75/100 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | Pole and mounts:10 kg Rail and clamps: 2.2 kg Screen mounts: 4x1 kg |
| Measurements | 328x96x17 cm |
| Max Load: | 20 kg per screen |
| Pillar length: | Min: 1550 mm to Max: 3000 mm Extension pipes: 3m (1500mm*2pcs) included |
| Tilt: | No, 0° |
| Swivel: | No, 0° |
| Rotate: | No, 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
Click on the thumbnail for a larger image:
