M Floor to Ceiling Mount Pro MBFC3X4U-F100
Options
Variants that match your options:
Delivery: Status: Not in Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105212031
Product Overview

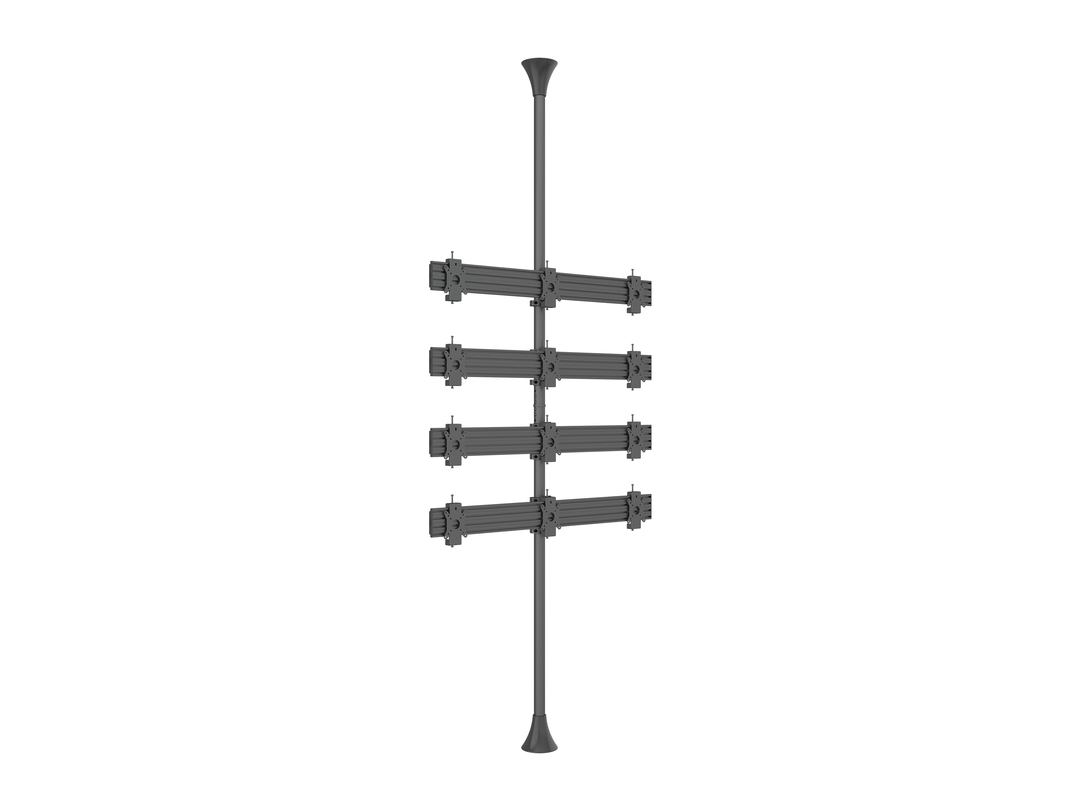

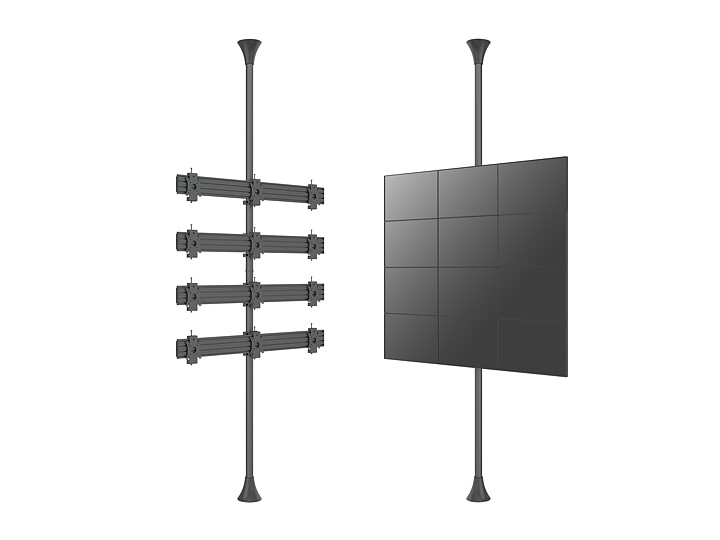

Multibrackets M Floor to Ceiling Mount Pro MBFC3X4U-F100 is a signage solution composed from Pro Series Parts – ready to be installed.
The Multibrackets Pro Series line includes a compact and efficient selection of components, ideal for fulfilling the majority of digital signage needs. Built around a 50mm diameter pole, this system suits both new projects and retrofit installations. As a member of the Pro Series family, the MBFC3X4U-F100 includes all necessary components to mount your displays securely.
This modular kit can also be expanded using additional Pro Series accessories, offering a tailored solution for more complex or large-scale display arrangements.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind – modular, easy to configure, quick to install, and simple to maintain. Created in collaboration with installers, the system delivers maximum flexibility. Its integrated cable management streamlines setup and ensures a clean, professional look.
Click to view larger images
Highlights
- Modular floor-to-ceiling solution for 12 screens
- Simple monitor hook-on feature for quick installation
- Flexible positioning along the 50mm column height
- Universal VESA adapter supports 75x75 and 100x100 patterns
- Heavy-duty top and bottom plates for concrete or wood ceilings and floors

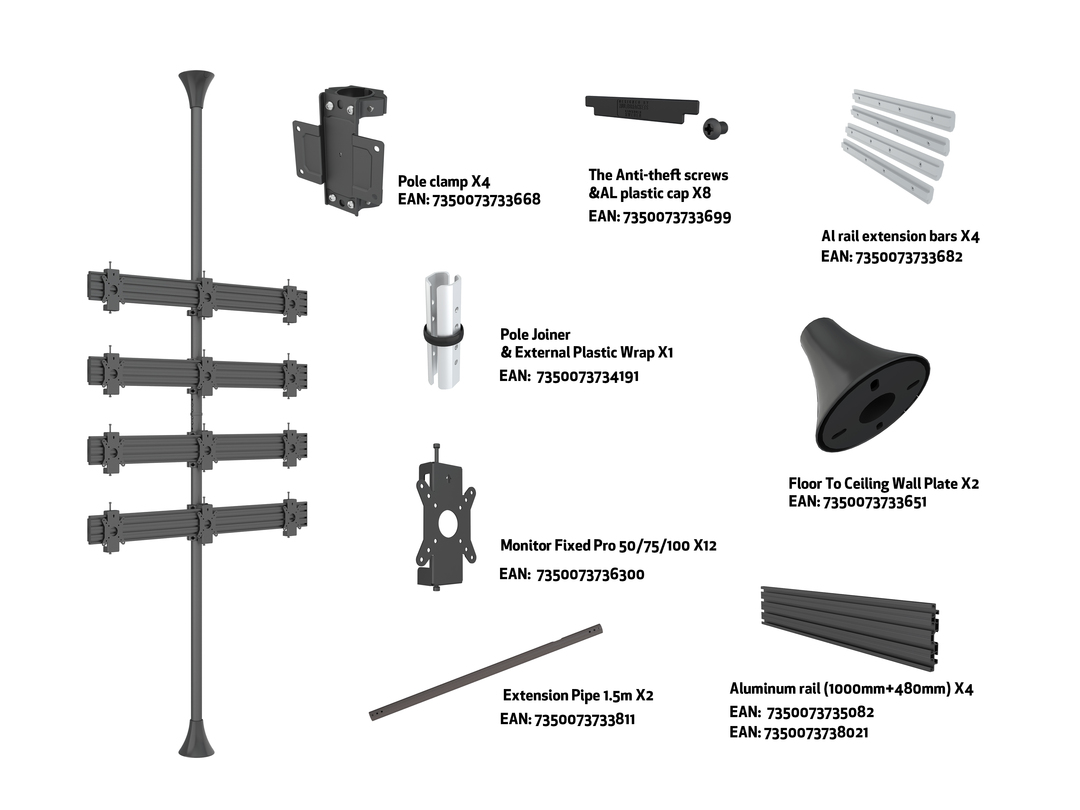

- Complete hardware kit included: floor/ceiling plates, 3m extension pole, dual rails, mounts
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 015031421-0017 |
| Specification | |
| M Floor to Ceiling Mount Pro MBFC3X4U-F100 | |
| Article No: | 7 350 105 212 031 |
| For screen size: | 15"-32" |
| Type: | Single side MBFC3X4U-F100 |
| Universal & VESA standard: | 50/75/100 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | Pole and mounts:10 kg Rail and clamps: 2.2 kg Screen mounts: 4x1 kg |
| Measurements | 328x96x17 cm |
| Max Load: | 20 kg per screen |
| Pillar length: | Min: 1550 mm to Max: 3000 mm Extension pipes: 3m (1500mm*2pcs) included |
| Tilt: | No, 0° |
| Swivel: | No, 0° |
| Rotate: | No, 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
