M Floor to Wall Mount Pro MBFW2P1UPHD
Options
Variants that match your options:
In stock: 64
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105216022

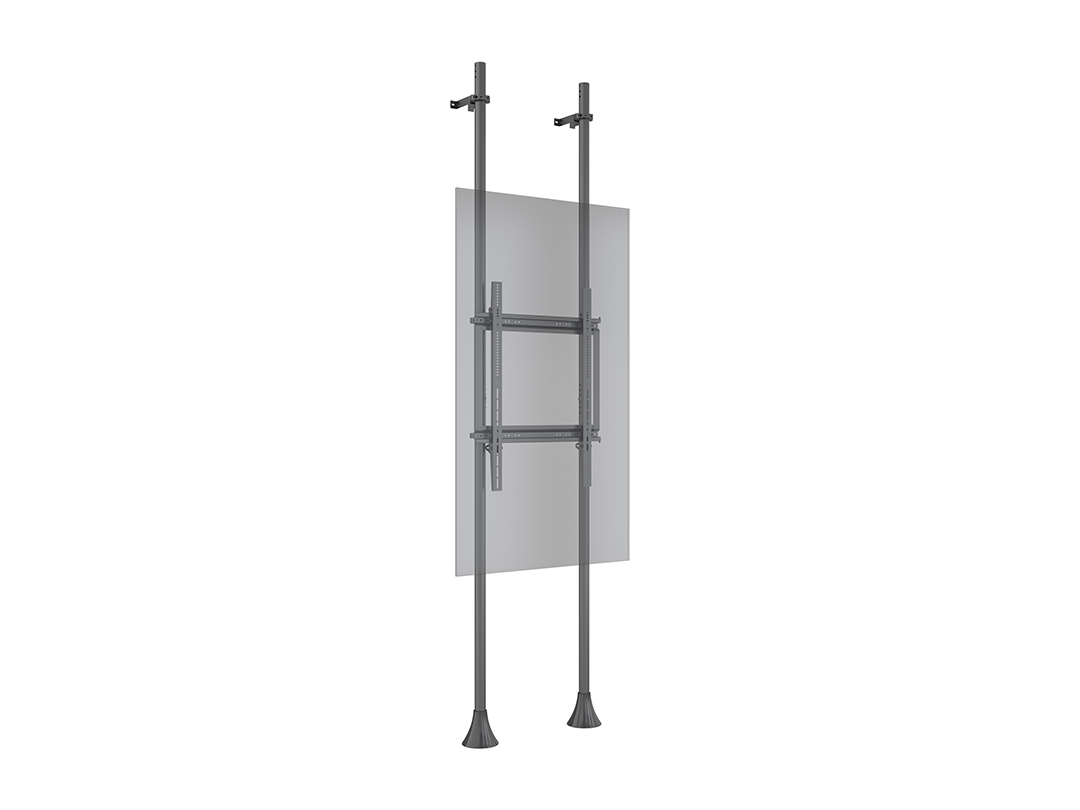

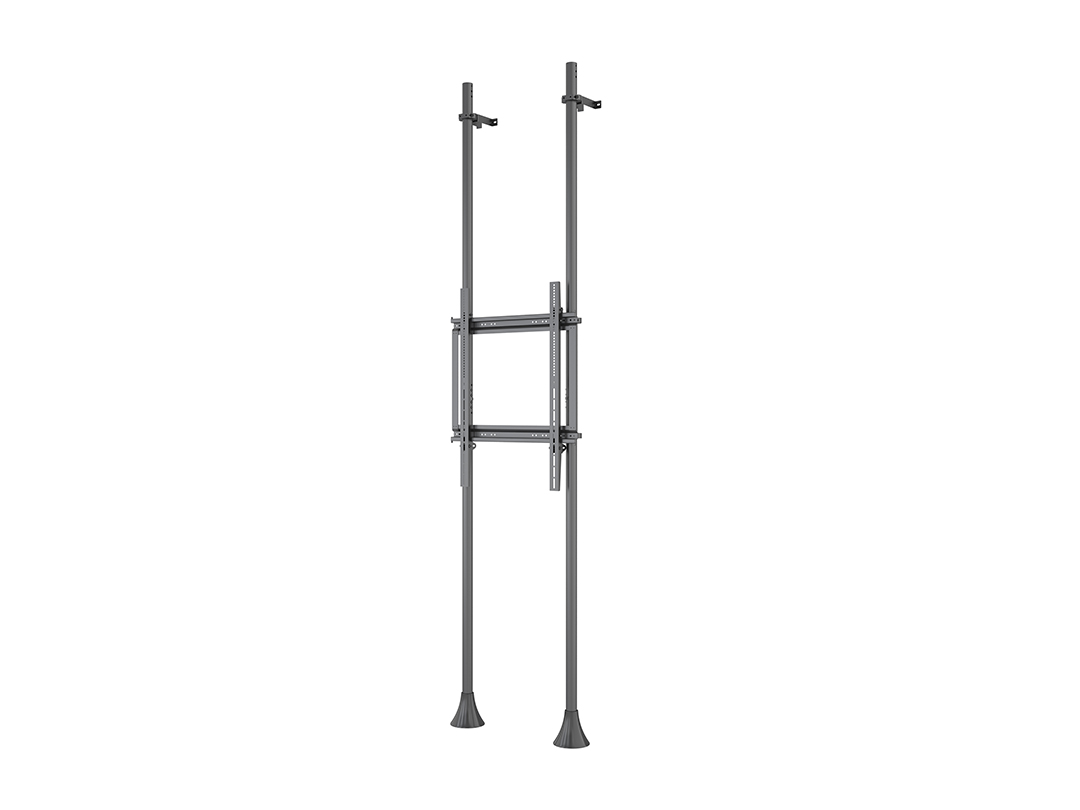

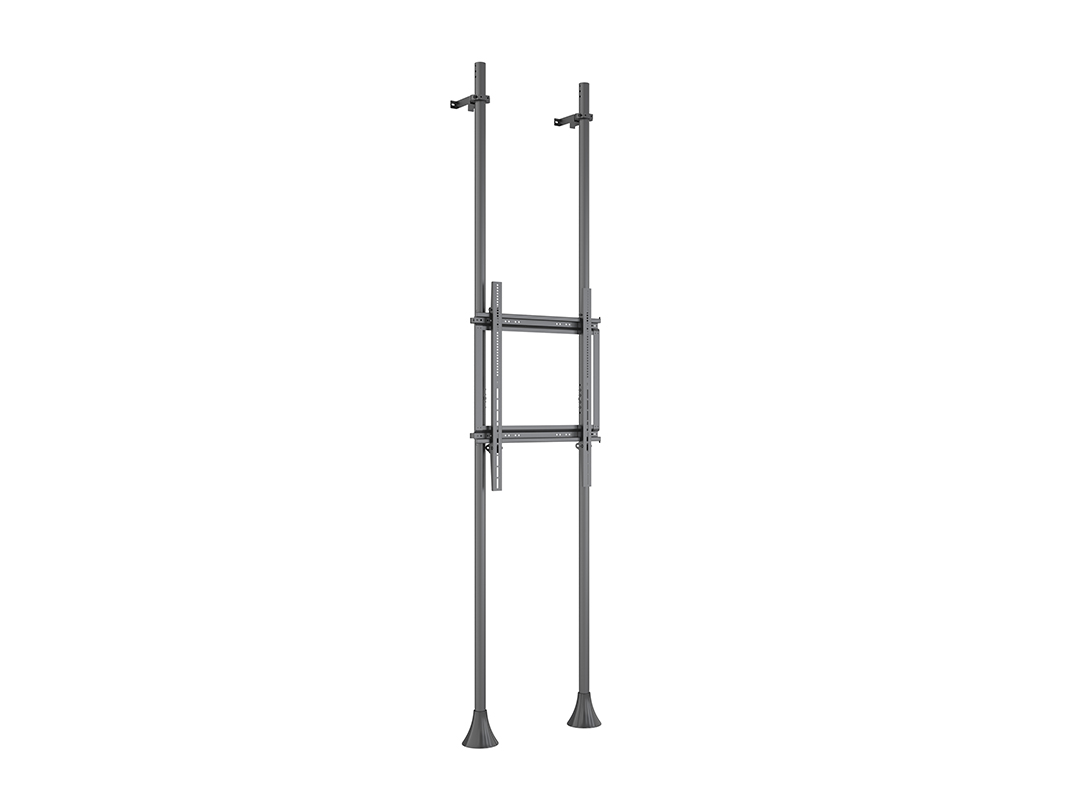

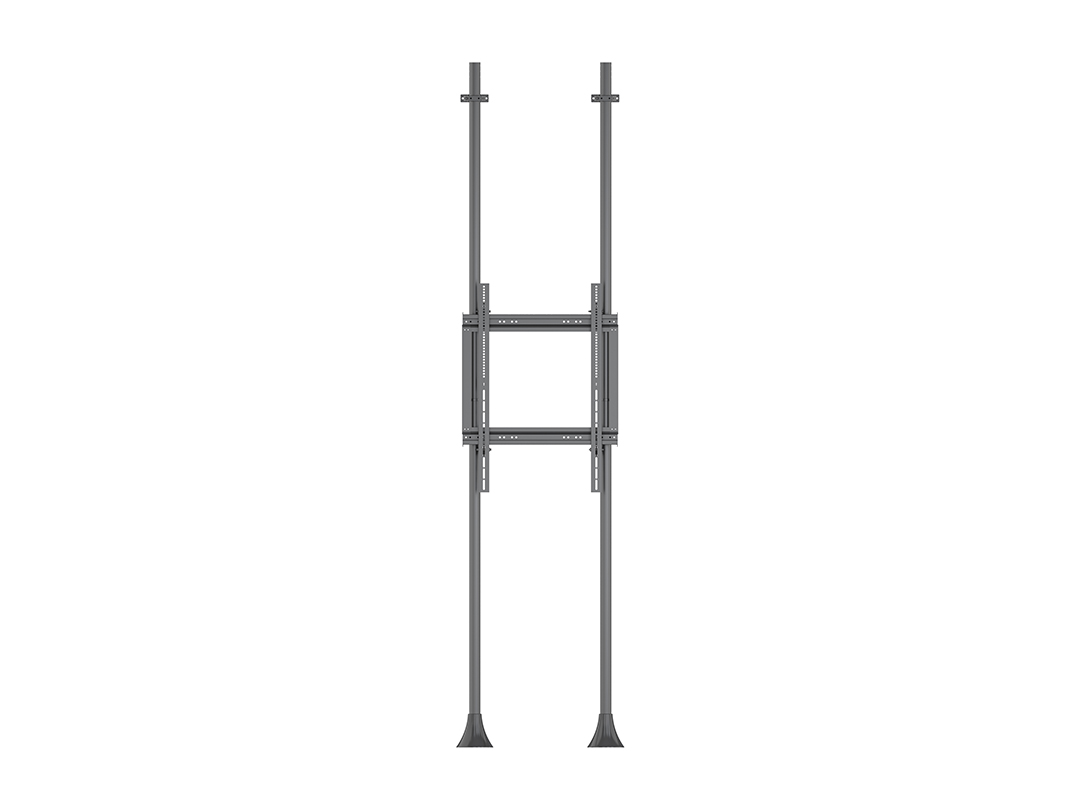

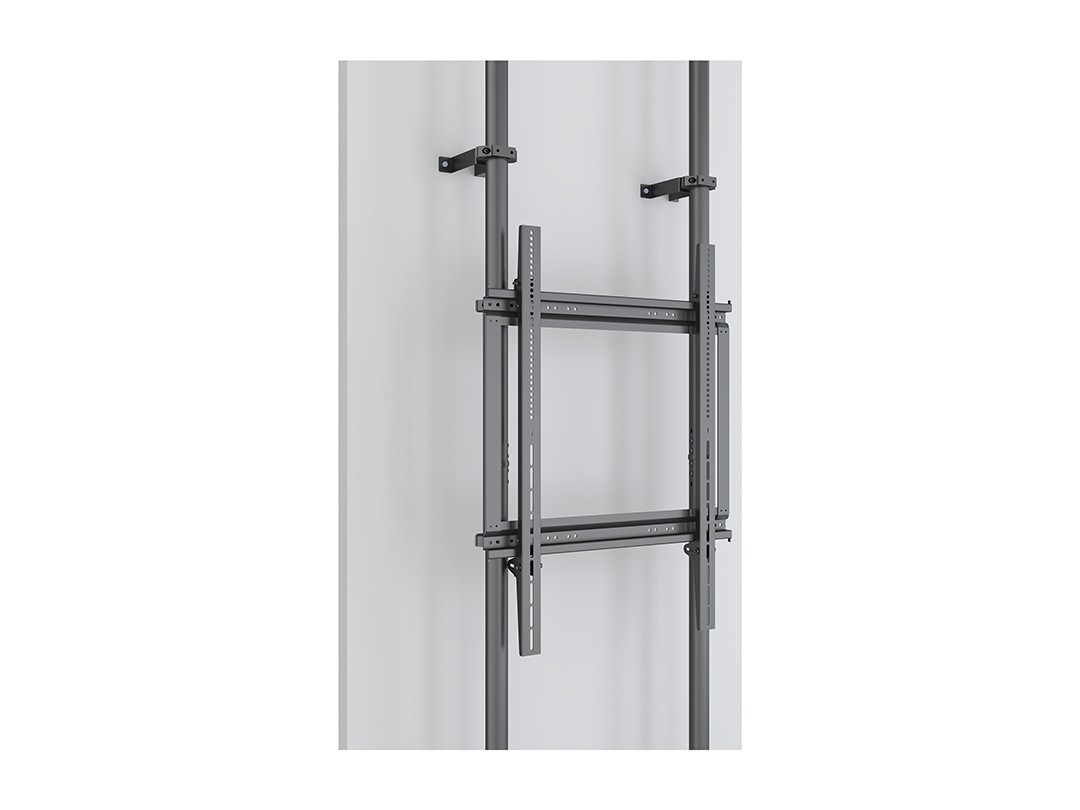

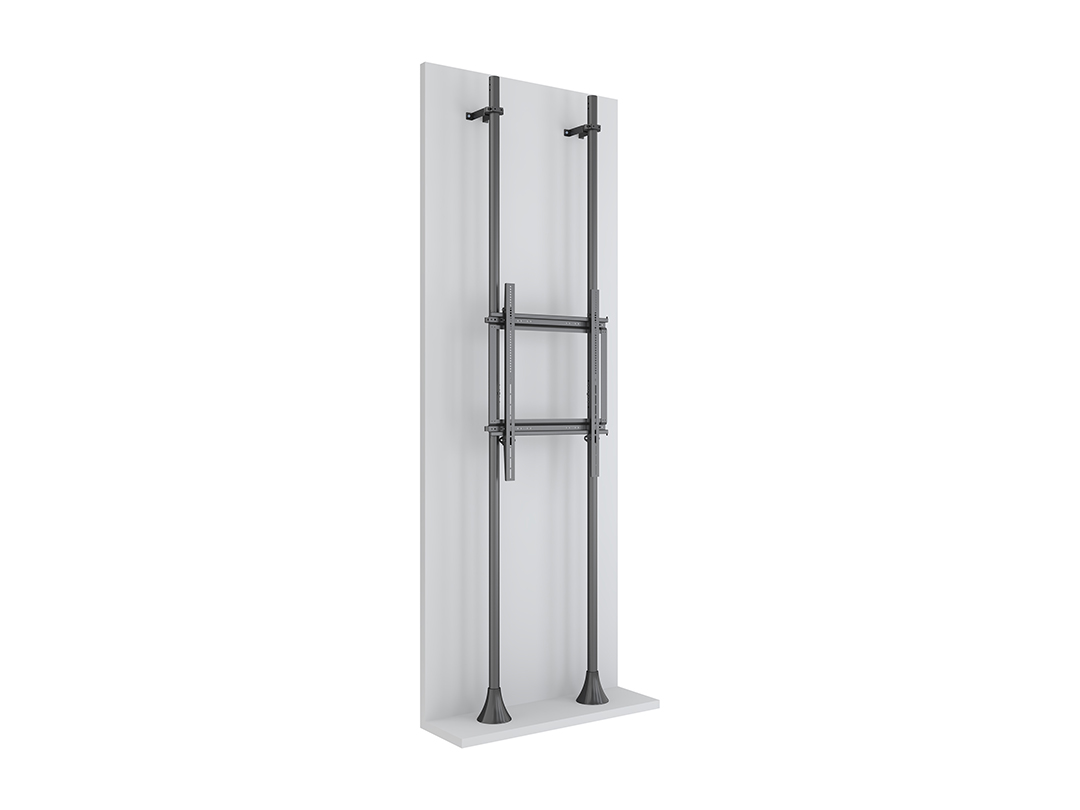

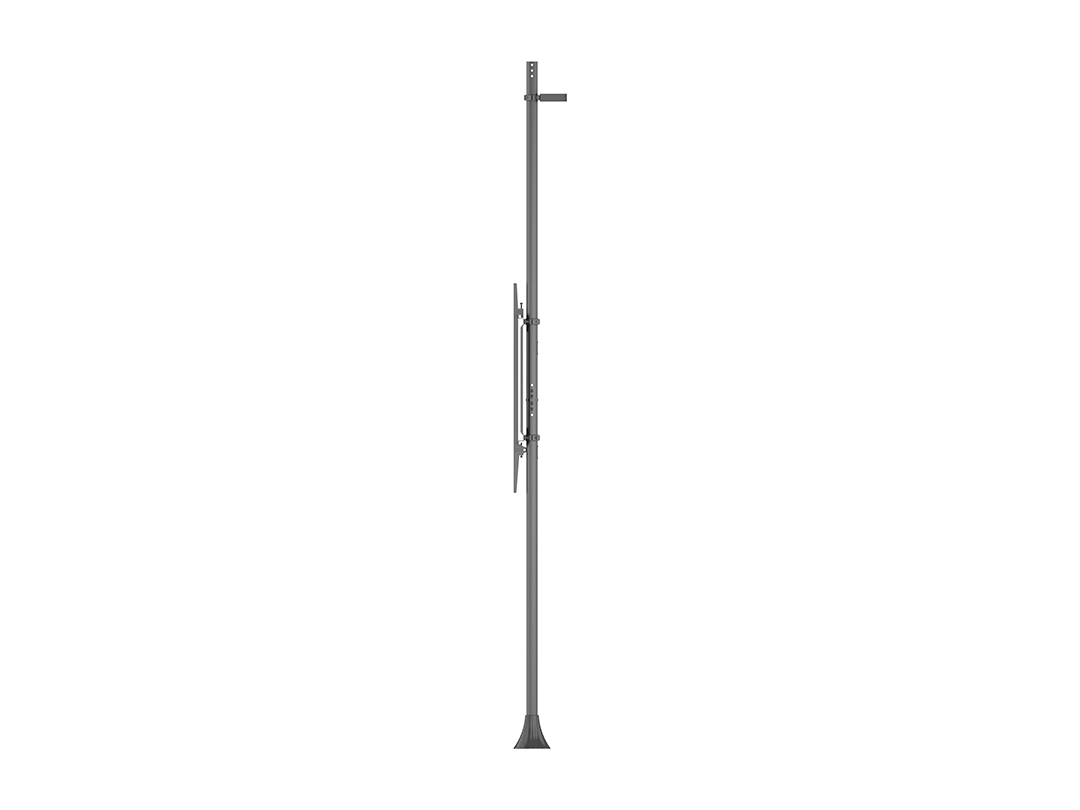

M Floor to Wall Mount Pro MBFW2P1UPHD - Ceiling mount for LCD display, steel, 3m length, dual pole, 1 screen, single side, fixed arms, VESA max 600x900 - Maxload: 125 kg - screen size: 65"-100" - black
Product Overview
The Multibrackets Pro Series M Floor to Wall Mount Pro MBFW2P1UPHD is a professional-grade signage solution designed for quick installation, structural stability, and visual elegance in high-traffic public environments. Developed with professional installers in mind, this solution blends modular flexibility with Scandinavian design to meet the most demanding display requirements.
As part of the Multibrackets Pro Series A/V line, the MBFW2P1UPHD offers fast configuration, precise screen positioning, and robust construction. The solution supports VESA 600x900 and includes integrated cable management for a clean result. The dual 50mm pole design is available in black, brass, or chrome to harmonize with any interior environment.
The MBFW2P1UPHD is suitable for large format screens from 65" up to 100", and thanks to its Power Click technology and complete hardware kit, it allows for a streamlined and secure setup process. Whether in a retail, corporate, or public setting, this mount delivers a powerful and scalable solution tailored for professional environments.
Highlights
- Modular and easy-to-configure design
- Supports large screens up to VESA 600x900
- Integrated cable management for clean installations
- Power Click system enables quick and secure installation
- Portrait or landscape screen orientation options

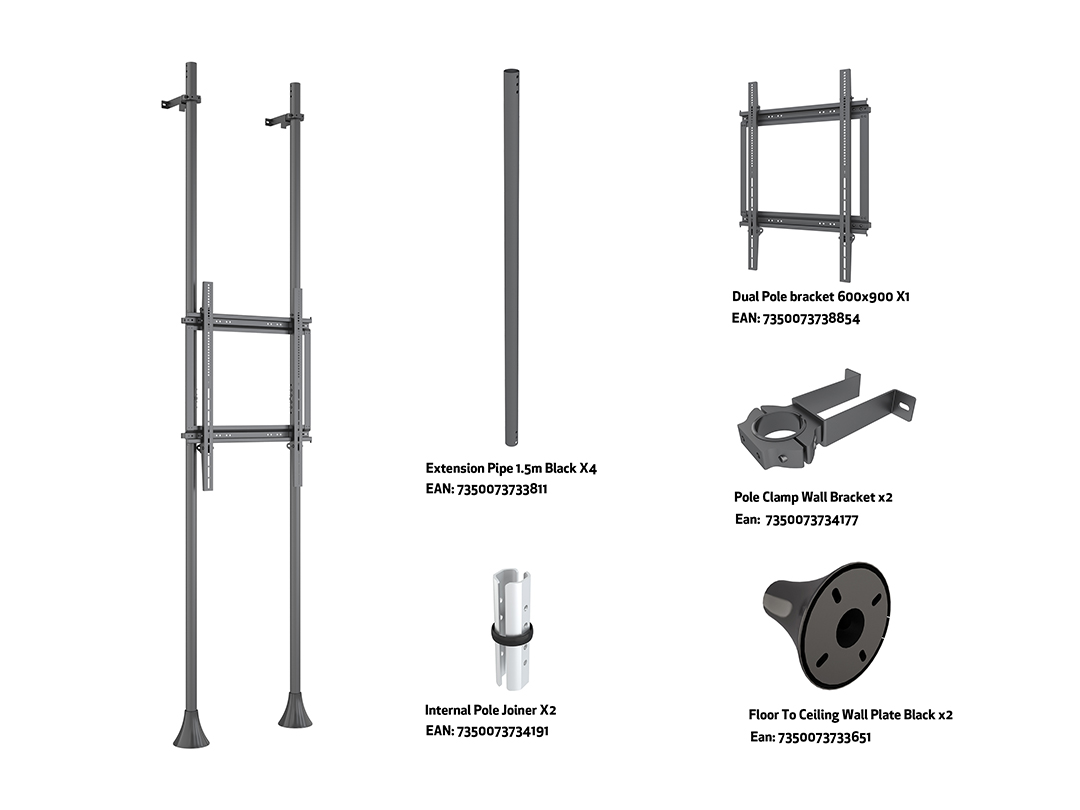

- Includes 3-meter poles (2x1500mm) and full hardware kit
- Customizable finish: black, brass, or chrome poles available
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Floor to Wall Mount Pro MBFW2P1UPHD | |
| Article No: | 7 350 105 216 022 |
| For screen size: | 65"-100" |
| Type: | Single Side MBFW2P1UPHD |
| Universal & VESA standard: | 200x200, 300x300, 400x400, 400x600, 600x800, 600x900 mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 33 kg |
| Measurements | 161 x 16.2 x 14.5 cm |
| Max Load: | 125 kg per screen |
| Pillar length: | 3000mm, extension possible. Poles included: 3m (1500mm*2pcs per pole) |
| Tilt: | Yes, 0°-6° |
| Swivel: | No, 0° |
| Rotate: | No, 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 161 x 16.2 x 14.5 cm |
| Package Weight: | 33 kg |
