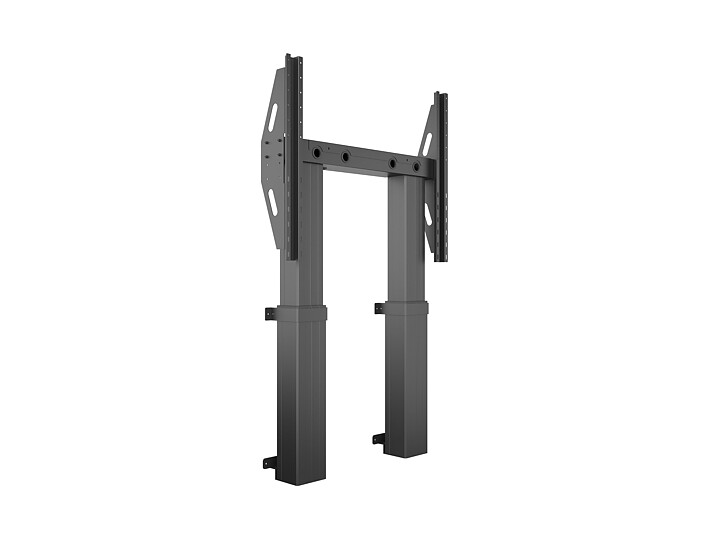

M Pro Series Motorized LED Wallstand 300kg
Options
Variants that match your options:
In stock: 1
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022738478
Product Overview

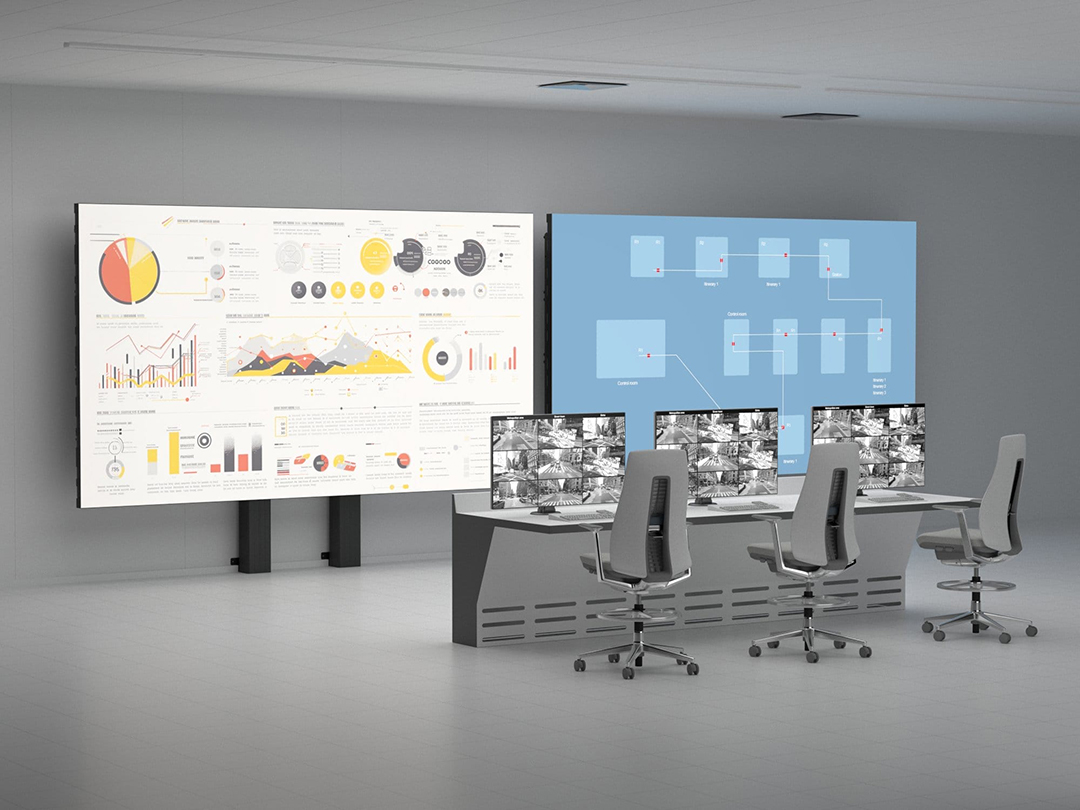

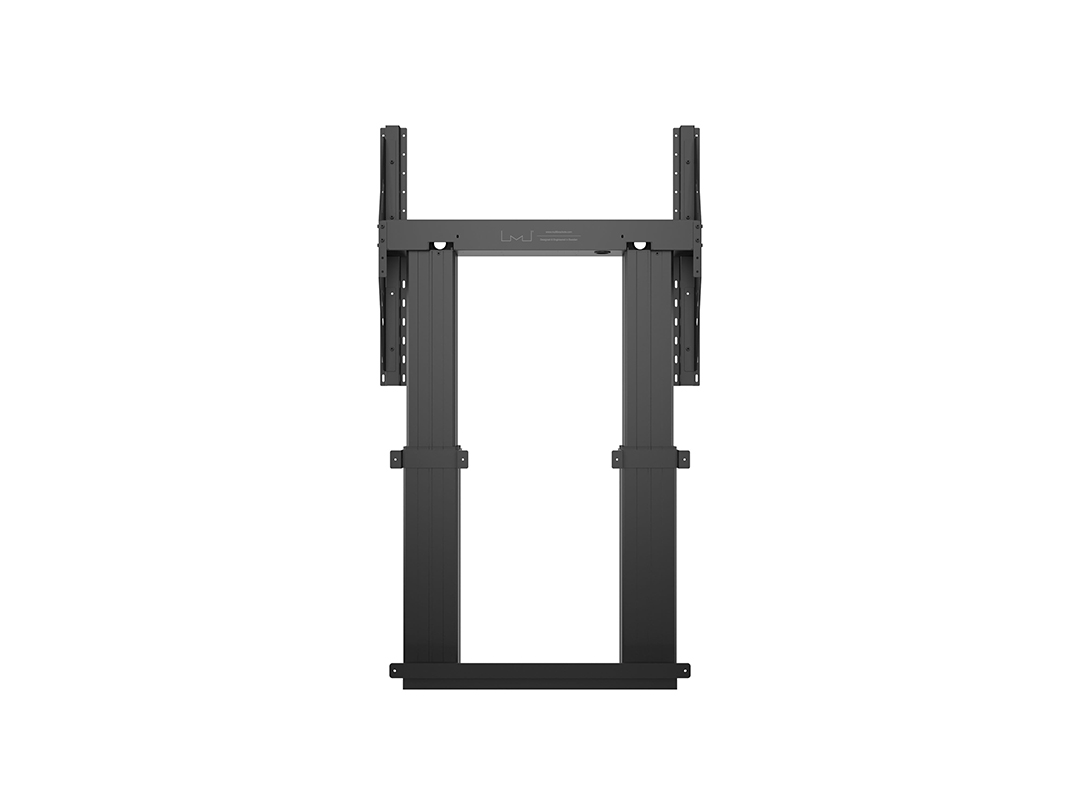

M Pro Series Motorized LED Wallstand 300kgis a floor-mounted, motorized solution for LED videowalls up to 176”. Built to handle a total load of 300kg, it’s designed for commercial spaces where adjustability, mobility and precision are key.
The system supports popular LED panel brands such as Samsung, LG, Philips PPDS, SHARP NEC, Infiled, Leyard and Absen. Its modular design based on Multibrackets’ aluminum rail system allows fast installation, easy updates, and a scalable setup over time. Integrated cable management ensures a clean, professional finish.

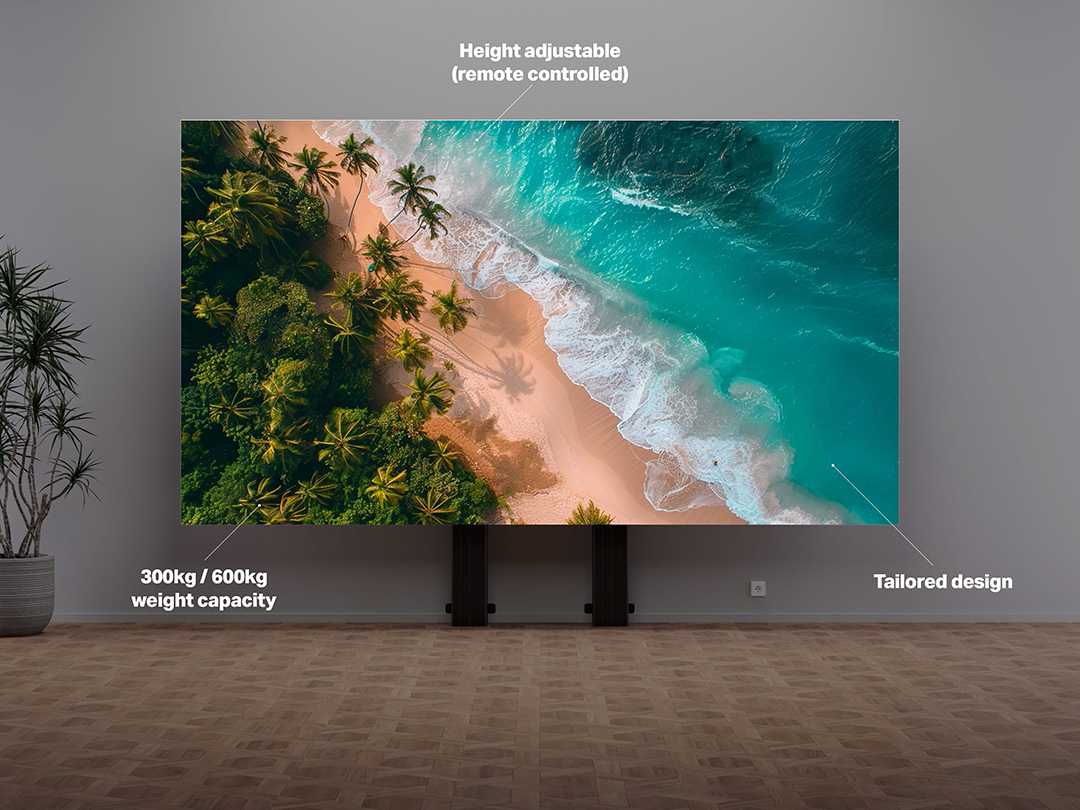

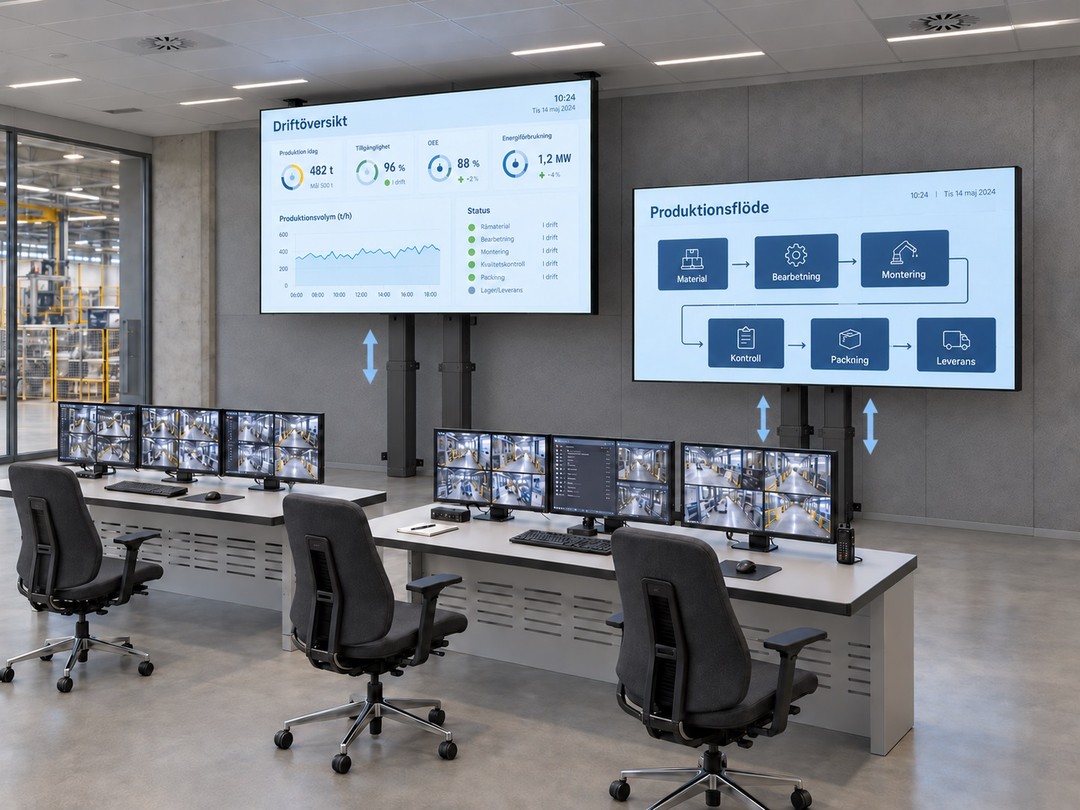

With up to 60 cm motorized height adjustment via remote, the unit can be lowered to pass through standard doorways—ideal for mobile AV or rental use cases. The Scandinavian design offers a sleek, minimal aesthetic combined with rock-solid functionality.
Highlights
- Motorized height adjustment with remote – up to 60cm travel
- Supports LED screens from 110" to 176" – max load 300kg
- Compatible with major LED panel brands
- Designed to fit through standard doorways
- Micro-adjustable brackets for precise LED alignment (based on manufacturer)
- Integrated cable management for clean installations
- Power Click system – quick and safe assembly
- Landscape and portrait orientation supported
- Complete installation hardware included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Motorized LED Wallstand 300kg | |
| Article No: | 7 350 022 738 478 |
| Colour: | Black |
| Max. load: | 300 kg |
| Power Supply: |
Input: 200/250 VAC |
| Motor: | Push force: 2 x 2000N Constant speed 9 mm/s Anticollison up and down |
| Duty cycle: | 2 min ON, 18 min OFF |
| Remote control: | Yes, wired |
| Height adjustment: | 700 mm |
| Trolley: | 4 x TENTE wheels |
| Cable management: |
Yes |
| Dimensions: | 2014 x 1080 x 218 mm |
| Weight: | 69 kg |
| Certification: | CE |
| Surface finish: | Powder coating |
| Material: | Steel, aluminum, plastic |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 4 pcs |
| Package Measurements: | Wall bs.: 1010x250x160mm LCD mount: 1190x220x170 2xColumn: 960x320x280mm |
| Package Weight: | 77 kg |
