M Pro Series Video Wall Stand MBF2x2U 300 Micro Adjustable
Options
Variants that match your options:
In stock: 55
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105219238

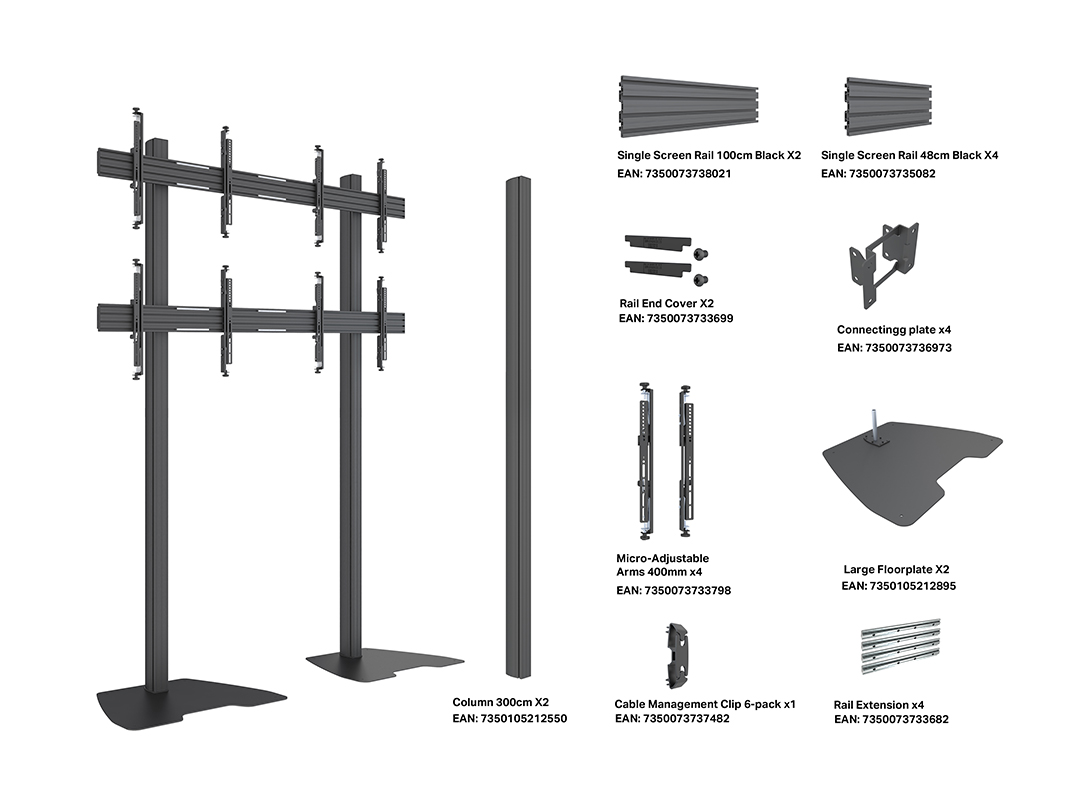

M Pro Series Video Wall Stand MBF2x2U 300 Micro Adjustable – Stand for 4 displays – aluminum – black – screen size: 32"-65" – VESA 400x400 – 300 cm pillar – freestanding or floor-mounted
Product Overview

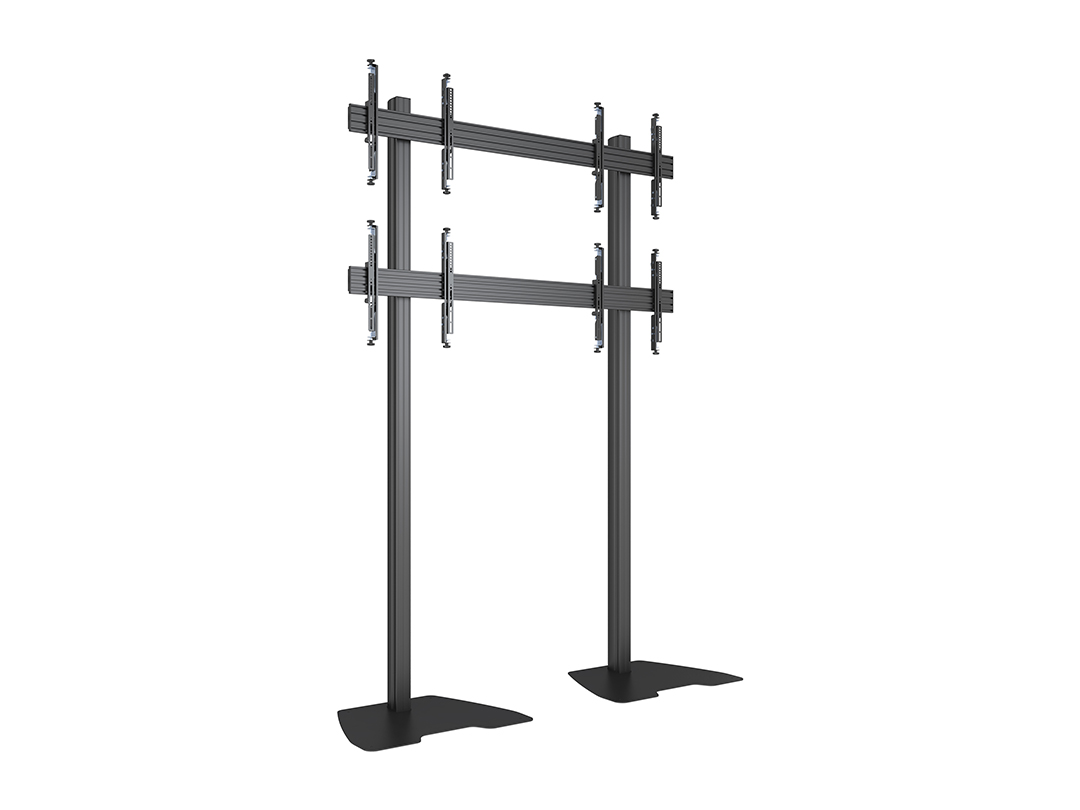

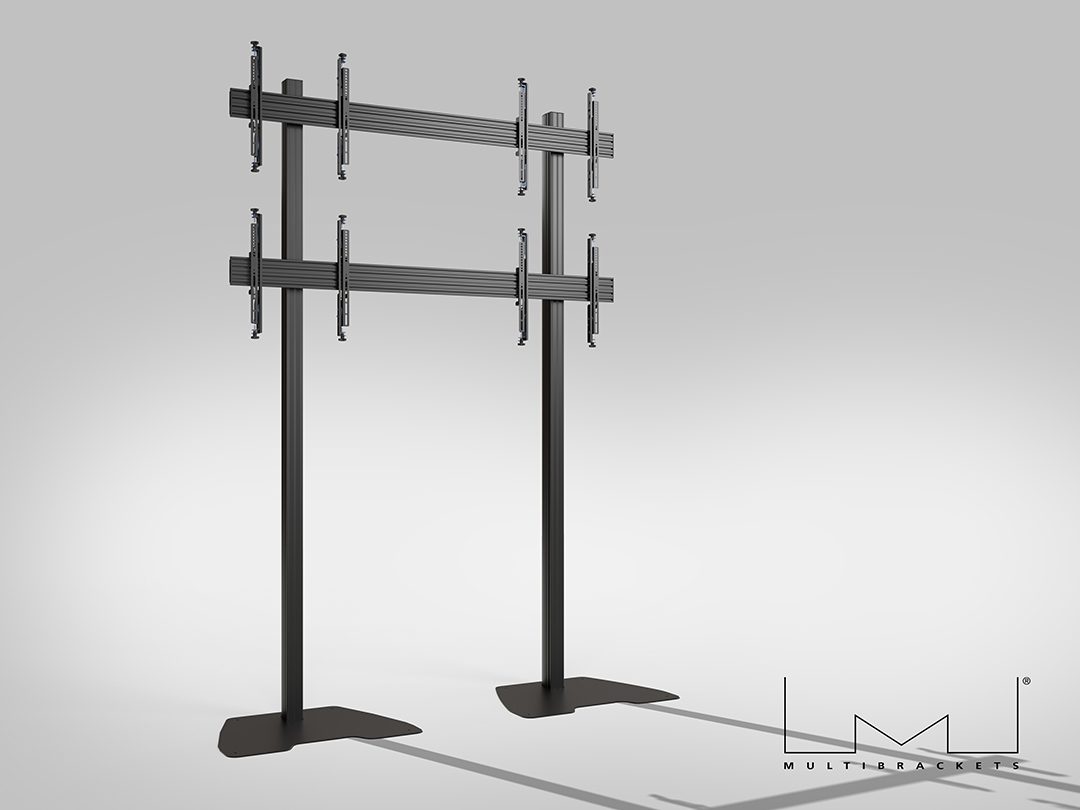

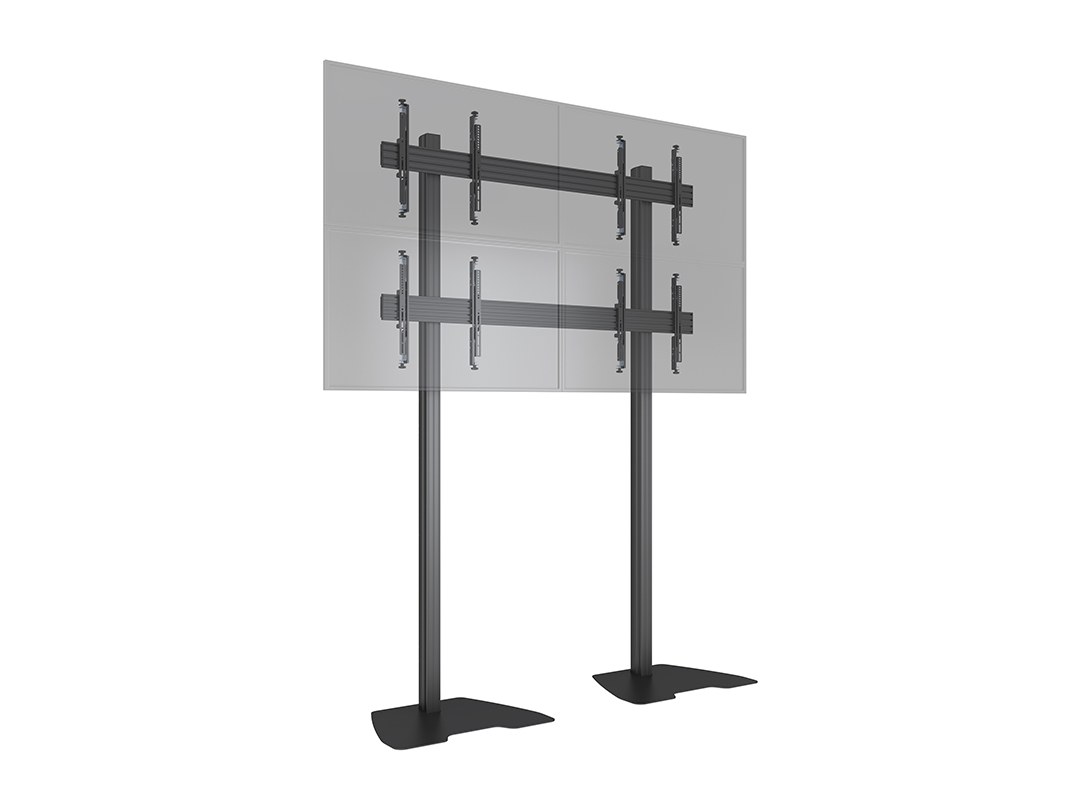

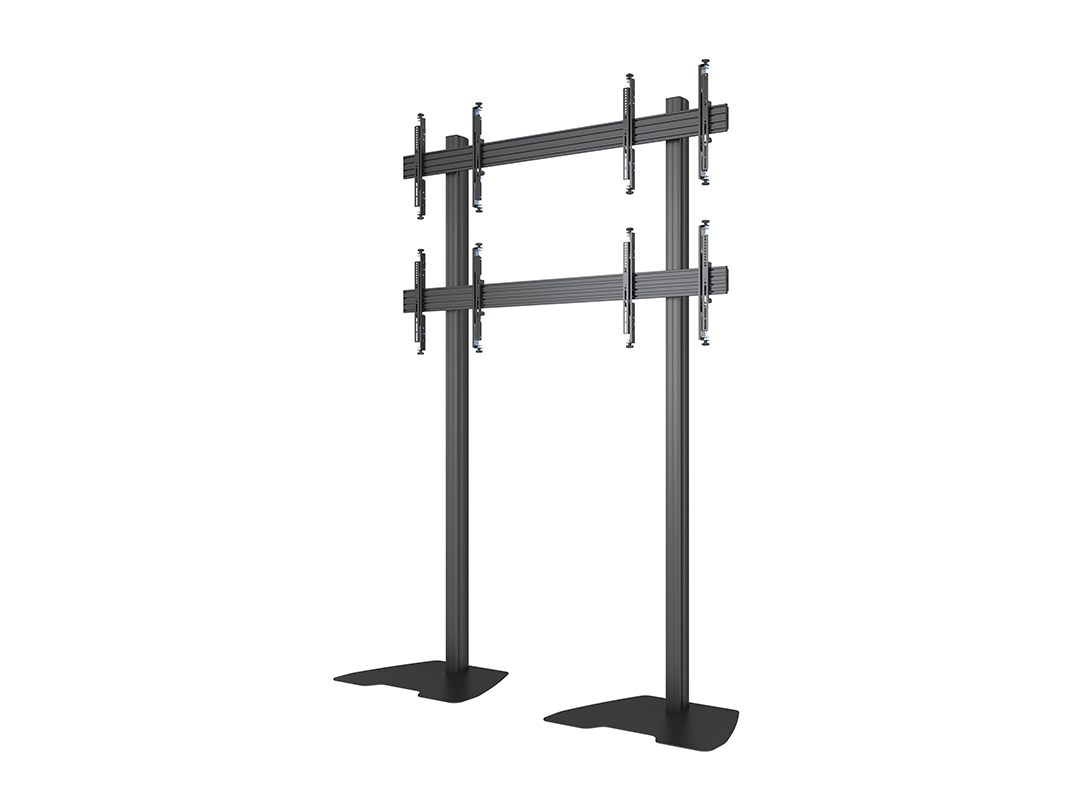

The M Pro Series Video Wall Stand MBF2x2U 300 is a freestanding solution designed to hold four screens in a 2x2 configuration. With a tall 300 cm aluminum pillar, this system is ideal for high-impact, temporary or semi-permanent video wall installations in retail, corporate lobbies, trade shows, and command centers.
Supporting screens from 32" to 65" and up to 30 kg per screen, this stand combines flexibility, adjustability, and clean aesthetics. The included micro-adjustable VESA 400x400 mounting arms allow precise fine-tuning on the X, Y, and Z axes—even after the screens are installed. This ensures pixel-perfect alignment and a professional finish across all four displays.
The modular design makes it easy to reconfigure or expand over time. Built-in cable management keeps installations neat, while the included base enables both mobile and fixed installations depending on your application needs.
Highlights

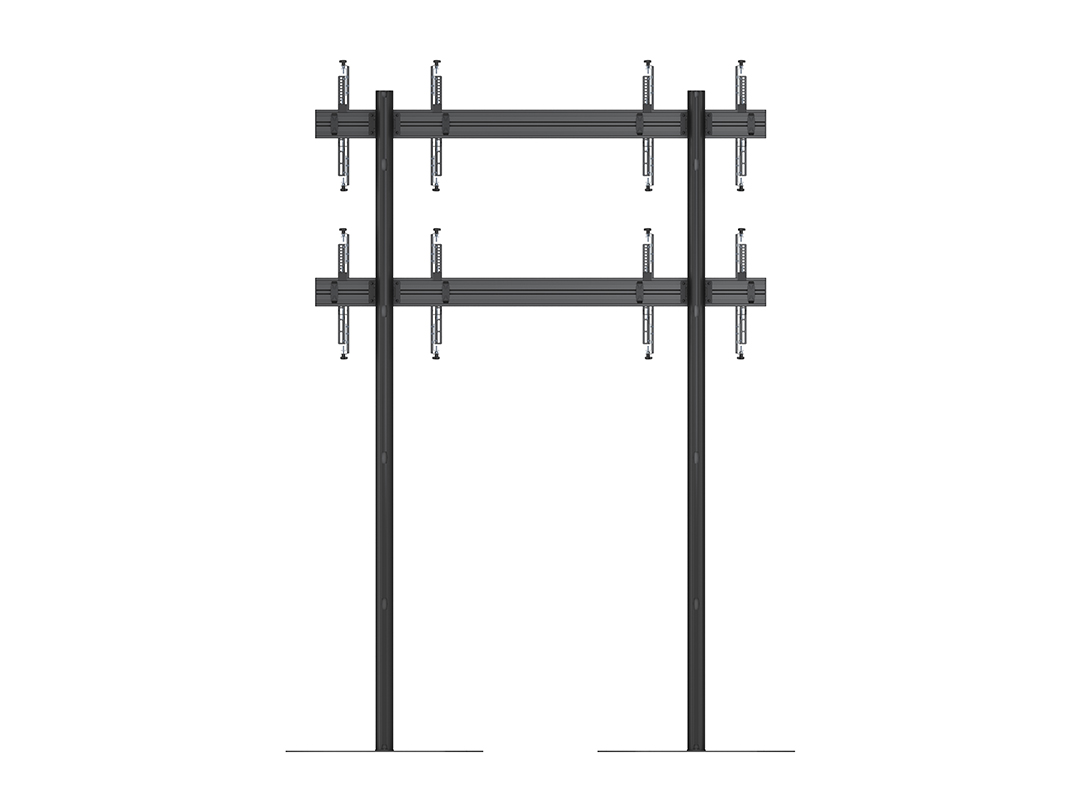

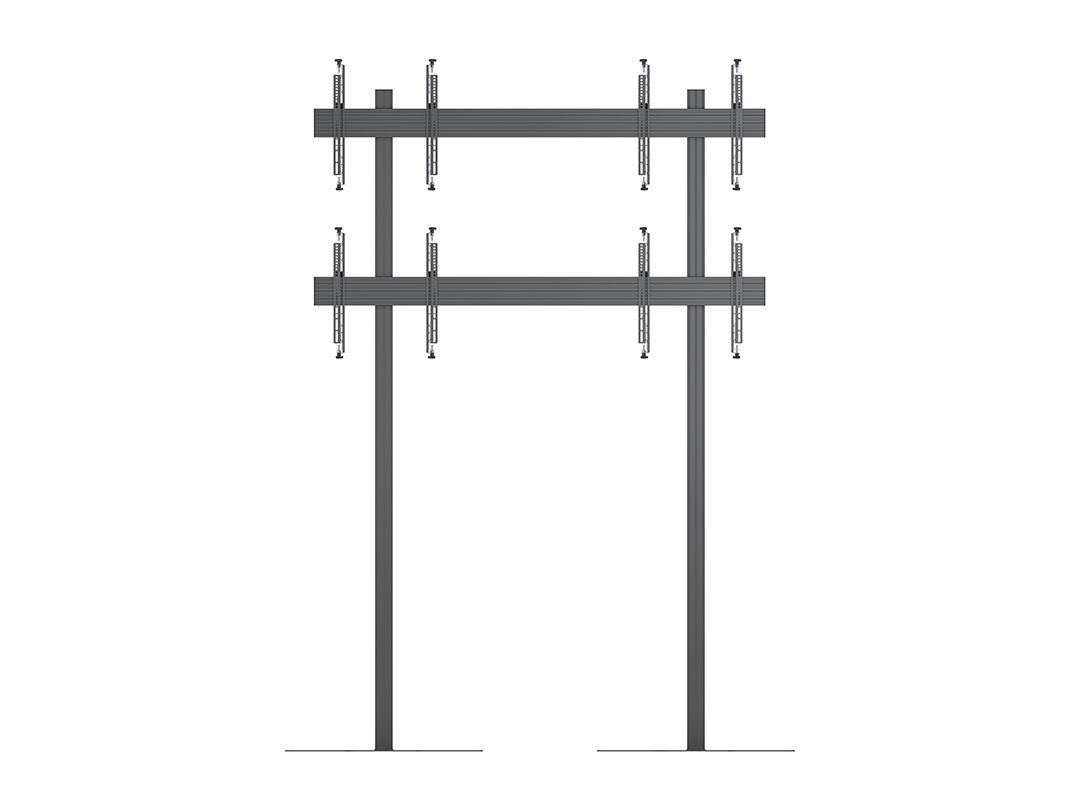

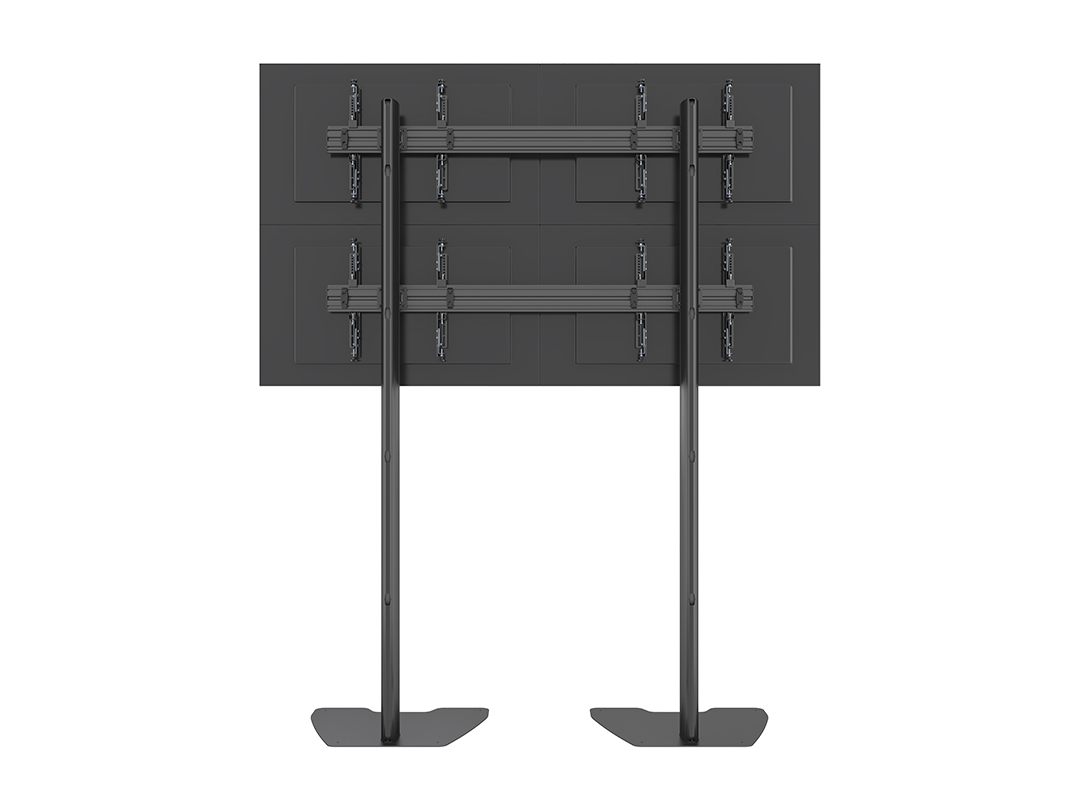

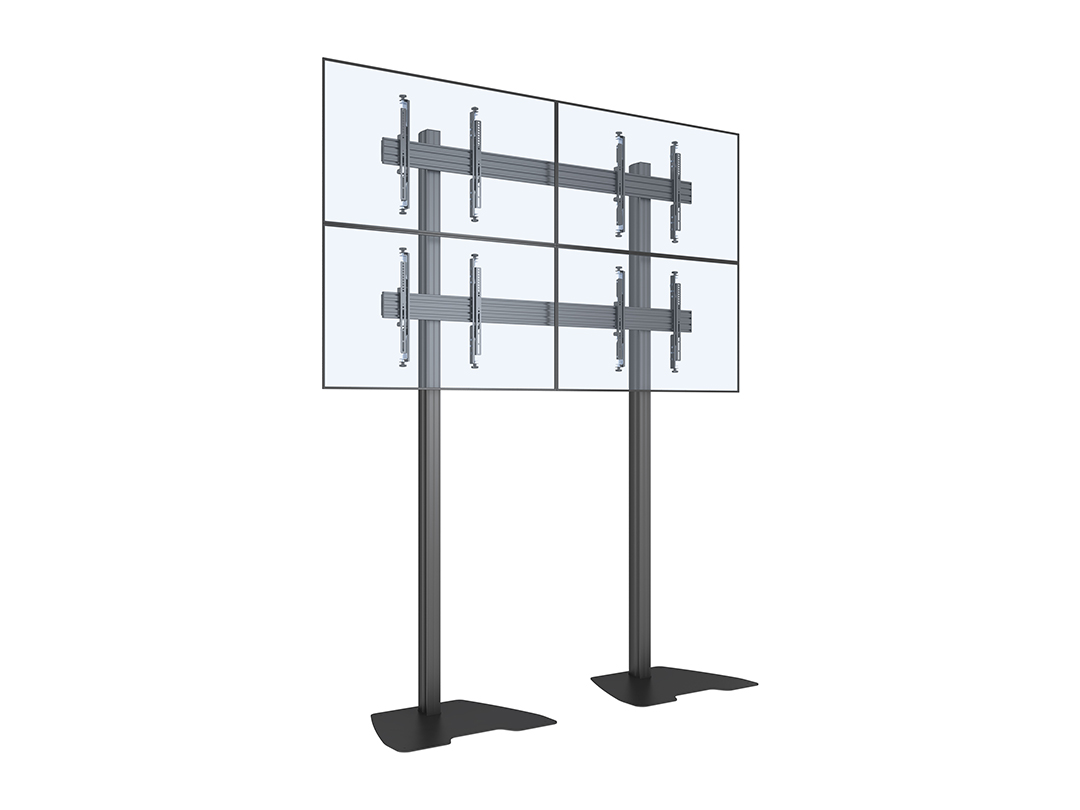

- Holds 4 displays in a 2x2 layout (32"–65", max 30 kg each)

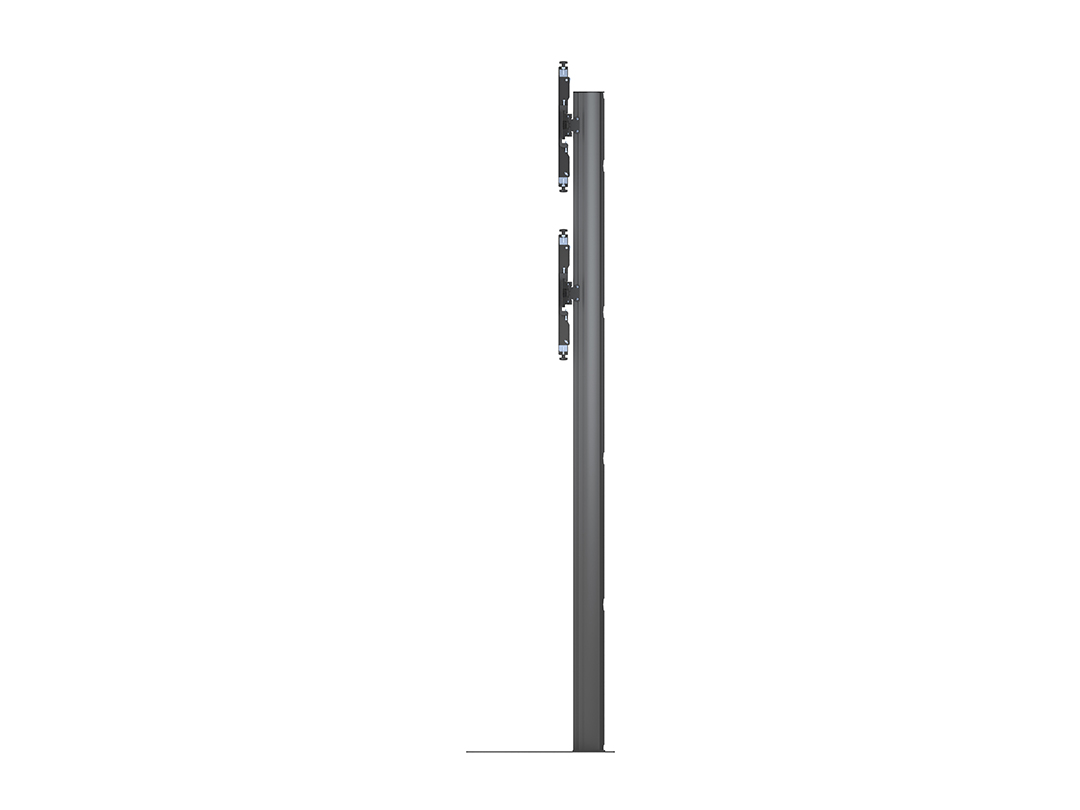

- 300 cm high aluminum pillar for elevated visual presence

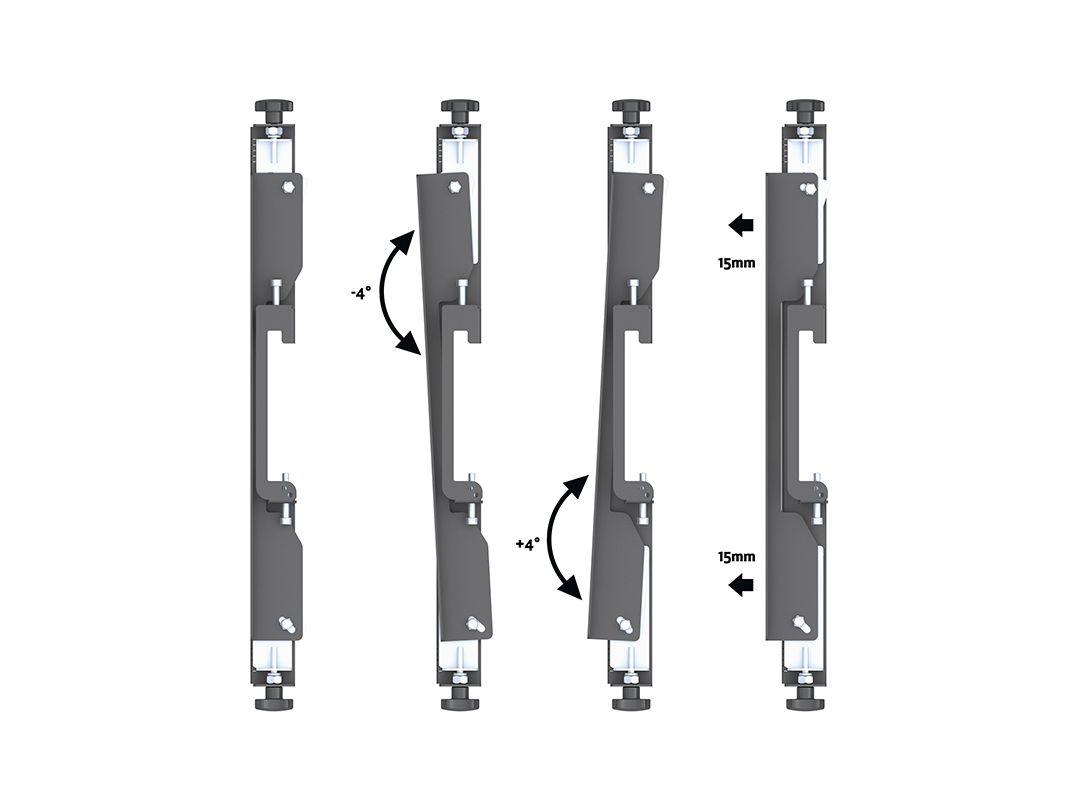

- Micro-adjustable mounts on X, Y, Z axes for precision alignment

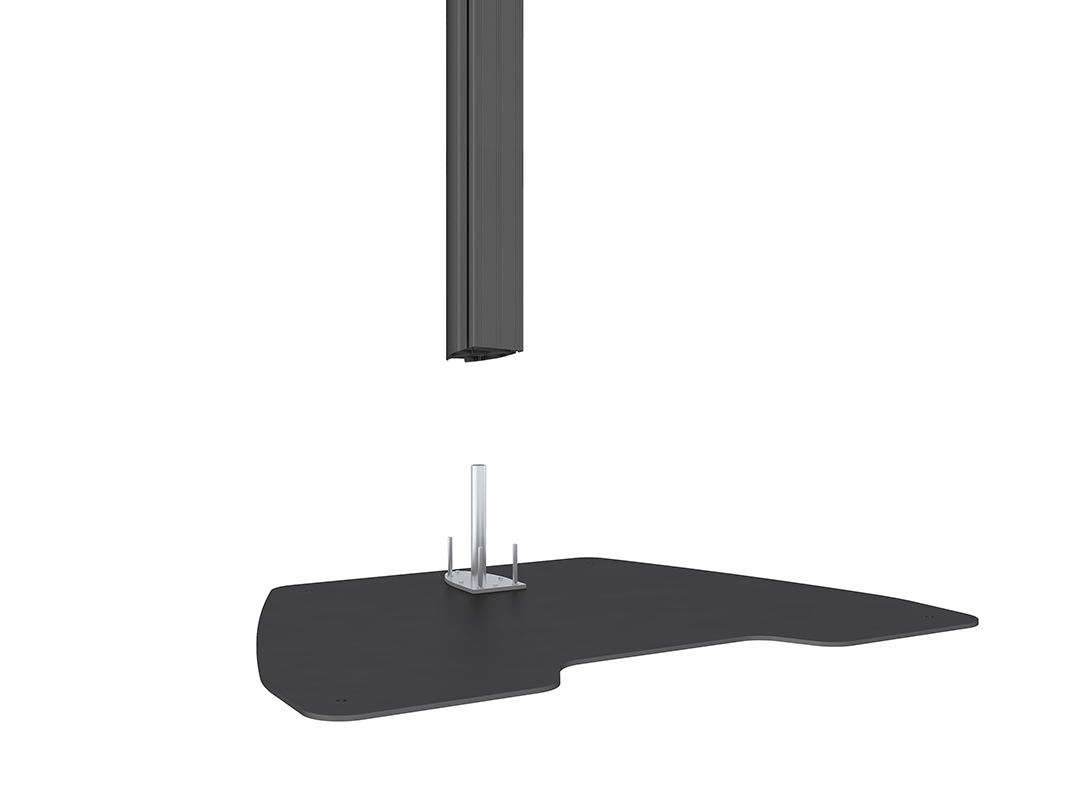

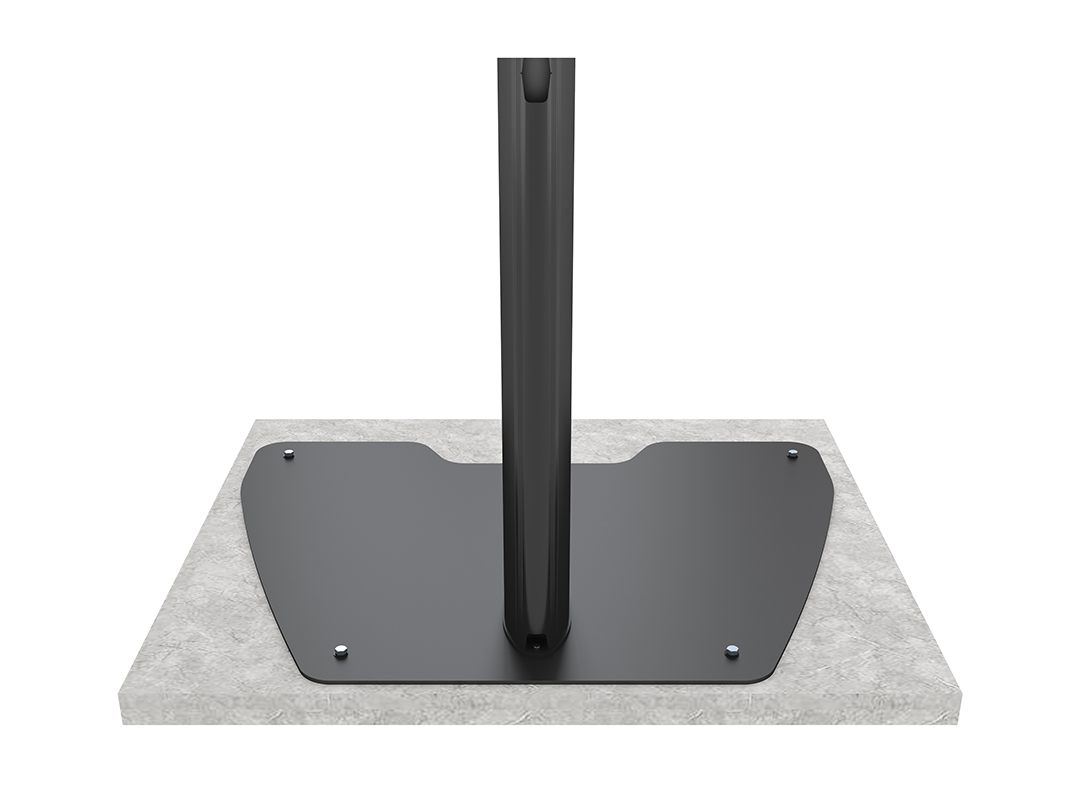

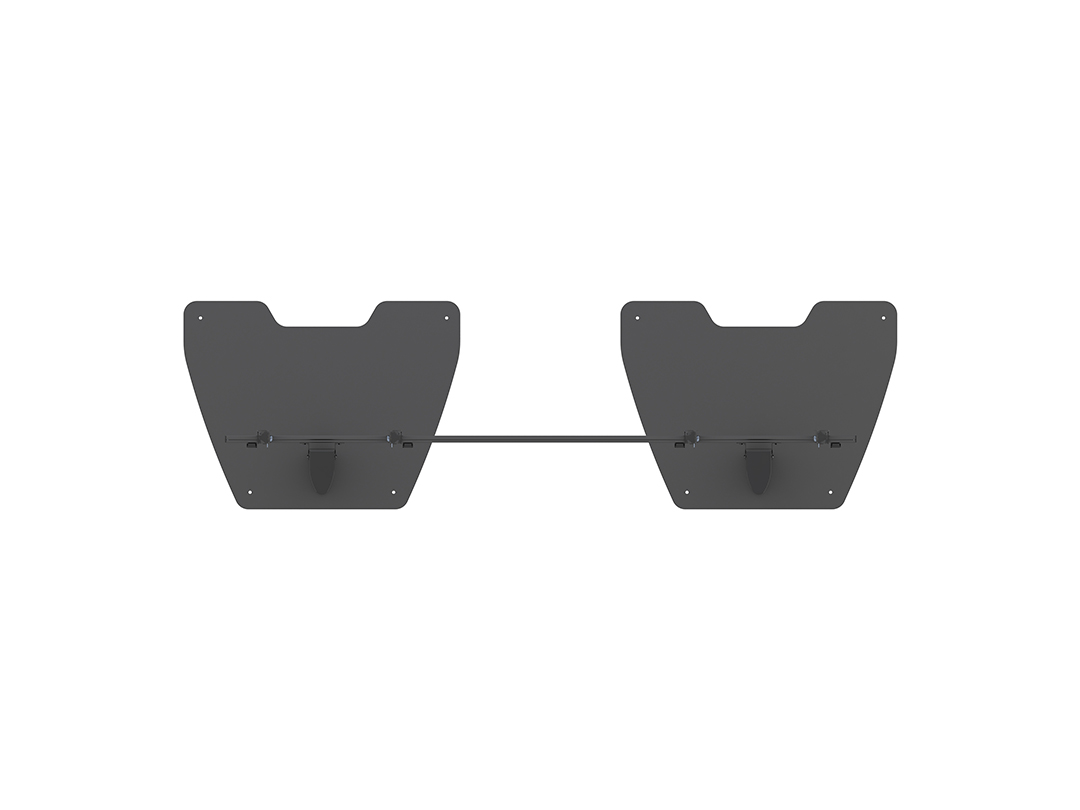

- Freestanding or floor-mounted setup with optional base plate
- Modular design – easily reconfigurable and expandable

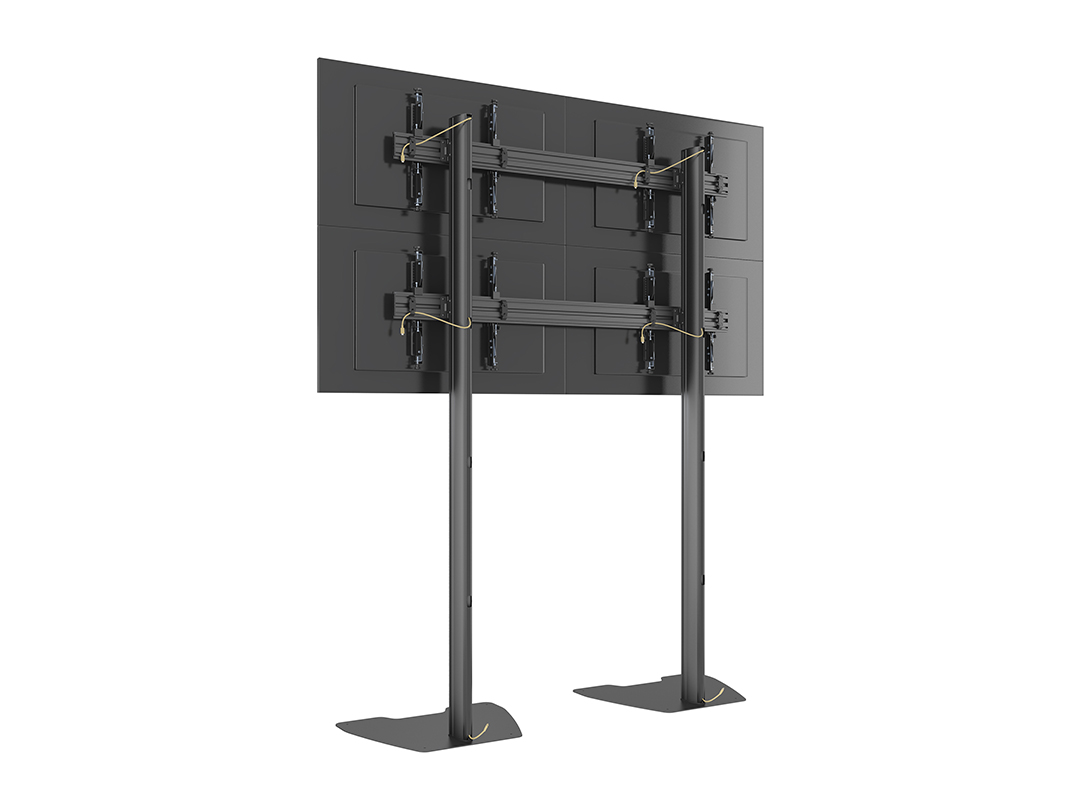

- Built-in cable management for clean installation
- Ideal for video conferencing, digital signage, and events
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF2x2U 300cm Micro Adjustable | |
| For screen size: | 32"-65" - for each screen * |
| Feature: | 4 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 219 238 |

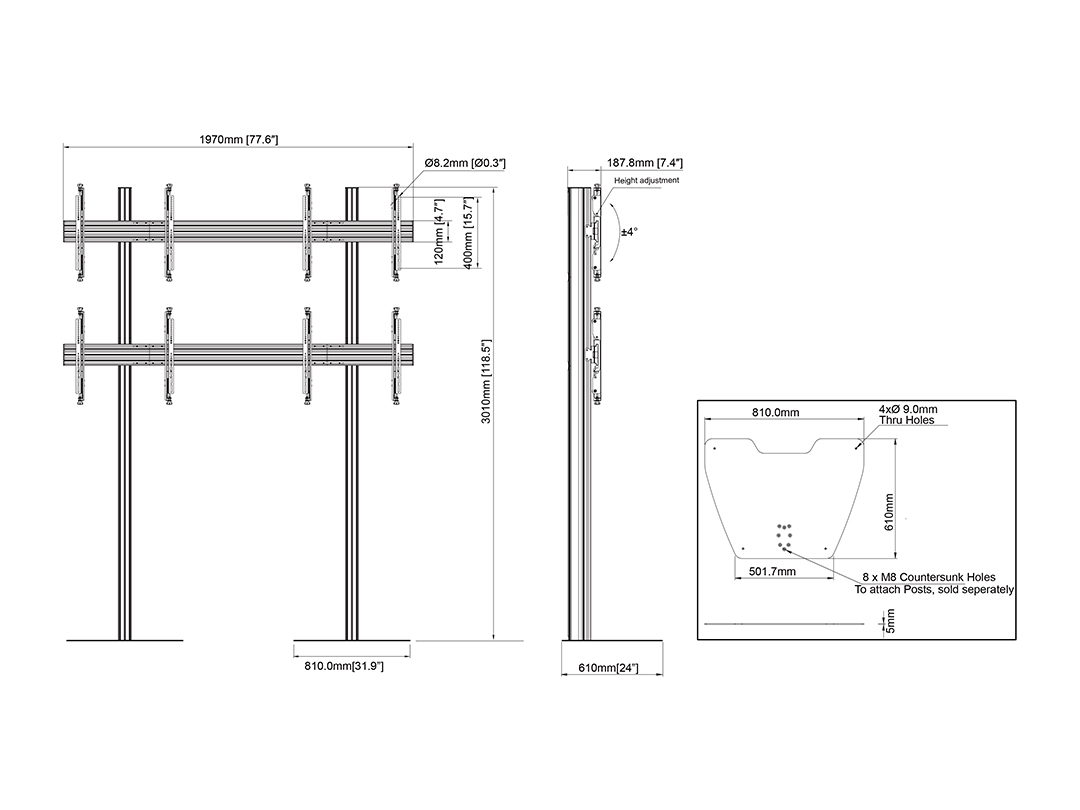

| Size in mm: (WxDxH) | 115.8 x 26.2 x 13.8 cm + 309.7 x 35 x 12.9 cm + 83 x 63 x 11 cm |

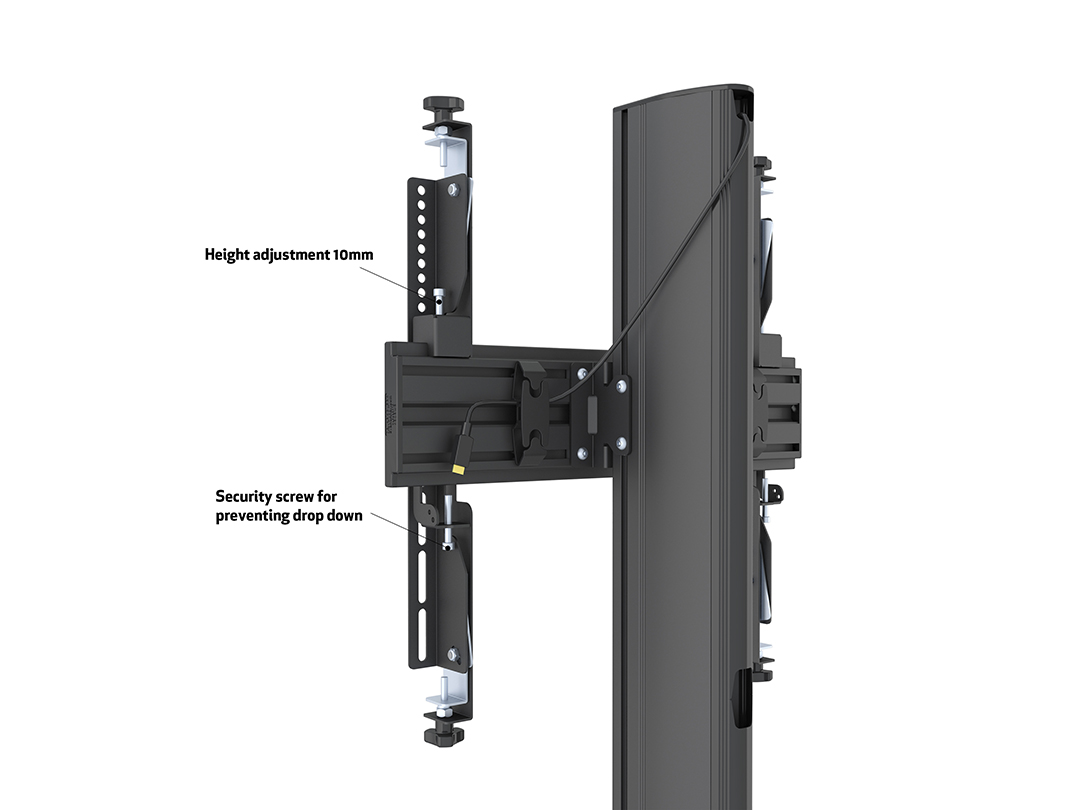

| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 24kg + 23kg + 34kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
