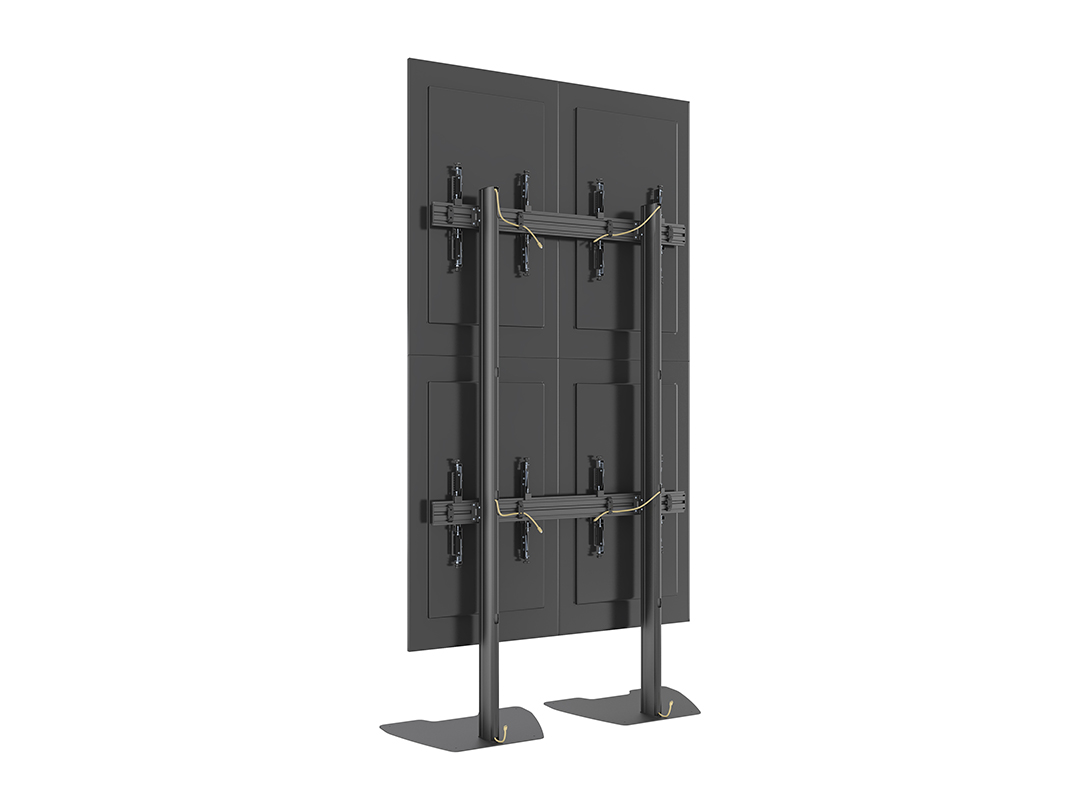

M Pro Series Video Wall Stand MBF2X2UP 180 Micro Adjustable
Options
Variants that match your options:
In stock: 46
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105217715
Product Overview

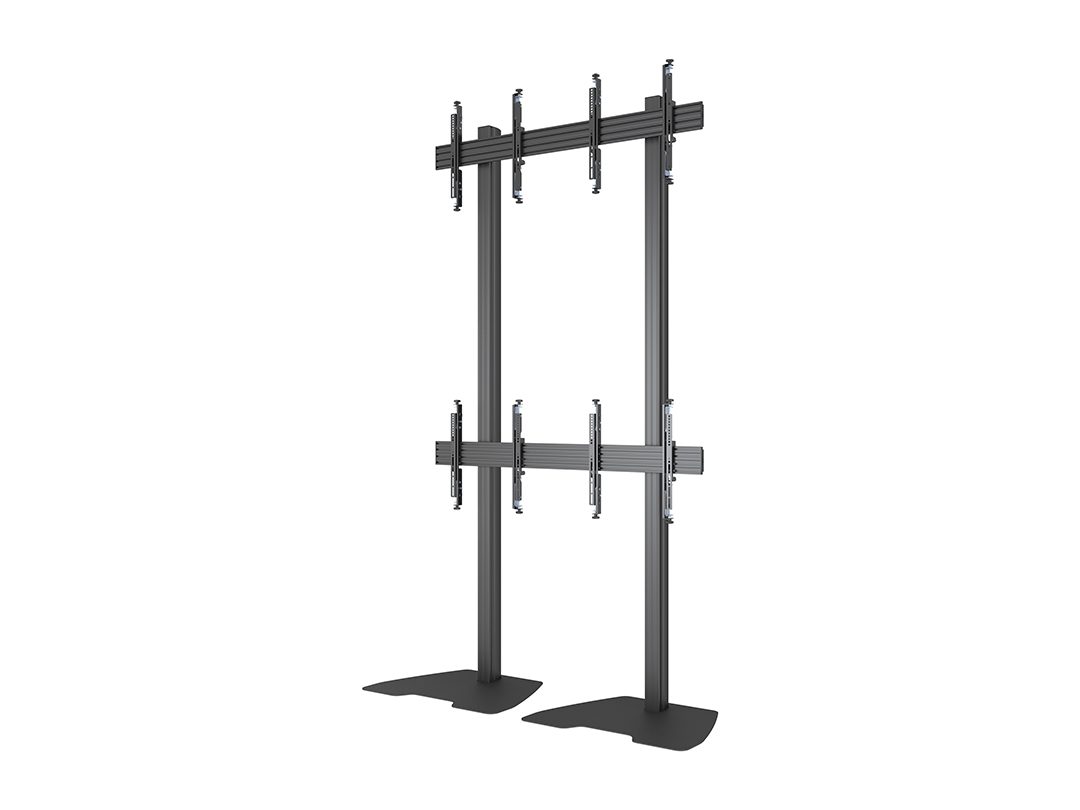

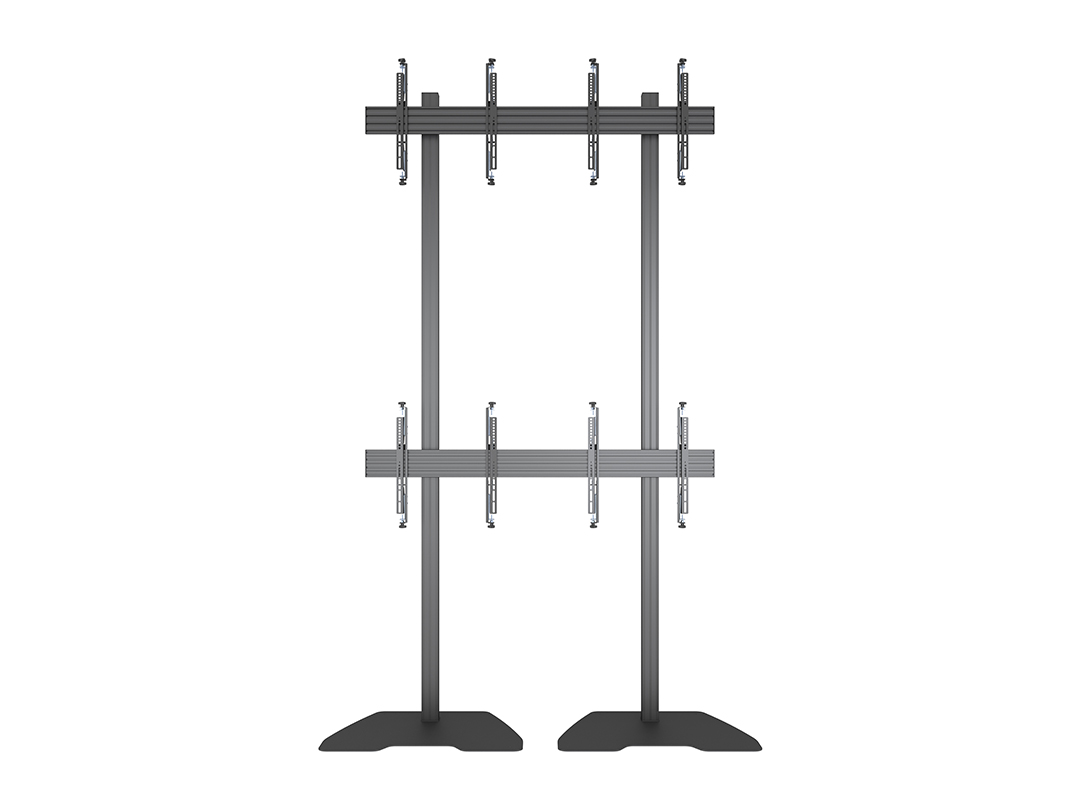

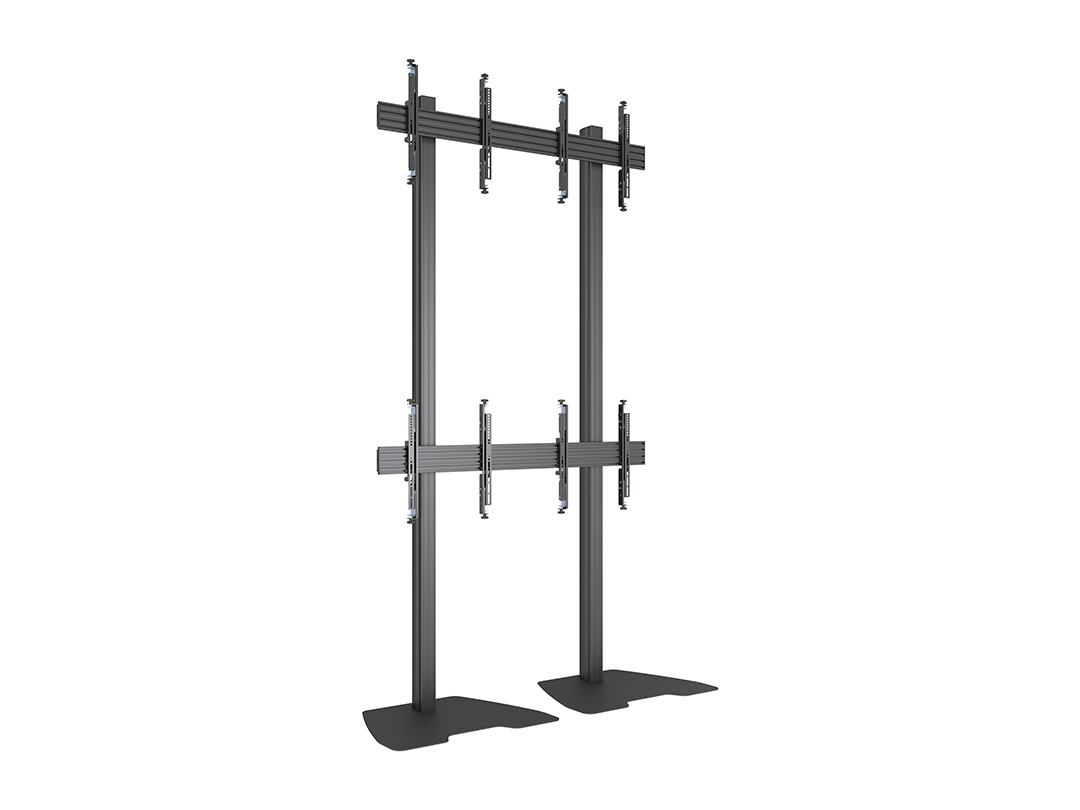

The M Pro Series Video Wall Stand MBF2X2UP 180 Micro Adjustable is a professional freestanding video wall solution for 2x2 screen configurations, ideal for corporate lobbies, exhibitions, control rooms, and digital signage installations. Designed to support four 43"–65" displays with VESA 600x400 mm, this stand ensures precise screen alignment through its micro-adjustable interface for the X, Y, and Z axes.

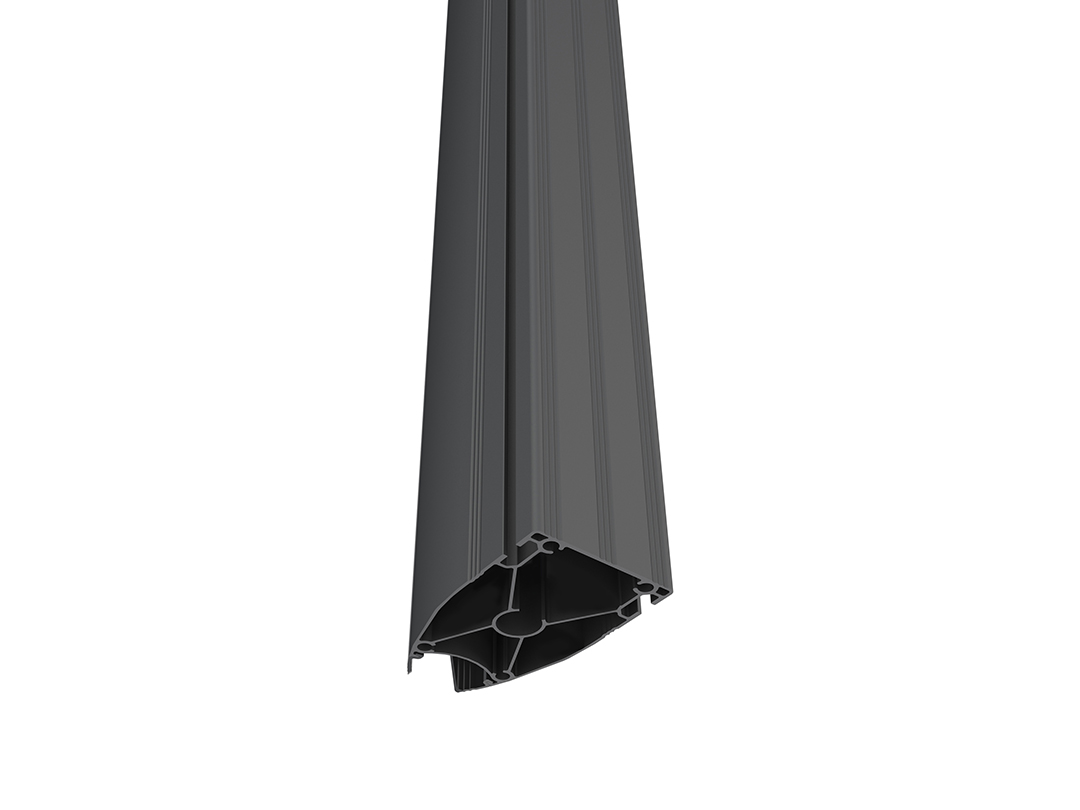

Constructed from high-quality aluminum, the 180 cm pillar offers excellent stability and height flexibility to accommodate both seated and standing viewers. The modular architecture of the Pro Series allows for future reconfiguration and integration with other Multibrackets components. With concealed cable routing and full accessibility for maintenance, the MBF2X2UP provides a clean, serviceable, and scalable display system for demanding environments.
Highlights

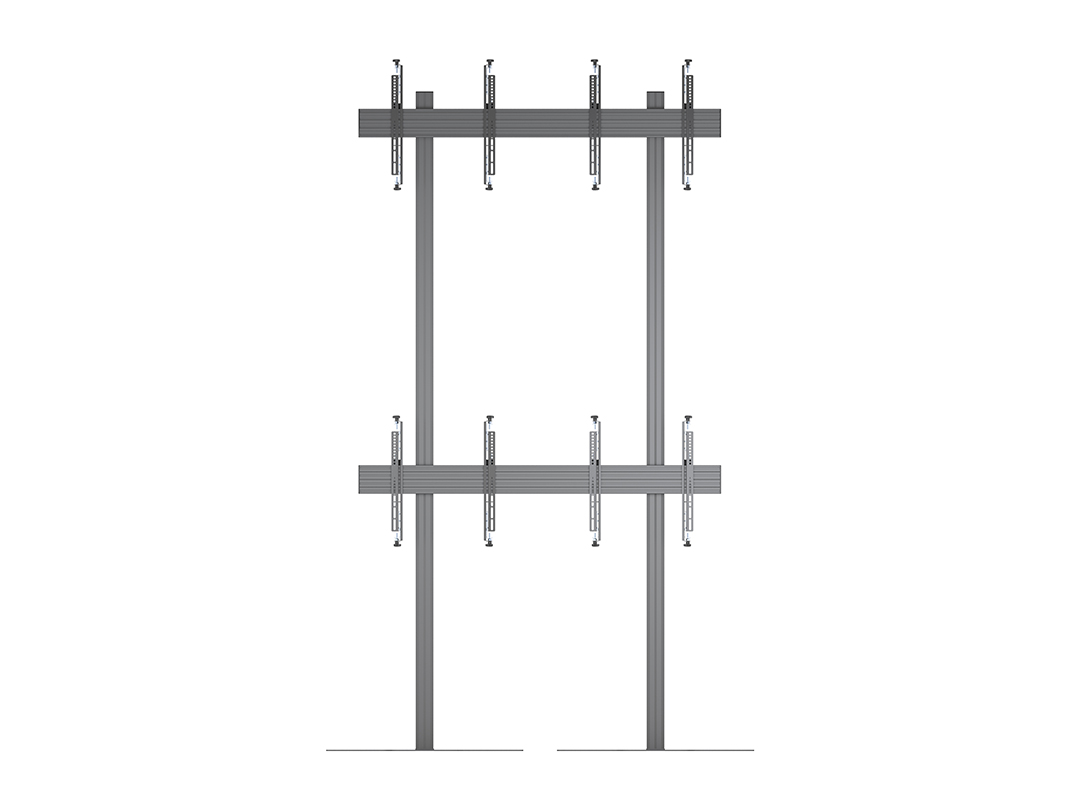

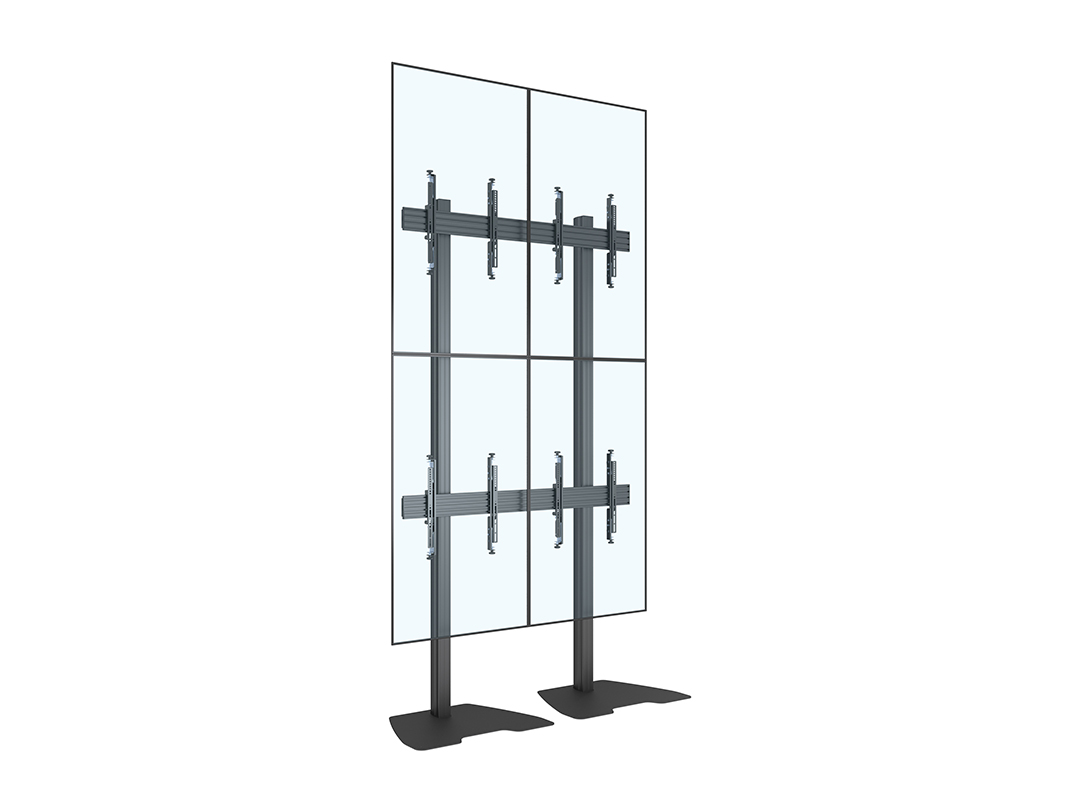

- Supports 2x2 video wall layout (4 displays total)
- Compatible with 43"–65" displays, up to 30 kg per screen
- Micro-adjustable VESA interface (600x400 mm)

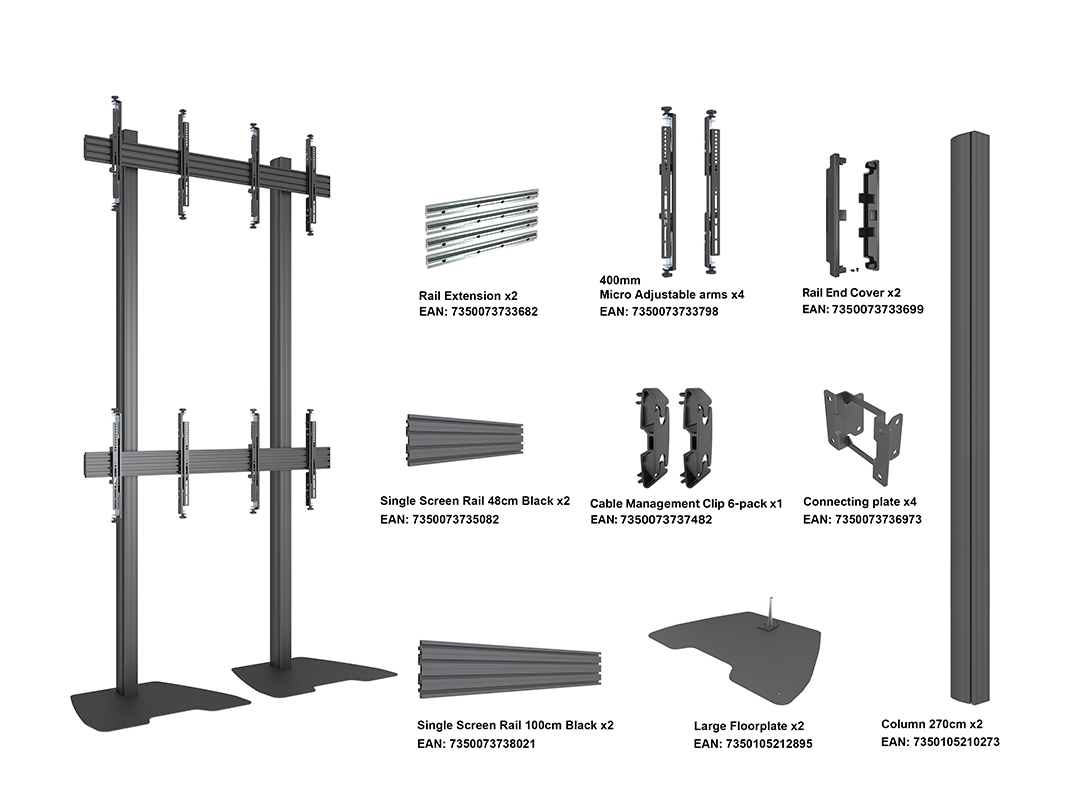

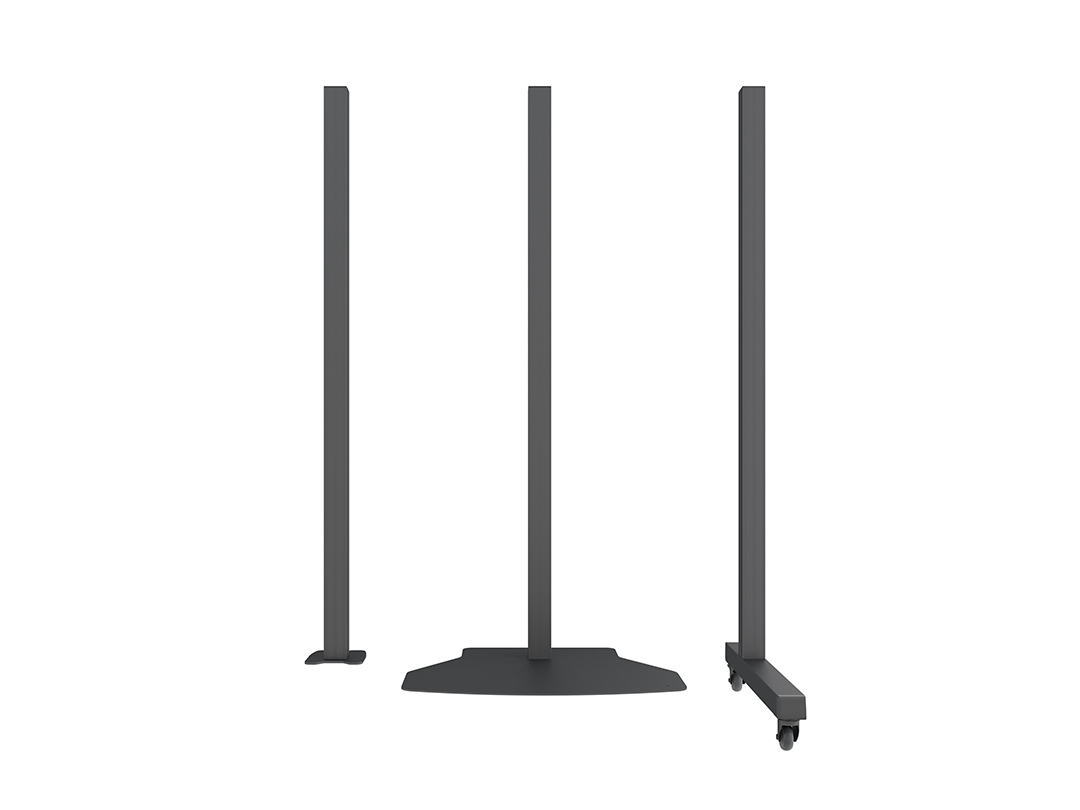

- Modular and expandable with Pro Series accessories
- Integrated cable management for a clean installation
- Tool-free fine tuning on all axes (X, Y, Z)
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF2X2UP 180 Micro Adjustable | |
| For screen size: | 43"-65" - for each screen |
| Feature: | 4 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 217 715 |

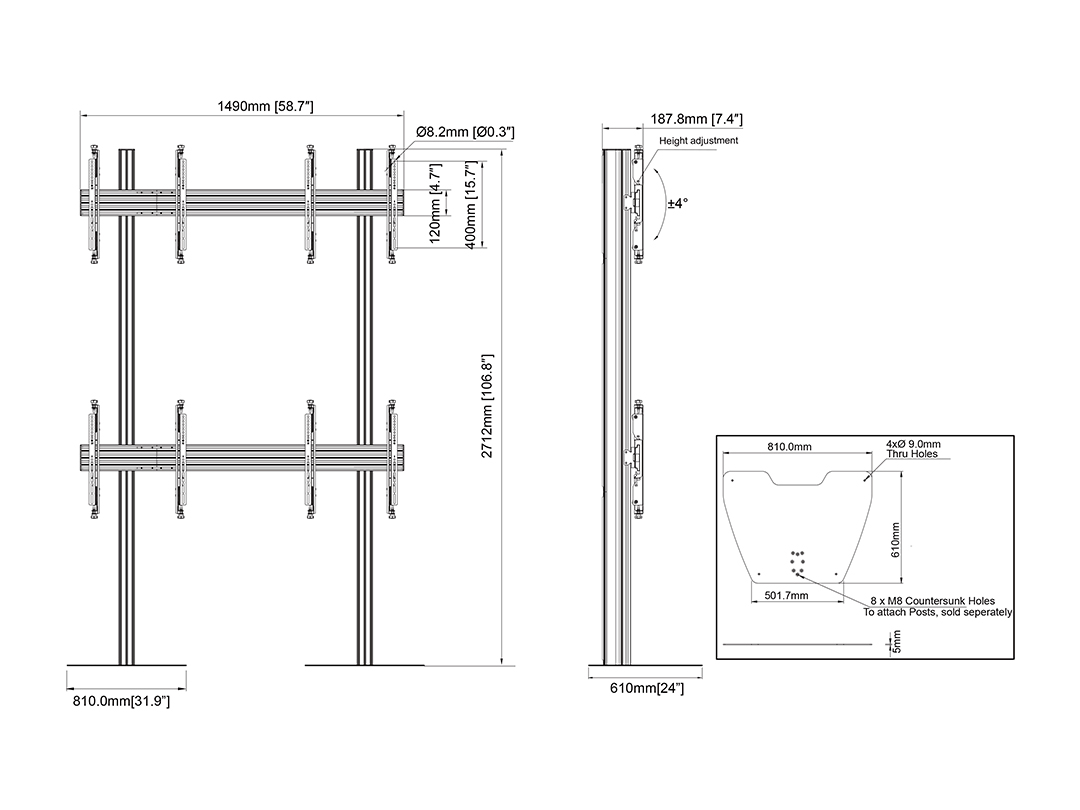

| Size in mm: (WxDxH) | 116x21.4x13.8cm + 279.5x35.5x13.1cm |

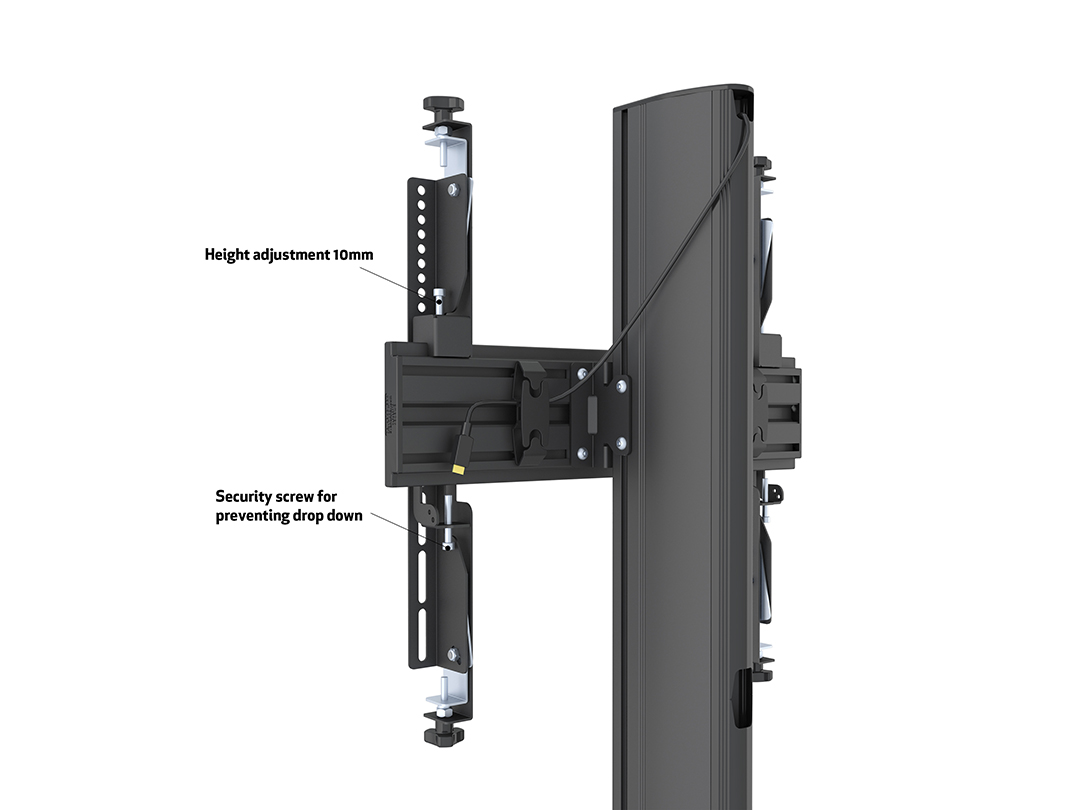

| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 32kg + 20.95kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Max load total: | 120 kg |

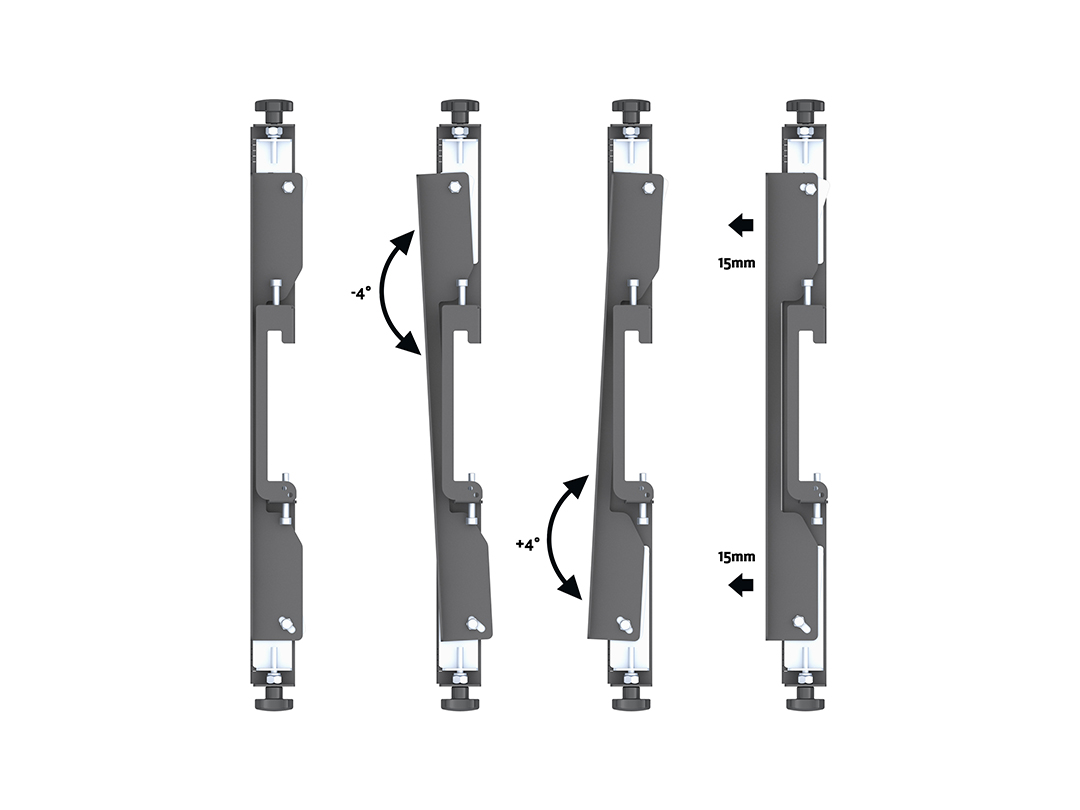

| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 2 pcs |
| Package Measurements: | 116x21.4x13.8cm + 279.5x35.5x13.1cm |
| Package Weight: | 32kg + 20.95kg |
