M Pro Series Video Wall Stand MBF2x3U 300 Micro Adjustable
Options
Variants that match your options:
In stock: 28
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105213502
M Pro Series Video Wall Stand MBF2x3U 300 Micro Adjustable – Stand for 6 LCD displays – aluminum – black – screen size: 32"-65" – VESA 400x400 – micro adjustable – 300 cm pillar – floor-standing
Product Overview

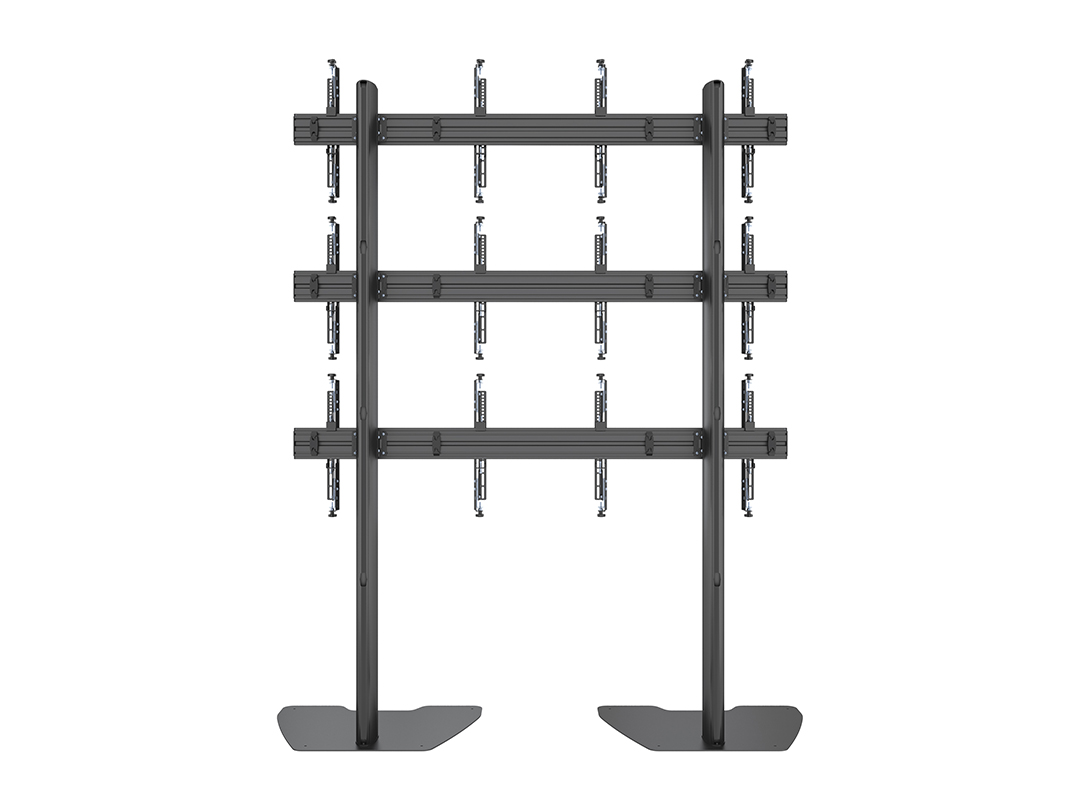

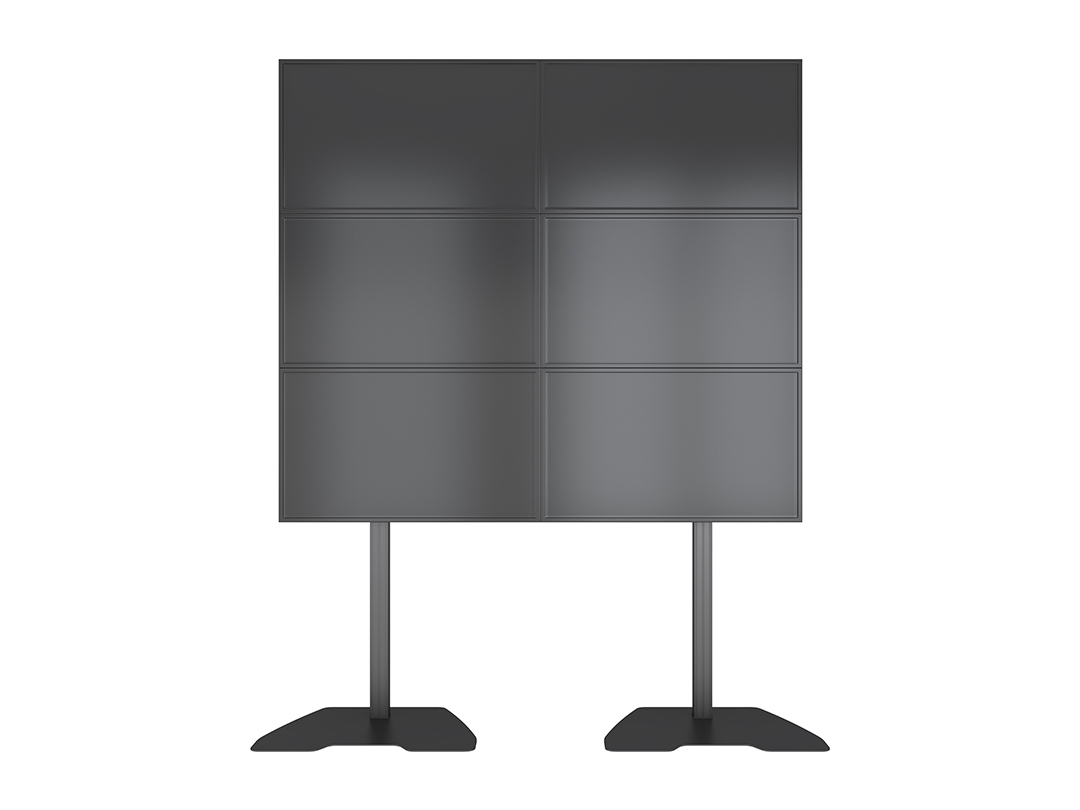

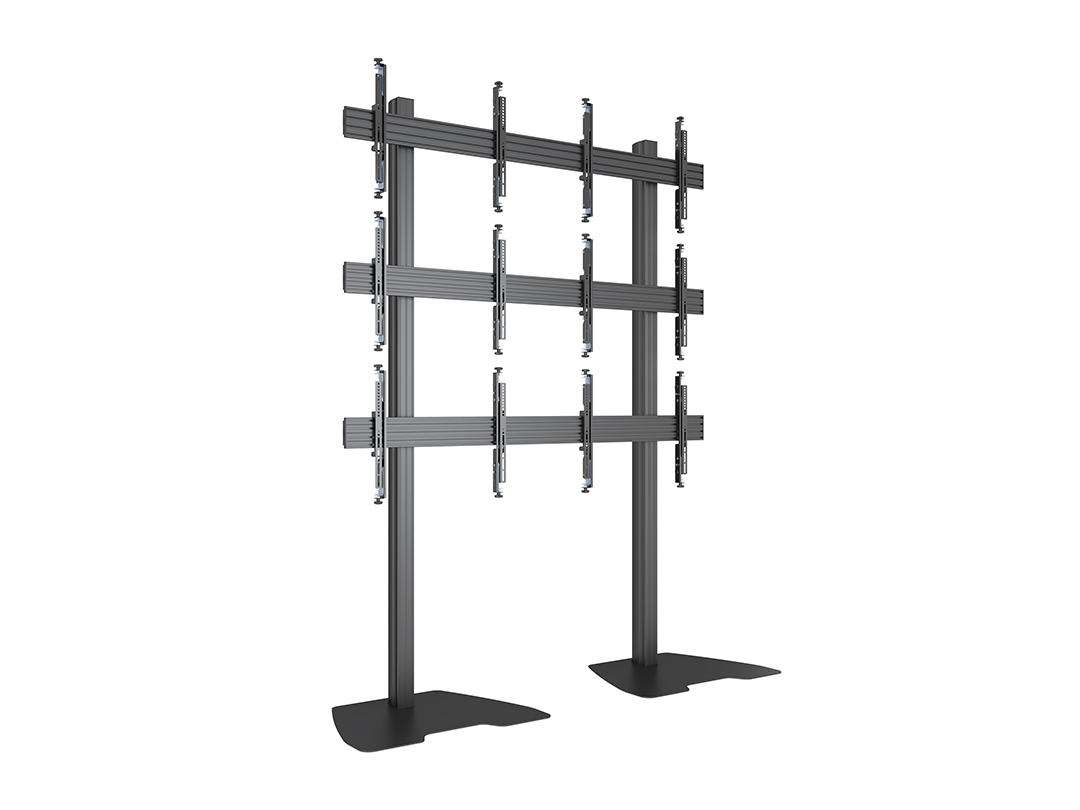

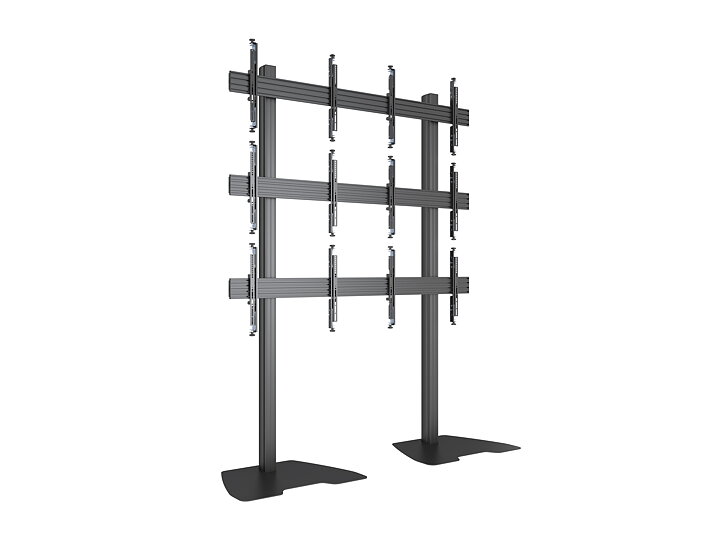

The M Pro Series Video Wall Stand MBF2x3U 300 Micro Adjustable is a professional-grade freestanding video wall system designed for high-impact visual environments. Supporting a 2x3 screen array—two screens wide and three high—this solution is ideal for digital signage, control rooms, corporate lobbies, or exhibitions. Each aluminum pillar measures 300 cm in height, ensuring clear visibility for both seated and standing audiences.

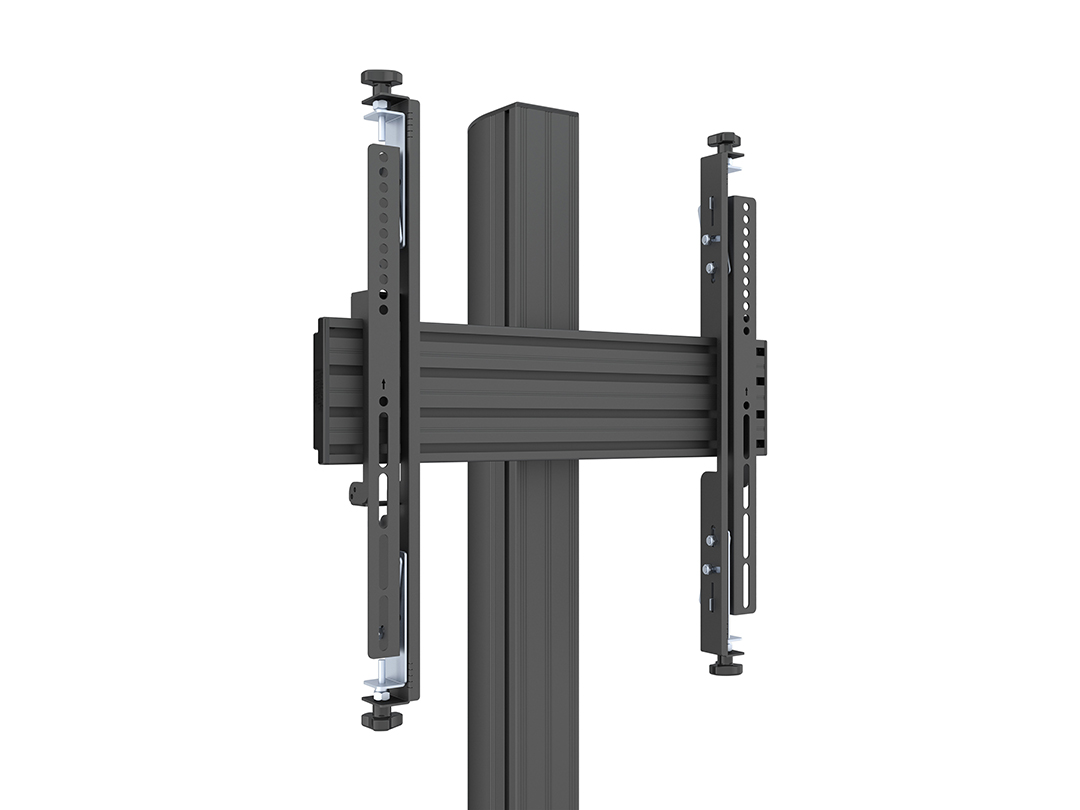

Engineered to hold displays between 32” and 65” (up to 30 kg per screen), the structure features micro-adjustable VESA 400x400 brackets with fine-tuning on the X, Y, and Z axes—even after installation. This ensures pixel-perfect alignment across all six displays. Built within the modular Multibrackets Pro Series ecosystem, this stand is easy to configure, reconfigure, and expand as needs change over time. All screens remain accessible for maintenance and service.
This video wall stand offers the flexibility of a mobile or semi-permanent installation, making it an excellent choice for any commercial or event-based application requiring both precision and adaptability.
Click to view larger images
Highlights
- Freestanding video wall stand for 6 displays in a 2x3 configuration
- Supports 32"–65" screens, up to 30 kg per display

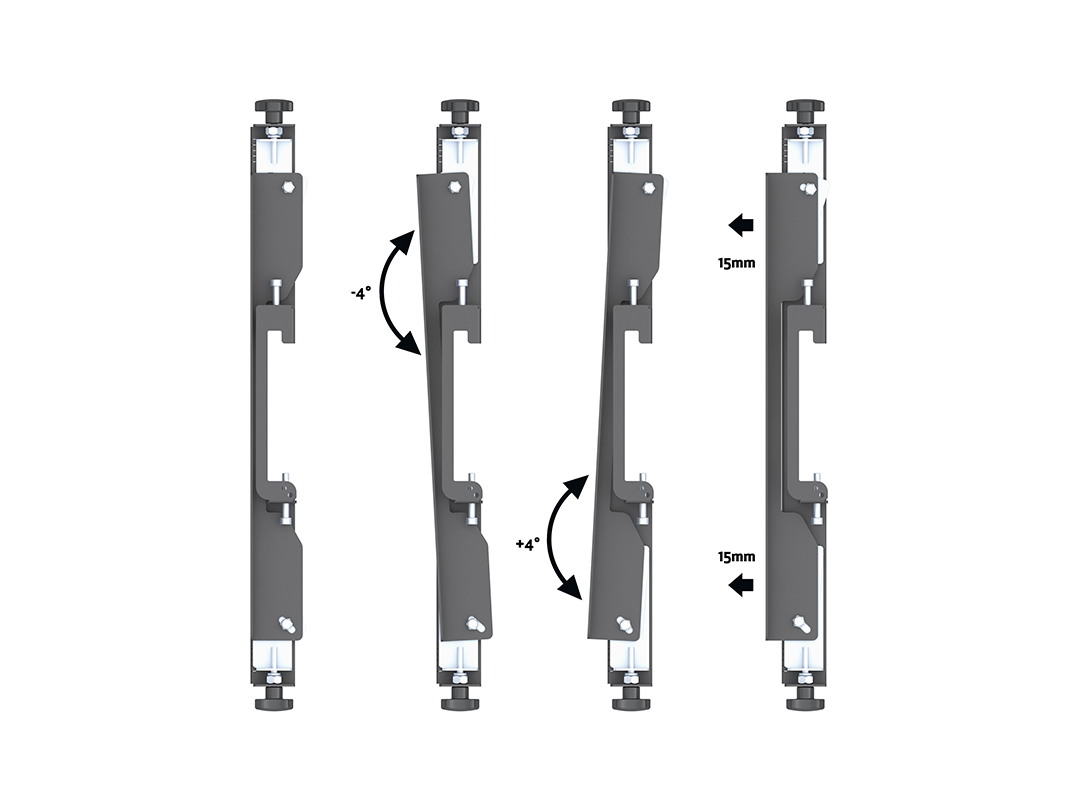

- Micro-adjustable VESA interface (X, Y, Z axis) for exact screen alignment

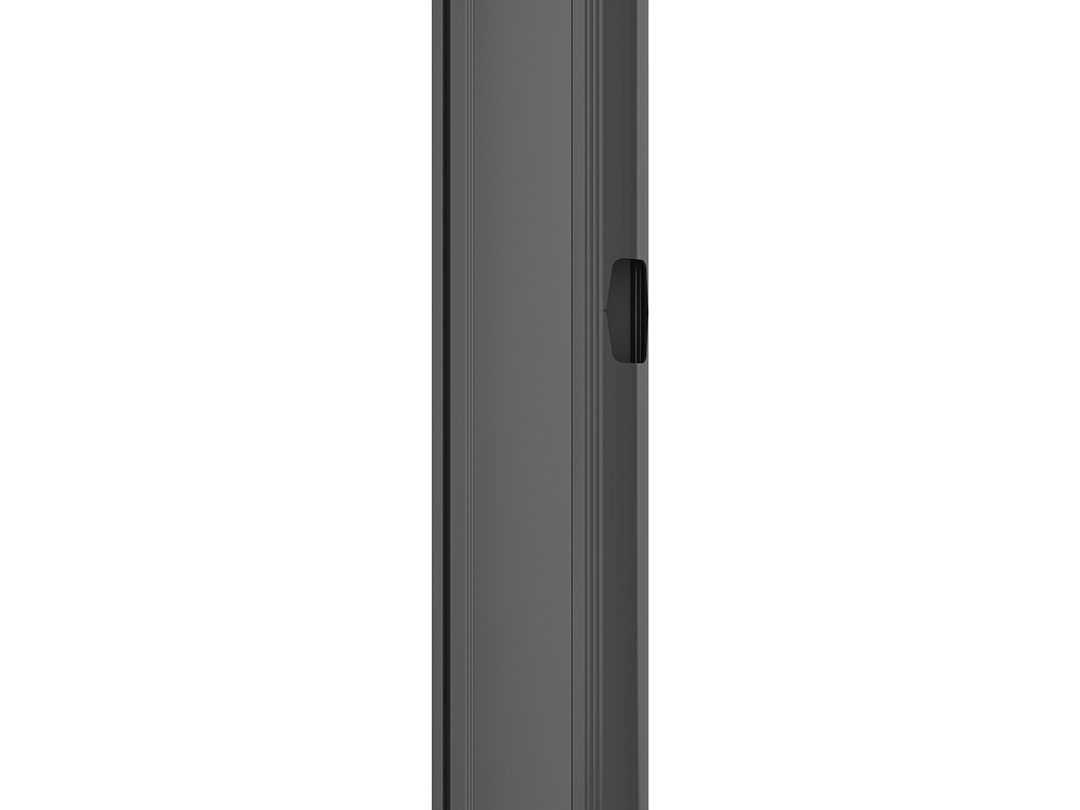

- Durable 300 cm aluminum pillar for superior sightlines

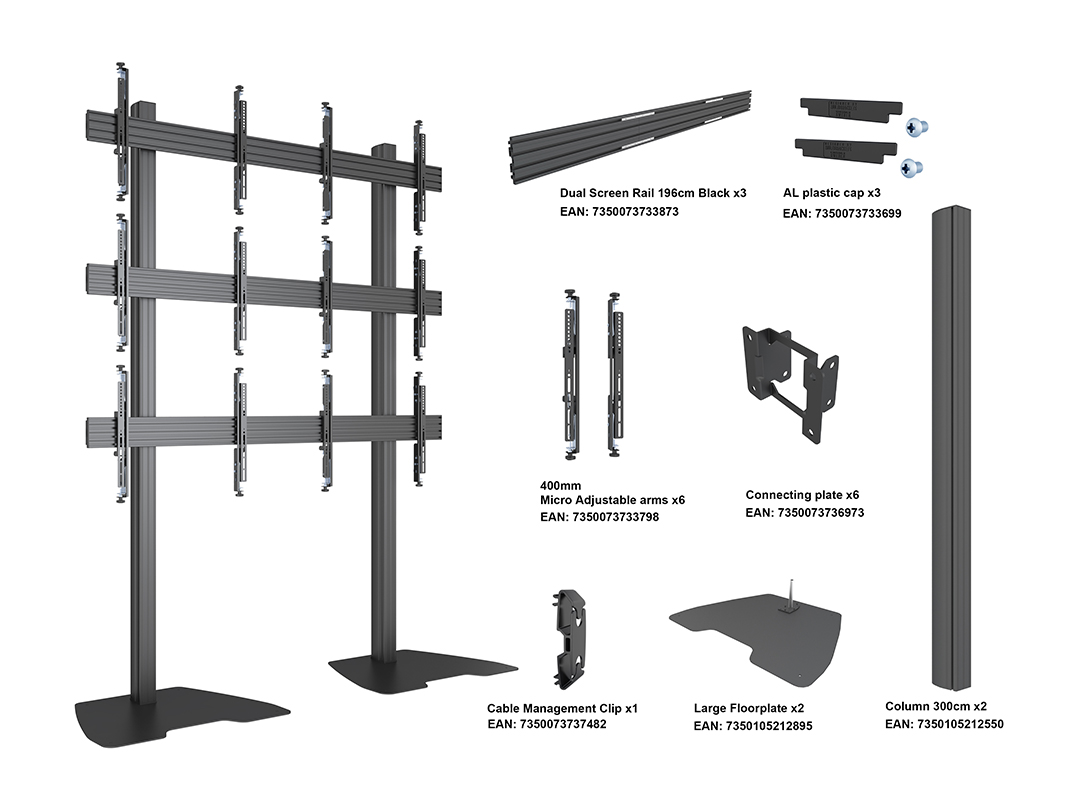

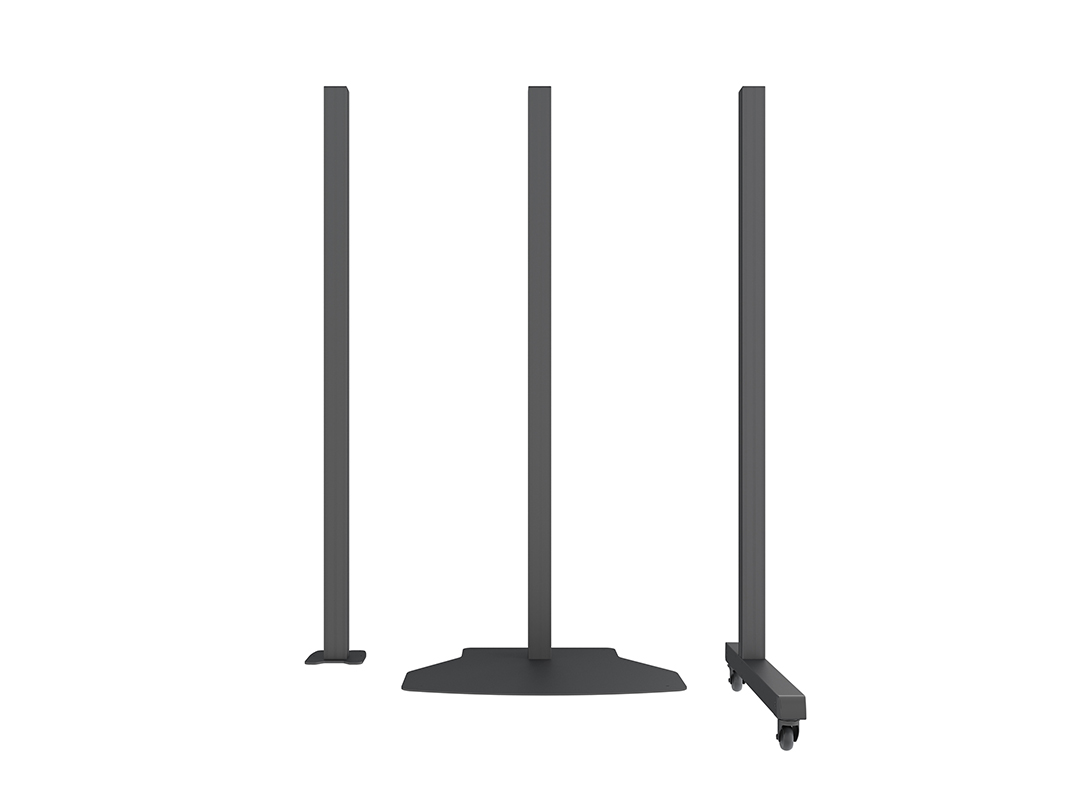

- Modular system – reconfigurable for future needs
- Integrated cable management for clean installations

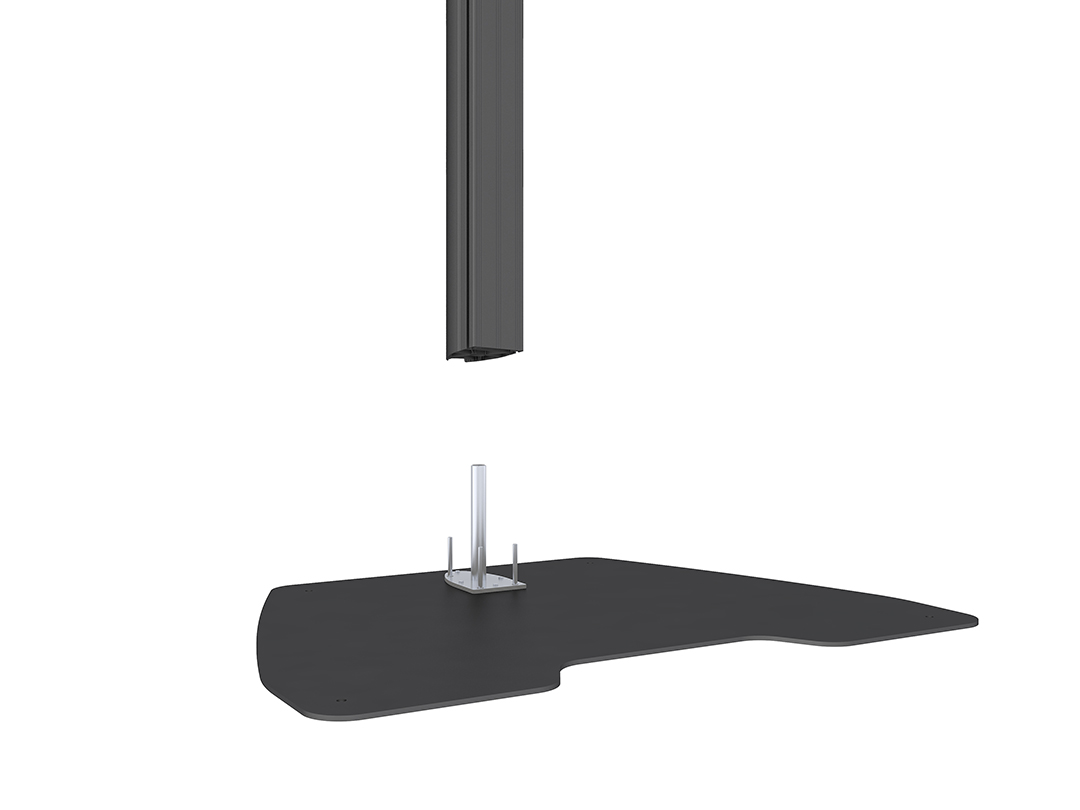

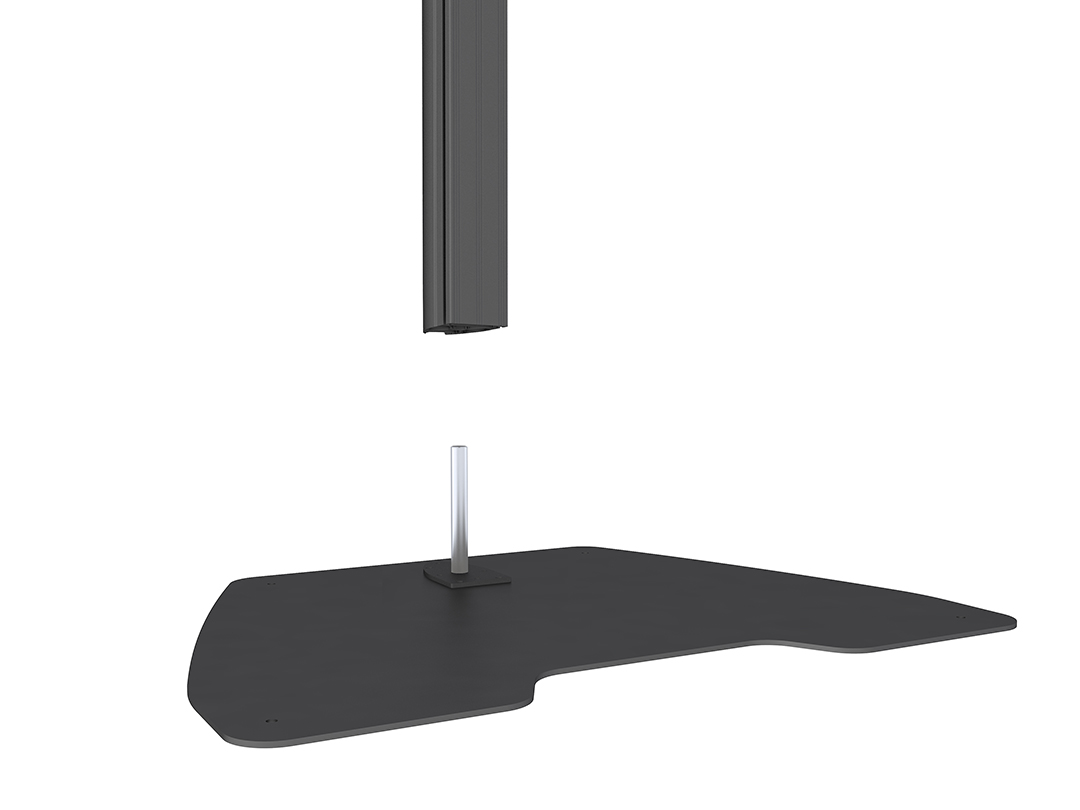

- Optional baseplate or bolt-down installation
- Ideal for digital signage, exhibitions, and corporate environments
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF2x3U 300 Micro Adjustable | |
| For screen size: | 32"-65" - for each screen * |
| Feature: | 6 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 213 502 |

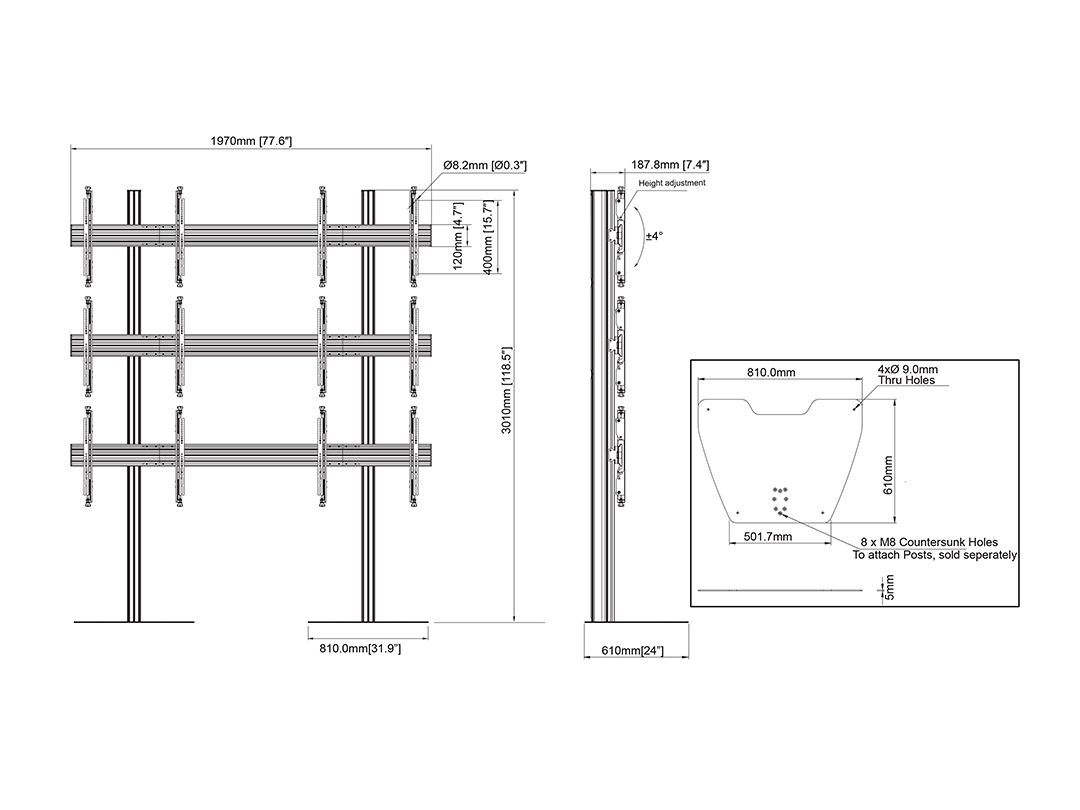

| Size in mm: (WxDxH) | 2771 x 355 x 133 mm + 830 x 630 x 45 mm + 584 x 420 x 138 mm + 1045 x 150 x 138 mm |

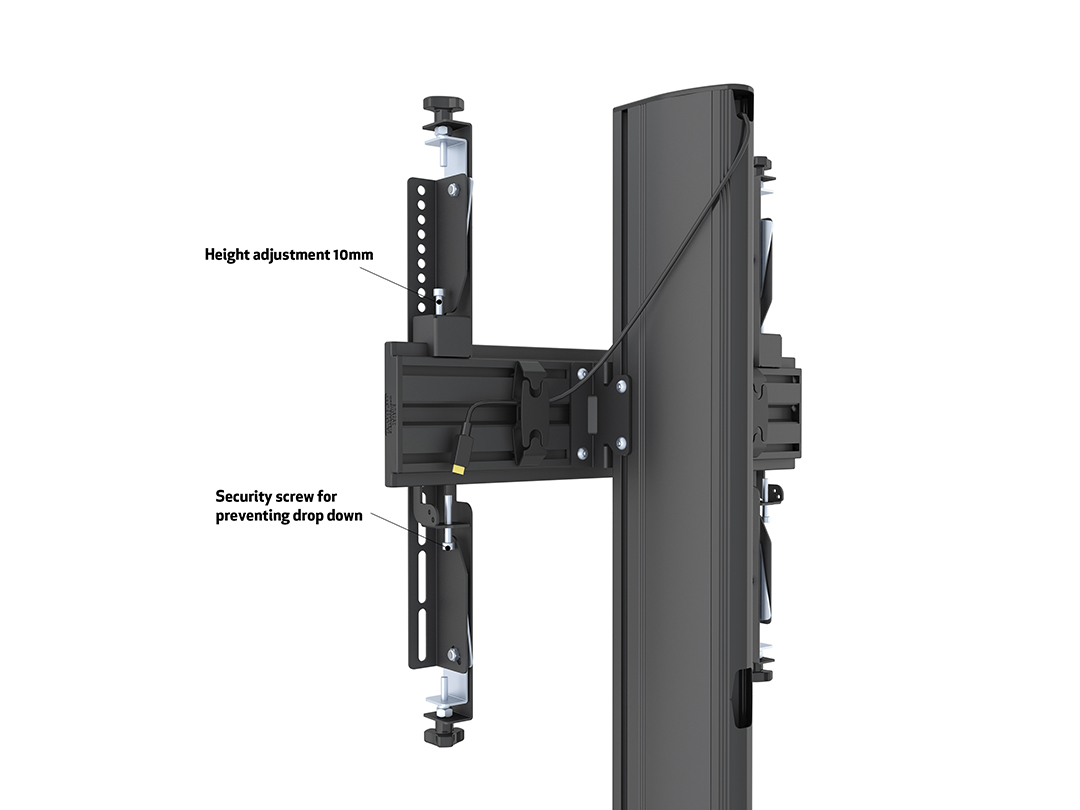

| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 21 kg + 35 kg + 21 kg + 14 kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Max load total: | 180 kg |
| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
