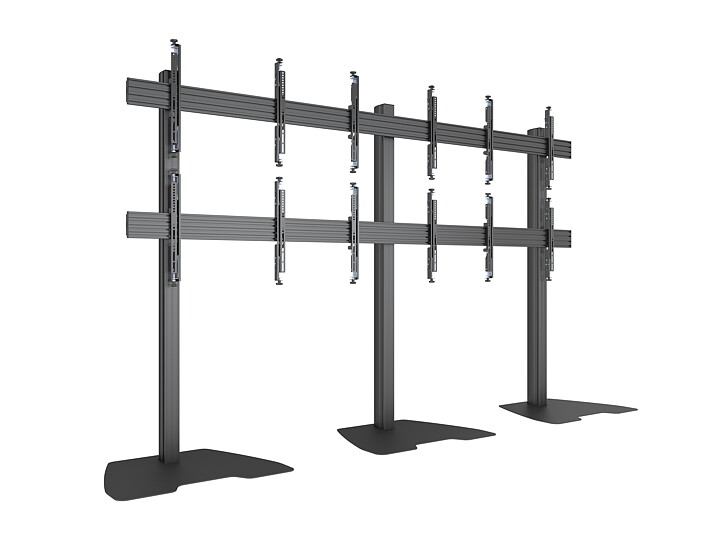

M Pro Series Video Wall Stand MBF3x2U 180 Micro Adjustable
Options
Variants that match your options:
In stock: 38
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105213526
Product Overview

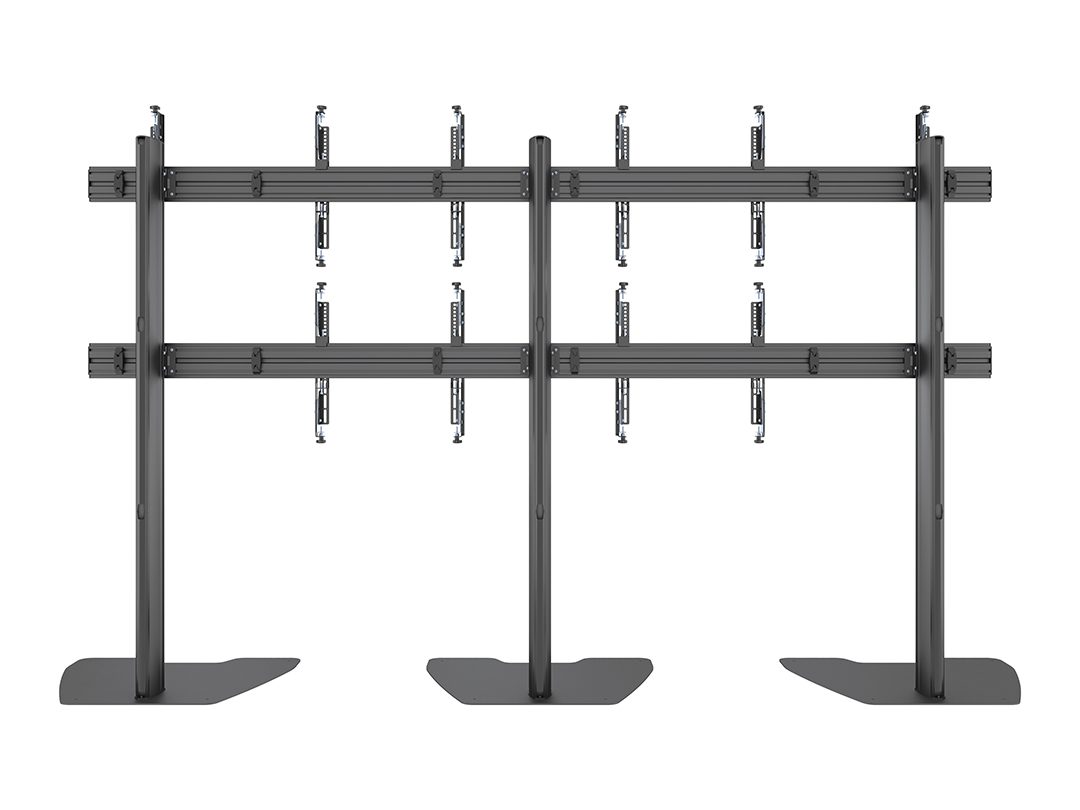

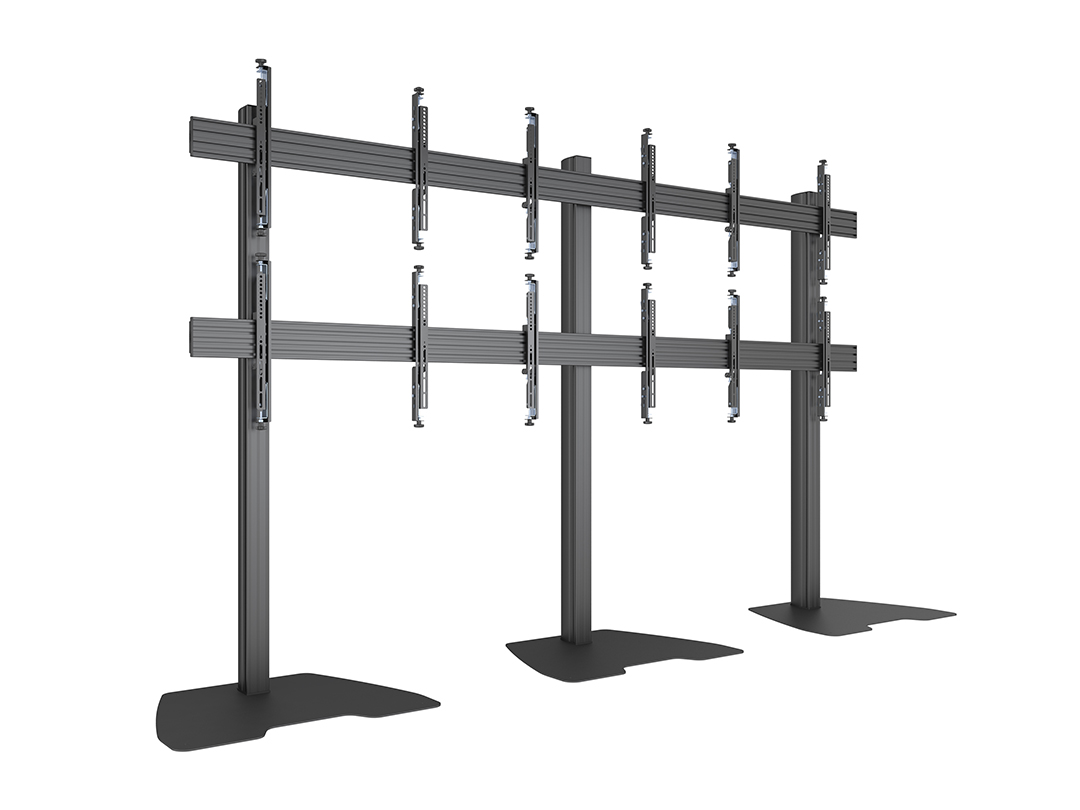

The M Pro Series Video Wall Stand MBF3x2U 180 Micro Adjustable is a professional freestanding floor-mounted solution designed for digital signage, presentations, and commercial AV environments. Supporting six LCD displays in a 3x2 array (three screens wide and two high), this modular system is ideal for retail, exhibitions, and control rooms.

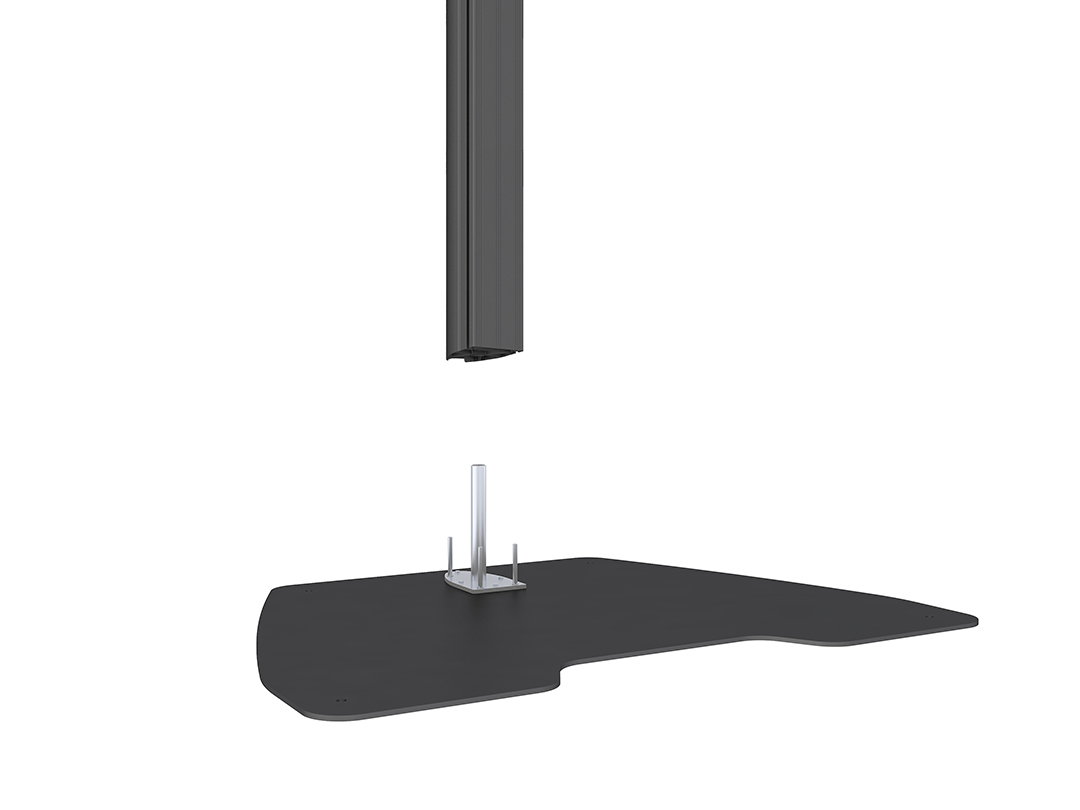

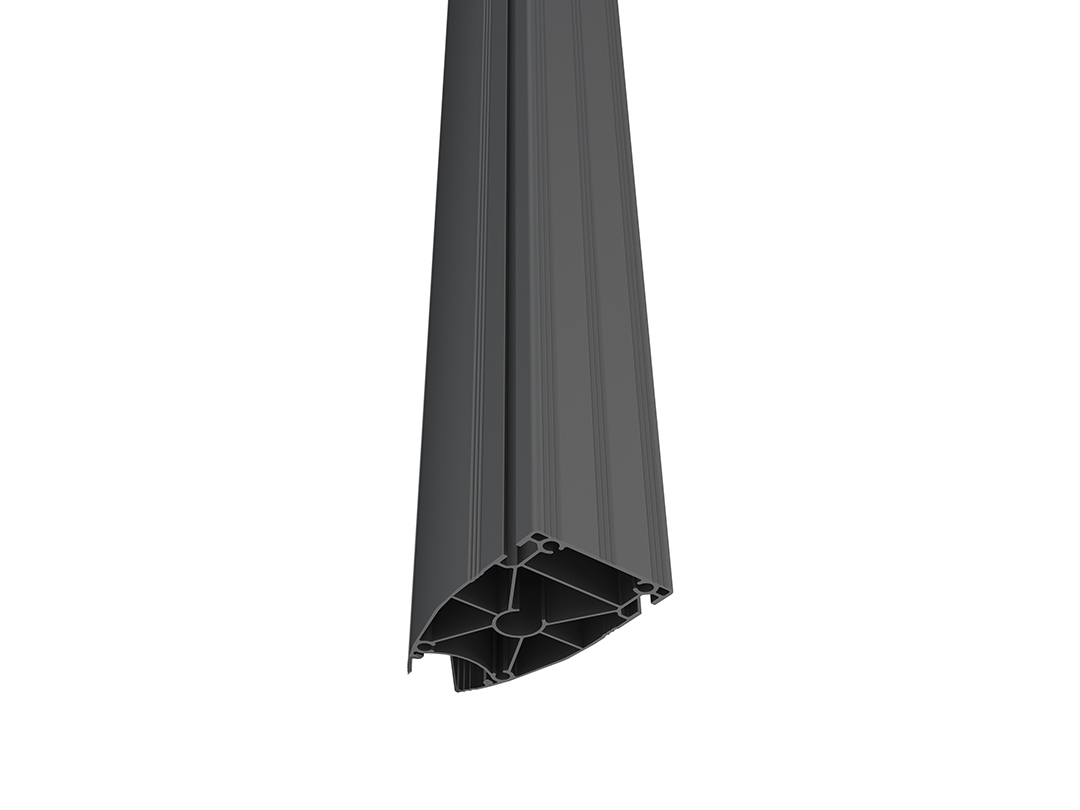

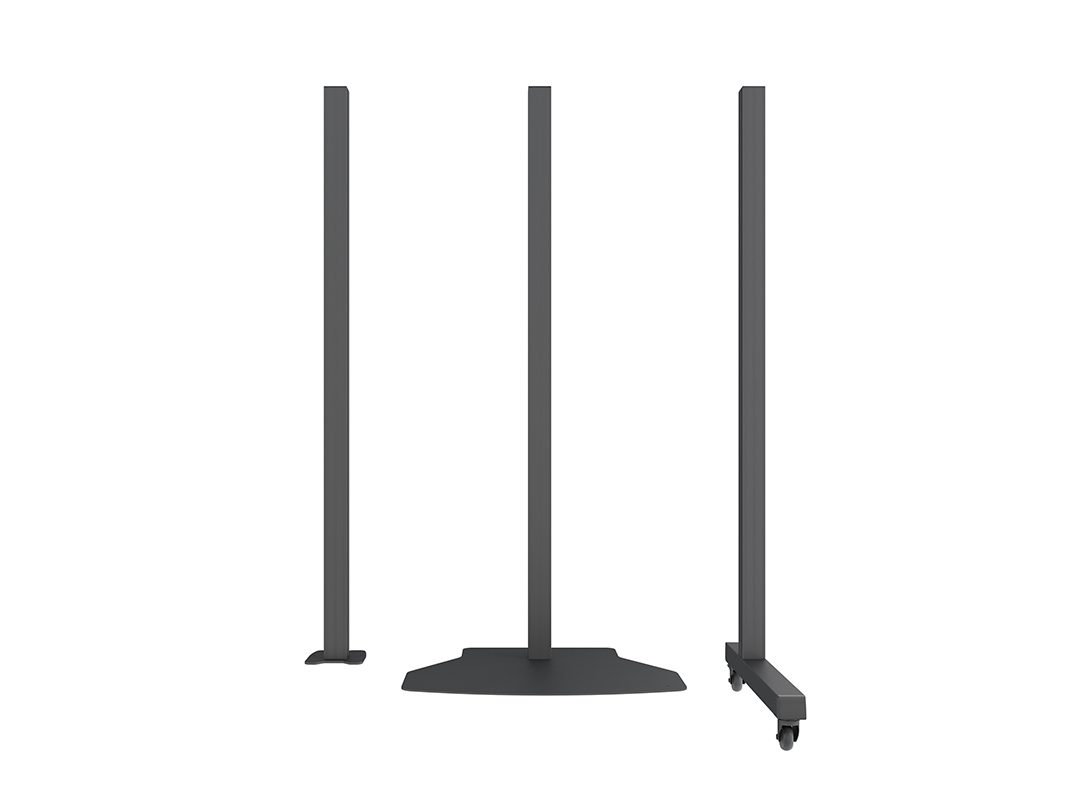

Constructed with a 180 cm durable aluminum column, the stand allows flexible height adjustment and optimal viewing for both seated and standing audiences. Its modular architecture ensures future scalability and easy reconfiguration. Micro-adjustable VESA 400x400 brackets enable precise alignment on the X, Y, and Z axes—even after installation. Integrated cable routing ensures a clean and professional finish for high-traffic environments.
Click to view larger images
Highlights

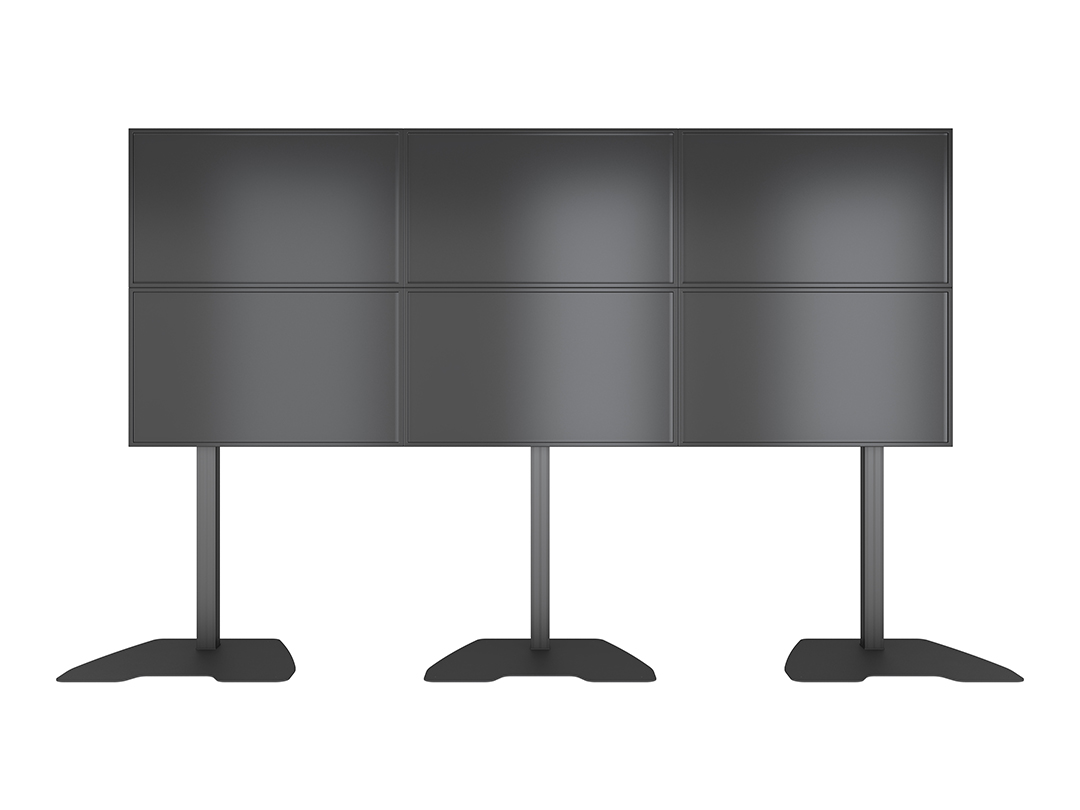

- Supports 3x2 video wall configuration (6 displays)
- Compatible with 32–65" screens, up to 30 kg per screen

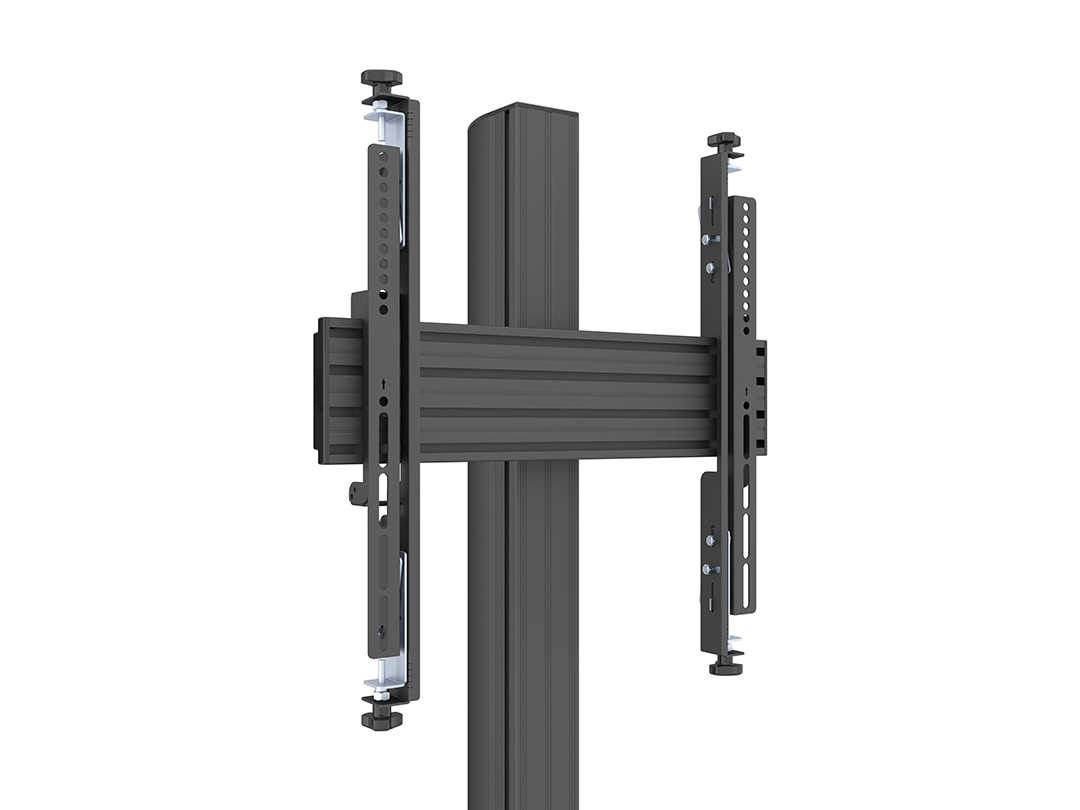

- Micro-adjustable VESA 400x400 mounts for fine-tune positioning
- Modular and compatible with M Pro Series accessories
- Integrated cable management inside column
- Perfect for trade shows, digital signage, and control rooms
- Quick installation and service access
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF3x2U 180 Micro Adjustable | |
| For screen size: | 32"-65" - for each screen * |
| Feature: | 6 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 213 526 |

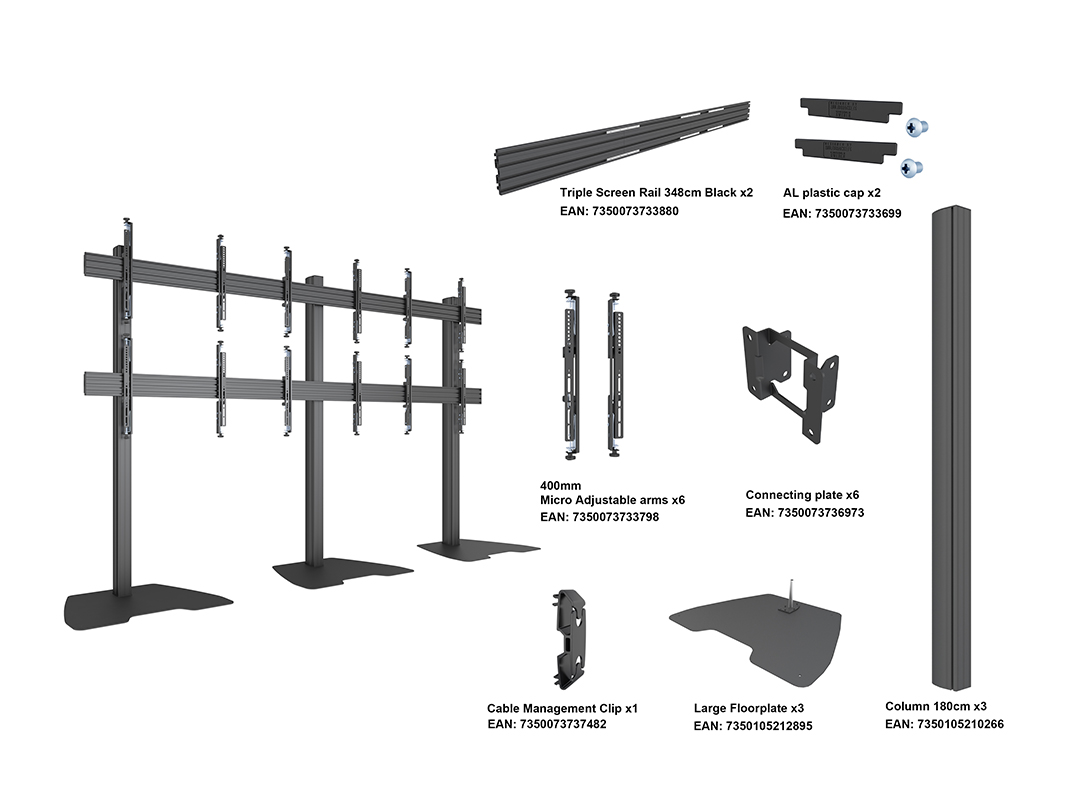

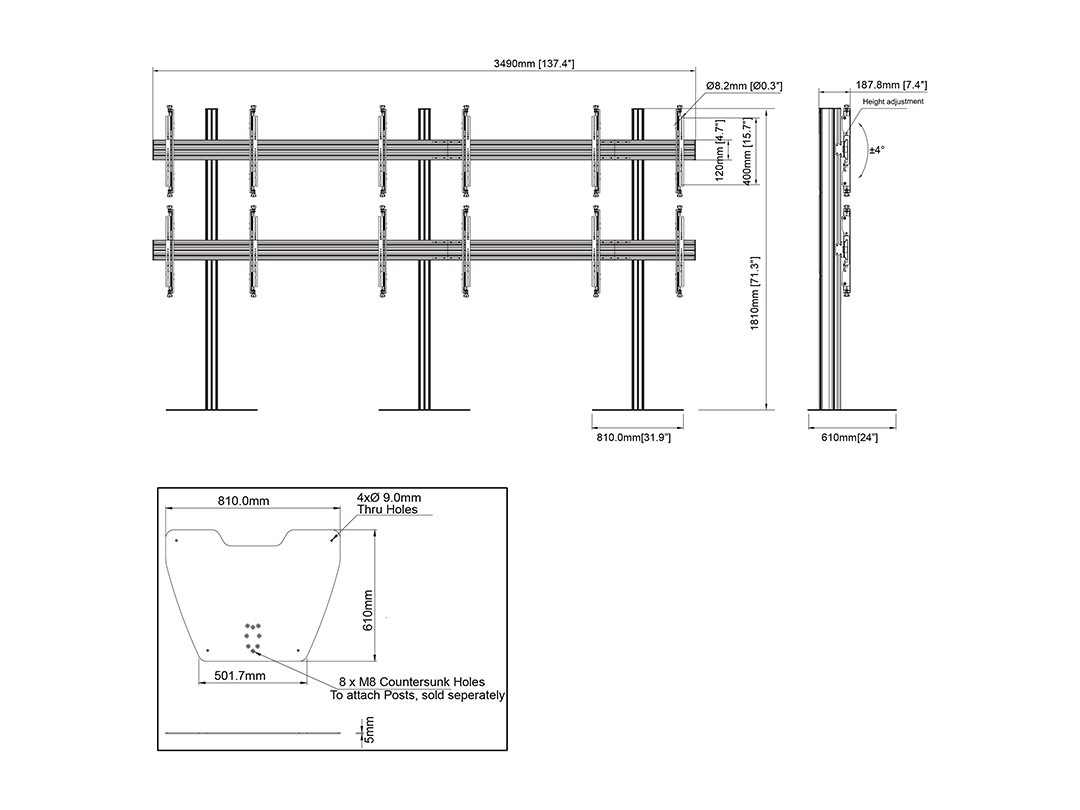

| Size in mm: (WxDxH) | 830 x 630 x 55 mm + 584 x 420 x 138 mm + 1865 x 380 x 185 + 1045 x 170 x 138 mm |
| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 50 kg + 21 kg + 20 kg + 16 kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Max load total: | 120 kg |

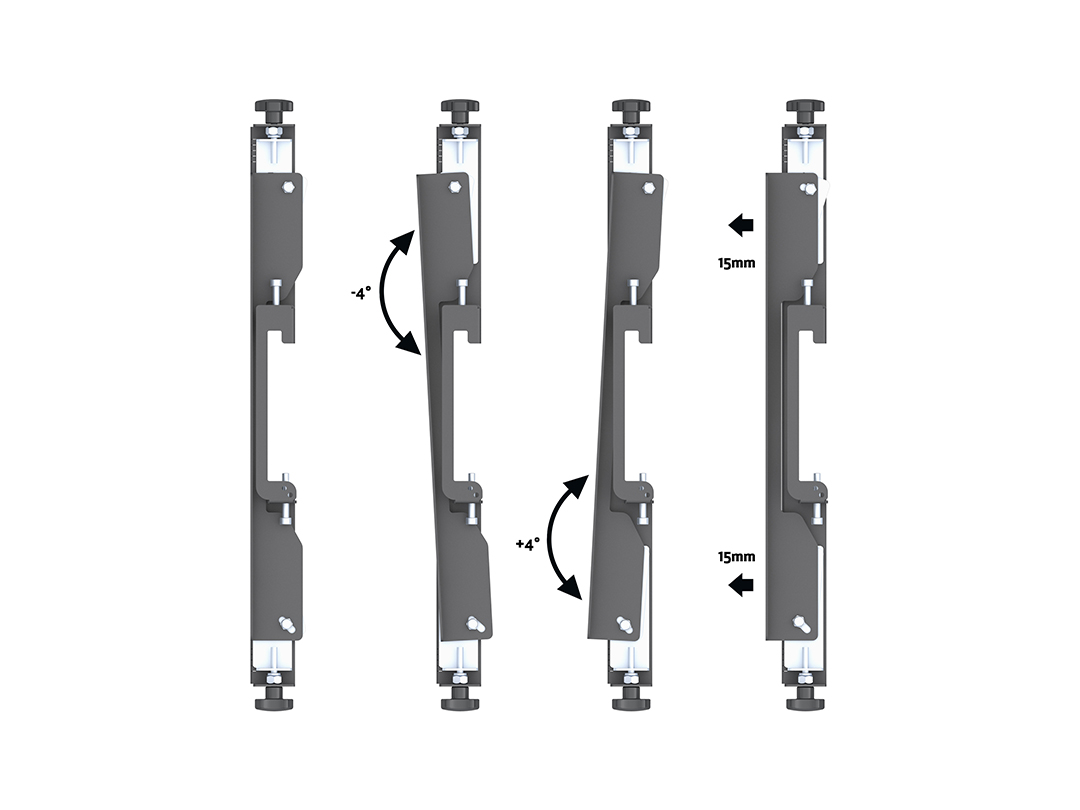

| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
