M Pro Series Video Wall Stand MBF3x3U 300 Micro Adjustable
Options
Variants that match your options:
In stock: 30
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105213533
Product Overview

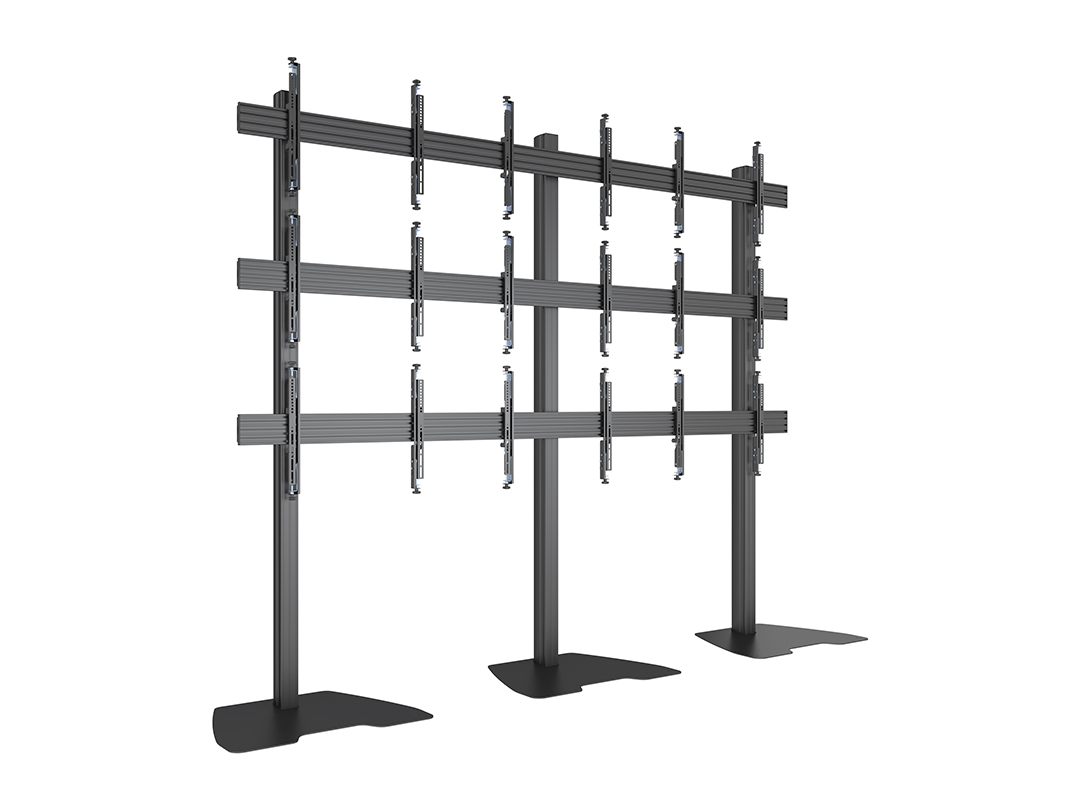

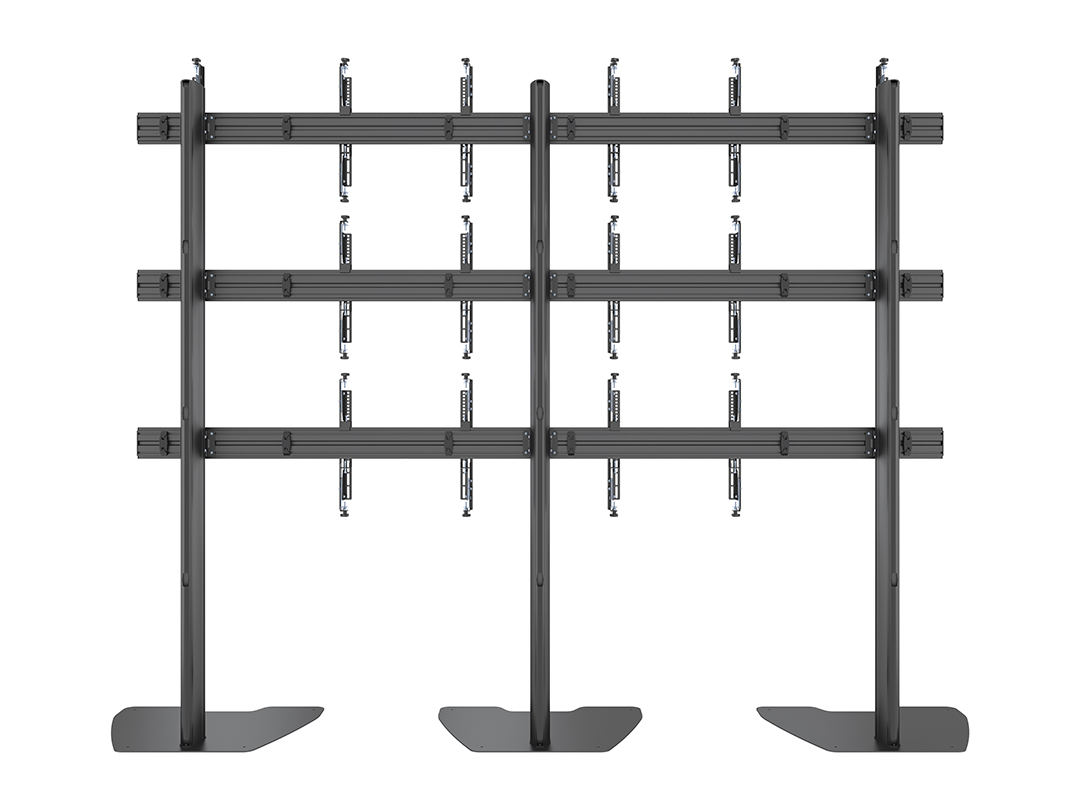

The M Pro Series Video Wall Stand MBF3x3U 300 Micro Adjustable is a professional-grade freestanding floor-mounted video wall system designed for commercial signage, presentations, and live environments. Supporting a 3x3 display configuration—nine 32"–65" screens mounted in a matrix—this modular solution is ideal for exhibitions, retail stores, corporate lobbies, and control rooms.

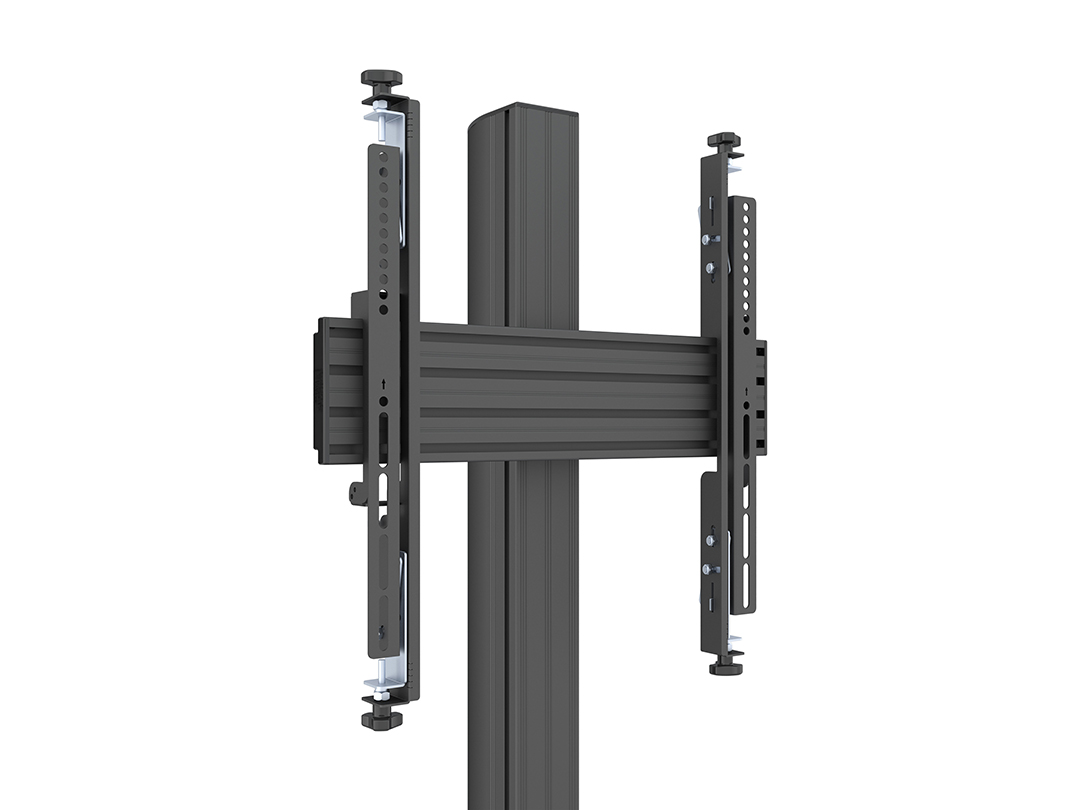

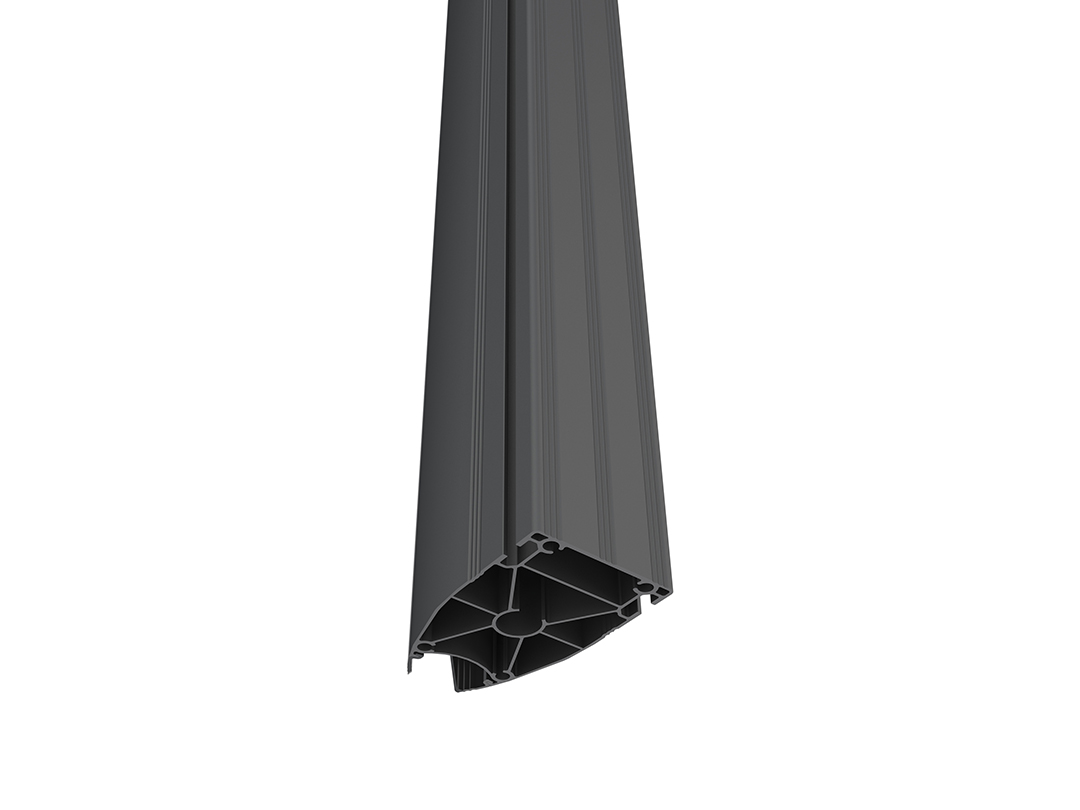

With a robust 300 cm aluminum column, this stand offers flexible height and precise alignment, providing optimal visibility for both seated and standing viewers. Each VESA 400x400 mount includes fine-tune micro-adjustments across the X, Y, and Z axes, ensuring seamless screen alignment—even after installation. Designed for efficiency, the system includes internal cable routing and is built for rapid deployment in temporary or permanent installations.
Click to view larger images
Highlights
- Supports 3x3 video wall setup (9 displays)
- Compatible with 32–65" screens, up to 30 kg per screen
- Micro-adjustable VESA 400x400 interface for perfect alignment
- Fully modular and compatible with M Pro Series accessories
- Integrated cable management for clean installations
- Quick, tool-efficient installation and easy service access
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF3x3U 300 Micro Adjustable | |
| For screen size: | 32"-65" - for each screen * |
| Feature: | 9 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 213 533 |

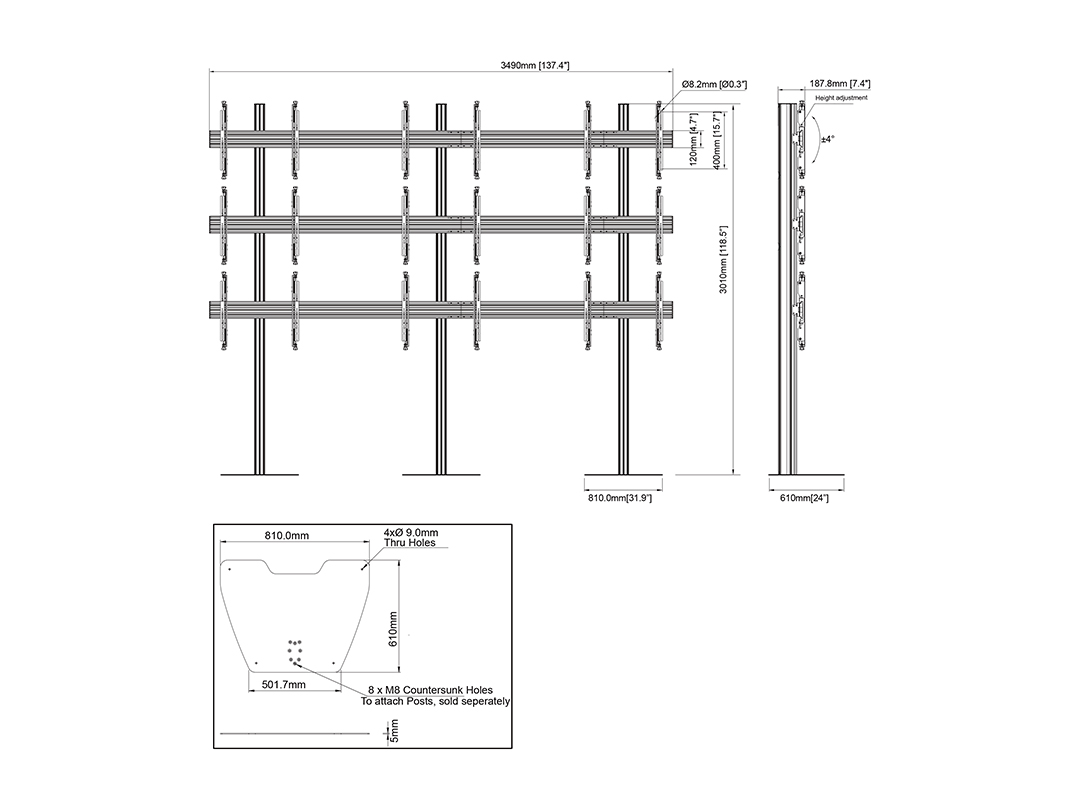

| Size in mm: (WxDxH) | 830 x 630 x 55 mm + 595 x 400 x 195 mm + 2771 x 545 x 130 mm + 1045 x 321 x 155 mm |
| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 50 kg + 24 kg + 30.5 kg + 35.4 kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Max load total: | 270 kg |
| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
