M Pro Series Video Wall Stand MBF6x3U 300 Micro Adjustable
Options
Variants that match your options:
In stock: 15
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105216824
Product Overview

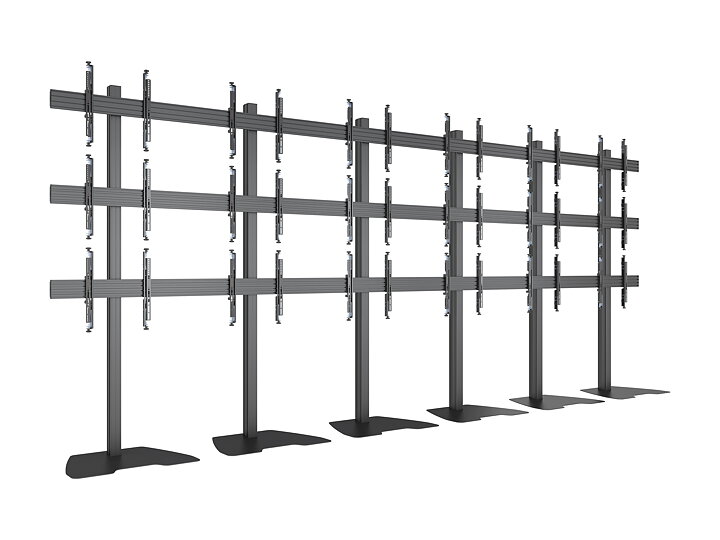

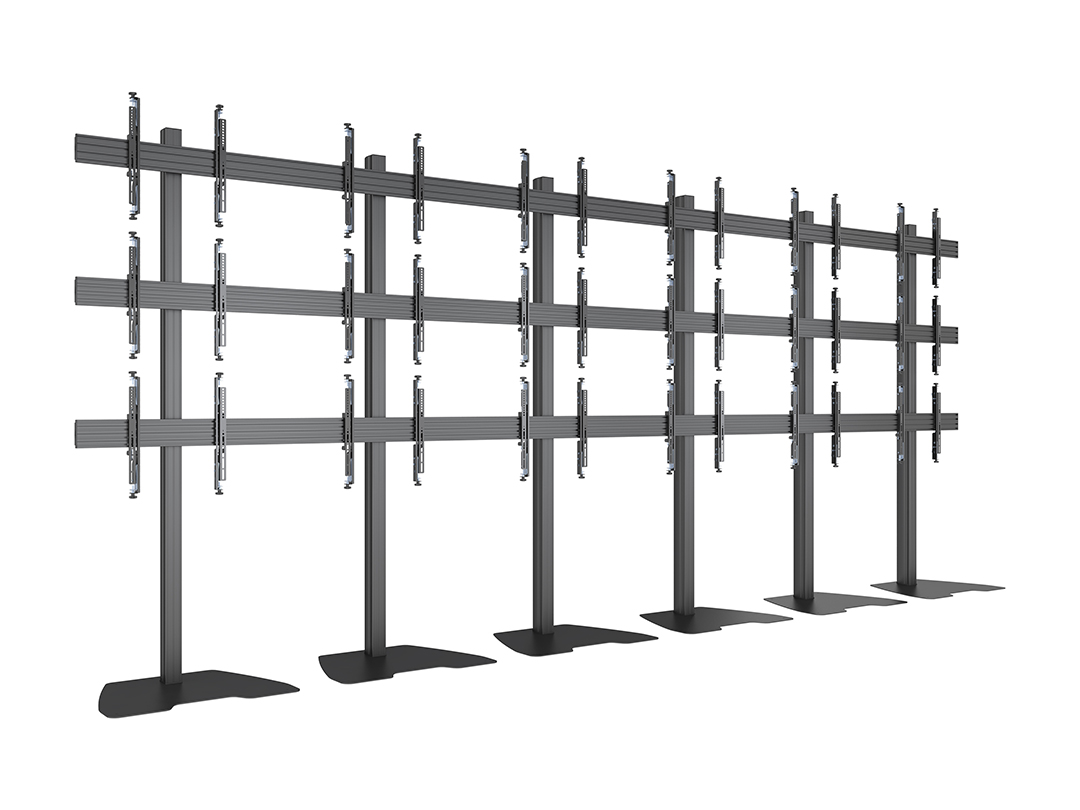

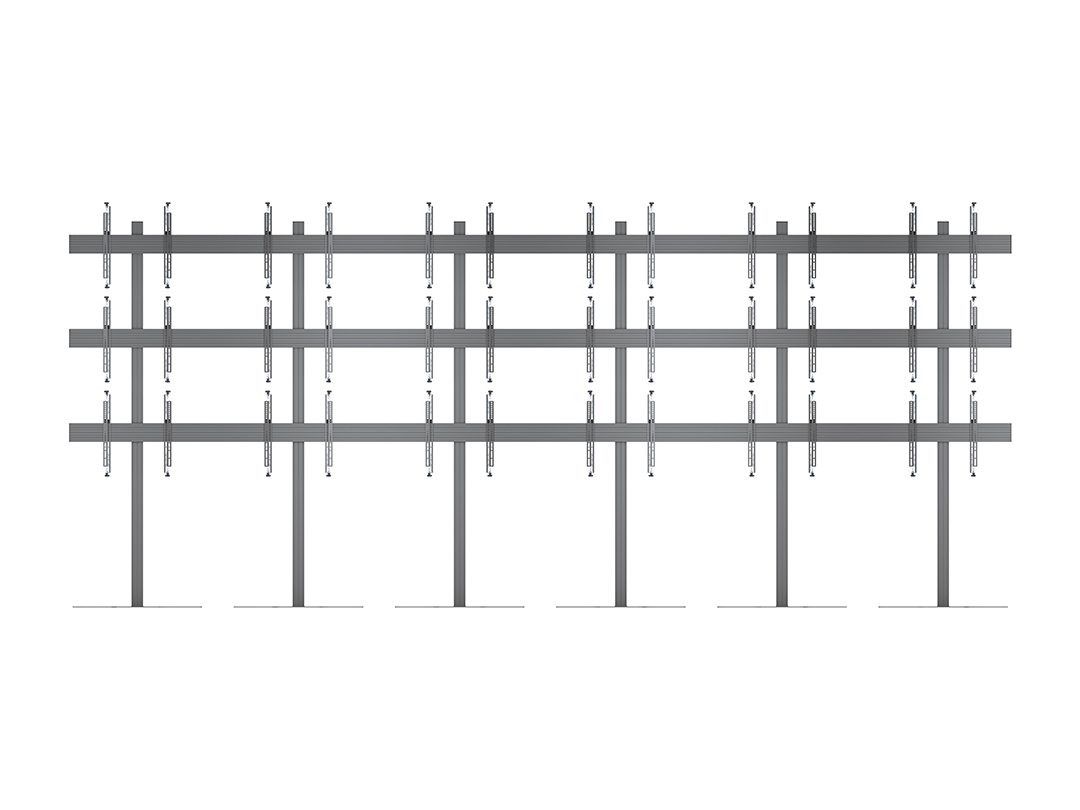

The M Pro Series Video Wall Stand MBF6x3U 300 Micro Adjustable is a professional-grade freestanding video wall stand for large-scale commercial signage. Designed to support 18 displays in a 6x3 configuration, it accommodates 43" to 65" screens with a maximum weight of 30 kg per display. Ideal for public areas such as trade shows, control rooms, event spaces, and retail environments.

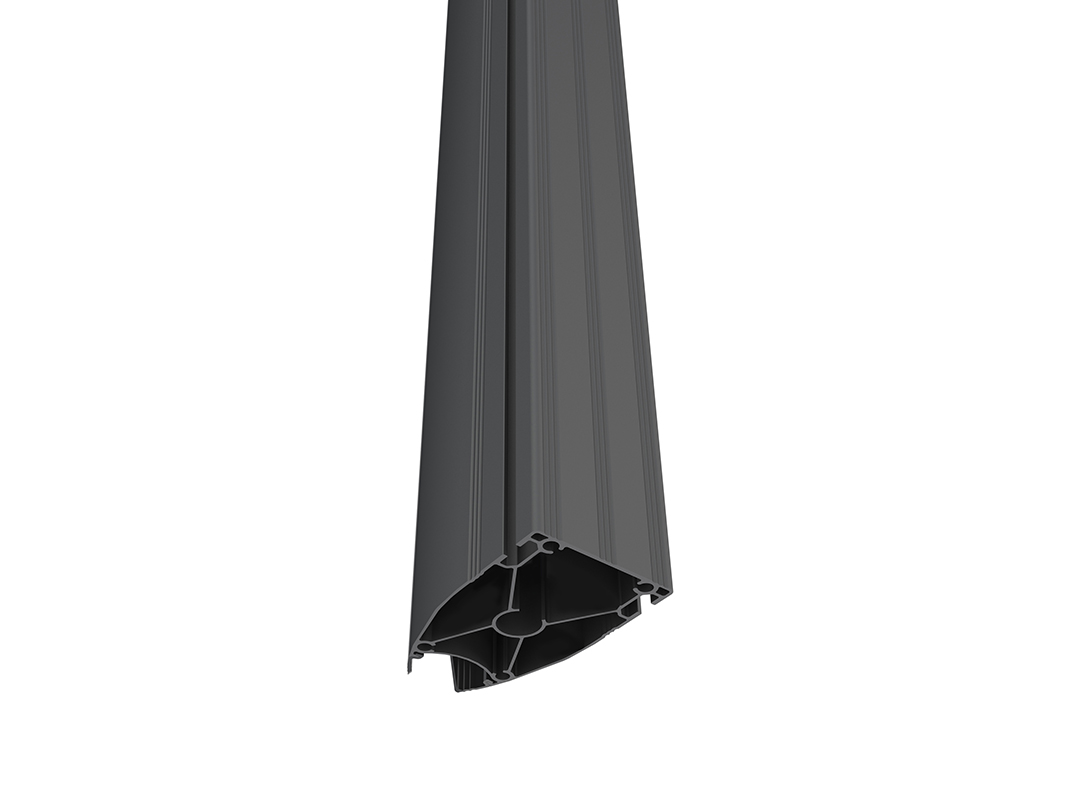

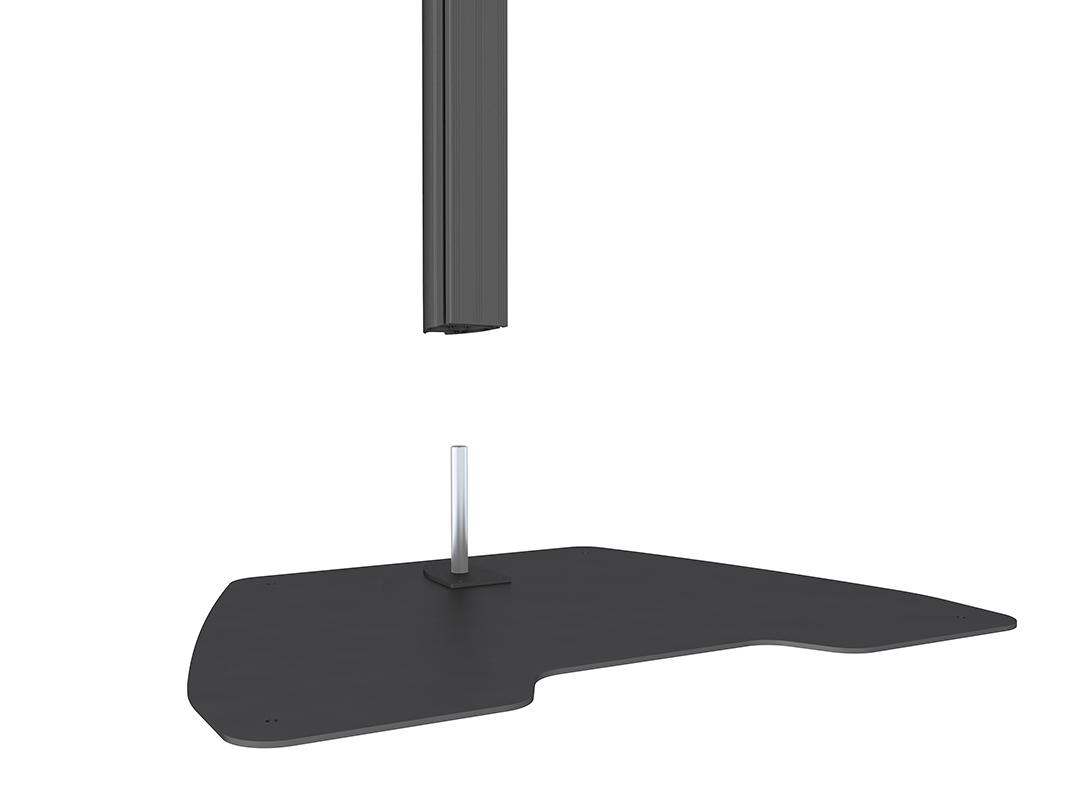

Built with a robust 300 cm aluminum pillar, the stand enables optimal viewing angles for both seated and standing audiences. Its modular design allows full compatibility with the Multibrackets Pro Series ecosystem, making future upgrades or reconfigurations seamless. Integrated cable management and fine-tune micro-adjustable VESA brackets ensure perfect screen alignment and a clean installation. Maintenance is effortless thanks to full screen accessibility even after setup.
Click to view larger images
Highlights

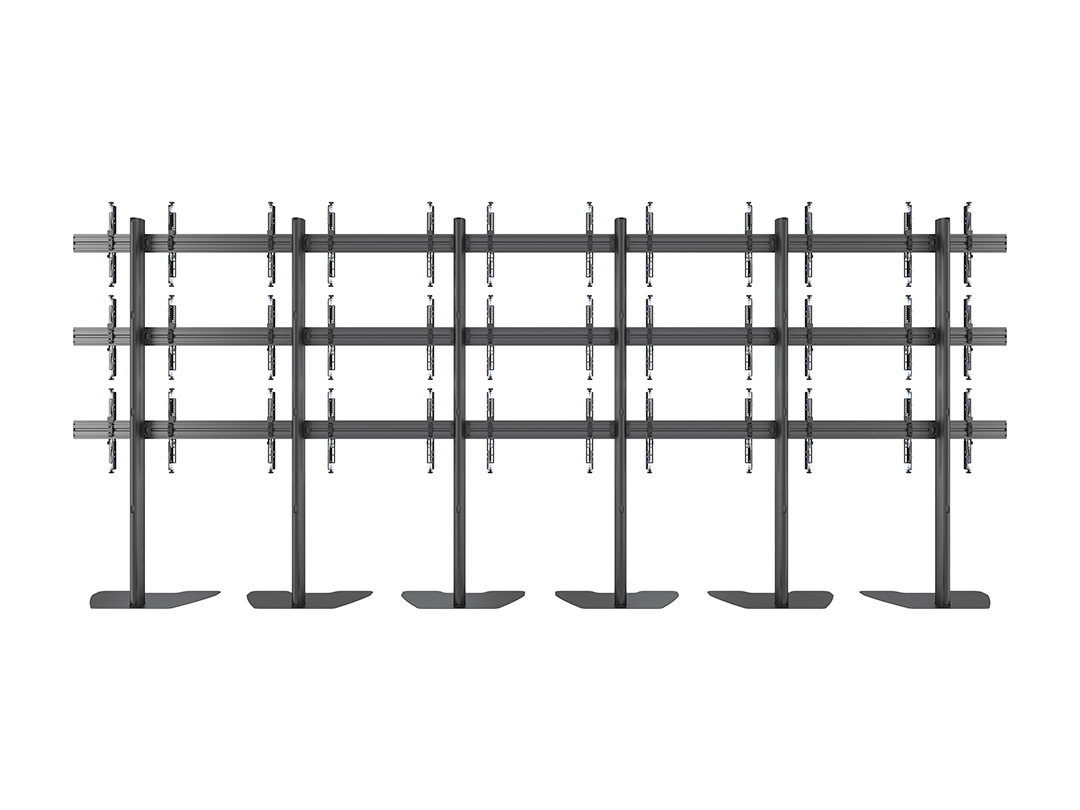

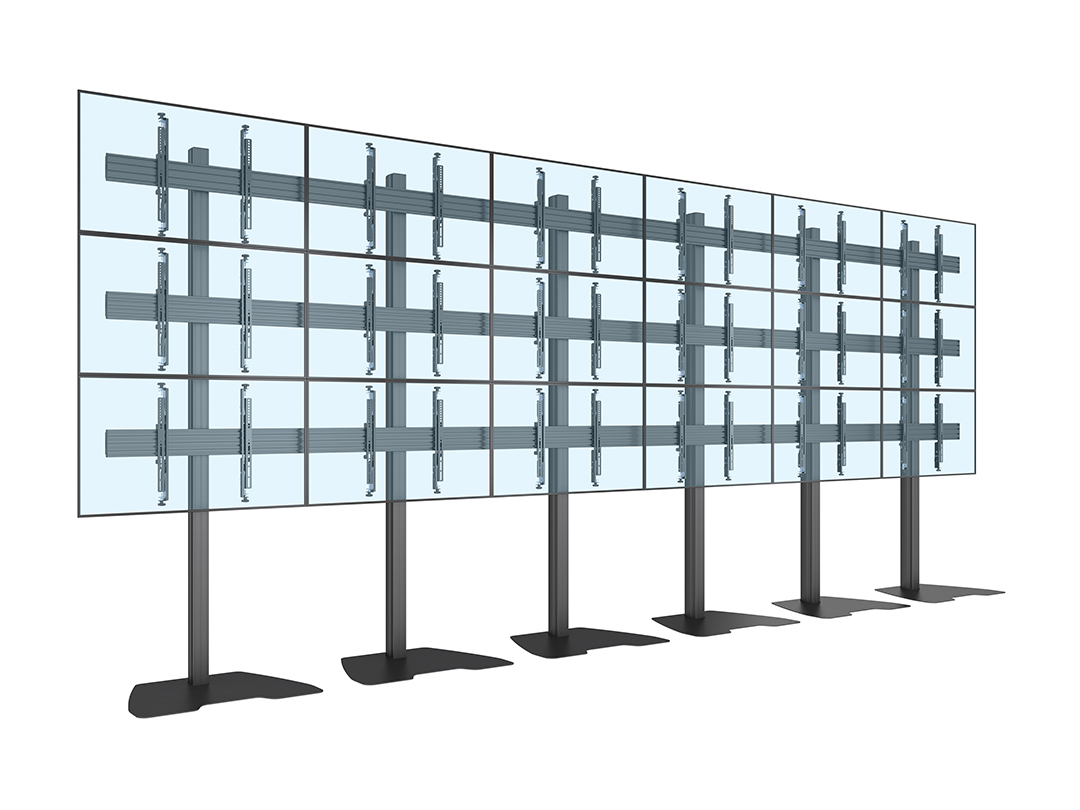

- Supports 6x3 video wall layout (18 displays total)
- Compatible with 43"–65" displays, up to 30 kg per screen

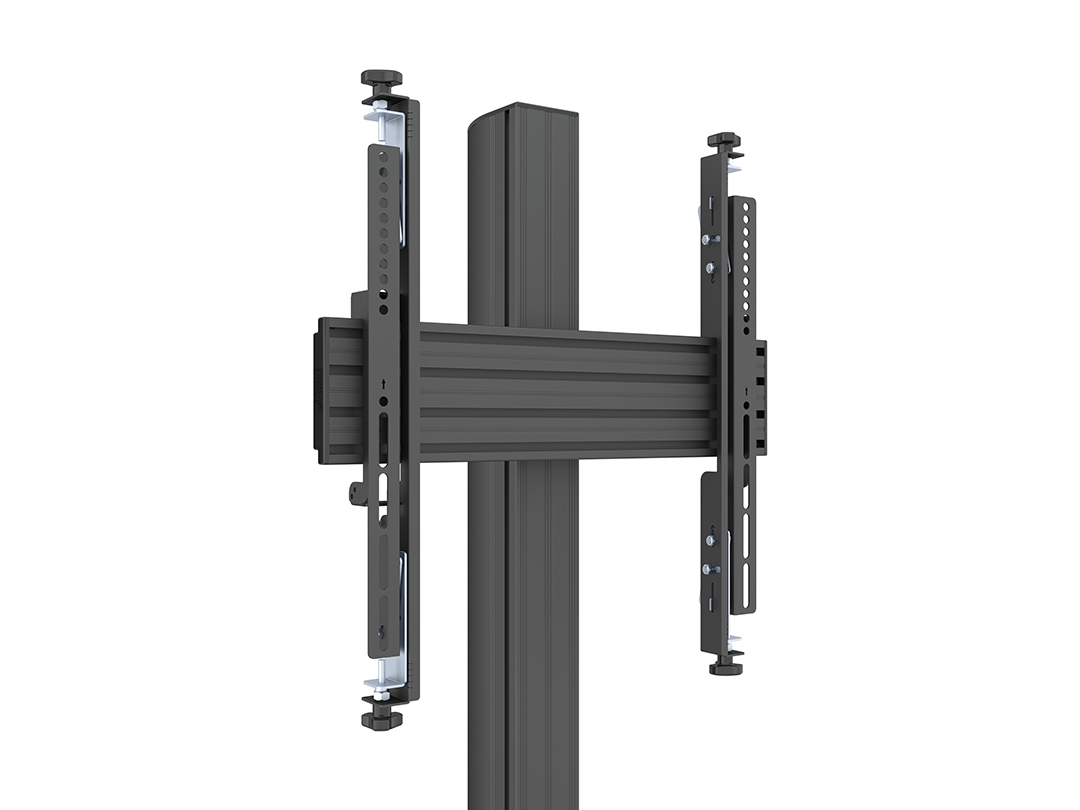

- Micro-adjustable VESA 400x400 brackets (X, Y, Z axes)
- Modular and future-proof design with Pro Series components

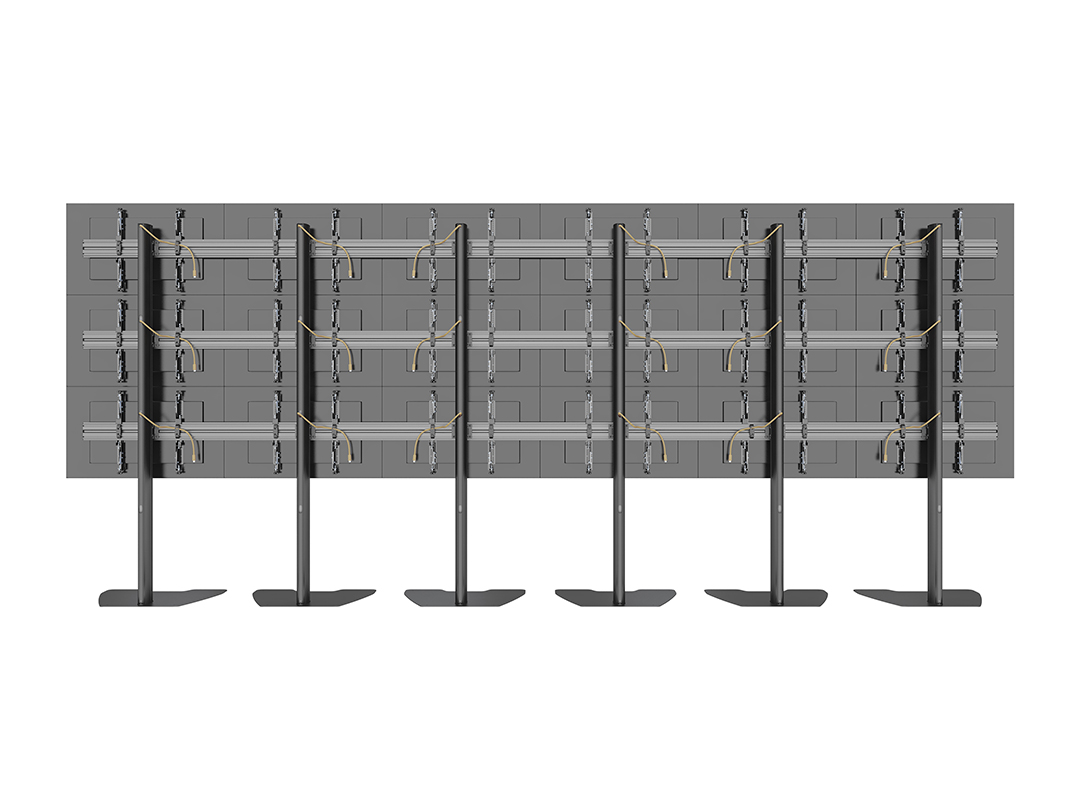

- Built-in cable management for professional aesthetics
- Quick installation with service-friendly access
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Pro Series Video Wall Stand MBF6x3U 300 Micro Adjustable | |
| For screen size: | 43"-65" - for each screen * |
| Feature: | 18 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 216 824 |

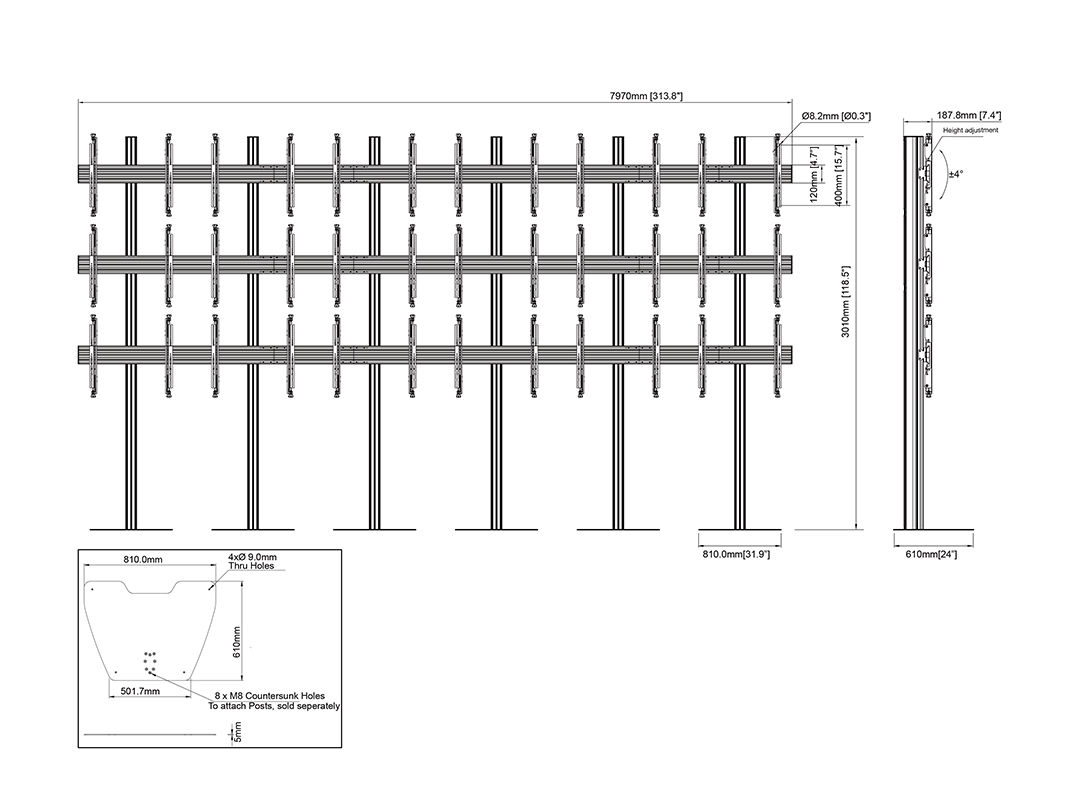

| Size in mm: (WxDxH) | 830 x 630 x 55 mm + 595 x 400 x 195 mm + 2771 x 545 x 130 mm + 1045 x 321 x 155 mm |

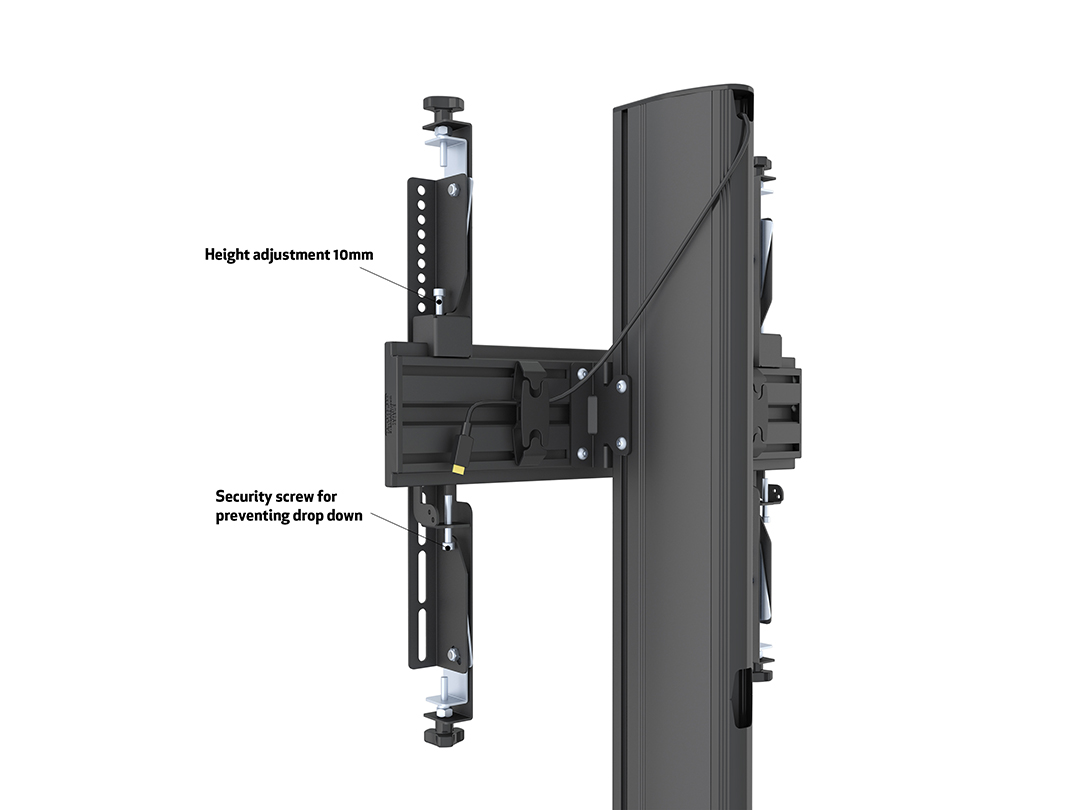

| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 50 kg + 24 kg + 30.5 kg + 35.4 kg |
| Colour: | Black |
| Max load per screen: | 30 kg |

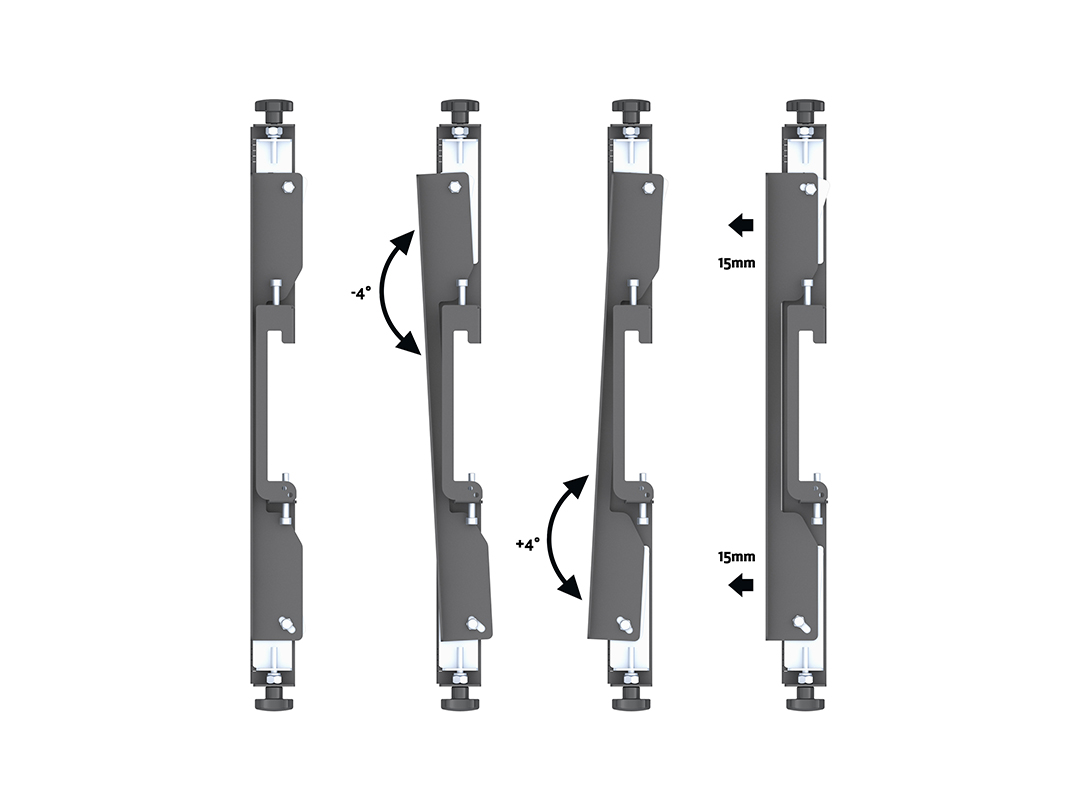

| Tilt: | ±4° |
| Swivel: | ±0° |
| Rotate: | ±0° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Retail Package Specification | |

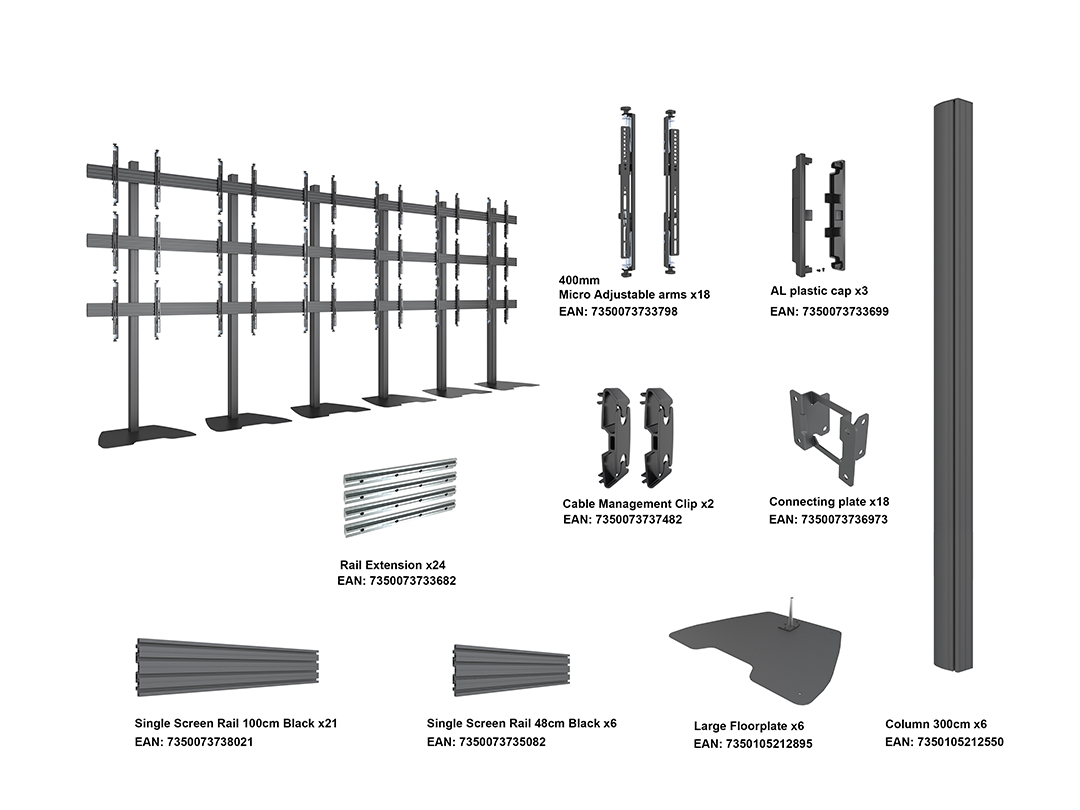

| Package Parcels: | 5 pcs |
| Package Measurements: | 83 x 62 x 5, 59 x 54 x 14, 104 x 27 x 14, 56 x 42 x 12, 309 x 54 x 13 cm |
| Package Weight: | 155.00 kg |
