Description
Article no.: 7350105212338
Product Overview

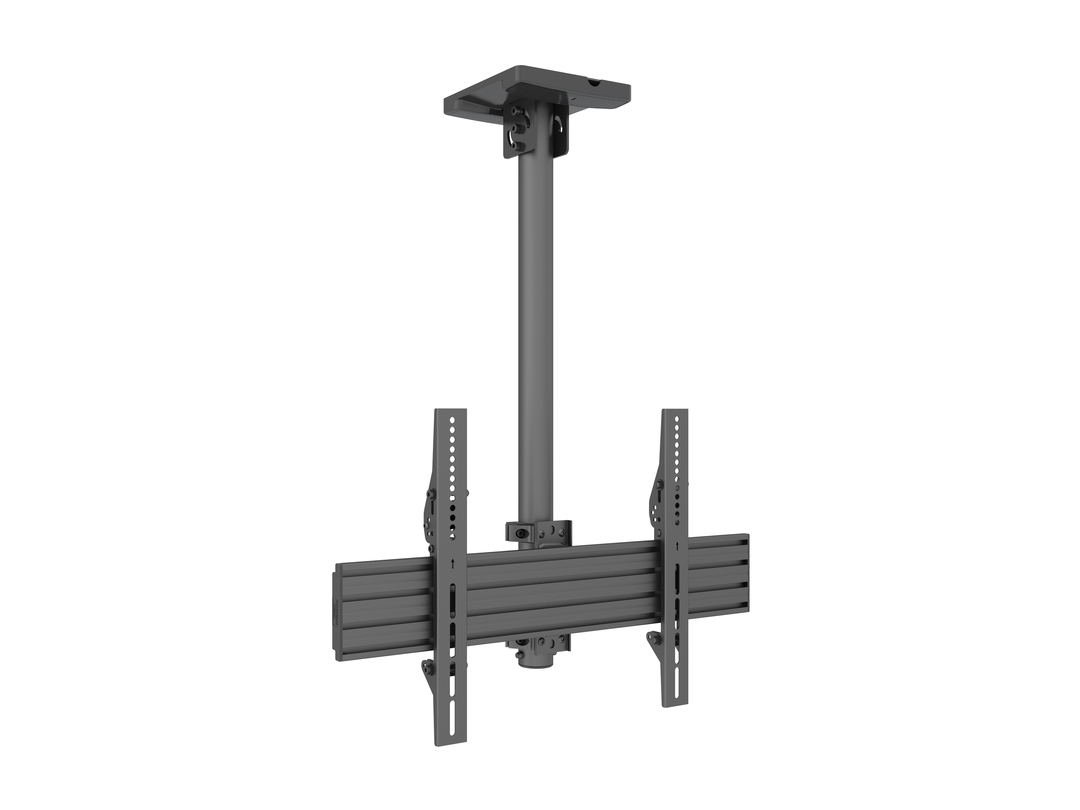

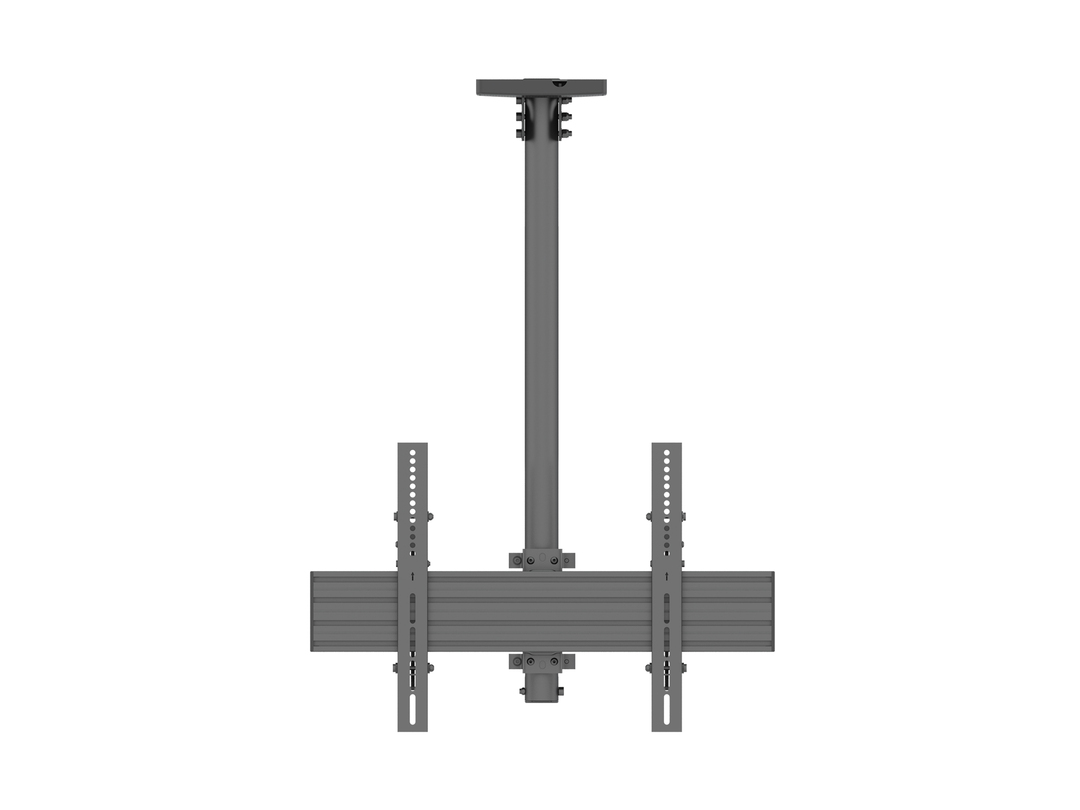

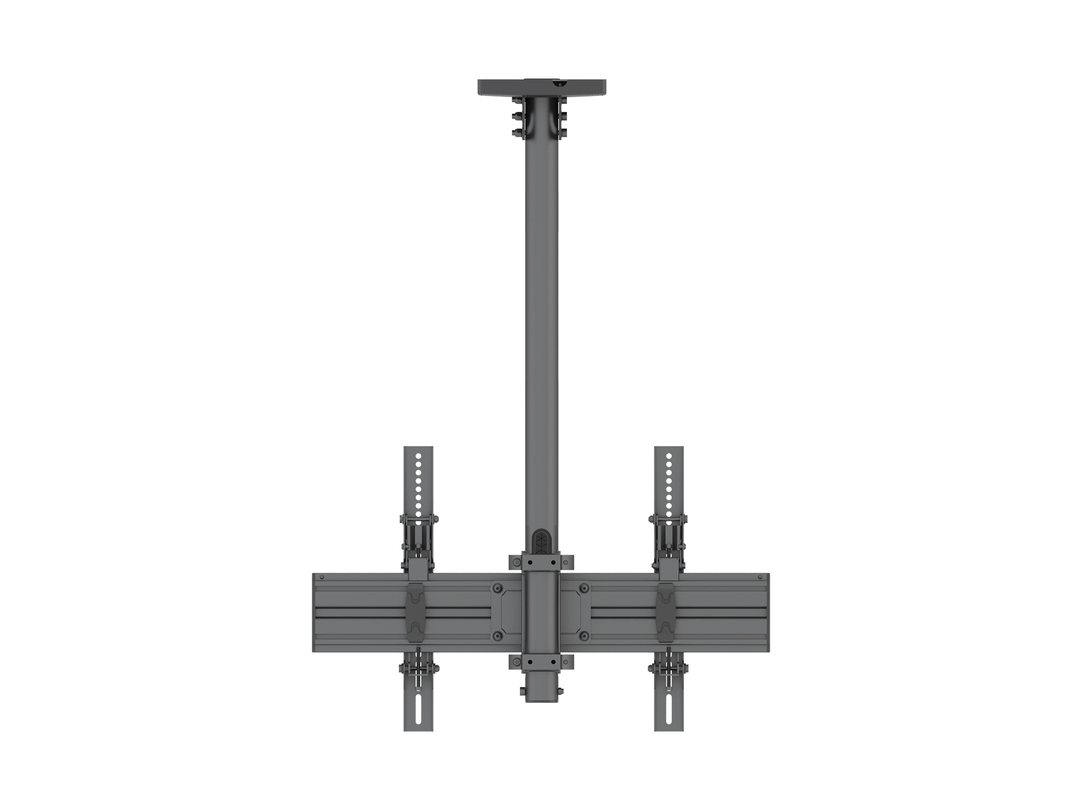

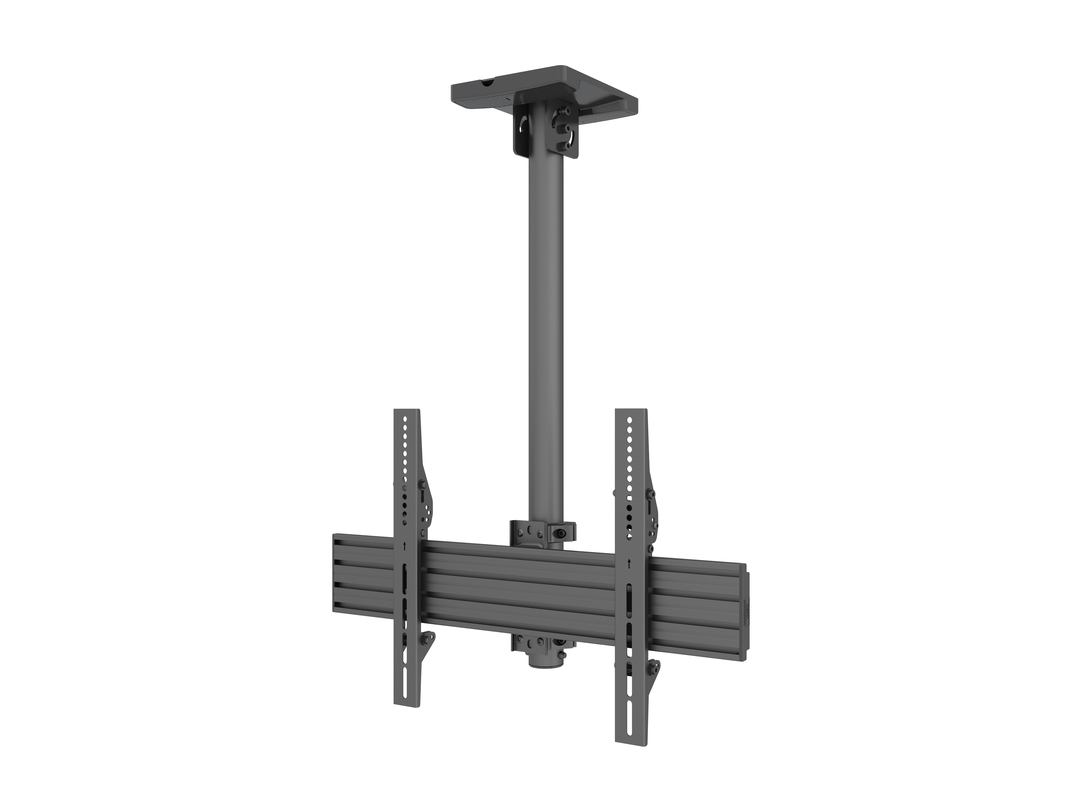

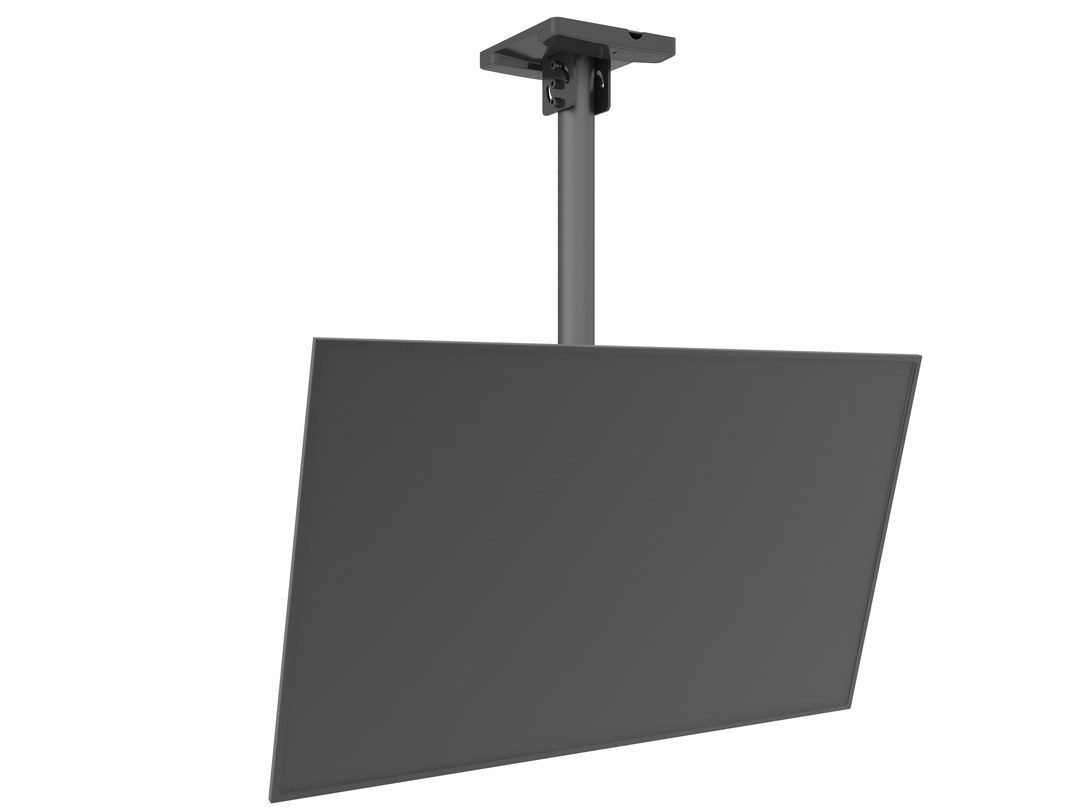

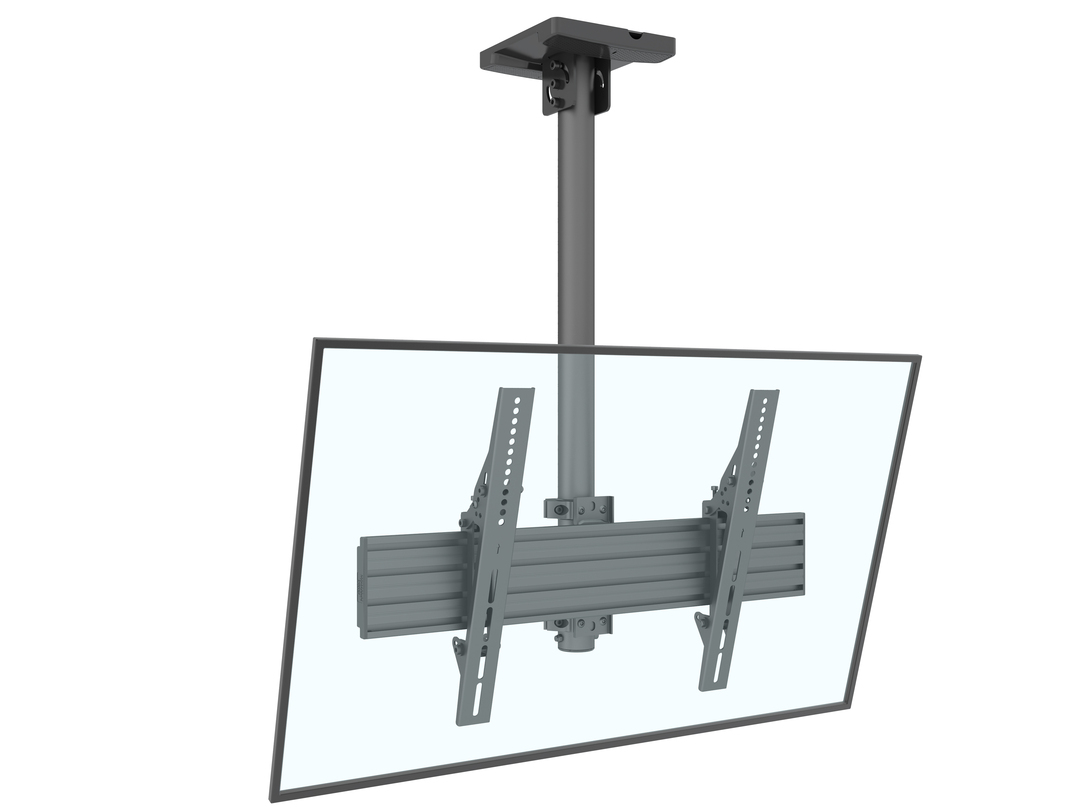

The M Menu Board Mount Pro MBC1X1U VESA 600 is a ceiling-mounted, single-display solution designed for digital signage in professional environments. Built for screens from 40" to 65", this 0,69 meter-width system combines strength, simplicity, and Scandinavian design—making it ideal for QSRs, retail, transportation hubs, or corporate lobbies.
Part of the installer-focused Pro Series, this model features a modular aluminum rail, integrated cable management, and a tilt arm mechanism for perfect viewing angles. Use it as a standalone menuboard or extend an existing setup by linking multiple rails. The system is TÜV certified and includes everything needed for fast, safe installation.
Highlights
- Single-screen ceiling mount for 40"-65" displays
- VESA support up to 600x400 (adapters included)

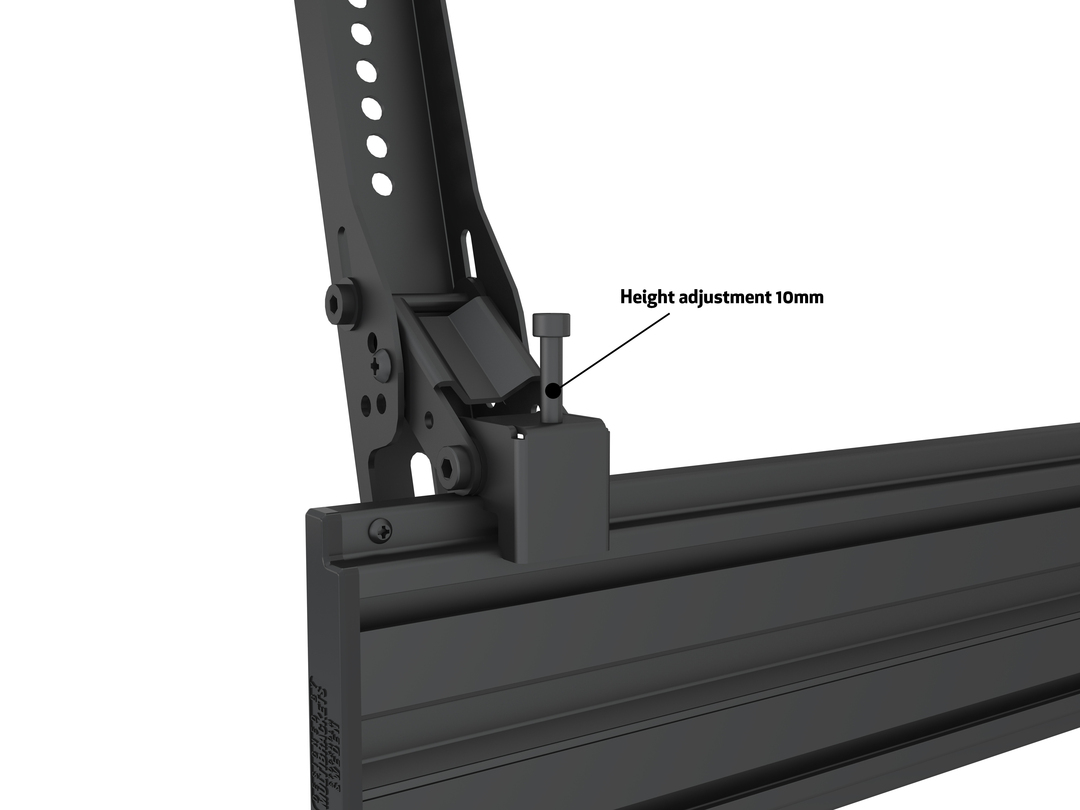

- 0,69m modular aluminum rail with tilt arms
- Works standalone or as an extension to a wider menuboard system

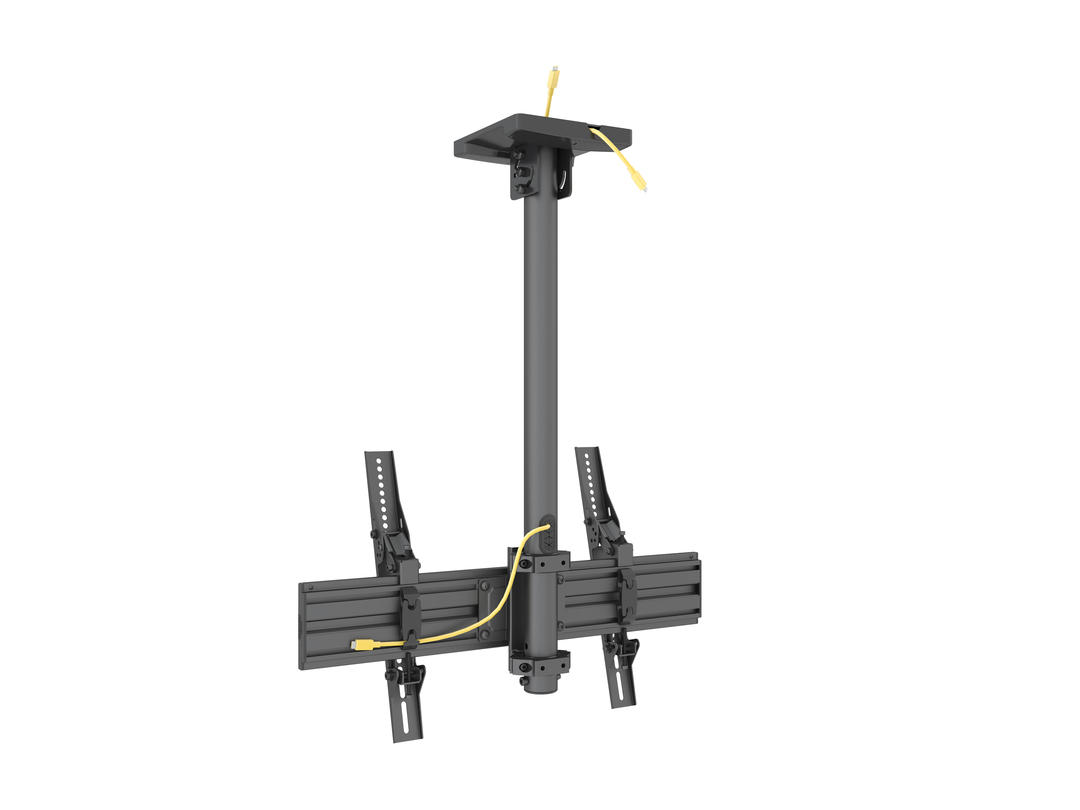

- Integrated cable management for clean installations
- Power Click™ install system for fast and secure setup

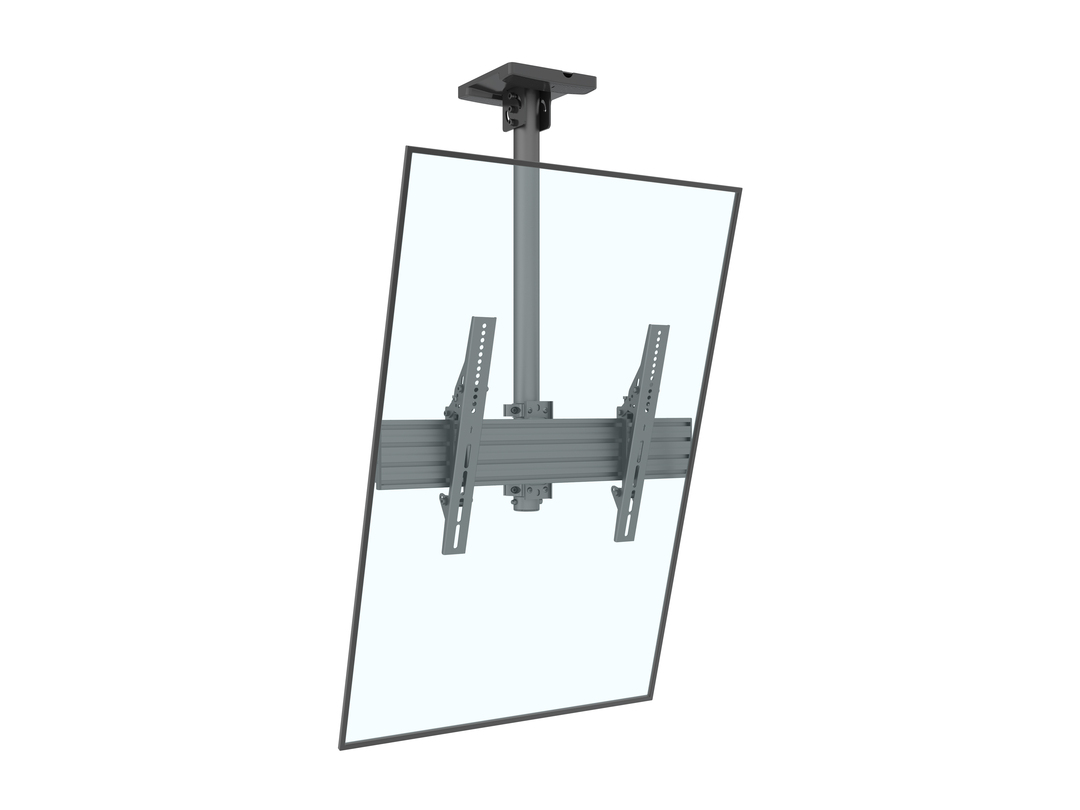

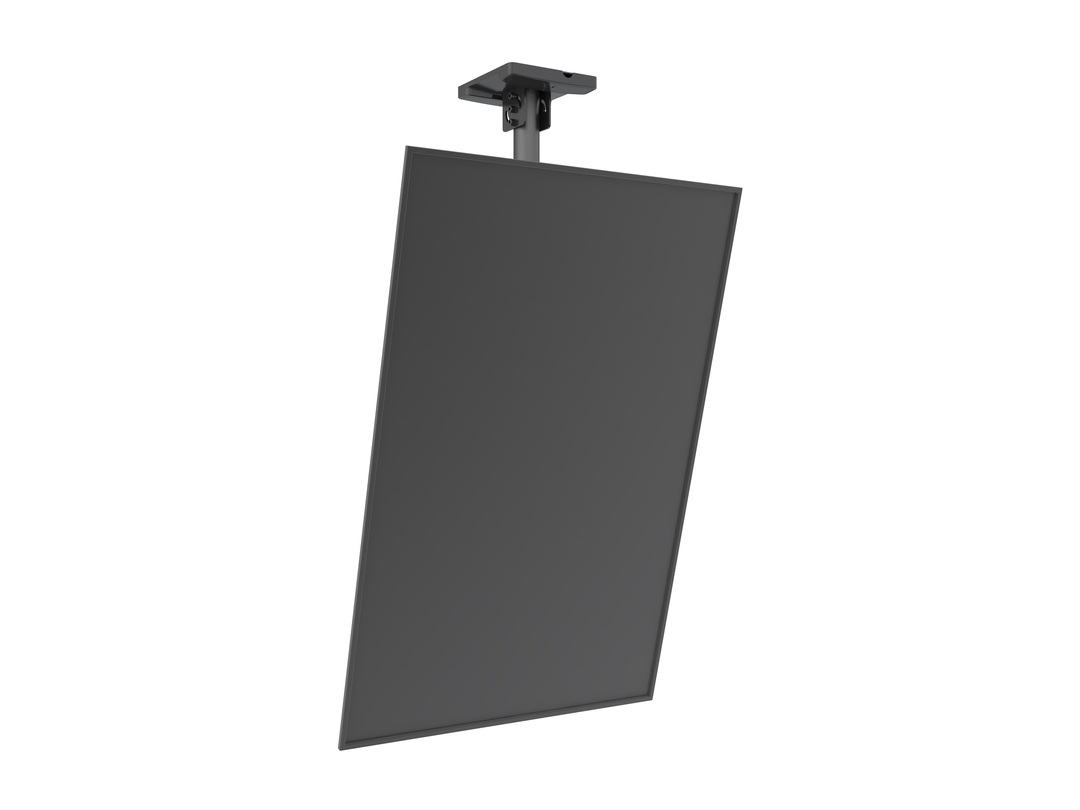

- Portrait or landscape screen orientation

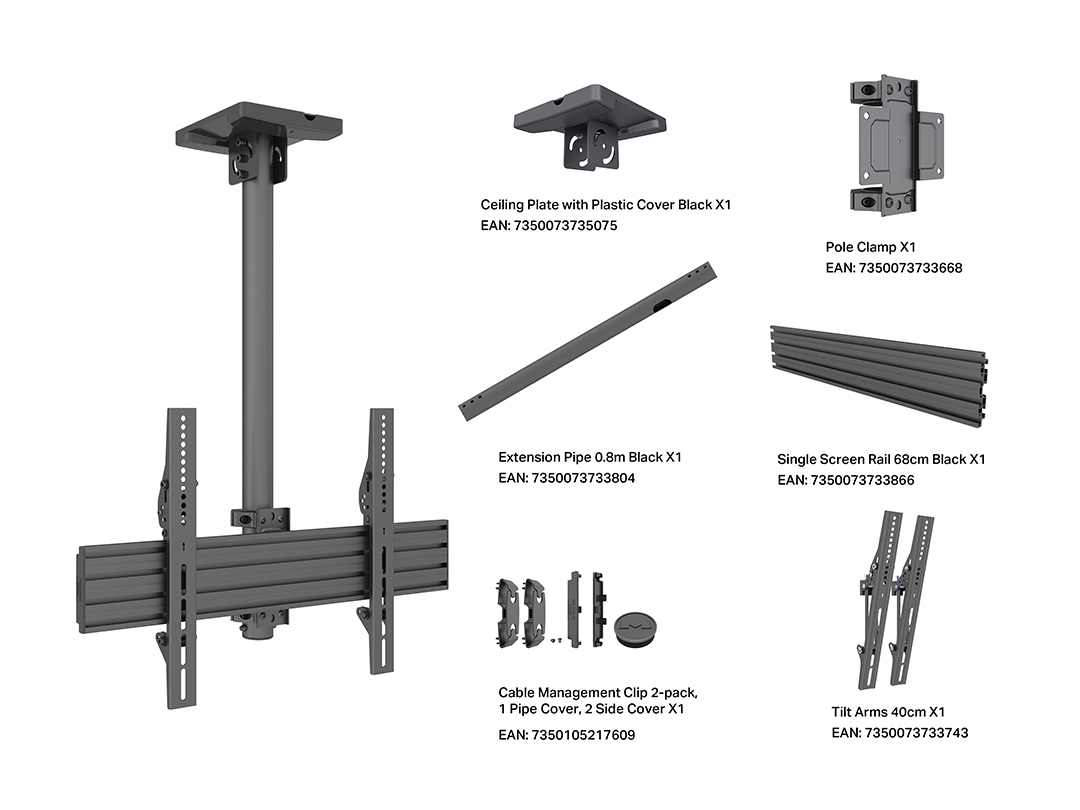

- Includes ceiling plate and full hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Menu Board Mount Pro MBC1X1U VESA 600 | |
| Article No: | 7 350 105 212 338 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 50 kg per screen TUV approved at 30 kg per screen |

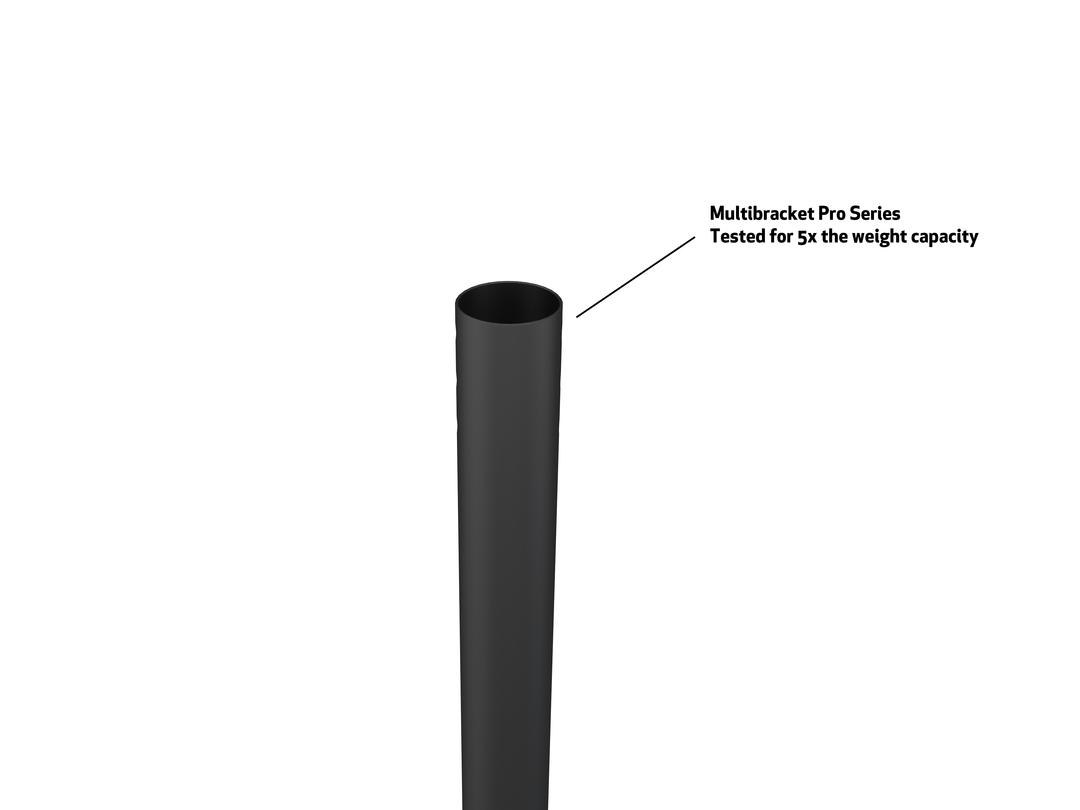

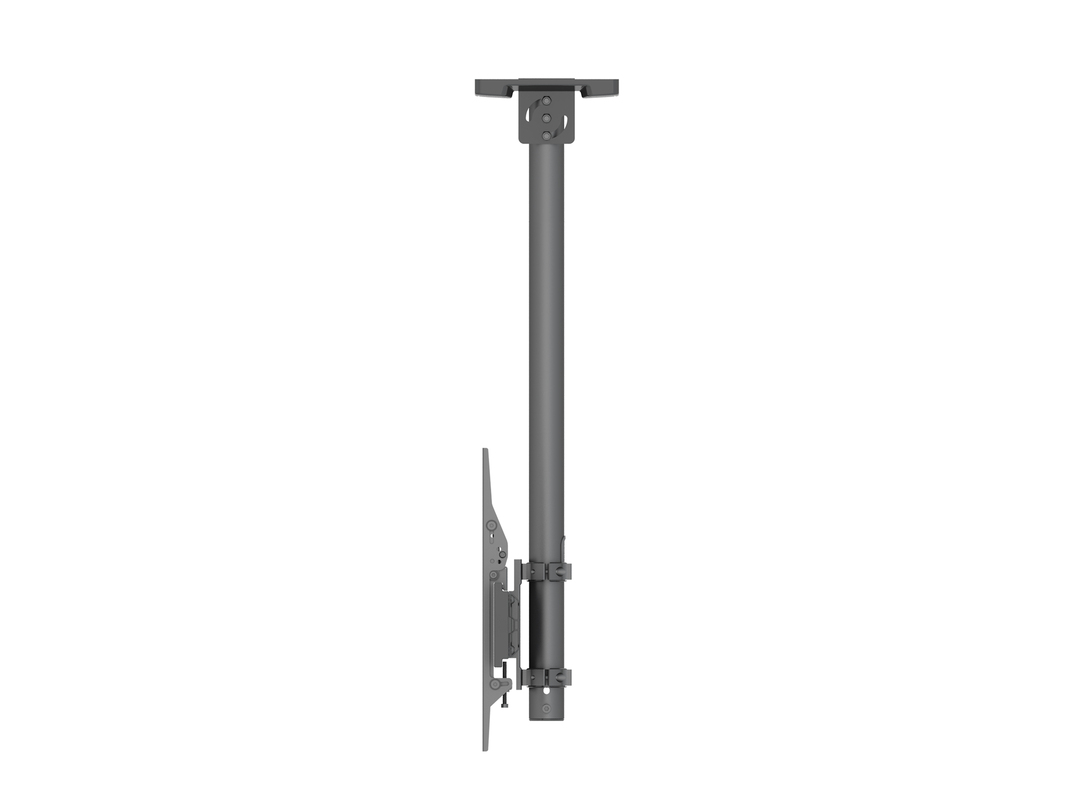

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | Yes, 0~15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 82 x 20 x 14 cm |
| Package Weight: | 10.10 kg |
