M Menu Board Mount Pro MBC4X1U VESA 200

Name: M Menu Board Mount Pro MBC4X1U VESA 200
Availability: InStock

M Menu Board Mount Pro MBC4X1U VESA 200 - Ceiling mount for LCD display, steel, 2,48m rail length, 4 screens, single side, tilt arms, VESA Max 200x200 - screen size: 27"-32" - black

Options

Variants that match your options:

Price

Not available

Price

In stock: 221

Delivery: Status: In Stock

Quantity

This value doesn't have the right number of decimals. This value is too small. This value is too large. This is required. Invalid value.

Quick response on email requests
Fast deliveries
Pan European warehousing

Description

Article no.: 7350073735679

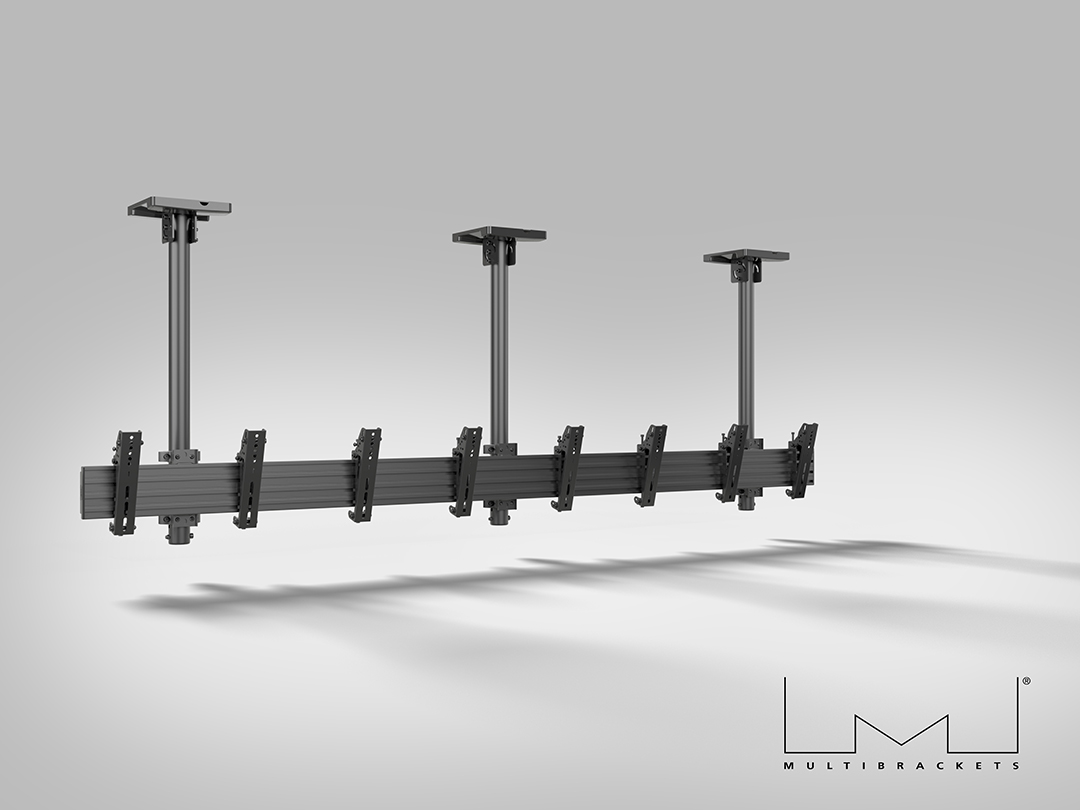

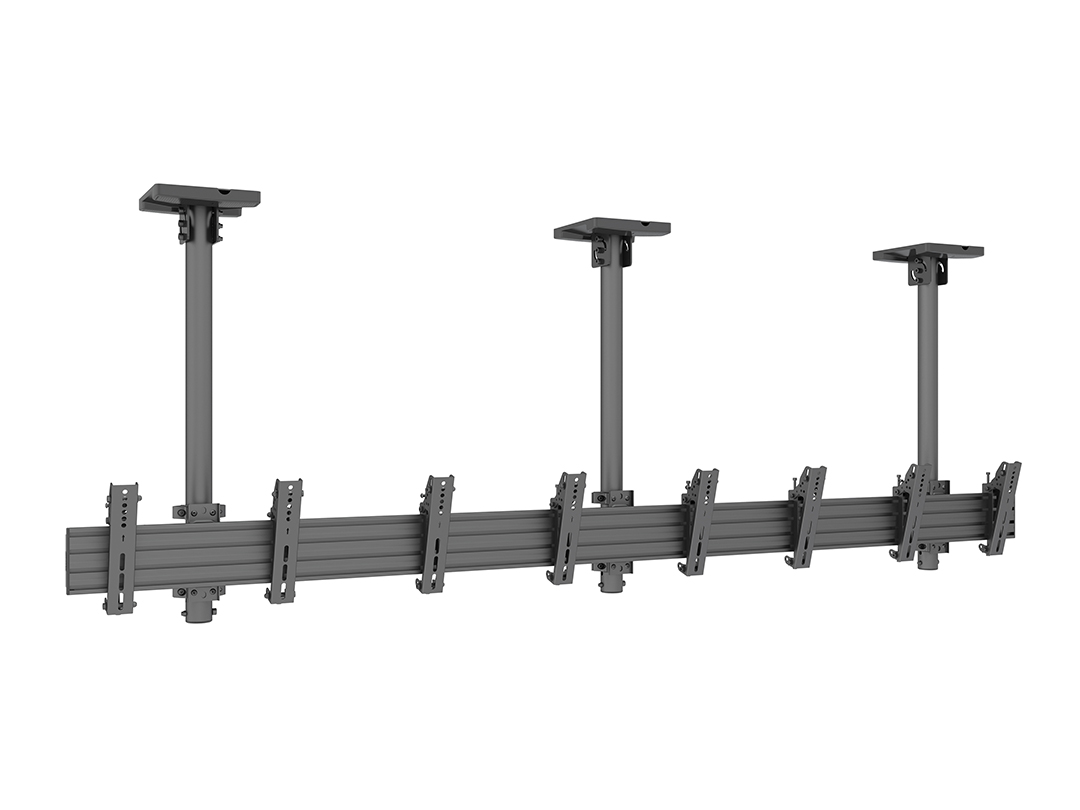

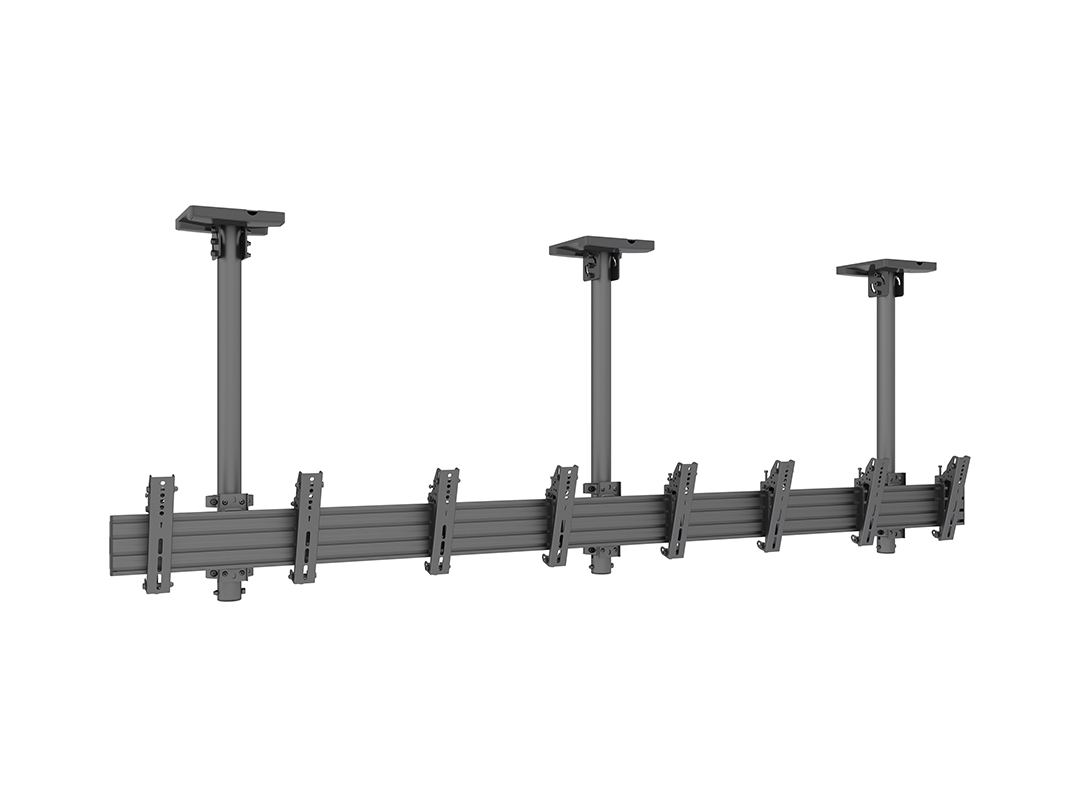

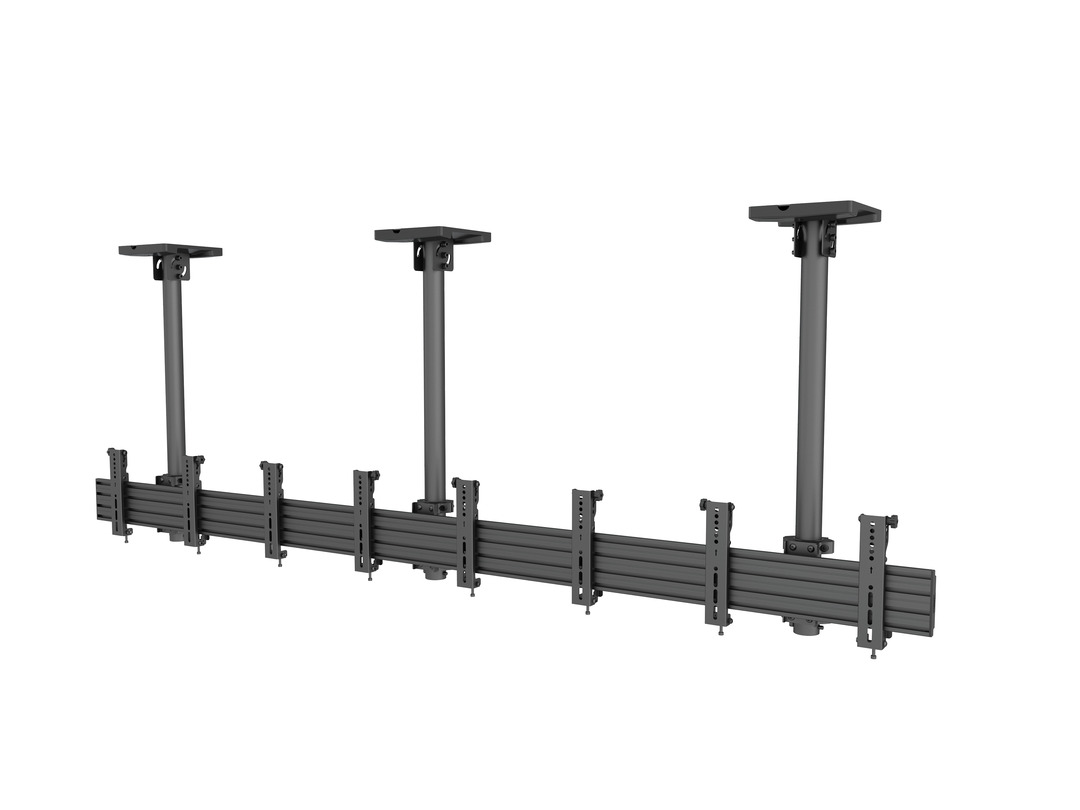

M Menu Board Mount Pro MBC4X1U VESA 200 – Ceiling mount for 4 LCD displays – 2.48m aluminum rail – VESA Max 200x200 – screen size: 27"-32" – black

Product Overview

The M Menu Board Mount Pro MBC4X1U VESA 200 is a professional ceiling-mounted system designed to support four side-by-side LCD displays sized 27"–32". With a 2.48-meter aluminum rail and tilt-adjustable arms, this solution delivers perfect alignment and visual consistency—ideal for digital menuboards in QSRs, airports, retail, and other commercial signage environments.

Built on the modular Multibrackets Pro Series platform, the system offers unmatched flexibility, integrated cable management, and a clean Scandinavian design. It’s engineered for quick installation, seamless scaling, and future-proof adaptability.

Click to view larger images

Highlights

Mounts four LCD screens (27"-32") side by side in a linear array
VESA 75x75, 100x100, and 200x200 support with adapters included
2.48m aluminum rail ensures perfect screen alignment
Integrated cable management for a sleek and safe installation
Power Click™ system enables fast and secure assembly
Portrait or landscape screen orientation

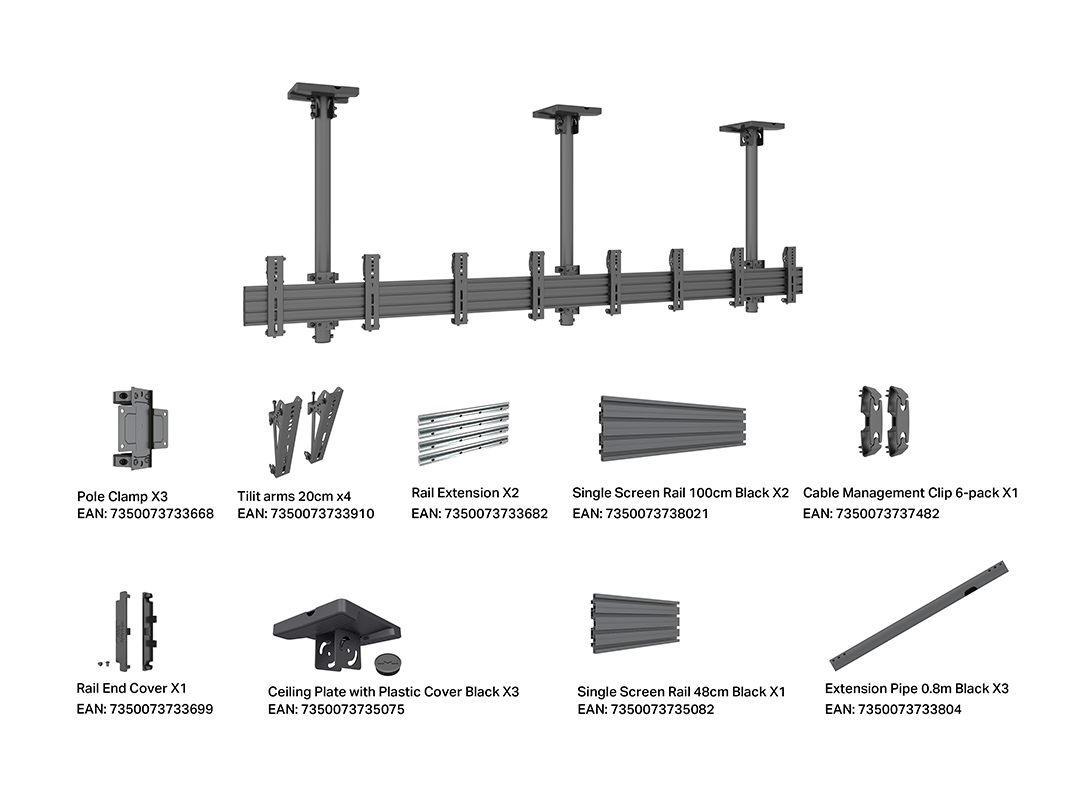

Ceiling plate and full hardware kit included
Expandable with additional Pro Series components

Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002

Selected models are TÜV approved.
Pro Series Configuration Guide

Specification
M Menu Board Mount Pro MBC4X1U VESA 200
Article No:	7 350 073 735 679
For screen size:	27"-32"
Type:	Single Side MBC4X1U
Universal & VESA standard:	Adjustable from 75x75, 100x100, 100x200, 200x100 to 200x200 max Optional VESA 800x600
Material:	Steel, Aluminium
Color:	Black
Surface Finish:	Powder coating/Anodic Oxidation
Weight:	36 kg
Measurements	530x338x20 cm
Max Load:	30 kg per screen
Pillar length:	Min: 580mm to Max: 800 mm from ceiling to VESA plate center 3 x 800mm pipes are included in the package
Tilt:	Yes, 0~15°
Swivel:	Yes, 360°
Rotate:	Yes, ±4°
Cable Management:	Yes
Options:	Extension pipes : 0.8m, 1.5m, 3.0m
Certifications:	CE, TÜV Nord
Warranty:	5 years
