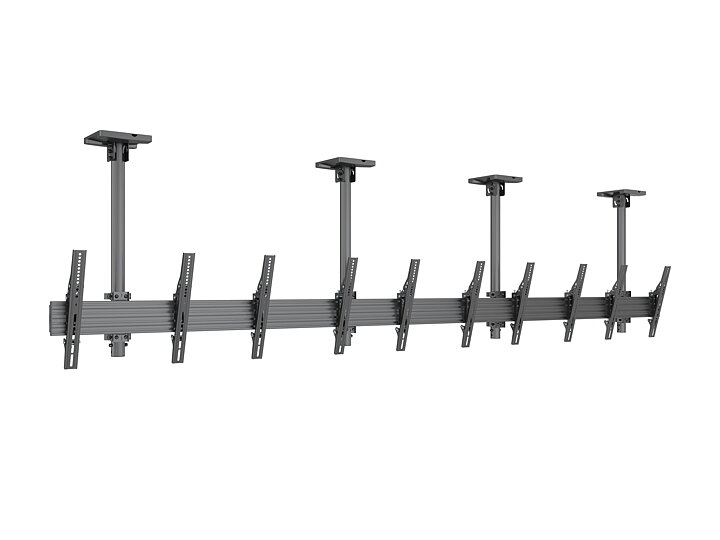

M Menu Board Mount Pro MBC5X1U VESA 600
Options
Variants that match your options:
In stock: 152
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105215360
Product Overview

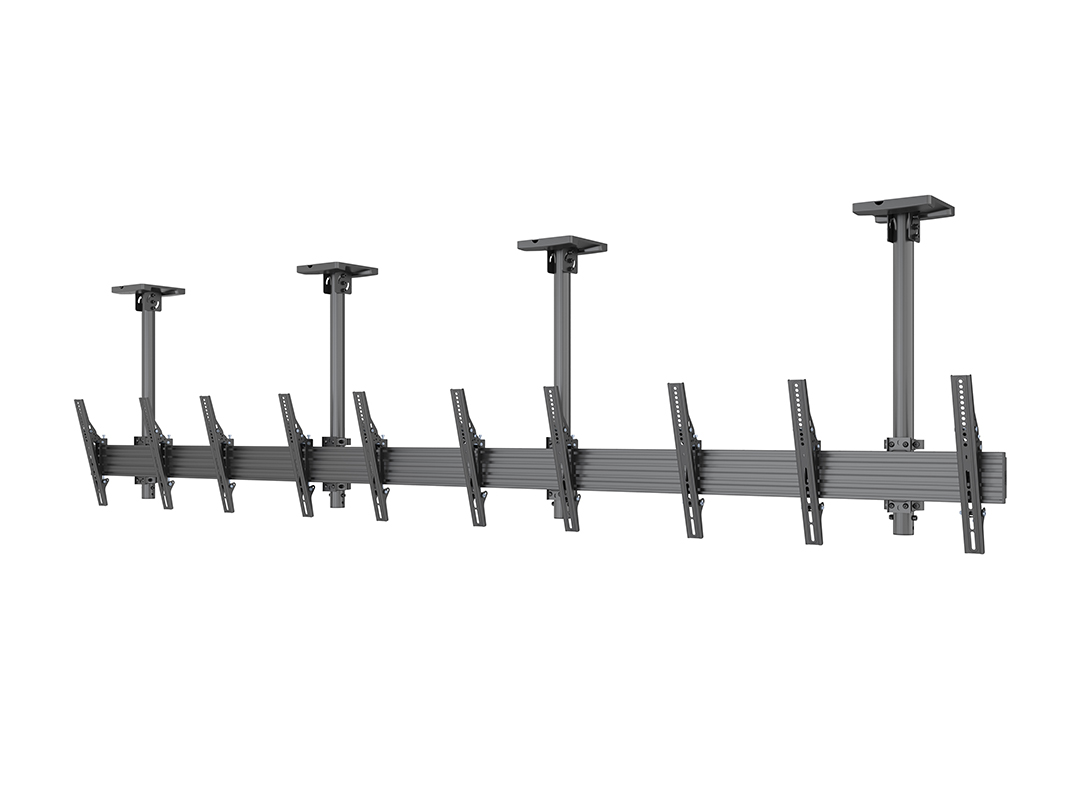

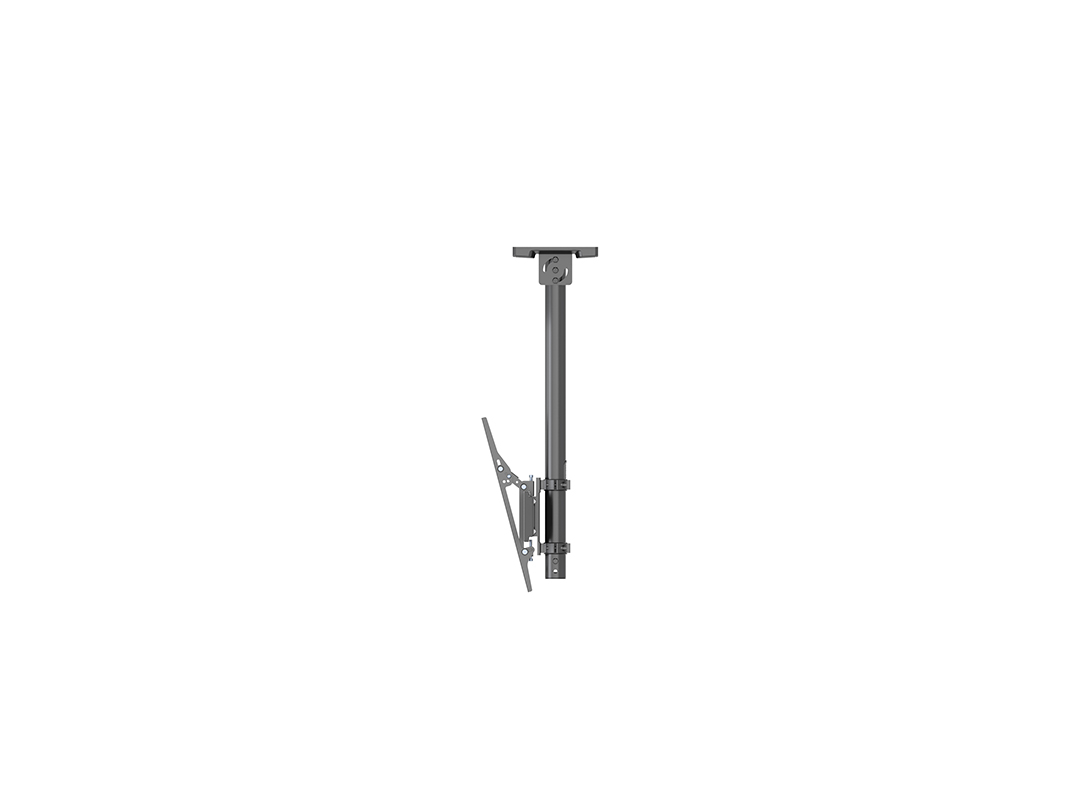

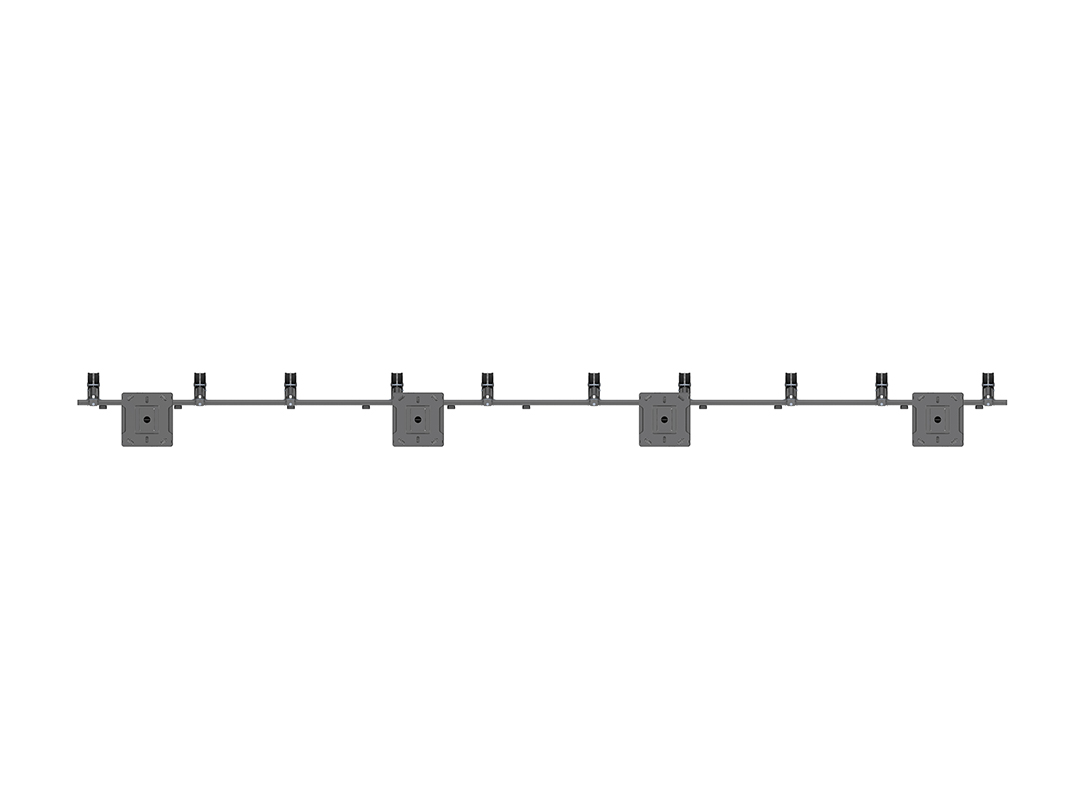

The M Menu Board Mount Pro MBC5X1U VESA 600 is a professional ceiling-mounted solution designed for five LCD displays installed side by side. With support for screen sizes from 40" to 65", this system is ideal for QSR menus, digital signage in retail, corporate communications, and transportation environments where synchronized content and clean design are crucial.
Part of the modular Multibrackets Pro Series, the MBC5X1U features an ultra-flexible aluminum rail, integrated cable management, and precision tilt arms – ensuring both visual alignment and installation ease. The 0.8m pole height makes it suitable for a wide variety of ceiling heights and layout configurations. Designed in Scandinavia, the aesthetic is sleek, minimalist, and functional.
Click to view larger images
Highlights
- Five-screen ceiling mount for 40"-65" displays
- Supports VESA 200x200 to 600x400 (adapters included)
- 0.8m pole height with tilt-adjustable arms for precise alignment

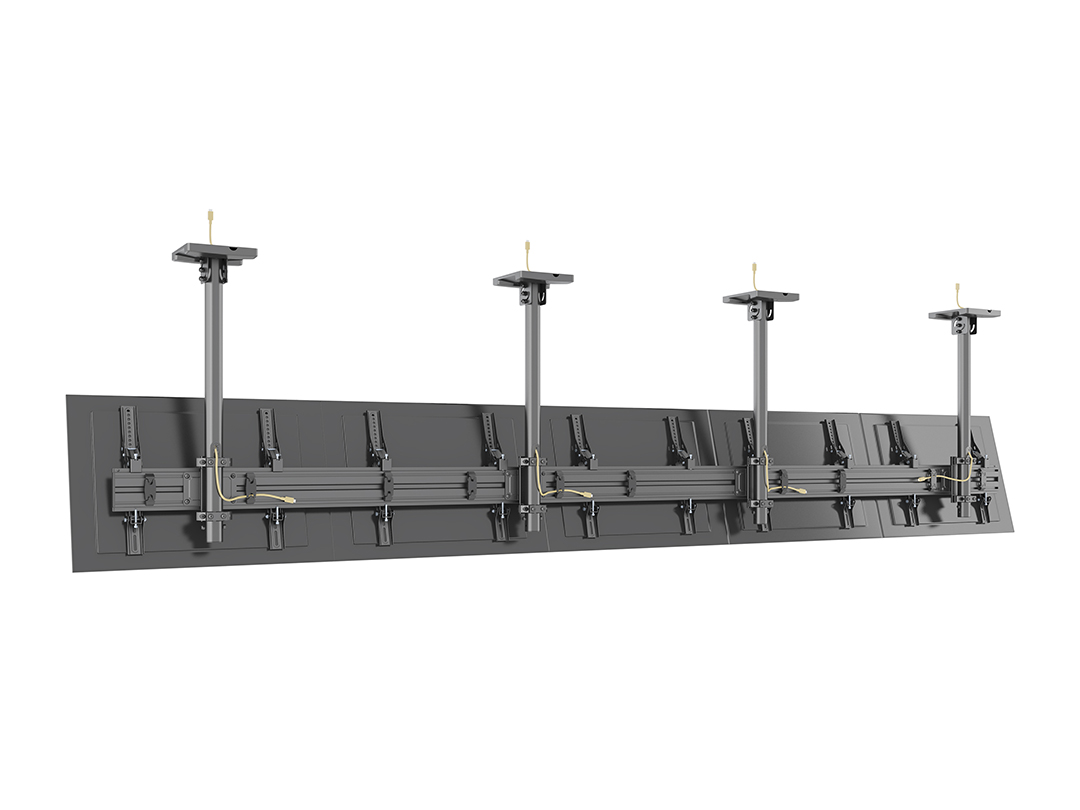

- Integrated cable management for clean, professional installs

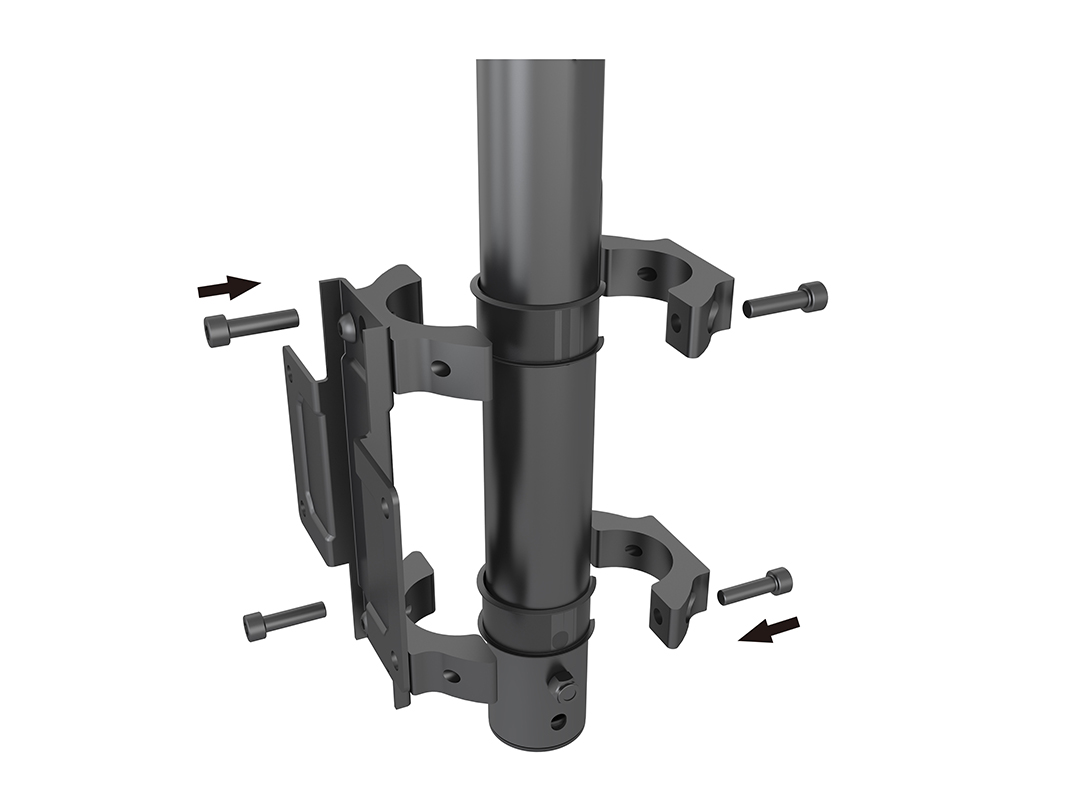

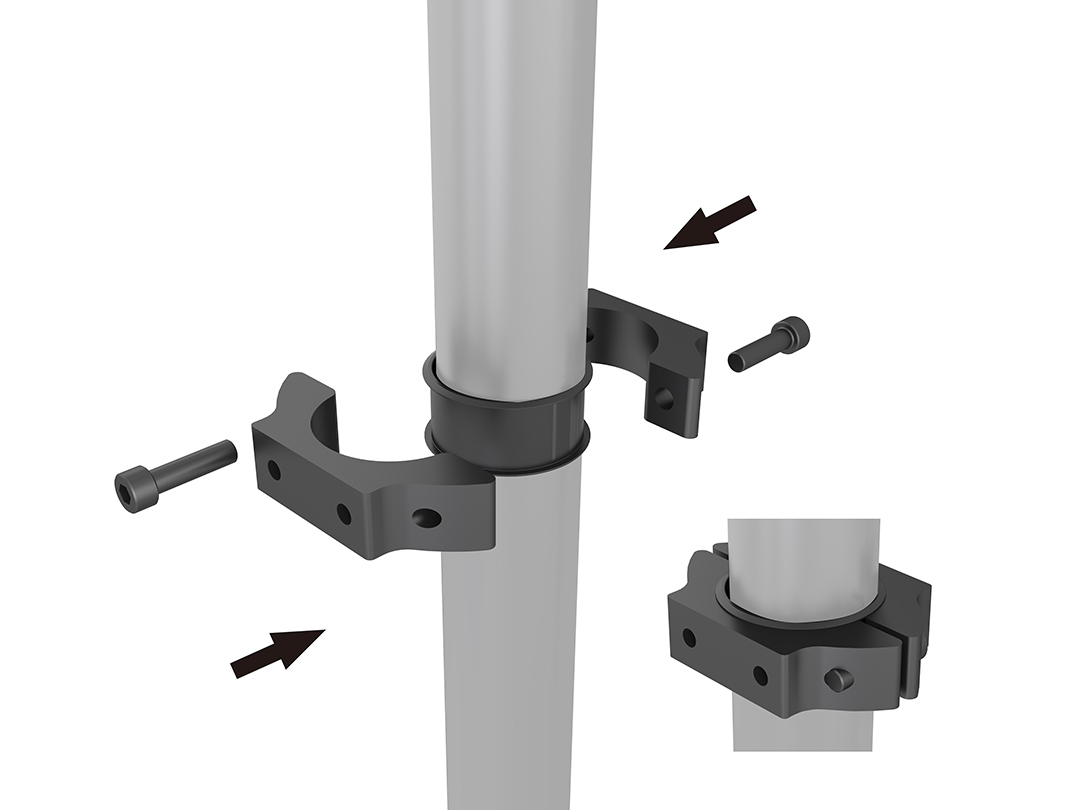

- Power Click™ system for fast and secure installation
- Portrait or landscape screen orientation supported
- Expandable using other Pro Series components

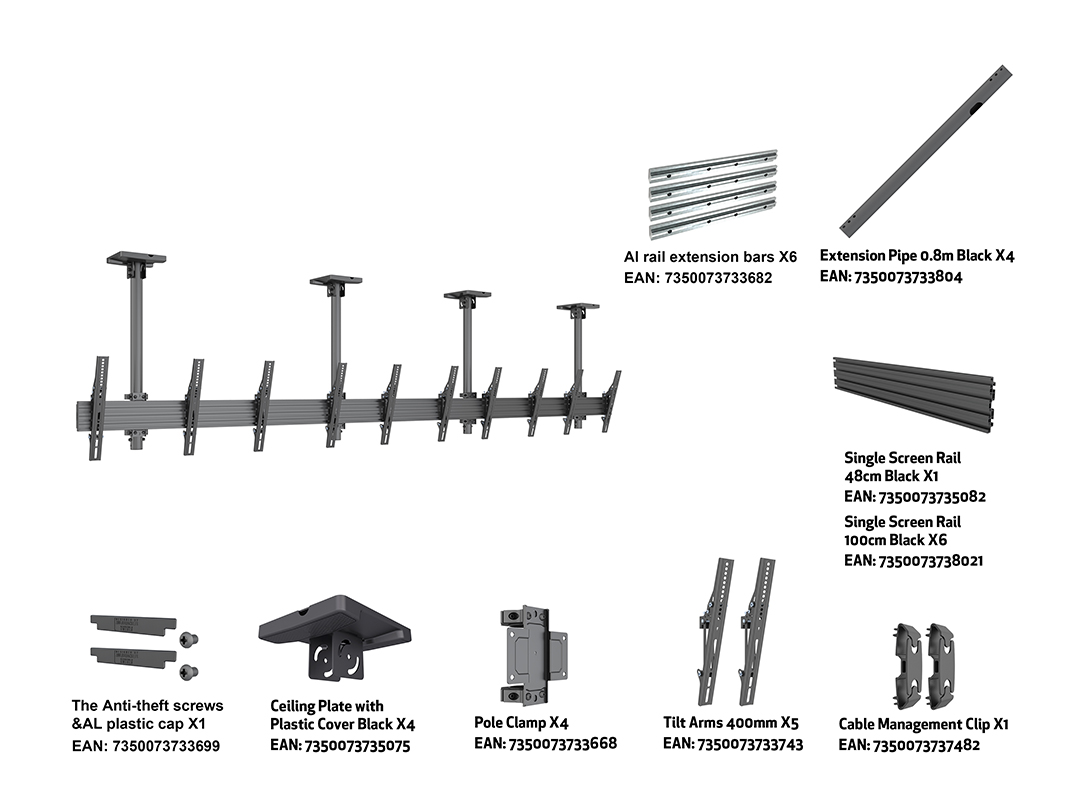

- Includes ceiling plate and complete hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Menuboard Mount Pro MBC5X1U VESA 600 | |
| Article No: | 7 350 105 215 360 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC5X1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 38 kg |

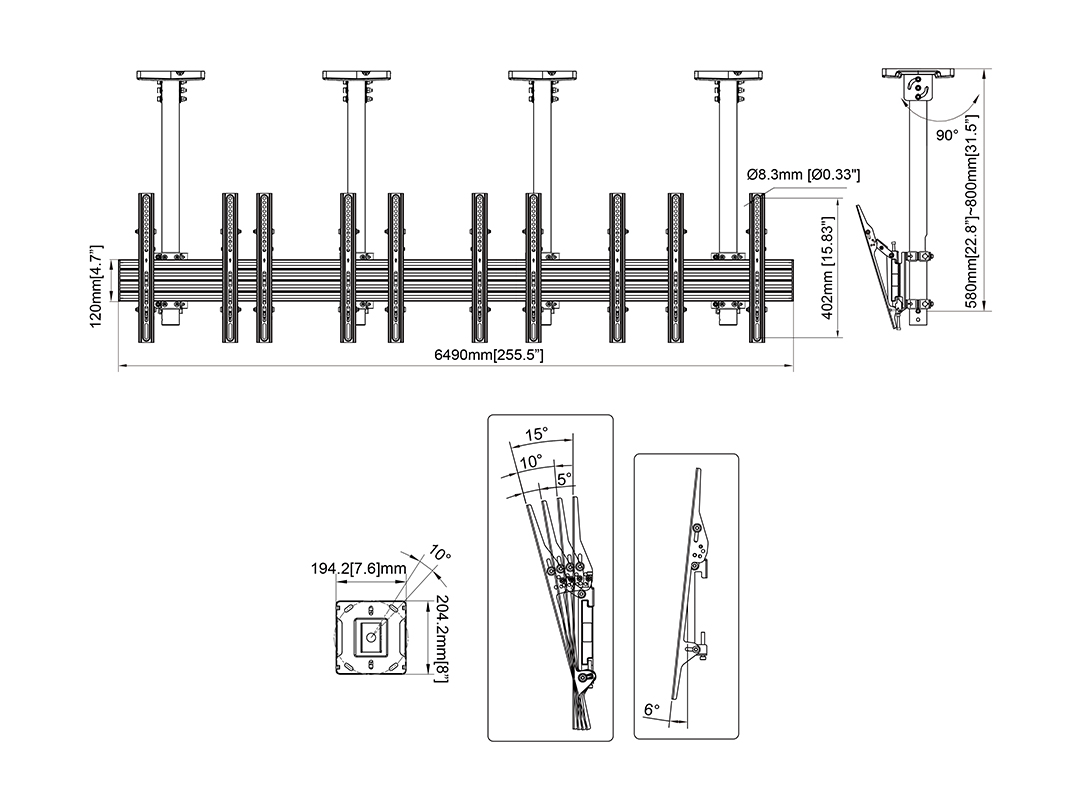

| Measurements: | 104.5 x 16.5 x 13.5 cm + 92 x 26 x 17 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | 0.8m included |
| Tilt: | Yes, -6~+15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Options: | Extension pipes: 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 40 kg |
