Description
Article no.: 7340234814367
Product Overview

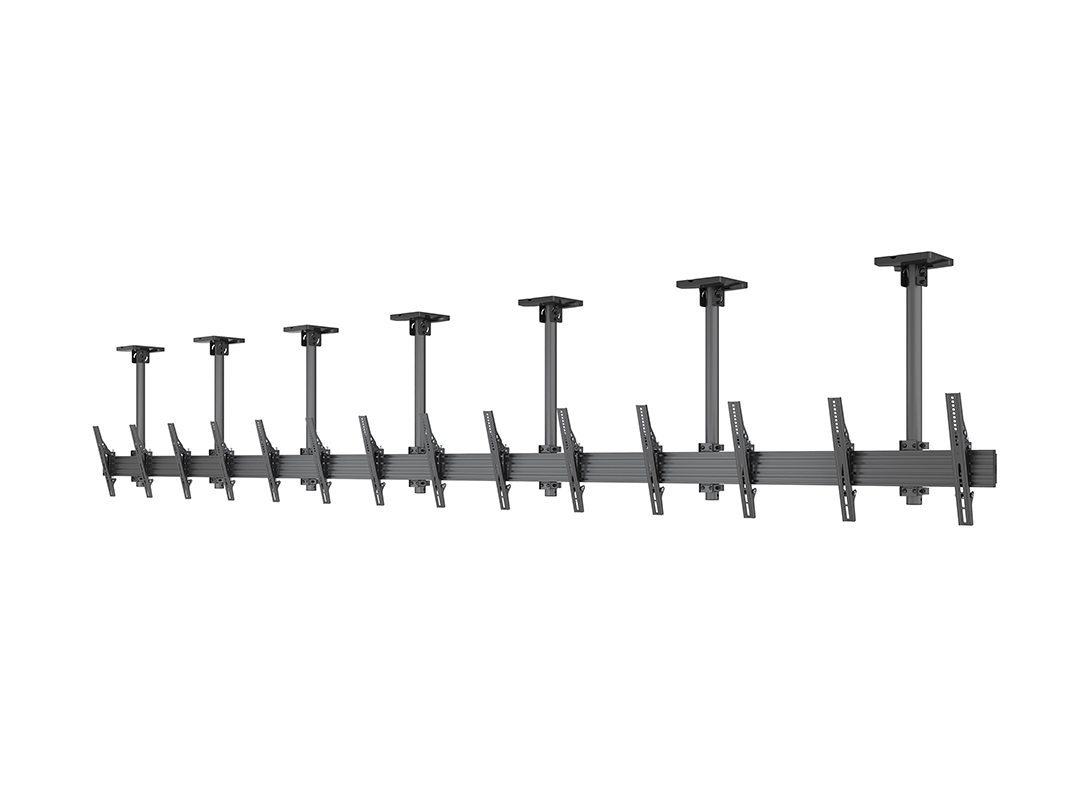

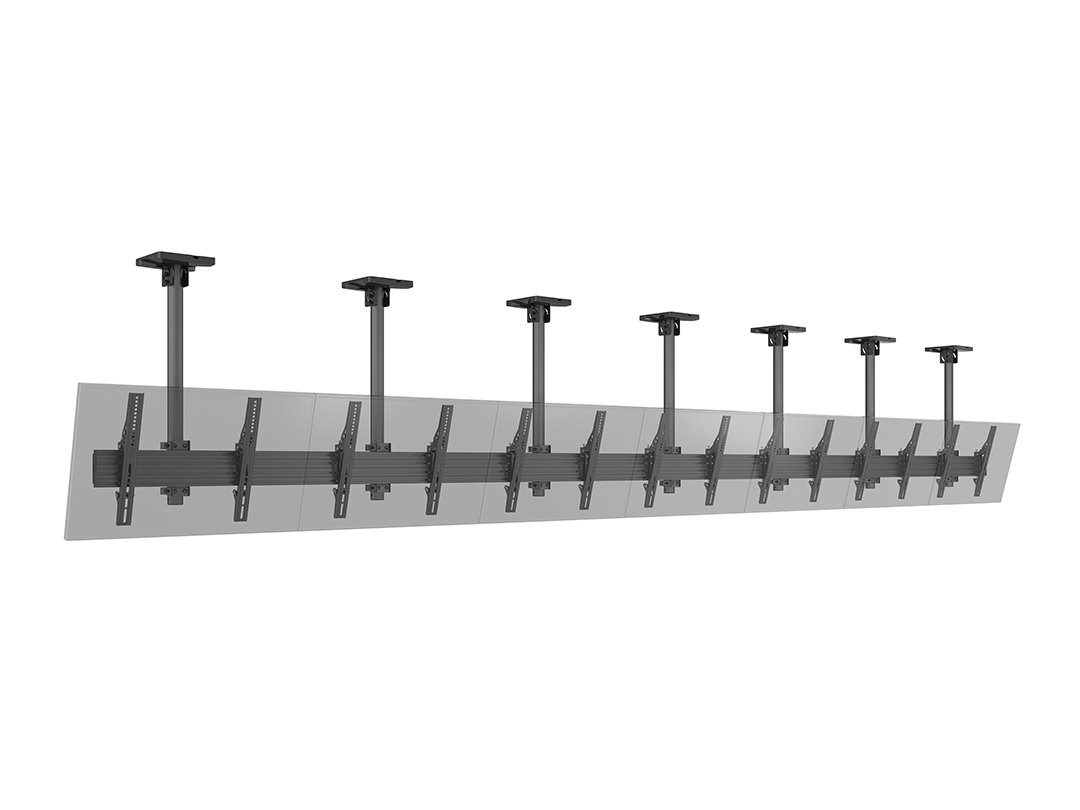

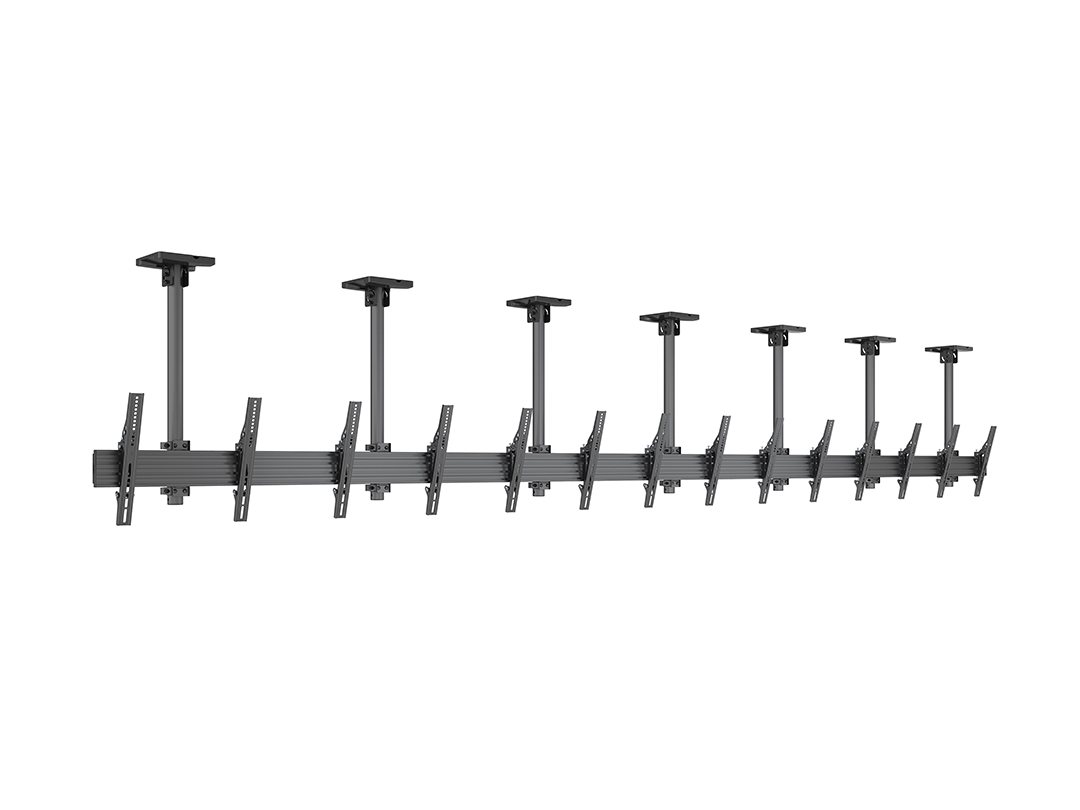

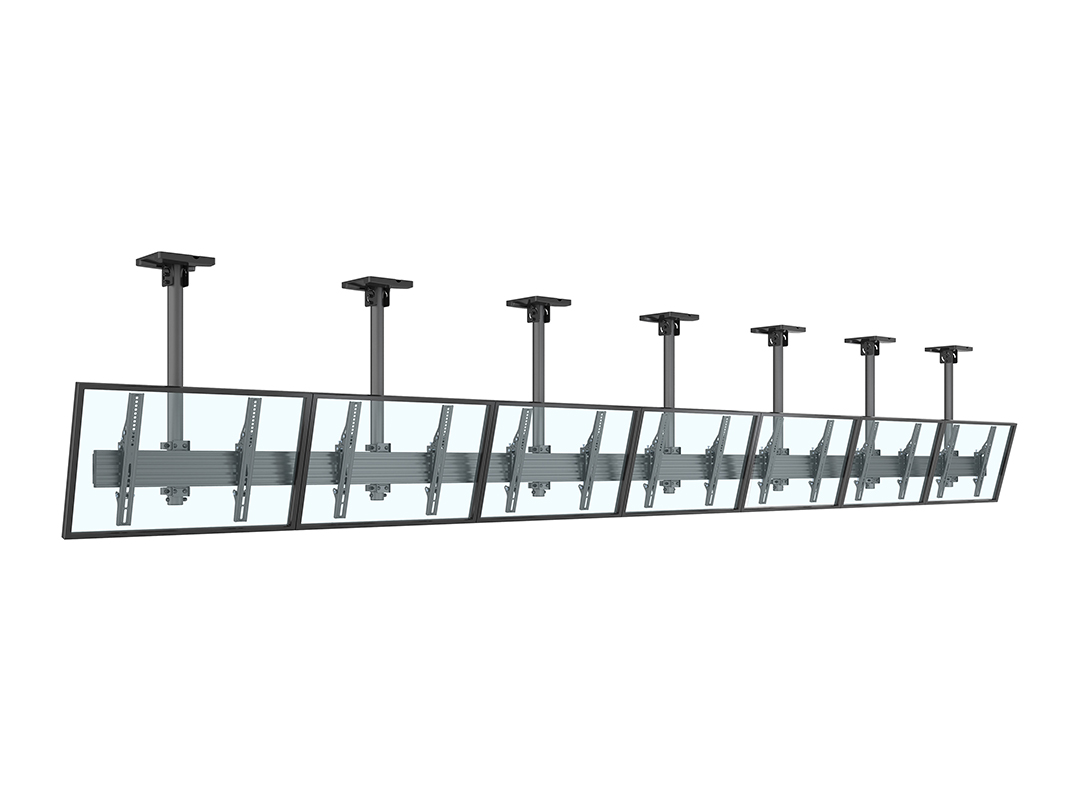

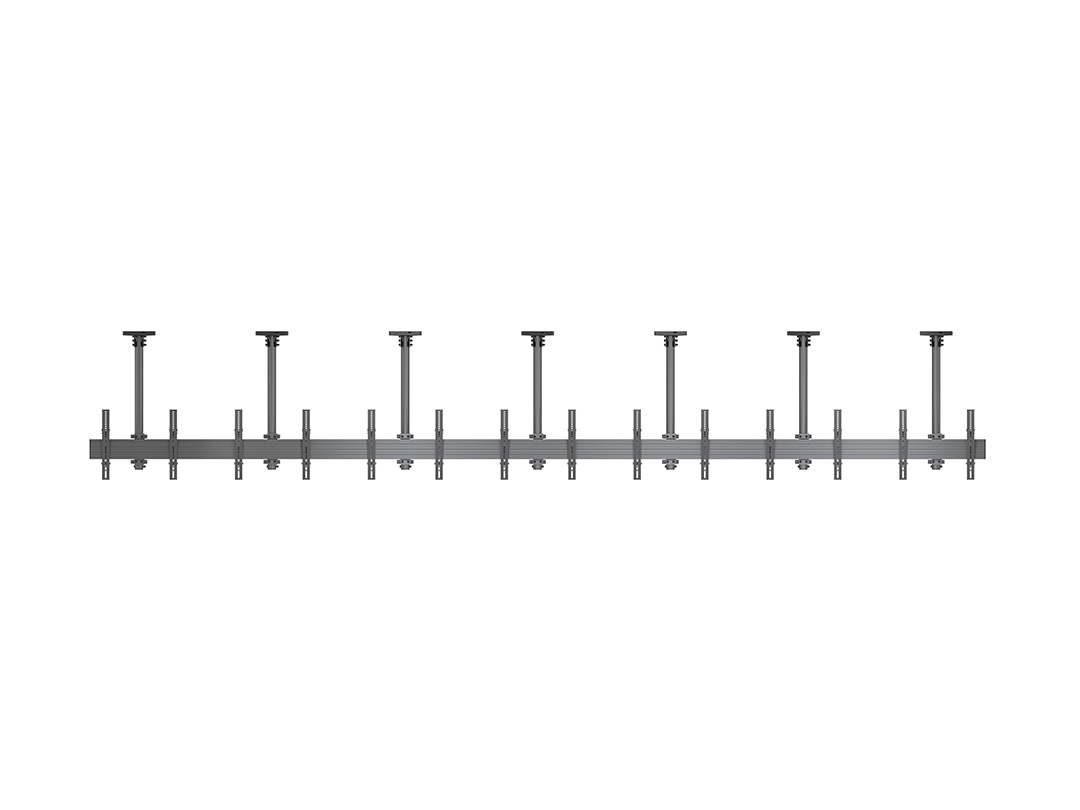

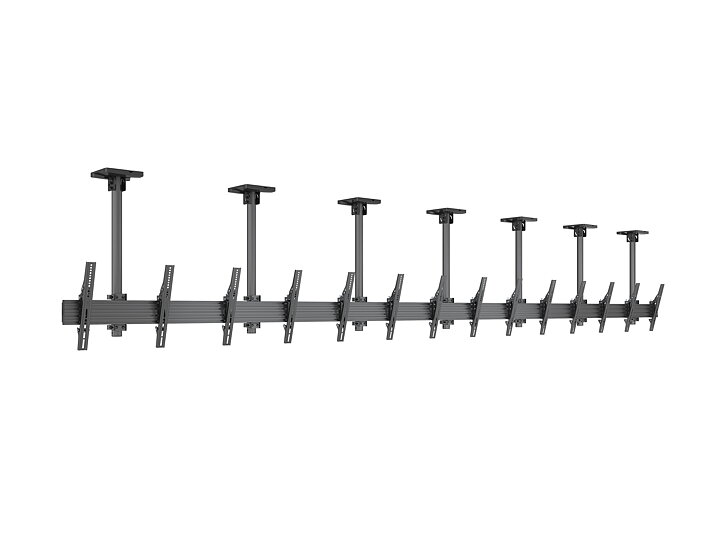

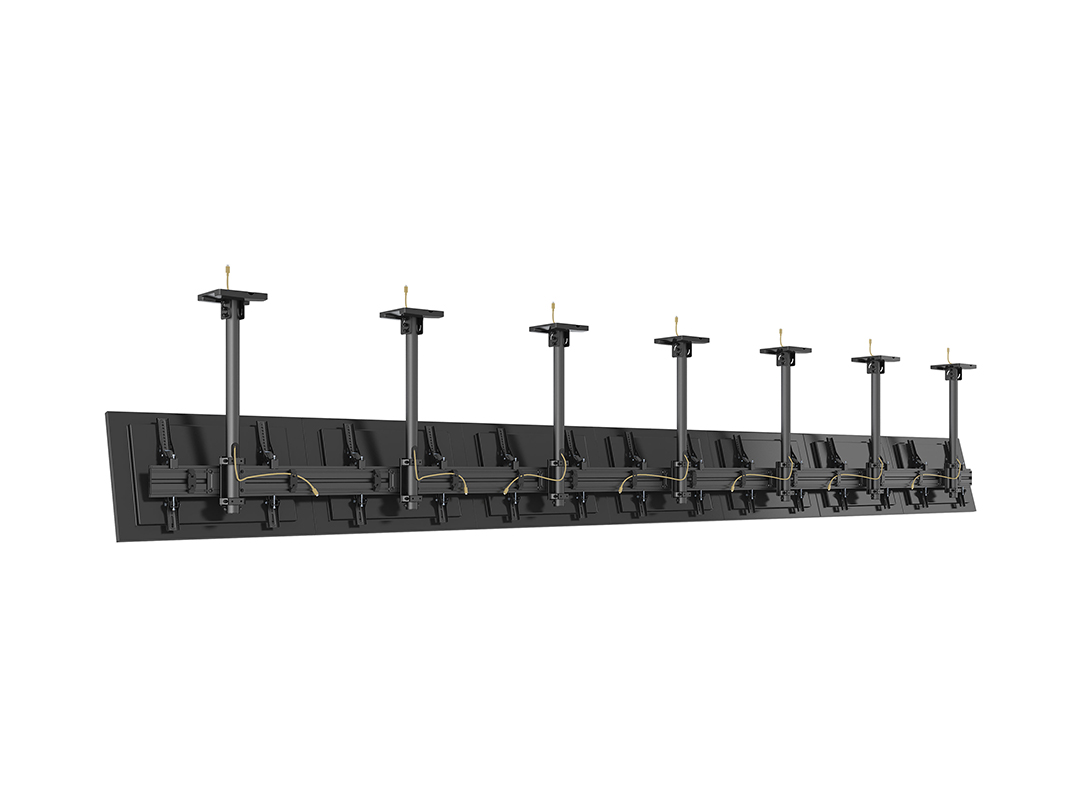

The M Menu Board Mount Pro MBC7X1U is a professional ceiling-mounted solution designed for seven LCD displays installed side by side. With support for screen sizes from 40" to 65", this system is ideal for QSR menus, digital signage in retail, corporate communications, and transportation environments where synchronized content and clean design are crucial.
Part of the modular Multibrackets Pro Series, the MBC7X1U features an ultra-flexible aluminum rail, integrated cable management, and precision tilt arms – ensuring both visual alignment and installation ease. The 0.8m pole height makes it suitable for a wide variety of ceiling heights and layout configurations. Designed in Scandinavia, the aesthetic is sleek, minimalist, and functional.
Click to view larger images
Highlights
- Five-screen ceiling mount for 40"-65" displays
- Supports VESA 200x200 to 400x400 (adapters included)
- 0.8m pole height with tilt-adjustable arms for precise alignment

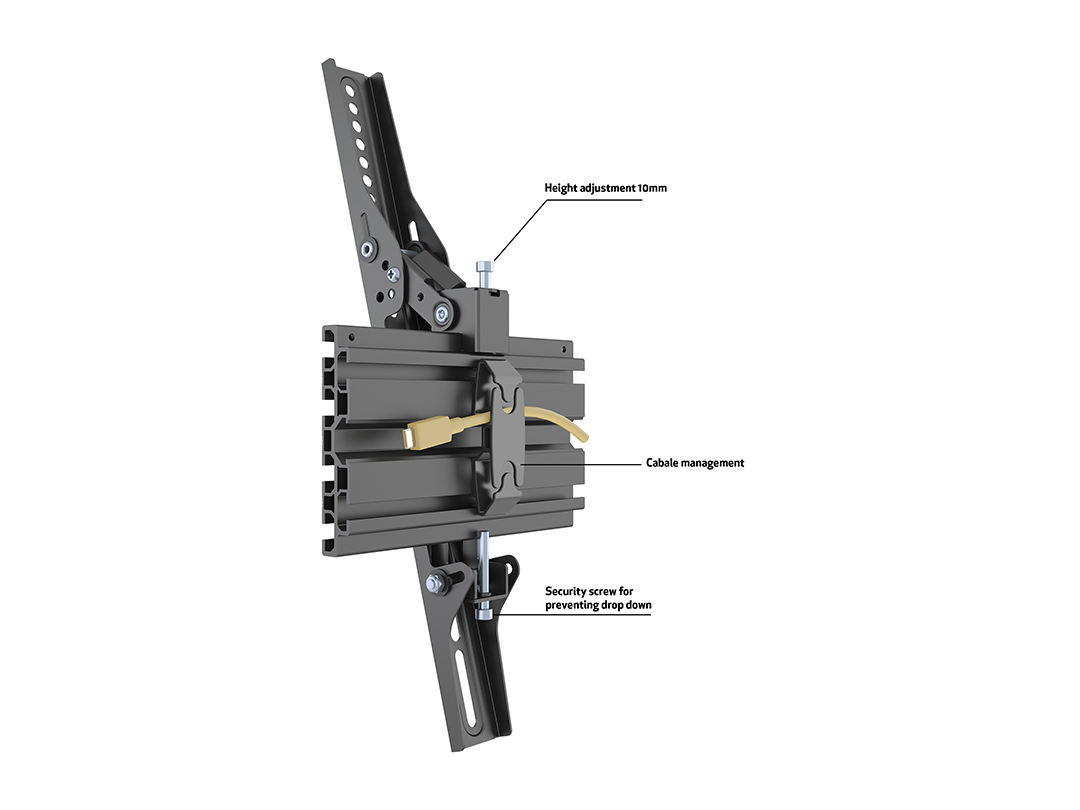

- Integrated cable management for clean, professional installs

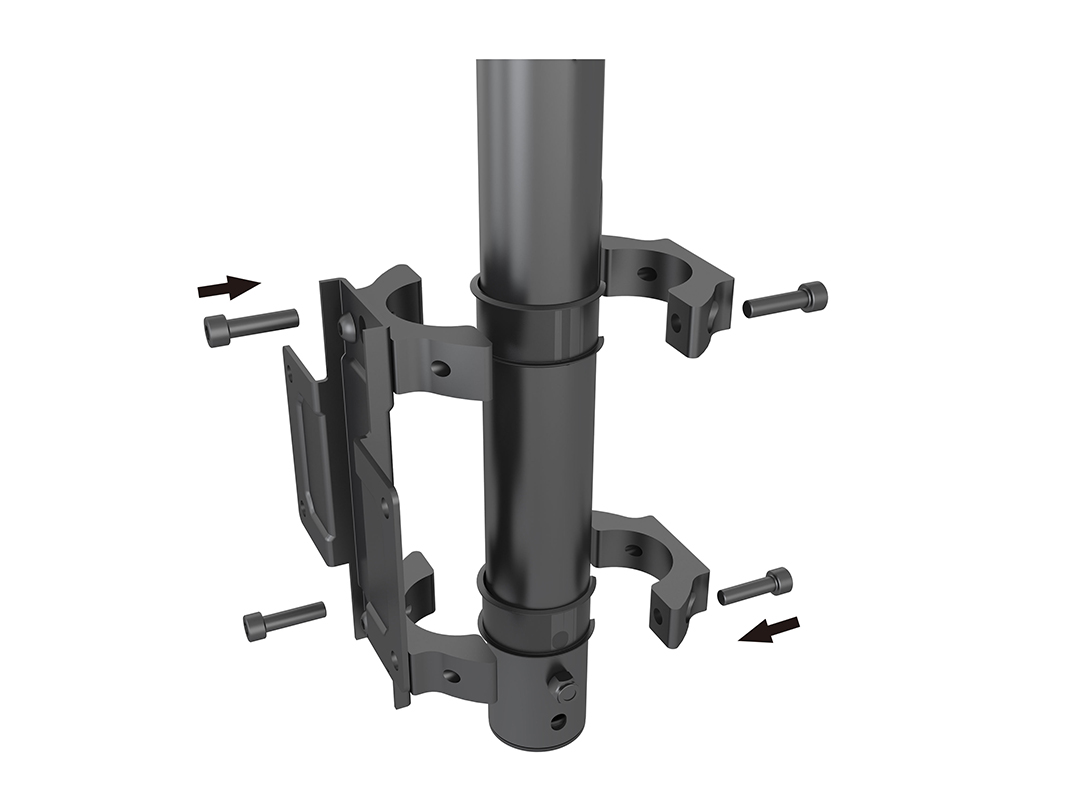

- Power Click™ system for fast and secure installation
- Portrait or landscape screen orientation supported
- Expandable using other Pro Series components

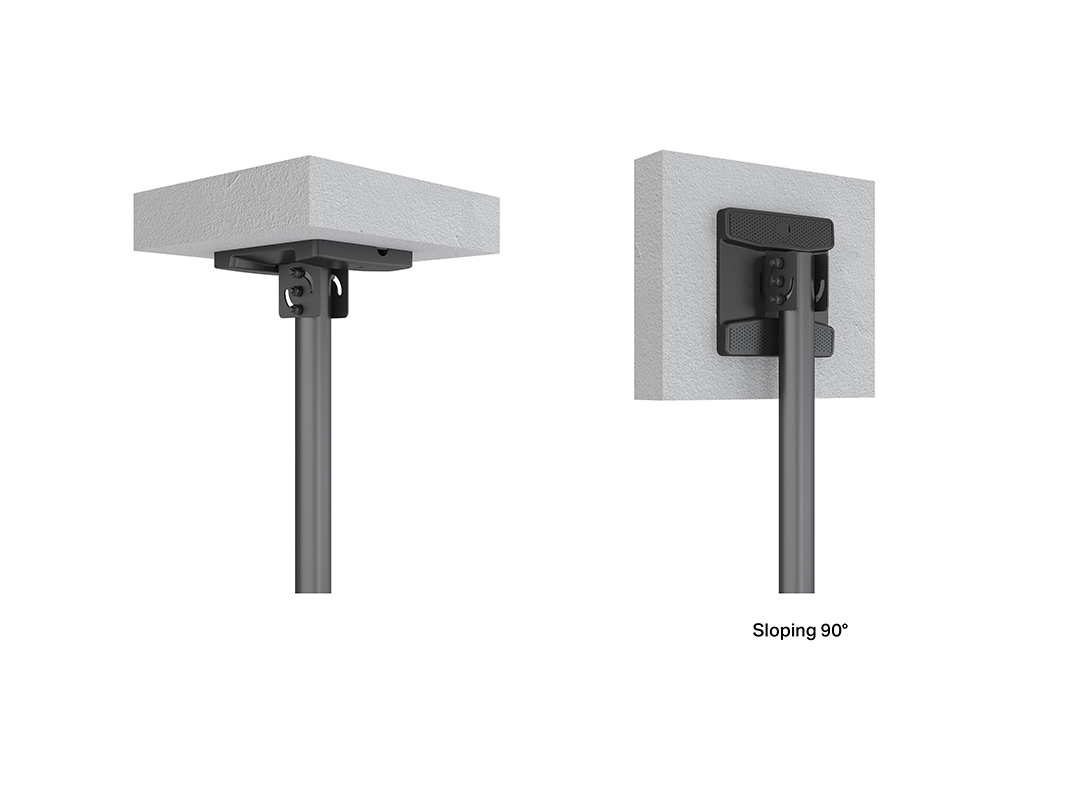

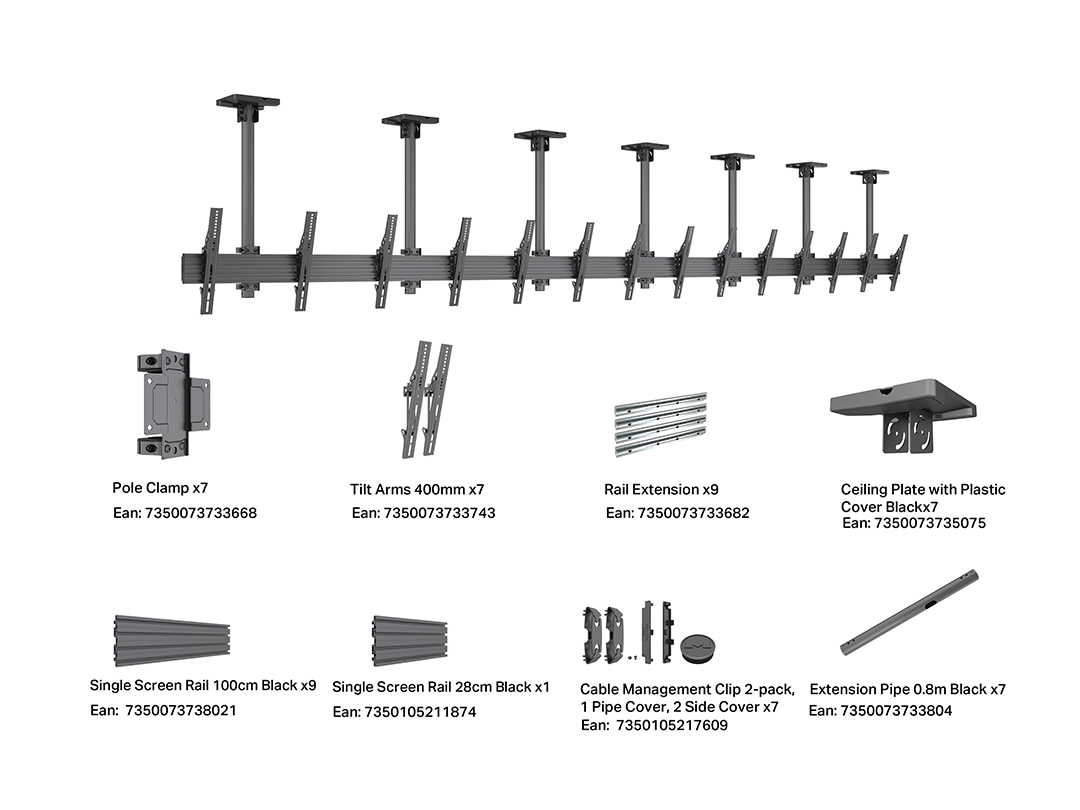

- Includes ceiling plate and complete hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Menu Board Mount Pro MBC7X1U | |
| Article No: | 7 340 234 814 367 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC7X1U |
| Universal & VESA standard: | Adjustable from 100x100 to 400x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 29.4kg + 40kg |

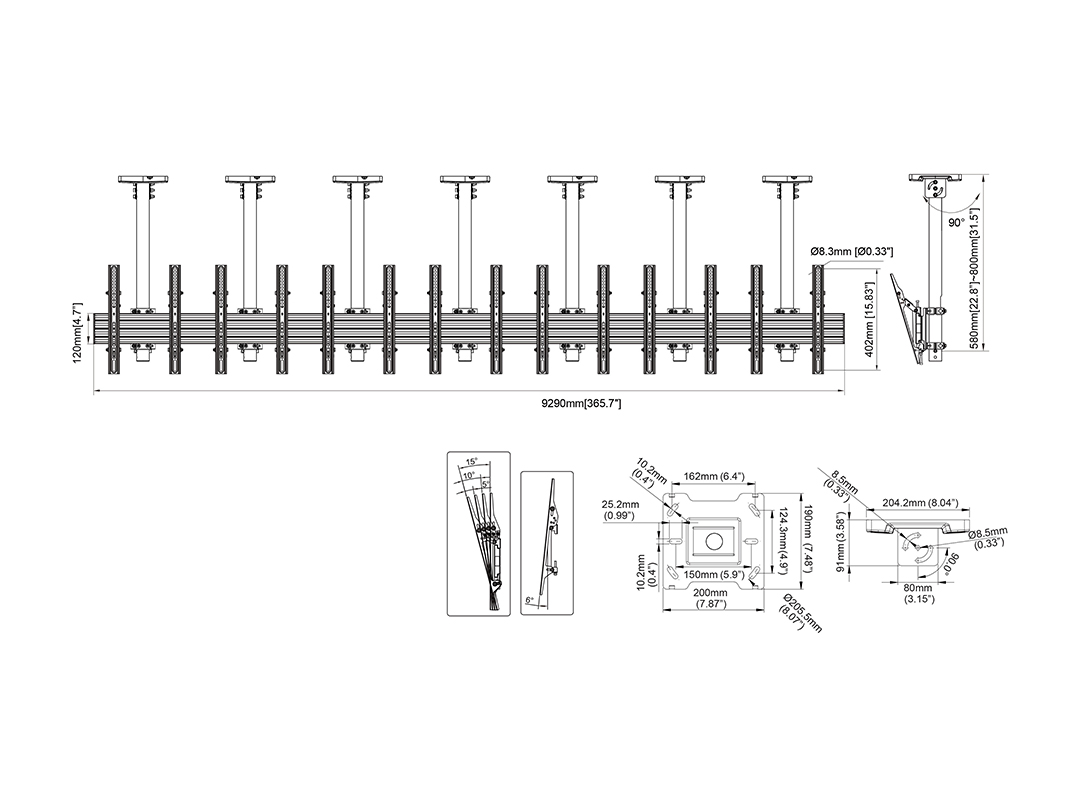

| Measurements: | 84x46.8x24cm + 104x32x30cm |
| Max Load: | 30 kg per screen |
| Pillar length: | 0.8m included |

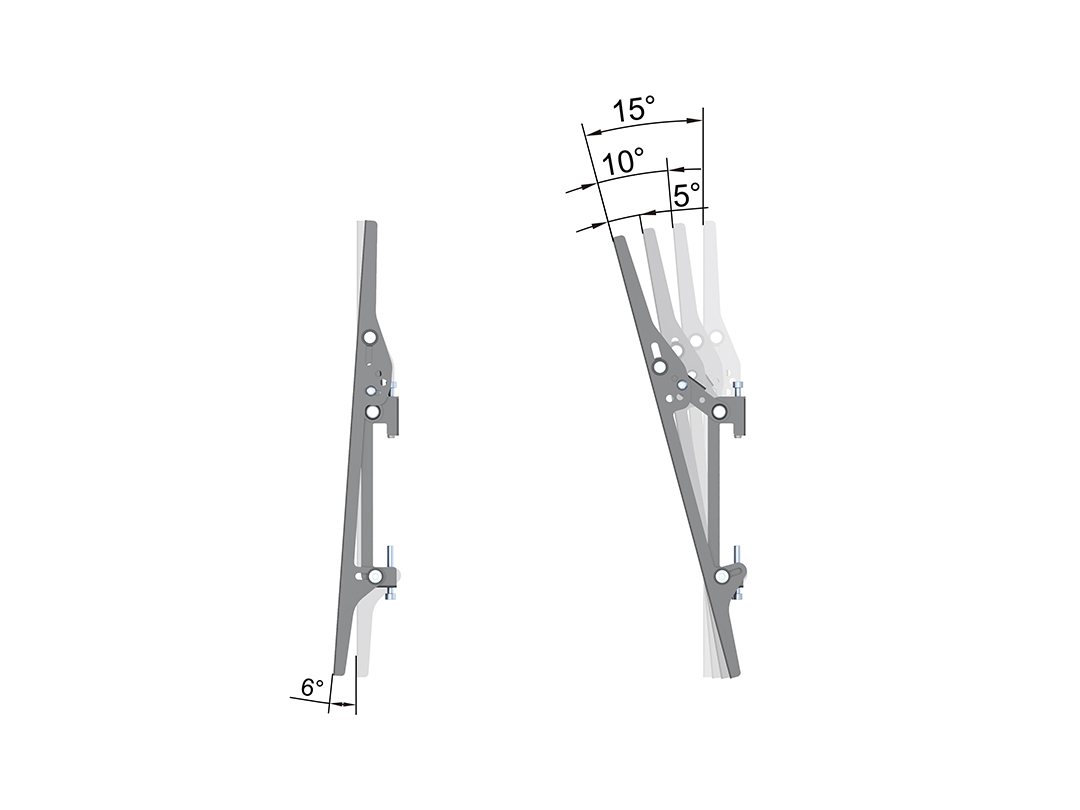

| Tilt: | Yes, -6~+15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |

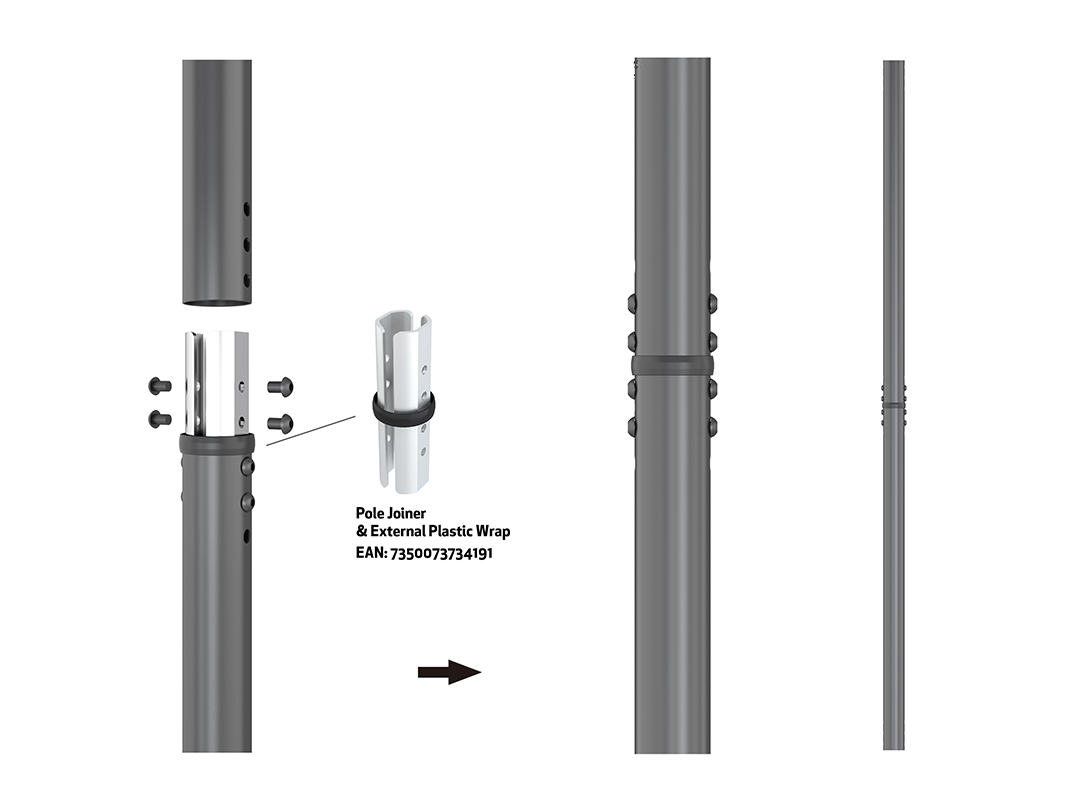

| Options: | Extension pipes: 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 84x46.8x24cm + 104x32x30cm |
| Package Weight: | 29.4kg + 40kg |
