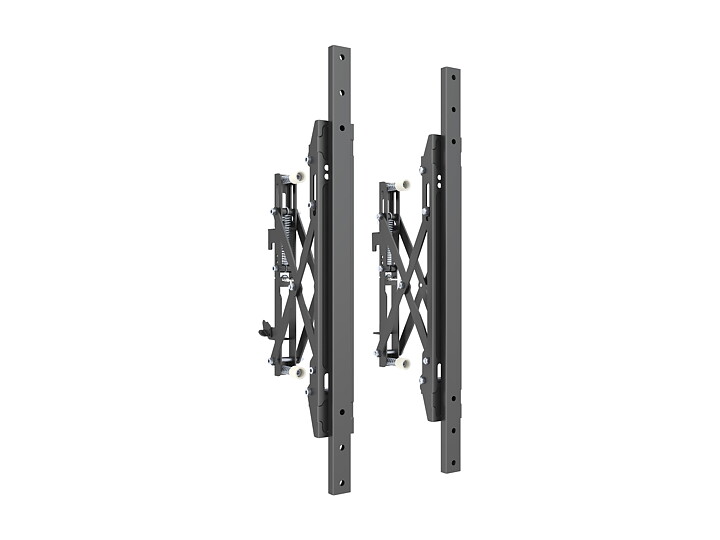

M Pro Series - M Push in Pop out Arms 600 mm
Options
Variants that match your options:
In stock: 203
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105210464
Product Overview

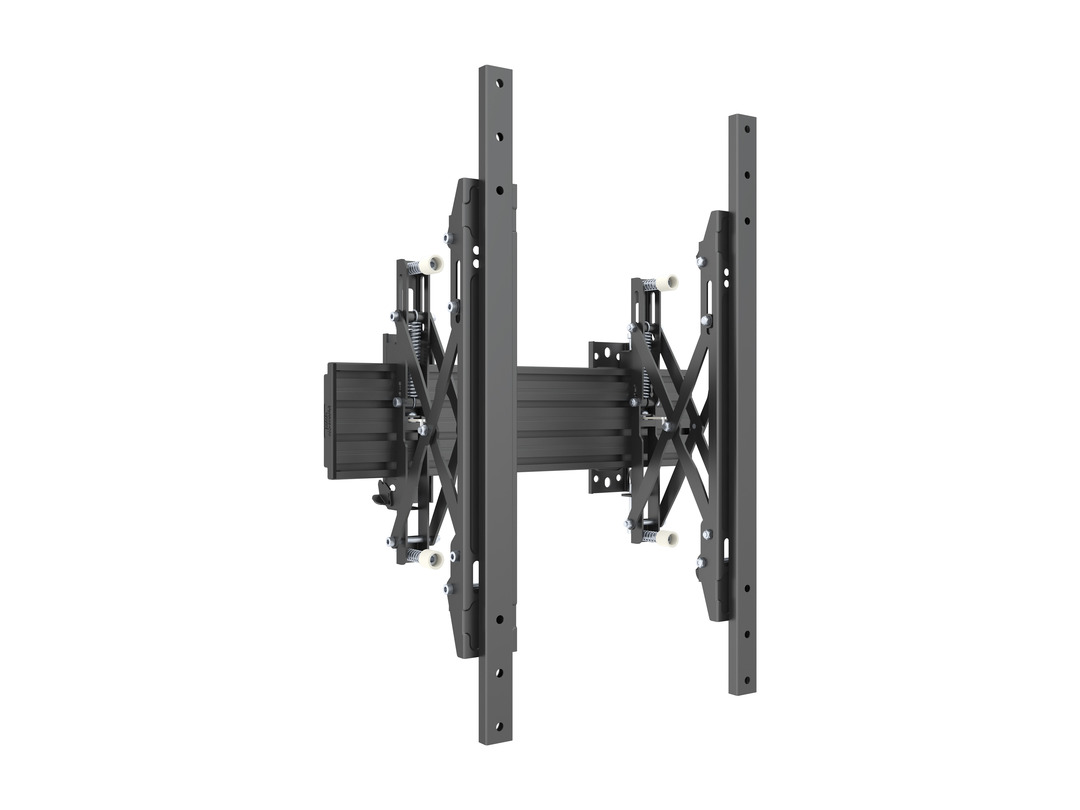

The M Pro Series – M Push in Pop out Pro, 600 mm Videowall mount might just be one of the market’s most innovative and easy to install video wall mounts available. With numerous post installation possibilities and a tailored pantograph alignment system, this might be the easiest to use yet one of the most powerful video wall mount systems you have seen.
With the market for menu boards and video wall installations growing at a fantastic pace, the need for high quality, affordable, and installer friendly mounting equipment has become urgent. Our Pro Series M Push in Pop out Pro, 600 mm is a video wall solution quick to install and easy to configure. Made especially with menu board and video wall applications in mind, this is a professional mount focusing on multiple screen installations, easy and fast installation, and simplified maintenance—making it an installer’s dream.
Highlights
- Easy-access after-service with the "Pop out" feature, allowing quick serviceability without removing neighboring screens

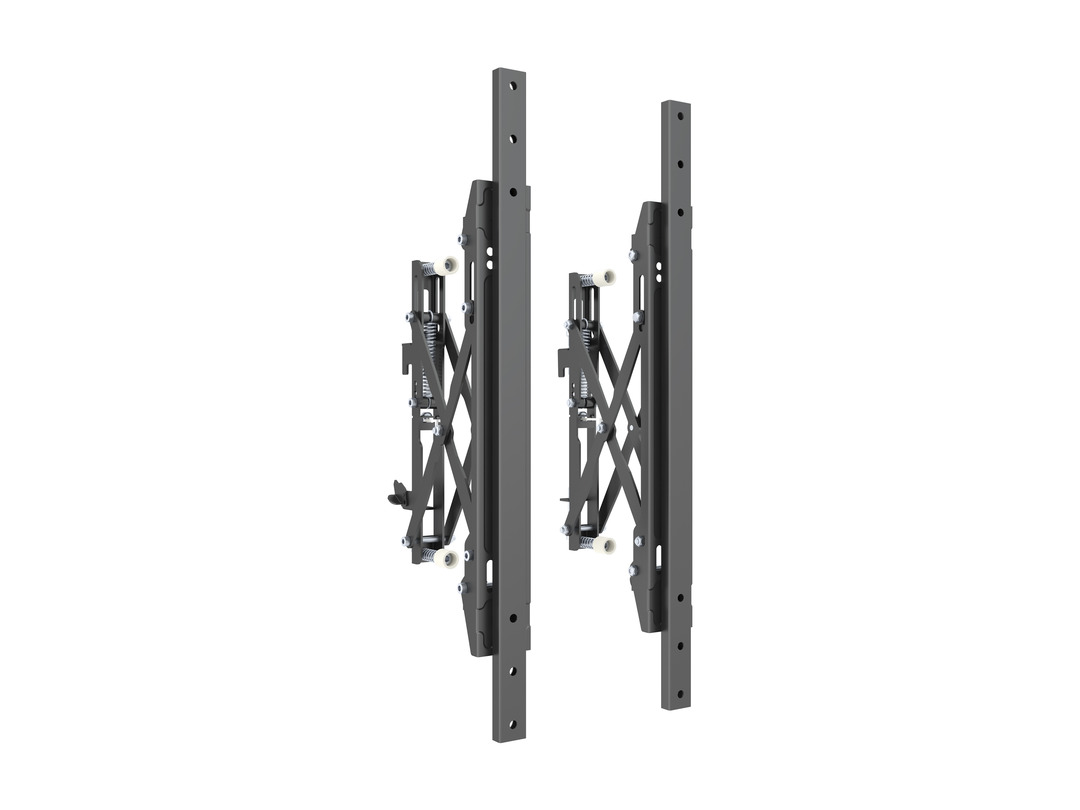

- Scissor arm construction enables screens to pop out smoothly and be pushed back after maintenance
- 8 fine-tune adjustment knobs allow individual depth, side, and height adjustments for perfect alignment
- Steel construction with 600mm arm length and 30kg max weight capacity
- Supports +0°/-3° tilt angle
- Ideal for video wall and menu board multi-screen installations
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design |
Pro Series Configuration Guide
| Specification | |
| M Pro Series - M Push in Pop out 600 mm | |
| Article No: | 7 350 105 210 464 |
| Article Combination of: | 4726+4733 |
| For screen size: | 40”-65" |
| Type: | Part for M Pro Series |
| Universal & VESA standard: | Adjustable from 100x100 to 400x400 max |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 4.5 kg (2 pcs) |
| Measurements | 950x110x88 mm |
| Max Load: | 30 kg per screen |
| Height adjustment: | Yes, 0-10mm |
| Depth adjustment: | Yes, 74-225mm |
| Tilt adjustment: | Yes, ±3° |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 95 x 11 x 8.8 cm |
| Package Weight: | 5.70 kg |
