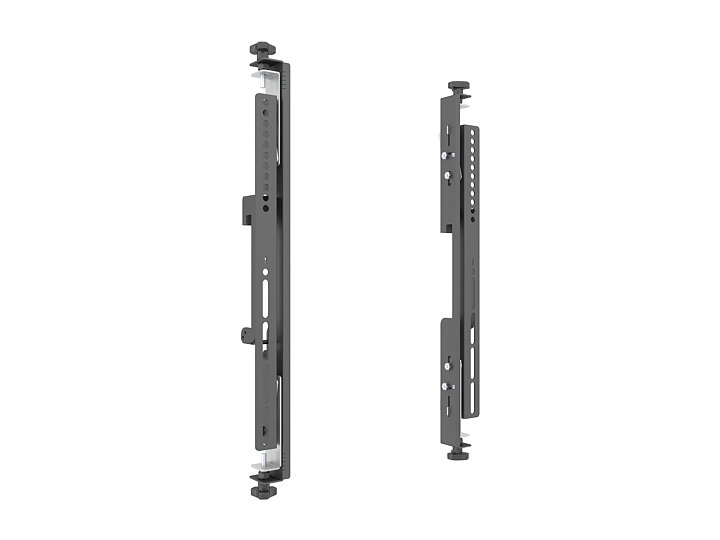

M Pro Series - Micro-Adjustable Arms 400mm
Micro-Adjustable Arms 400mm - Micro adjustable Arms, Part for Pro Series, steel, length: 400mm, 30kg max weight capacity, adjustable y-axis 0-5mm, z-axis 0-15mm, 3° rotate, 2 pcs - black
Options
Variants that match your options:
Price
Not available
Price
In stock: 491
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733798
Micro-Adjustable Arms 400mm - Micro adjustable Arms, Part for Pro Series, steel, length: 400mm, 30kg max weight capacity, adjustable y-axis 0-5mm, z-axis 0-15mm, 3° rotate, 2 pcs - black
Product Overview

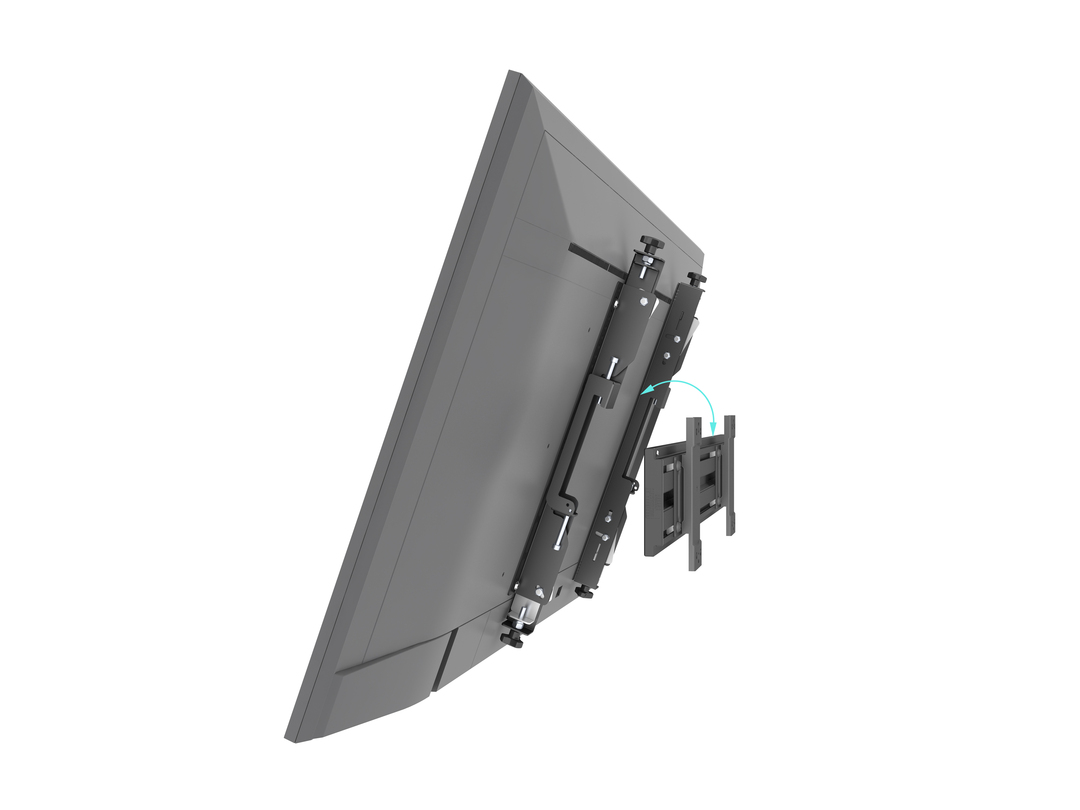

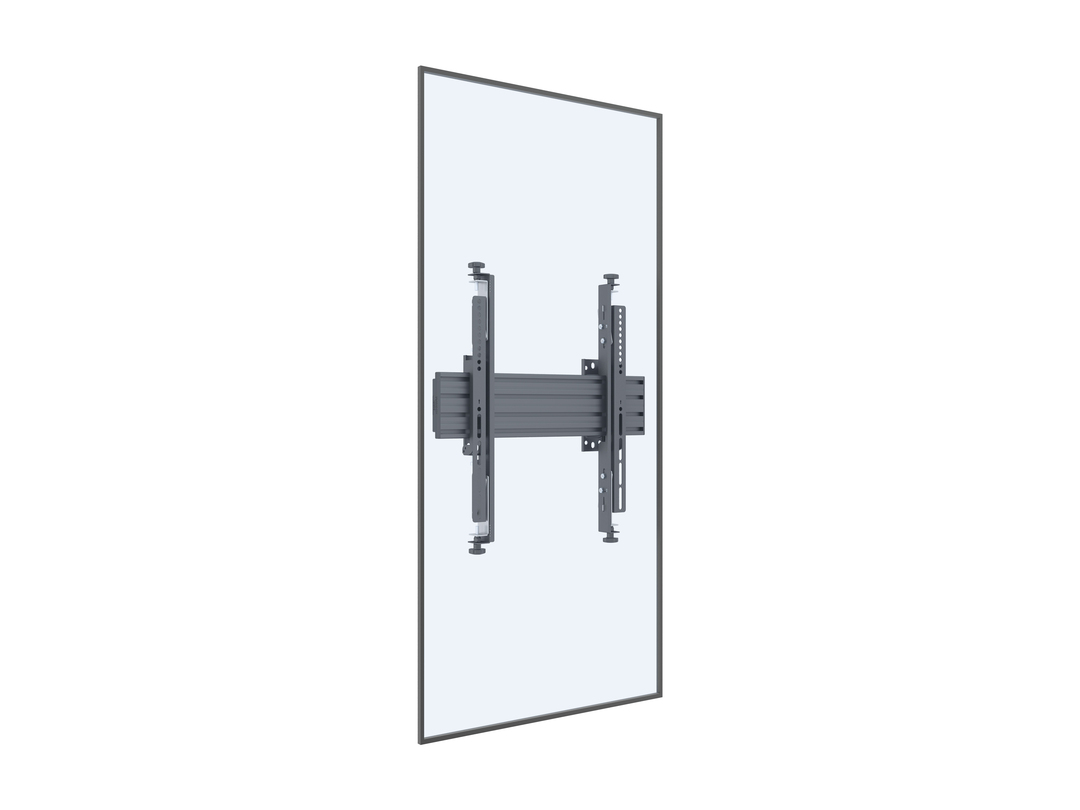

The Micro-Adjustable Arms 400mm are an essential part of the Pro Series, offering precise positioning for your screen mounts. Designed for modular construction, these arms provide vast possibilities to change, update, and reconfigure any Pro Series installation. Combine them with other Pro Series parts to create new configurations tailored to your specific needs.
These micro-adjustable arms are ideal for applications requiring fine-tuning of the screen position. Made from high-quality steel, they support up to 30kg, ensuring durability and stability.
Highlights

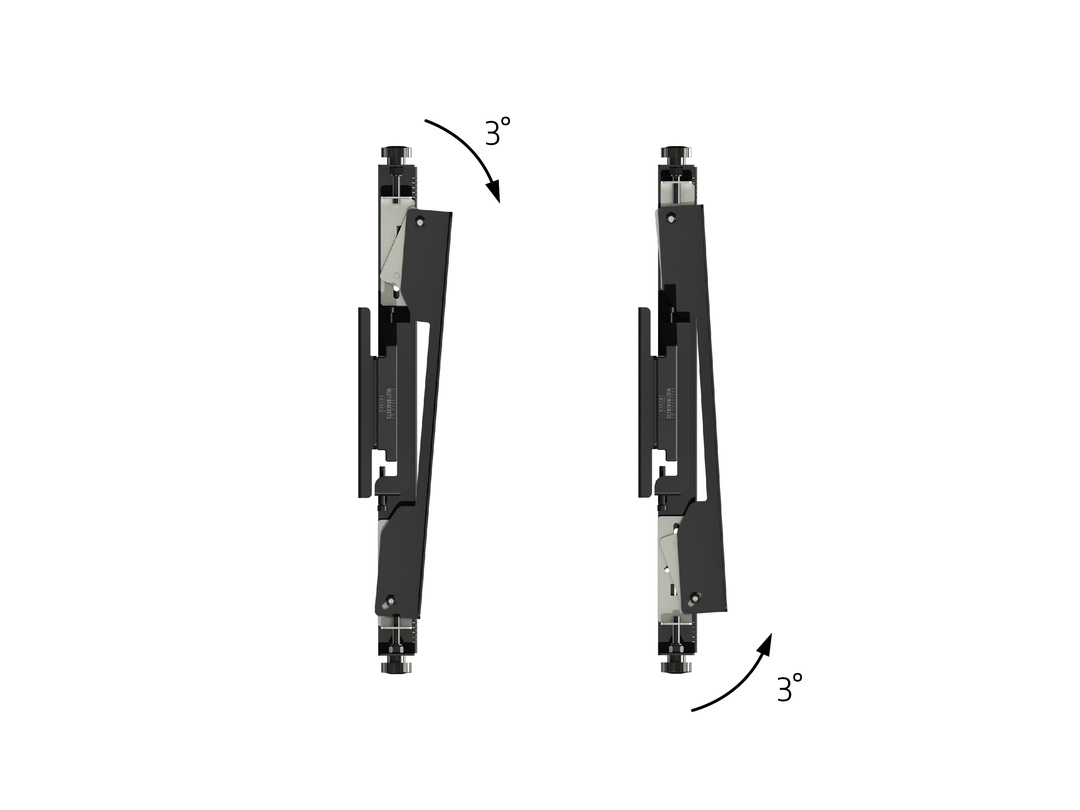

- Precision Adjustment: Fine-tune screen position with y-axis adjustment (0–5mm), z-axis adjustment (0–15mm), and ±3° rotation.

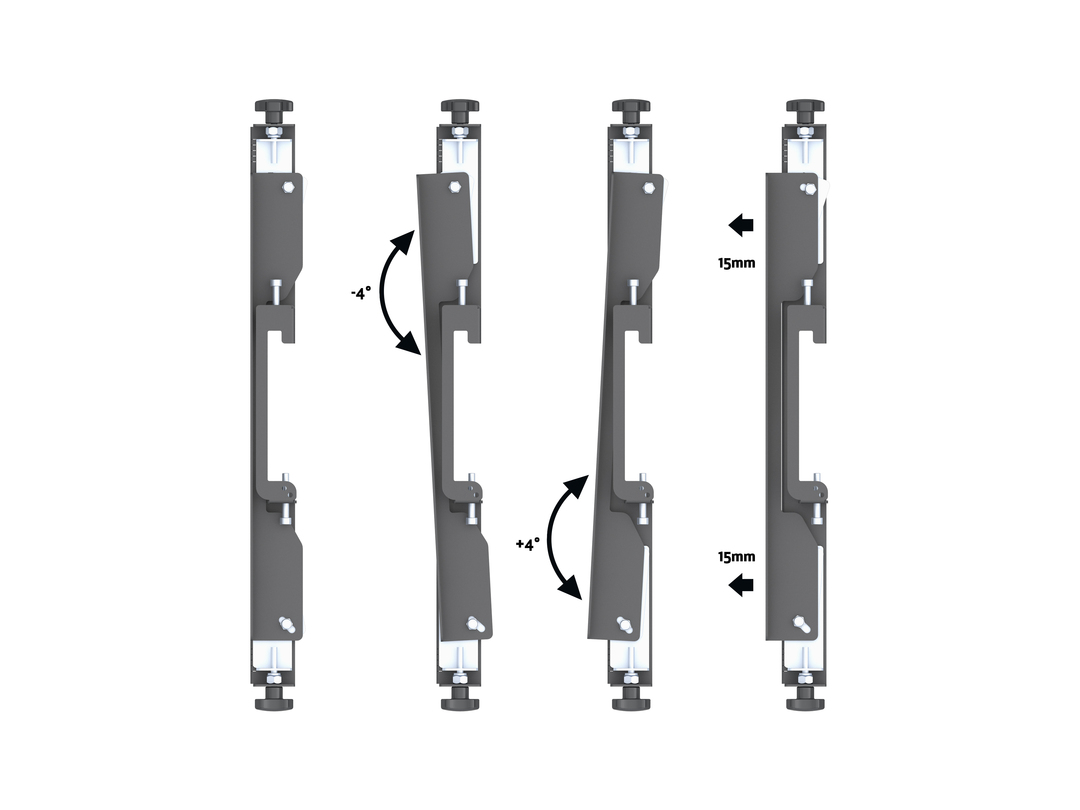

- Tilt Function: By turning the adjustable knob on one side only, achieve a tilt angle of +4°/–4°.
- Depth Adjustment: By turning both the top and bottom knobs simultaneously, adjust depth from min. 58mm to max. 73mm.
- Versatile Compatibility: Perfect for any Pro Series installation, allowing for easy updates and reconfigurations.
- Durable Construction: Made from robust steel, ensuring long-lasting performance.
- Optional Extension: VESA 600 extension kit available (EAN 7350073734733).
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design |
| Specification | |
| M Pro Series Micro-Adjustable Arms 400mm | |
| Article No: | 7 350 073 733 798 |
| For screen size: | 40”-65" |
| Type: | Part for M Pro Series |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 5 kg (2 pcs) |
| Measurements | 543x49x47 mm |
| Max Load: | 30 kg per screen |
| Height adjustment: | Yes, 0-5mm |
| Depth adjustment: | Yes, 0-15mm |
| Tilt adjustment: | Yes, ±3° |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 57.2 x 5.7 x 12 cm |
| Package Weight: | 2.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 5 pcs |
| Package Measurements: | 58.4 x 30 x 13.8 cm |
| Package Weight: | 12.90 kg |
