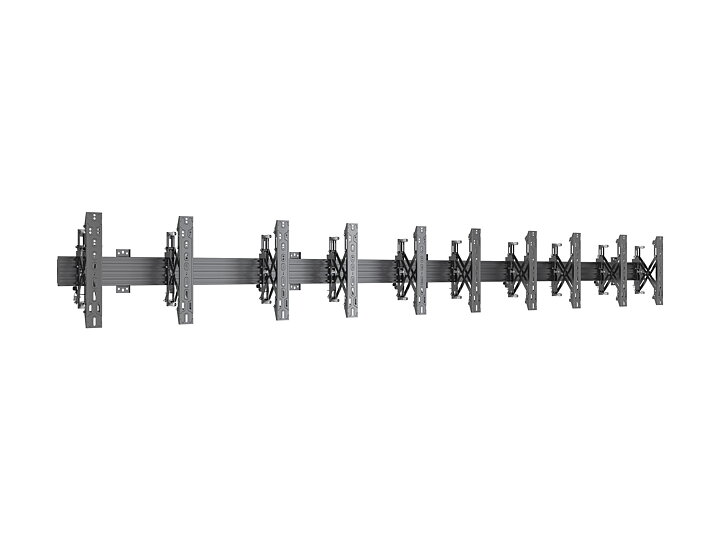

M Wallmount Pro MBW5X1U Push In Pop Out
M Wallmount Pro MBW5X1U Push In Pop Out - Wall mount for LCD display, steel, 5 screens, single side, adjustable, VESA Max 600x400 - screen size: 37"-65" - black - TUV
Options
Variants that match your options:
Price
Not available
Price
In stock: 45
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105219498
M Wallmount Pro MBW5X1U Push In Pop Out – Wall mount for LCD display, steel, 5 screens, single side, adjustable, VESA Max 600x400 – screen size: 37"-65" – black – TÜV
Product Overview

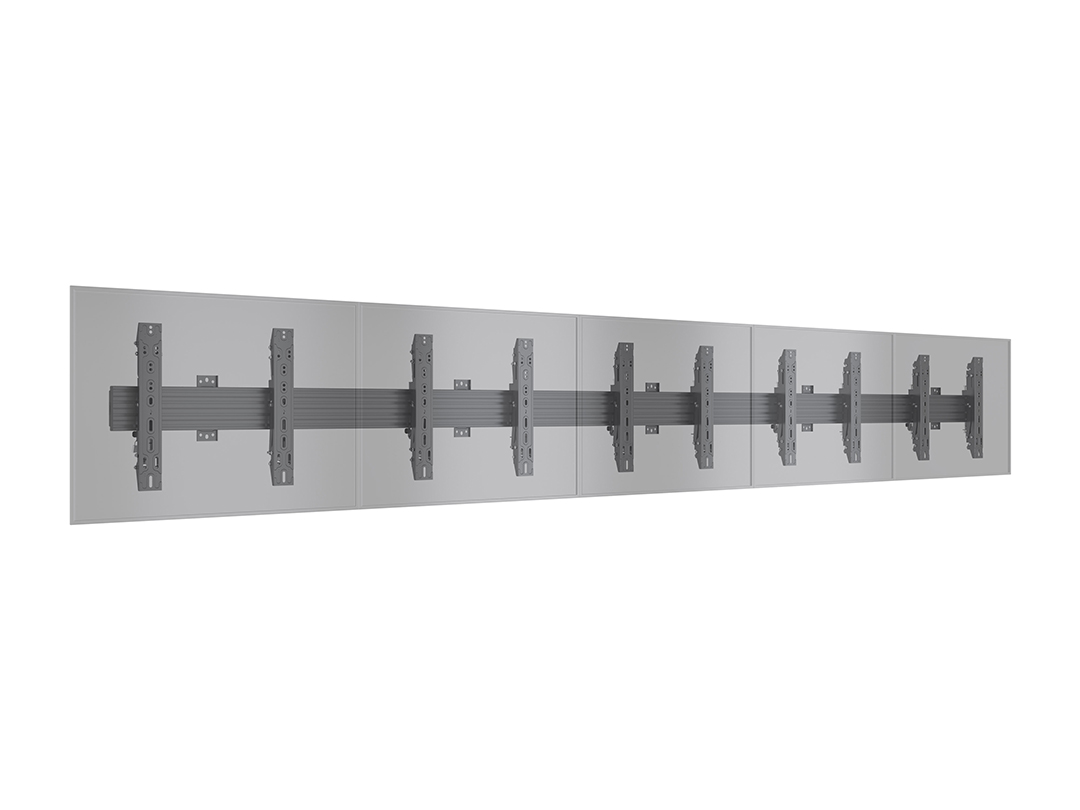

The M Wallmount Pro MBW5X1U Push In Pop Out is part of the Multibrackets® Pro Series – a professional wallmount system tailored for 5-screen video wall installations. Built for precision and performance, it’s ideal for digital signage environments where serviceability, design and speed of installation are key factors.

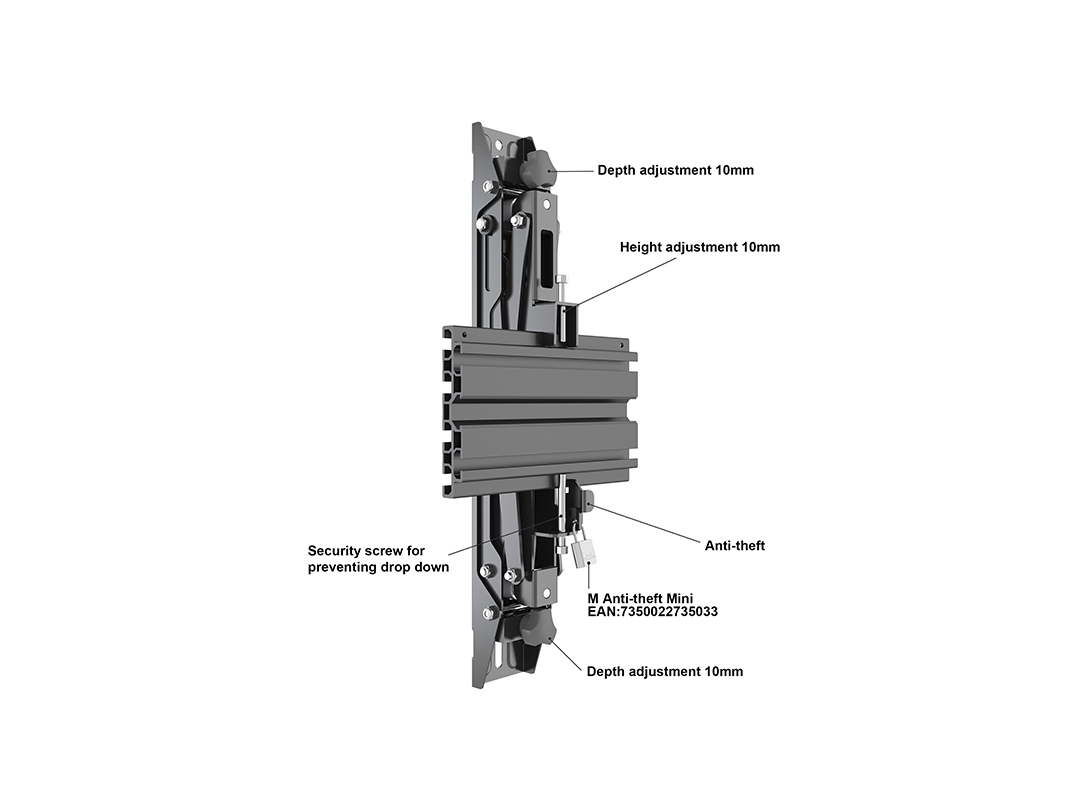

This solution features push-in pop-out functionality and modular aluminum rails for easy installation and maintenance. Each screen can be individually fine-tuned with depth, height and side-to-side adjustments, ensuring a clean and aligned setup – even across multiple displays.
Highlights

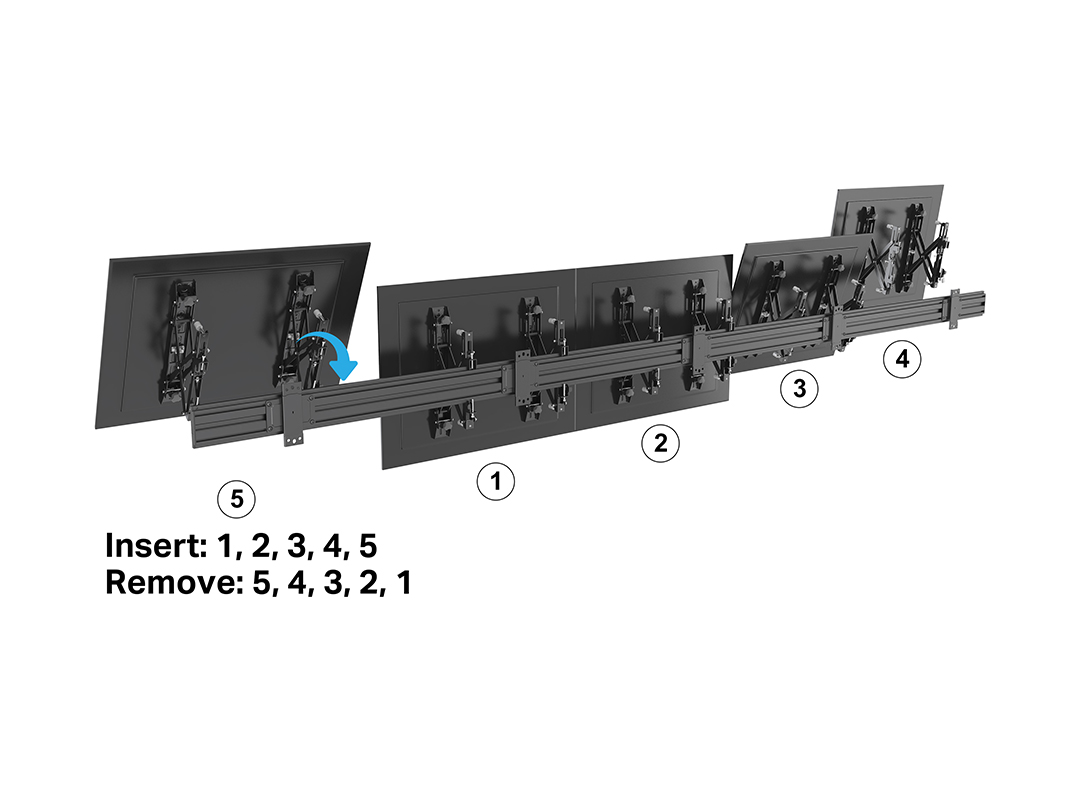

- Push-in pop-out mechanism – optimized for video walls and menu boards
- Compatible with VESA 600x400 and 400x600 (with optional extenders)

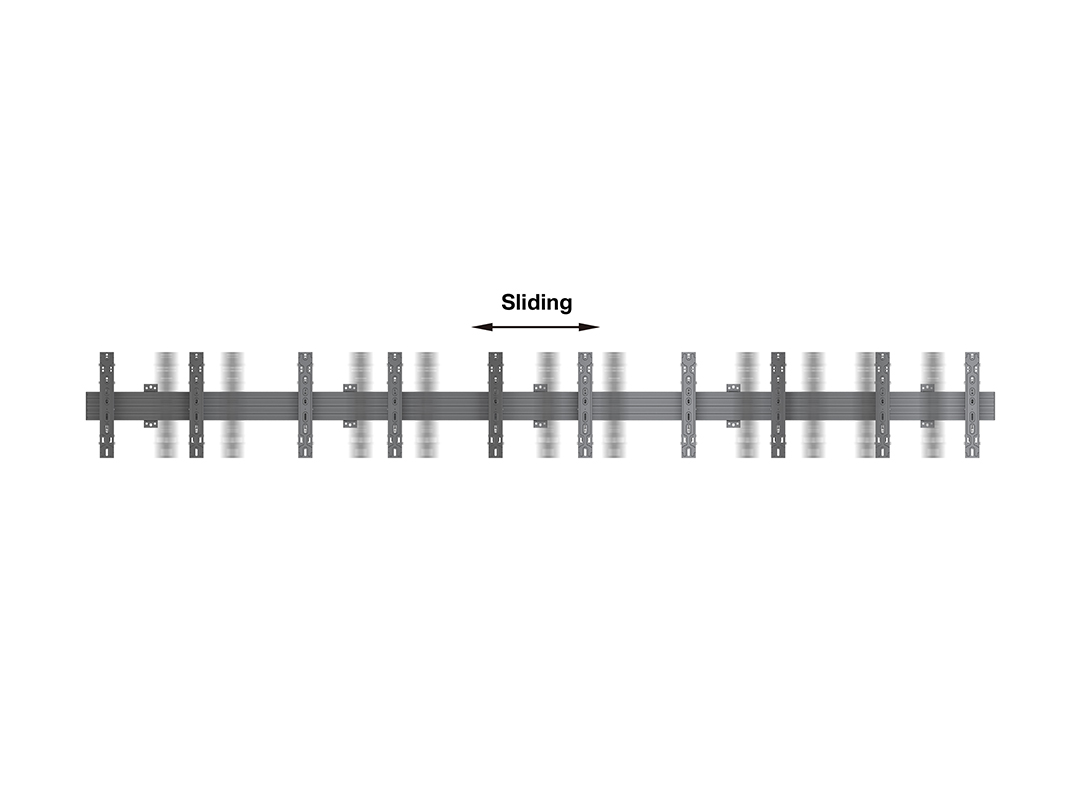

- Modular aluminum rails – customizable length without cutting
- Tool-free fine adjustments for seamless screen alignment
- Integrated cable management for a clean, professional finish
- Dual wallplates included for added stability
- Supports both portrait and landscape screen orientations

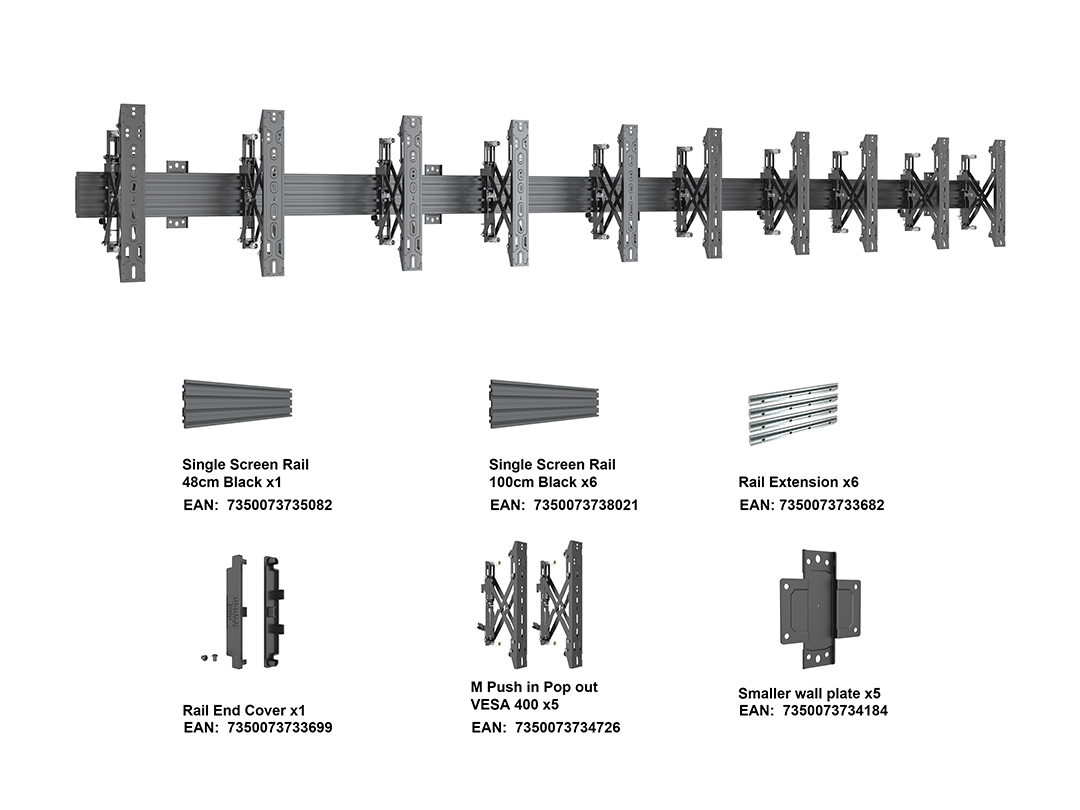

- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Wallmount Pro MBW5X1U Push In Pop Out | |
| Article No: | 7 350 105 219 498 |
| For screen size: | 37”-65" |
| VESA: | 100x100, 100x200, 200x100, 200x200, 300x300, 400x200, 400x400, 600x400 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 23.5kg+21.4kg |

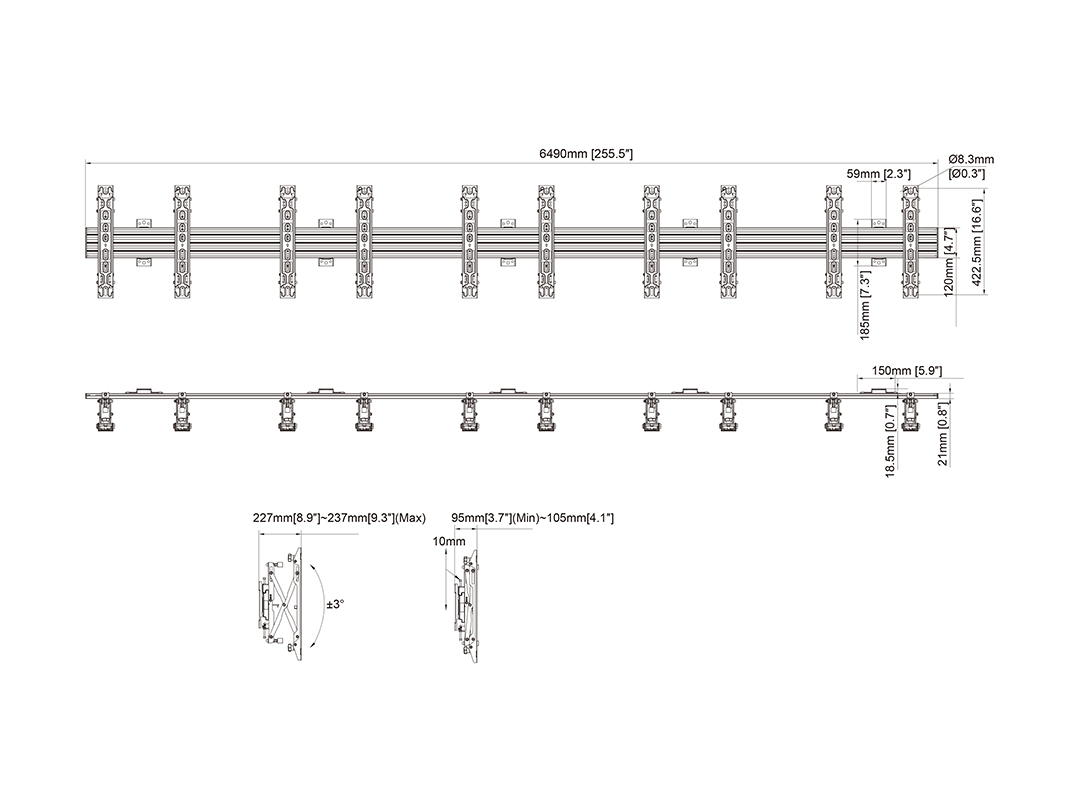

| Measurements | 104.5x16.0x15.5cm+49x46x19cm |
| Max Load: | 40 kg per screen |

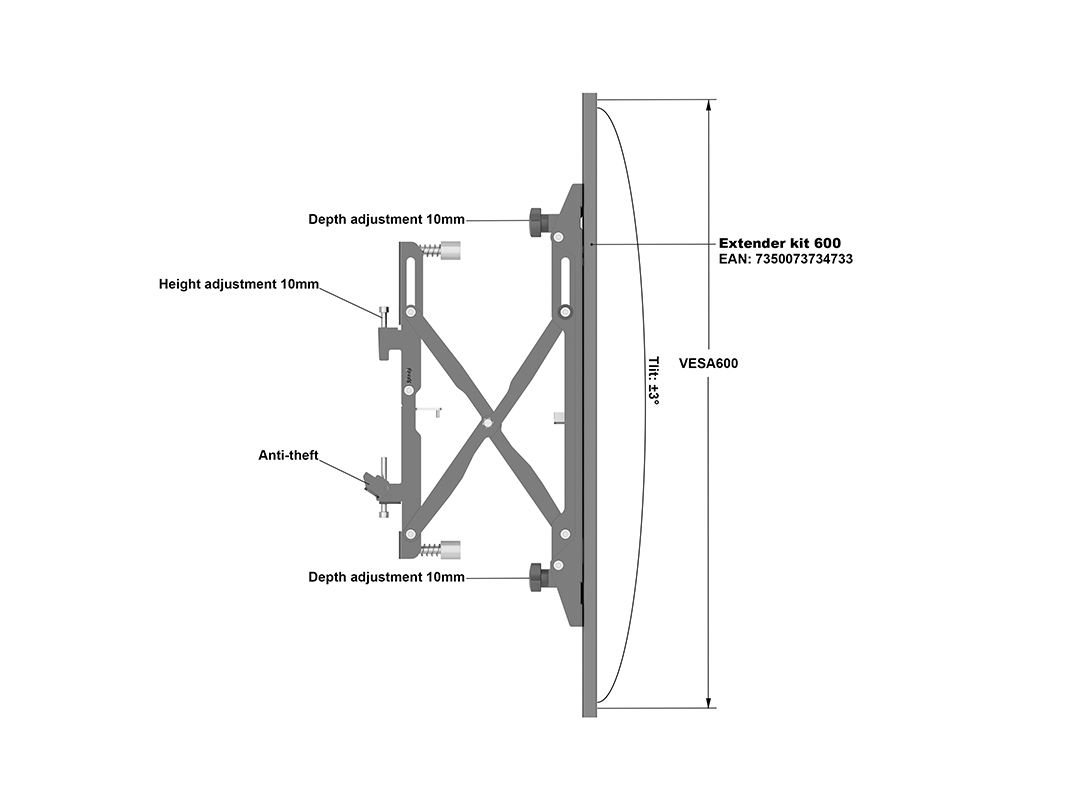

| Height adjustment: | Height adjustment 10mm |
| Tilt adjustment: | Yes, ±3° |
| Cable Management: | N/A |
| Options: | M Pro Series Parts |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 2 pcs |
| Package Measurements: | 104.5x16.0x15.5cm+49x46x19cm |
| Package Weight: | 23.5kg+21.4kg |
