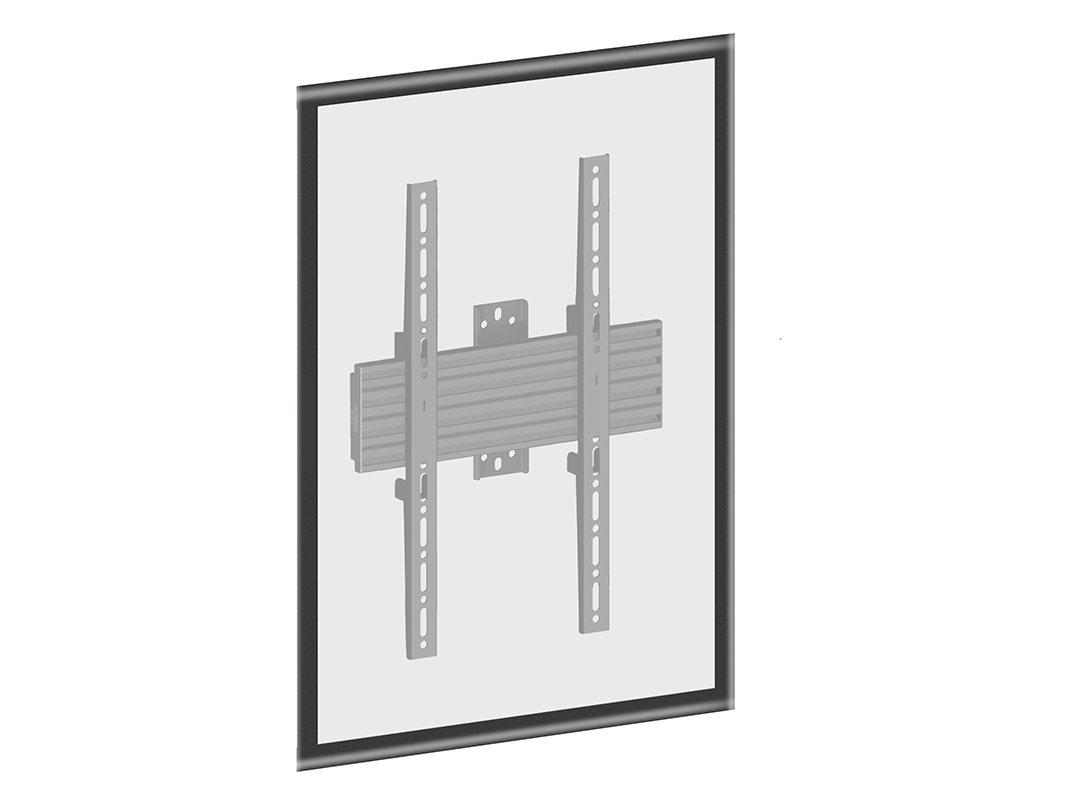

M Wallmount Pro MBSTH1UP VESA 200x600 Fixed Black
Options
Variants that match your options:
In stock: 217
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073734313
Product Overview

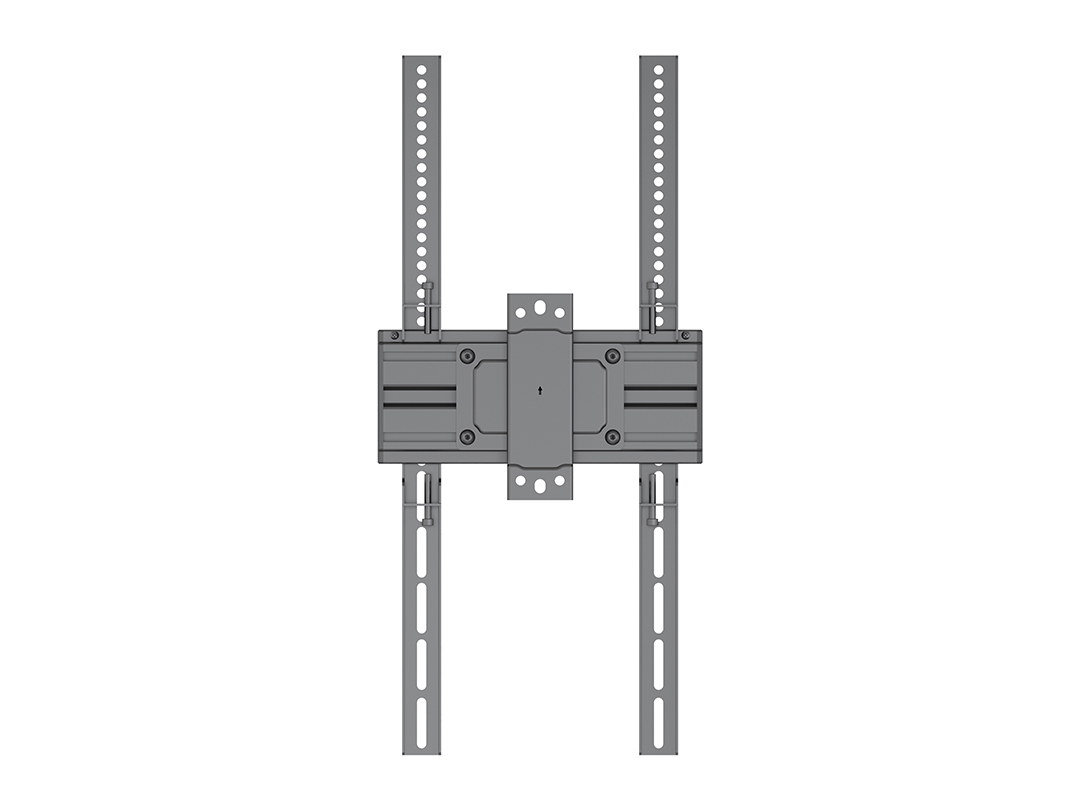

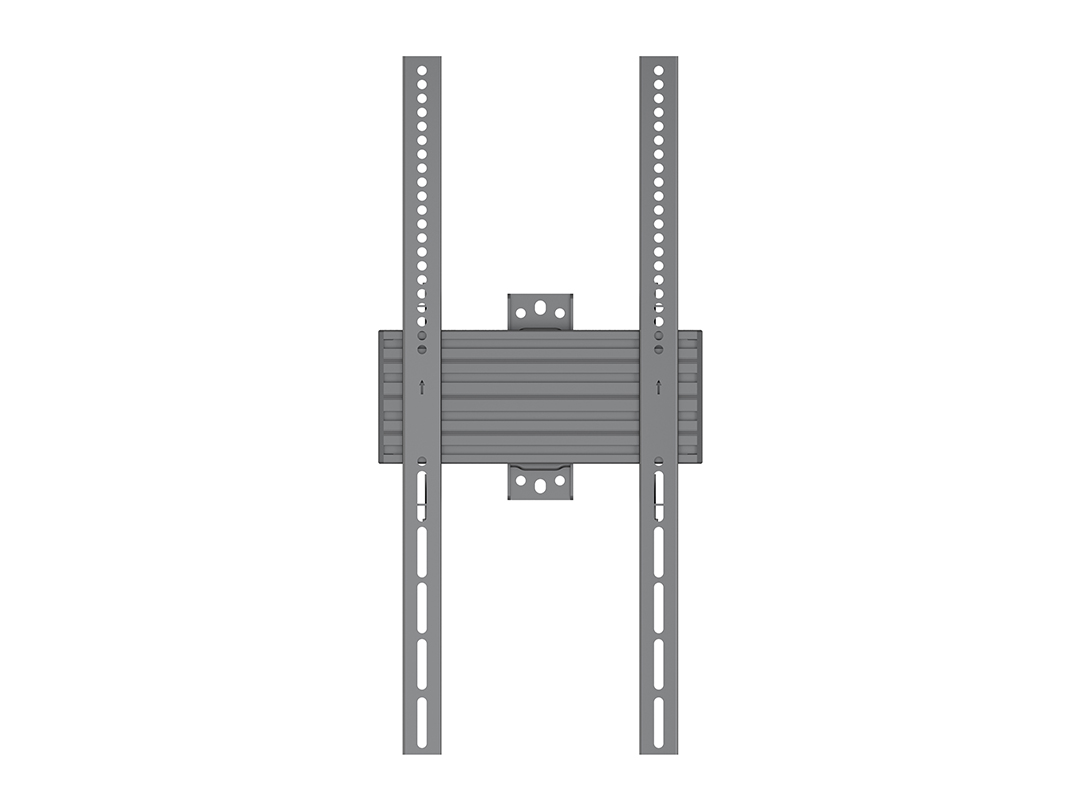

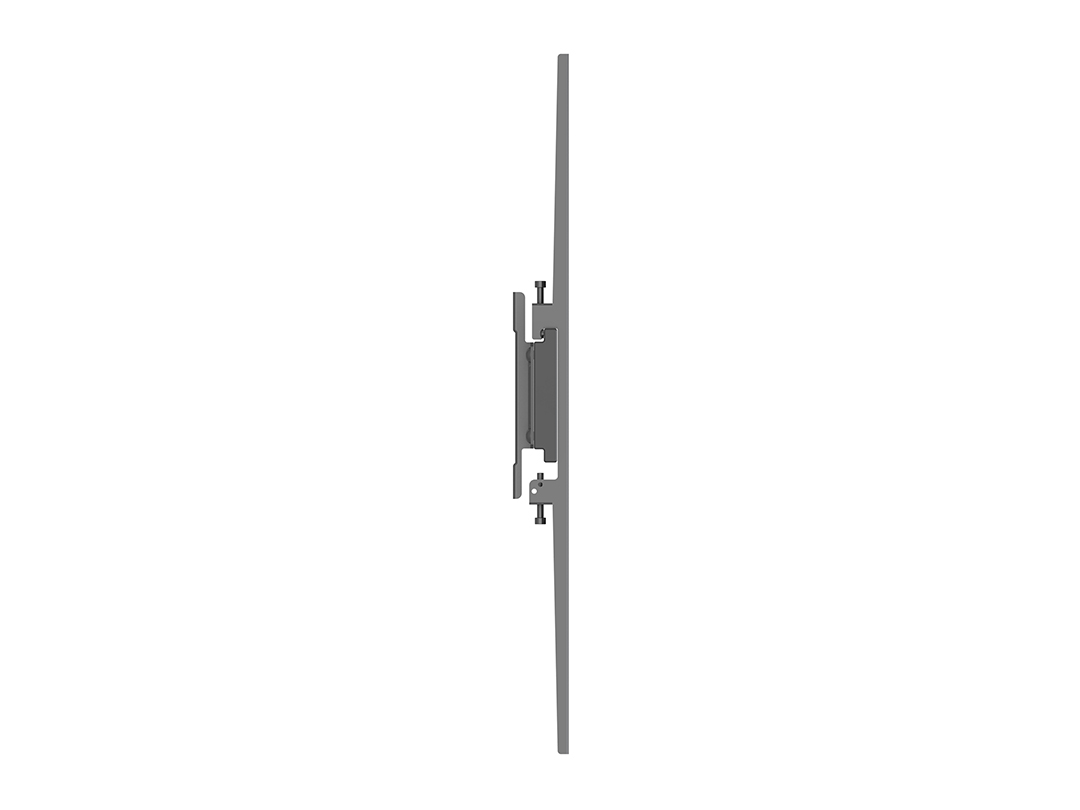

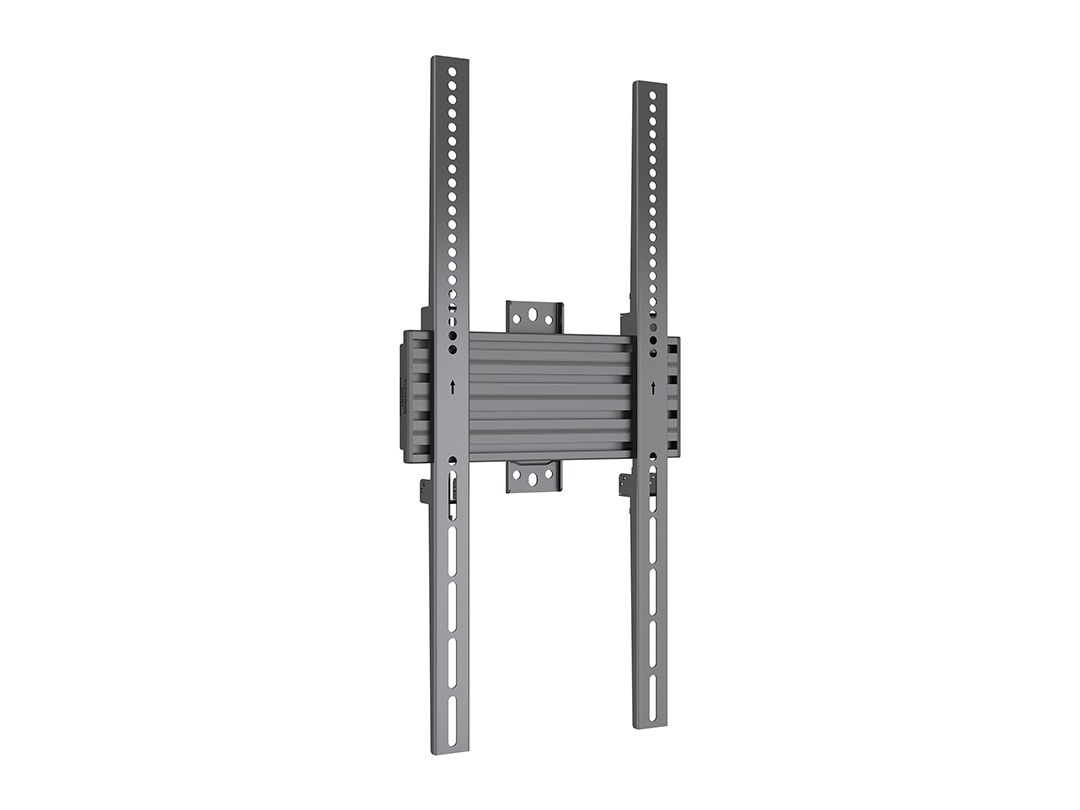

The M Wallmount Pro MBSTH1UP VESA 200x600 Fixed Black from Multibrackets is a professional-grade wall mount designed specifically for ultra-stretch digital signage displays such as the LG 86BH5C, particularly in portrait orientation. With support for VESA patterns up to 200x600 and screen sizes from 40" to 100", it is the ideal mounting solution for high-impact visual installations in public and commercial spaces.
This wall mount is part of the modular Pro Series, engineered for maximum flexibility and installer-friendliness. Its strong aluminum rail system offers integrated cable management and allows tool-less installation via the Power Click™ system. Designed with Scandinavian precision and aesthetics, the MBSTH1UP combines functionality with clean, professional visuals.
Highlights

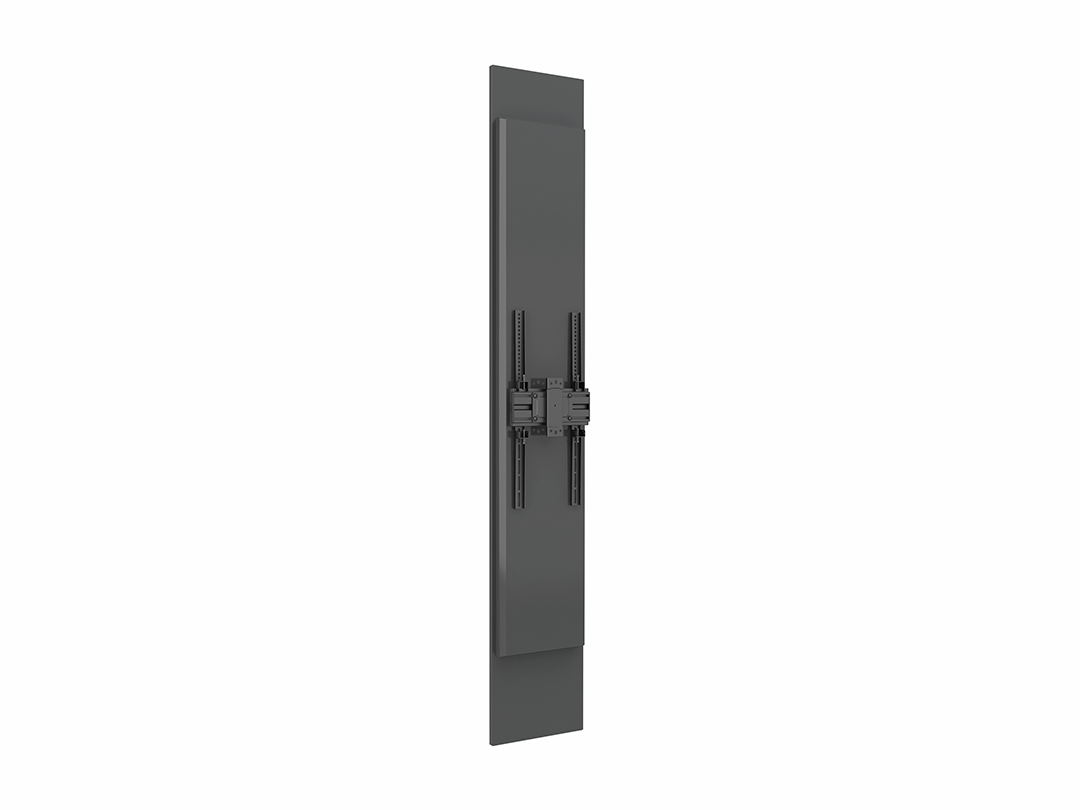

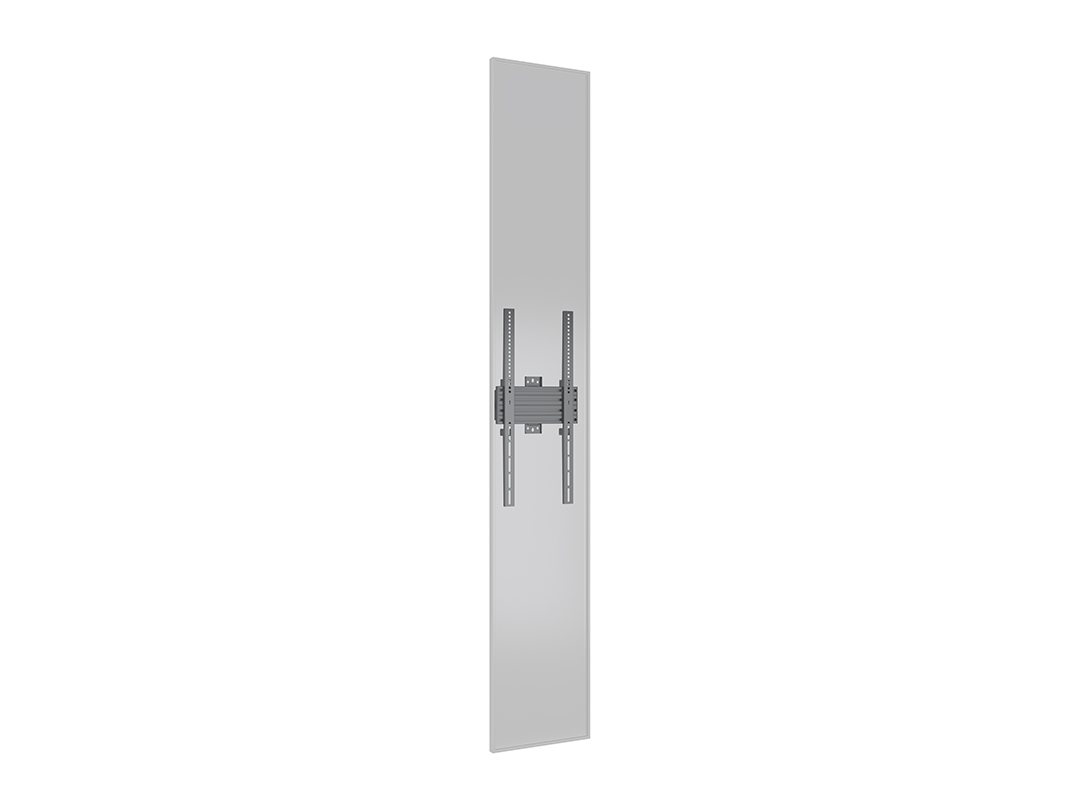

- Optimized for ultra-stretch displays such as LG 86BH5C in portrait orientation
- Supports VESA patterns up to 200x600 – adapter kit included
- Ideal for digital signage in transportation, retail, and corporate environments

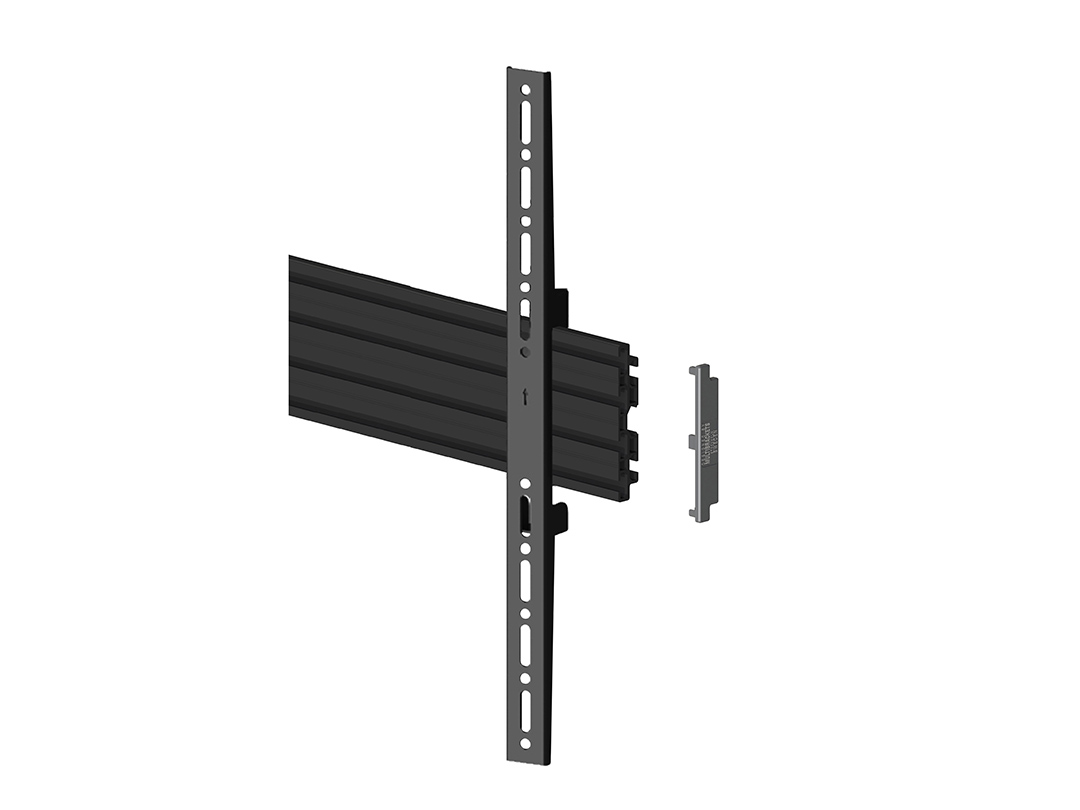

- Modular aluminum rail system – extendable without cutting
- Integrated cable management ensures a tidy, professional installation
- Power Click™ tool-less install for quick and secure mounting
- Dual wallplates for added structural support
- Supports both portrait and landscape configurations
- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Configuration Guide
Selected models are TÜV approved.
| Specification | |
| M Wallmount Pro MBSTH1UP VESA 200x600 Fixed Black | |
| Article No: | 7 350 073 734 313 |
| For screen size: | 40”-100" |
| Type: | Single Side MBSTH1UP |
| Universal & VESA standard: | Adjustable from 100x100 to 200x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 6.2 kg |

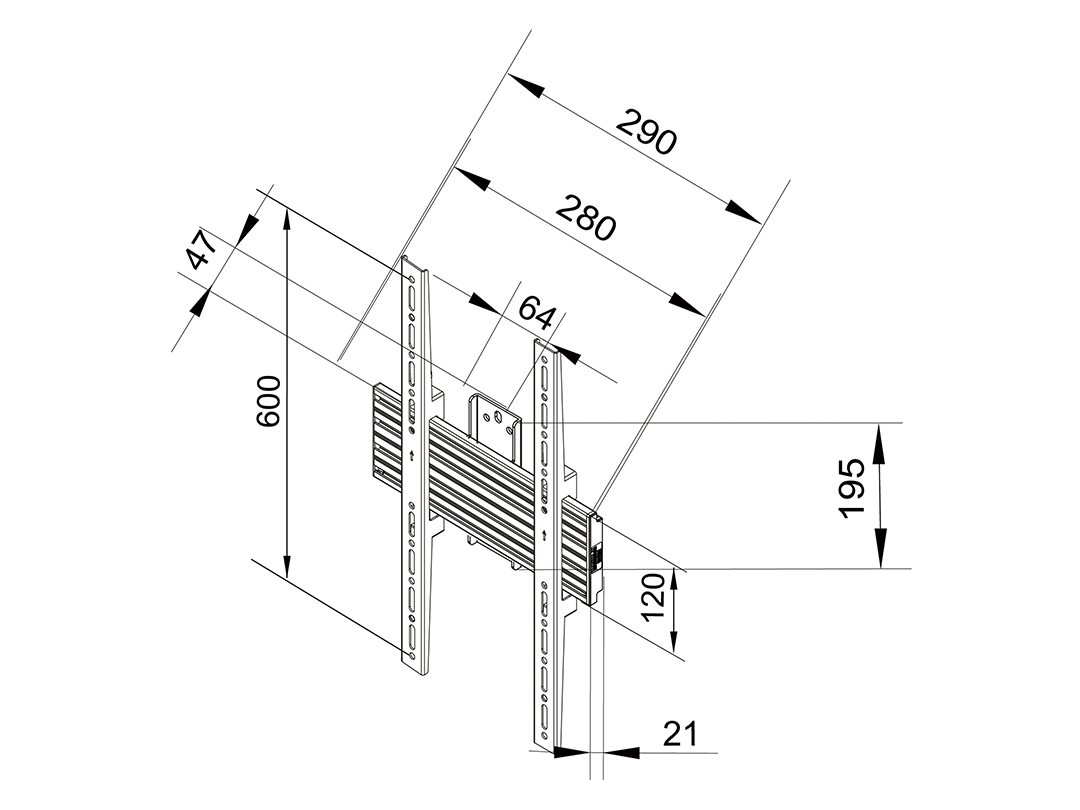

| Measurements | 68x63x7.5 cm |
| Max Load: | 75 kg per screen |
| Tilt: | No |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 66 x 16.5 x 8.5 cm |
| Package Weight: | 3.40 kg |
