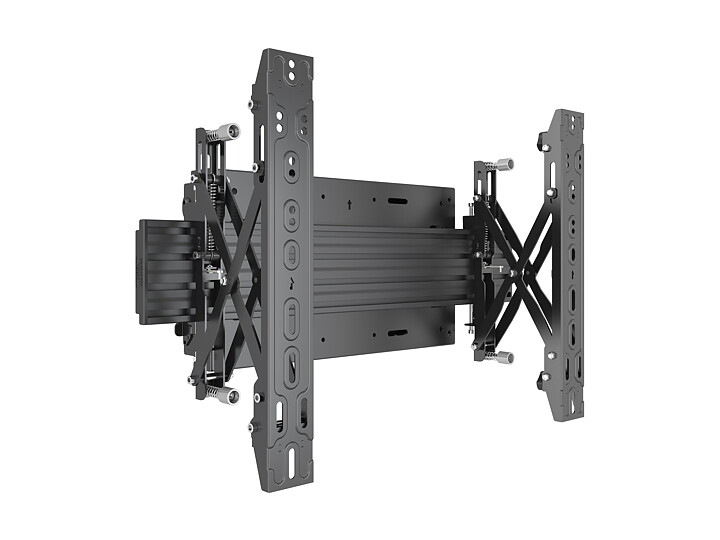

M Wallmount Pro MBW1U Push in Pop out Black - Wallbox
Options
Variants that match your options:
In stock: 155
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022733534
Product Overview

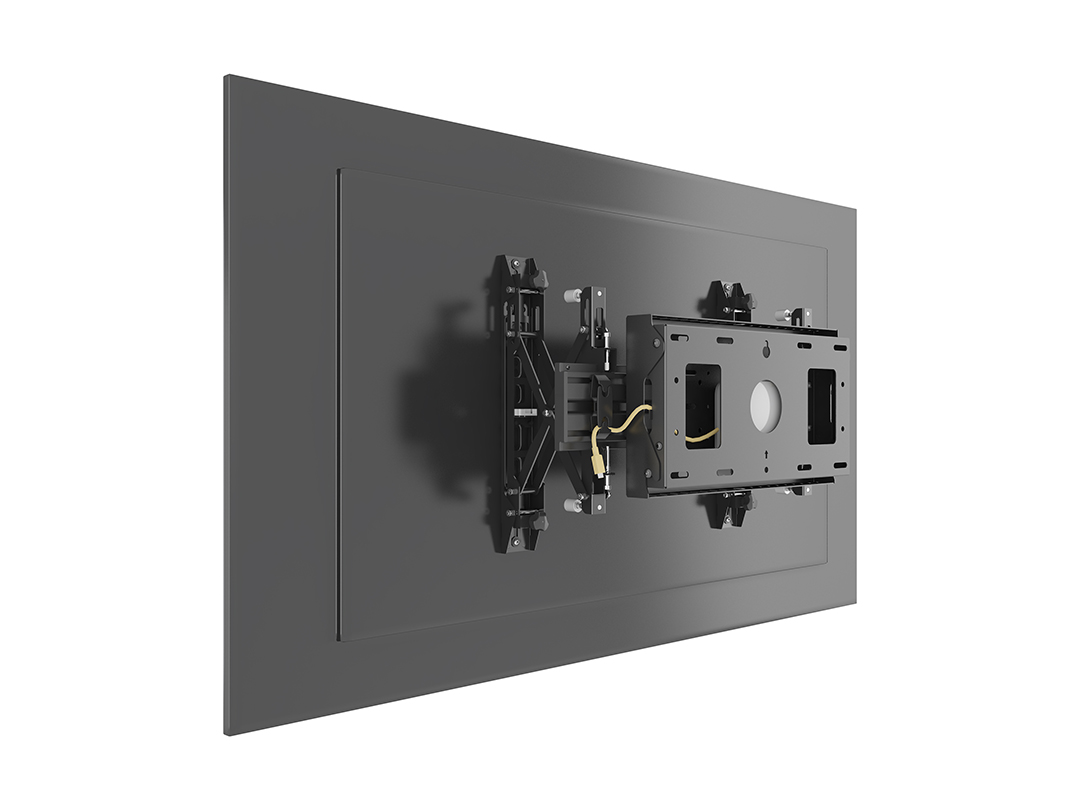

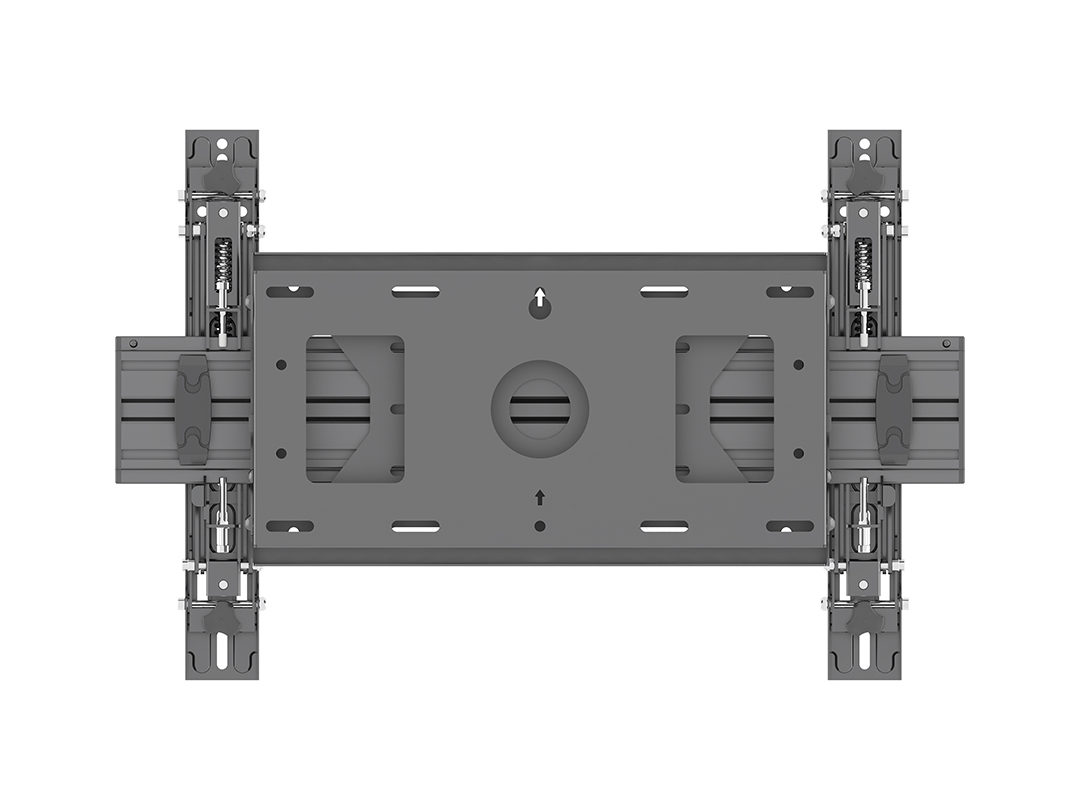

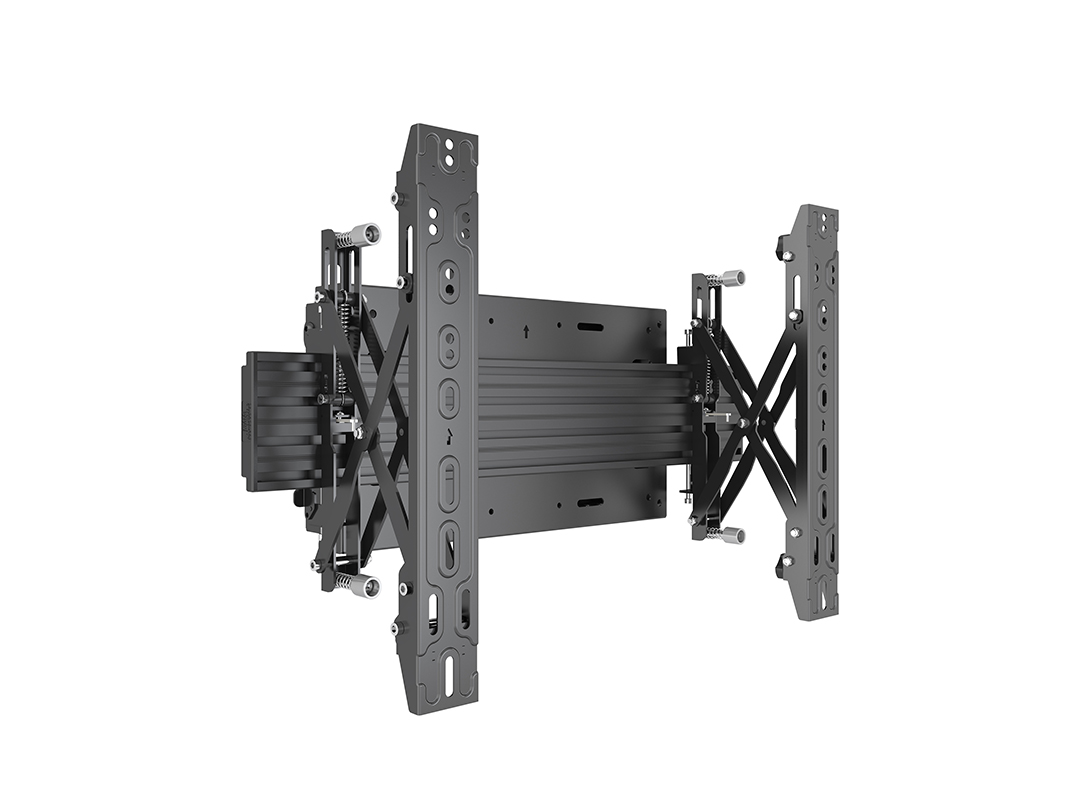

The M Wallmount Pro MBW1U Push in Pop out Black with integrated wallbox is a professional-grade mounting solution designed for commercial displays up to 75". It combines the functionality of a push-in pop-out mechanism with built-in storage behind the screen, making it ideal for AV equipment that needs to stay hidden yet accessible.
This mount is part of the Multibrackets Pro Series, offering modular flexibility, Scandinavian design, and ease of use for installers. The push-in pop-out function allows for effortless maintenance access and precise positioning. Built-in cable management ensures a clean and organized appearance, suitable for high-end digital signage applications.
Click to view larger images
Highlights

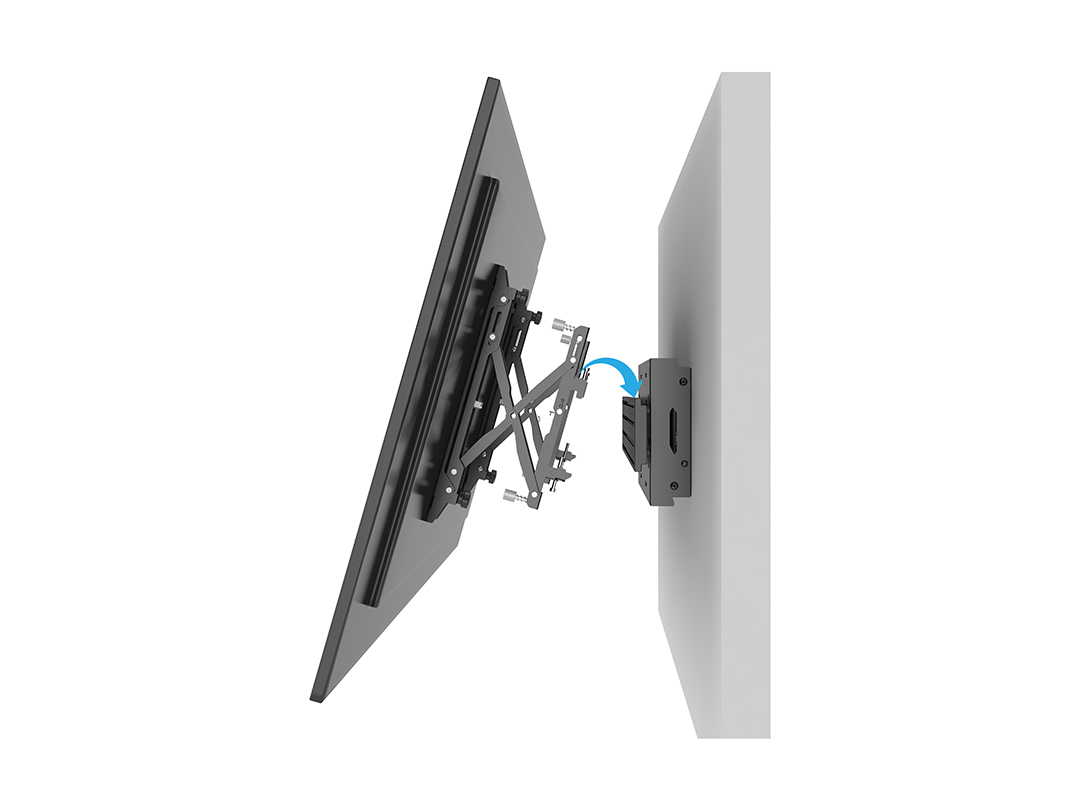

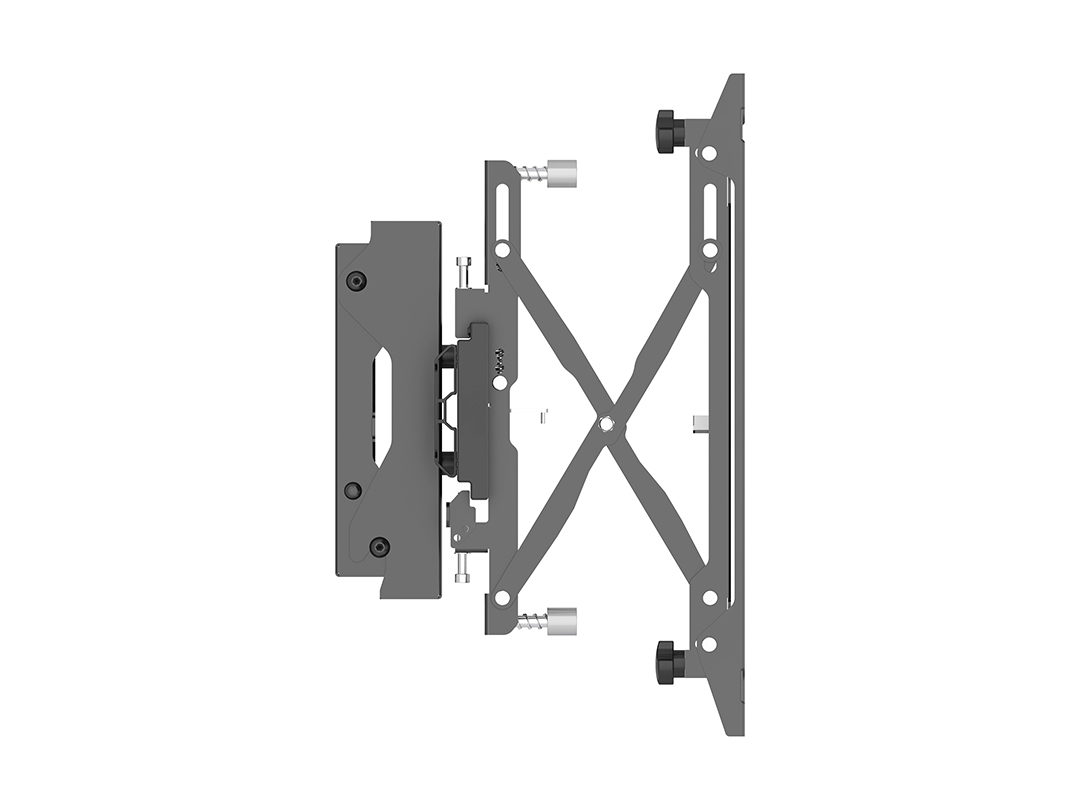

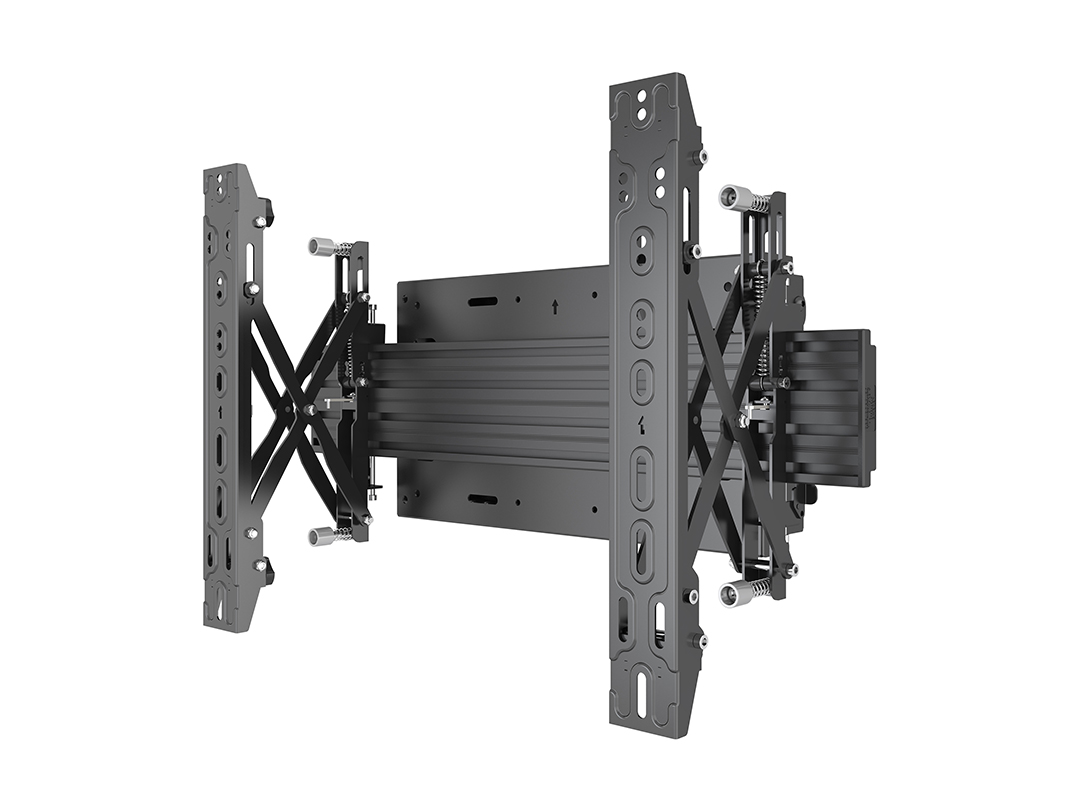

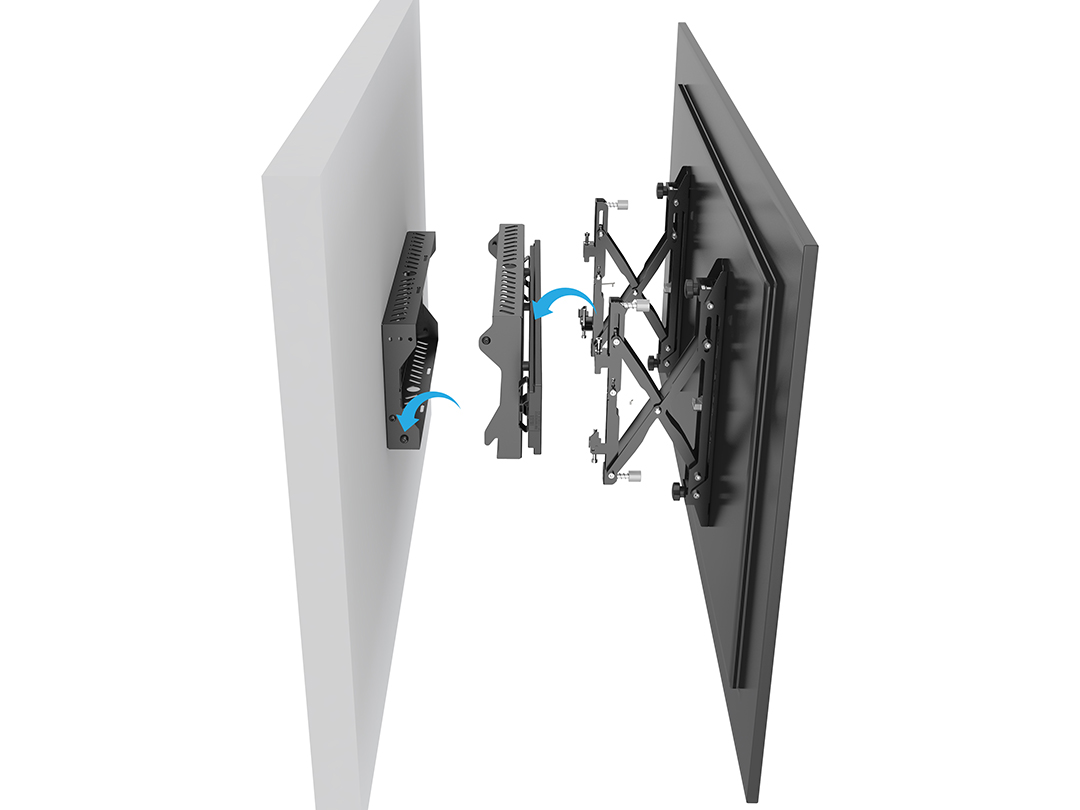

- Push-in pop-out mechanism for flexible screen adjustment and service access

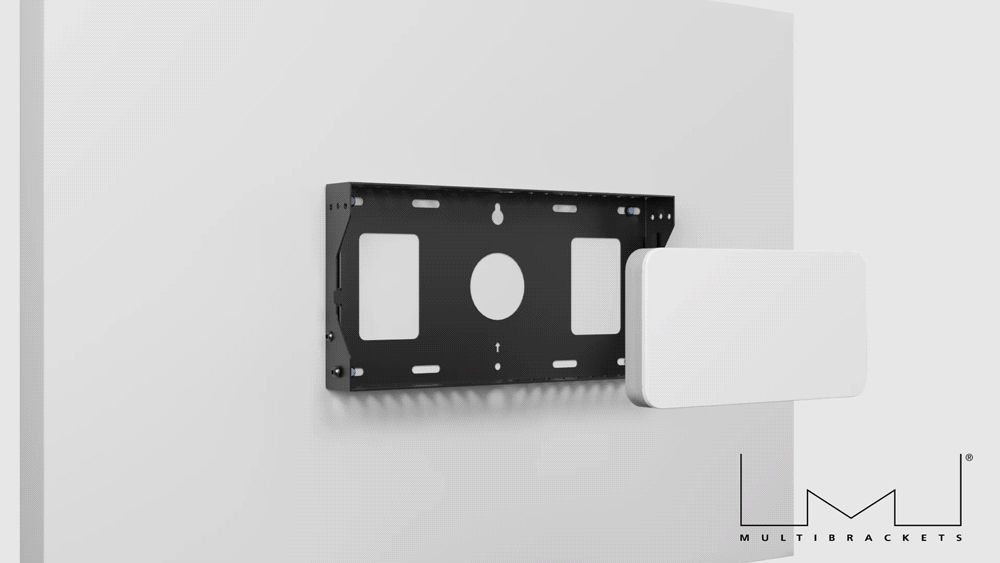

- Integrated wallbox to conceal AV gear behind the screen
- VESA compatible up to 600x400 – ideal for 40"-75" displays

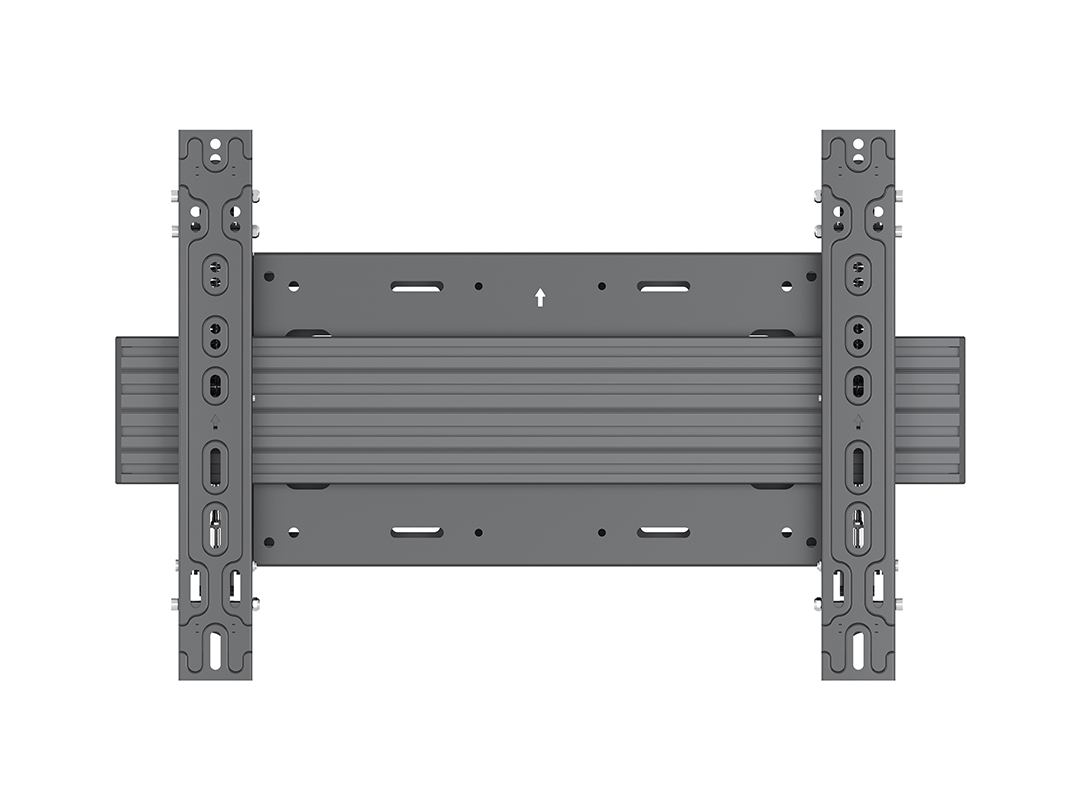

- Modular design built on robust aluminum rail system
- Streamlined cable management for a professional finish
- Optimized for both landscape and portrait mounting
- Scandinavian design – minimal, functional, and installation-friendly

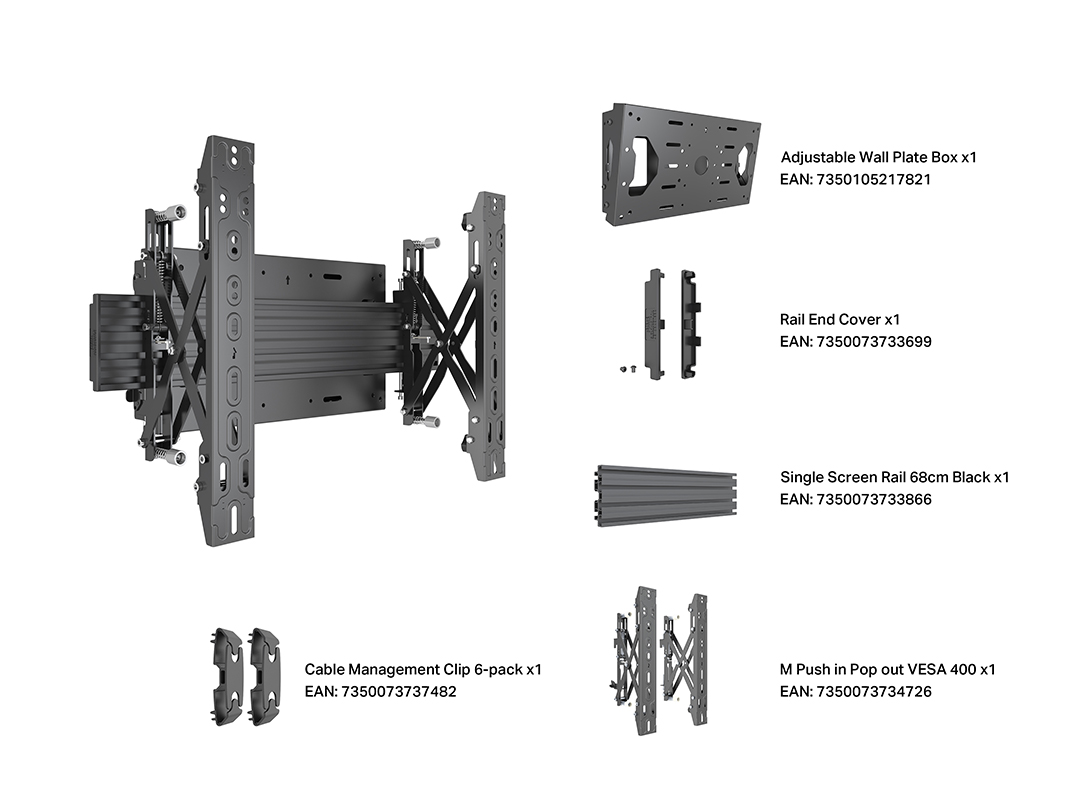

- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Wallmount Pro MBW1U Push in Pop out Black - Wallbox | |
| Article No: | 7 350 022 733 534 |
| For screen size: | 40”-75" |
| Type: | Single Side MBW1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 11 kg |
| Measurements: | 69.5x26.3x10.7 cm |
| Max Load: | 40 kg per screen (TÜV 30kg) |
| Height adjustment: | Yes, 0-5mm |

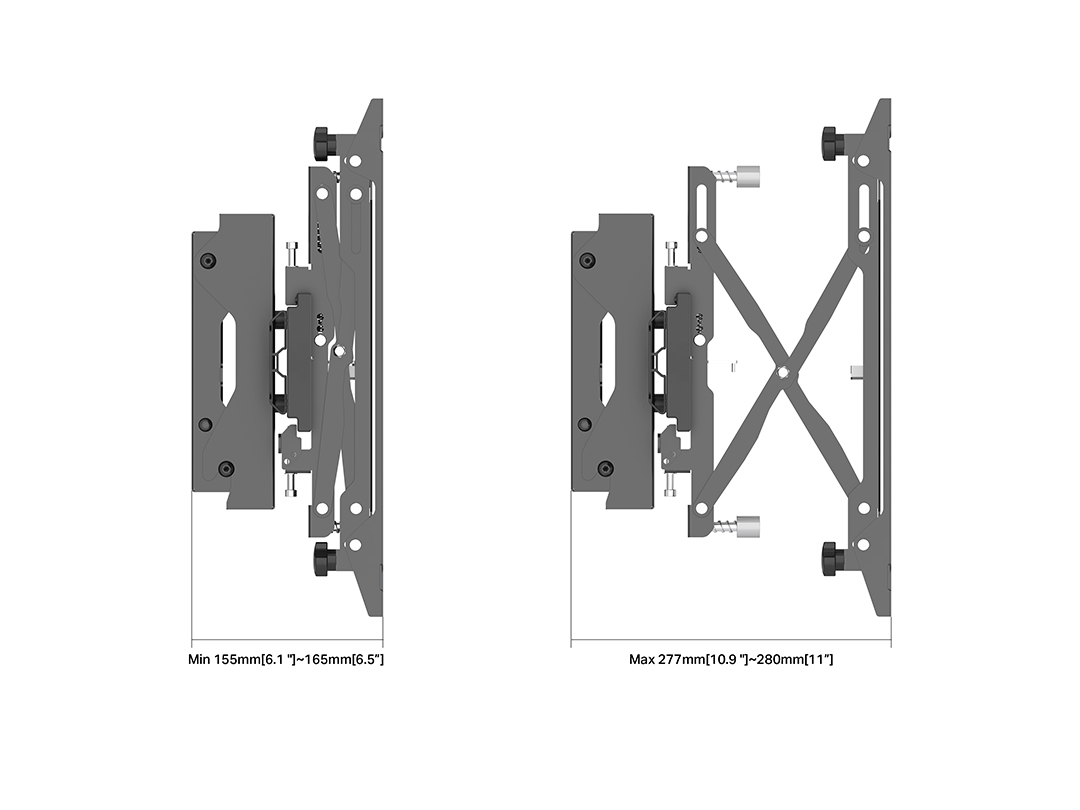

| Depth adjustment: | Yes, 0-15mm |
| Tilt adjustment: | Yes, ±3° |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 69.5x26.3x10.7 cm |
| Package Weight: | 11.00 kg |
