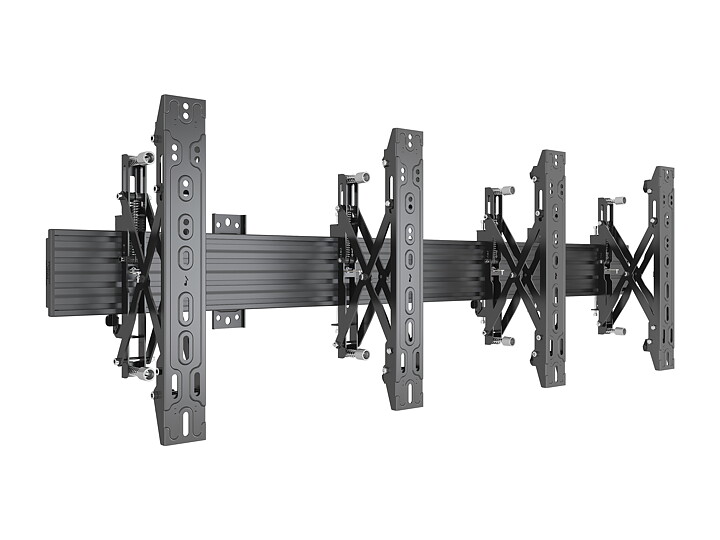

M Wallmount Pro MBW2U Push In Pop Out

Name: M Wallmount Pro MBW2U Push In Pop Out
Availability: InStock

M Wallmount Pro MBW2U Push In Pop Out Black - Wall mount for LCD display, steel, 2 screen, single side, adjustable, VESA Max 600x400* - Maxload 40kg - screen size: 40"-75" - black - TUV

Options

Variants that match your options:

Price

Not available

Price

In stock: 82

Delivery: Status: In Stock

Quantity

This value doesn't have the right number of decimals. This value is too small. This value is too large. This is required. Invalid value.

Quick response on email requests
Fast deliveries
Pan European warehousing

Description

Article no.: 7350073734122

M Wallmount Pro MBW2U Push In Pop Out Black – Wall mount for LCD display, steel, 2 screens, single side, adjustable, VESA Max 600x400* – Maxload 40kg – screen size: 40"-75" – black – TÜV

Product Overview

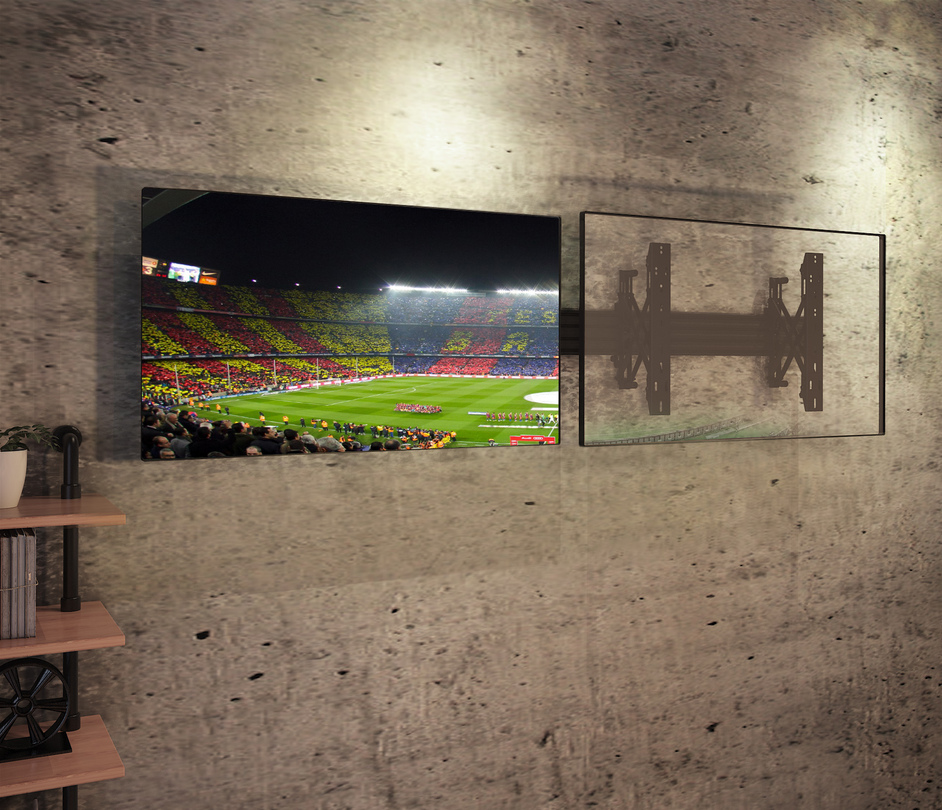

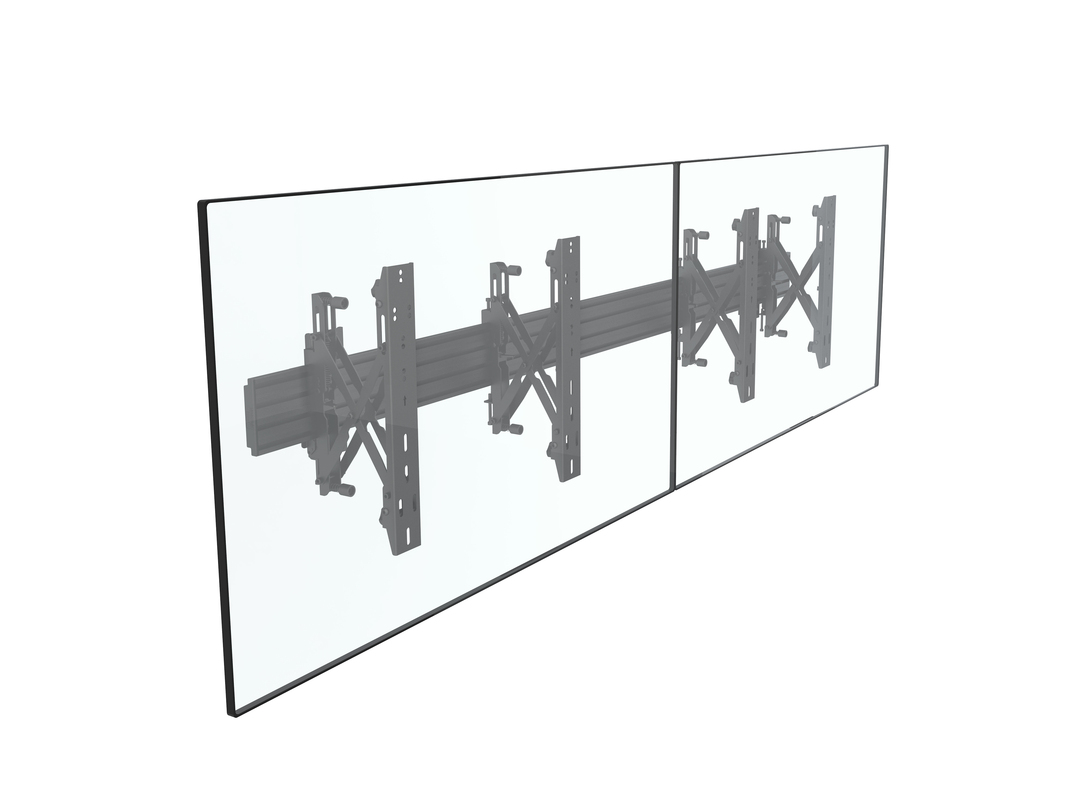

The M Wallmount Pro MBW2U Push In Pop Out Black is a dual-screen wall mount from the Multibrackets® Pro Series – engineered for fast installation, precision alignment, and professional results in digital signage environments. Designed for screens from 40" to 75", it supports both landscape and portrait configurations, with up to 40kg per screen.

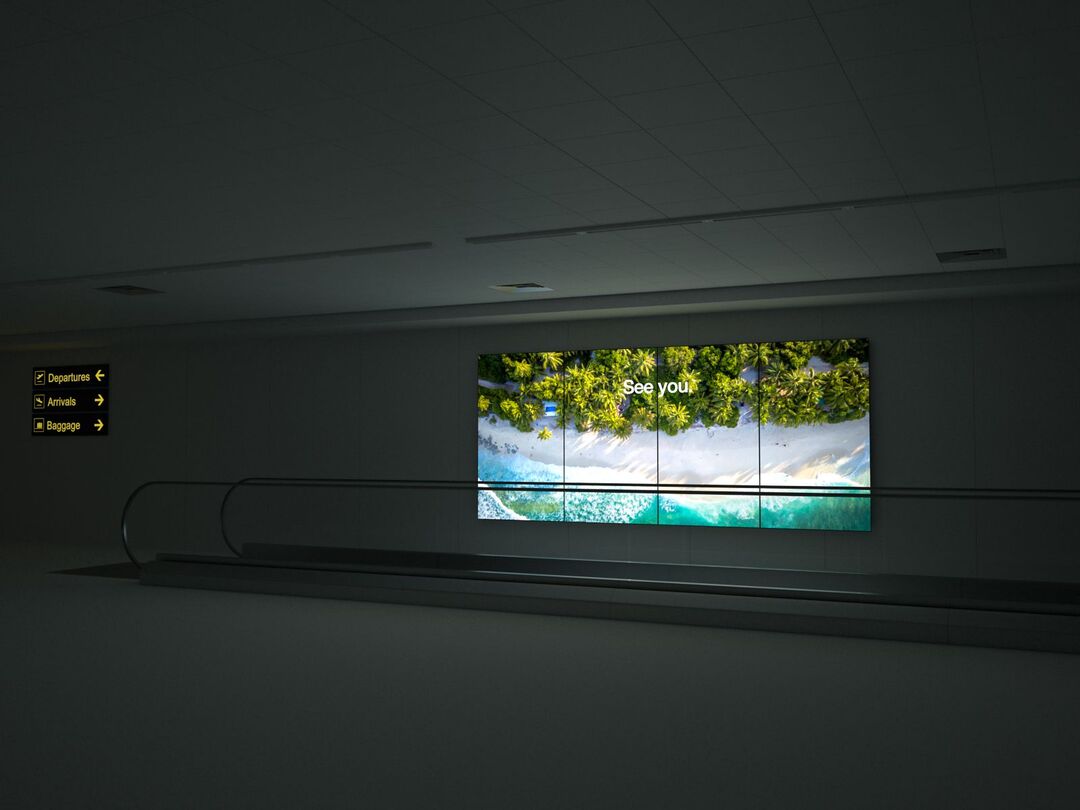

Built on the modular aluminum rail system that defines the Pro Series, this mount enables push-to-open front access for service and cable management, while maintaining a sleek, Scandinavian-inspired look. Ideal for menu boards, videowalls, and public display installations.

Highlights

Dual-display wall mount for digital signage and videowalls

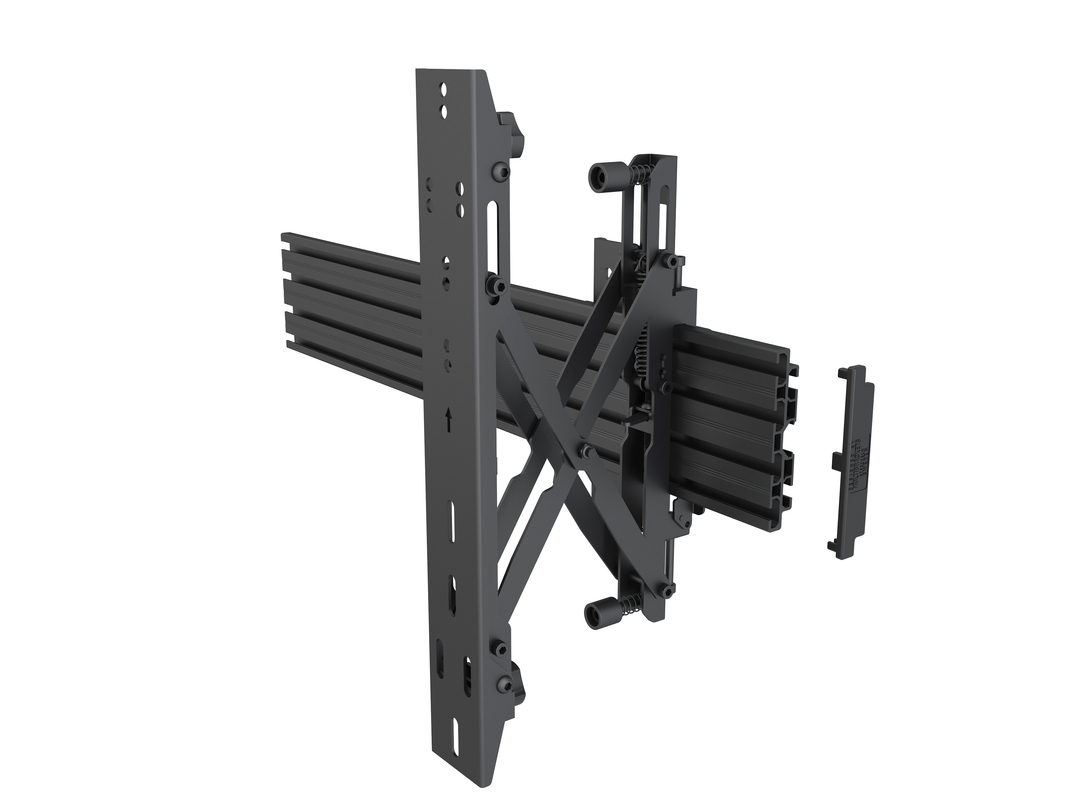

Push-in/pop-out design for quick front access and serviceability
Compatible with VESA 600x400, or 400x600 with additional brackets

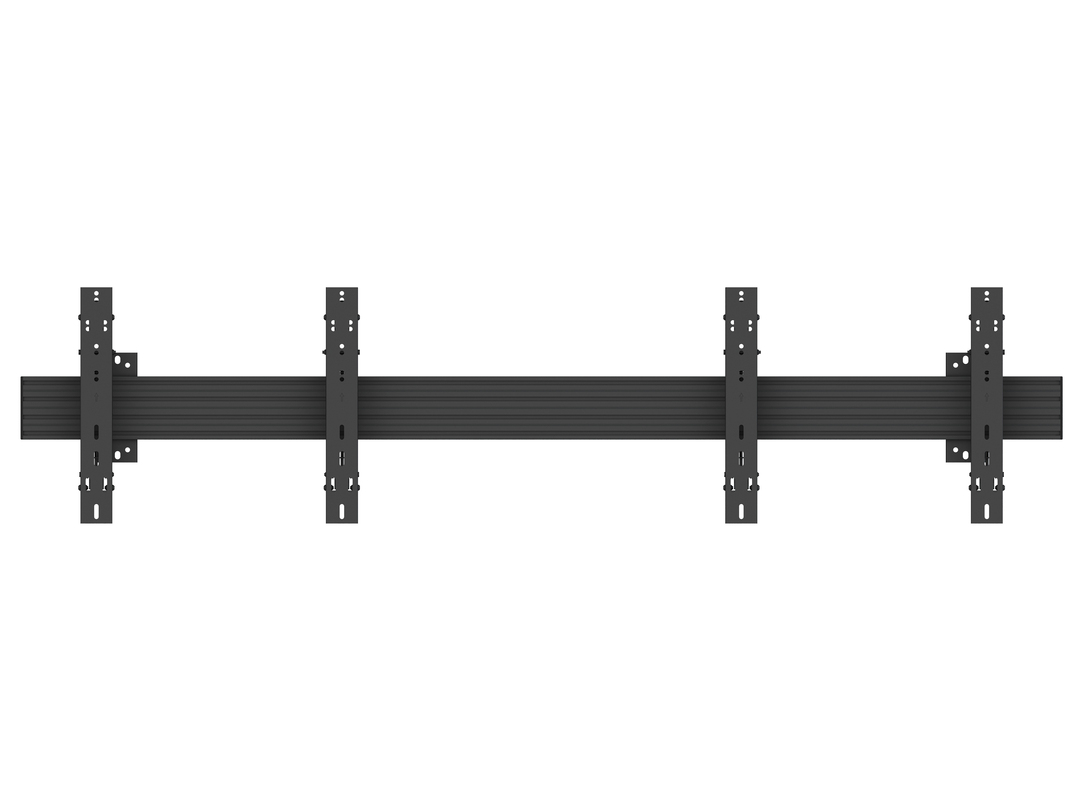

Modular aluminum rail – scalable without cutting
Supports landscape and portrait orientations
Integrated cable management throughout the mount
Power-click install for quick and secure mounting
Complete hardware kit included

Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002

Pro Series Configuration Guide
Selected models are TÜV approved.

Specification
M Wallmount Pro MBW2U Push In Pop Out Black
Article No:	7 350 073 734 122
For screen size:	40”-75"
Type:	Single Side MBW2U

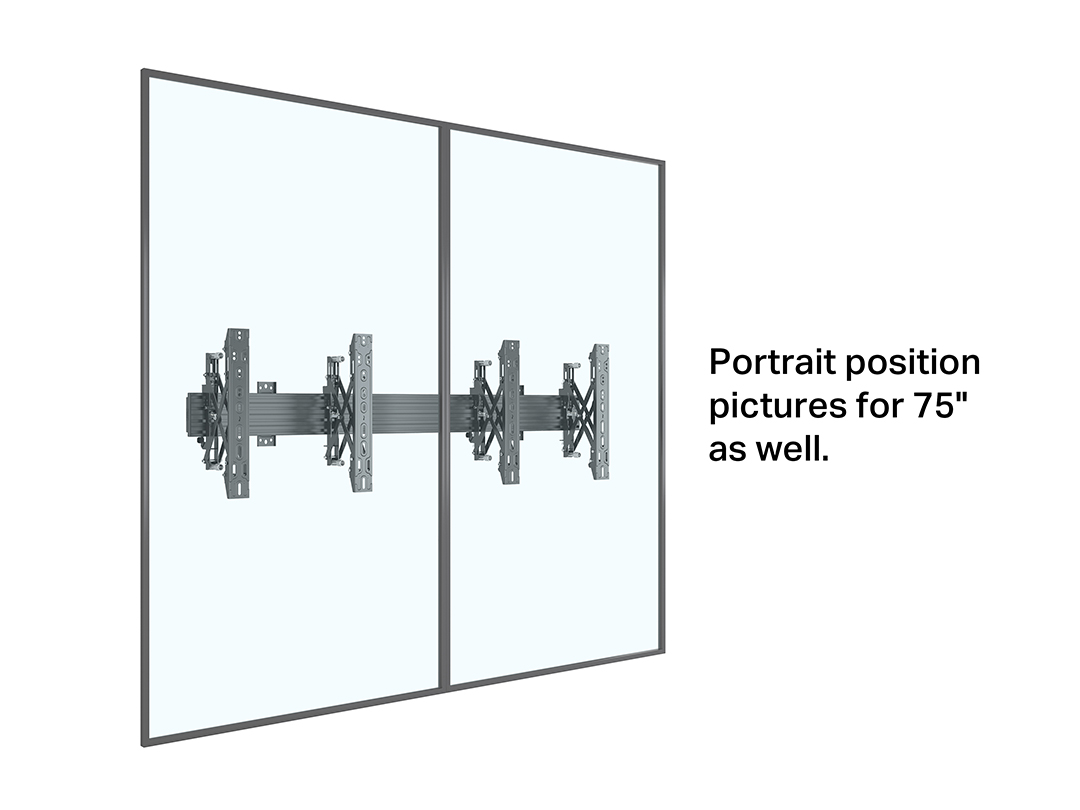

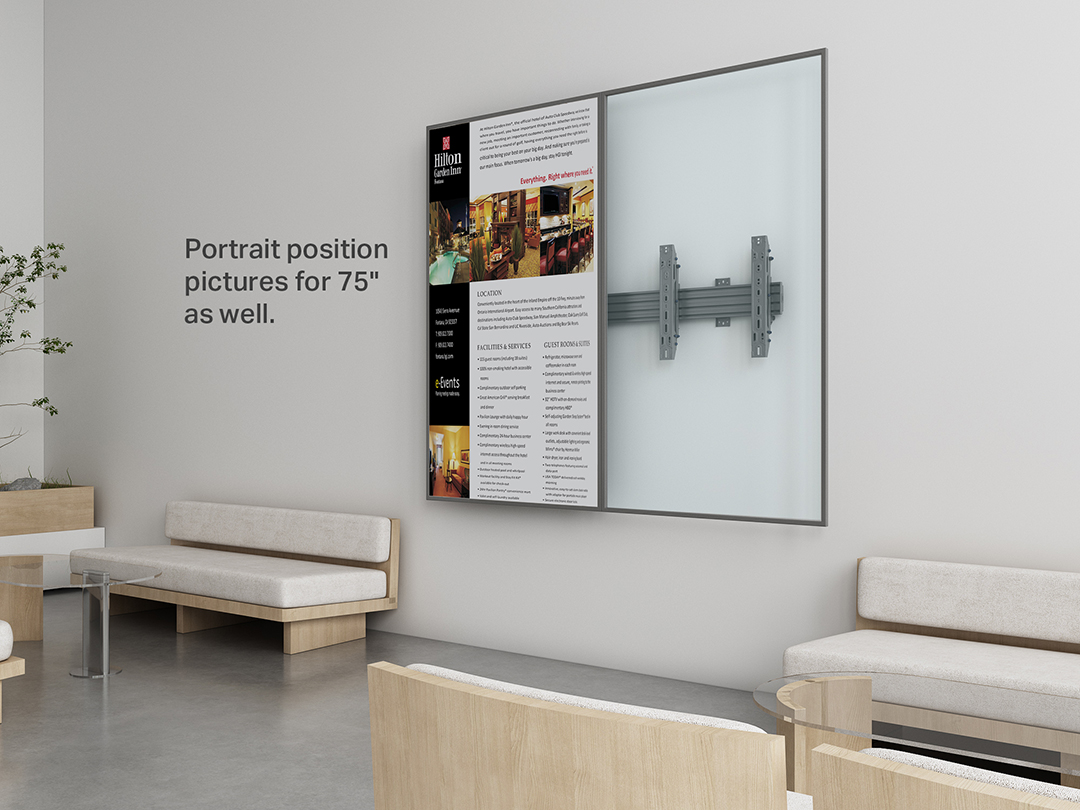

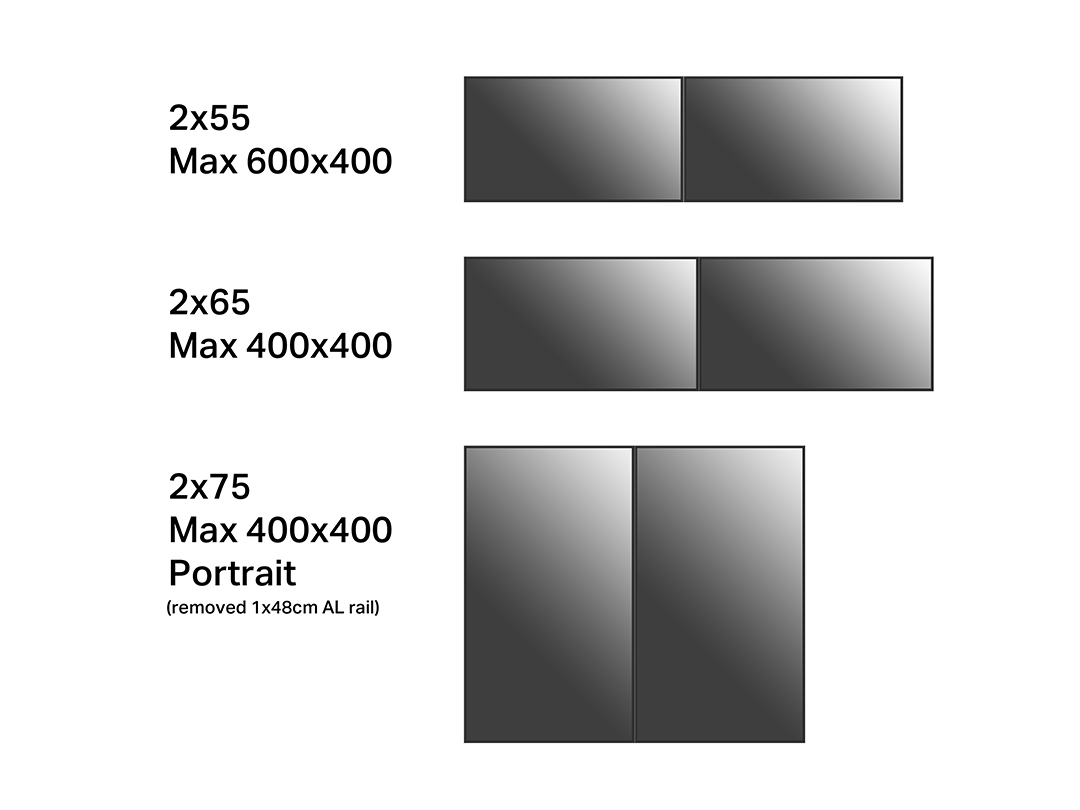

Universal & VESA standard:	Adjustable from 100x100 to 600x400 max 55" 600x400 max 65" 400x400 max 75" 400x400 Portait (landscape needs wider rail) Optional VESA 800x600, 1000x600 with different brackets
Material:	Steel, Aluminium
Color:	Black
Surface Finish:	Powder coating/Anodic Oxidation
Weight:	17 kg

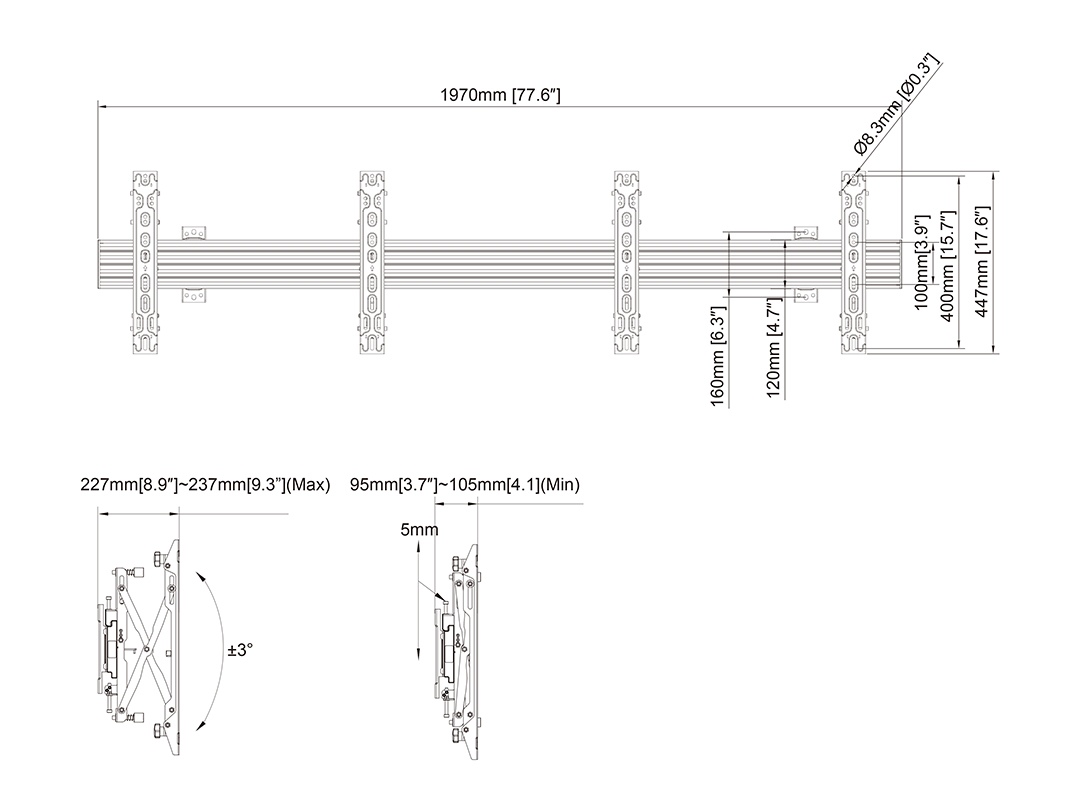

Measurements	196x49x9 cm
Max Load:	40 kg per screen (TÜV 30kg)
Height adjustment:	Yes, 0-5mm
Depth adjustment:	Yes, 0-15mm
Tilt adjustment:	Yes, ±3°
Cable Management:	Yes
Options:	M Pro Series Parts
Certifications:	TUV
Warranty:	5 years
