M Wallmount Pro MBW3U Micro Adjustable Black
Options
Variants that match your options:
In stock: 163
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105210648
Product Overview

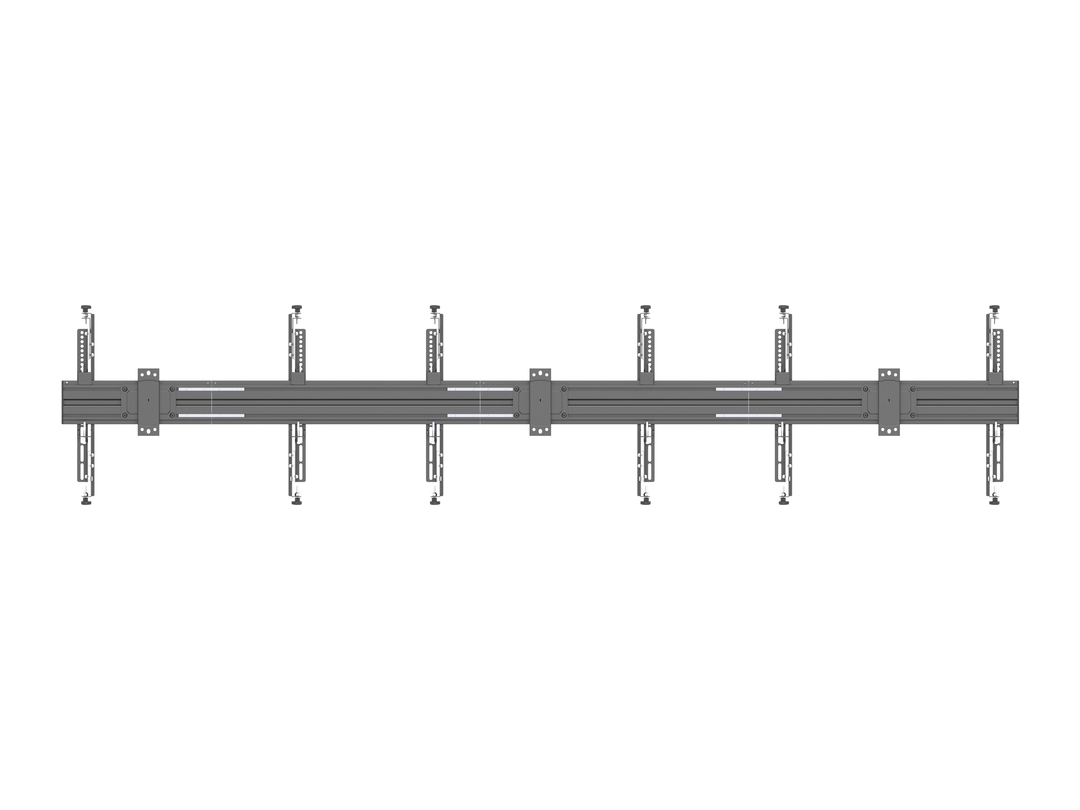

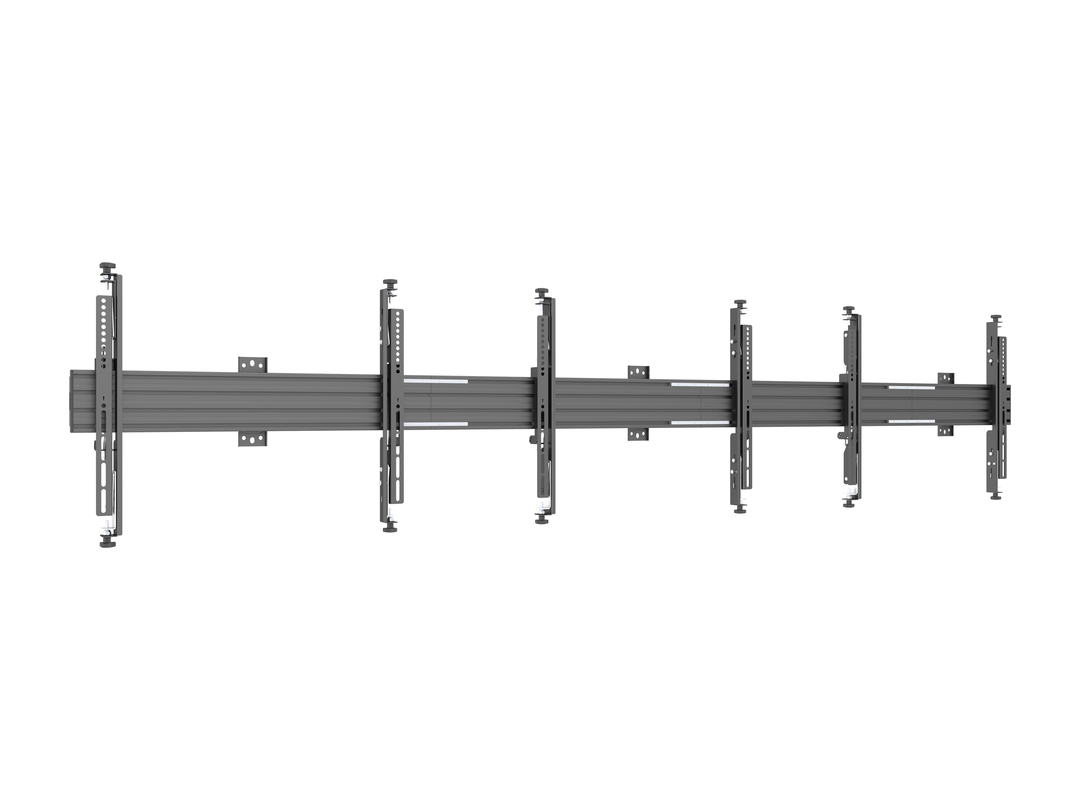

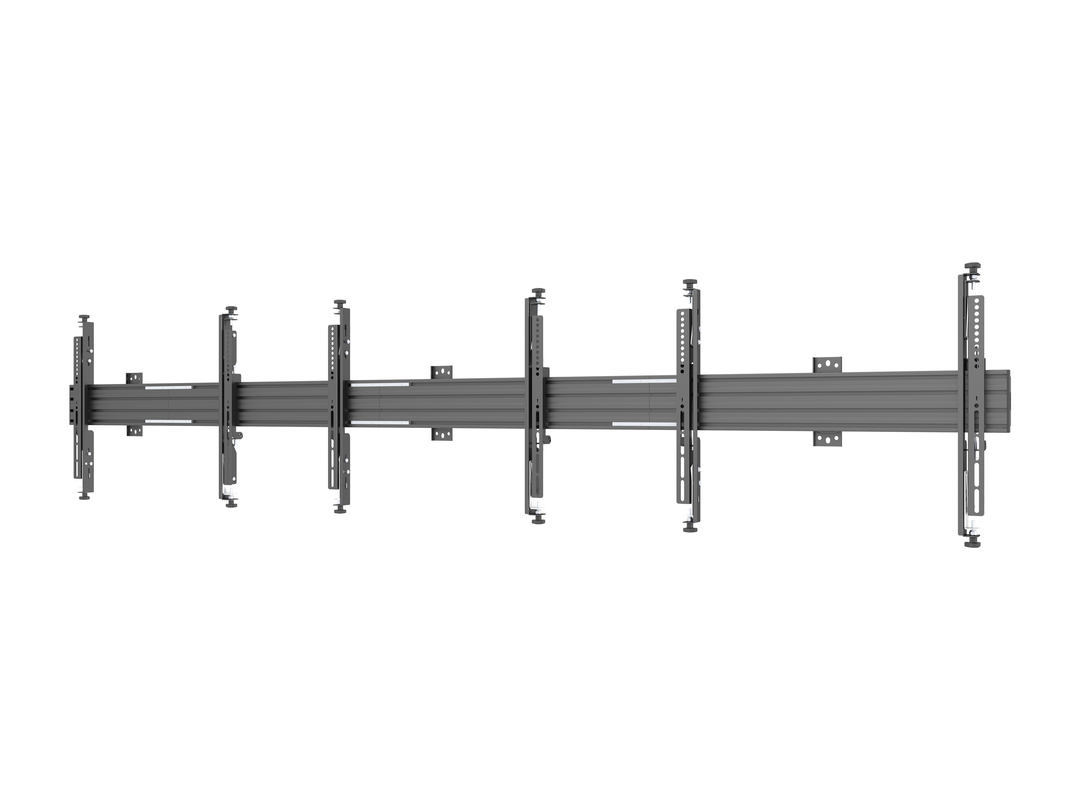

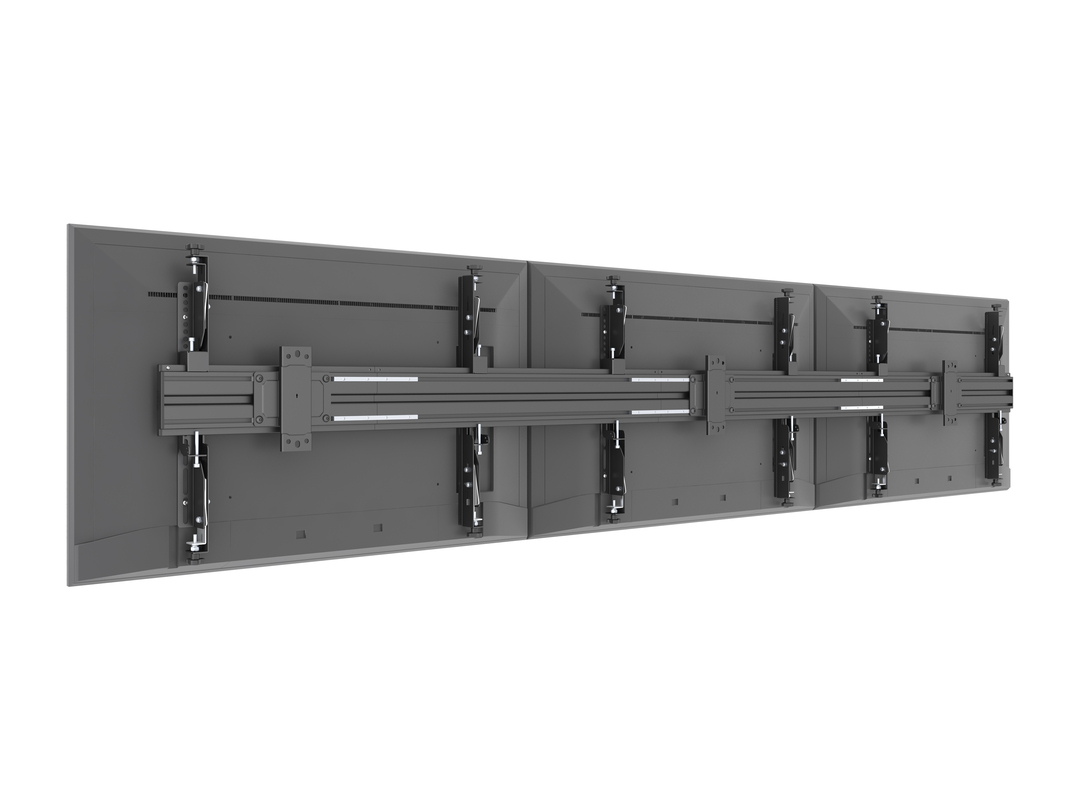

M Wallmount Pro MBW3U Micro Adjustable Black is a premium triple-screen wall mount for professional digital signage installations. Built to support up to three displays, it combines fast setup with tool-less micro-adjustment for perfect alignment in any public or commercial environment.
Part of the Multibrackets® Pro Series, this wallmount is modular, easy to configure, and designed with the installer in mind. It features robust aluminum rails, integrated cable management, and fine-tuning knobs that let you adjust depth, height, and side-to-side positioning with precision.

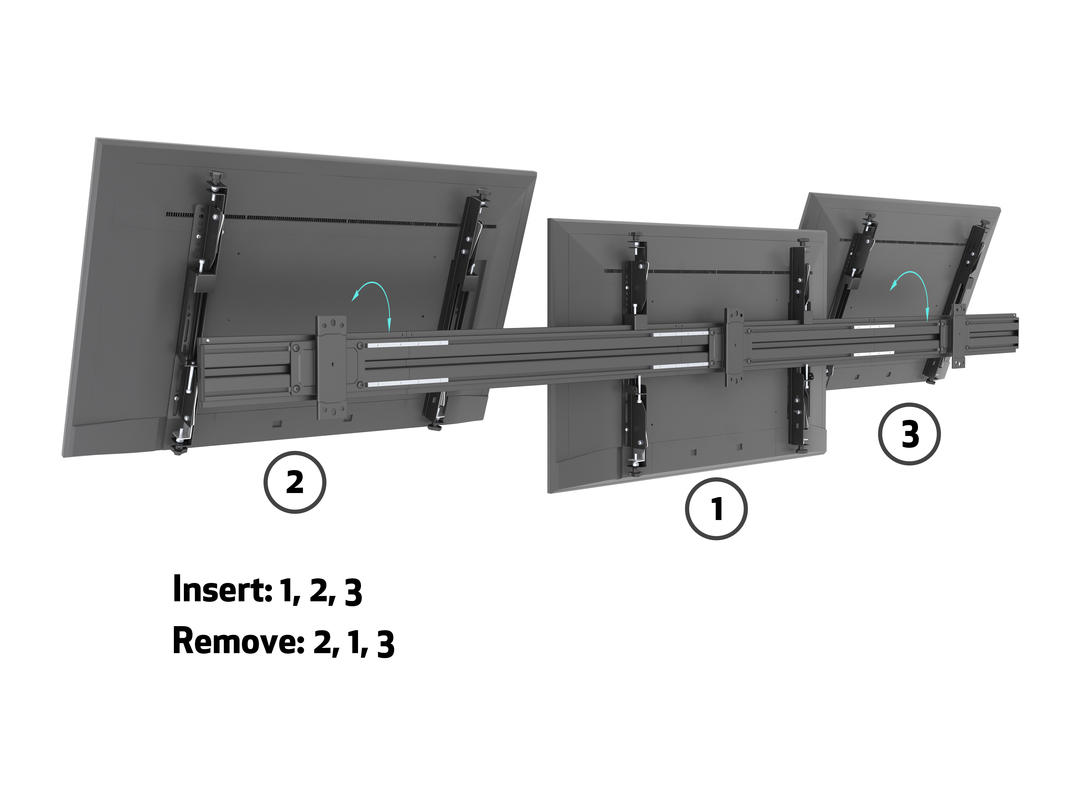

Ideal for video walls and menu boards, the MBW3U simplifies service access and reduces installation time, while maintaining a clean, Nordic aesthetic that blends into any space.
Highlights
- Triple-screen configuration with VESA compatibility up to 600x400
- Supports screen sizes 32"–75" and up to 50kg per screen

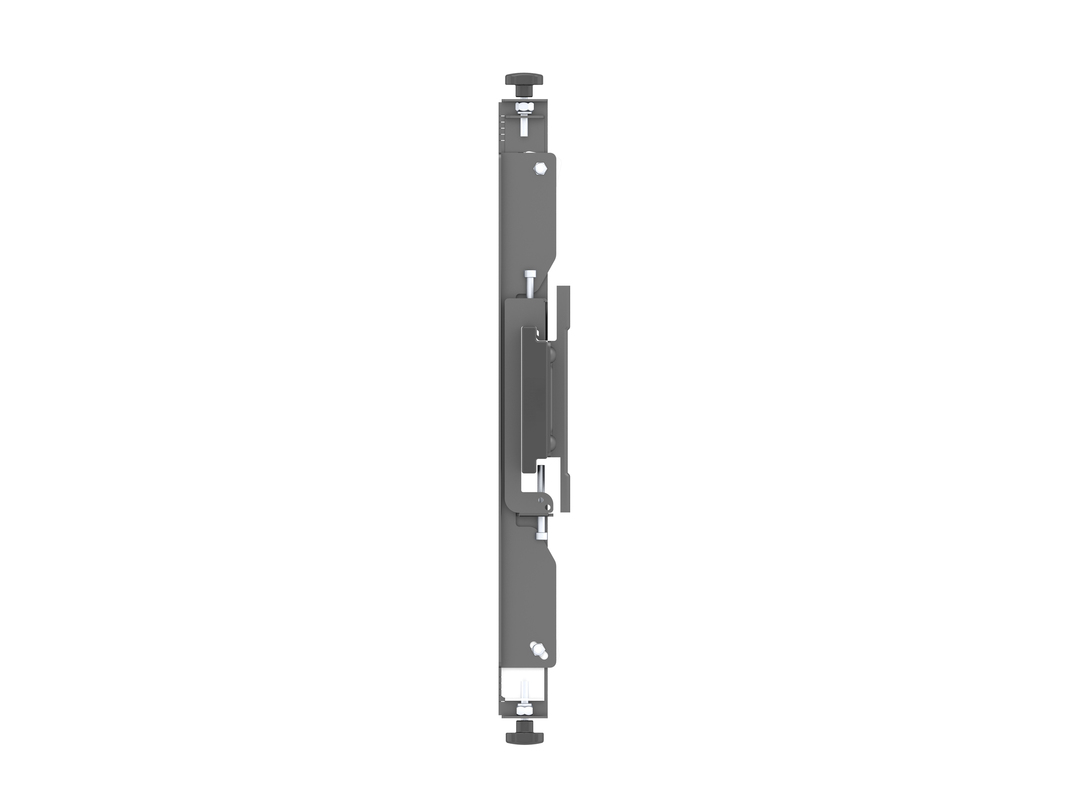

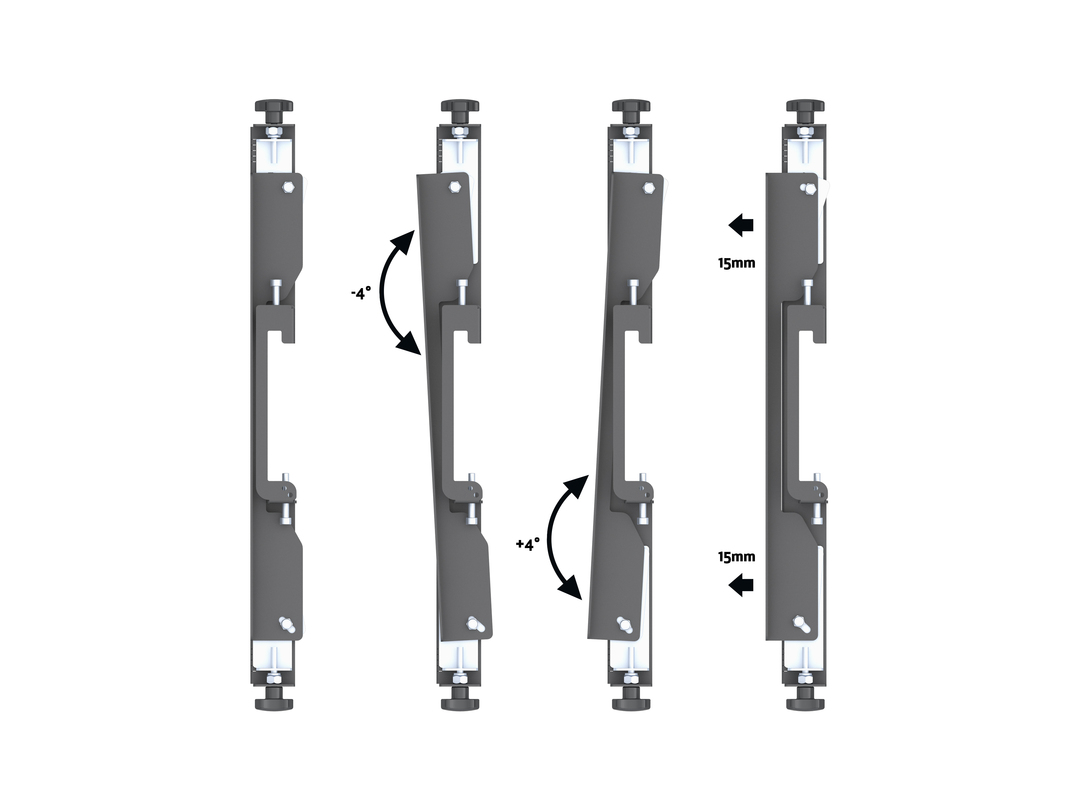

- Tool-less micro-adjustment on X, Y, Z axes for precision alignment

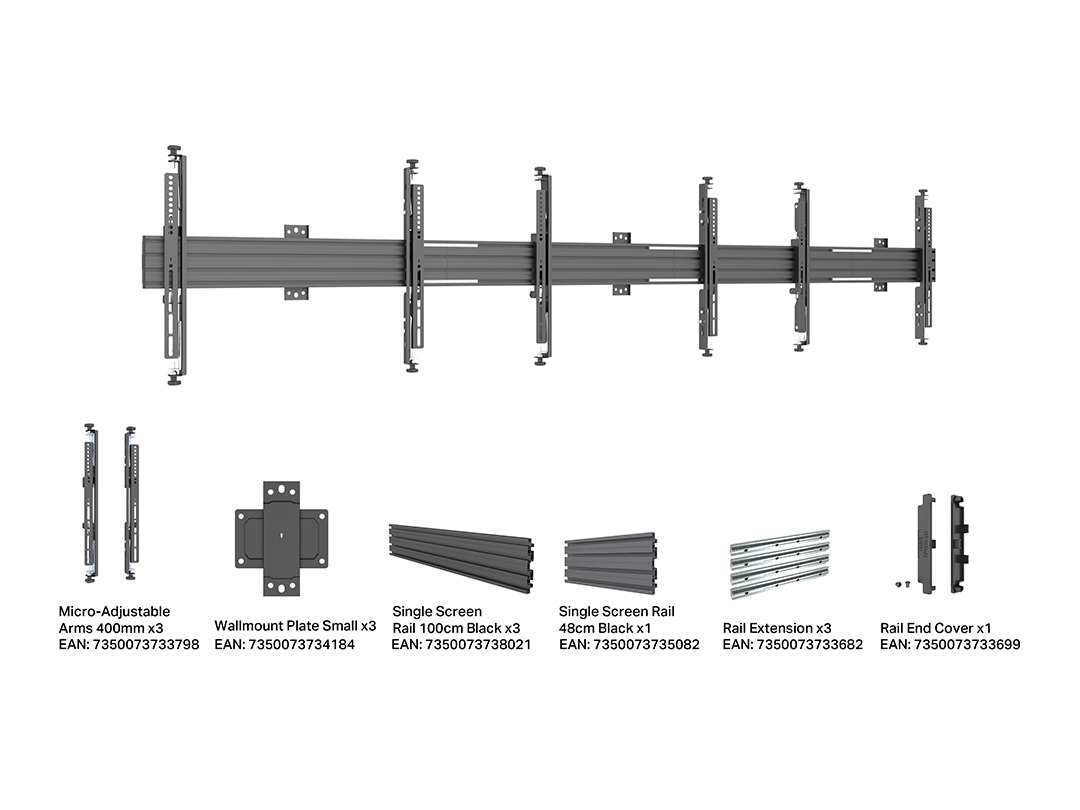

- Modular aluminum rail system – scalable without cutting

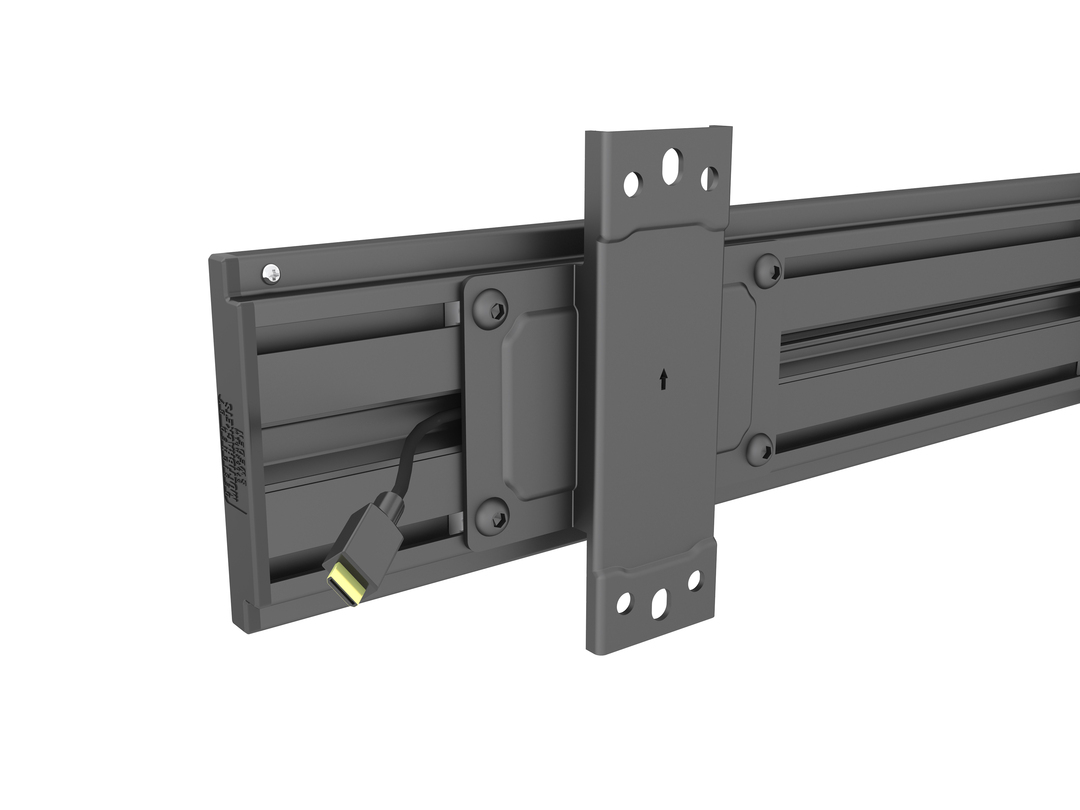

- Integrated cable management for clean installations
- Supports portrait or landscape orientation
- Fast, secure installation with all hardware included
- Designed for videowalls, menu boards, and digital signage
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Wallmount Pro MBW1U Micro Adjustable Black | |
| Article No: | 7 350 105 210 648 |
| For screen size: | 32"-75" |
| Type: | Single Side MBW3U |
| Universal & VESA standard: | 100x100, 200x200, 300x300, 400x400, 600x400 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 20.5 kg |

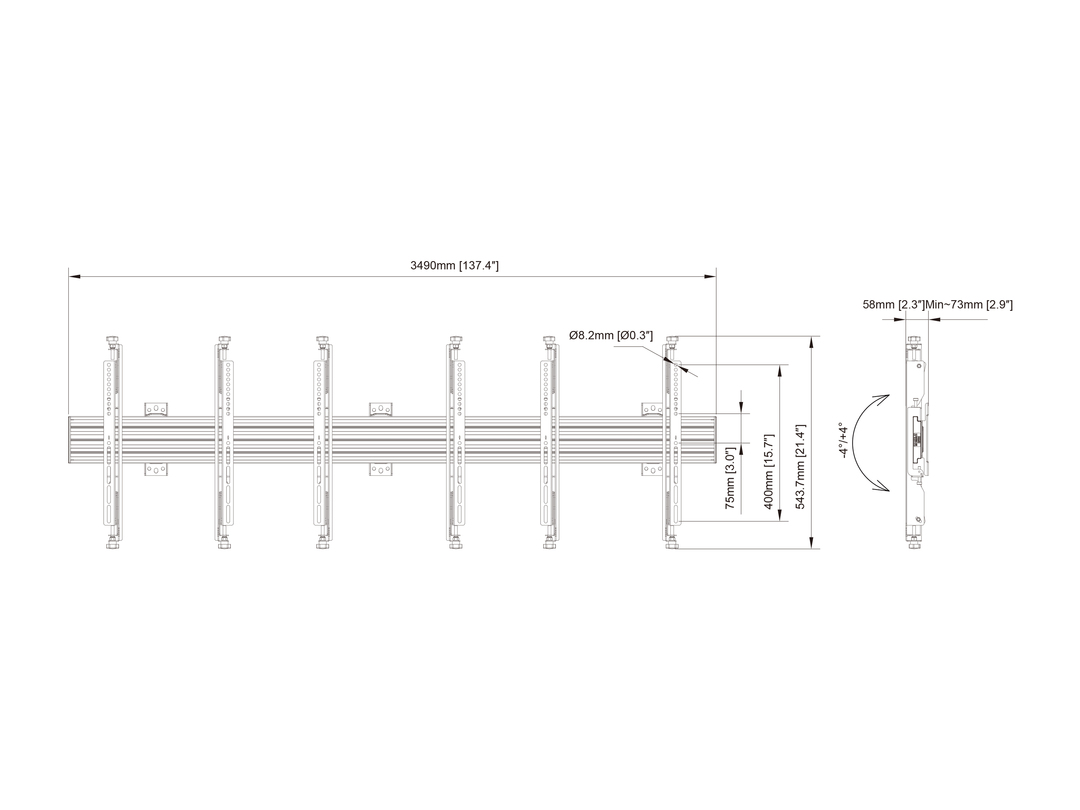

| Measurements | 3490mm*160mm*175 mm |
| Max Load: | 50 kg per screen (TÜV 30kg) |
| Height adjustment: | 10mm |
| Tilt: | 0° |
| Swivel: | ±4° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Options: | Article no: 4733: M Pro Series - Extender kit 600 |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
