M Wallmount Pro MBW3X2U Push In Pop Out

Name: M Wallmount Pro MBW3X2U Push In Pop Out
Availability: InStock

M Wallmount Pro MBW3X2U Push In Pop Out Black - Wall mount for LCD display, steel, 6 screen, single side, adjustable, VESA Max 600x400* - screen size: 32"-65" - black

Options

Variants that match your options:

Price

Not available

Price

In stock: 25

Delivery: Status: In Stock

Quantity

This value doesn't have the right number of decimals. This value is too small. This value is too large. This is required. Invalid value.

Quick response on email requests
Fast deliveries
Pan European warehousing

Description

Article no.: 7350073735006

M Wallmount Pro MBW3X2U Push In Pop Out Black – Wall mount for LCD display, steel, 6 screens, single side, adjustable, VESA Max 600x400* – screen size: 32"-65" – black

Product Overview

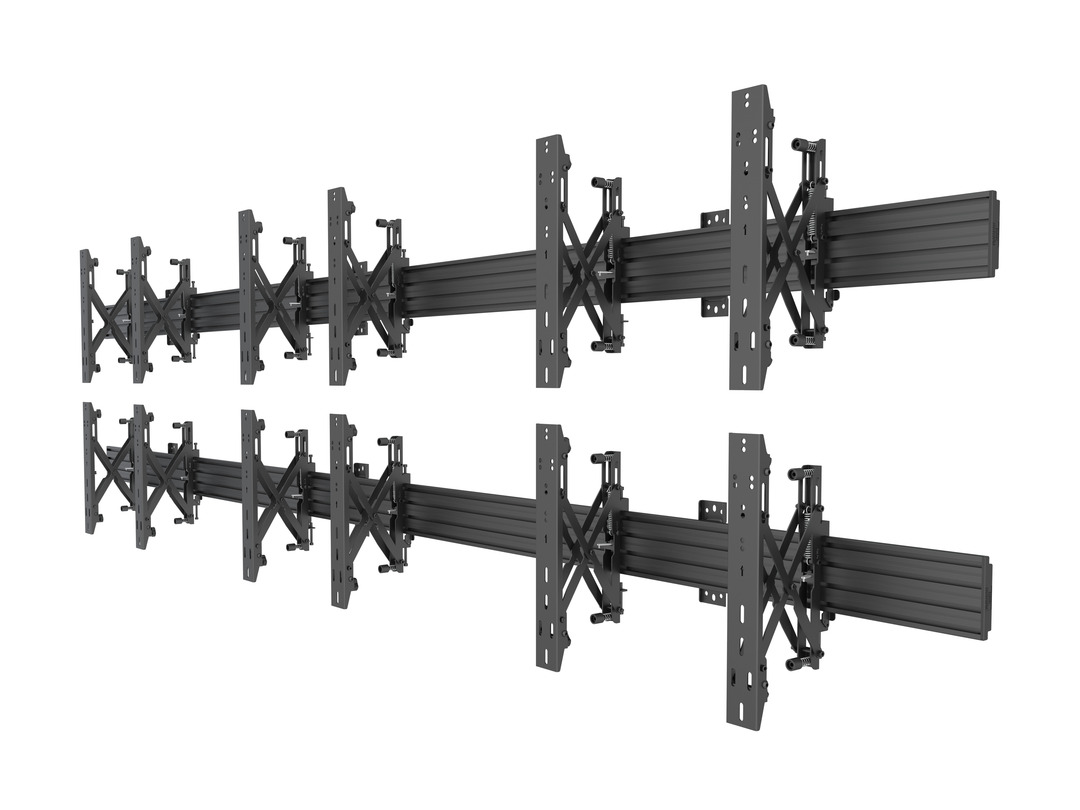

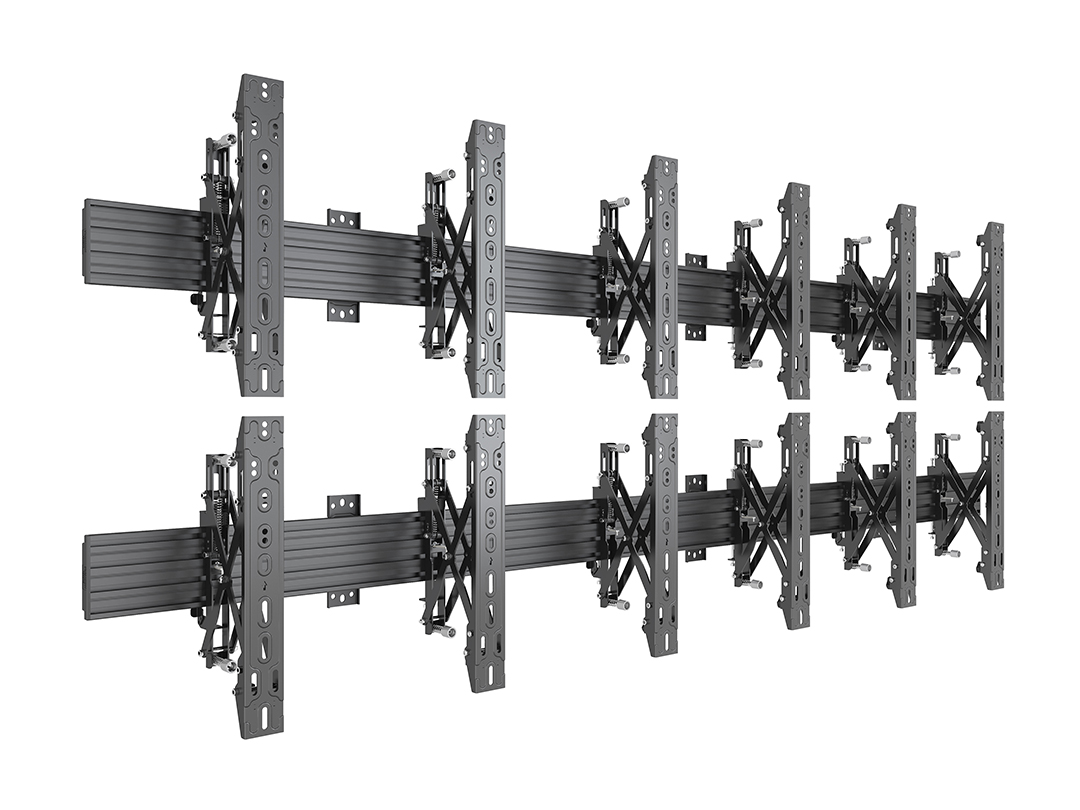

The M Wallmount Pro MBW3X2U Push In Pop Out Black is part of the Multibrackets® Pro Series – a professional video wall mount designed for 6-screen setups. Ideal for digital signage, control rooms, or public displays, this flexible solution supports screens from 32" to 65" with quick-release push-in/pop-out functionality for easy service access.

The modular aluminum rail system provides built-in cable management and allows for fast, tool-free installation. Its Scandinavian design combines sleek aesthetics with professional-grade durability, making it suitable for high-demand environments.

Highlights

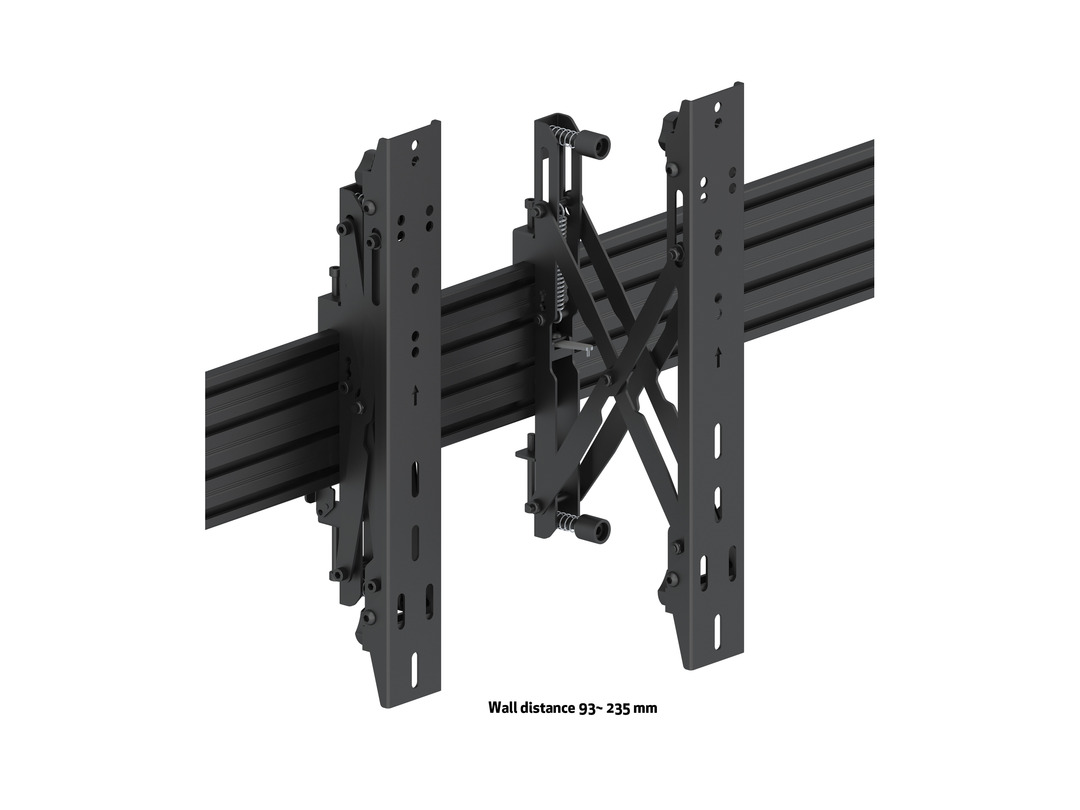

Push-in/pop-out system for quick and safe screen access

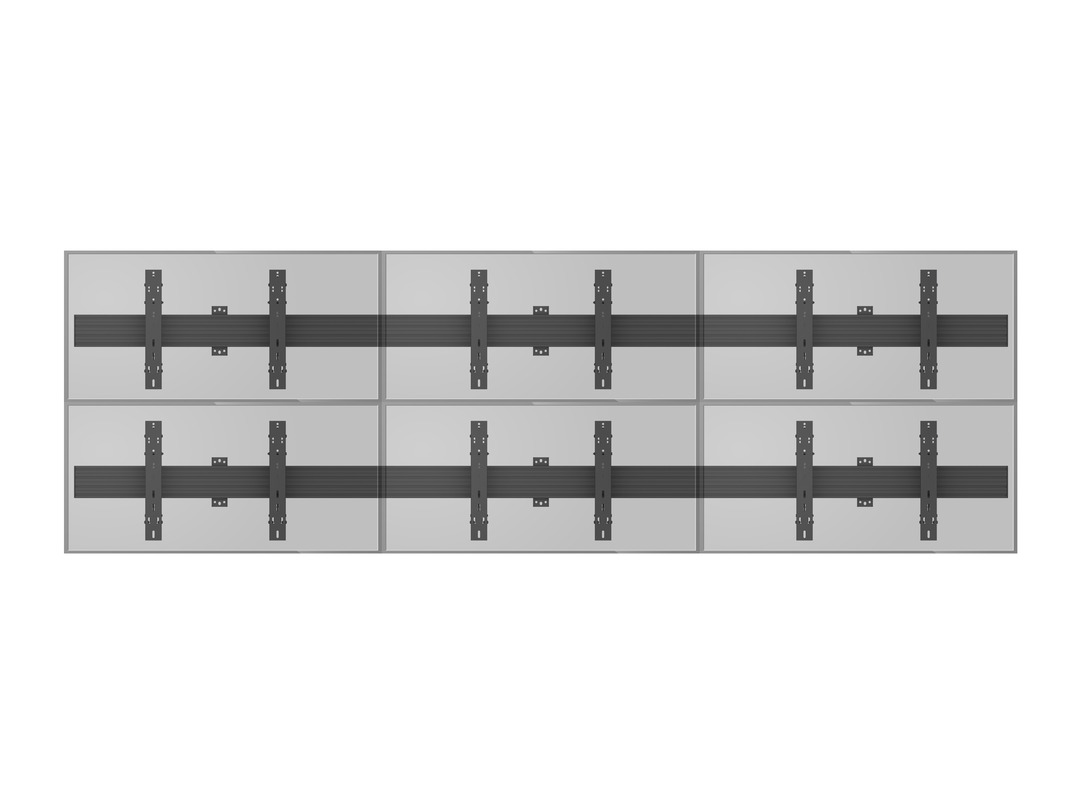

Supports up to 6 screens – ideal for 3x2 video wall configurations
VESA compatibility up to 600x400*

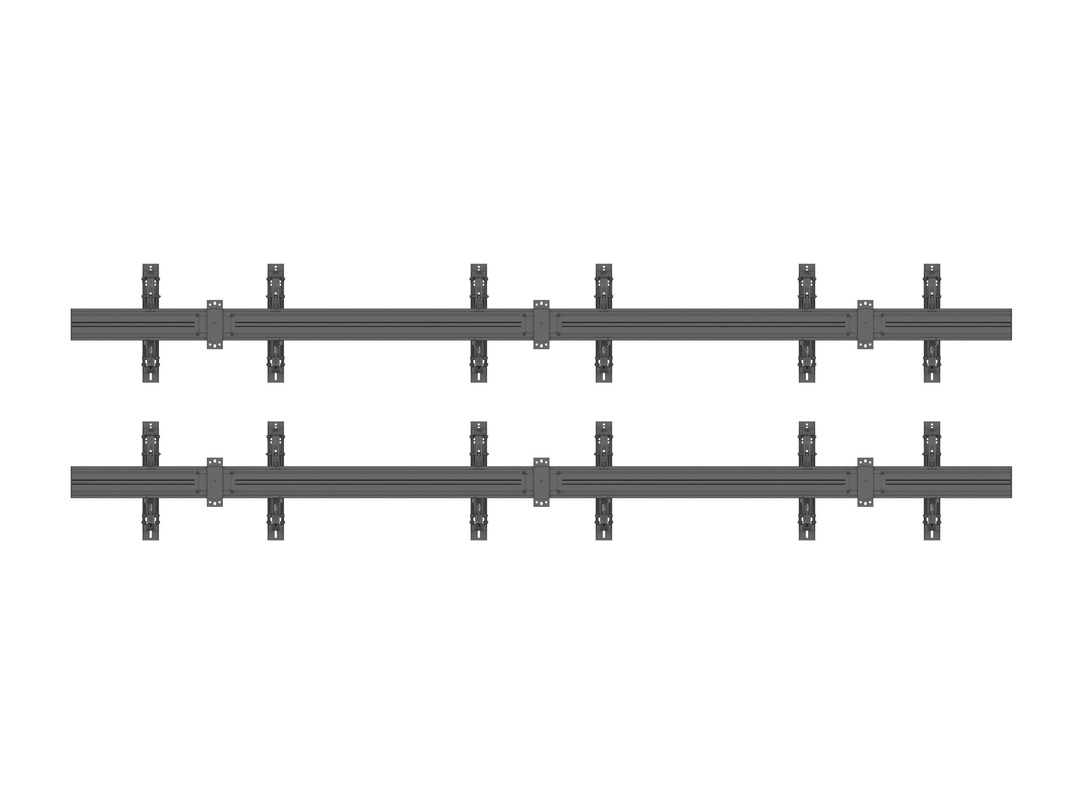

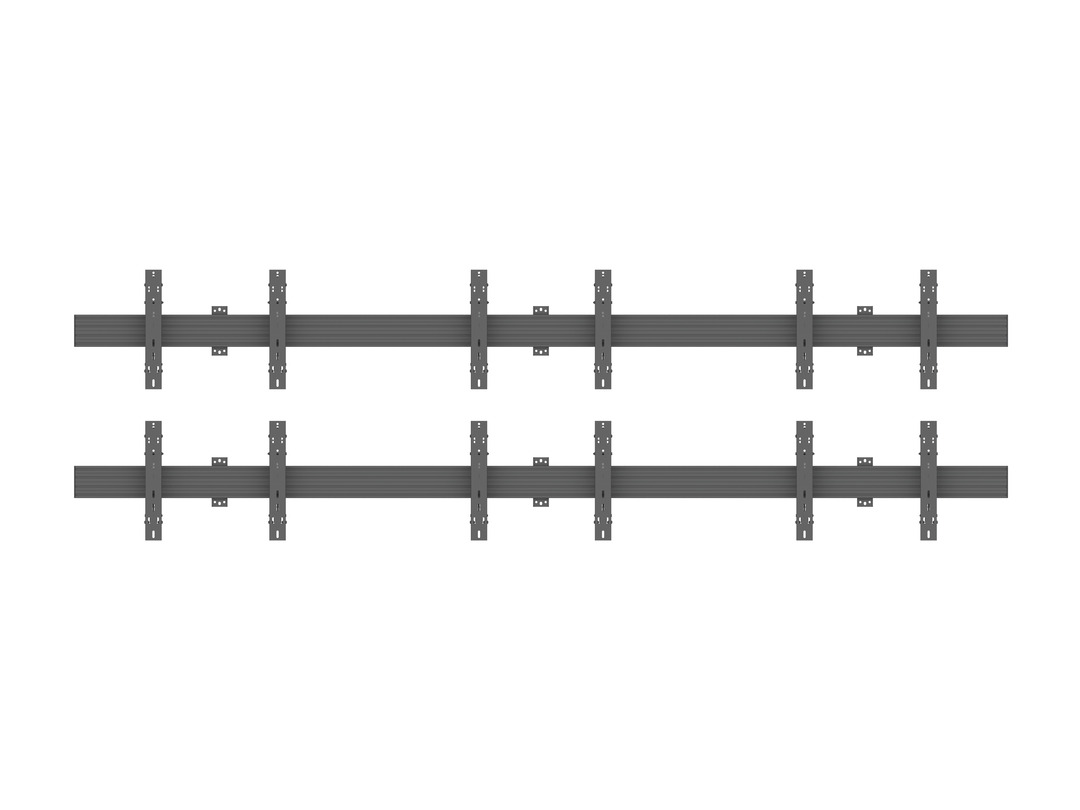

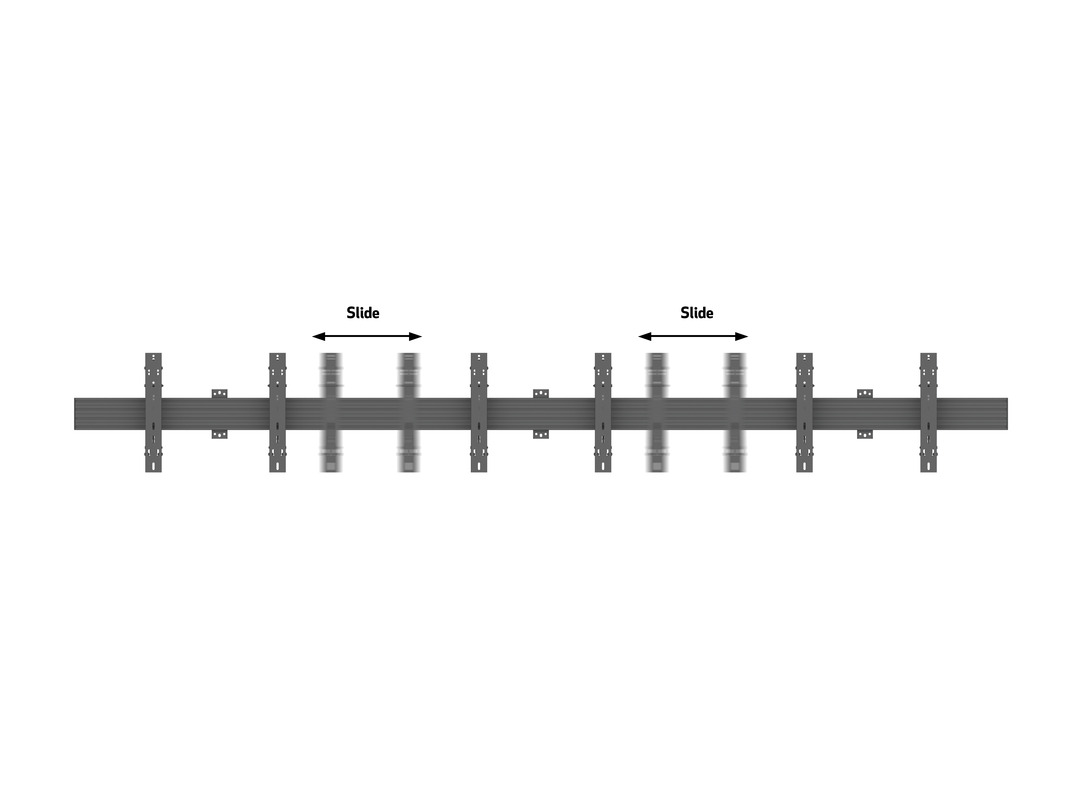

Modular aluminum rails – no cutting required for length adjustments
Integrated cable management throughout the structure
Power-click install for fast, reliable mounting
Dual wallplates included for added stability
Supports both portrait and landscape screen orientations

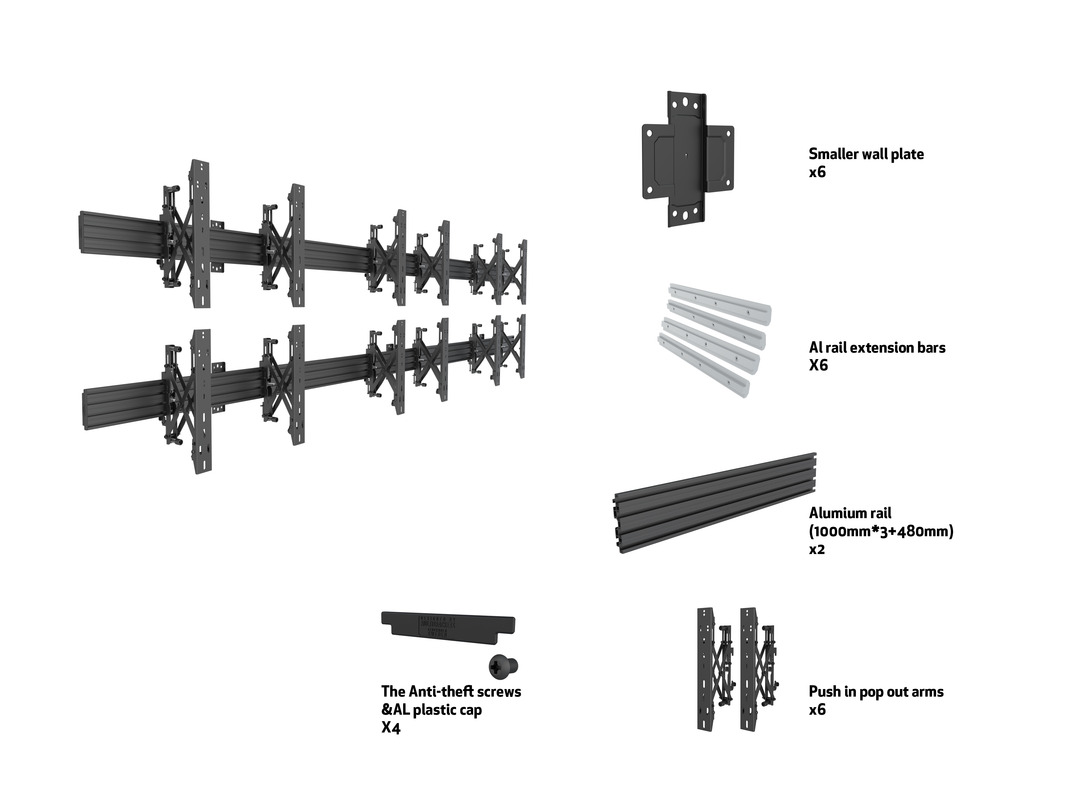

Hardware kit included

Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002

Selected models are TÜV approved.
Pro Series Configuration Guide

Specification
M Wallmount Pro MBW3x2U Push In Pop Out Black
Article No:	7 350 073 735 006
For screen size:	32"-65"
Type:	Single Side MBW3U x 2
Universal & VESA standard:	Adjustable from 100x100 to 600x400 max 55" 600x400 max 65" 400x400 max Optional VESA 800x600, 1000x600
Material:	Steel, Aluminium, Plastic
Color:	Black
Surface Finish:	Powder coating
Weight:	52 kg

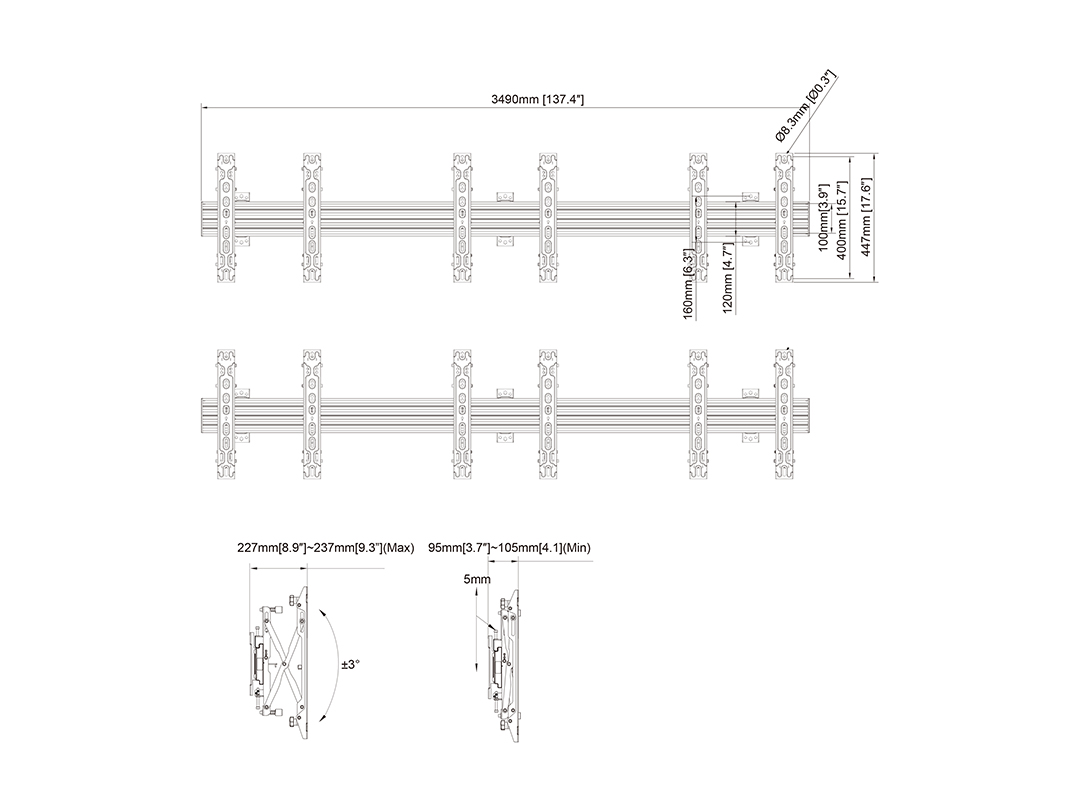

Measurements	348 x23.5x44.7cm per rail
Max Load:	30 kg per screen

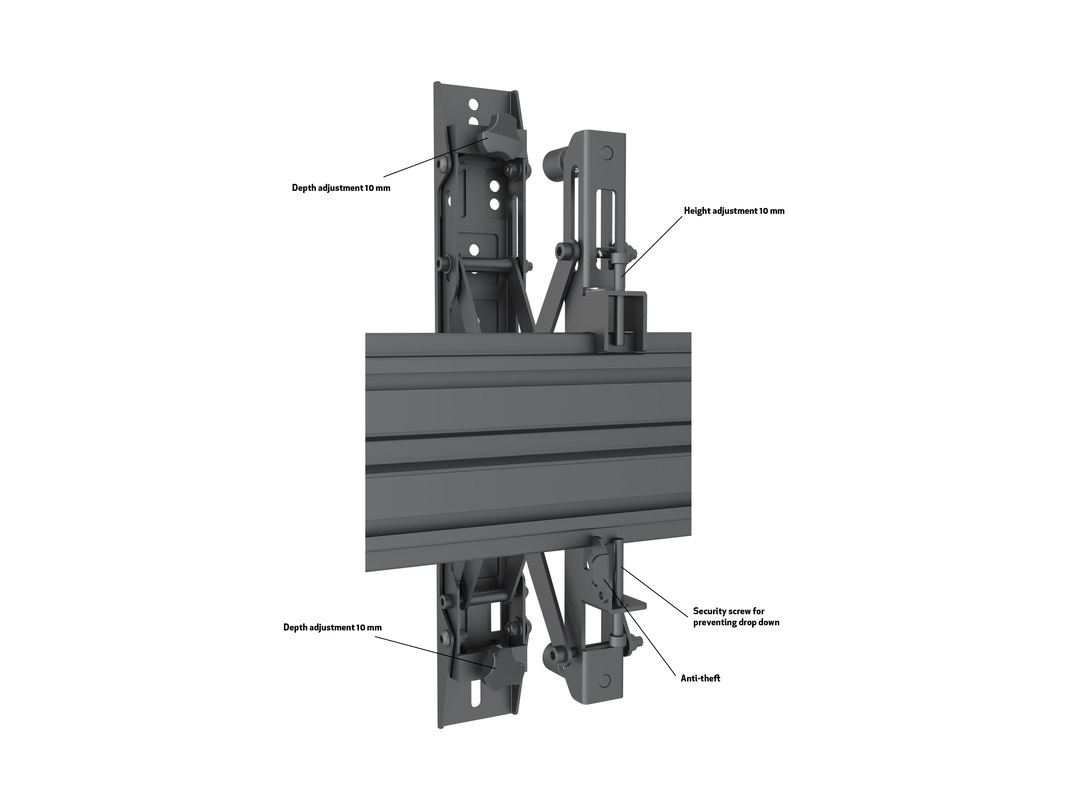

Height adjustment:	Yes, 0-10mm
Depth adjustment:	Yes, 0-15mm
Tilt adjustment:	Yes, ±4°°
Cable Management:	Yes
Options:	M Pro Series Parts
Certifications:
Warranty:	5 years
