M Wallmount Pro MBW3X3U Push In Pop Out

Name: M Wallmount Pro MBW3X3U Push In Pop Out
Availability: InStock

M Wallmount Pro MBW3x3U Push In Pop Out Black - Wall mount for LCD display, steel, 9 screen, single side, adjustable, VESA Max 600x400* - screen size: 32"-65" - black

Options

Variants that match your options:

Price

Not available

Price

In stock: 21

Delivery: Status: In Stock

Quantity

This value doesn't have the right number of decimals. This value is too small. This value is too large. This is required. Invalid value.

Quick response on email requests
Fast deliveries
Pan European warehousing

Description

Article no.: 7350073735013

M Wallmount Pro MBW3X3U Push In Pop Out Black – Wall mount for LCD display, steel, 9 screens, single side, adjustable, VESA Max 600x400* – screen size: 32"-65" – black

Product Overview

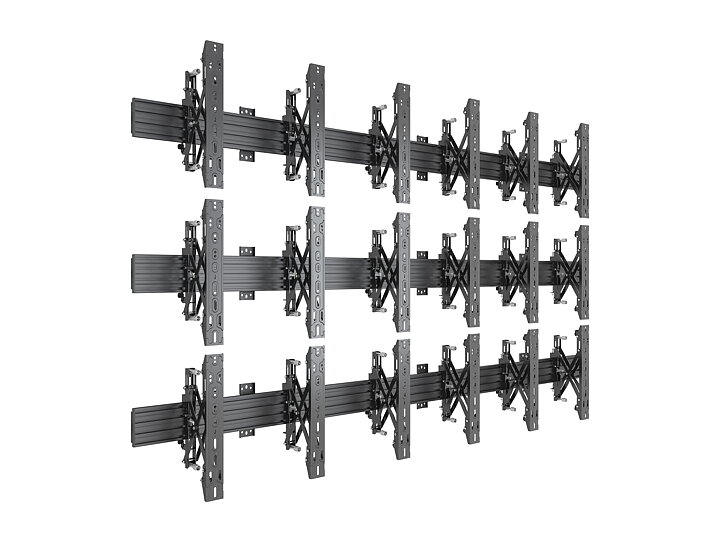

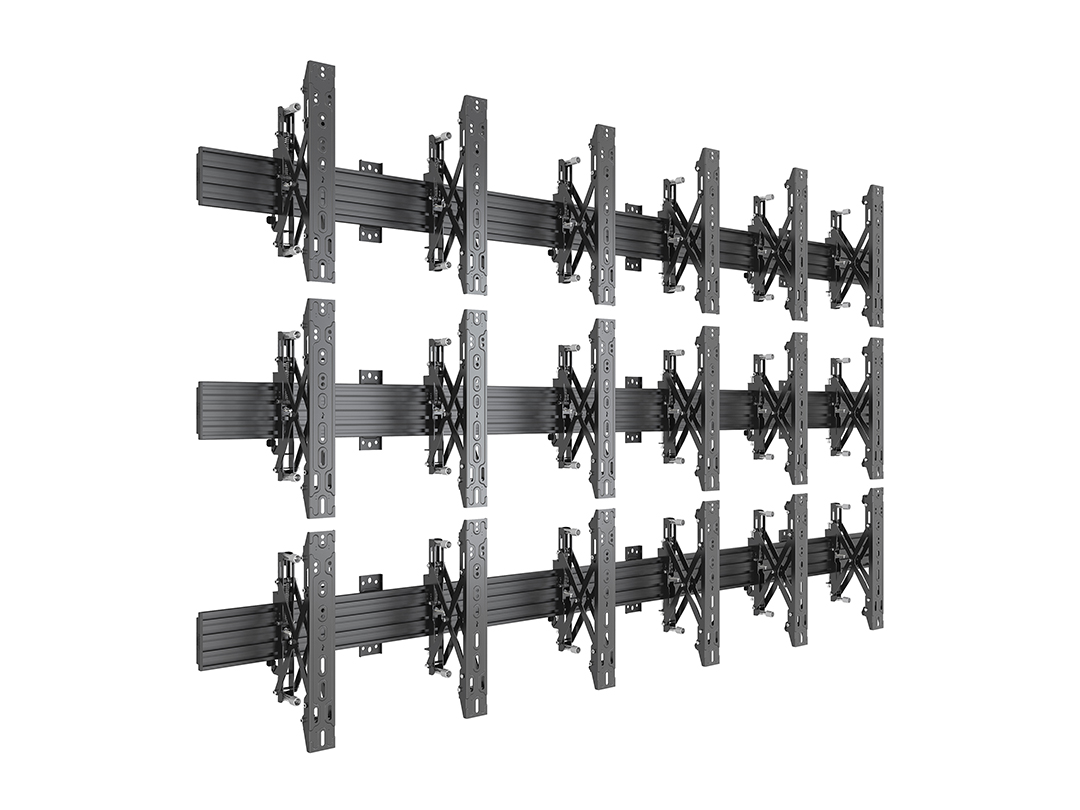

The M Wallmount Pro MBW3X3U Push In Pop Out Black is a high-performance video wall mount solution from the Multibrackets® Pro Series. Designed for 9-screen (3x3) installations, it supports displays from 32" to 65" and is ideal for digital signage in control rooms, retail, and public environments.

The push-in pop-out mechanism allows for quick access to each screen, making servicing and alignment easy. The modular aluminum rail system includes built-in cable management, ensuring a clean and professional installation. With its tool-less adjustability and Scandinavian design, this mount combines functionality with visual appeal.

Highlights

Push-in/pop-out mechanism for fast screen access and service
Supports 9 screens – perfect for 3x3 video wall layouts
VESA compatibility up to 600x400*
Modular aluminum rails – no need for cutting during installation
Integrated cable management across the full setup
Power-click install for quick and secure mounting
Dual wallplates included for added stability
Supports portrait or landscape orientation

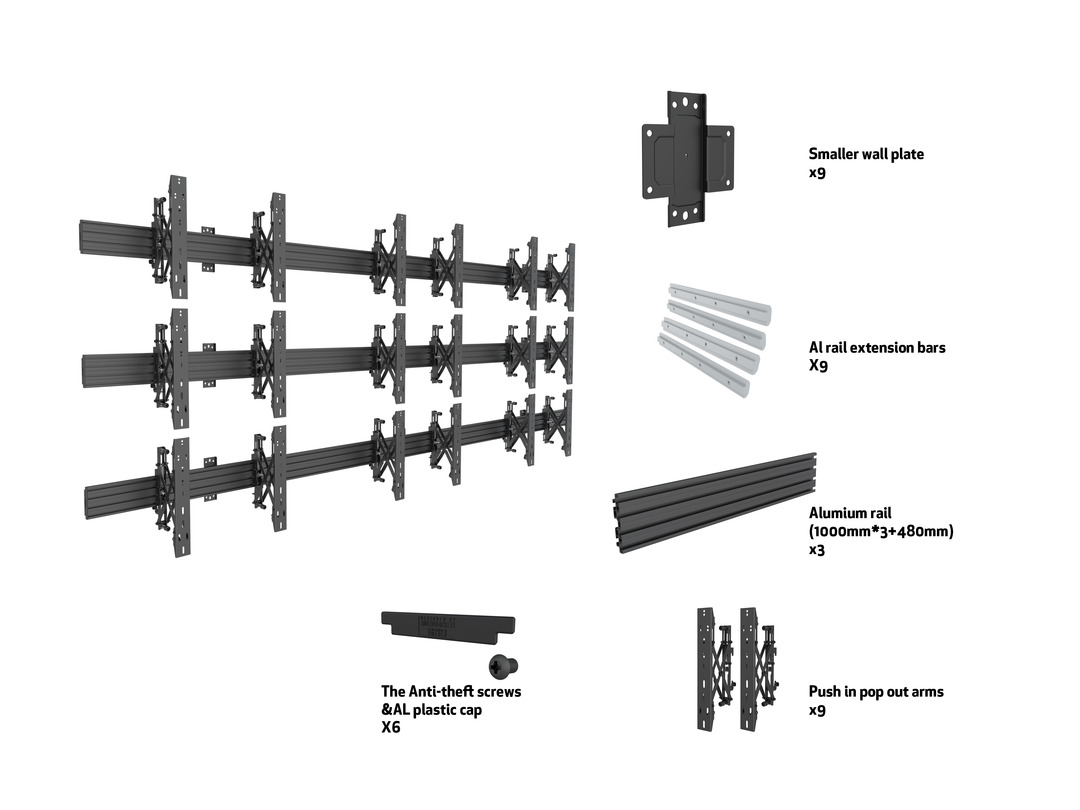

Complete hardware kit included

Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002

Selected models are TÜV approved.
Pro Series Configuration Guide

Specification
M Wallmount Pro MBW3X3U Push In Pop Out Black
Article No:	7 350 073 735 013
For screen size:	32"-65"
Type:	Single Side MBW3U x 3
Universal & VESA standard:	Adjustable from 100x100 to 600x400 max 55" 600x400 max 65" 400x400 max Optional VESA 800x600, 1000x600
Material:	Steel, Aluminium, Plastic
Color:	Black
Surface Finish:	Powder coating
Weight:	78 kg
Measurements	348 x23.5x44.7cm per rail
Max Load:	30 kg per screen

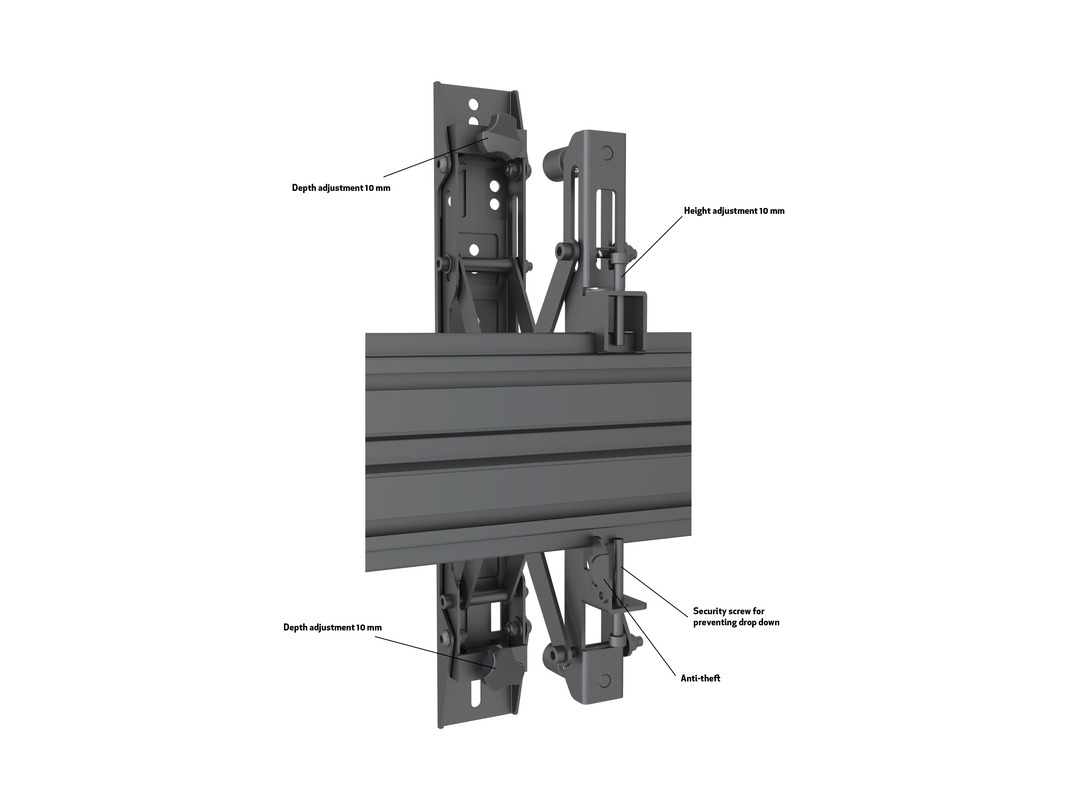

Height adjustment:	Yes, 0-10mm
Depth adjustment:	Yes, 0-15mm
Tilt adjustment:	Yes, ±4°°
Cable Management:	Yes
Options:	M Pro Series Parts
Certifications:
Warranty:	5 years
