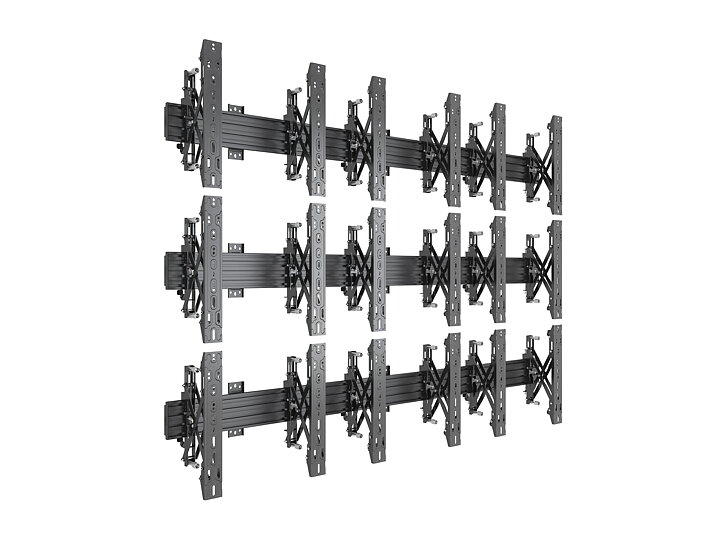

M Wallmount Pro MBW3x3UP Push In Pop Out Portait
M Wallmount Pro MBW3x3U Push In Pop Out Portait - Wall mount for displays, steel, 9 screens, single side, adjustable, VESA Max 400x400 - screen size: 32"-55" - portrait - black
Options
Variants that match your options:
Price
Not available
Price
In stock: 25
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073735051
M Wallmount Pro MBW3x3U Push In Pop Out Portrait – Wall mount for displays, steel, 9 screens, single side, adjustable, VESA Max 400x400 – screen size: 32"-55" – portrait – black
Product overview

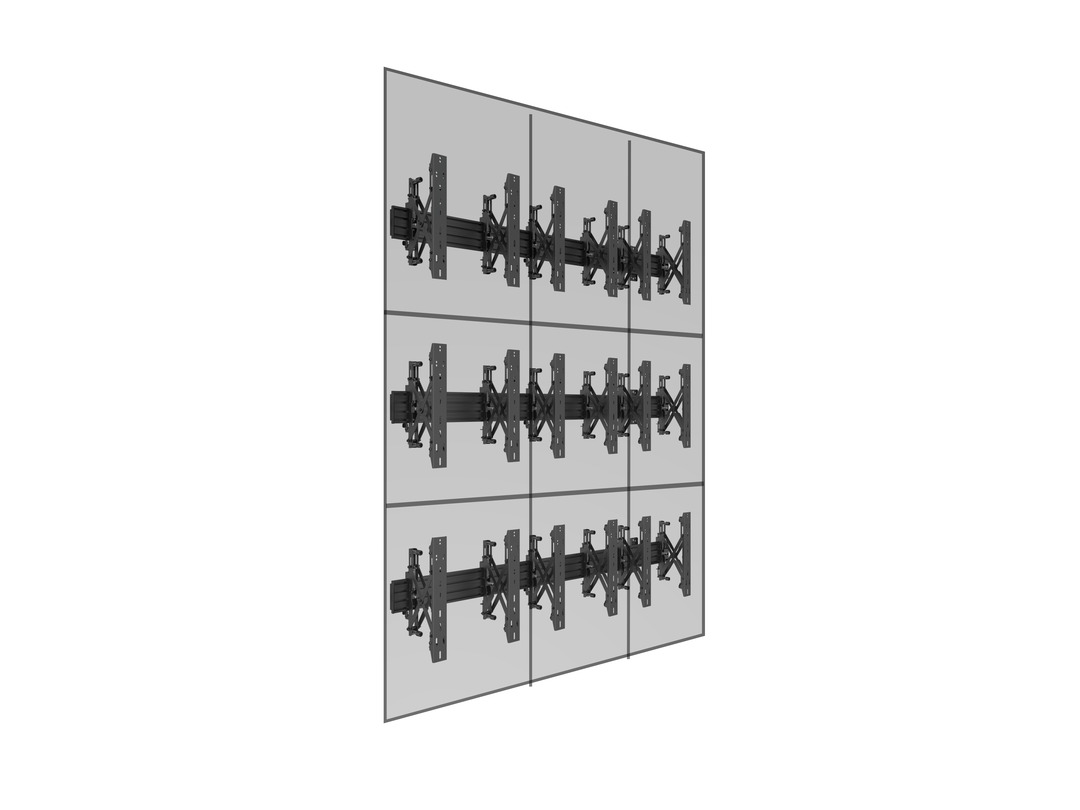

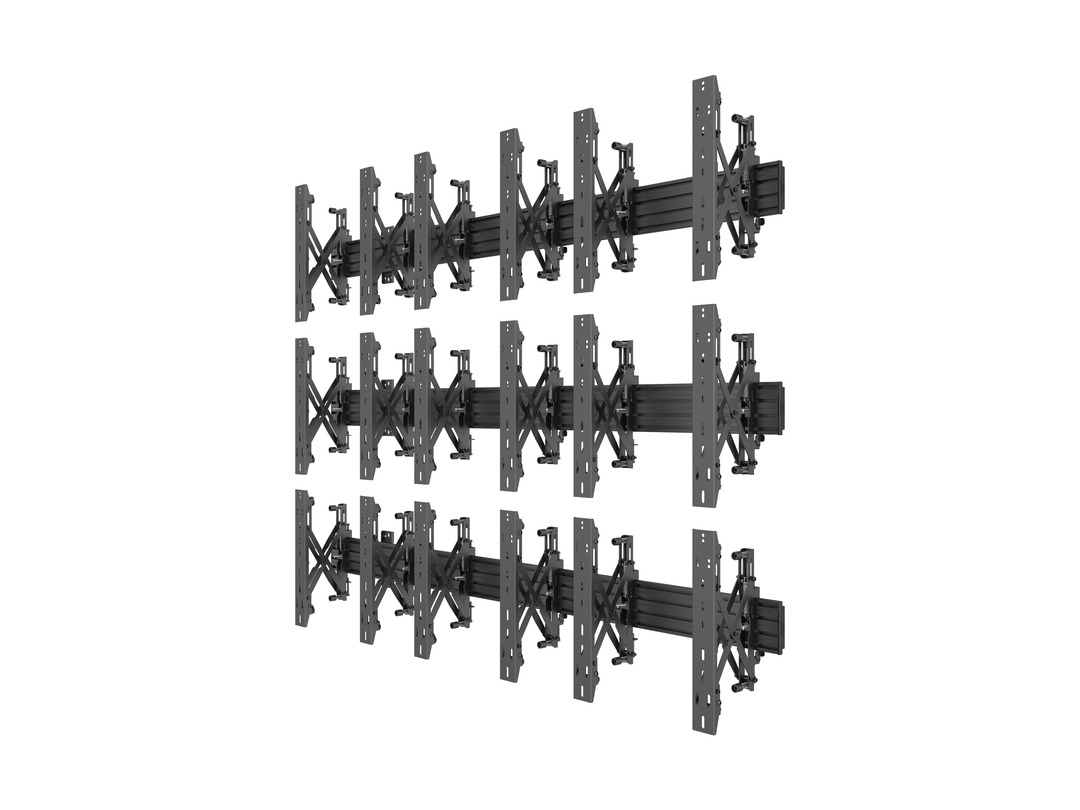

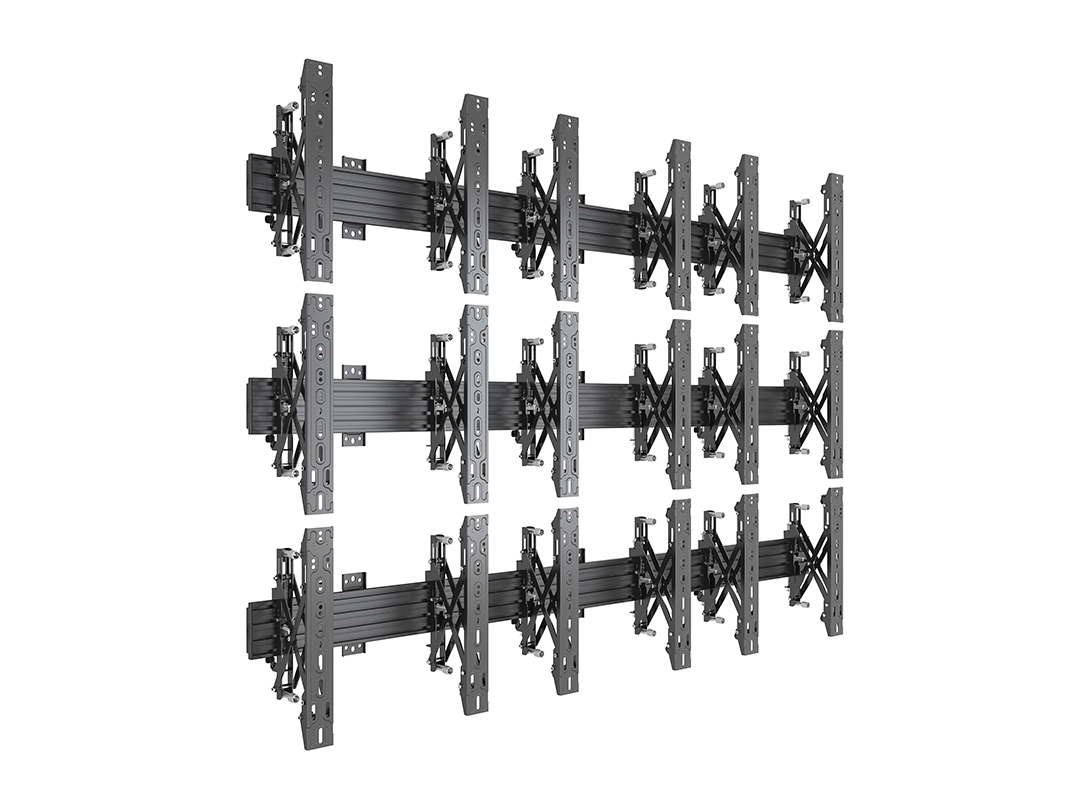

The Multibrackets M Wallmount Pro MBW3x3U Push In Pop Out Portrait is a premium solution for 9-screen portrait video walls. Designed for digital signage in retail, control rooms, or corporate spaces, this modular mount supports fast installation, tool-free servicing, and precision alignment.
Engineered with the installer in mind, this Pro Series model features push-in pop-out arms for easy screen access and individual fine-tune adjustments. Built on durable aluminum rails with integrated cable management, the system ensures a clean, scalable installation for demanding professional environments.
Highlights

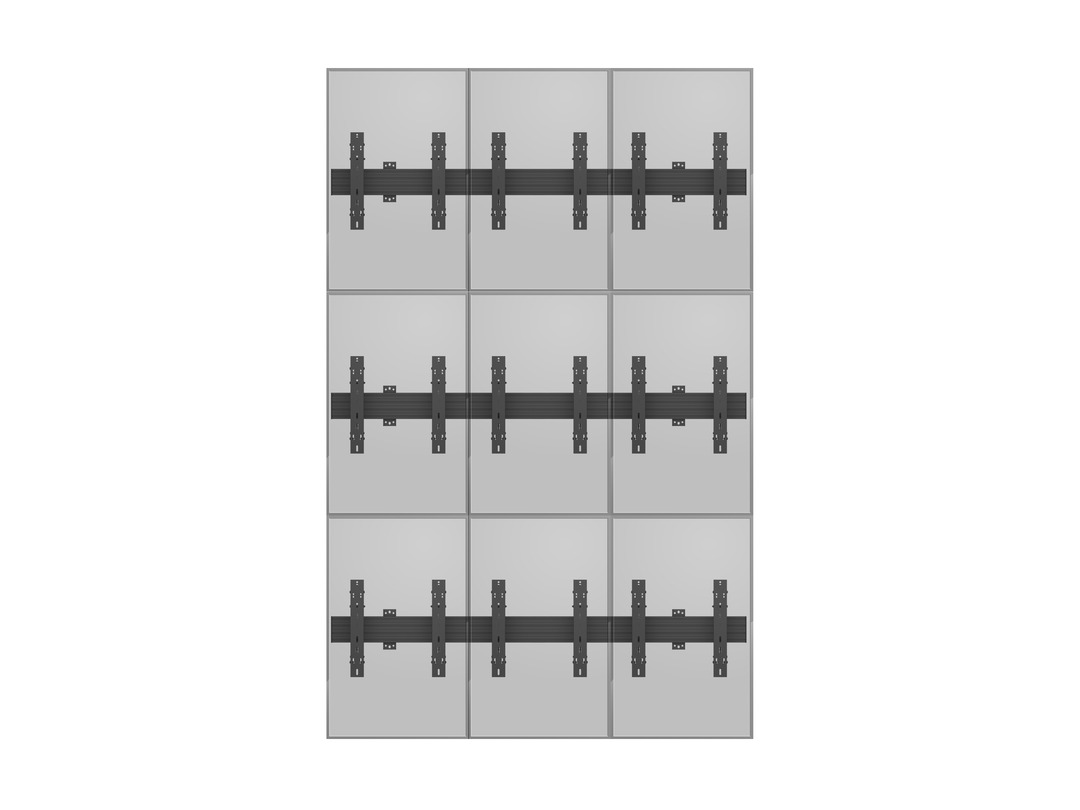

- Optimized for 3x3 portrait video walls – supports landscape if needed

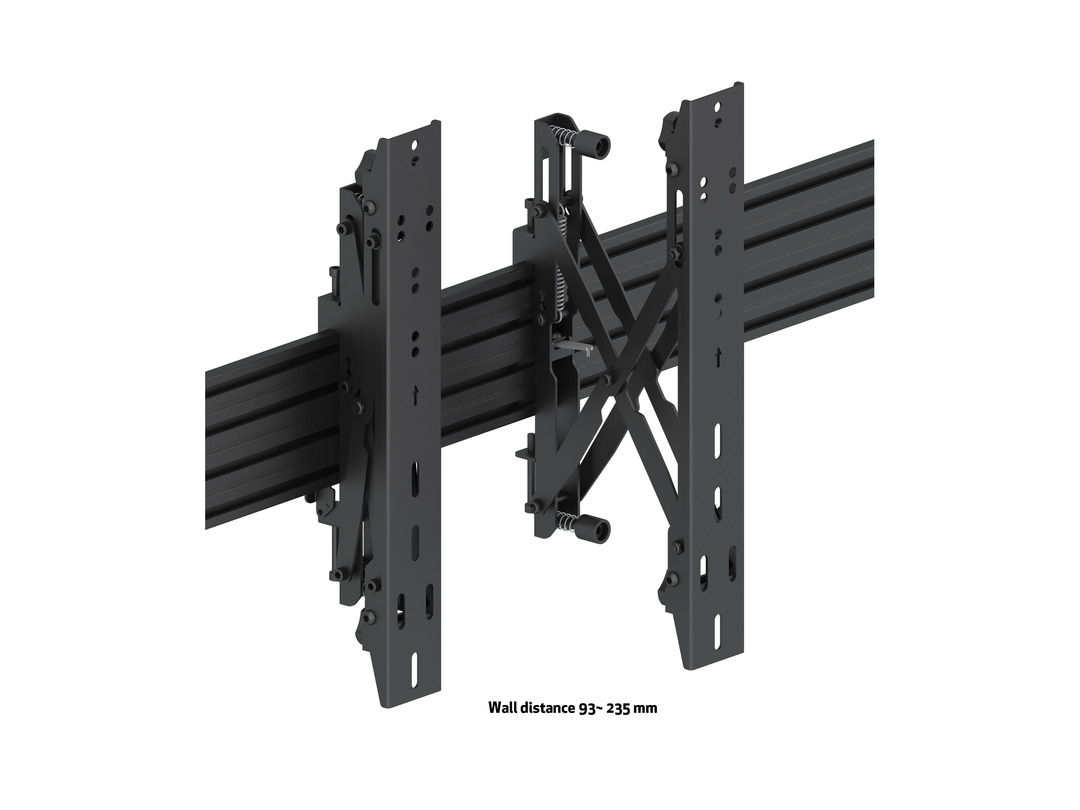

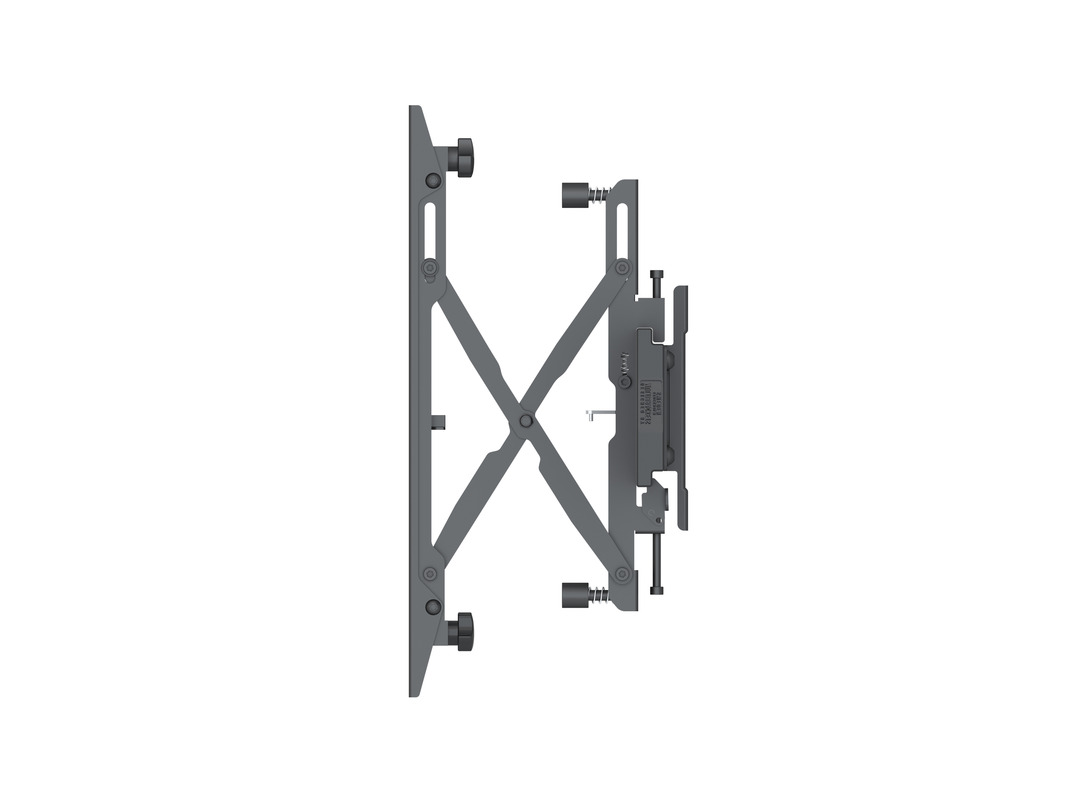

- Push-in pop-out system for fast, tool-less service access
- Compatible with VESA up to 400x400

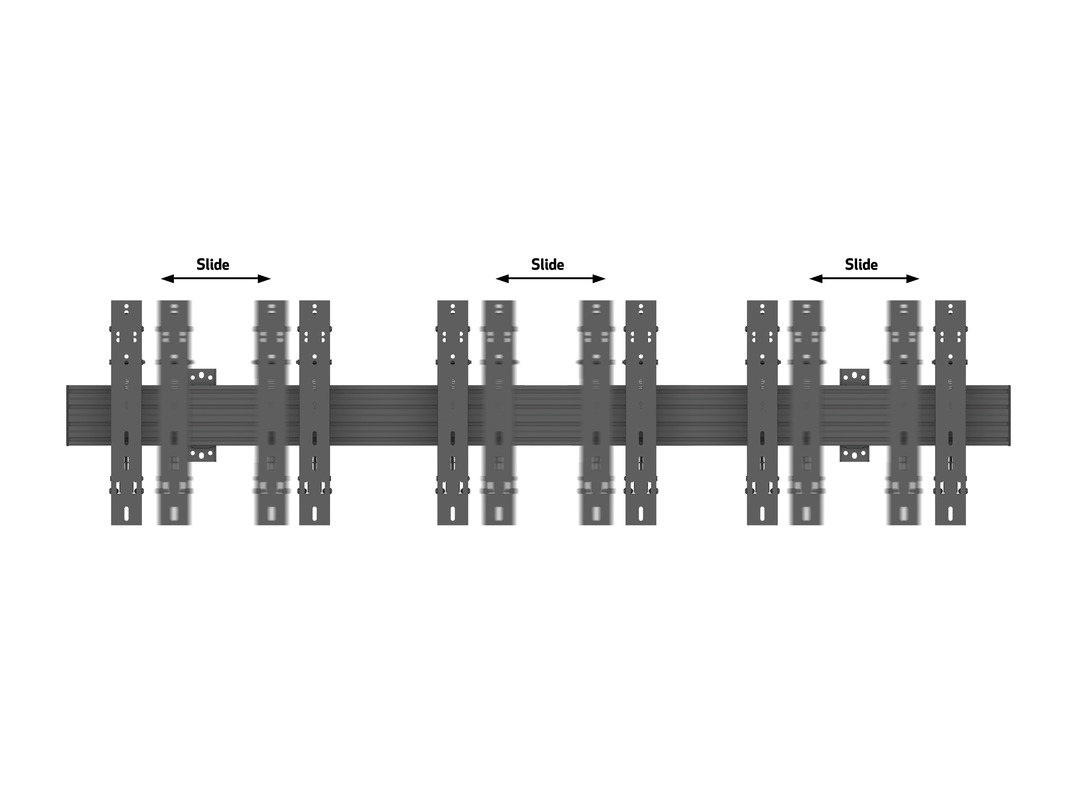

- Modular aluminum rails – adjust lengths without cutting
- Triple wall plates per section for added stability
- Clean cable routing for professional visual finish

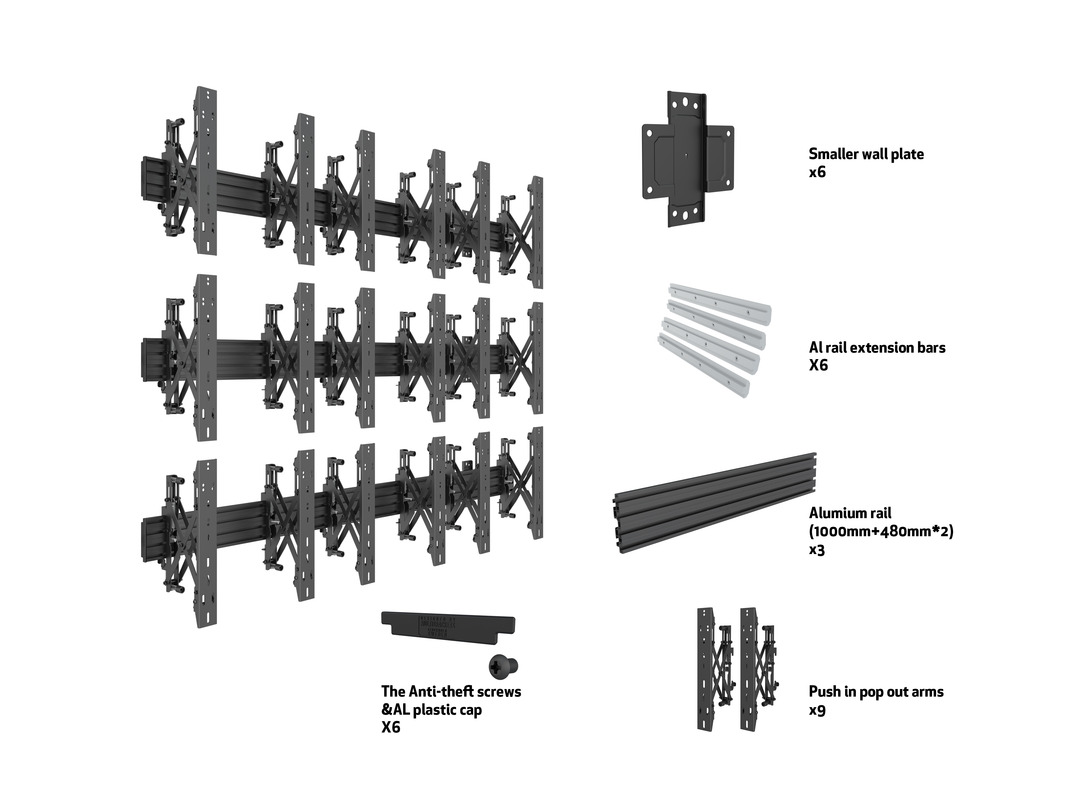

- Includes hardware kit for a seamless installation process
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Wallmount Pro MBW3xU Push In Pop Out Black | |
| Article No: | 7 350 073 735 051 |
| For screen size: | 32"-55" |
| Type: | Single Side MBW3U |
| Universal & VESA standard: | 100x100,200x100, 200x200,300x300,400x200,400x400 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 64 kg |
| Measurements | 104 x 54.2 x 27.1cm per row |
| Max Load: | 50kg (TUV30kg) Per screen |

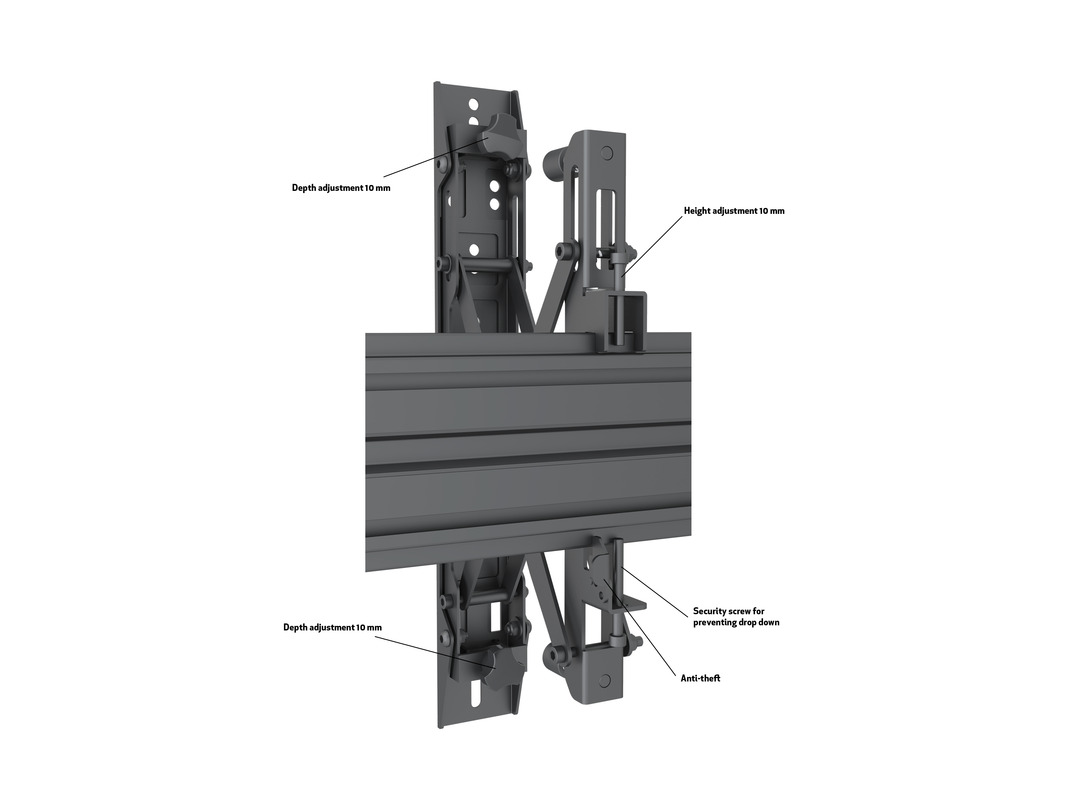

| Height adjustment: | Yes, 0-10mm |
| Rotate adjustment: | Yes, ±4° |
| Tilt adjustment: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104 x 45.6 x 27 cm |
| Package Weight: | 64.50 kg |
