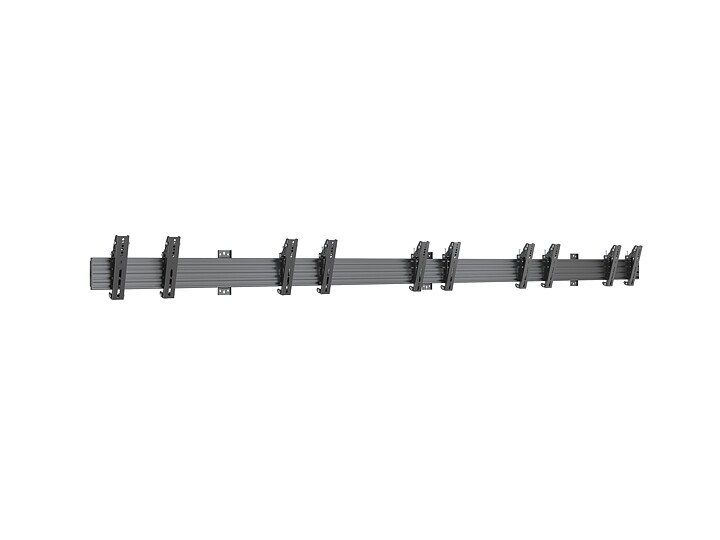

M Wallmount Pro MBW5U Tilt VESA 200 Black
M Wallmount Pro MBW5U Tilt VESA 200 Black - Wall mount for LCD display, steel, 5 screen, single side, tilt, VESA Max 200x200 - screen size: 27"-32" - black
Options
Variants that match your options:
Price
Not available
Price
In stock: 233
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105215988

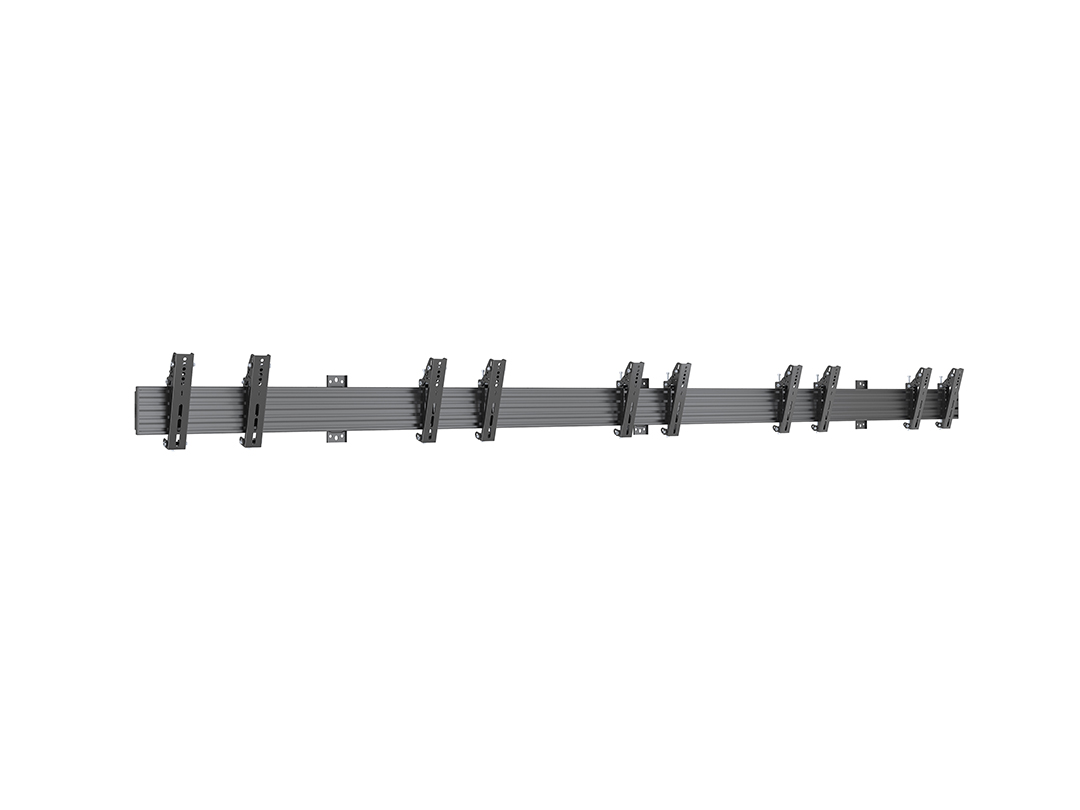

M Wallmount Pro MBW5U Tilt VESA 200 - Wall mount for 5 LCD displays - VESA Max 200x200 - screen size: 27"-32" – black
Product Overview

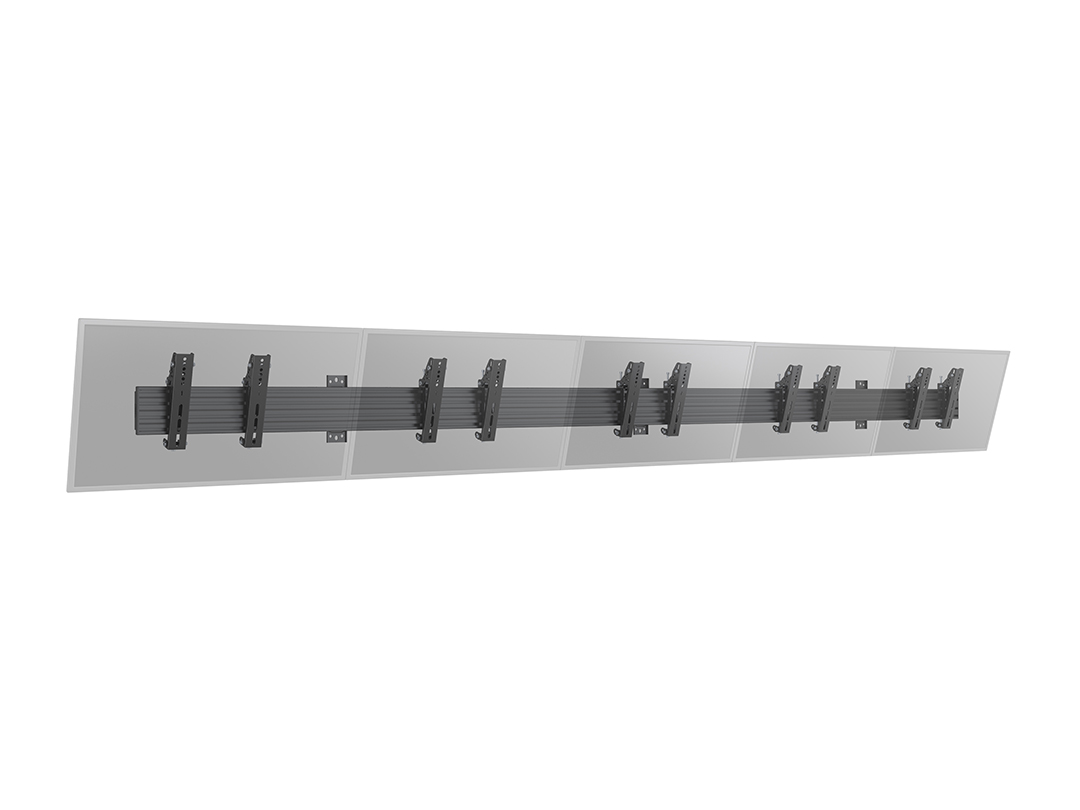

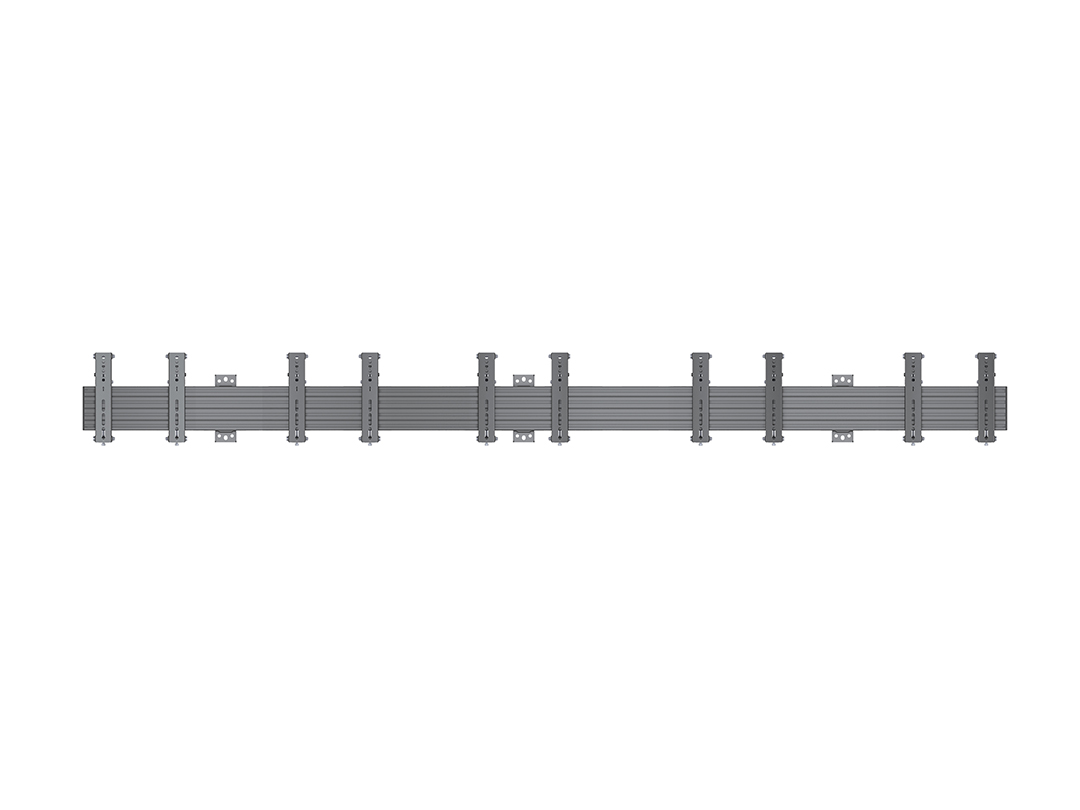

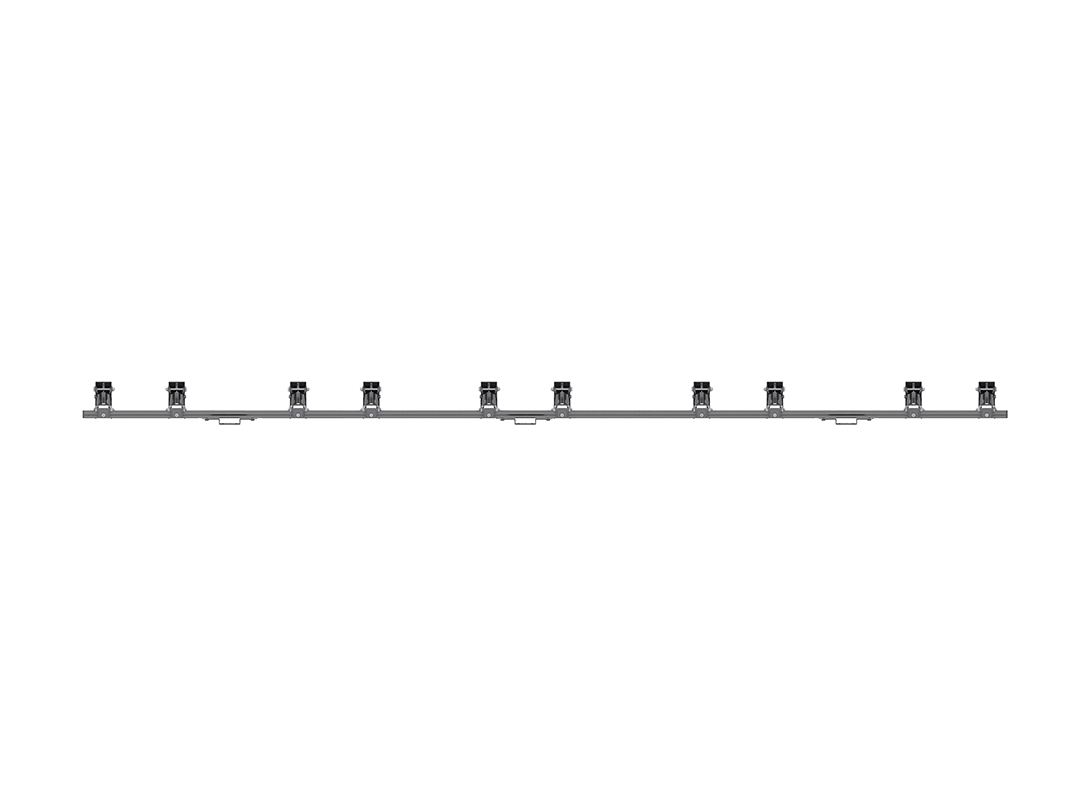

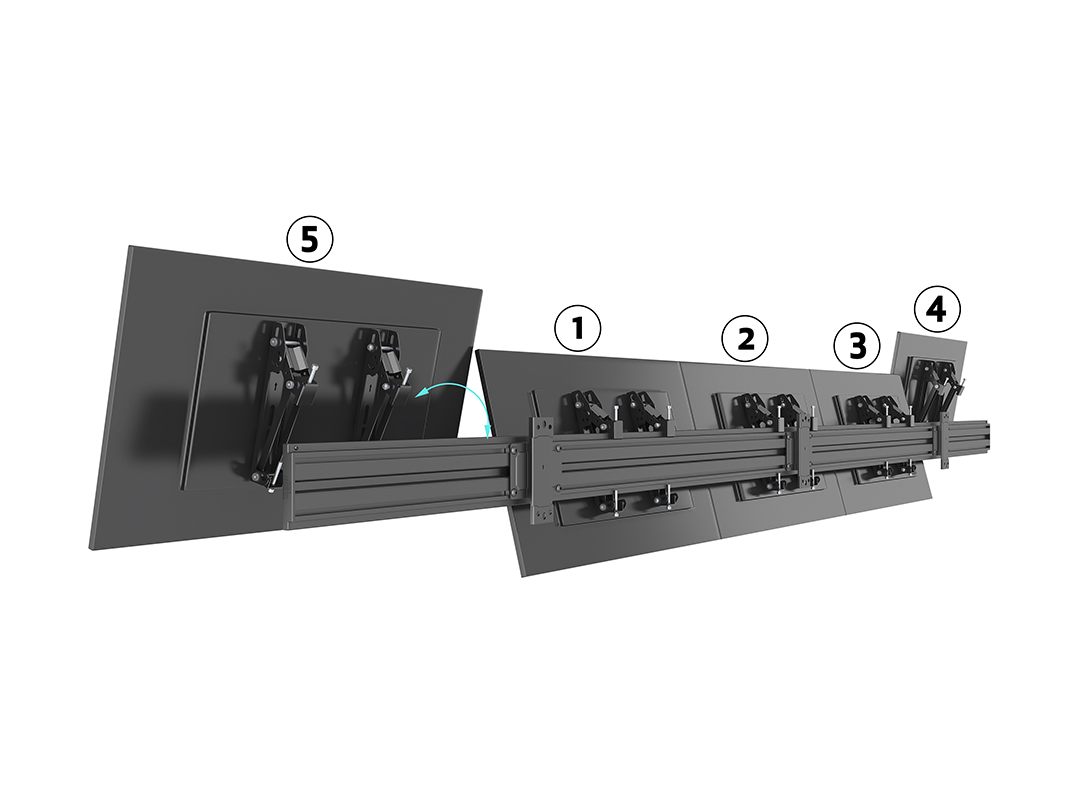

The M Wallmount Pro MBW5U Tilt VESA 200 is a professional multi-display wall mount designed for five LCD screens in a single-row configuration. Ideal for control rooms, broadcasting, digital signage, and security environments, this solution provides precise tilt adjustment and consistent screen alignment.
Part of the installer-friendly Multibrackets Pro Series, this model combines flexibility, modular aluminum rails, and Scandinavian design aesthetics. With integrated cable management and the ability to expand and reconfigure over time, the MBW5U Tilt 200 delivers both function and form in demanding B2B environments.
Highlights
- Five-screen wall mount for 27"-32" displays
- Supports VESA up to 200x200 (adapters included)

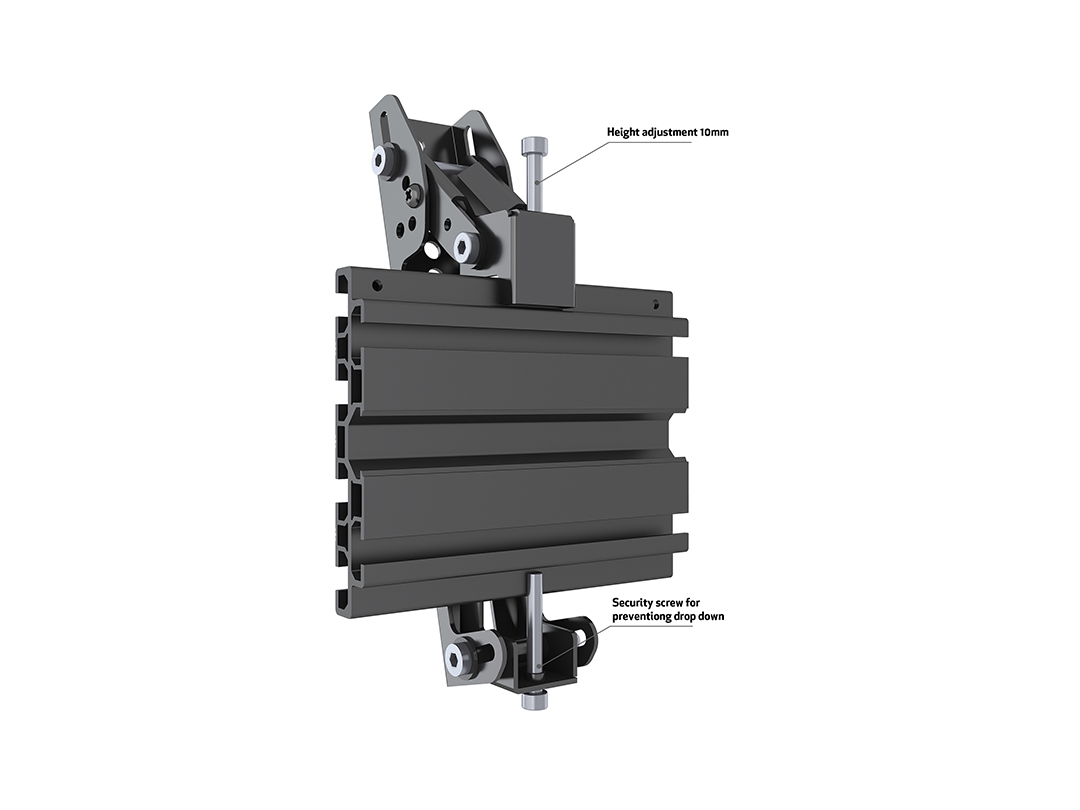

- Adjustable tilt arms for optimal viewing angles
- Modular aluminum rails – customizable length without cutting
- Integrated cable management for a clean installation
- Power Click™ install for fast and secure mounting
- Portrait or landscape orientation supported

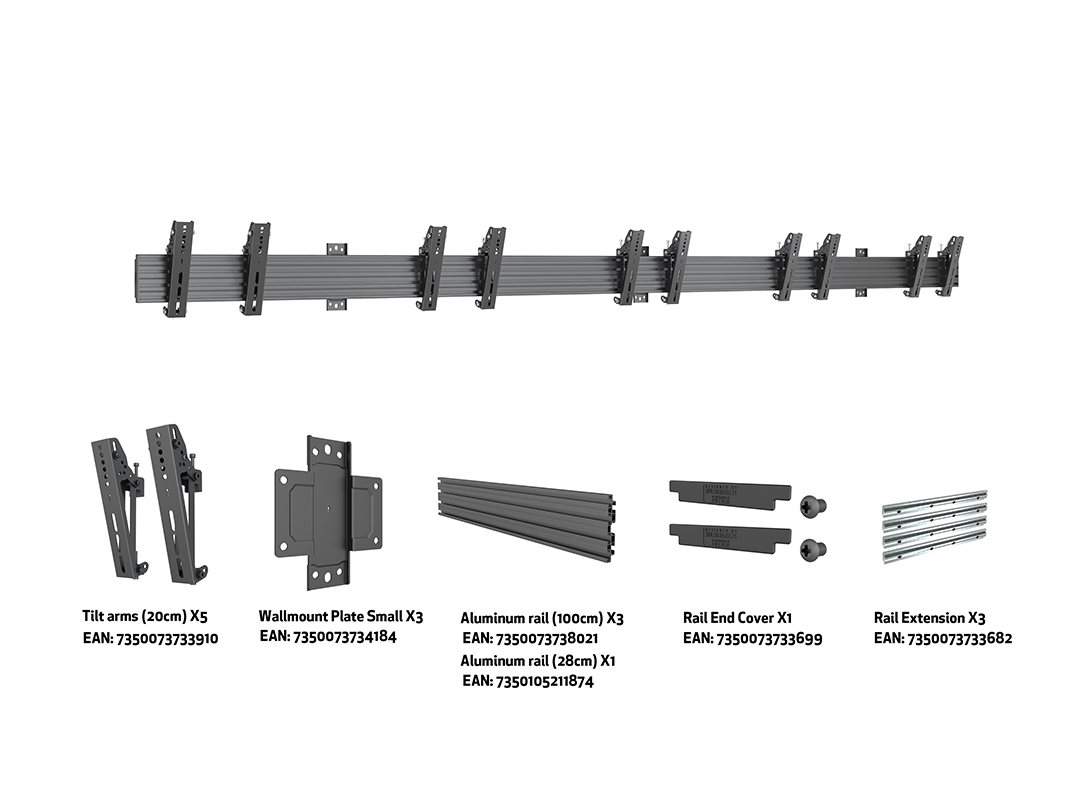

- Dual wallplates and full hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Wallmount Pro MBW5U Tilt VESA 200 Black | |
| Article No: | 7 350 105 215 988 |
| For screen size: | 27"-32" |
| Type: | Single Side MBW5U |
| Universal & VESA standard: | 75x75 100x100 100x200 200x100 200x200 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 18 kg |

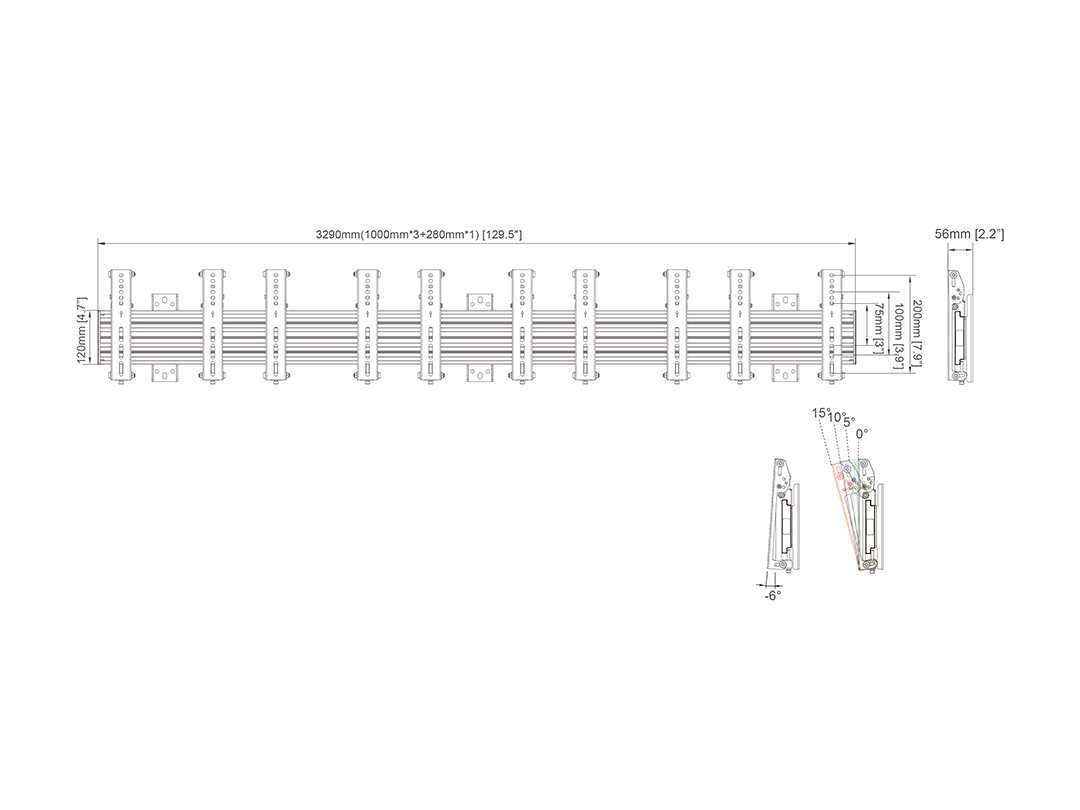

| Measurements | 104.5 x 16.5 x 15 cm |
| Max Load: | 30 kg per screen |

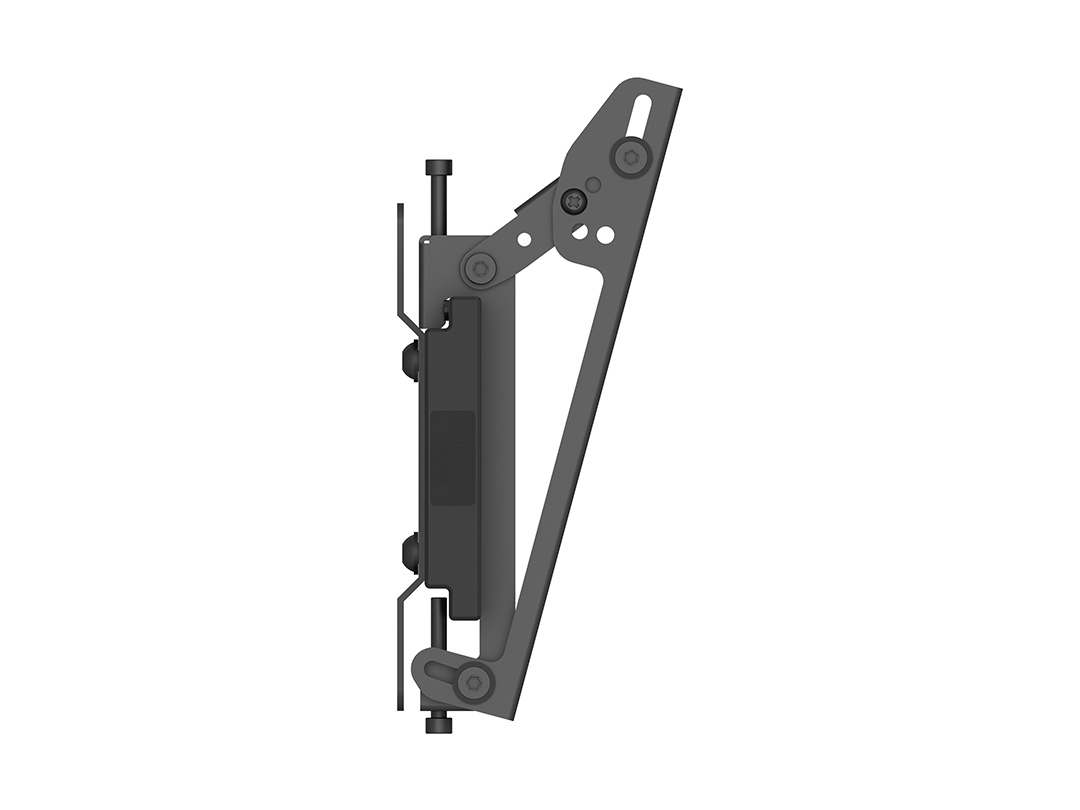

| Tilt: | -6° ~ 15° |
| Swivel: | 0° |
| Rotate: | ±0° |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104.5 x 16.5 x 15 cm |
| Package Weight: | 18 kg |
