Pro Series - M Wallmount Column
Options
Variants that match your options:
In stock: 148
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073738458
Product Overview

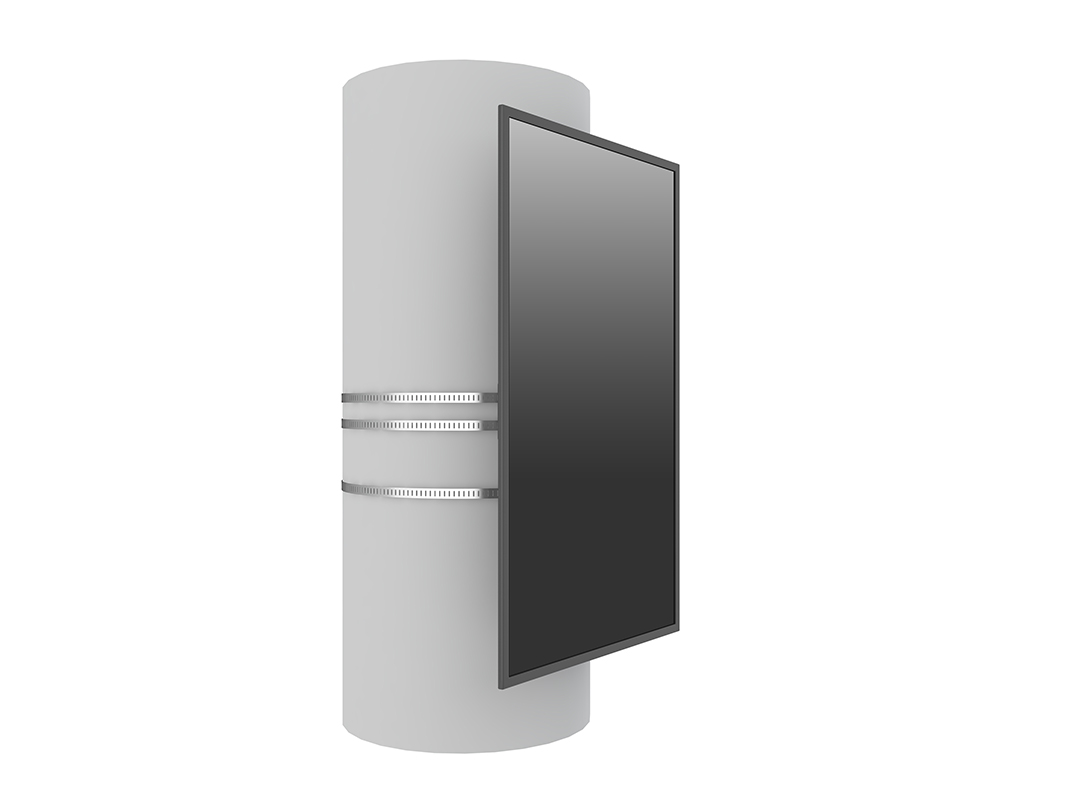

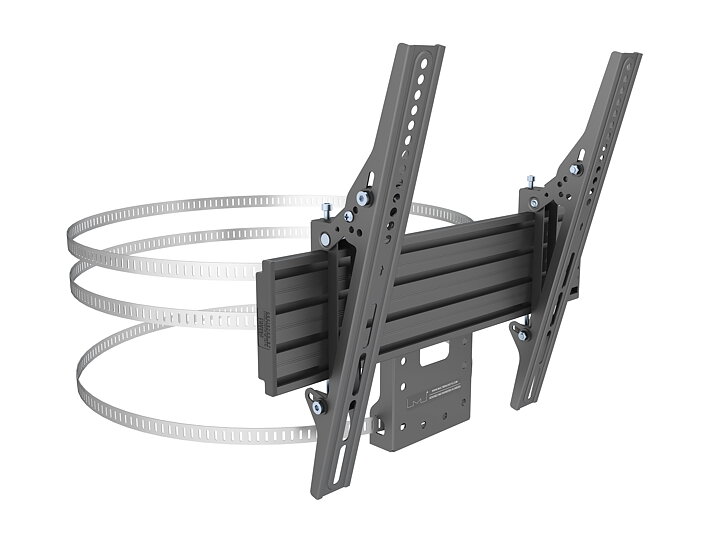

The M Pro Series – Wallmount Column from Multibrackets is a unique wall mounting solution designed for direct attachment to structural columns without drilling. Supporting one screen up to 75" with tilt functionality, it is ideal for environments where wall space is limited or drilling is restricted.
Part of the modular Multibrackets Pro Series A/V line, this system is built for flexibility, fast installation, and long-term adaptability. Its robust aluminum rail construction supports VESA patterns up to 400x400 and integrates cable management for a clean finish—ideal for public spaces, transport hubs, and commercial AV installations.

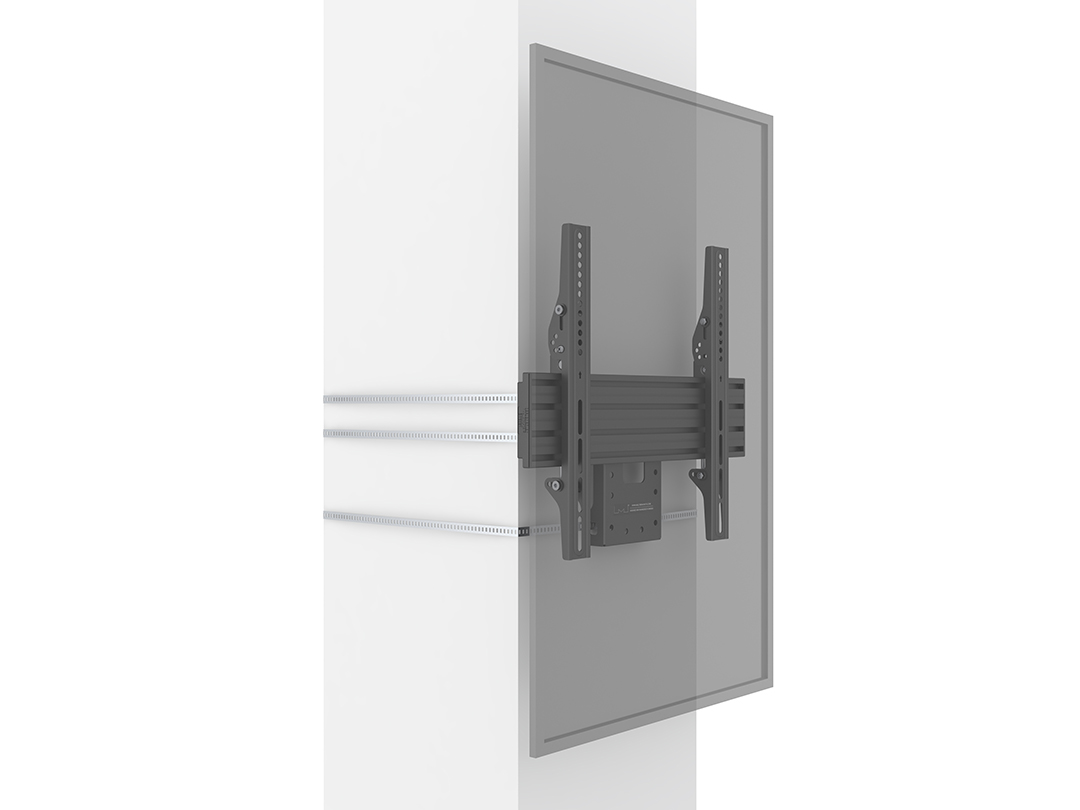

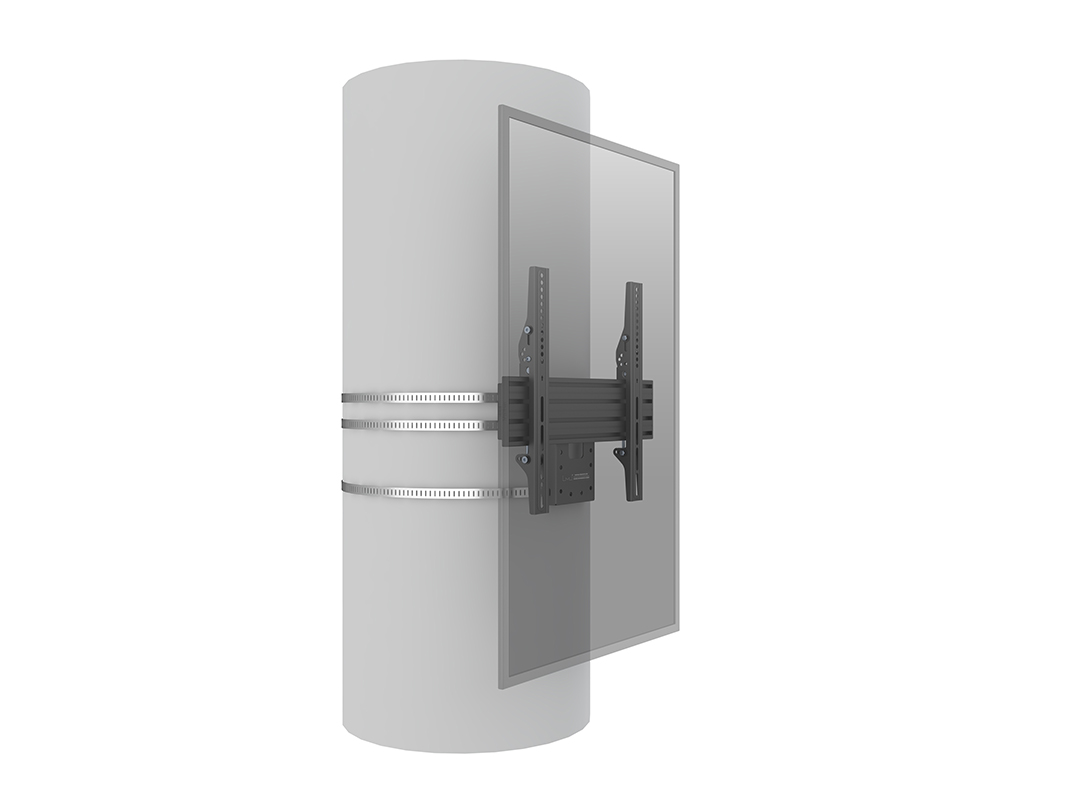

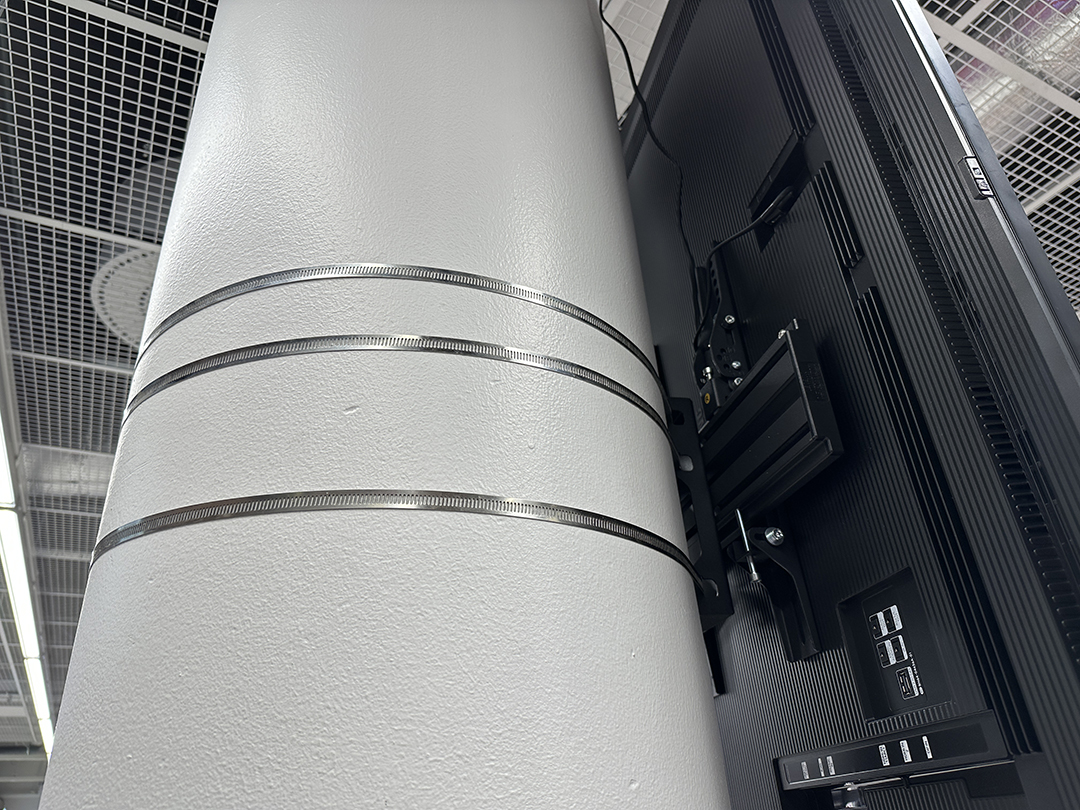

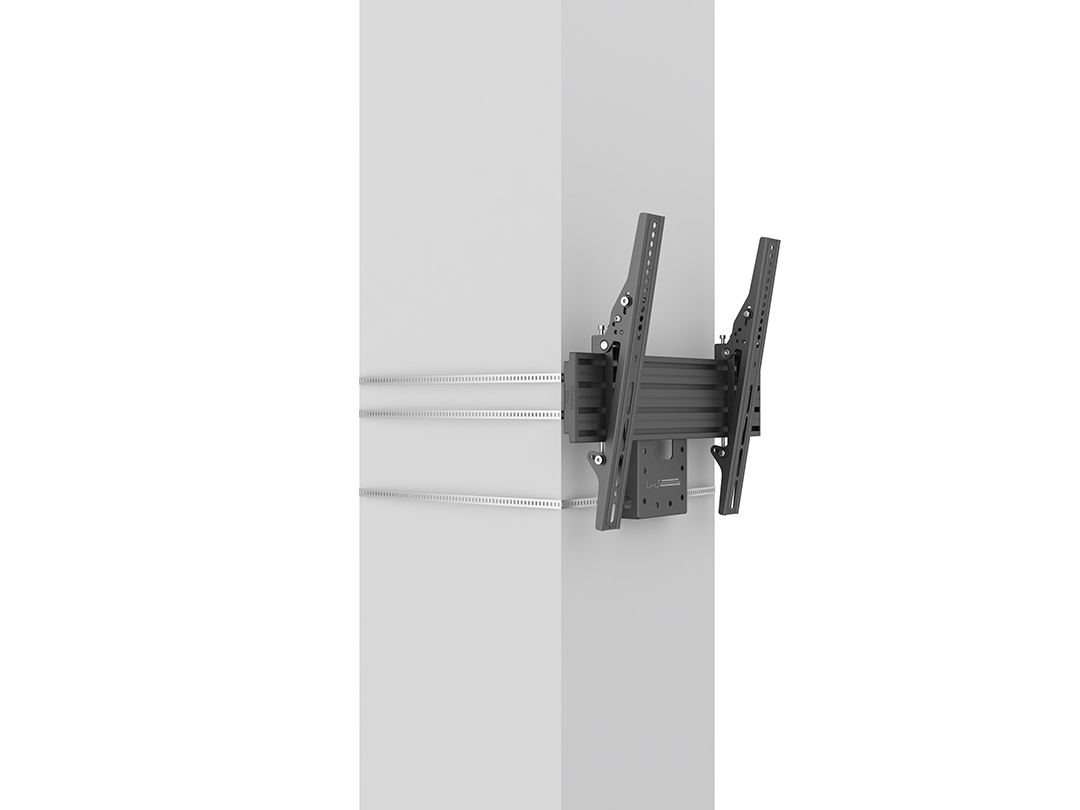

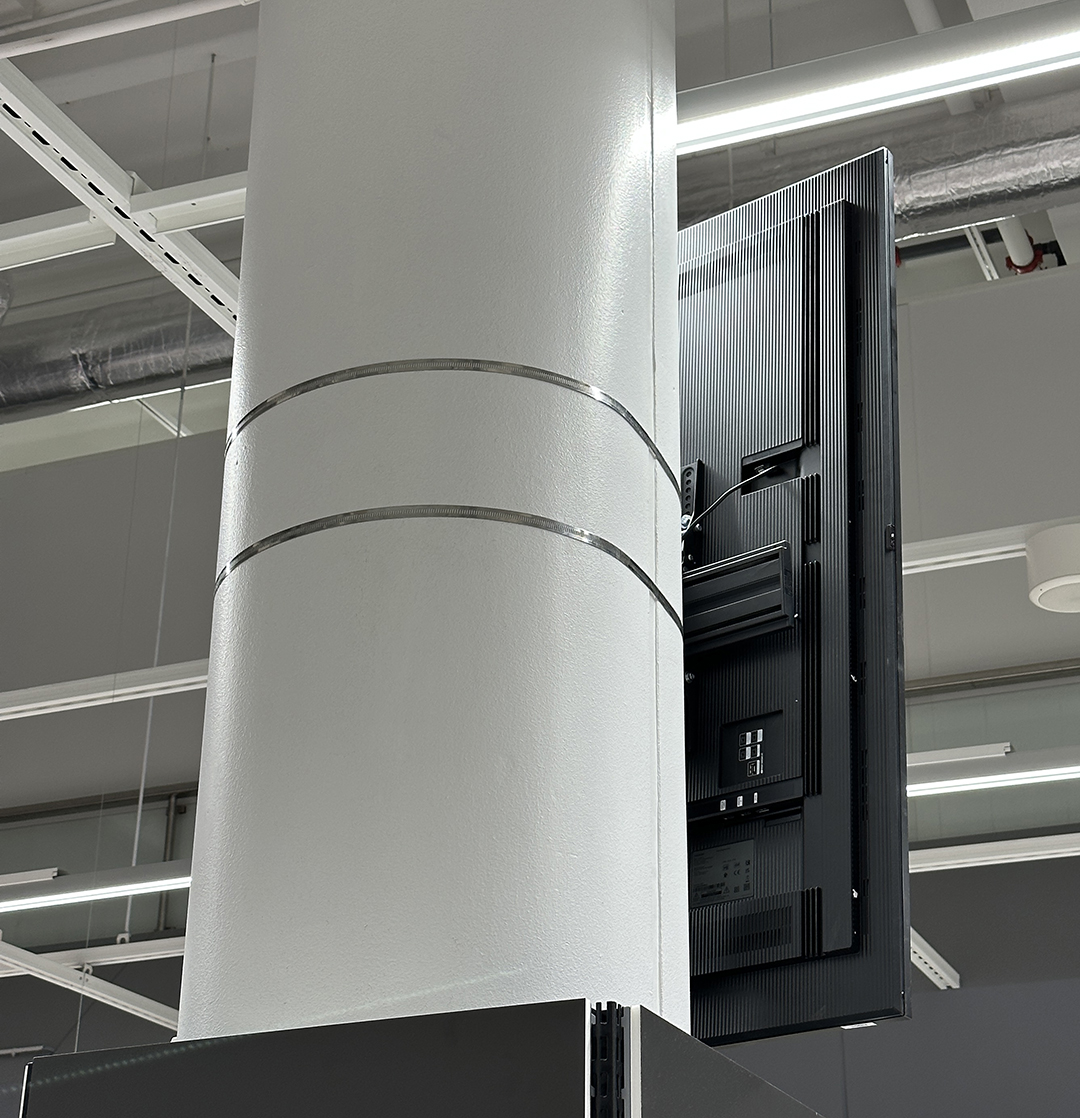

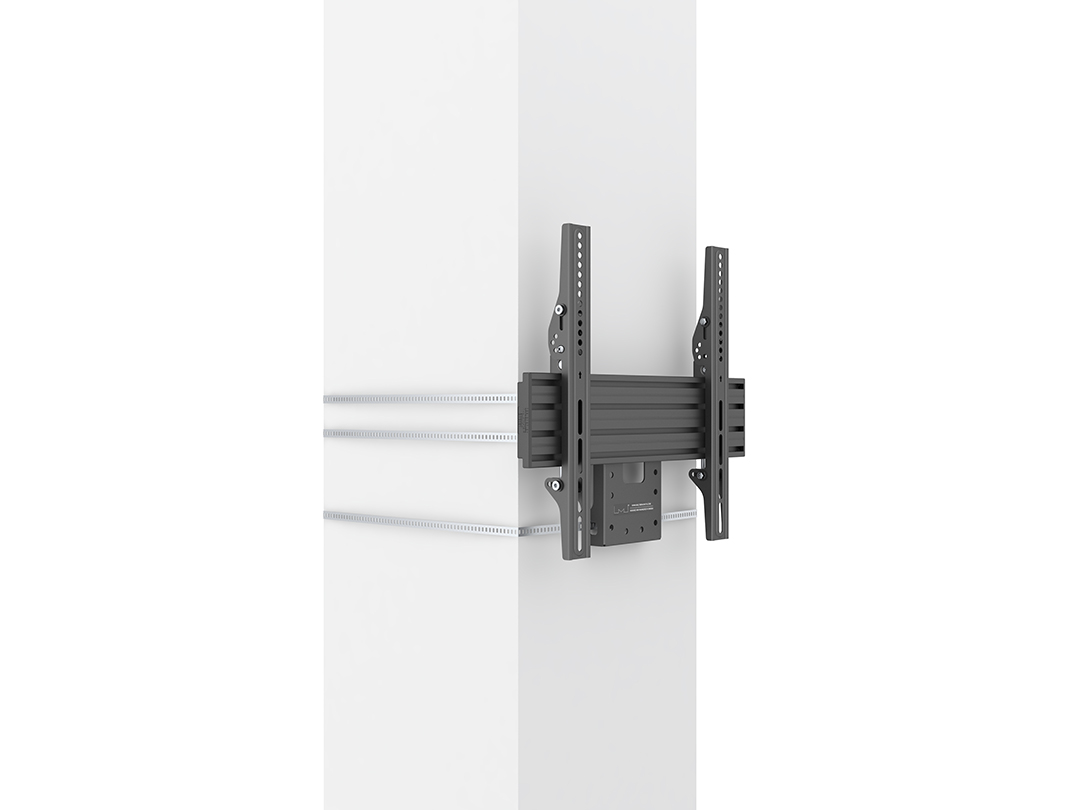

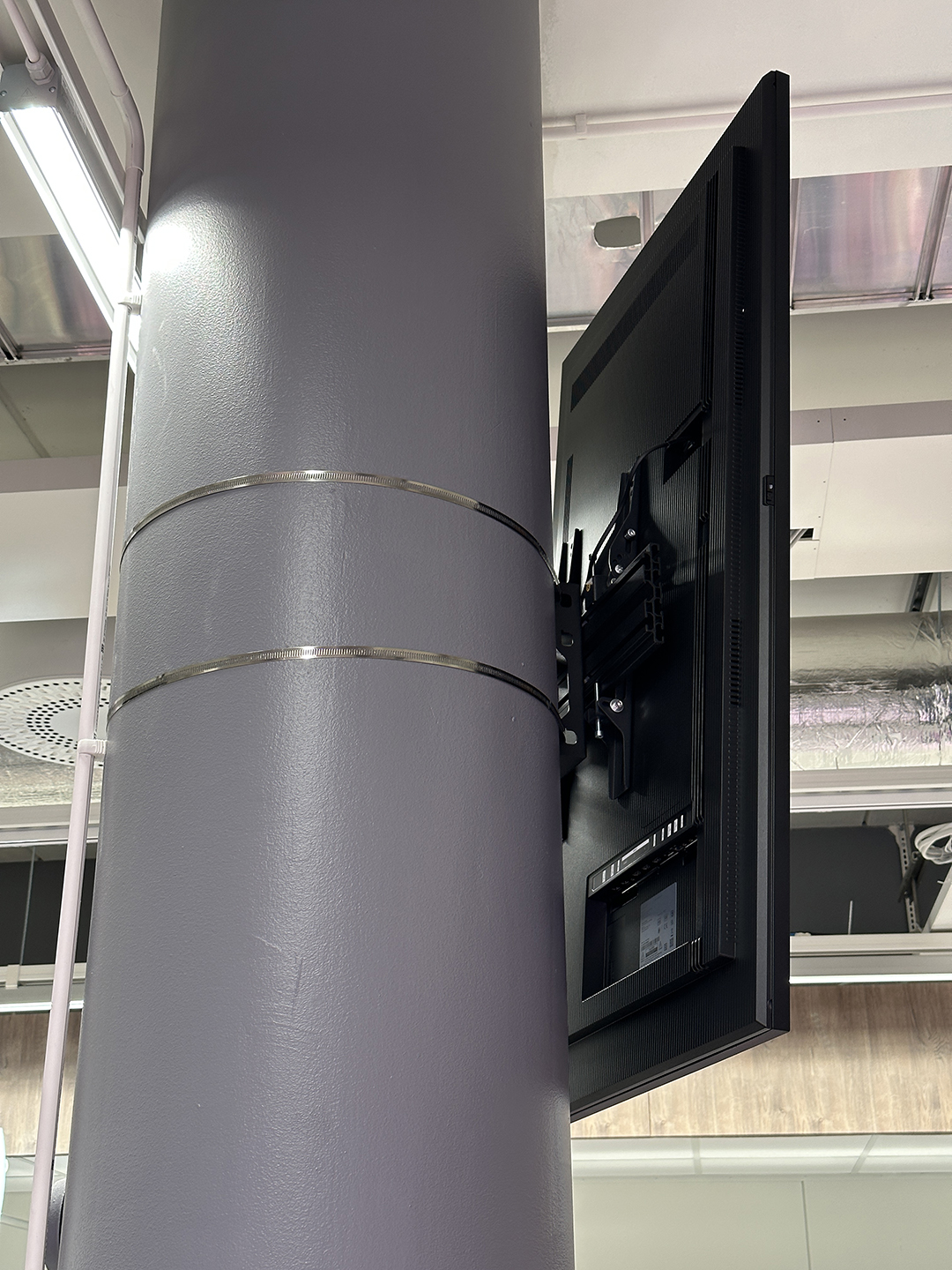

Thanks to its no-drill clamping mechanism, the mount can be installed on round or square columns, providing both stability and versatility without damaging the structure.
Highlights
- Column-mounted display solution – no drilling required
- Supports screens up to 75" (VESA 400x400)
- Tilt functionality for flexible viewing angles
- Modular design based on Pro Series aluminum rail system
- Integrated cable management for a neat appearance
- Ideal for commercial spaces, transport stations, and venues with limited wall access

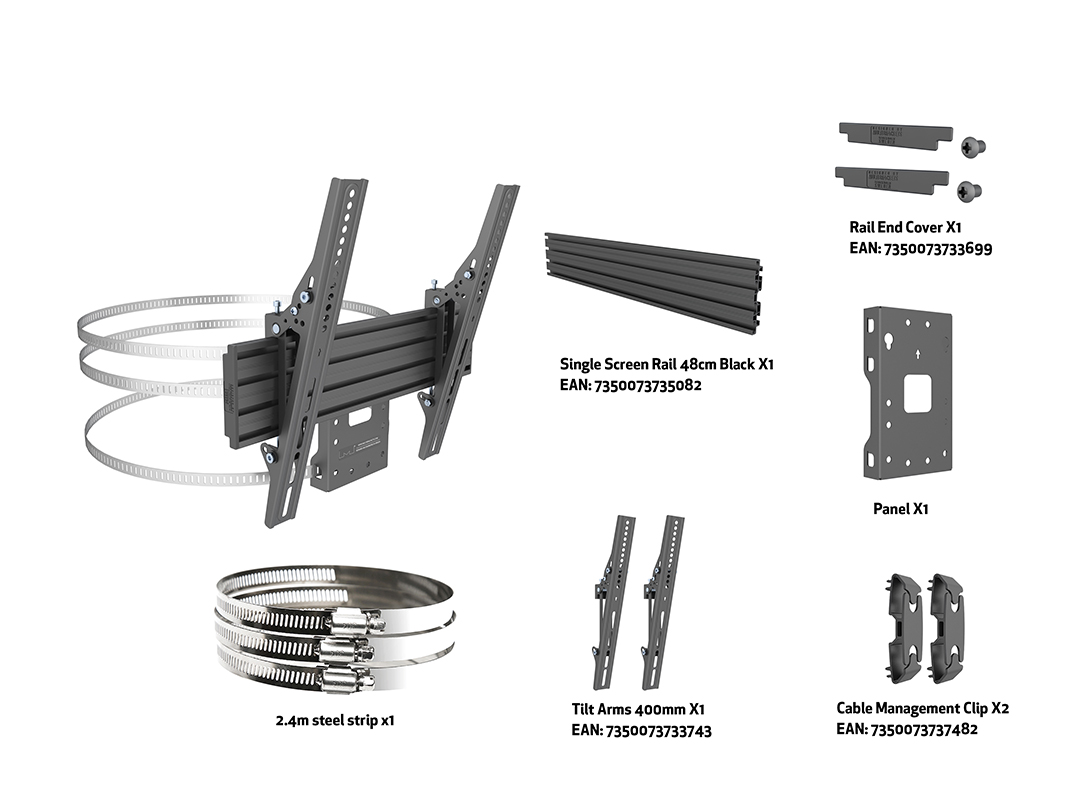

- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Pro Series - Wallmount Column | |
| Article No: | 7 350 073 738 458 |
| For screen size: | 32”-75" |
| Type: | Single Side MBW1U |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400 mm |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 4.3 kg |

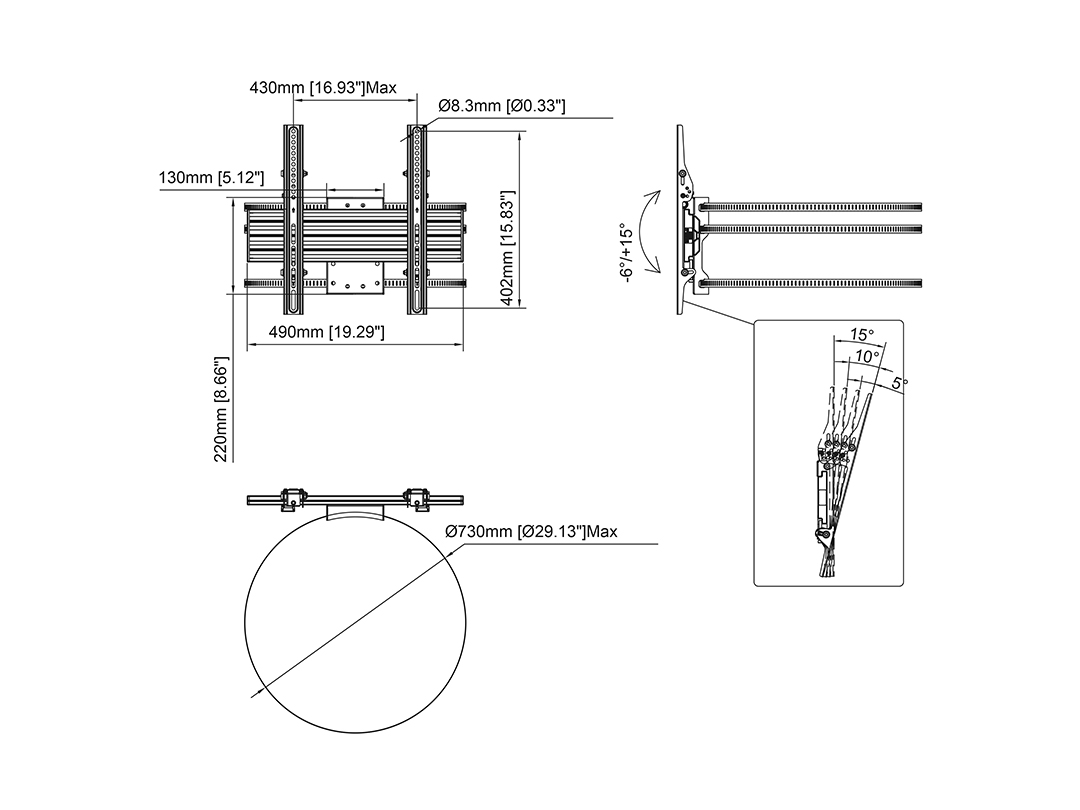

| Measurements | 75.0x98x16cm |
| Max Load: | 35 kg |

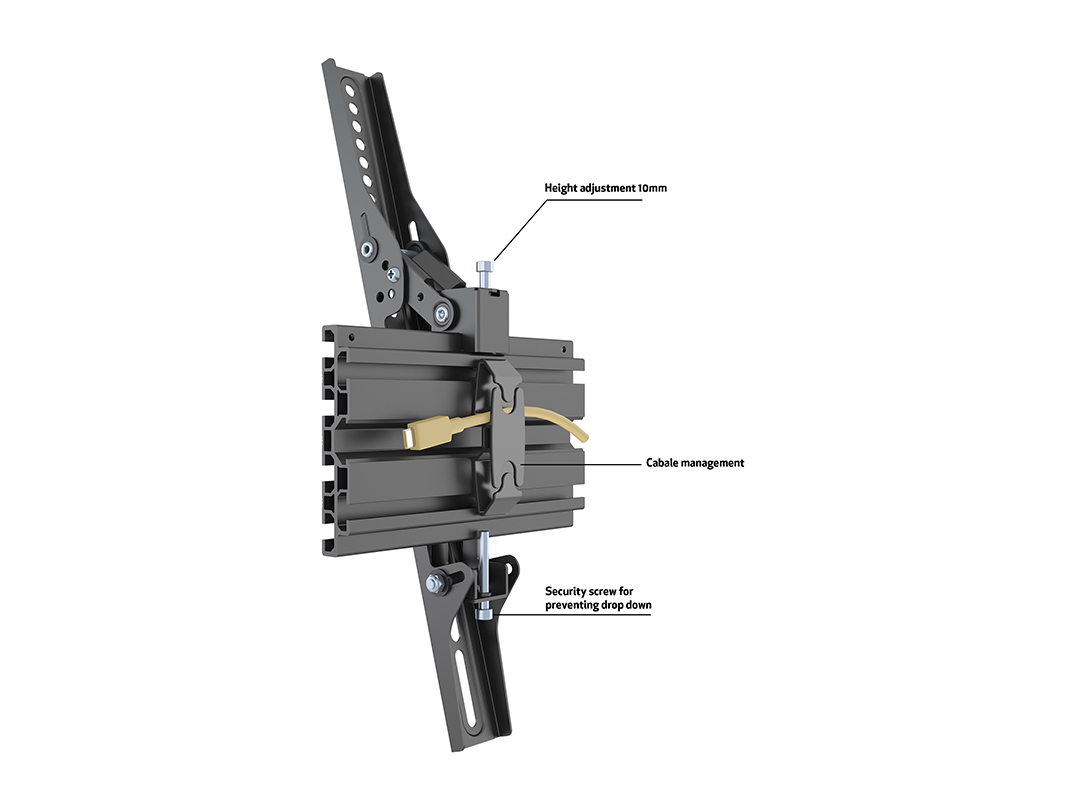

| Height Adjustement: | Yes, 10mm |

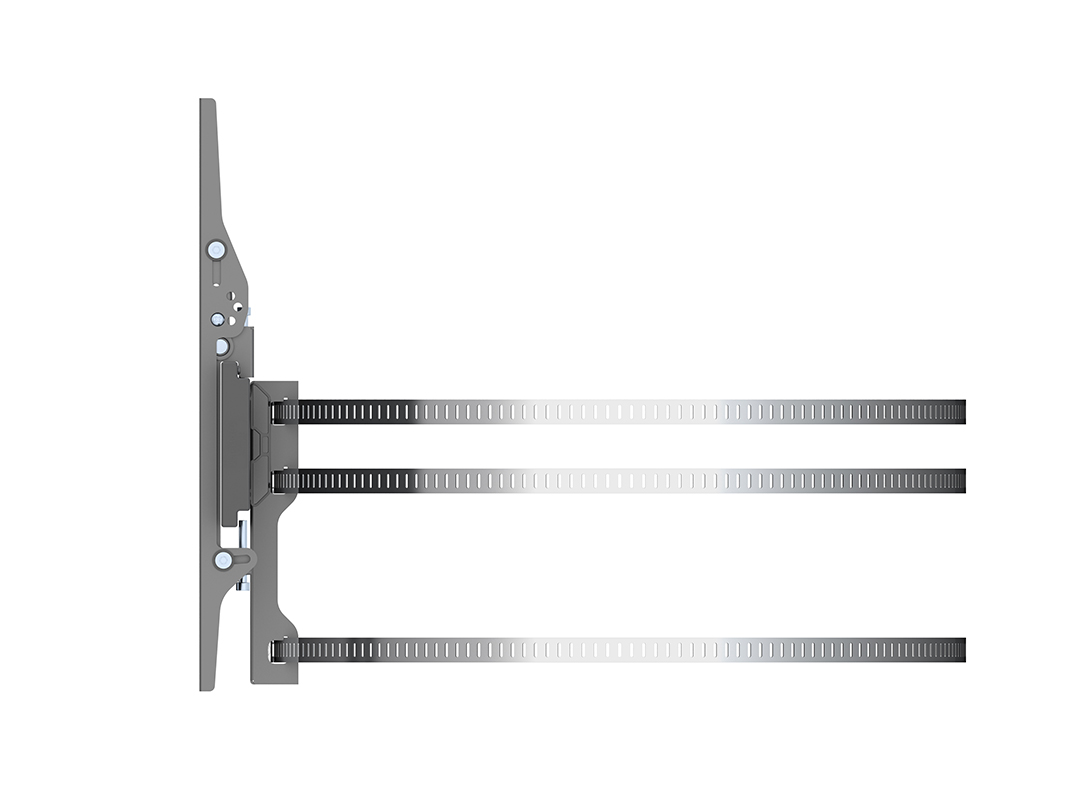

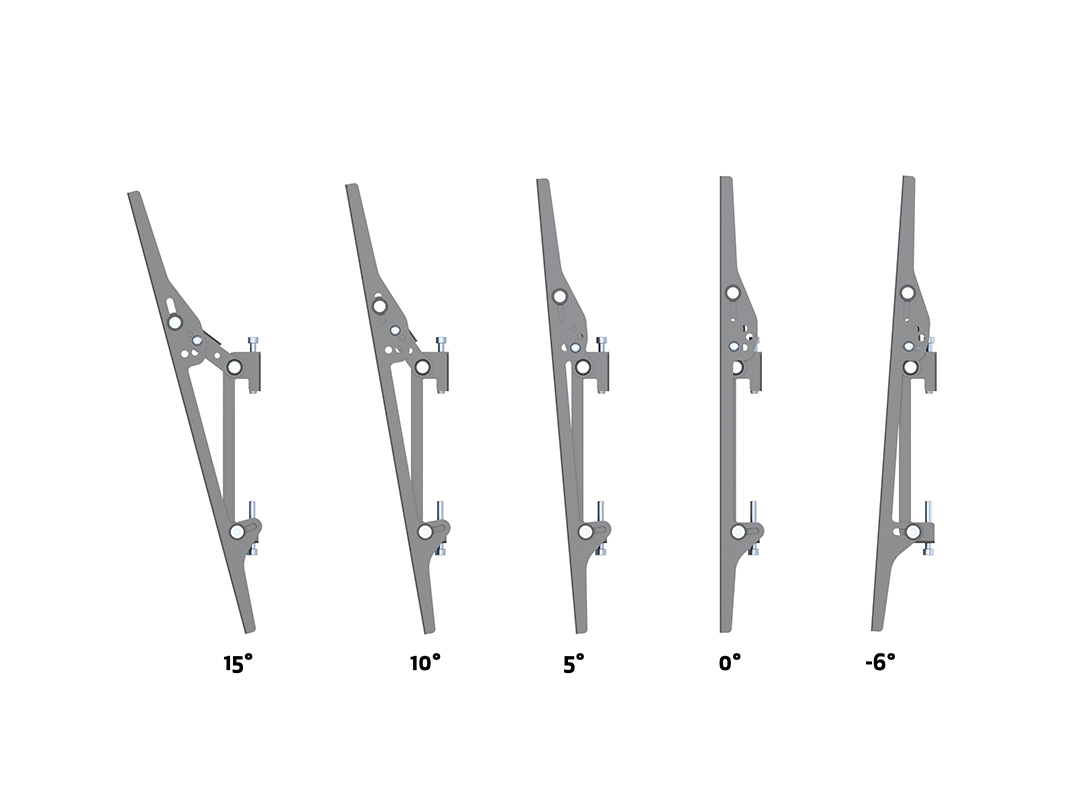

| Tilt: | Yes, -6~15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |

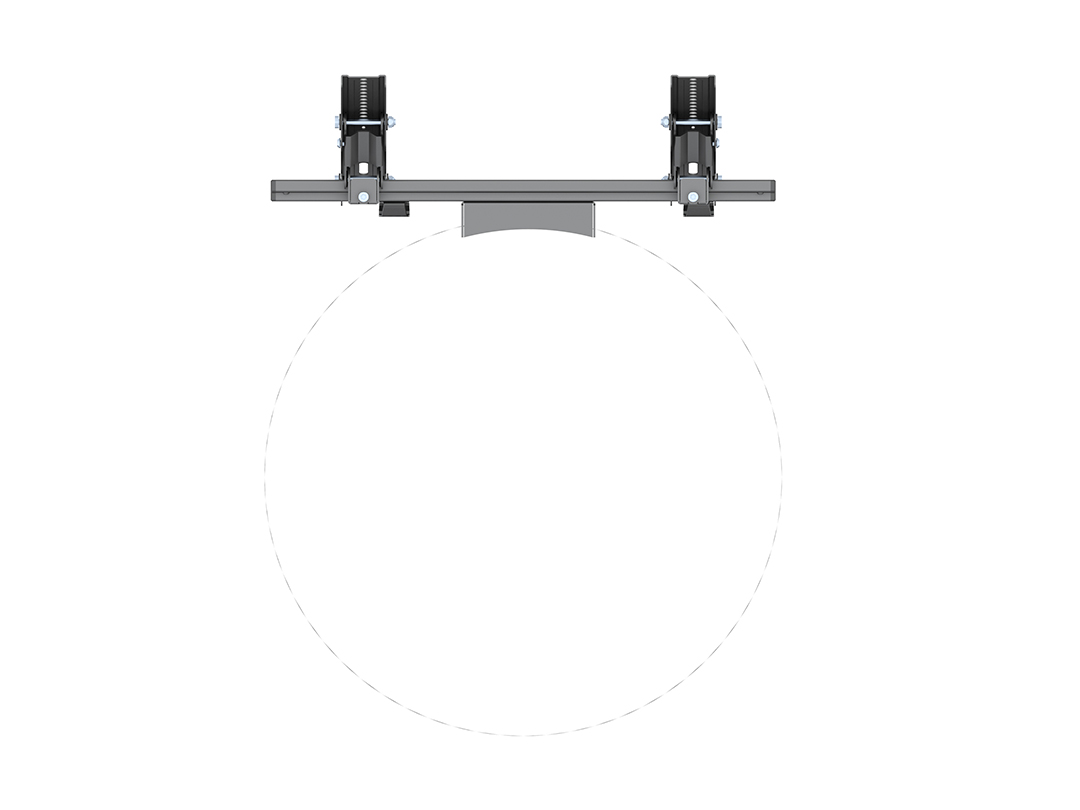

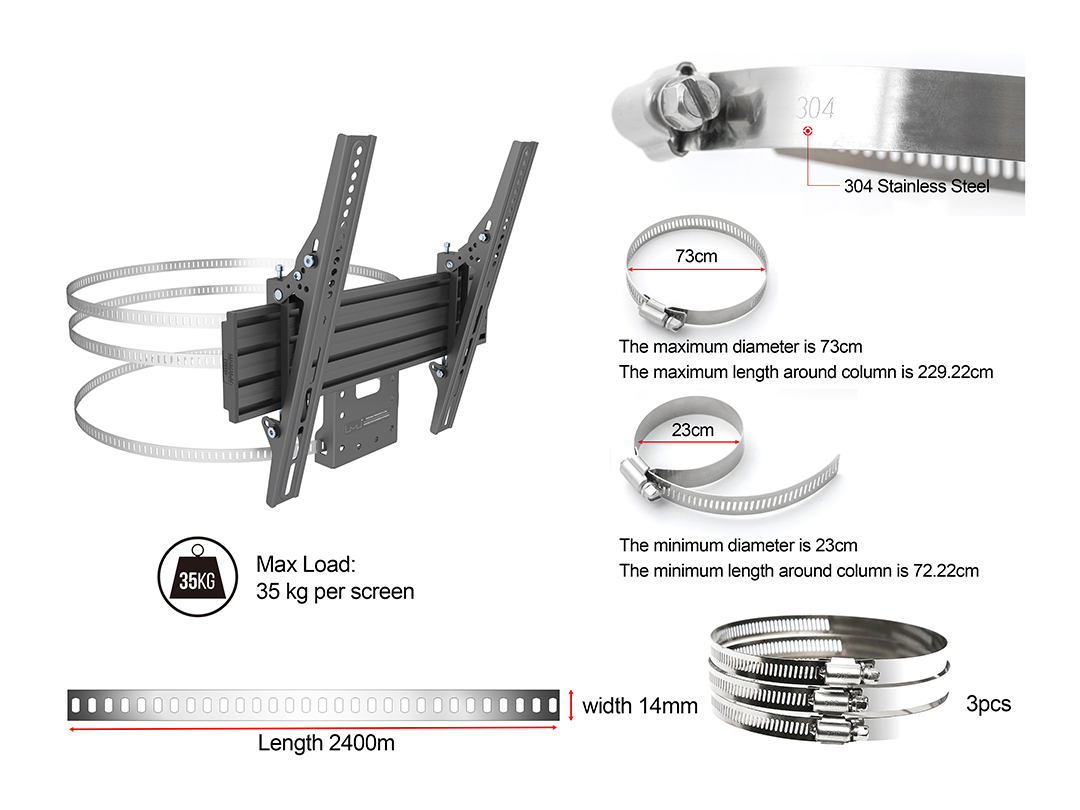

| Flat band measurements: Max diameter round column: Max sidelength square column: |
2400mm (min 720mm max 2290mm) 73cm 55x55cm |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 74.7 x 9.7 x 15.6 cm |
| Package Weight: | 4.50 kg |
