M Public Video Wall Mount Push HD VESA 1200 XL
Options
Variants that match your options:
In stock: 79
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022739086
Product Overview

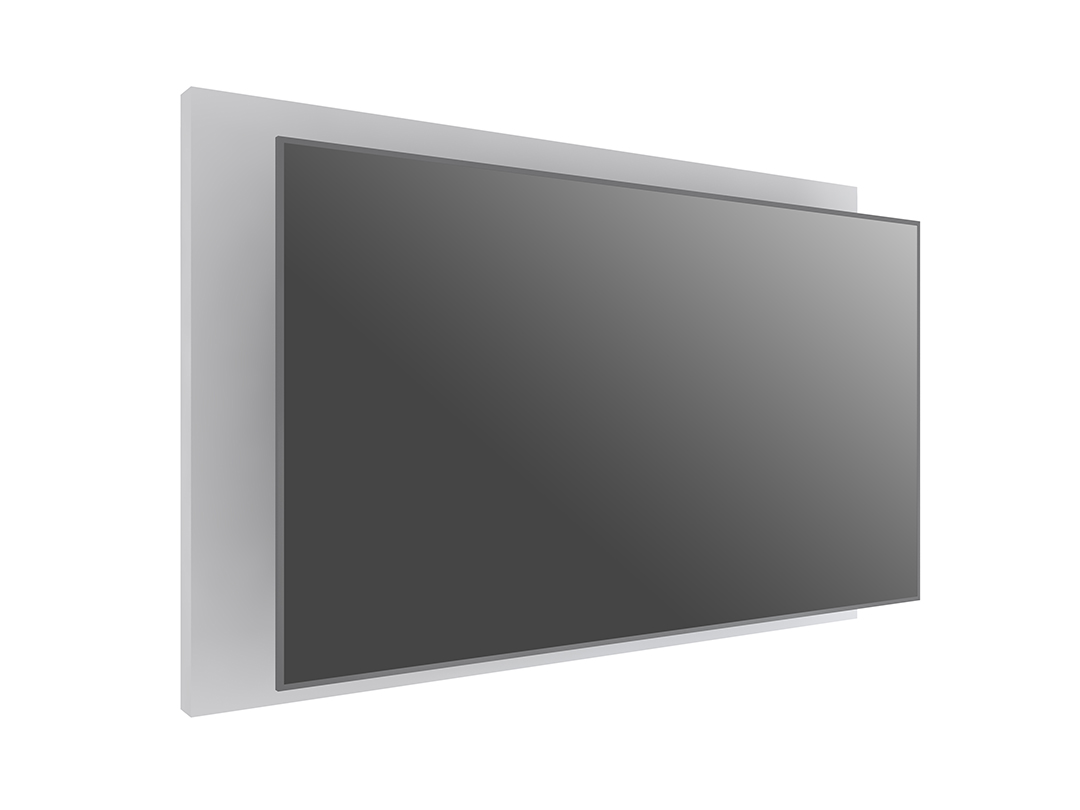

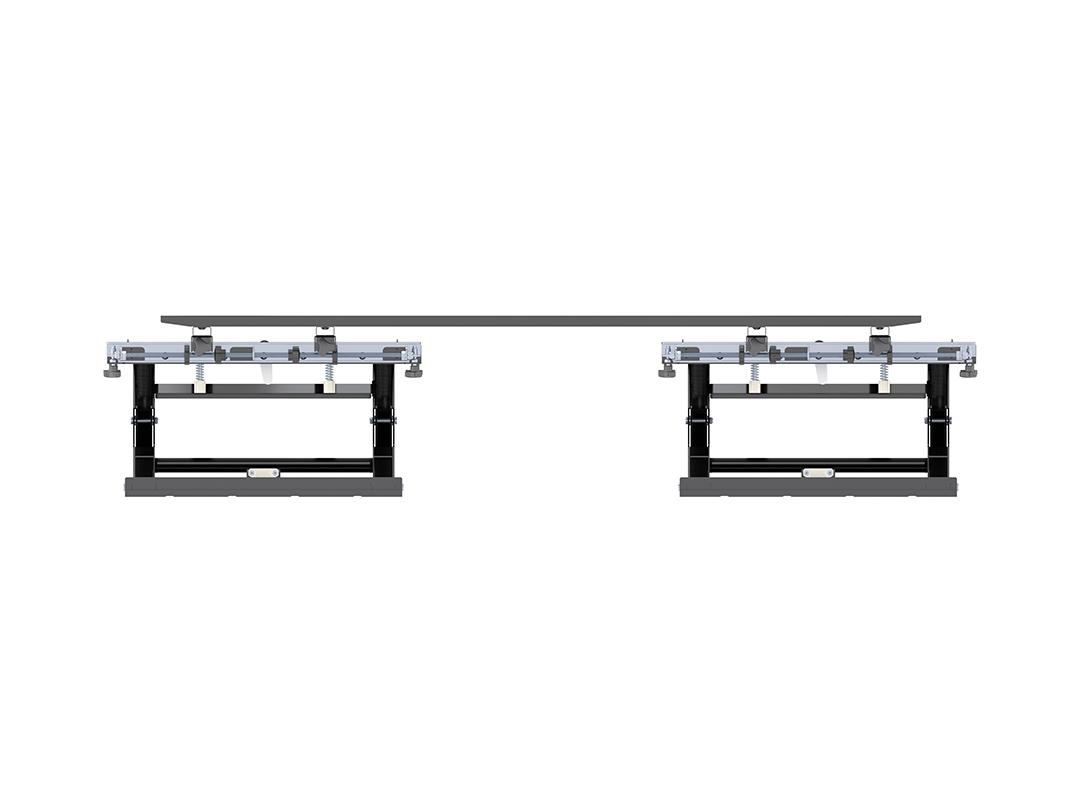

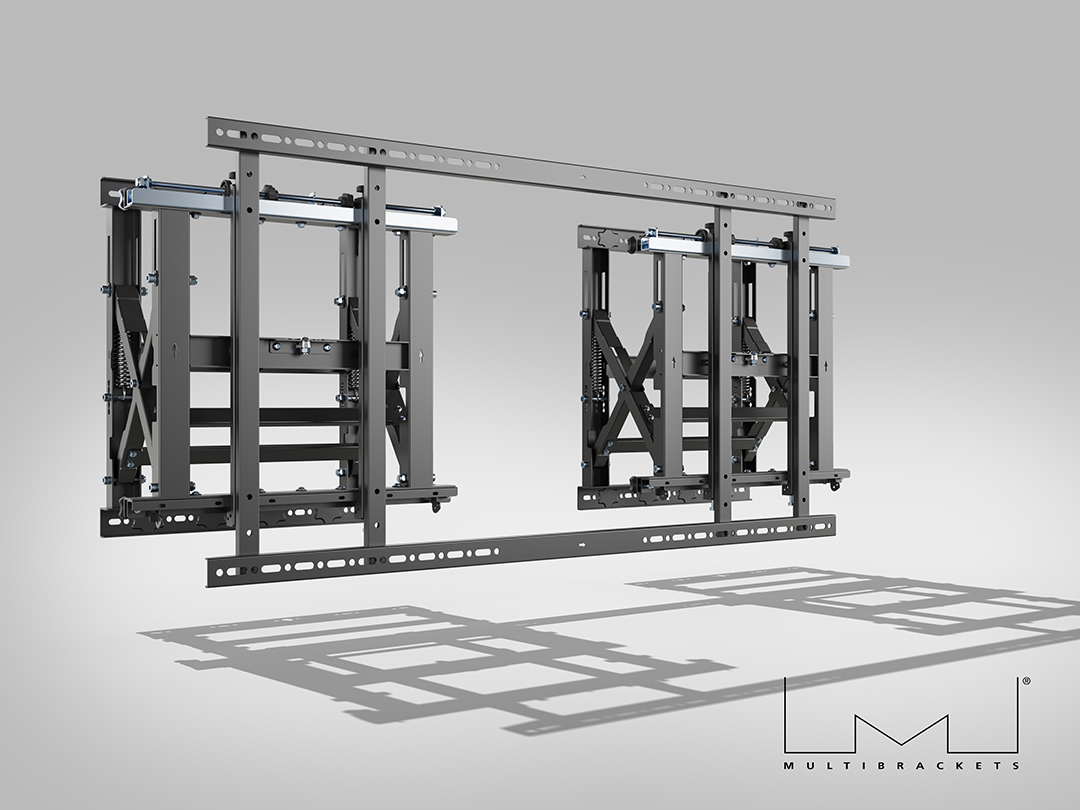

The M Public Video Wall Mount Push HD VESA 1200 XL is a heavy-duty pop-out wall mount designed for extra-large displays up to 120" and 135 kg. Ideal for professional digital signage and recessed installations, this dual-rail solution delivers tool-less micro-adjustment, clean cable routing, and a push-in pop-out mechanism for safe and easy servicing.
Compatible with leading display brands like Samsung, LG, Philips, Sony, and NEC, the mount supports both portrait and landscape orientation, making it perfect for control rooms, retail, and public environments requiring high-impact visuals and accessibility.
Highlights
- Supports 85" to 120" displays up to 135 kg
- Push-in pop-out system for fast and safe access

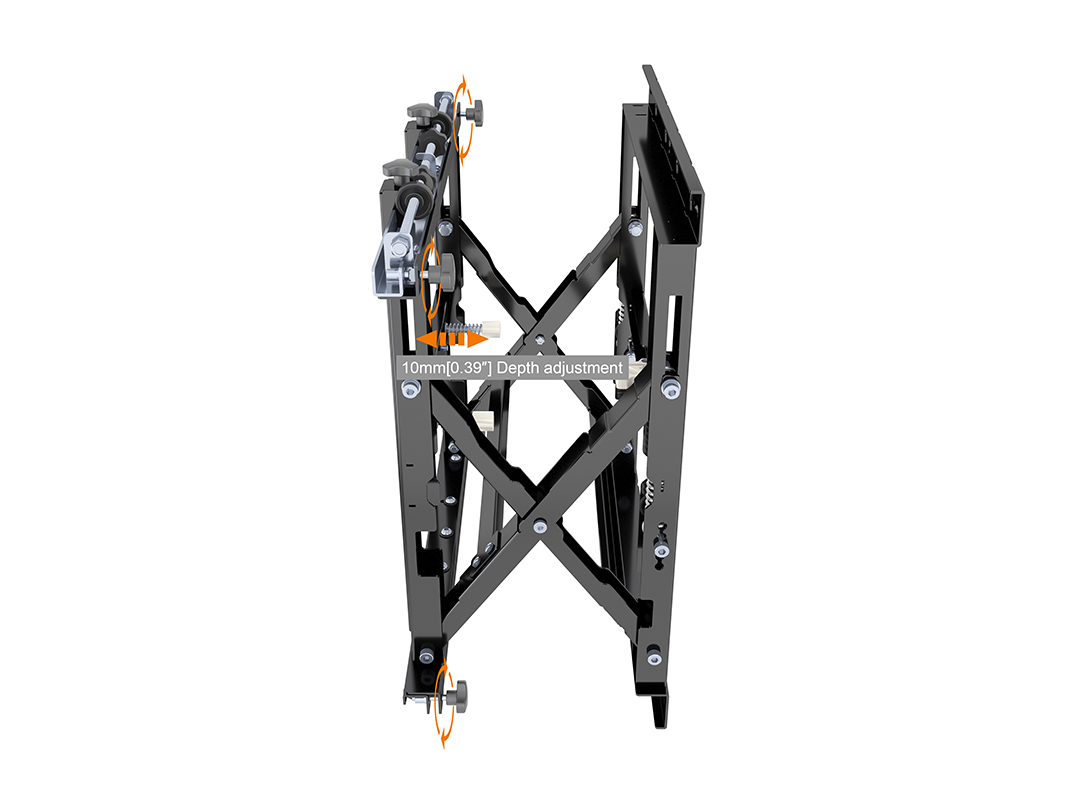

- Tool-less micro-adjustment: ±10mm at each corner
- Compatible with VESA from 300x600 to 1200x600

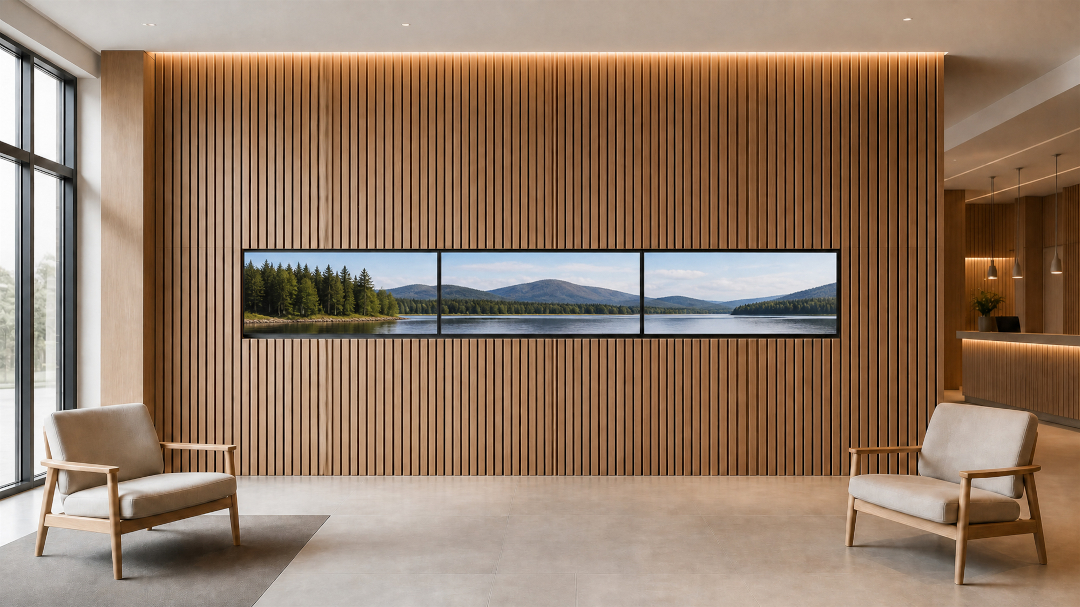

- Ideal for recessed wall applications and video walls
- Clean cable management for professional installation
- Hook-on installation with optional safety locking screws

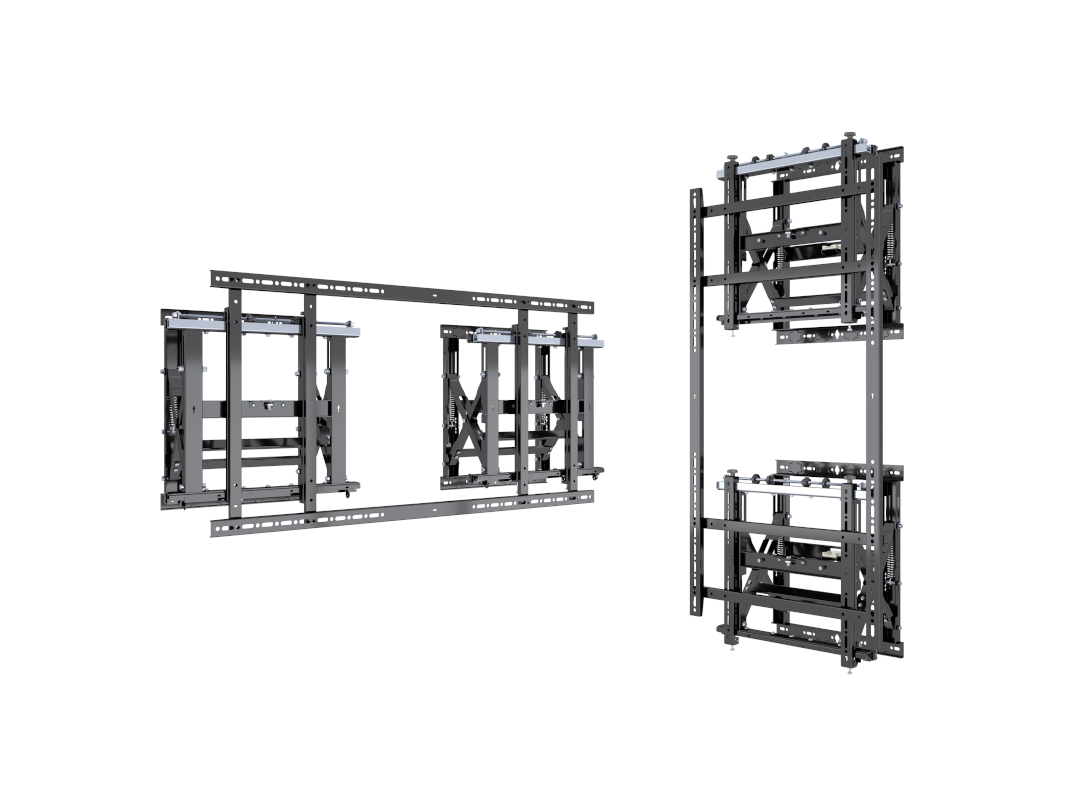

- Portrait and landscape mounting supported
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Discover more Pro Series solutions

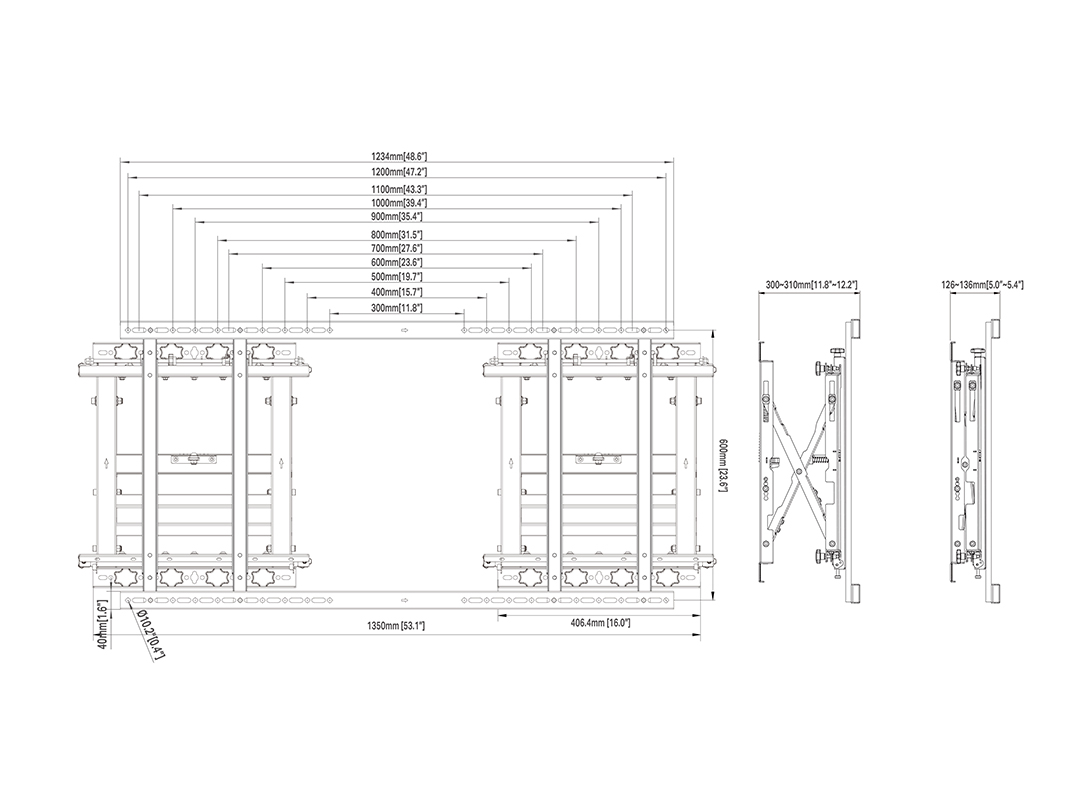

| Specification | |
| M Public Video Wall Mount Push HD VESA 1200 XL | |
| Article No: | 7 350 022 739 086 |
| For screen size: | 85”-120" |
| Type: | M Wallmount Column Dual Sided HD |
| Universal & VESA standard: | 300x600, 400x600, 500x600, 600x600, 600x1000, 600x1200 700x600, 800x600, 900x600, 1000x600, 1100x600,1200x600mm |
| Installation: | Samsung model: 105QPD + other displays not model specified above (check VESA) |
| Material/ Color: | Steel, Aluminum/ Black |
| Surface Finishr: | Powder coating |
| Weight: | 33 kg |

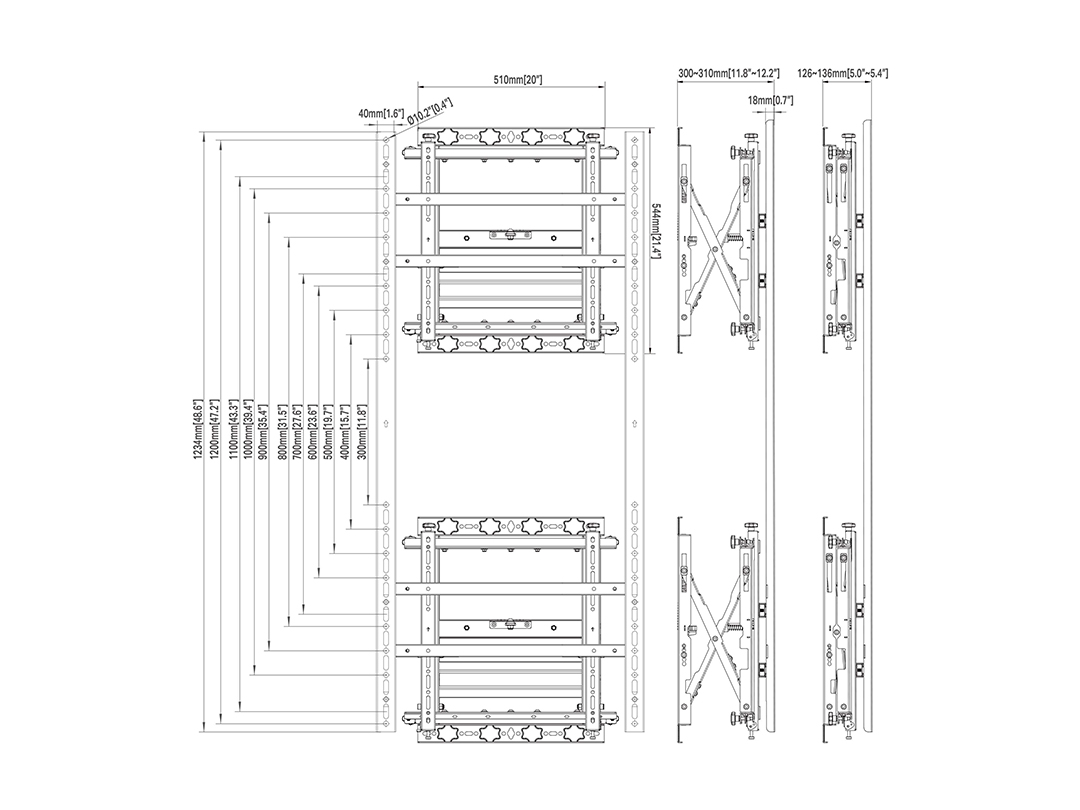

| Measurements | 124.4 x 8.5 x 4.6 cm + 64.7 x 58.7 x 9.8 cm + 64.7 x 58.7 x 9.8 cm |
| Max Load: | 135 kg |

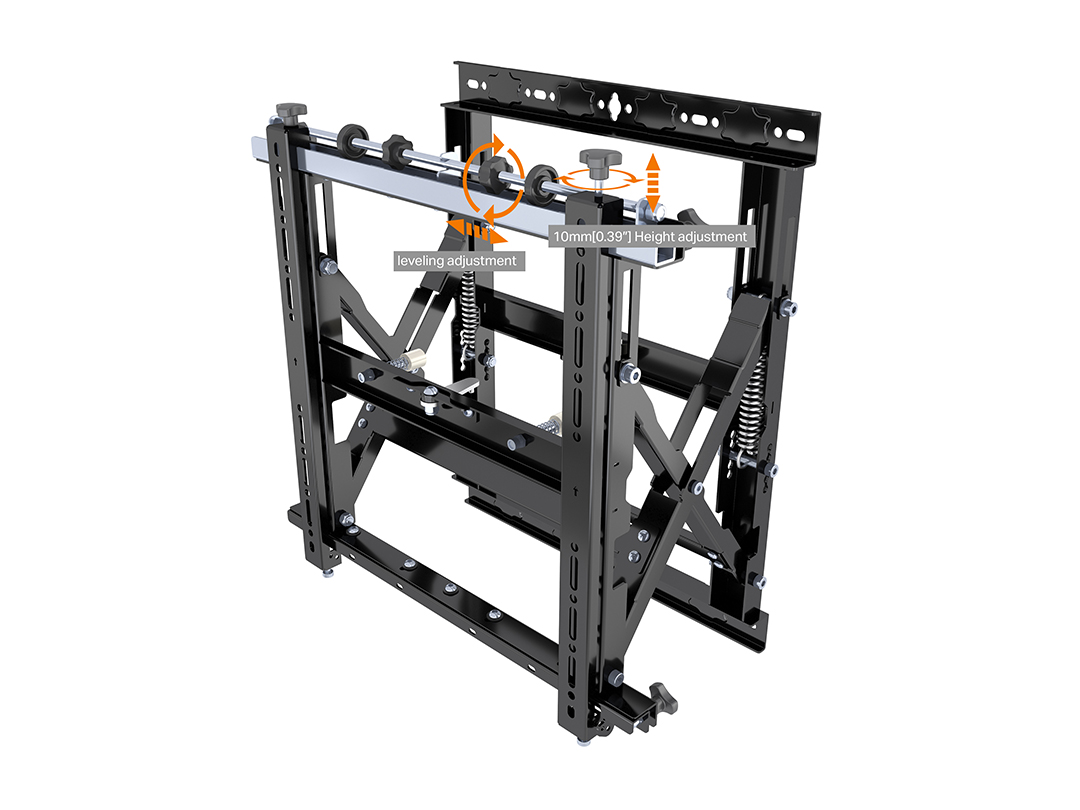

| Height Adjustement: | Yes, 10mm |
| Tilt: | 0° |
| Swivel: | 0° |
| Rotate: | 0° |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 3 pcs |
| Package Measurements: | 124.4 x 8.5 x 4.6 cm + 64.7 x 58.7 x 9.8 cm + 64.7 x 58.7 x 9.8 cm |
| Package Weight: | 35 kg |
