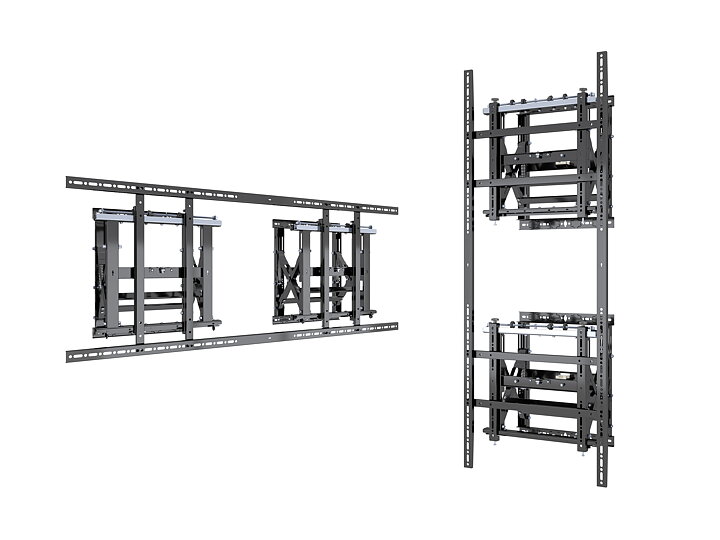

M Public Video Wall Mount Push HD VESA 1600 XL
Options
Variants that match your options:
In stock: 83
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022739093
Product Overview

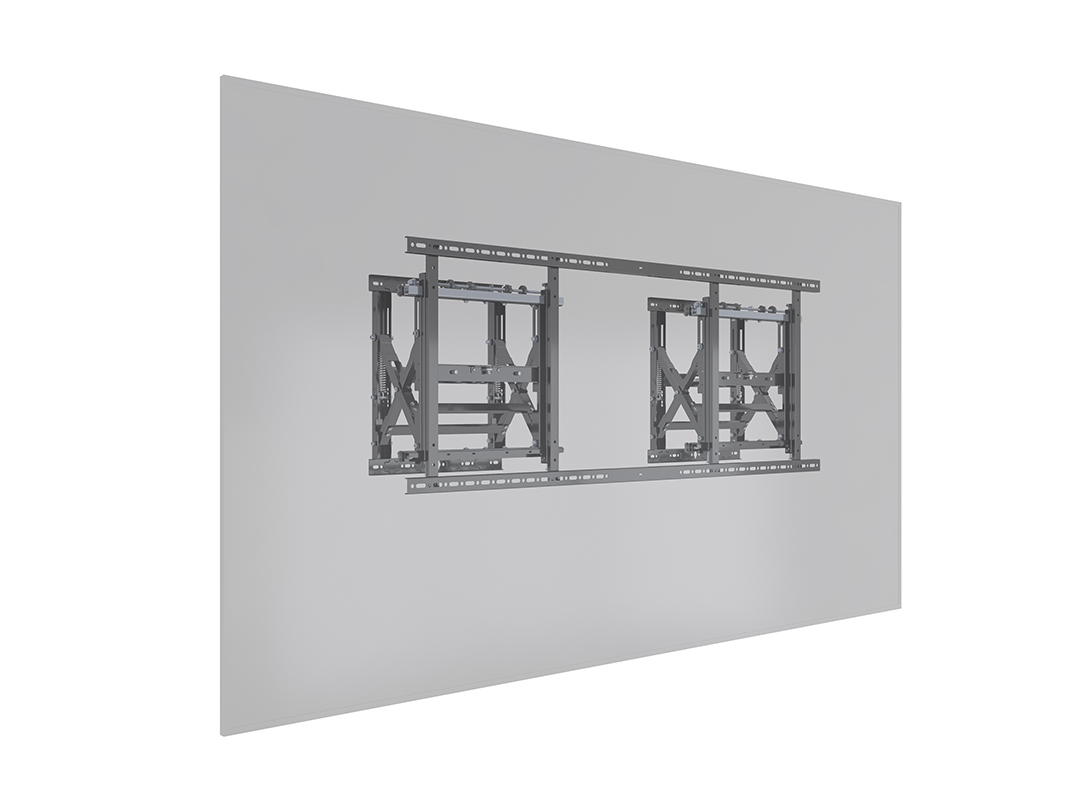

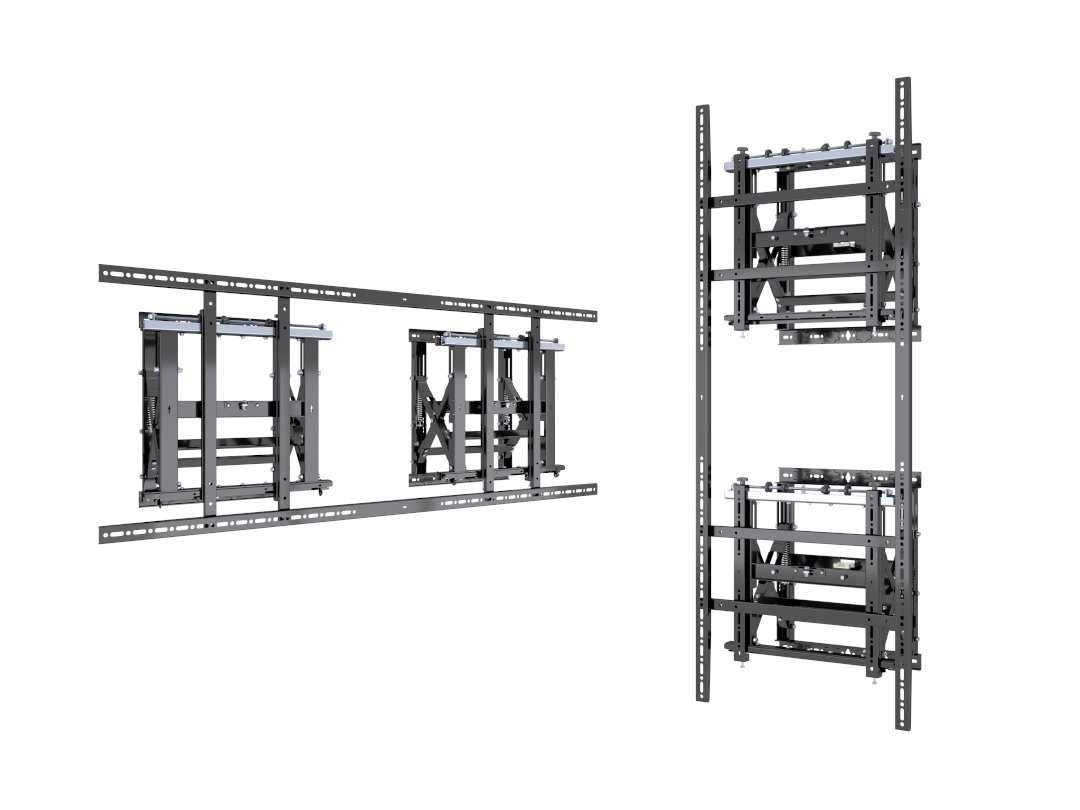

The M Public Video Wall Mount Push HD VESA 1600 XL is a heavy-duty pop-out wall mount built for oversized digital signage displays from 85" to 160", with support for VESA patterns up to 1600x600 and max load of 135 kg. Designed for professional recessed installations, it offers tool-less micro-adjustment and fast access for maintenance through its push-in pop-out mechanism.
Engineered for precision, this mount delivers ±10mm adjustment at each corner for depth, height, and lateral alignment. A built-in cable management system ensures a clean, professional result even in large-scale video wall setups. Compatible with major display brands including Samsung, LG, Sony, Philips, and NEC, it supports both landscape and portrait orientations.
Highlights
- Supports extra-large displays from 85" to 160"
- Push-in pop-out arms for safe, quick access and servicing
- Tool-less micro-adjustment: ±10mm at all four corners
- VESA compatibility from 300x600 to 1600x600

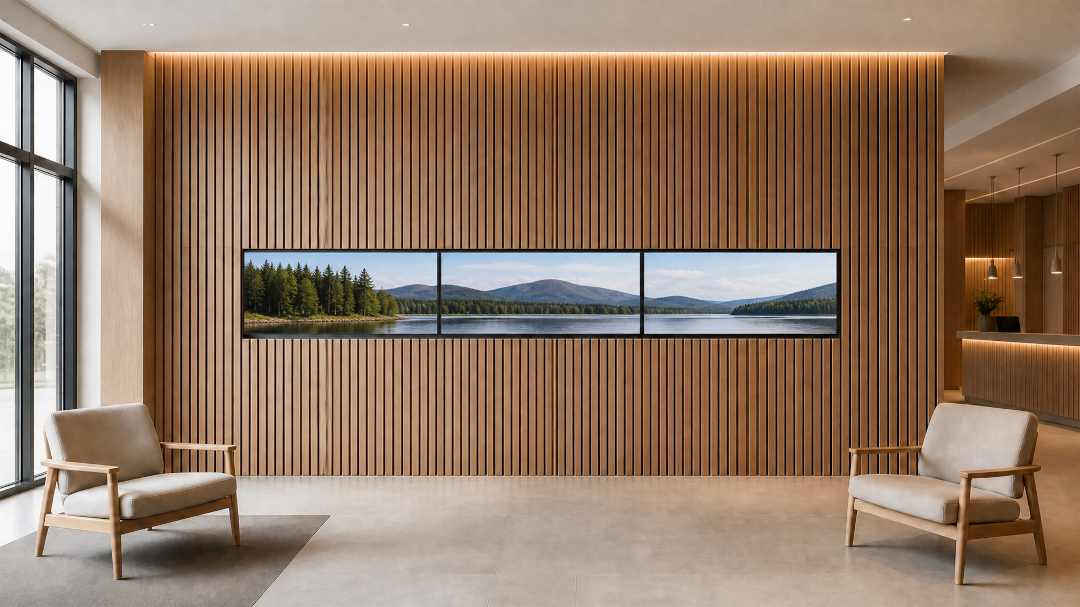

- Ideal for recessed installations in public and corporate environments
- Built-in cable management ensures a clean installation
- Keyhole wall plate mounting and hook-on system for fast setup

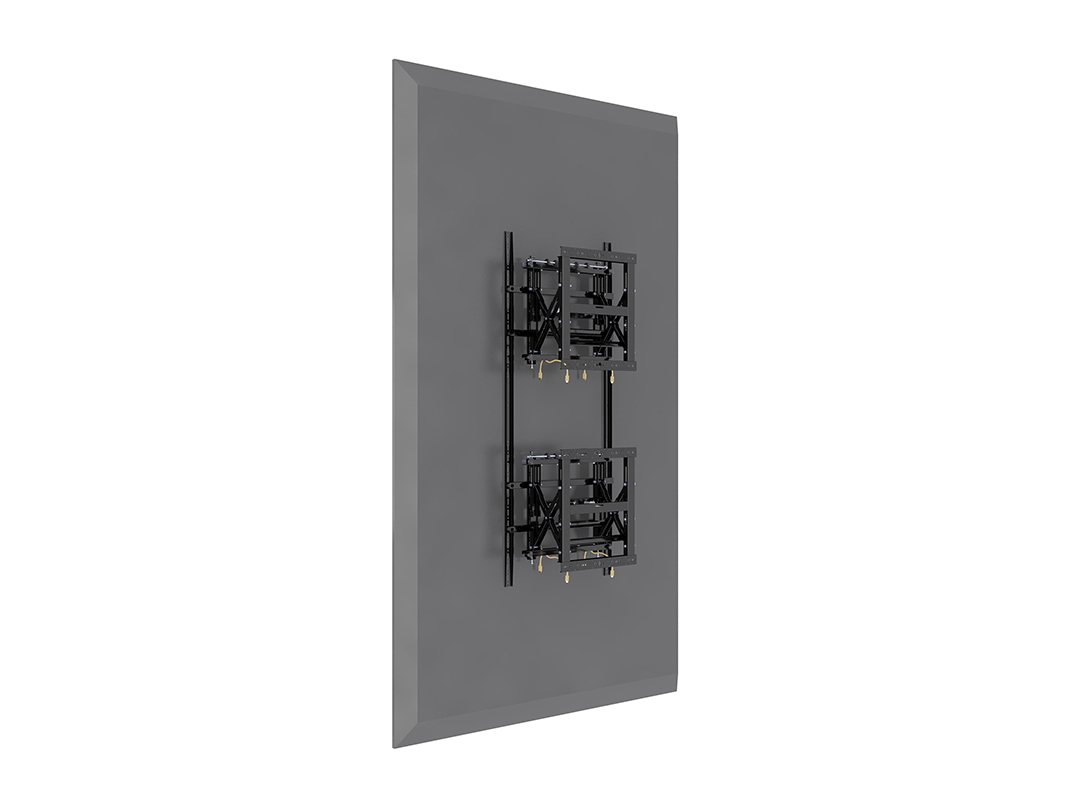

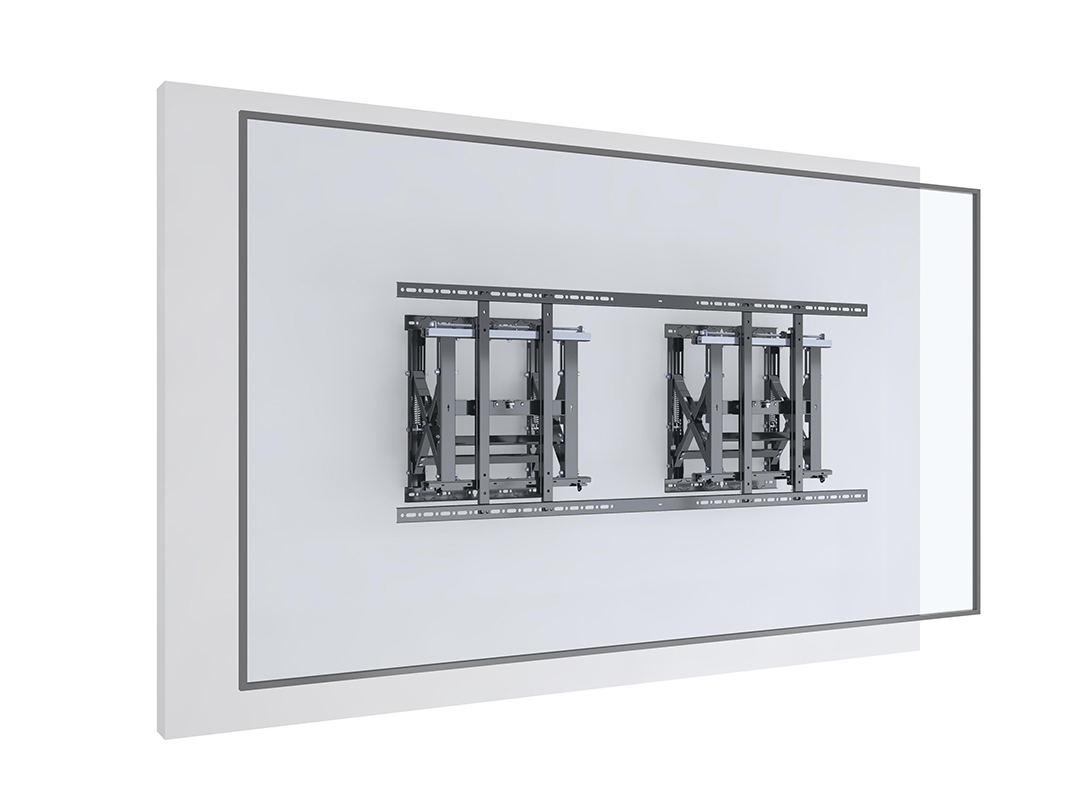

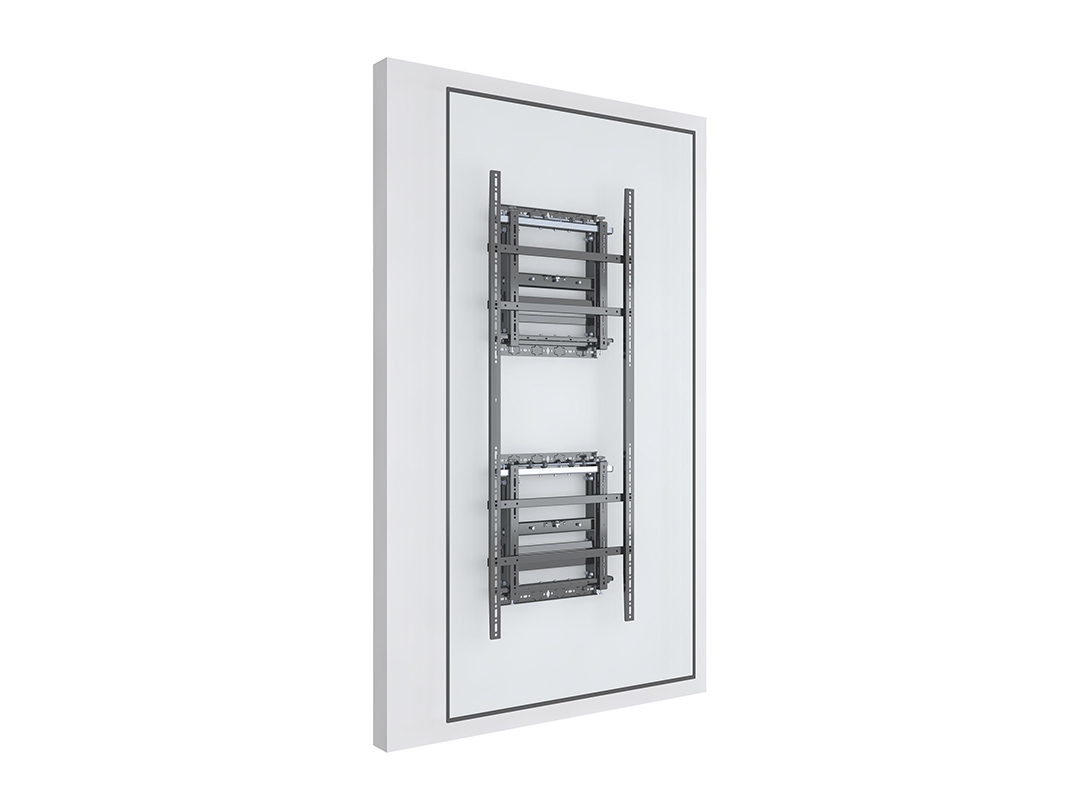

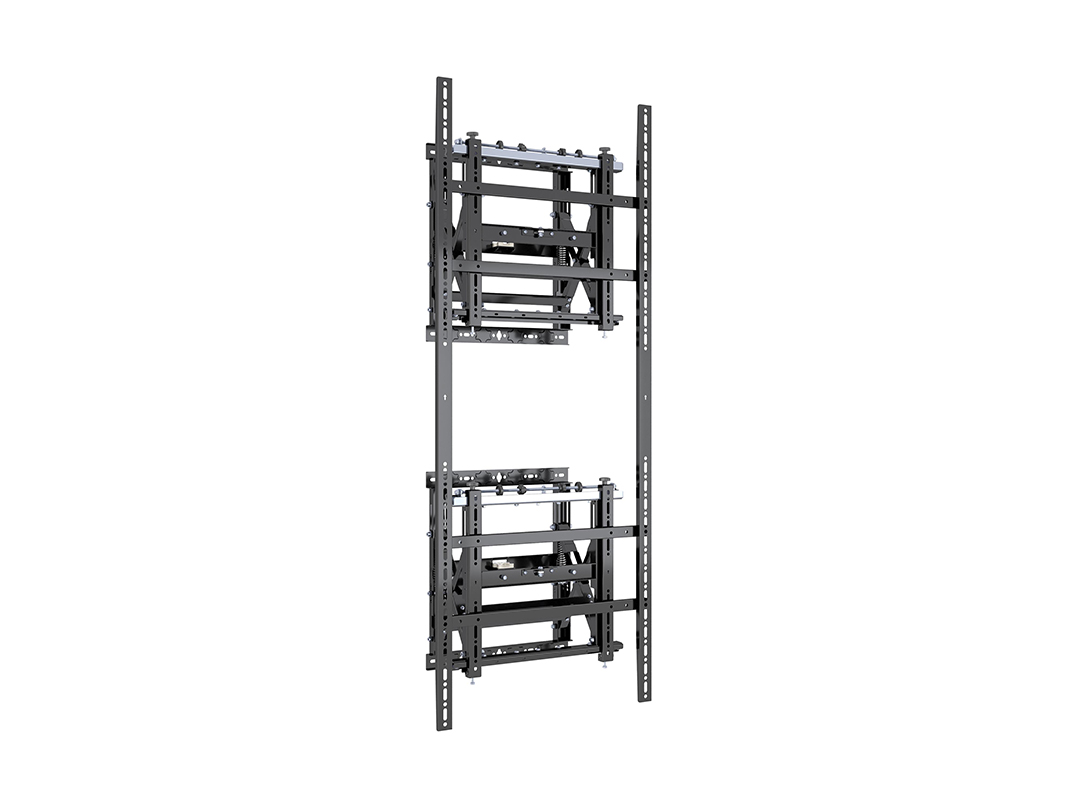

- Landscape and portrait mounting options
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Public Video Wall Mount Push HD VESA 1600 XL | |
| Article No: | 7 350 022 739 093 |
| For screen size: | 85”-160" |
| Type: | M Wallmount Column Dual Sided HD |
| Universal & VESA standard: | 800x600, 900x600, 1000x600, 1100x600, 1200x600 1300x600 1400x600 1500x600 1600x600mm |

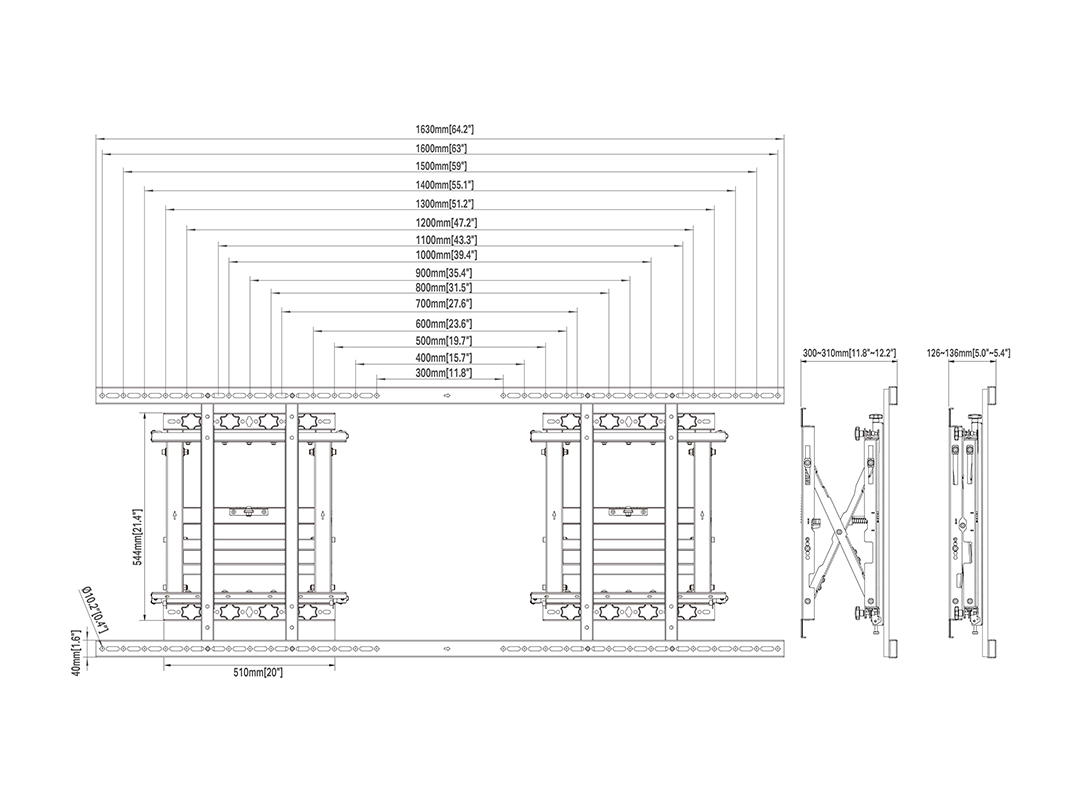

| Installation: | Samsung 115" LH115QHFEBGXXS Ilyama 105" Prolite LH10551UWS-B1AG, LG 110UM5J, 110UM5K & 105BM5N 105BM5P + other displays with a maximum VESA of 1600x600 not mentioned (check technical drawing) |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finishr: | Powder coating |
| Weight: | 35 kg |
| Max Load: | 135 kg |
| Height Adjustement: | Yes, 10mm |
| Tilt: | 0° |
| Swivel: | 0° |
| Rotate: | 0° |

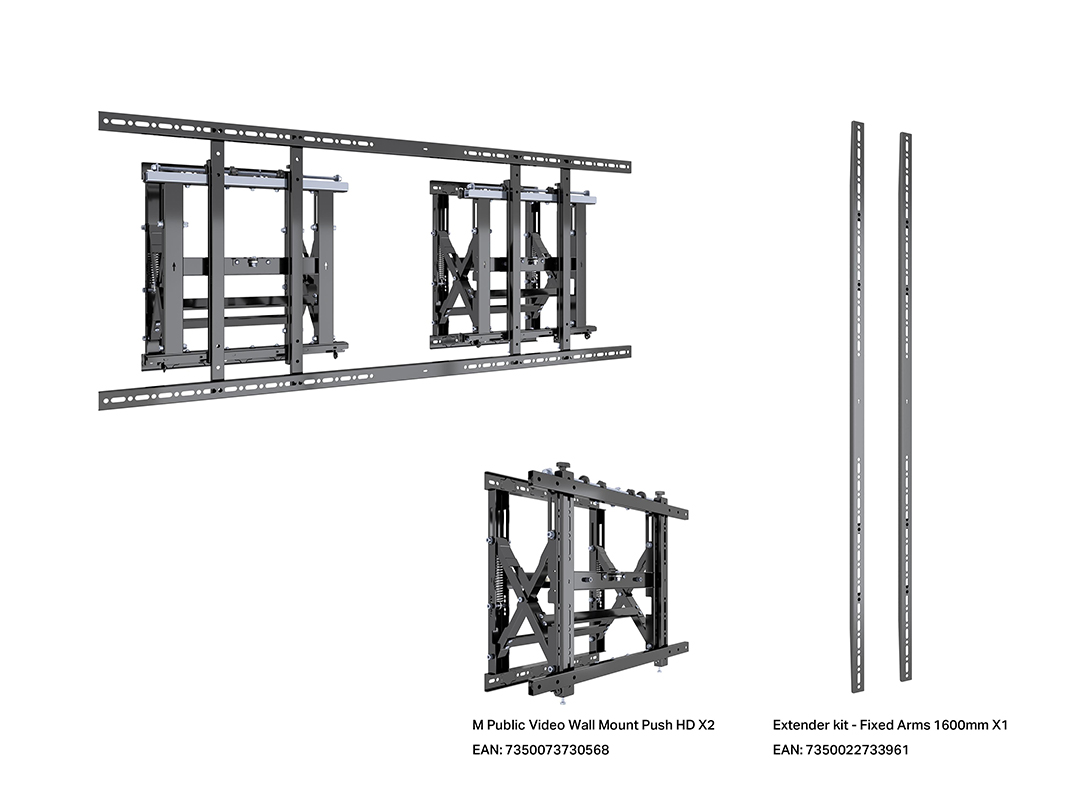

| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 3 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 40 kg |
